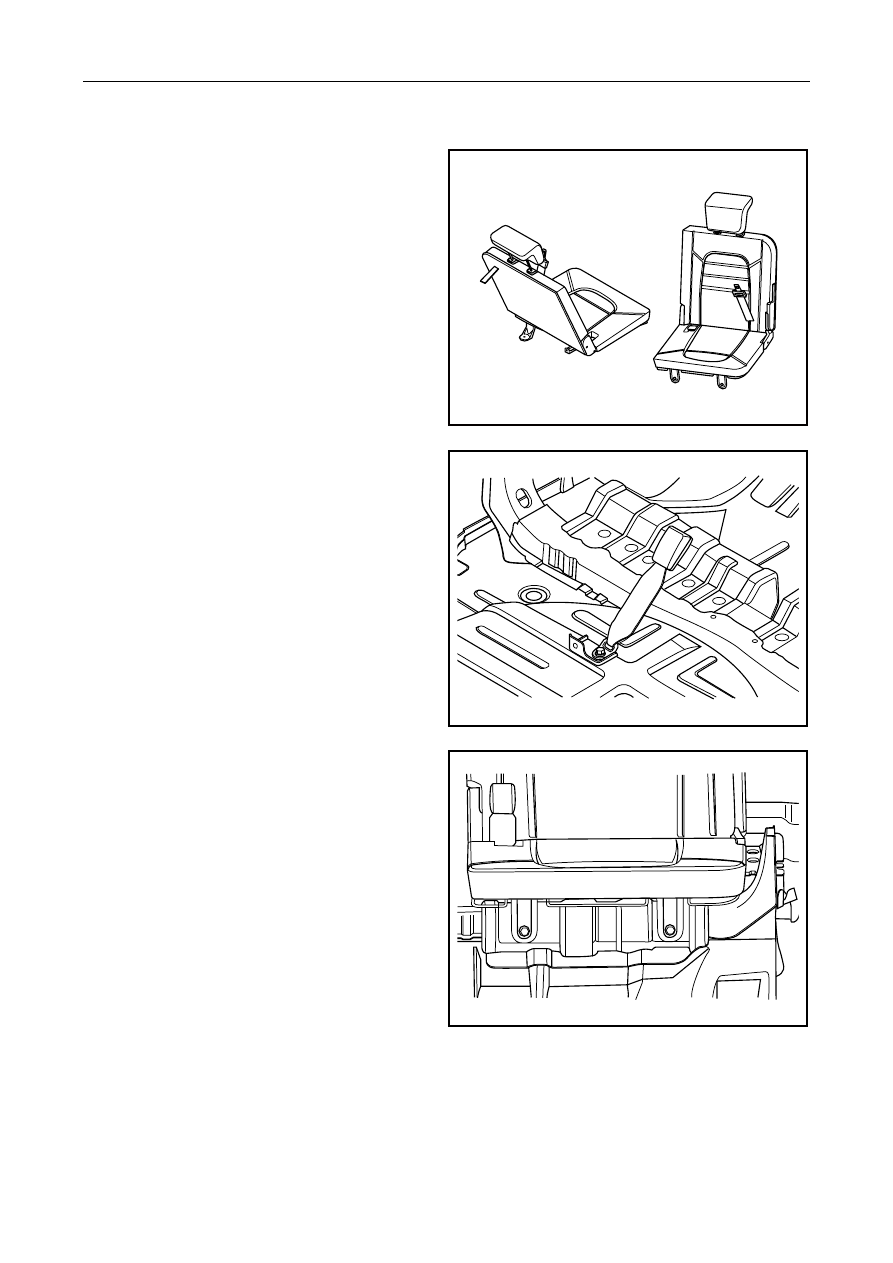

4.    Dismantle middle fixing bracket assembly of rear

seat, rear row left safety belt with buckle
assembly.

Notes:

The dismantling mode of the rear row of left and right
seats is similar.



NL12-0286b

Installation Procedure:

1.   Install rear seat middle fixing bracket assembly,

rear row left side safety belt buckle assembly.

Torque: 45Nm (Metric) 33. 3lb-ft(English system)



NL12-0287b

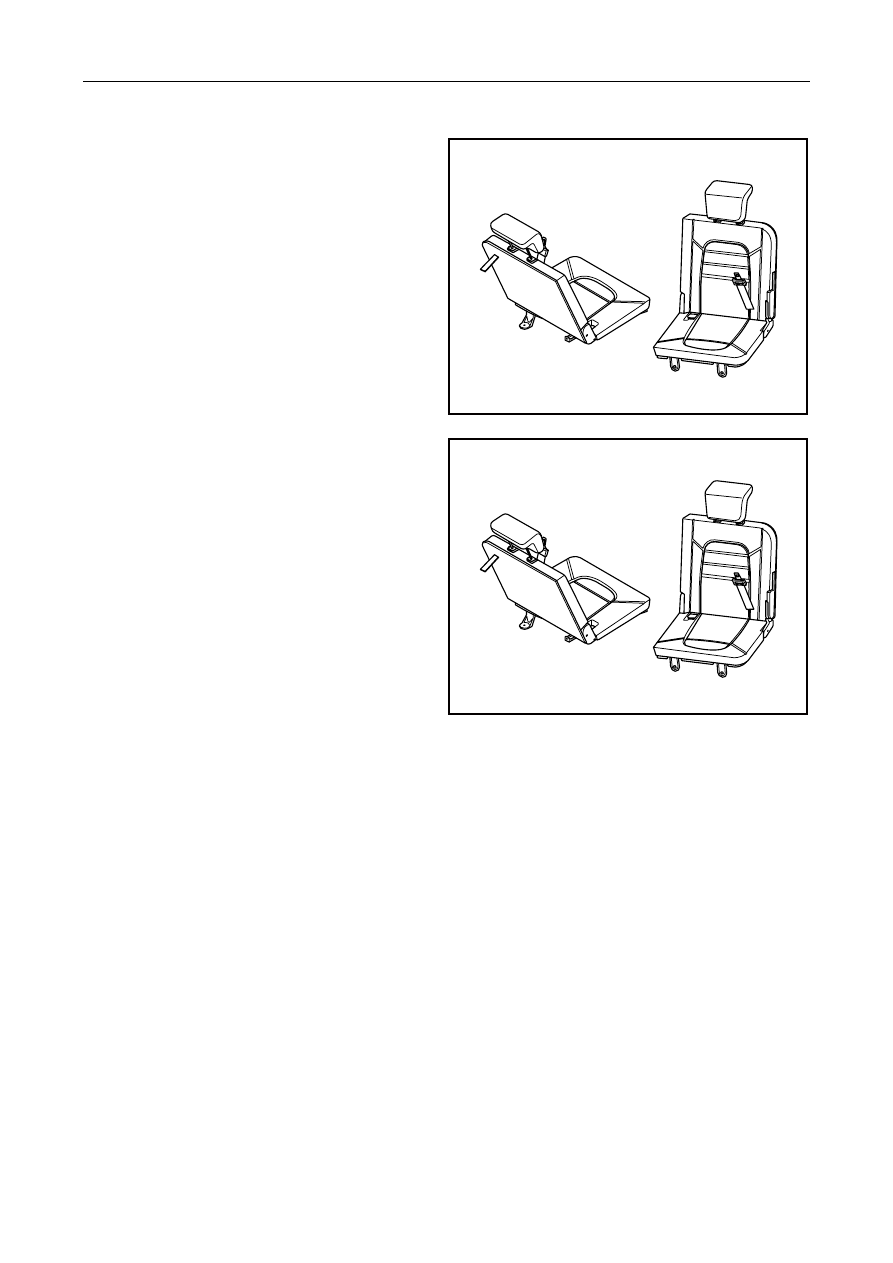

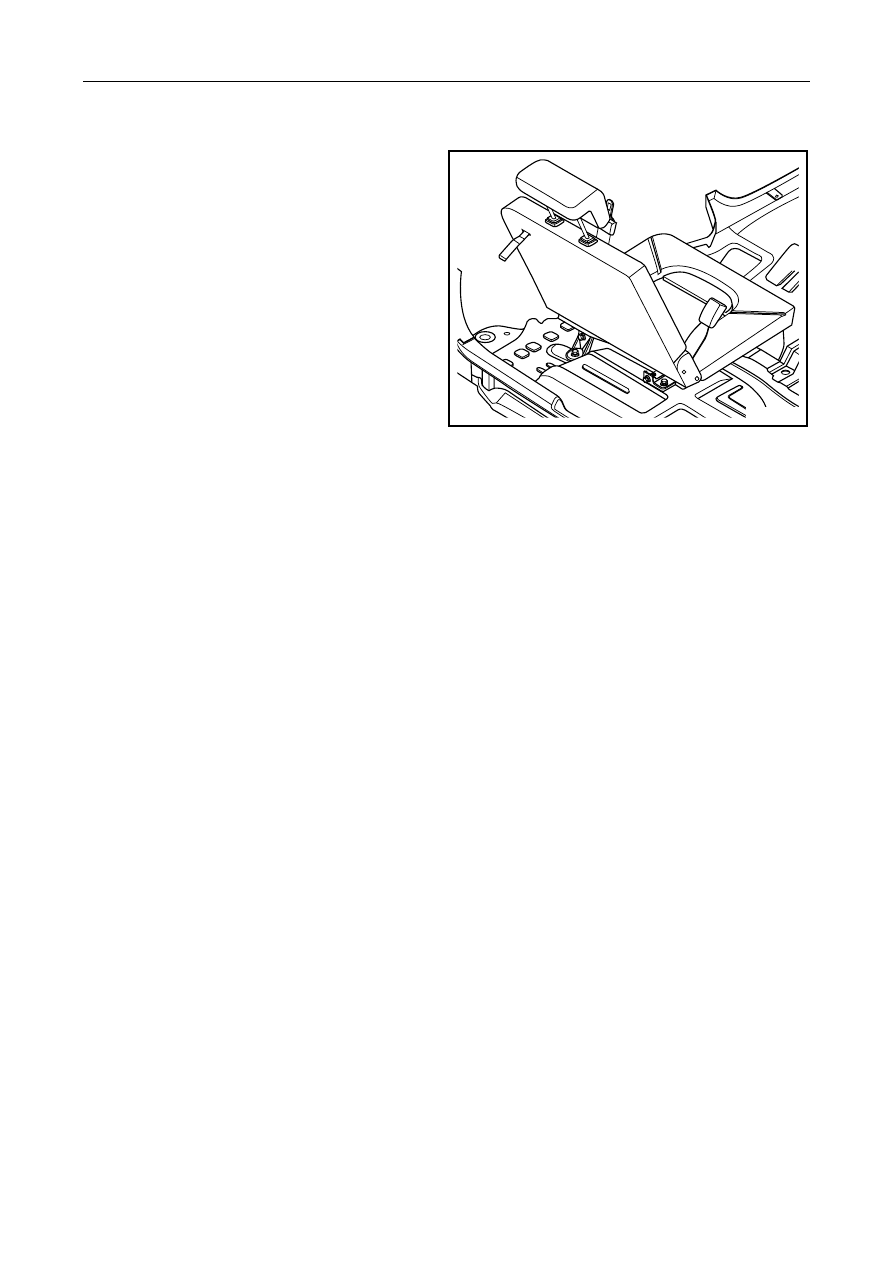

2.    Install rear row seat assembly.

3.   Install fixing bolt on the front end of rear row

seat.

Torque: 45Nm (Metric) 33. 3lb-ft(English system)



NL12-0283b

2699






4.    Install fixing bolt on the rear of rear row seat.

Torque: 45Nm (Metric) 33. 3lb-ft(English system)

Notes:

The installing mode of the rear row of left and right
seats is similar.





NL12-0284b



2700




12.7.3.6 Intermediate row right side, replace seat side trim plate

Dismantlement Procedure

1.    Turn over middle row right side seat.

2.   Dismantle fixing screw of seat side trimming

plate, and remove seat side trimming plate.



NL12-0286b

Installation Procedure:

1.  Install seat side trim plate and fasten fixing

screw.

Torque : 4Nm(Metric) 3lb-ft(English system)

2.    Turn down middle row right seat.

Notes:

The method for disassembling and assembling the
middle row of right seat two-side trim panel is similar.



NL12-0286b

2701

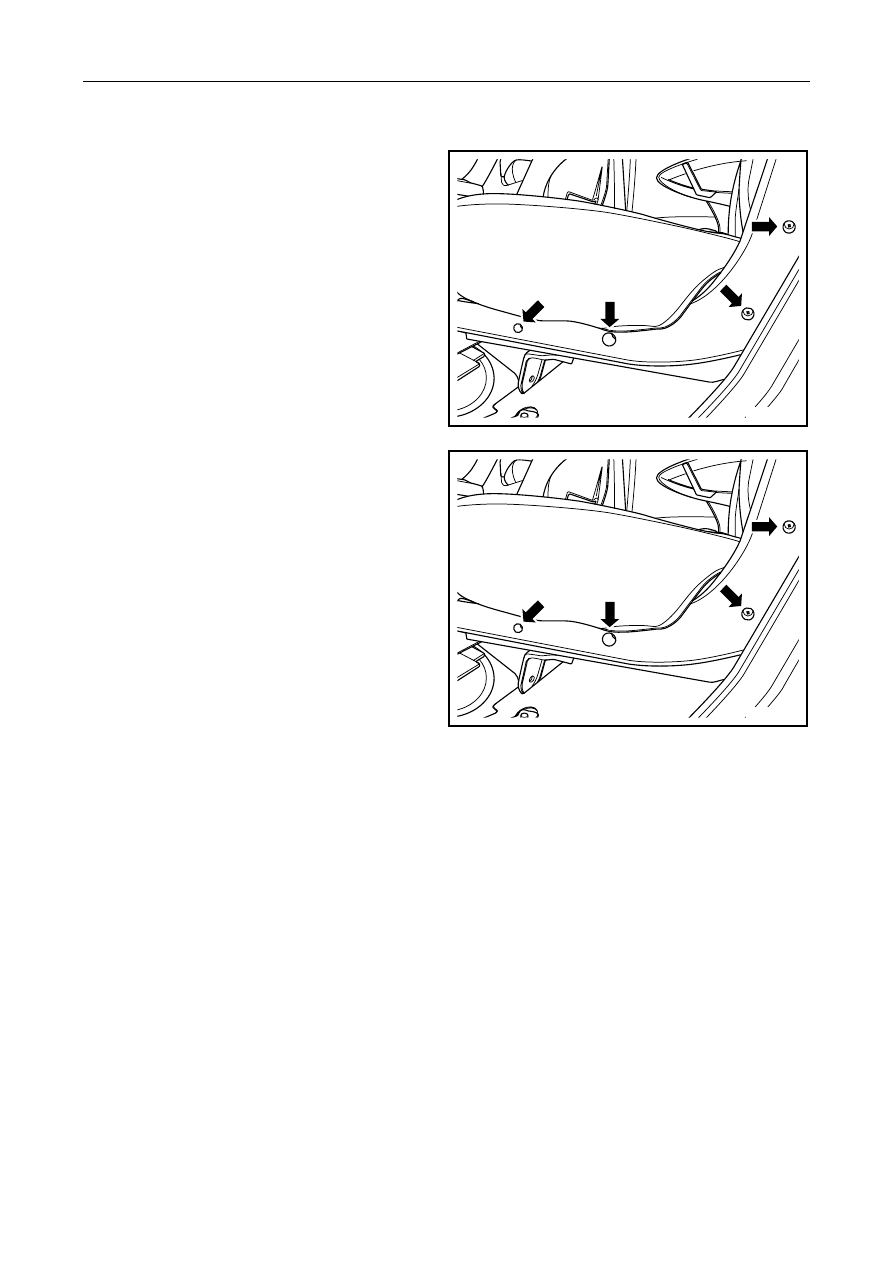

12.7.3.7 Intermediate row left side, replace seat side trim plate

Dismantlement Procedure

1.    Move the middle row left seat to the most front

end of slideway.

2.    Dismantle fixing screw of trimming plate on side

of middle row seat and take of seat side trimming
plate.



NL12-0289b

Installation Procedure:

1.   Install and tighten middle row seat side triming

plate fixing screw.

Torque: 4Nm (Metric) 3lb-ft (Inch)



NL12-0289b





2702
