12.3.3.5 Filler cap open handle and cable replacement

Dismantlement Procedure:

1.    For dismantling of driver's seat, refer to

11.9.8.1

Replacement of front electric seat.

2.    For dismantling of trimming plates on driver and

rear row passenger left door, refer to

12.9.1.1

Replacement of left/ right front doorsill inner
trimming plate assembly.

3.    For dismantling of lower inner trimming plate of

middle column, refer to

12.9.1.3 Replacement of

trimming plate of middle column.



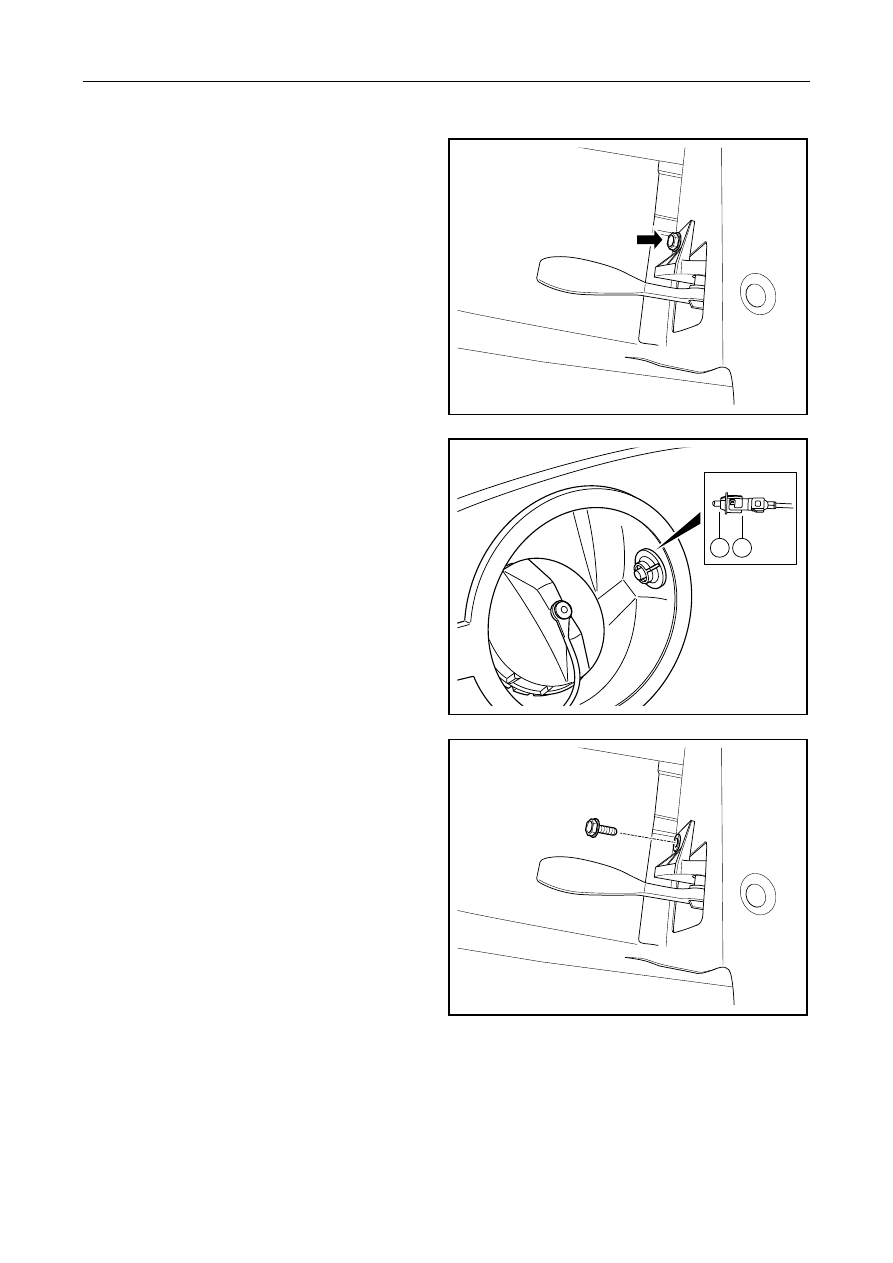

4.    Remove the door-side carpet and the fixing bolt

on the release handle of the filler cap.

NL12-0114b

5.    For removal of the trunk interior, refer to

12.9.1.5

Replacement of Rear Pillar Lower Trim Panel.



6.    Dismantle Open Stay Guy Release Lock Catch 1

in the trunk.

Notes:

Firstly rotate counterclockwise to unlock the lock
catch 1, and then pull out the lock catch from the lock
catch holder 2.

7.    Dismantle the lock catch bearing seat 2 from the

filler pipe side.

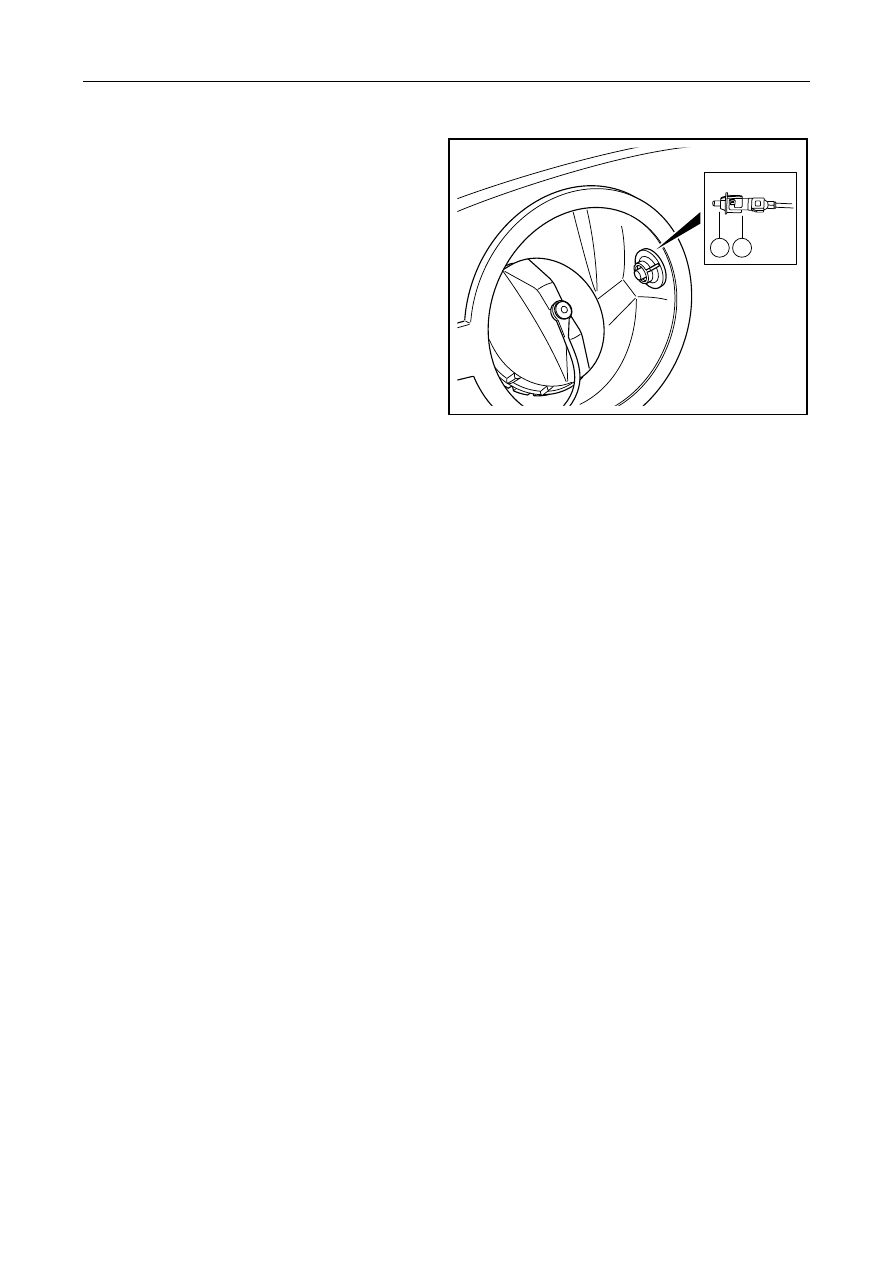

8.    Detach the control cable from the harness buckle

of the underframe to extract the control cable.

2

1

NL12-0115b

Installation Procedure:

1.  Install filler cap cable handle fixing bolt.

Torque: 9Nm (Metric system) 6.7lb-ft (English
system)

2. Arrnage

cable.

Notes:

The cable position shall be consistent with that
before dismantling.

NL12-0116b



2647






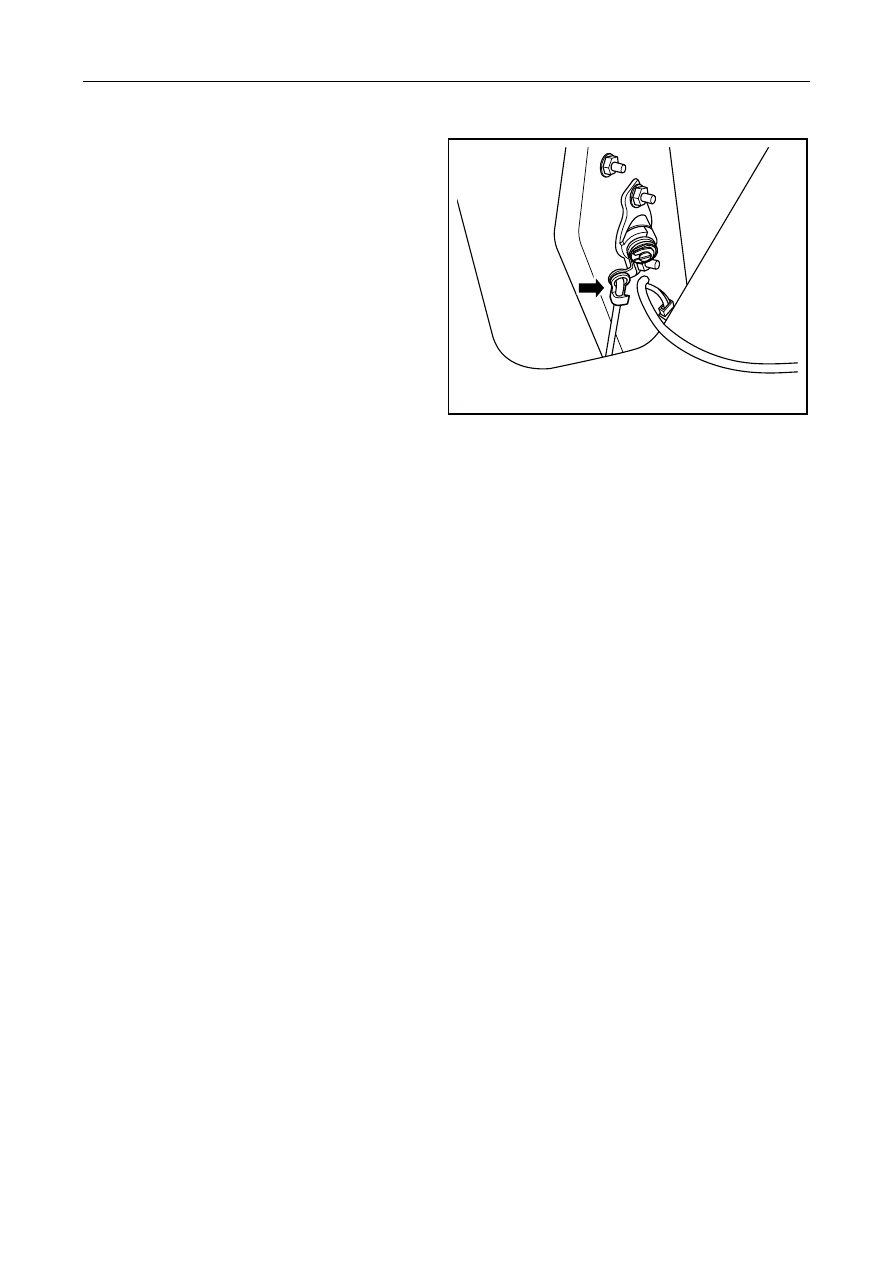

3.    Insert buckle support 2 into the groove of filling

pipe.

4.    Install Release Latch 1 into Latch Seat 2.

5.    Install the boot interior.

6.    Install the lower trim panel for the center pillar.

7.    Install the threshold trim panels on the driver side

and left side of the rear row seat.

8.    Assemble driver chair.



2

1

NL12-0115b



2648




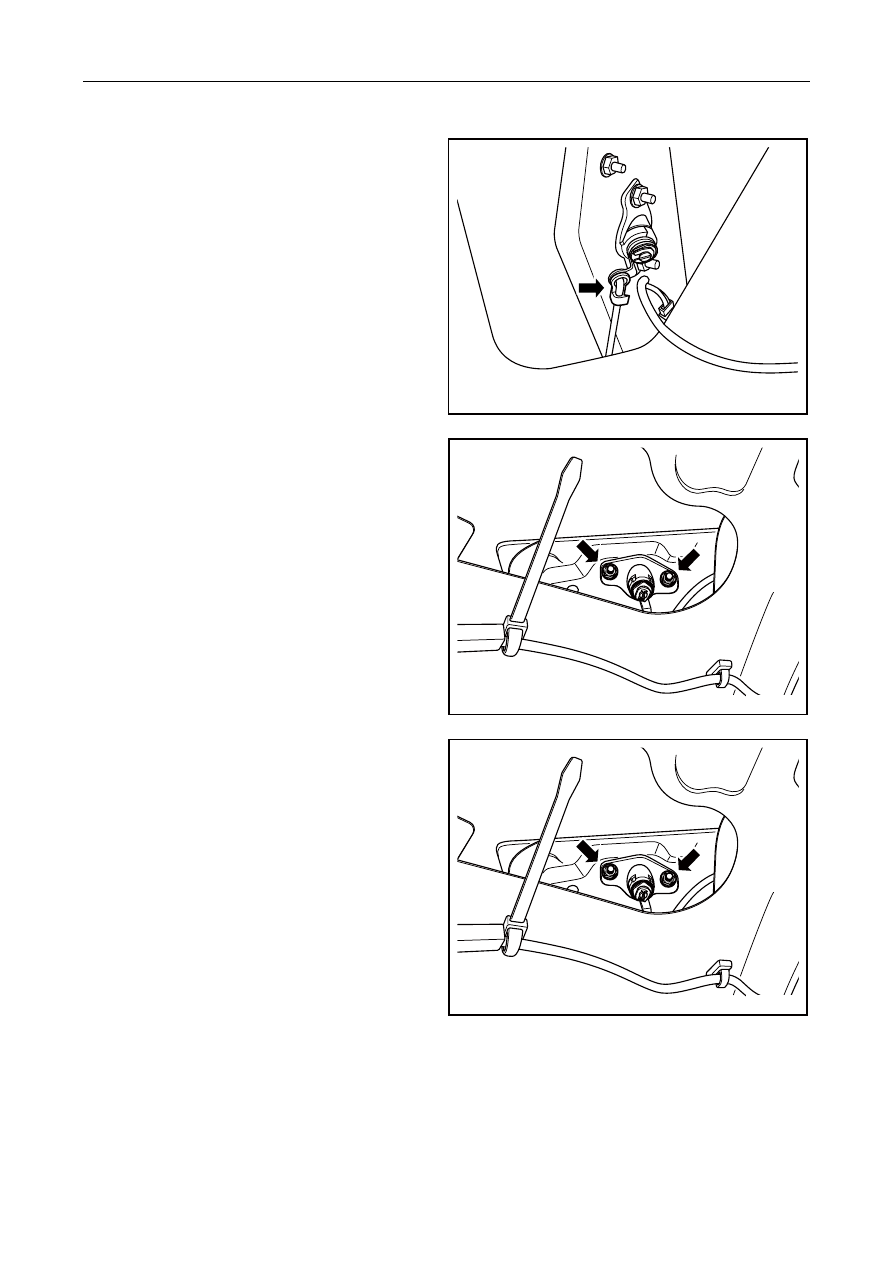

12.3.3.6 Back-door cylinder core replacement

Dismantlement Procedure

1.   For removal of the back door interior, refer to

12.9.1.10 Replacement of Back Door Trim Panel.

2.   Disconnect back door lock core connecting rod

from back door lock.

NL12-0117b

3.    Dismantle fixing nut of back door lock catch.

4.    Remove the back door lock cylinder.

NL12-0118b

Installation Procedure:

1.  Install back door lock core, and tighten nut.

Torque:10Nm(Metric) 7.4lb-ft(English system)

NL12-0118b



2649






2.    Insert back door lock catch into back door lock.

3.    Install the back door interior.



NL12-0117b
