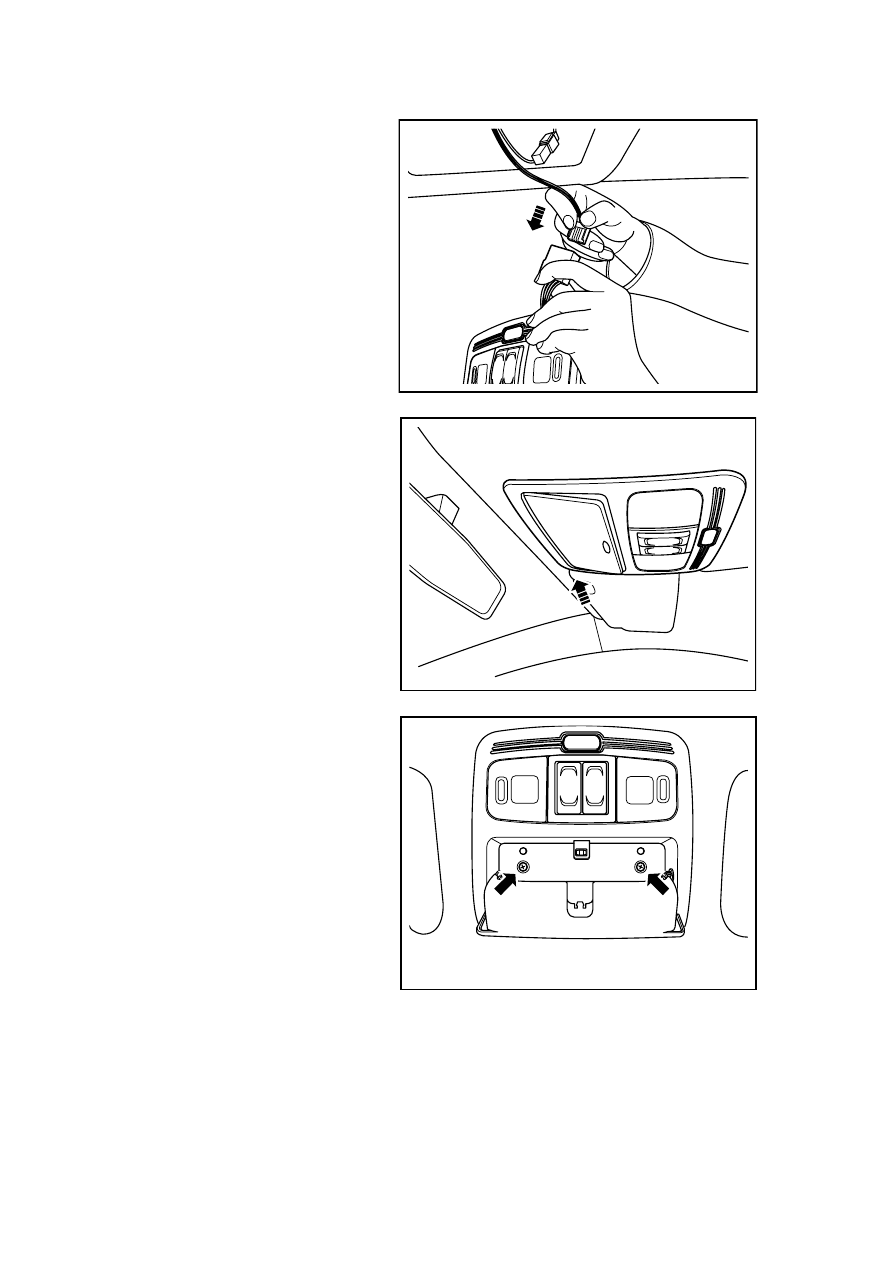

Installation procedure:

1. Connect the sunroof switch

assembly harness connector.

NL11-0180b

2. Install the sunroof switch

assembly.

NL11-0181b

3.  Install the fixing bolts of sunroof

switch assembly.

Torque: 4Nm(Metric); 3lb-ft (English
system)

Notes:

Refer to fastener notice in warnings
and notices.

4.  Connect the battery negative

cable.

NL11-0177b

2415

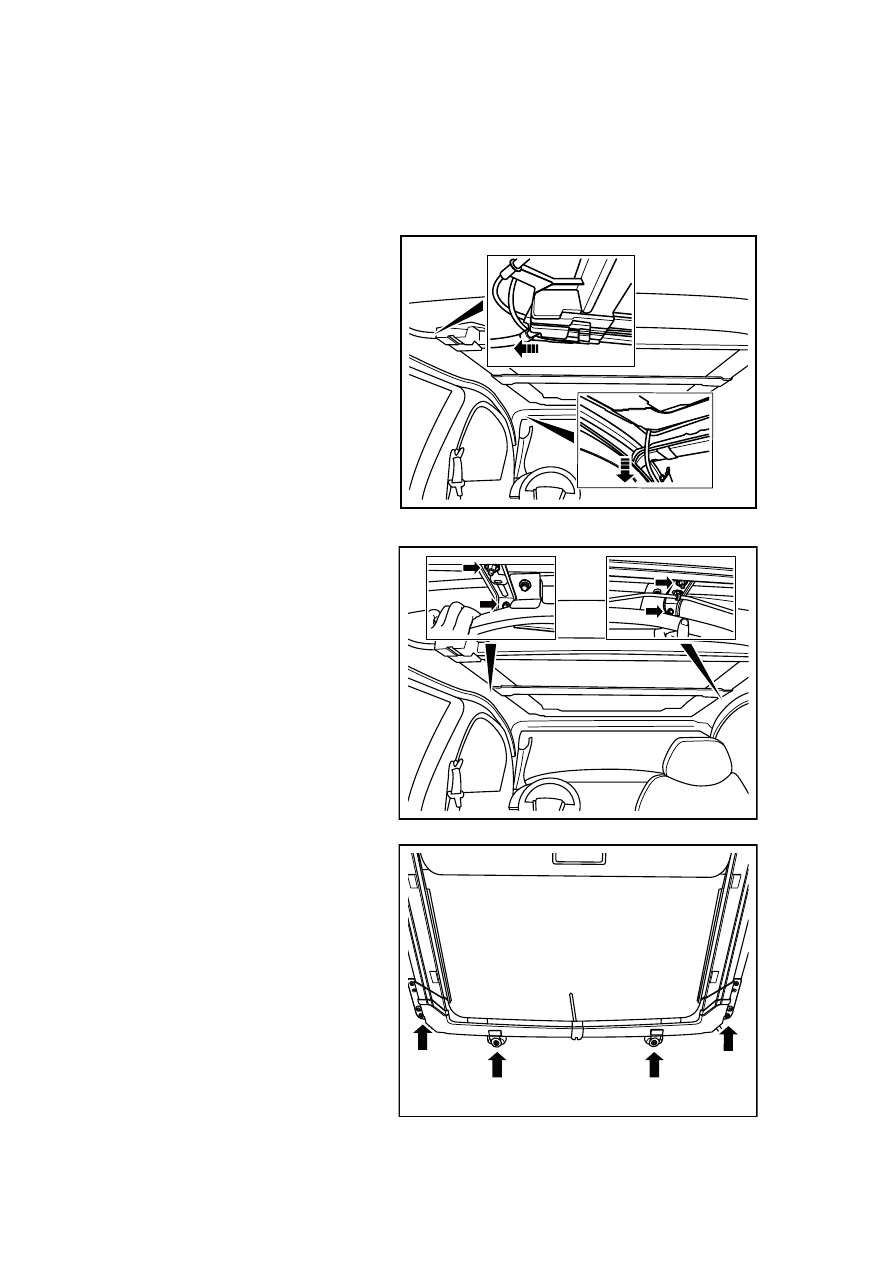

11.8.8.4 Replacement of sunroof frame

Dismantlement procedure

Warning: refer to "precautions on battery disconnection" in "warnings and precautions".

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1
Disconnection and Connection
procedures of Battery Cable in
Vehicle Maintenance Manual.

2.  Disassemble sunroof glass, Refer

to 11.2.8.1 Replacement of
Sunroof Glass.

3.  Dismantle sunroof motor, Refer

to 11.2.8.2 Replacement of
Sunroof Motor.

4.  Disassemble the drain-pipes on

the front and rear sides of
sunroof.

NL11-0182b

5.  Diassemble the front attachment

bracket of sunroof.

NL11-0183b

6.  Dismantle the fixing bolts of

sunroof motor.

NL11-0184b

2416

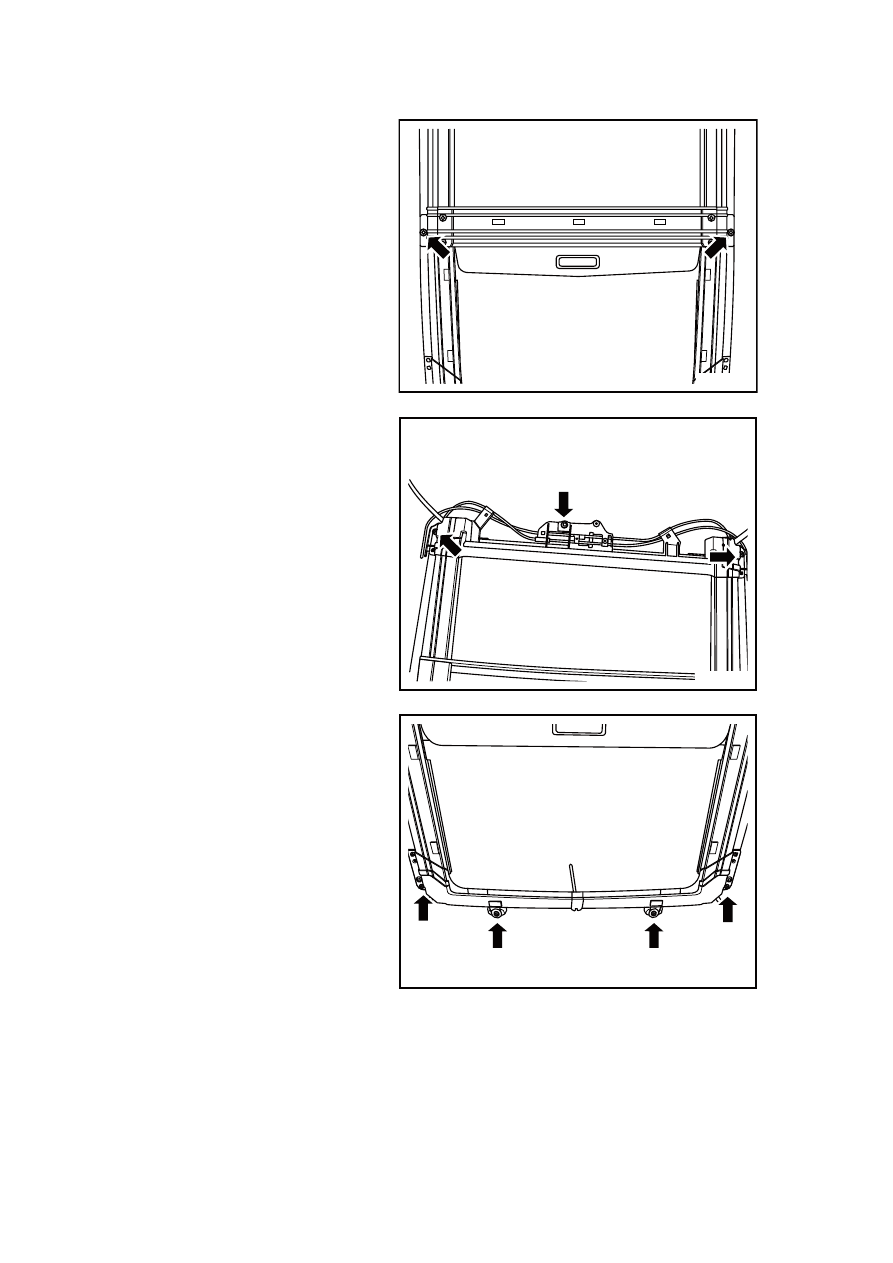

7.  Dismantle the fixing nuts in the

middle of sunroof.

NL11-0185b

8.  Dismantle the fixing bolts in the

rear of the sunroof.

9.  Shift out the sunroof frame.

NL11-0186b

Installation procedure:

1.  Install the sunroof frame, Tighten

up the retaining bolts in the front
of sunroof.

Torque:10 Nm(Metric) 7.4 lb-ft
(English system)

NL11-0184b

2417

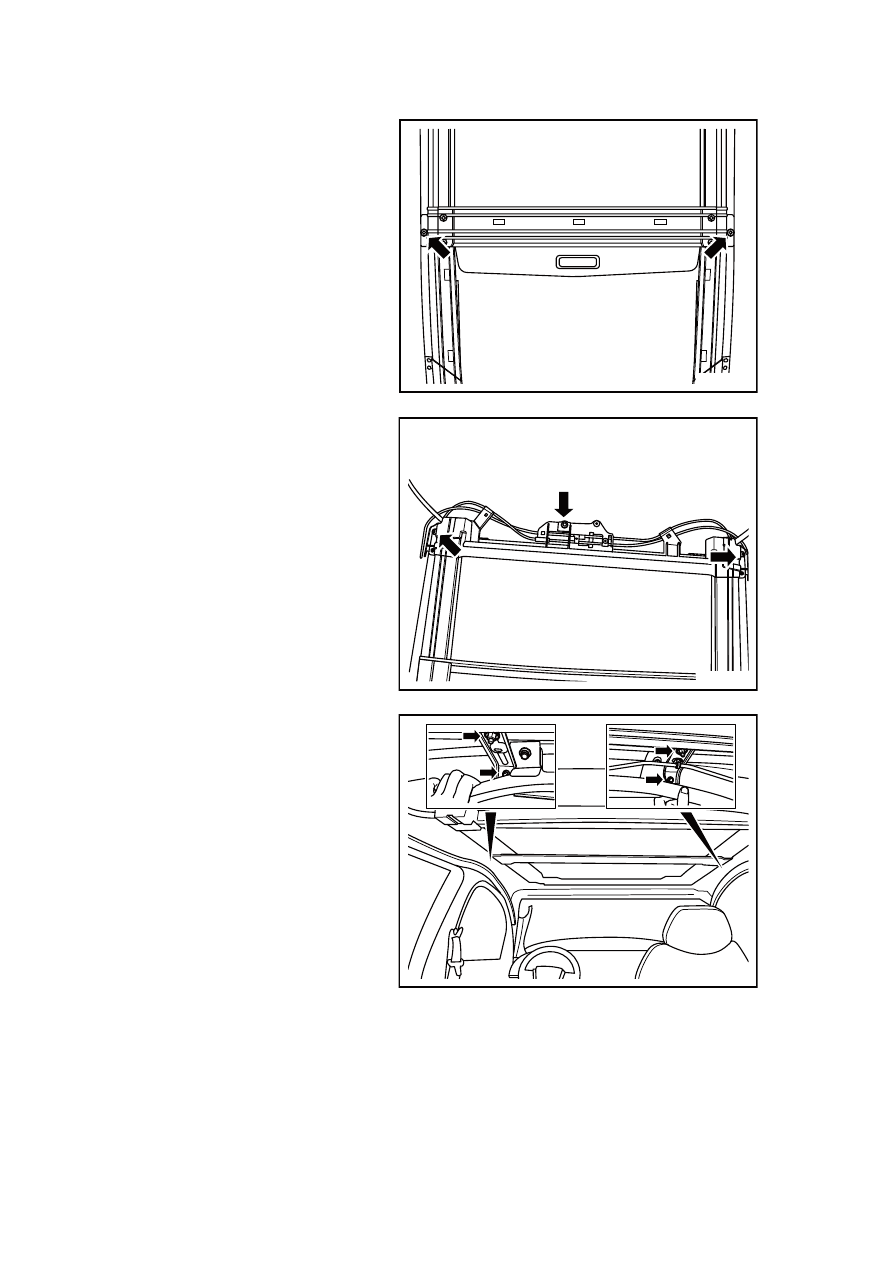

2.  Tighten up the retaining nuts in

the middle of the sunroof.

Torque:10Nm (Metric) 7.4lb-ft
(English system)

NL11-0185b

3.  Tighten up the fixing bolts in the

rear of sunroof.

Torque: 10Nm (Metric) 7.4 lb-ft (Inch)
7. Connection of battery negative
cable.

NL11-0186b

4. Install the front attachment

bracket of sunroof.

Torque:10Nm(Metric) 7.4lb-ft(English
system)

NL11-0183b

2418
