(e)  Measure the resistance between terminal No.9 of the sunroof module harness connector RF07

and terminal No.6 of the sunroof switch wiring harness connector RF13 with a multimeter.

Standard resistance: less than 1 Ω

Confirm if the resistance conforms to standard value.



4

Repair the circuits between the sunroof module and sunroof switch.

(a)  Repaire the trouble sports between terminal No.9 of sunroof module harness connecter RF07

and terminal No. 6 of sunroof switch harness connector RF13.

(b)  Connect sunroof switch harness connector RF13.

(c)  Connect the sunroof module harness connecter RF07.

(d)  Connect battery negative cable.

(e)  Turn ignition switch to "ON" position.

(f)  Operate the shut down switch of sunroof warp.

Confirm whether the sunroof can be closed by warping.



5

Replace the sunroof module

A.  Replace the sunroof module, Refer to 11.2.8.2 Replacement of Sunroof Motor

Confirm the completion of repair.



6

The system is normal.



Next

Yes

The system is normal.

No

Yes

Go to step 5

No

2407



11.8.7.7 Sunroof anti-trap function inoperative

Circuit diagram:

Refer to 11.8.7.4 Sunroof Can Not Work.

Diagnostic steps:

1

Carry out the sunroof initialization.

Confirm whether the sunroof is working properly.



2

Replace the sunroof switch assembly.

A.  Install new sunroof switch assembly, Refer to 11.8.8.3 Replacement of Sunroof Switch

Assembly.

Confirm whether the sunroof is working properly.



3

The system is normal.



Next

Yes

The system is normal.

No

2408



11.8.7.8 Sunroof can not operate intermittently

Circuit diagram:

Refer to 11.8.7.4 Sunroof Can Not Work.

Fault symptom table :

Fault Symptom

Suspected Parts

Maintenance scheme

Insulation Inner Layer
Wire Poor Connection

Wiring harness between
Sunroof Module and The
Sunroof Switch

Refer to 11.8.7.5 Sunroof Can Not
Open.

Poor connection of male
and female  harness
connector terminals

1. Sunroof

switch

2.  Sunroof motor harness

connector

3. Sunroof

switch

Harness connector

4. Sunroof

motor

1.  Clean the connector male and

female terminals.

2.  Replace the sunroof switch, Refer

to 11.8.8.3 replacement of sunroof
switch assembly.

3.  Replace the wiring harness.

4.  Replace the sunroof motor, Refer

to 11.8.8.2 replacement of sunroof
motor.

Ground point contacts
bad.

G6 earth point(ground
point)

1.  Fasten the fixing components of

earth points.

2.  Clean the joints of earth points.

Poor connection of
sunroof Switch

1.  Slide the Switch

2.  Tilt the Switch

Replace sunroof switch, refer to
11.8.8.3 replacement of sunroof switch
assembly.



2409



11.8.8 Dismantle and install

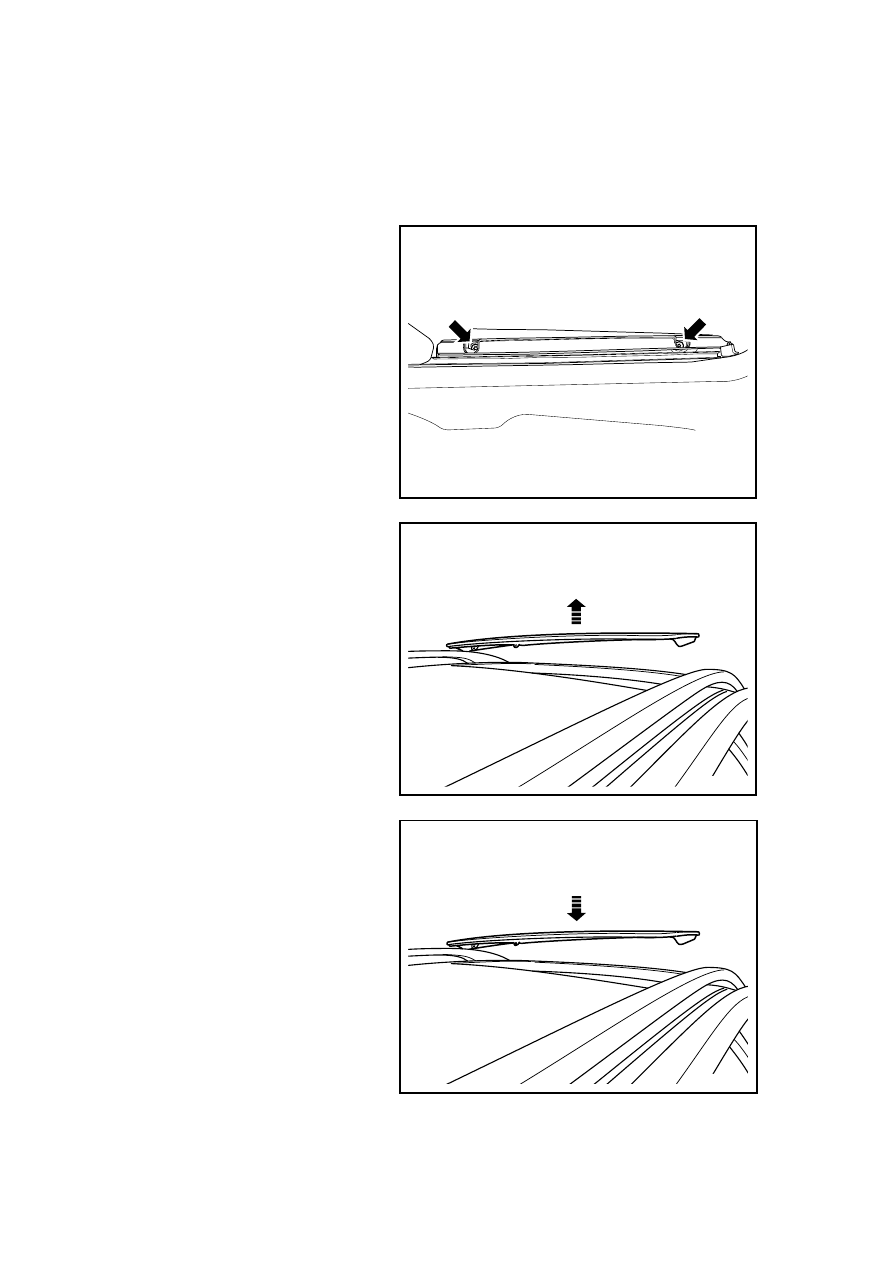

11.8.8.1 Replacement of sunroof glass

Dismantlement procedure

1.  Tilt the sunroof slightly to

remove the sunroof retaining
bolts and remove the retaining
bolts of left side sunroof.

2.  Dismantle the fixing bolts of right

side sunroof.

NL11-0167b

3.  Move the sunroof glass upward.

NL11-0169b

Installation procedure:

1.  Install the sunroof glass, and

screw the fixing bolts but do not
tighten up.

NL11-0170b
