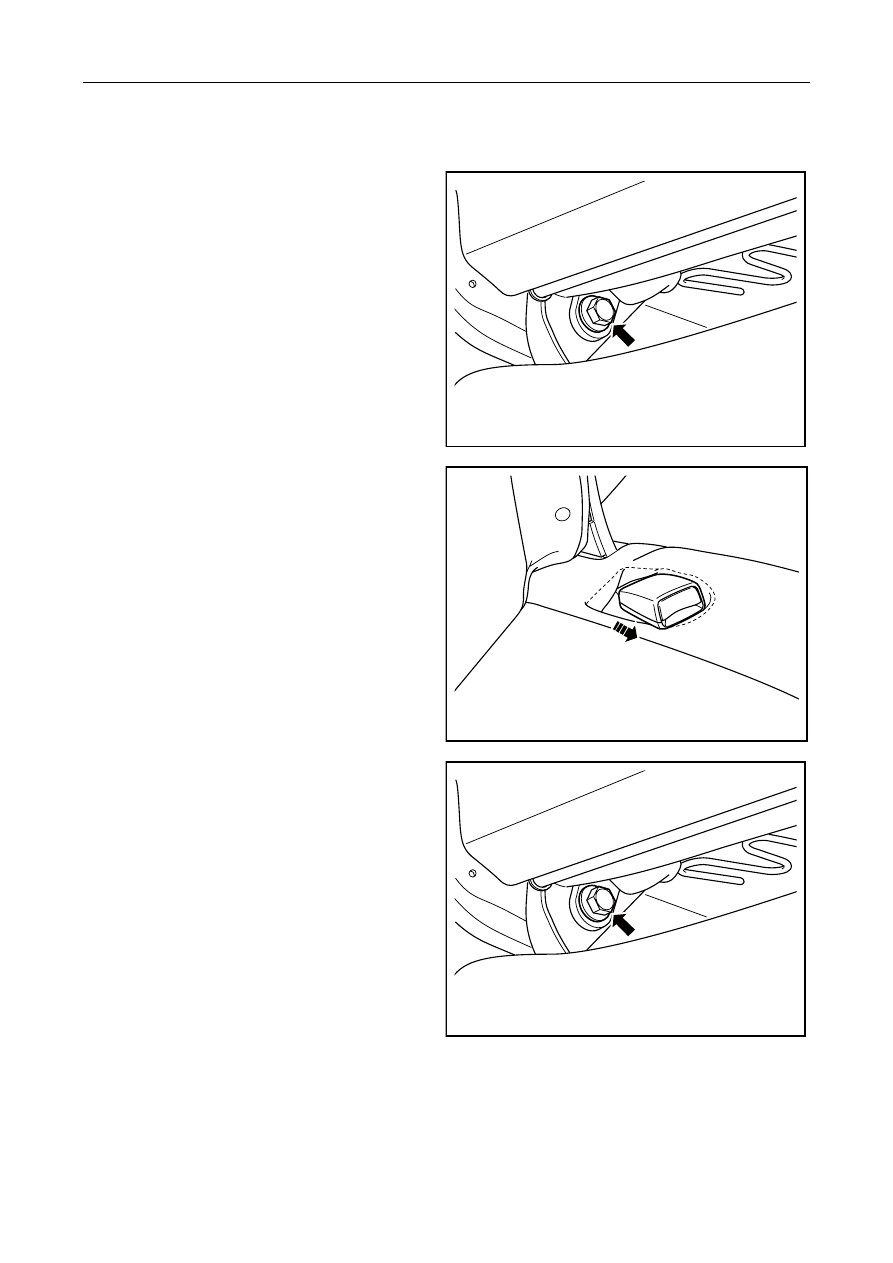

9.3.7.5 Replacement of Second-row Right Seat Belt Lock Catch

Dismantlement Procedure:

1.    For dismantling of middle row right seat, refer to

12.7.3.4 Replacement of middle row seat.

2.   Curl up middle row left seat cushion sleeve, and

dismantle fixing bolt of the second row right
safety belt buckle.



NL09-0042b

3.    Remove the second row right safety belt buckle.



NL09-0043b

Installation Procedure:

1.   Install second row right safety belt buckle and

tighten fixing bolt.

Torque: 45Nm (Metric) 33. 3lb-ft (English system)

2.  Install middle row right side seat.



NL09-0042b

1875




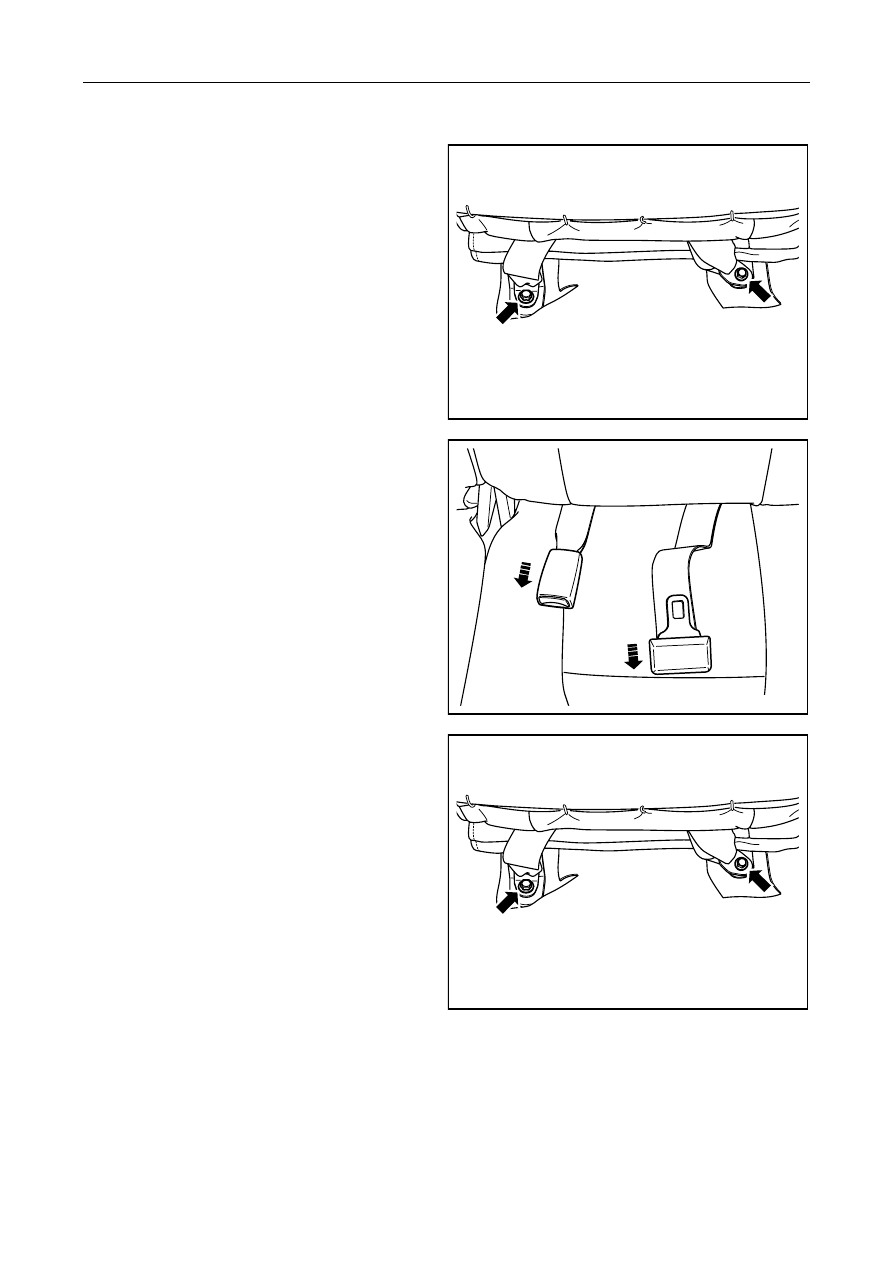

9.3.7.6 Replacement of Rear Row Two-point Seat Belt Assembly (such as equipment)

Dismantlement Procedure

1.    Dismantle rear row seat rear fixing bolt.



NL09-0044b

2.   Draw out rear row two-point type safety belt

assembly.



NL09-0045b

Installation Procedure:

1.  Install rear-row two point type safety belt

assembly and tighten fixing bolt.

Torque: 45Nm (Metric) 33. 3lb-ft(English system)



NL09-0044b

1876




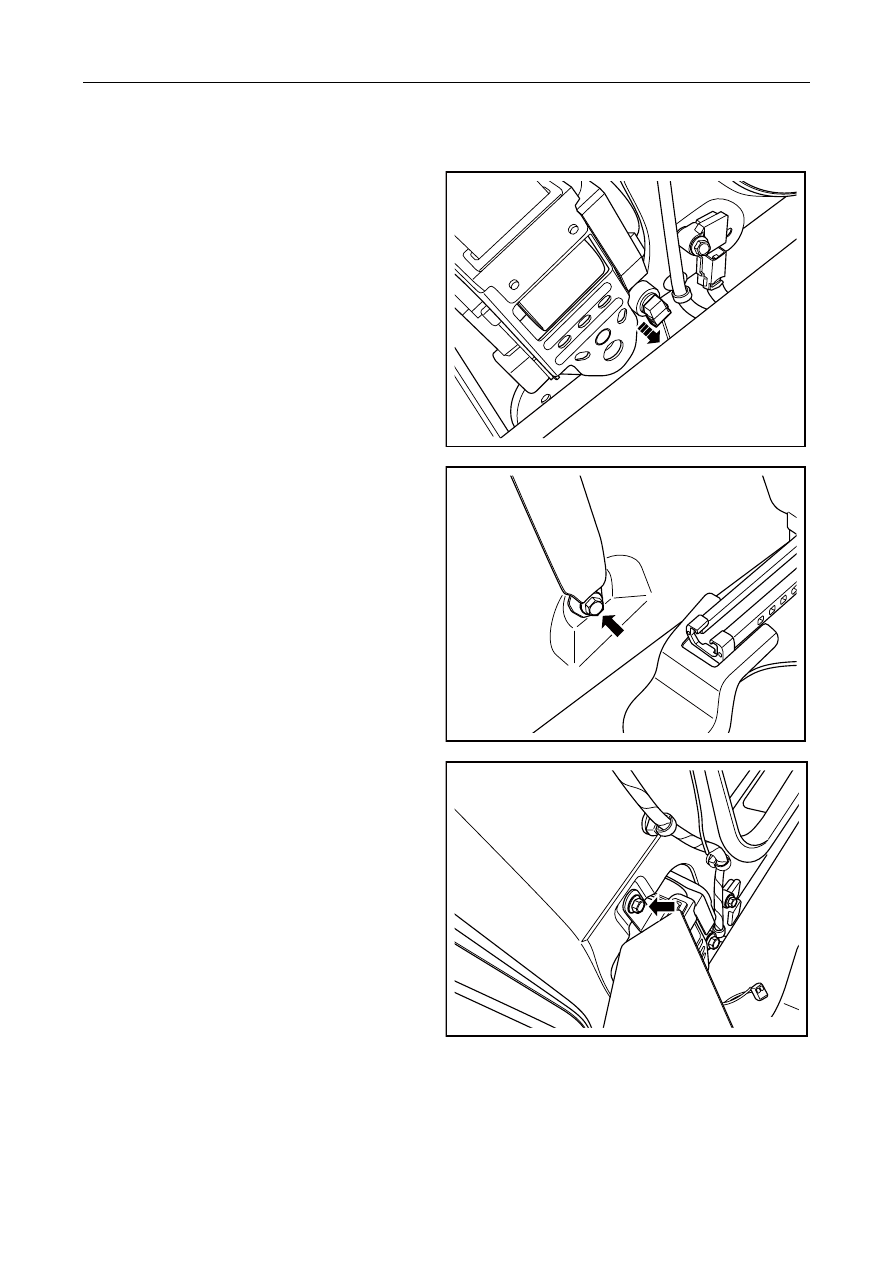

9.3.7.7 Replacement of Front-row Seat Belt Retractor

Dismantlement Procedure

Warning: Refer to Warning on Battery
Disconnection in Warnings and Precautions.

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2.   Dismantle fixing bolt of lower fixing plate of

middle column of front row seat safety belt.

3.   For dismantling of upper and lower trimming

plates of middle column, refer to 12.9.1.3
Replacement of trimming plates of middle
column.



NL09-0047b

4.   Disconnect wire harness connector of front row

seat safety belt retractor.



NL09-0046b

5.   Remove the fixing bolt for the front seat belt

retractor.



NL09-0048b



1877






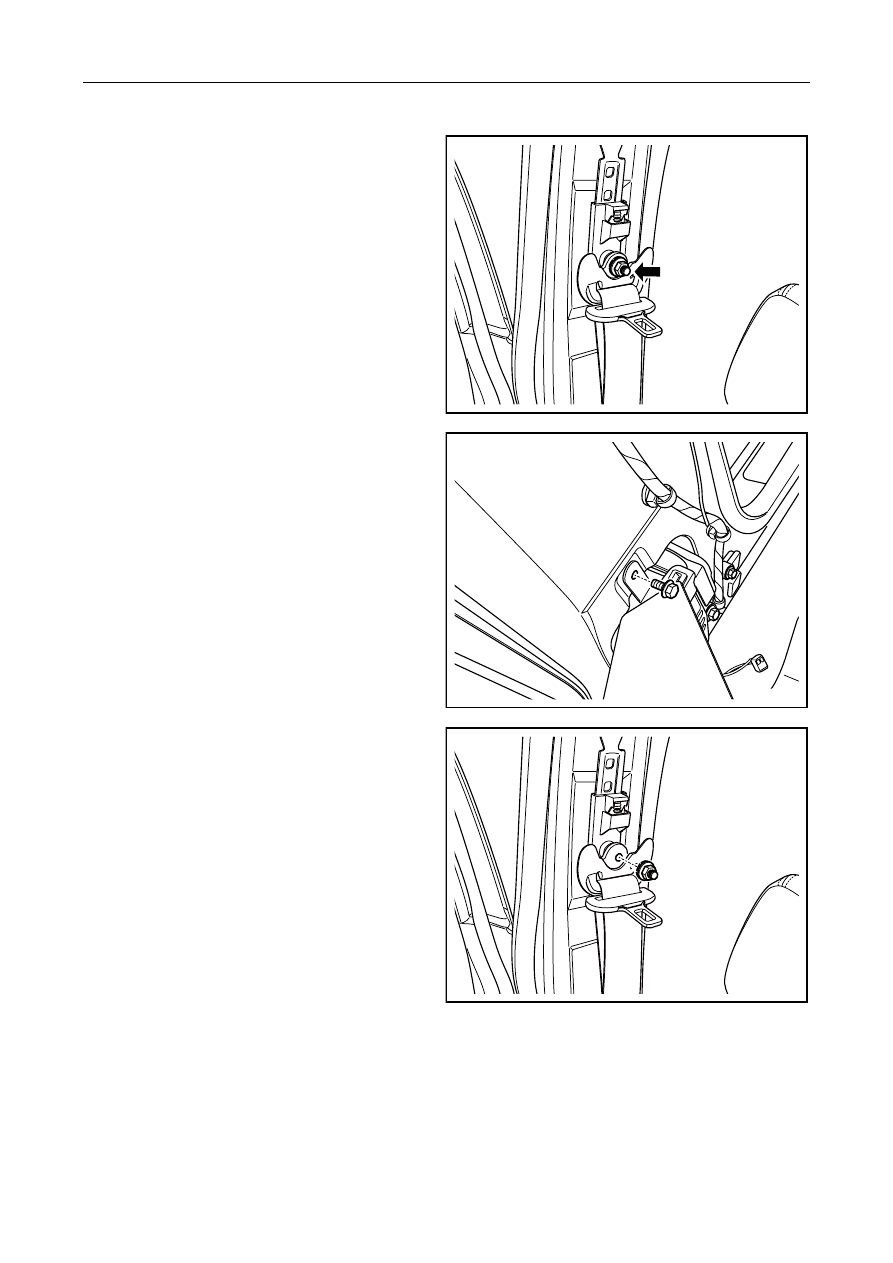

6.    Remove the top fixing nut on the center pillar for

the front seat belt.



NL09-0049b

Installation Procedure:

1.   Install and tighten front row seat safety belt

retractor fixing bolt.

Torque: 9Nm (Metric system) 6.7lb-ft (English
system)



NL09-0050b

2.   Install and tighten upper fixing nut of middle

column of front seat safety belt.

Torque: 45Nm (Metric) 33. 3lb-ft(English system)



NL09-0051b



1878
