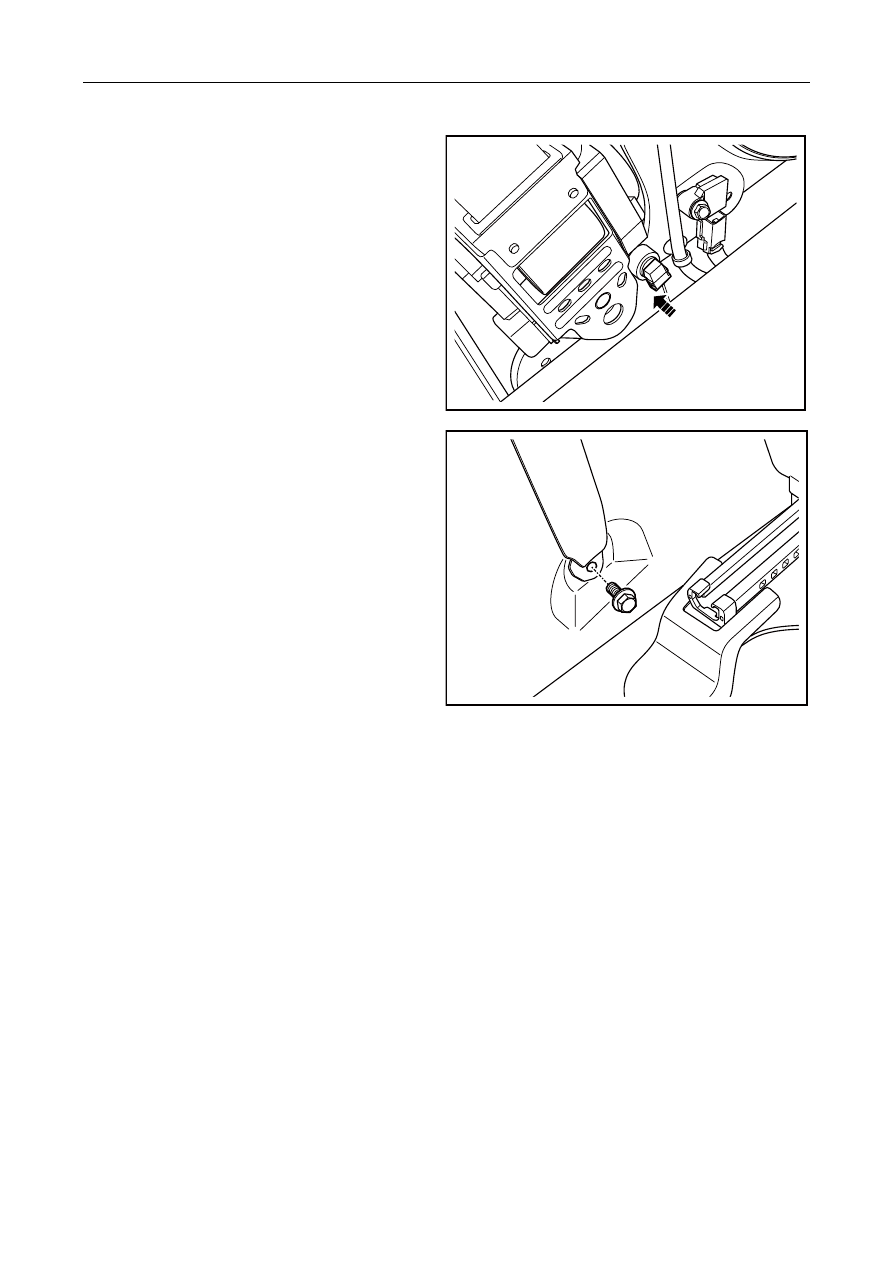

3.   Connect front row seat safety belt retractor wire

harness connector.

4.    Upper and lower install panels of B pillar



NL09-0052b

5.   Install and tighten the fixing bolt for the bottom

clamping plate on the center pillar.

6.  Connect the battery negative cable.



NL09-0053b

1879




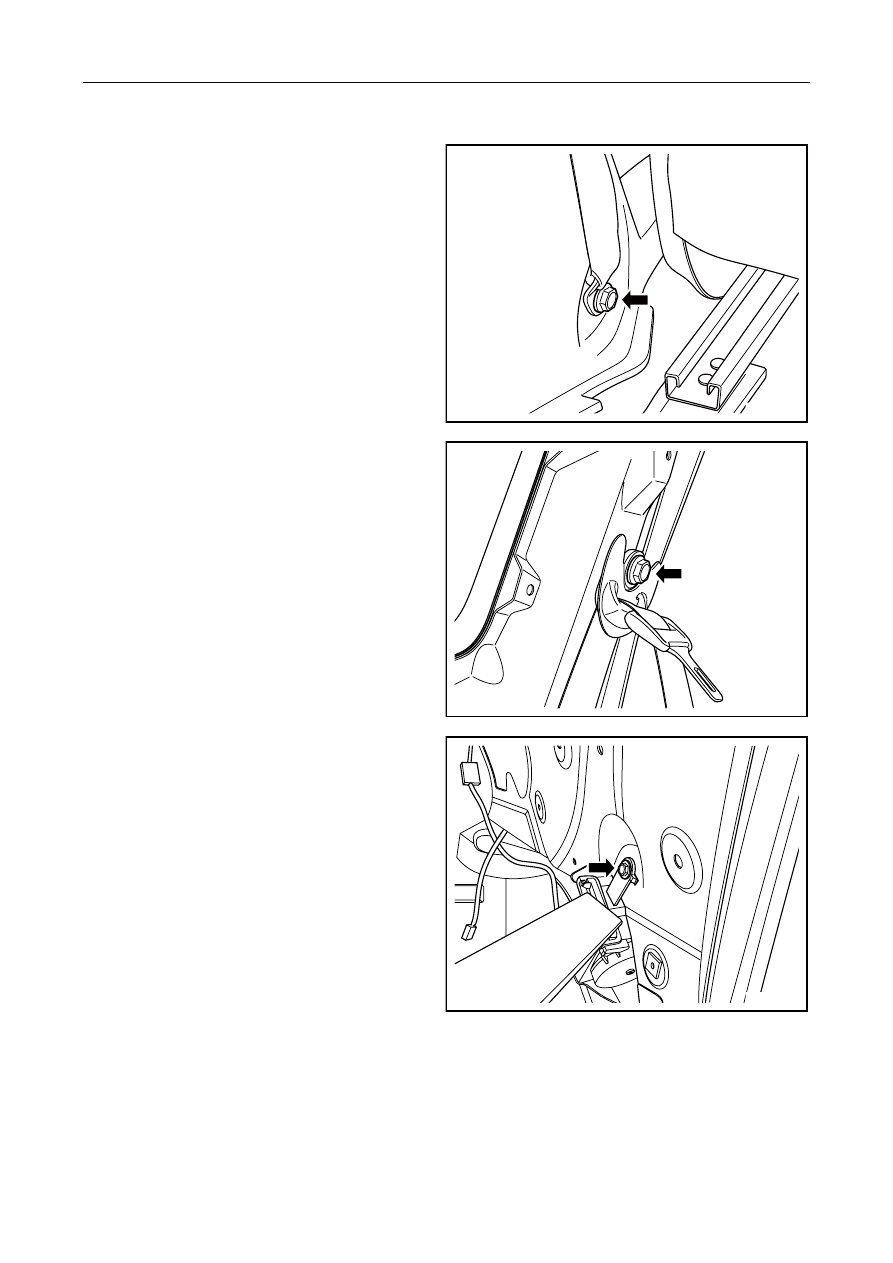

9.3.7.8 Replacement of Second-row Side Seat Belt Retractor

Dismantlement Procedure

1.   Dismantle fixing bolt of middle row seat safety

belt lower fixing plate.

2.   For dismantling of rear column lower trimming

plate, refer to 12.9.1.5 Replacement of rear
column lower trimming plate.

3.   For dismantlement of the rear pillar top trim

panel, see 12.9.1.6 Replacement of Rear Pillar
Top Trim Panel.



NL09-0054b

4.  Dismantle fixing bolt of upper fixing plate of

middle row seat safety belt.



NL09-0055b

5.   Remove the fixing bolt for the side belt retractor

on the middle seat.



NL09-0056b



1880






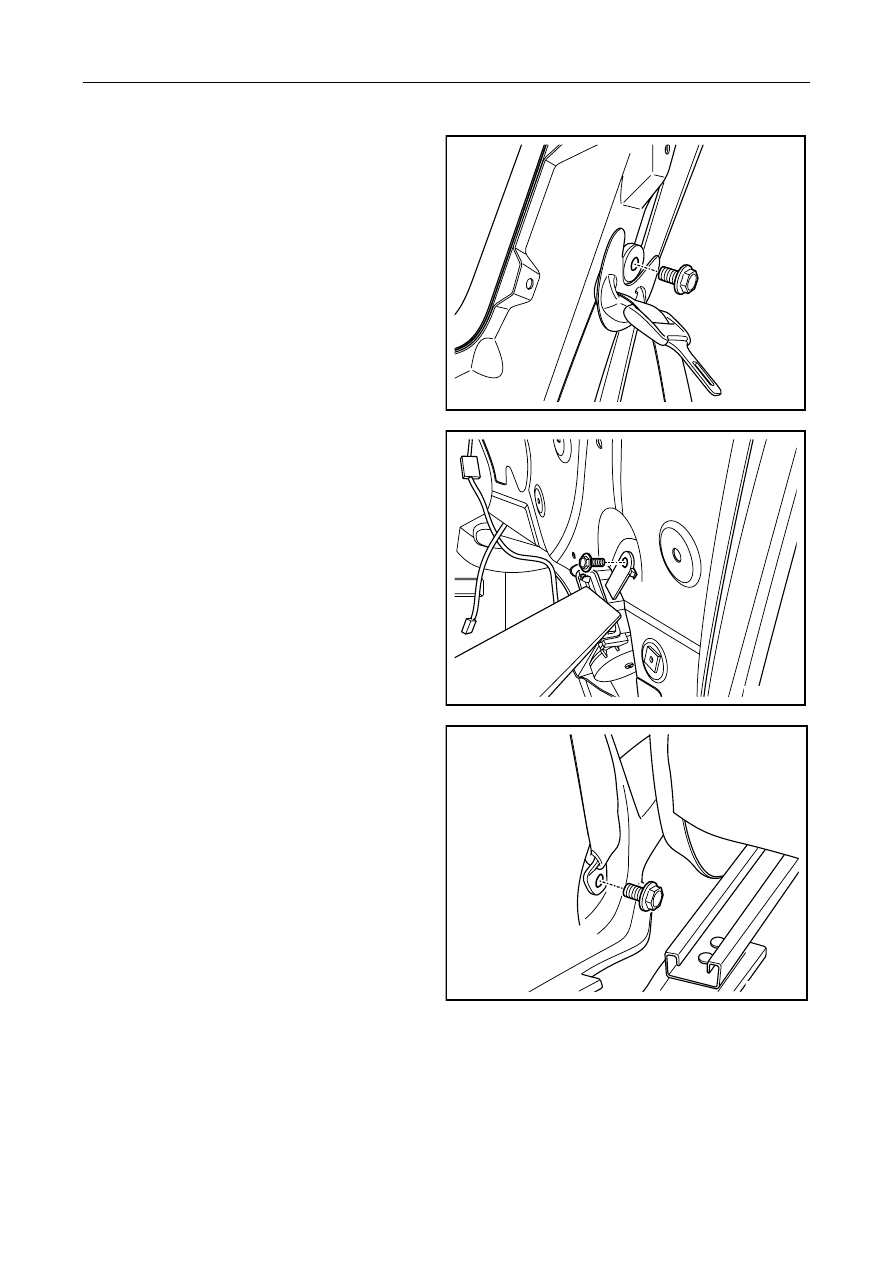

Installation Procedure:

1.   Install and tighten middle row right side safety

belt retractor fixing bolt.

Torque: 9Nm (Metric) 6. 7lb-ft (English system)



NL09-0058b

2. Install and tighten fixing bolt of upper fixing plate of

safety belt on middle row seat side.

Torque: 45Nm (Metric) 33. 3lb-ft (English system)

3.  Install the rear column upper trim panel.

4.    Install the rear column lower trim panel.



NL09-0057b

5.   Install and tighten the fixing bolt for the bottom

clamping plate for the intermediate seat belt.

Torque: 45Nm (Metric) 33. 3lb-ft (English system)



NL09-0059b



1881




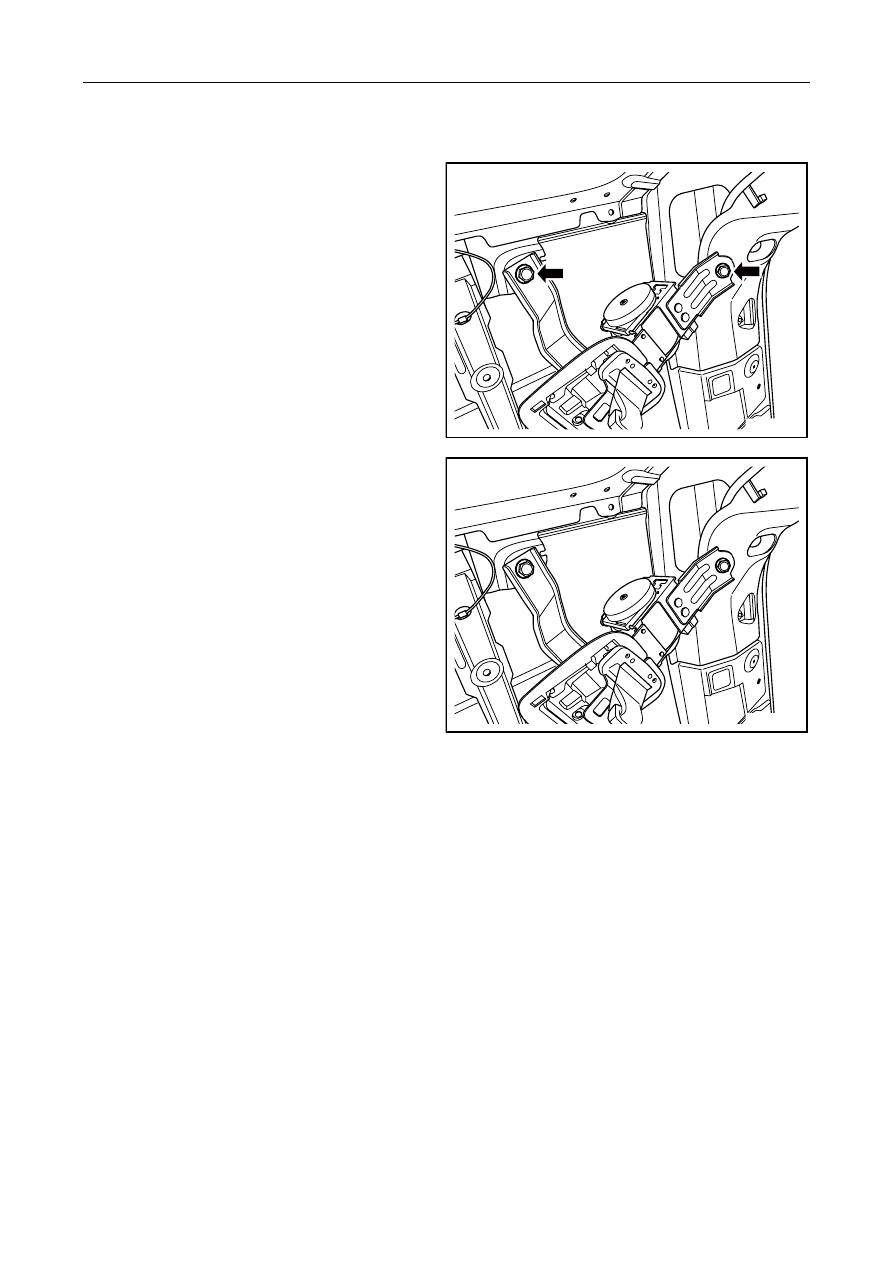

9.3.7.9 Replacement of Second-row Middle Seat Belt Retractor

Dismantlement Procedure

Warning: Refer to "Warning on Battery
Disconnection" in "Warnings and Precautions".

1.   Disconnect the battery negative cable. Refer to

2.11.8.1 Battery Cable Disconnection/Connection
Procedures.

2.   For dismantling of vehicle top inner trimming

plate, refer to 12.9.1.11 Replacement of top cover
inner trimming plate.

3.   Dismantle fixing bolt of middle safety belt

retractor of middle row seat.



NL09-0060b

Installation Procedure:

1.   Install and tighten middle row seat middle safety

belt retractor fixing bolt.

Torque: 45Nm (Metric) 33. 3lb-ft (English system)

2.    Install the roof panel.

3.  Connect the battery negative cable.



NL09-0061b

1882
