4.2.7.5 Stabilizer rod replacement

Dismantle procedure

1.

For lifting of the vehicle, see 1.3 lifting vehicle.

2.  For dismantling of wheels, refer to 4.4.5.1

replacement of wheels.

3.  Dismantle connecting nut on the left and right

sides of stabilizer rod and stabilizer connecting
rod.



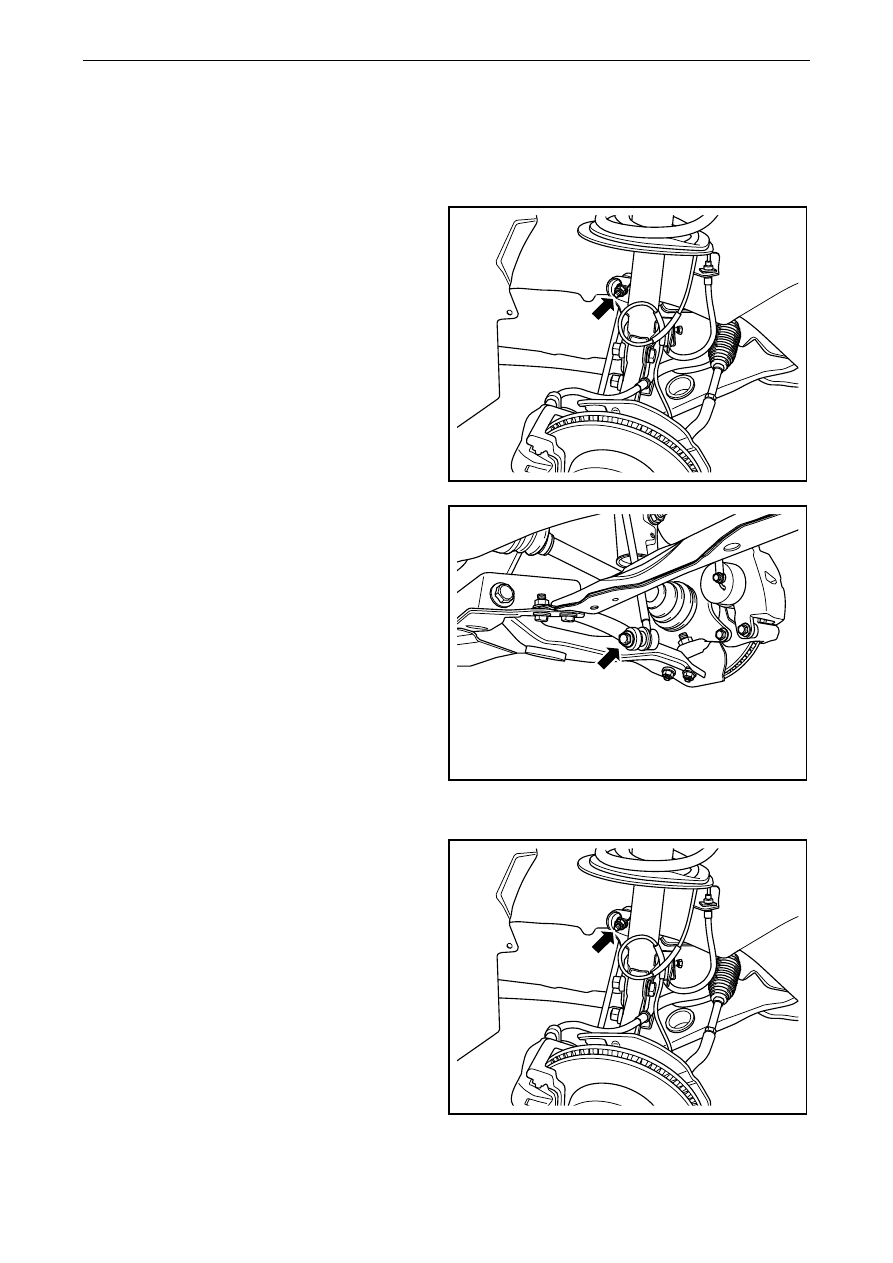

NL04-0018b

4.

Dismantle connecting bolt between stabilizer rod
and bushing and front auxiliary frame.

5.

Dismantle the stabilizer bar.



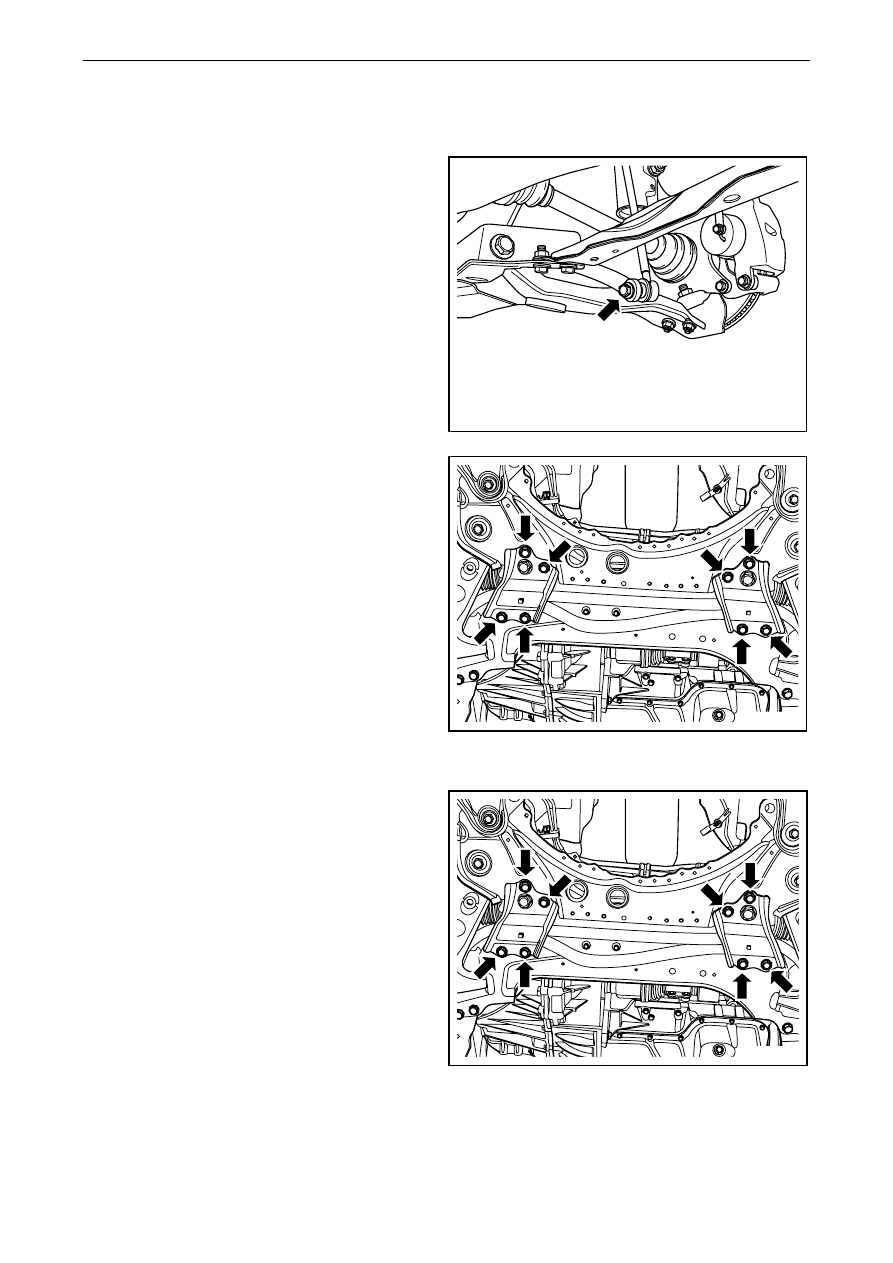

NL04-0019b

Installation procedure:

1.

Install bushing on stabilizer rod, and then install
U-clip and tighten bolt.

Torque:87 Nm (Metric) 64.5 lb-ft (English system)

NL04-0019b

1435




2.  Install stabilizer rod and connecting nut on left

and right side of stabilizer rod and stabilizer
connecting rod.

Torque:75 Nm (Metric) 55 lb-ft (English system)

3.

Install the wheel.

4. Lower

the

vehicle.



NL04-0018b



1436






4.2.7.6 Stabilizer connecting rod replacement

Dismantle procedure

1.

For lifting vehicle, refer to 1.3 lifting vehicle .

2.  For dismantling of wheels, refer to 4.4.5.1

Replacement of wheels.

3.  Dismantle connecting nut between stabilizer

connecting rod and front shock absorber, and
loosen stabilizer connecting rod from front shock
absorber.

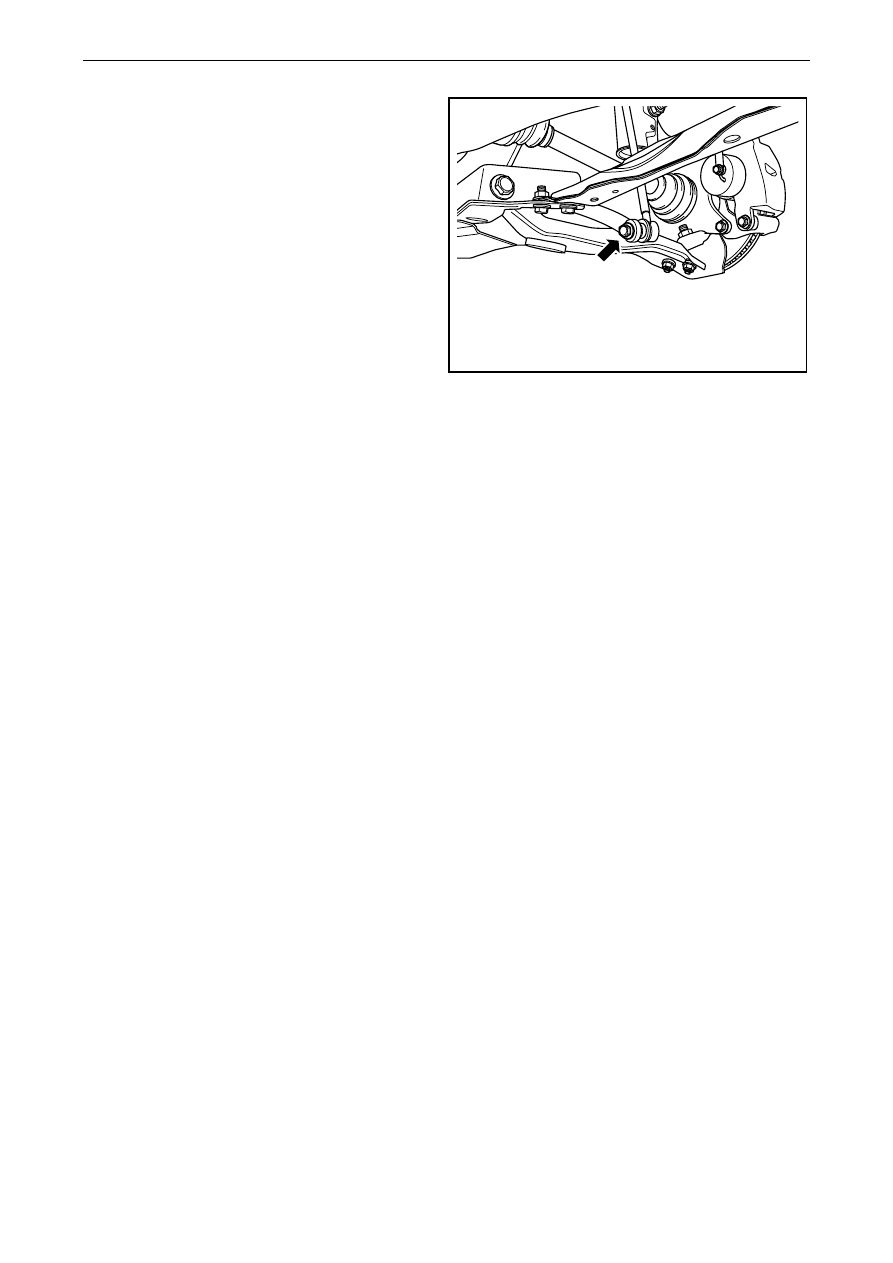

NL04-0020b

4. Dismantle connecting nut of stabilizer

connnecting rod and stabilizer rod.

5.

Dismantle the stabilizer connecting rod.



NL04-0018b

Installation Procedure:

1.  Install stable connecting rod to front shock

absorber, and fixed connecting nut.

Torque:75 Nm (Metric) 55 lb-ft (English system)



NL04-0020b

1437




2.  Install stabilizer connecting rod to stabilizer rod

and tighten nut.

Torque: 75 Nm (Metric) 55 lb-ft (English system)

3.

Install the wheel.

4. Lower

the

vehicle.



NL04-0018b



1438
