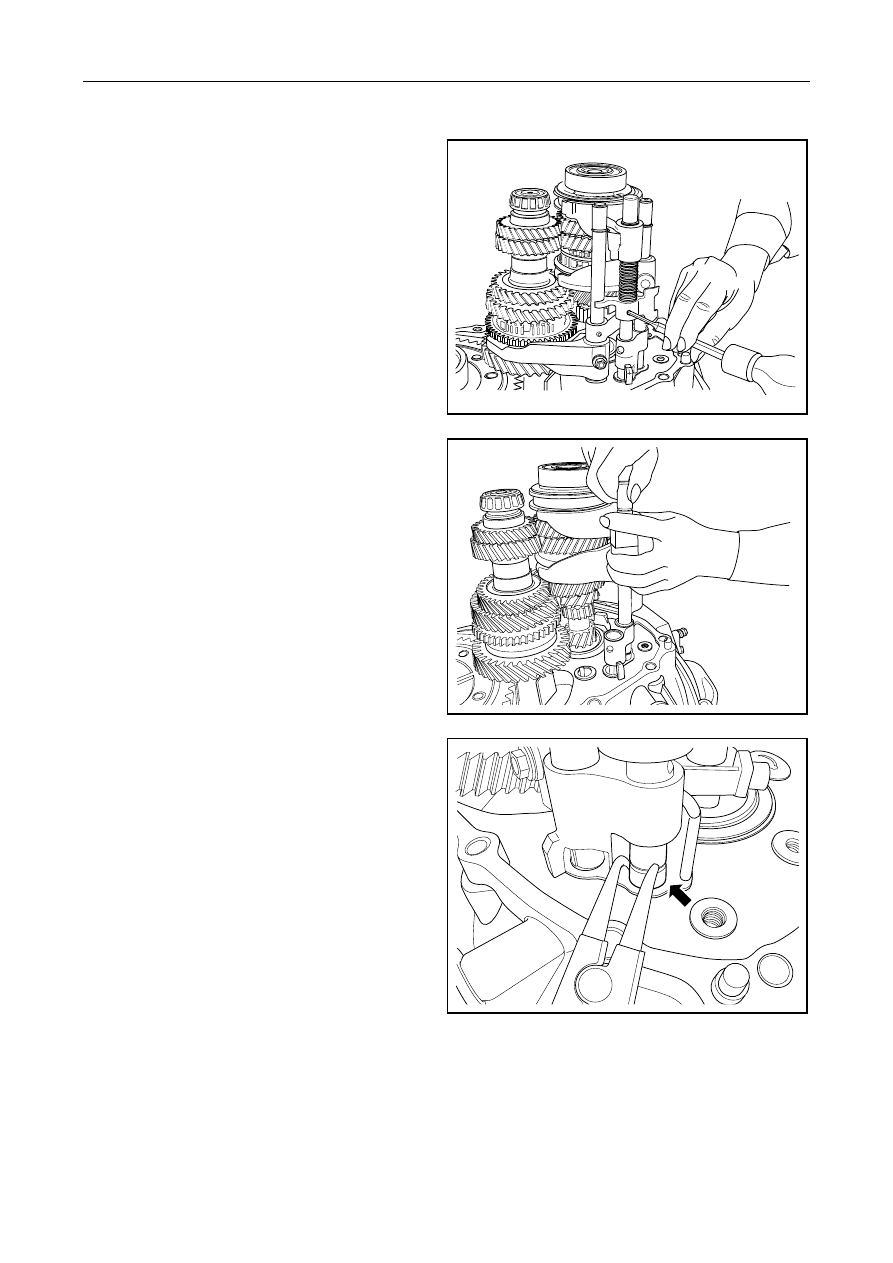

12.  Dismantle locking pin on the 5th speed and

reverse gear fork shaft.

Notes :It must used special tool,otherwise,make lock
pin swell so as not to pull out

！

*



FE03-0056b

13.  Upward pull out 5th speed and reverse gear fork

shaft by rotated 180 degree. note: Self-lock pin
prevent dropped

Notes :fork shaft is good match with fork, it is
prohibit to used fork forward both side by free force
to cause unusge fork changed bending and
deformantion during dismantle process ; Guard
intermediate spring by hand to pevent spring and
low fork was spring out



FE03-0057b

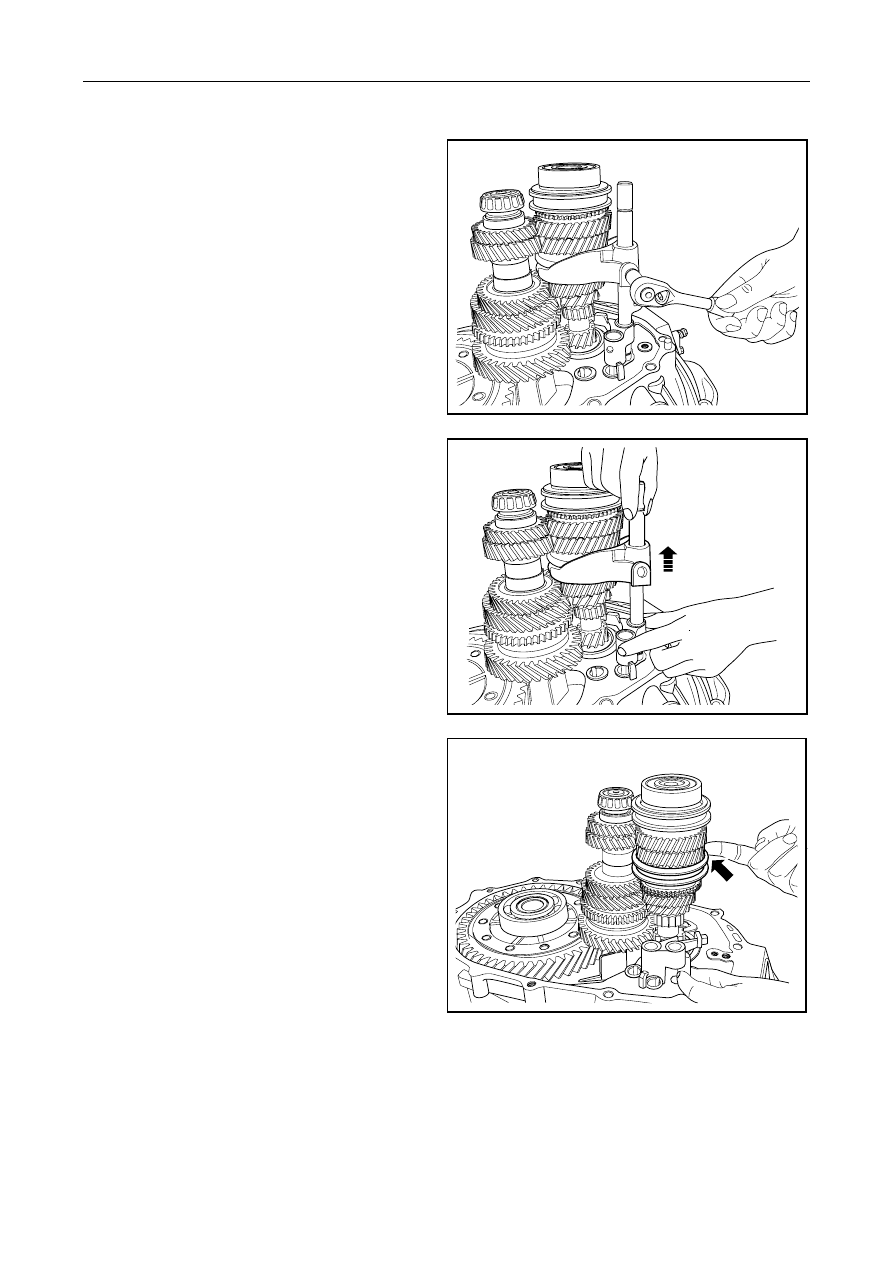

14. Take out snap spring in the down most of

3rd/4the speed fork shaft by snap spring pillar.



FE03-0058b



1211






15.  Dismantle 3rd /4th fork fixing bolt.



FE03-0059b

16.  Pushed 3rd/4th speed synchronizer into the 4th

speed gear , take out 3rd/4th speed synchronizer
fork shaft and its other attachment

Notes :fork shaft is good match with fork, it is
prohibit to used fork forward both side by free force
to cause unusge fork changed bending and
deformantion during dismantle process



FE03-0060b

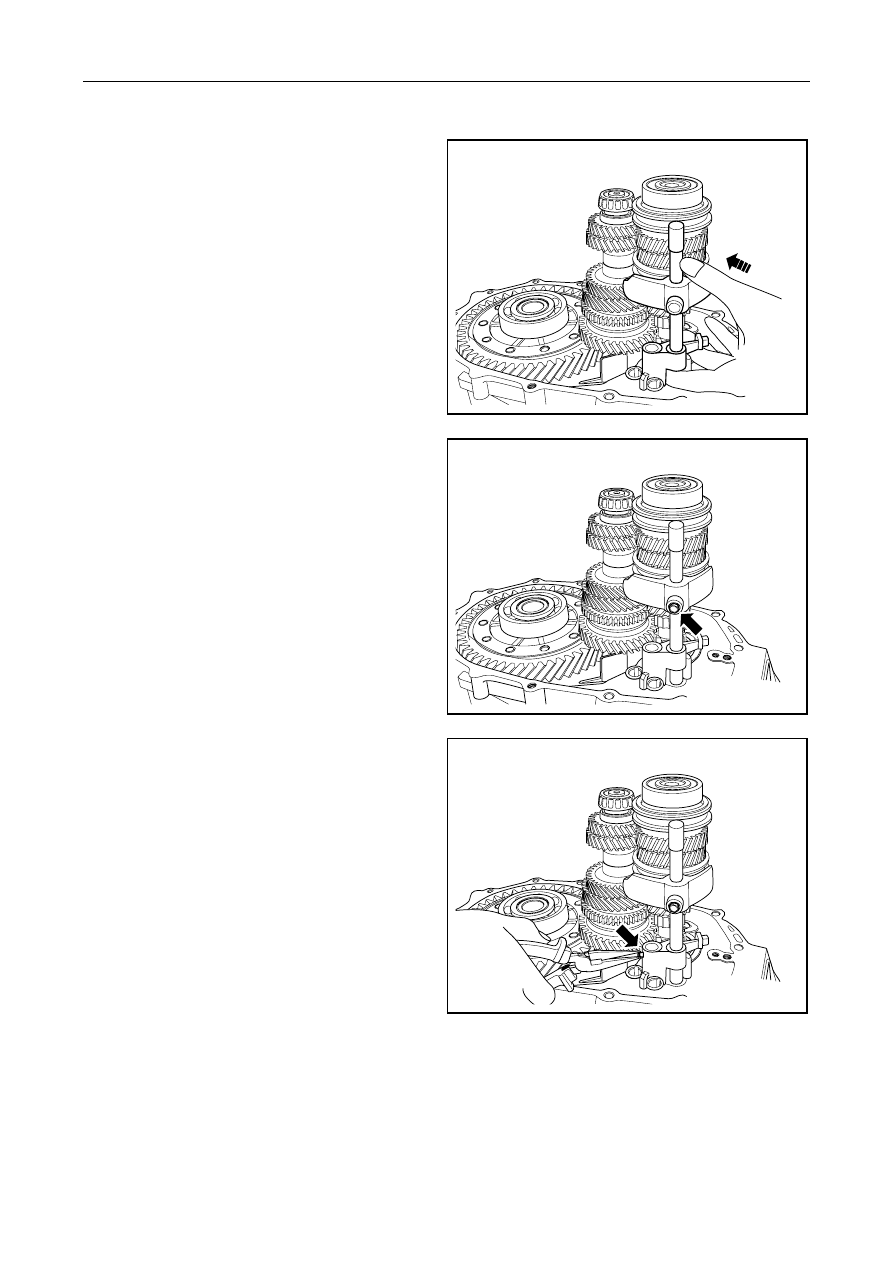

Installation procedure::

1.  Make 3rd/4th speed synchronizer engaged with

4th speed position



FE03-0061b



1212






2.  install 3rd /4th speed fork and fork shaft



FE03-0062b

3.  Install 3rd/4th speed fork shaft fastening bolt



FE03-0063b

4.  Install 3rd/4th speed synchronizer fork shaft and

5th speed reverse fork shaft interlock pin.

Notes : Upper solt of 3rd/4th speed fork shaft align
to pin hole,



FE03-0064b



1213






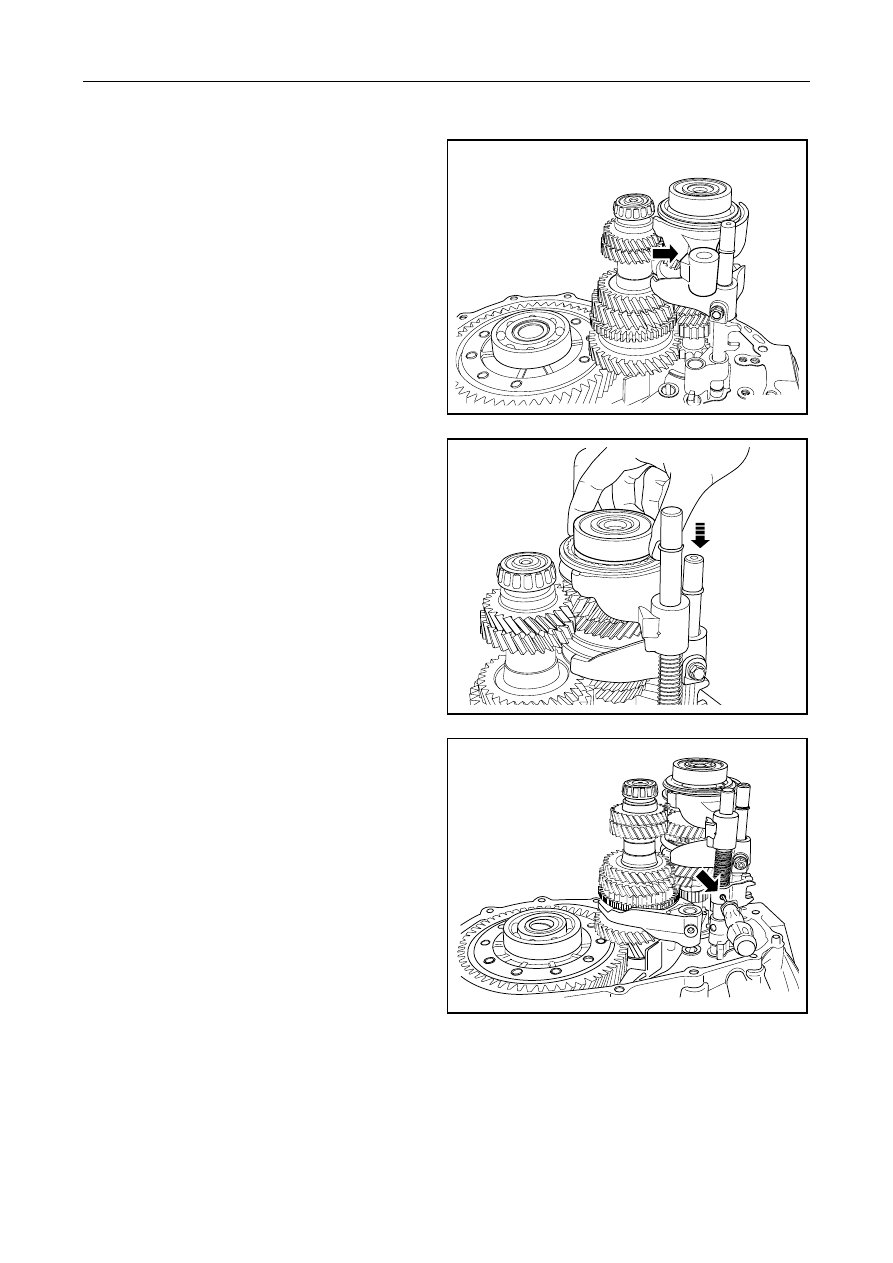

5.  Install 5th speed synchronizer fork.



FE03-0065b

6.  Install 5th speed reverse fork shaft

Notes : Hold 5the speed synchronizer by hand to
prevent installation

Synchronizer spring out during fork shaft



FE03-0066b

7.  Insert into locking pin hole by screwdriver and

fixed it for 5th speed fork coupling lever

Notes :Upprt solt of fork shaft is consist with locking
pin hole

！





FE03-0067b
