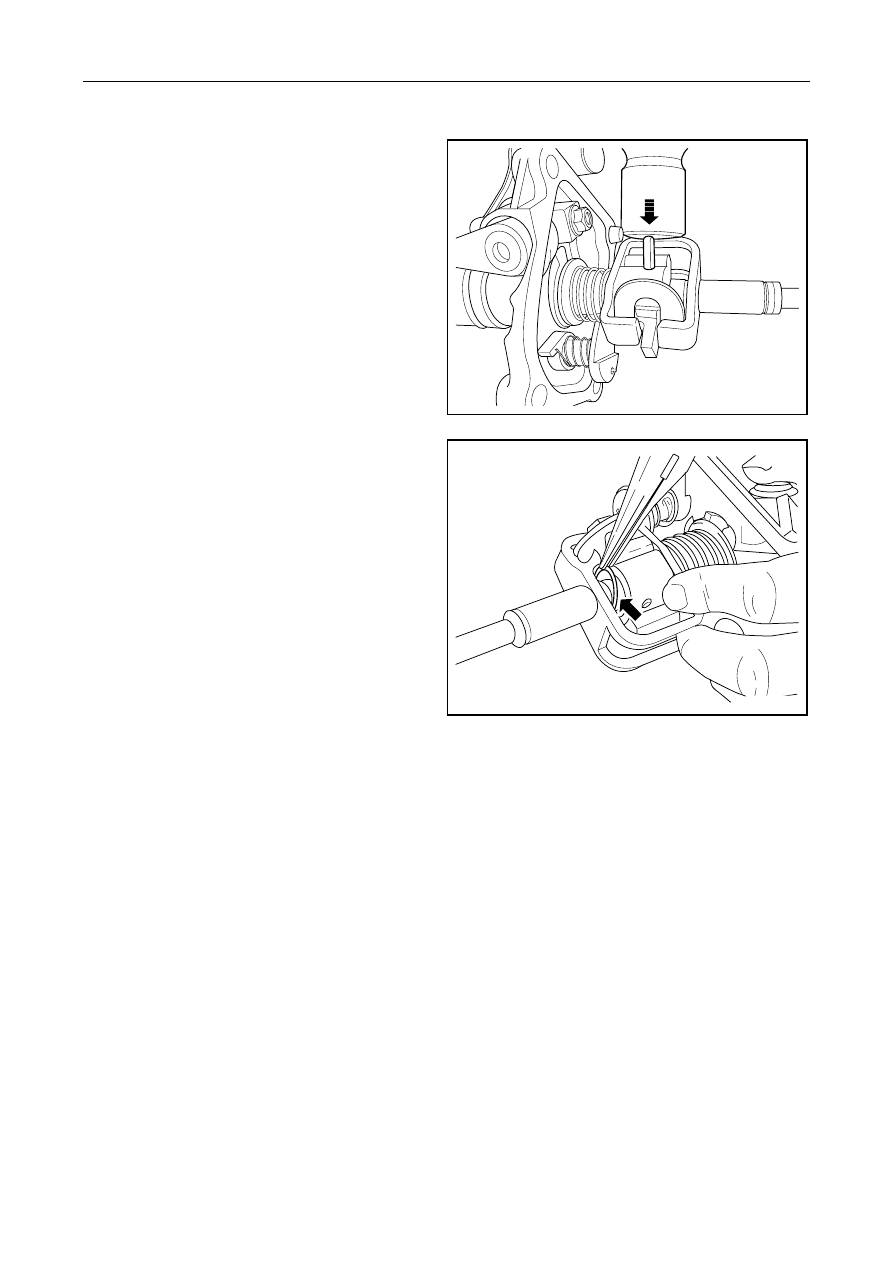

7.  Install sliding sleeve locking pin.



FE03-0045b

8.  Install outer snap spring.

9.  Install shift control mechanism assembly.Refer

to“3.4.8.4 shift control mechanism replacement”.



FE03-0046b



1207




3.4.8.6 fork shaft replacement

Dismantle procedure

1.  Refer to 3.4.8.3 "Replacement of transmission

Assembly" to dismantle the transmission
assembly.

2.  Dismantle shift control mechanism assembly,

Refer to“3.4.8.4shift control mechanism
assembly replacement.

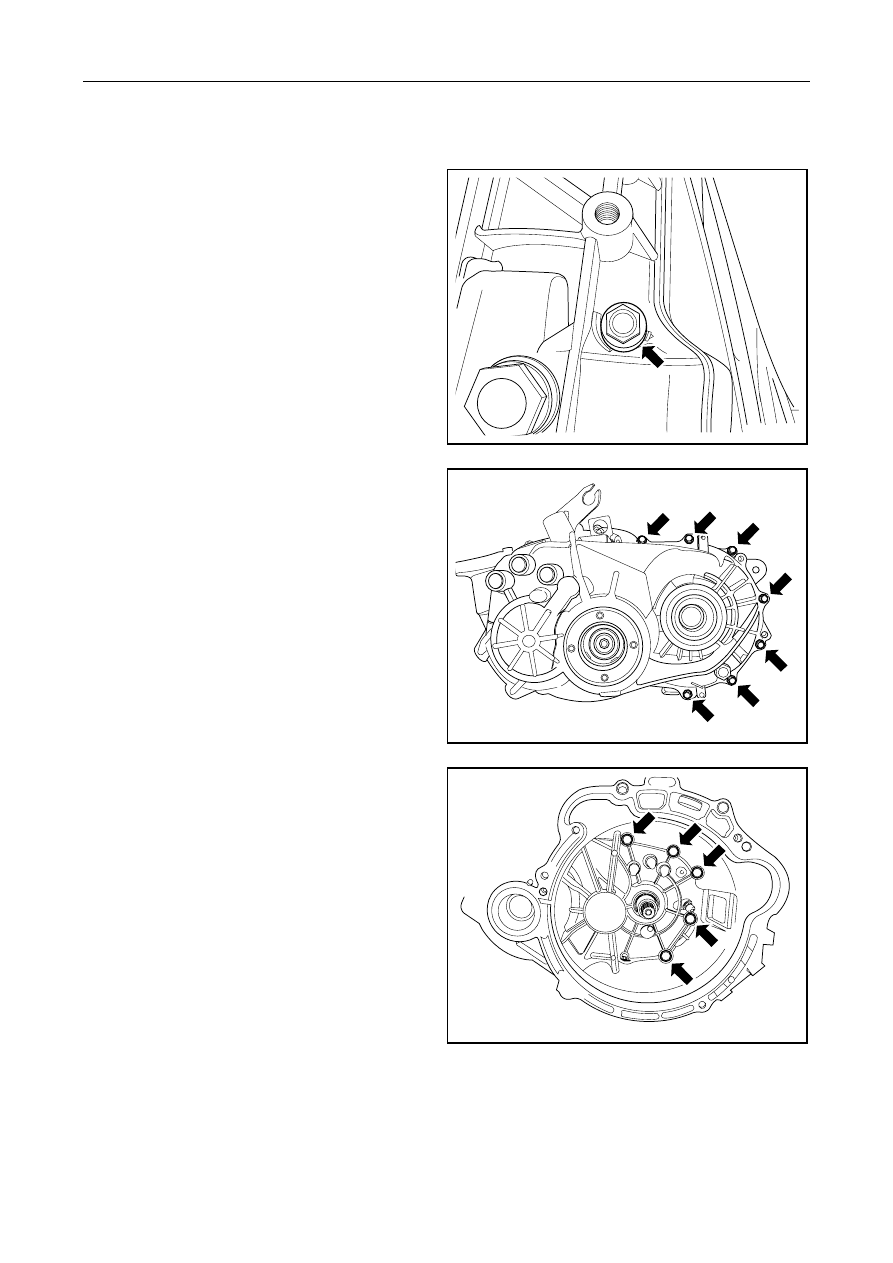

3.  Dismantle location bolt of reverse gear.



FE03-0047b

4.  Dismantle outer connecting bolt of transmission

end-cover



FE03-0048b

5.  Dismantle inner connecting bolt of transmission

end cover.



FE03-0049b



1208

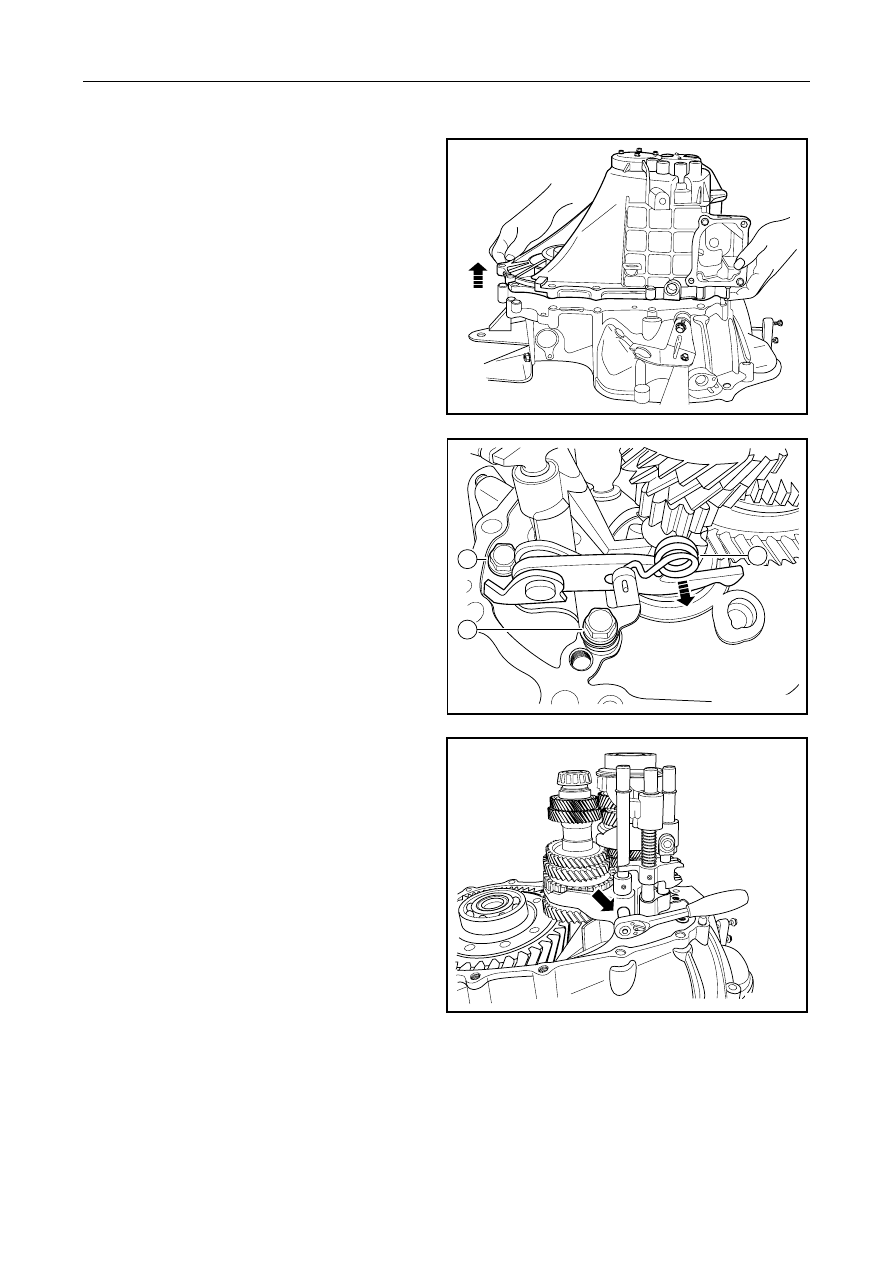

6.  Take out rear end cover.



FE03-0050b

7

Dismantle coupling rod of reverse fork

Note

：

Pull out one-end (2)of return spring beforce

dismantle fixing bolt

（

1

）

.



1

1

2

FE03-0051b

8.  Dismantle 1st and 2

nd

 speed fork fixing bolt.



FE03-0052b



1209

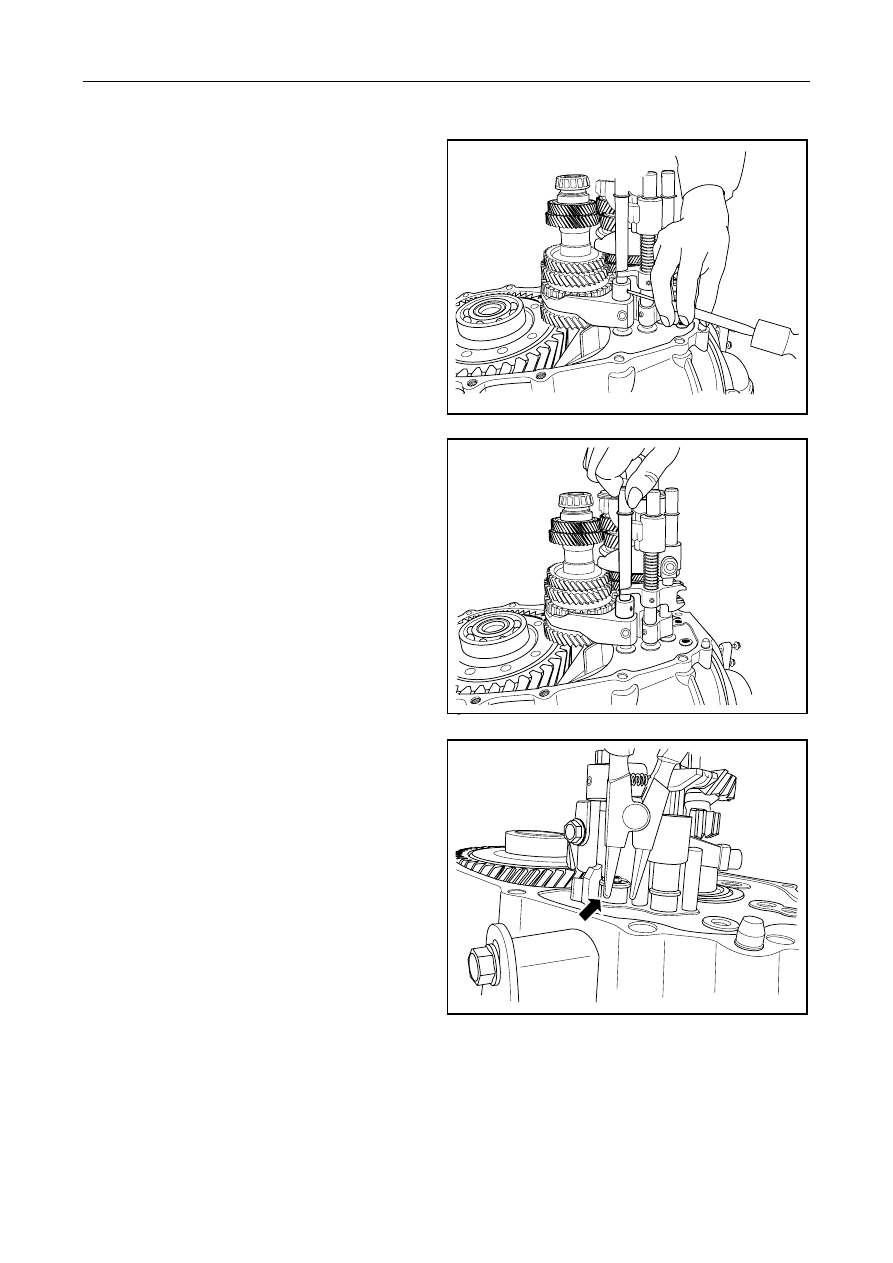

9.  Dismantle lock ping on the 2nd speed fork shaft.

Notes :It must used special tool,otherwise,make lock
pin swell so as not to pull out

！





FE03-0053b

10 After clockwise rotated 180degress,Pull up

1st-speed fork shaft Notes 5th speed and
self-lock pin of reverse fork

Notes :fork shaft is good match with fork, it is
prohibit to used fork forward both side by free force
to cause unusge fork changed bending and
deformantion during dismantle process



FE03-0054b

11.  Take out snap spring under the 5th speed and

reverse fork shaft by snap ring pliers



FE03-0055b



1210
