2.13.8.5 Replacement of Throttle Body Assembly

Dismantlement Procedure

Warning: Refer to "Warning on Battery Disconnection" in "Warning and Precautions".

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 Battery
Cable Disconnection/Connection
Procedures.

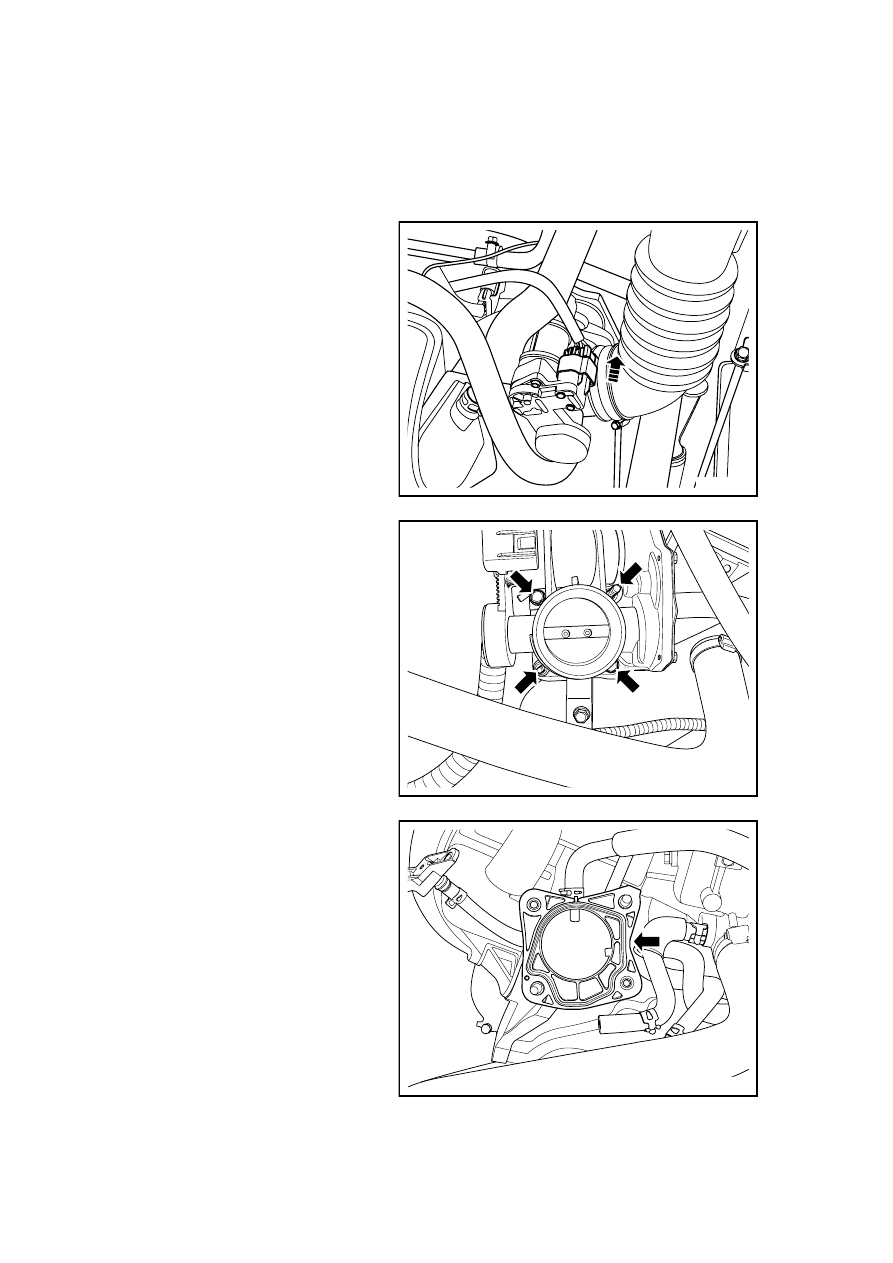

2.  Dismantle the throttle pull cable.

3.  Disconnect throttle control valve

harness connector.

NL02-0098b

4.  Dismantle 2 fixing bolts and 2

nuts of throttle body and upper
fixing nut of throttle body
bracket.

NL02-0099b

5.  Remove the electronic throttle

body from the intake manifold.

6.  Clean the contact surface between

the engine throttle body and
intake manifold and replace with
new sealing ring.

NL02-0100b

975

Installation Procedure:

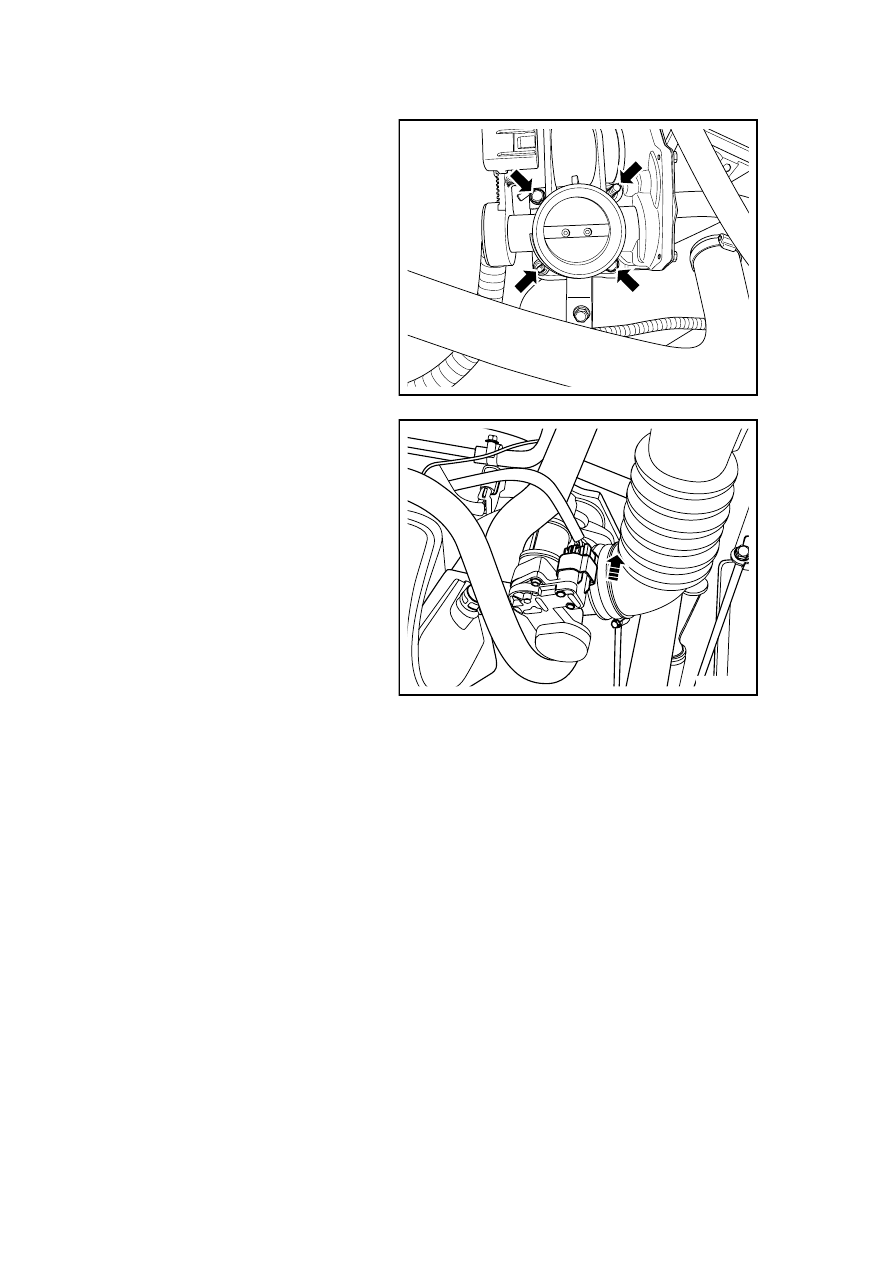

1.  Install 2 fixing bolts and 2 fixing

nuts of throttle body and tighten
them.

Torque : 23Nm(Metric)
17lb-ft(English system)

NL02-0099b

2.  Connect throttle control valve

wire harness connector.

3.  Install air intake main pipe.

4.  Connect the battery negative

cable .

NL02-0098b

976

2.13.8.6 Replacement of Intake Manifold Assembly

Dismantlement Procedure

1.  Disconnect the battery negative

electrode cable. Refer to 2.11.8.1
Battery Disconnection.

2.  Refer to 2.13.8.1 "Replacement

of Plastic Shield of Engine" to
dismantle the engine shied.

3. Refer to "Replacement of

Throttle Body Assembly" to
dismantle the throttle body.

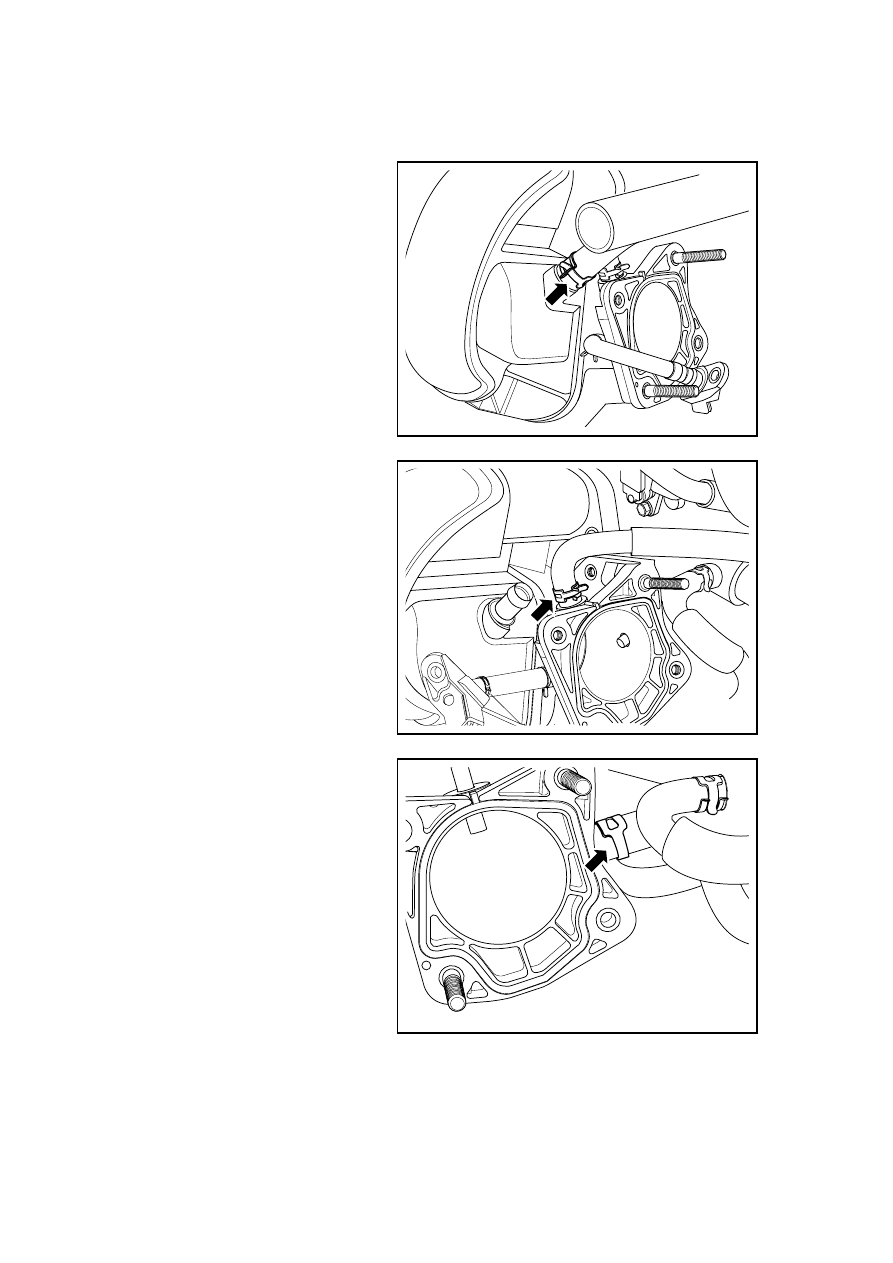

4.  Dismantle the forced ventilation

vacuum pipe of the crankcase.

FE02-0115b

5.  Dismantle the canister solenoid

valve vacuum tube.

FE02-0116b

6.  Dismantle the vacuum booster

vacuum tubes.

FE02-0117b

977

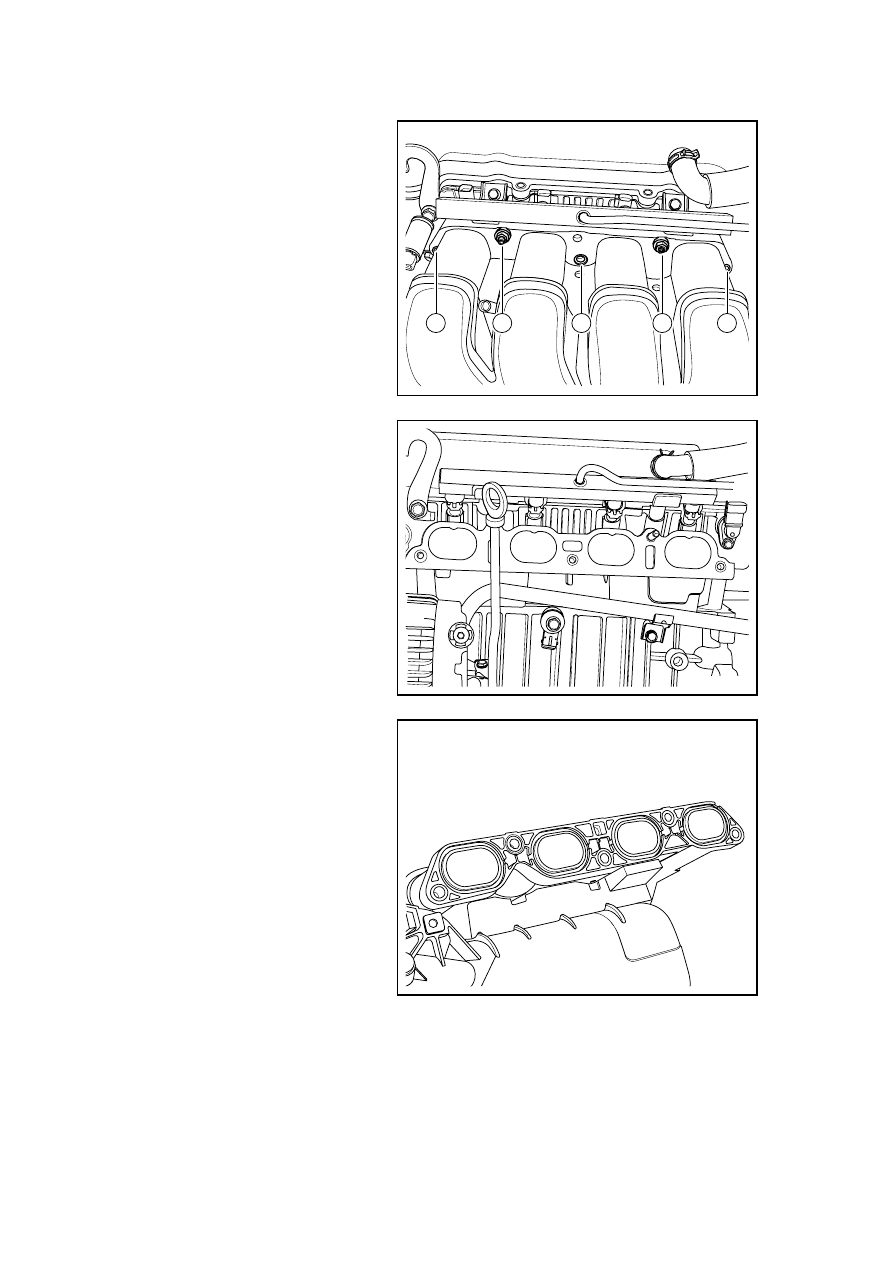

7.  Dismantle the fixing bolts and

nuts of intake manifold in the
sequence as shown in the figure.

5

4

2

3

1

FE02-0118b

Installation Procedure:

1.  Clean the cylinder head intake

manifold installation surface.

FE02-0119b

2. Clean the intake manifold

installation surface.

FE02-0120b

978
