2.5.3 System operating principle
2.5.3.1 System operating Principle
When turn the key from “OFF” to “ON”, the electric anti-theft controller assembly output the
signal with the carrier frequency of 125 kHz. After passing through the EAS coil to generate the

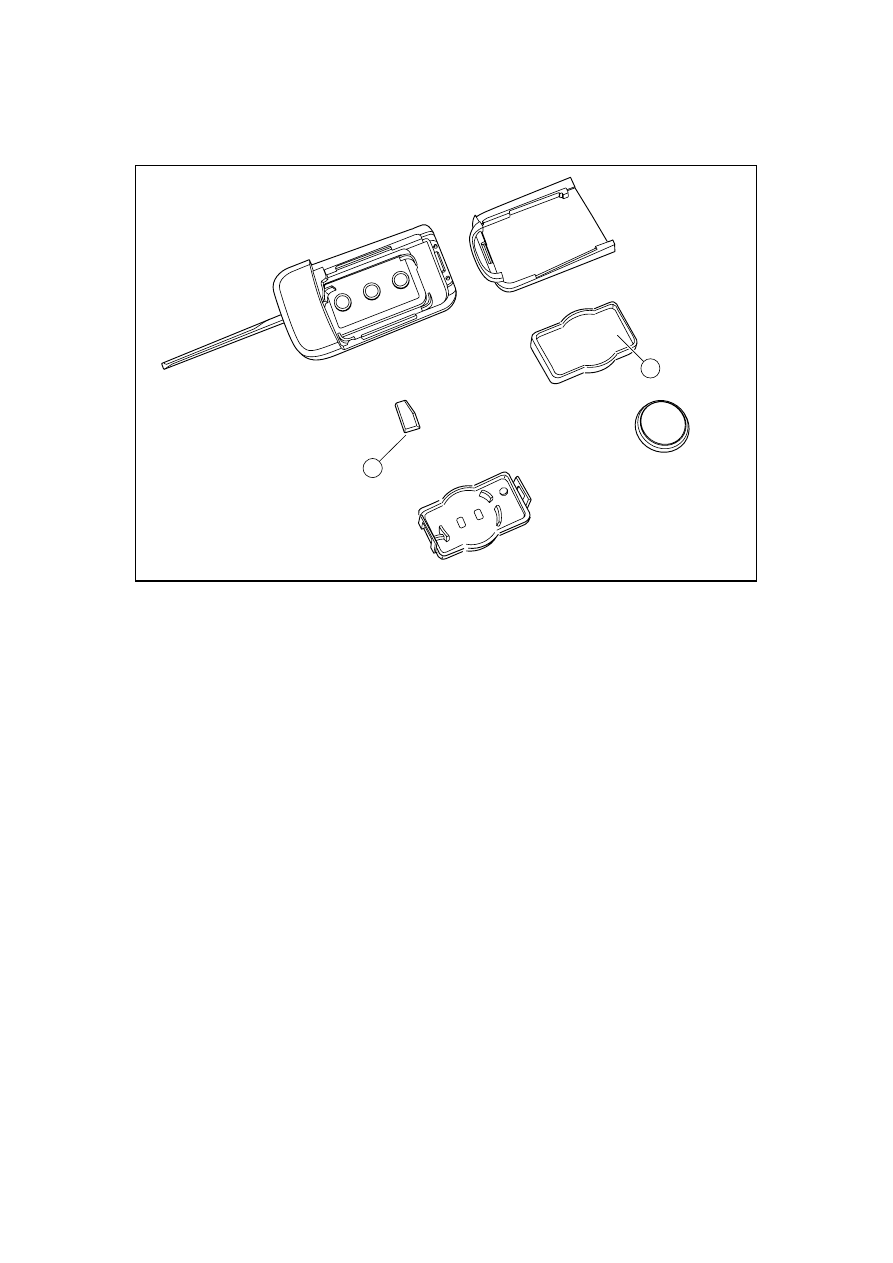

magnetic field, the transponder gets energy and information from here to decrypt and encrypt the
information, output the magnetic field through the internal coil with the carrier frequency of 125
kHz. The EAS coil transfer the magnetic field generated by the transponder into electrical signal

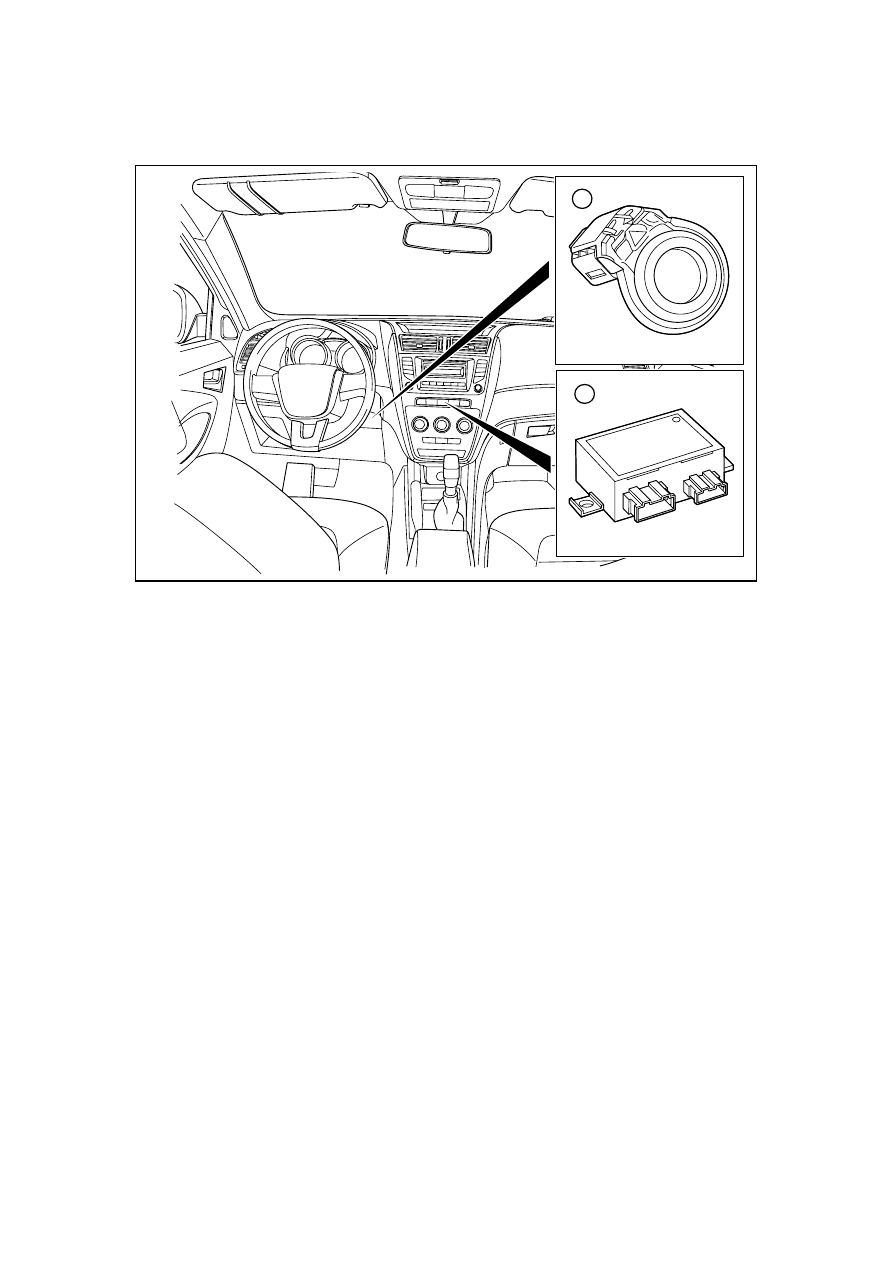

and transmit this signal to the electronic anti-theft controller assembly. Electronic anti-theft
controller assembly decrypts the transponder information after reception and passes the
certification if the data match. Otherwise, the certification fails. Turn the key to start position, and
the engine ECU communicate with the electronic anti-theft controller assembly via the R and W
lines for certification. After passing the certification, the engine can start normally, otherwise, the
engine system will be locked.
