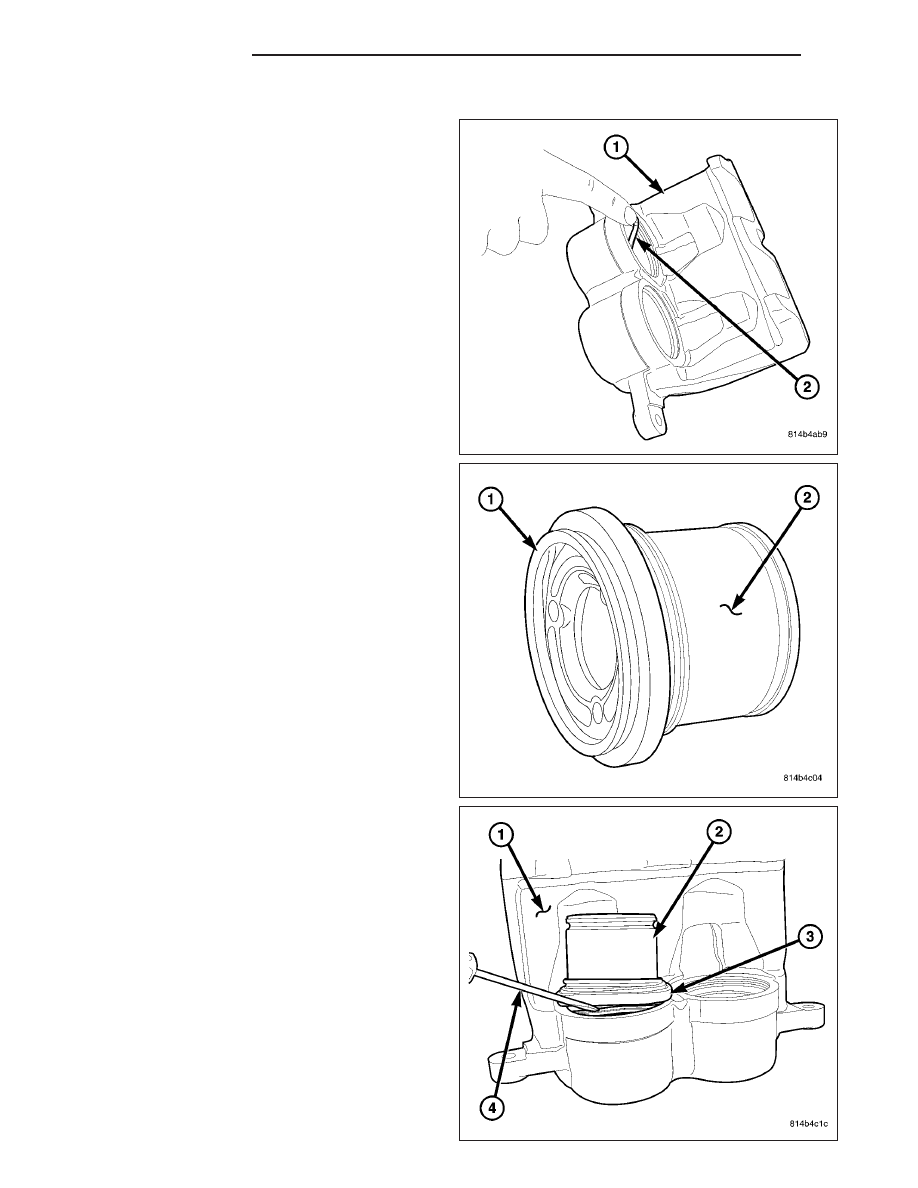

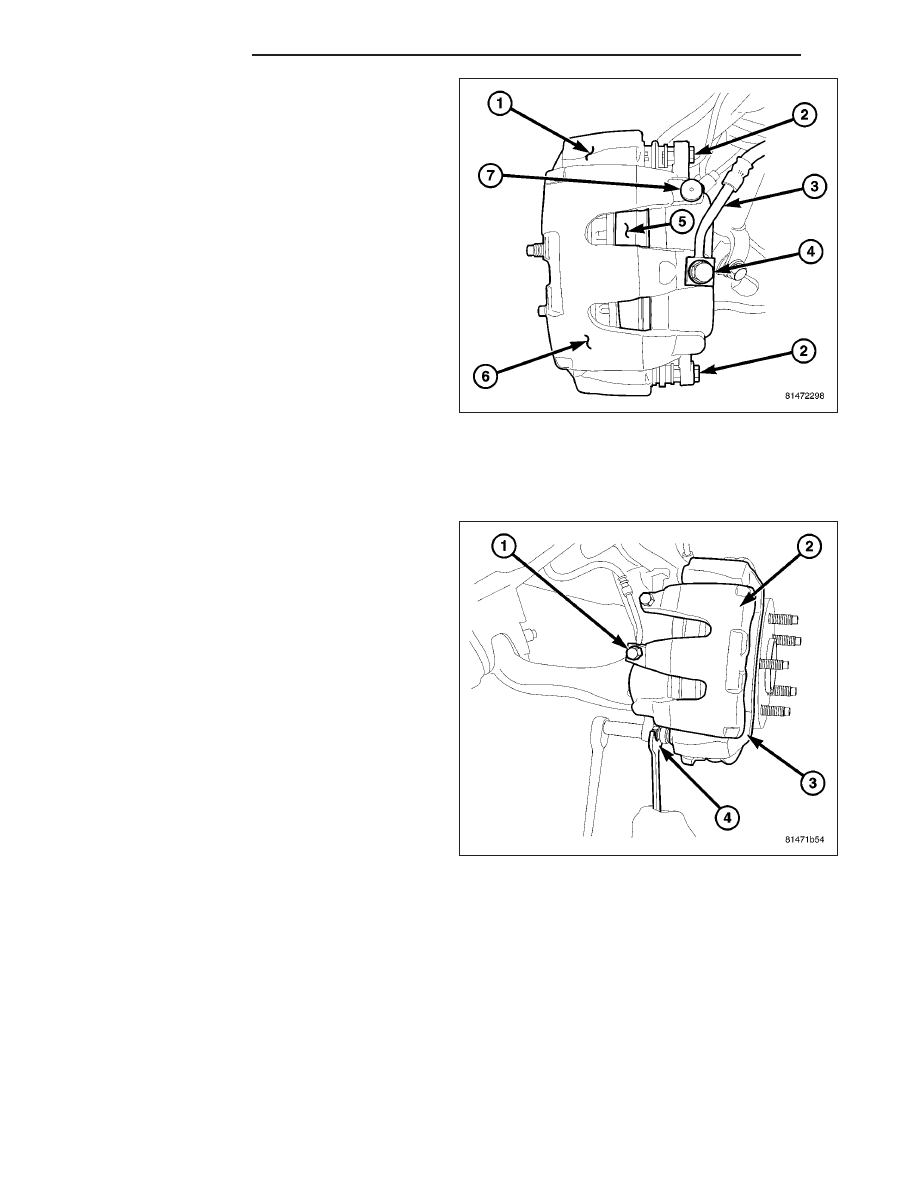

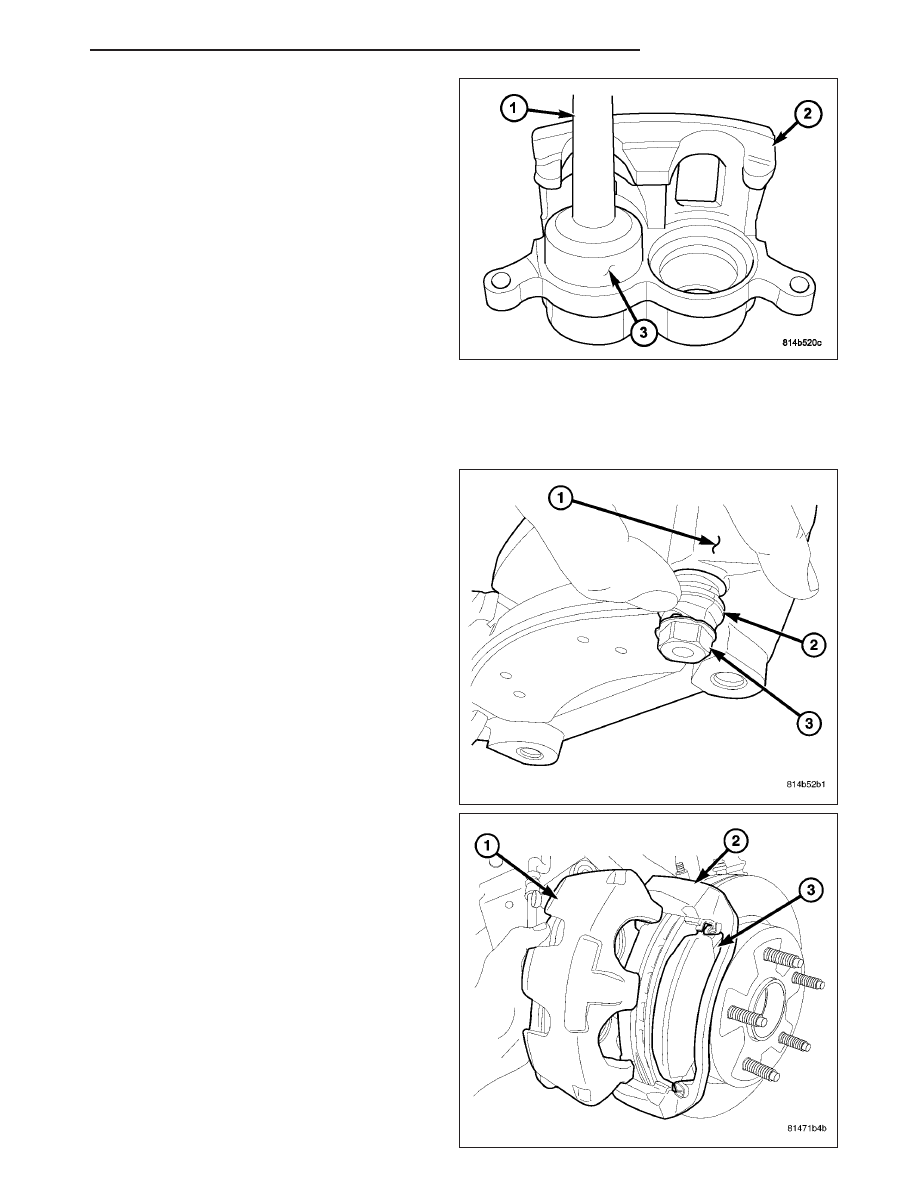

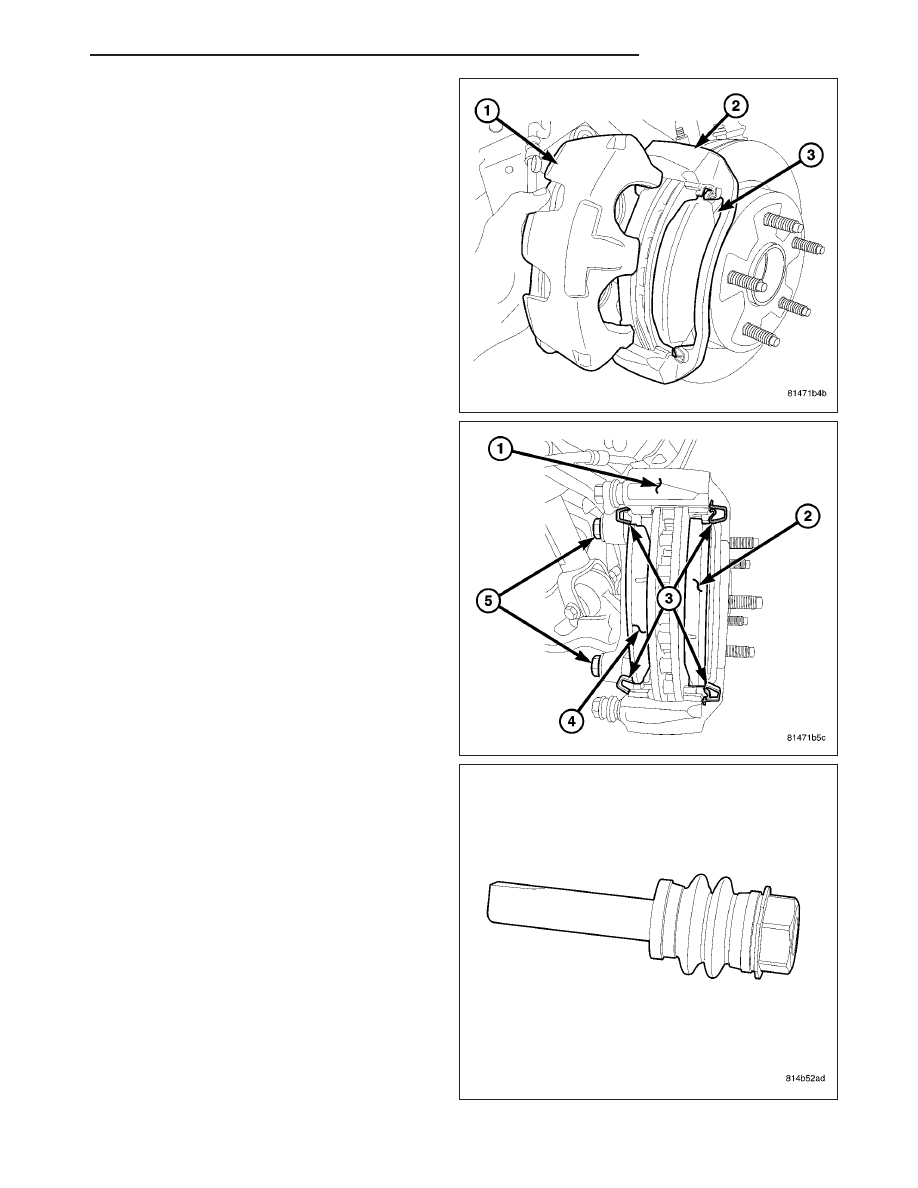

ASSEMBLY CAUTION: Dirt, oil, and solvents can damage cali- 1. Lubricate caliper pistons, piston seals and piston bores with clean, fresh brake fluid. NOTE: Verify seal is fully seated and not twisted. 2. Install new piston seals (2) into caliper bores (1). 3. Leave boot (1) dry and slip onto end of piston (2). NOTE: The dust boot lip must be inserted before 4. Slightly pull out lip portion of piston boot (3) so it protrudes past the bottom of the piston (2) and 5. Carefully press the lip (3) into the groove with a suitable tool (4) Avoid using sharp-edged tools 5 - 30 BRAKES - BASE ND |
