(17) Remove the screws that secure the floor dis-

tribution duct to the bottom half of the HVAC hous-
ing and remove the duct (Fig. 19).

(18) Remove the screws that secure the blend and

mode door actuators to the HVAC housing and
remove the actuators.

(19) Remove the mode door cam from the HVAC

housing (Fig. 20).

(20) Remove the screw that secures the floor/de-

frost door cam to the HVAC housing (Fig. 21).

(21) Remove the floor/defrost door cam, link and

door as an assembly (Fig. 22).

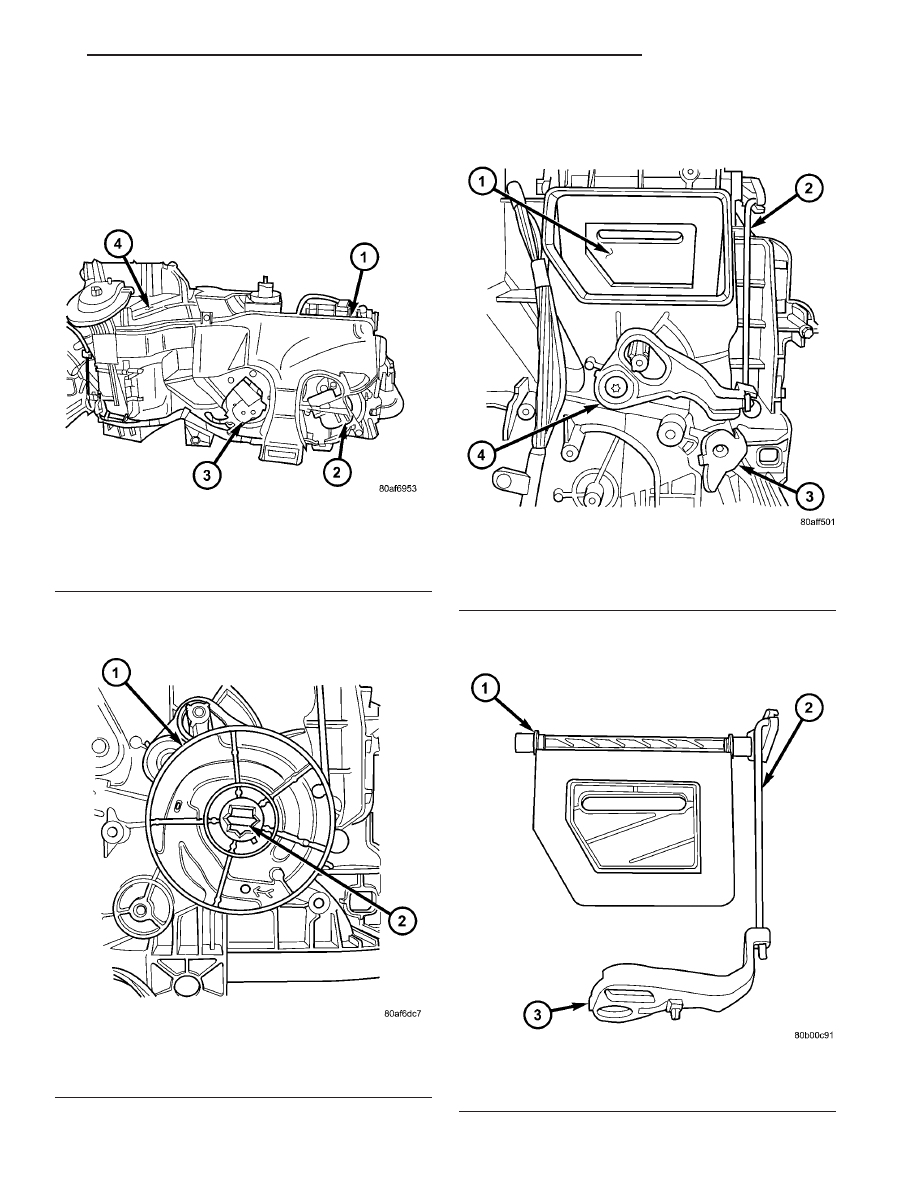

Fig. 19 Floor Distribution Duct and Actuators

1 - FLOOR DISTRIBUTION DUCT
2 - MODE DOOR ACTUATOR
3 - BLEND DOOR ACTUATOR
4 - HVAC HOUSING

Fig. 20 Mode Door Cam

1 - MODE DOOR CAM
2 - CAM SPLINE

Fig. 21 Floor/Defrost Door Cam

1 - FLOOR/DEFROST-AIR DOOR
2 - LINK
3 - PANEL DOOR LEVER
4 - FLOOR/DEFROST DOOR CAM

Fig. 22 Floor/Defrost-Air Door

1 - FLOOR/DEFROST-AIR DOOR
2 - LINK
3 - FLOOR/DEFROST DOOR CAM

JR

DISTRIBUTION

24 - 47

HVAC HOUSING (Continued)

(22) Remove the panel door lever from the panel-

air door (Fig. 23).

(23) Remove the panel-air door and air deflector

vanes from the bottom half of the HVAC housing
(Fig. 24).

NOTE: The blend door cam must be in the correct
position for removal from the HVAC housing.

(24) Rotate the blend door cam and remove the

cam from the HVAC housing (Fig. 25).

(25) Using a small screw driver, depress blend

door lever release and remove the blend door lever
and blend-air door from the HVAC housing (Fig. 26).

(26) Remove the second blend door lever and

blend-air door from the HVAC housing.

ASSEMBLY

(1) Install the two blend-air doors and levers into

the HVAC housing.

NOTE: Rotate the blend door cam until it fully seats
into the HVAC housing. The cam followers must be
in the correct position to properly install the cam.

(2) Align the blend door cam followers to the blend

door cam and install the cam into the HVAC housing.
(Fig. 27).

(3) Align the blend door actuator spline with the

spline in the blend door cam and install the blend
door actuator. (Fig. 28).

(4) Install the three screws that secure the blend

door actuator to the HVAC housing. Tighten the
screws to 2 N·m (17 in. lbs.).

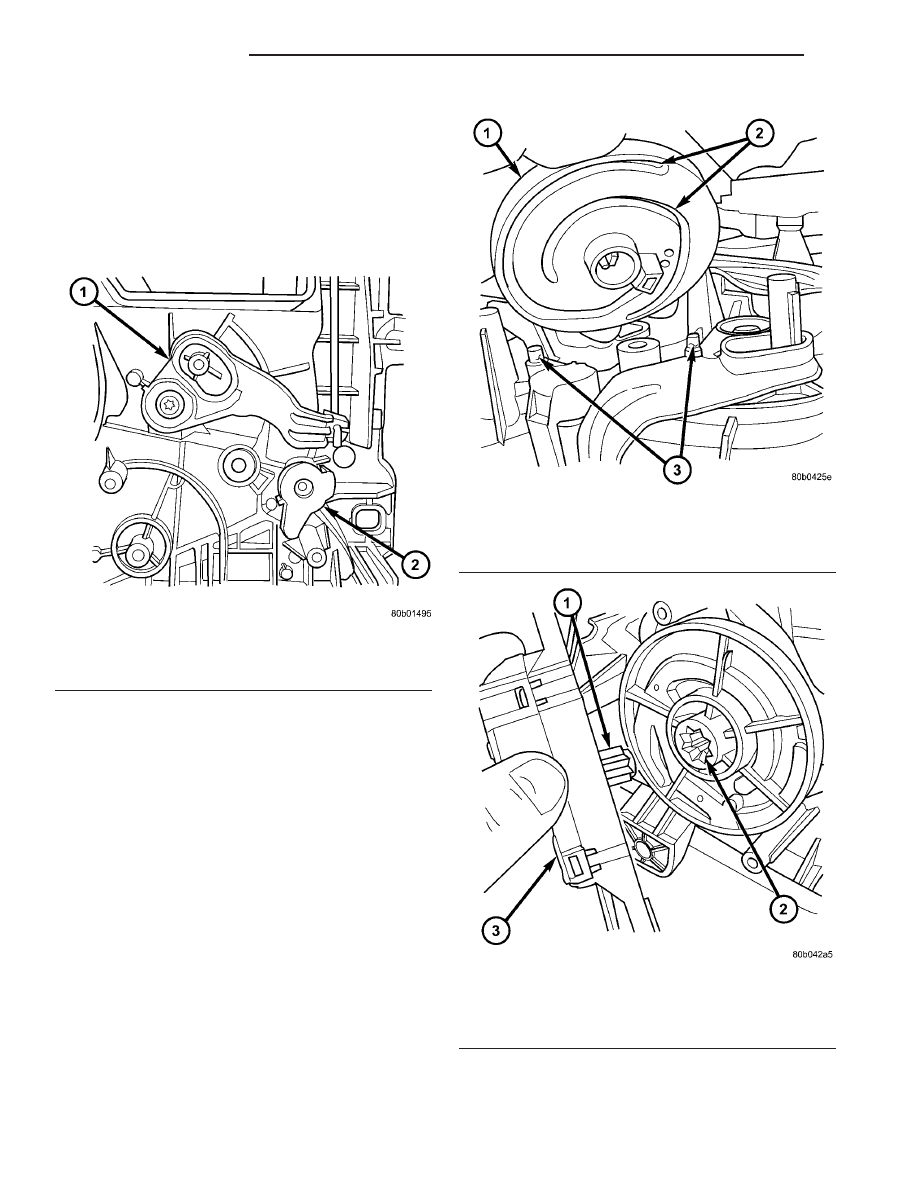

Fig. 23 Panel Door Lever

Fig. 24 Panel-Air Door and Deflector Vane

1 - PANEL-AIR DOOR
2 - AIR DEFLECTOR VANES
3 - HVAC HOUSING (BOTTOM HALF)

Fig. 25 Blend Door Cam

24 - 48

DISTRIBUTION

JR

HVAC HOUSING (Continued)

NOTE: The center vain of the air deflector must seat
into the locating tabs of the bottom HVAC housing.

(5) Install the air deflector vanes and panel door

into the bottom half of the HVAC housing (Fig. 29).

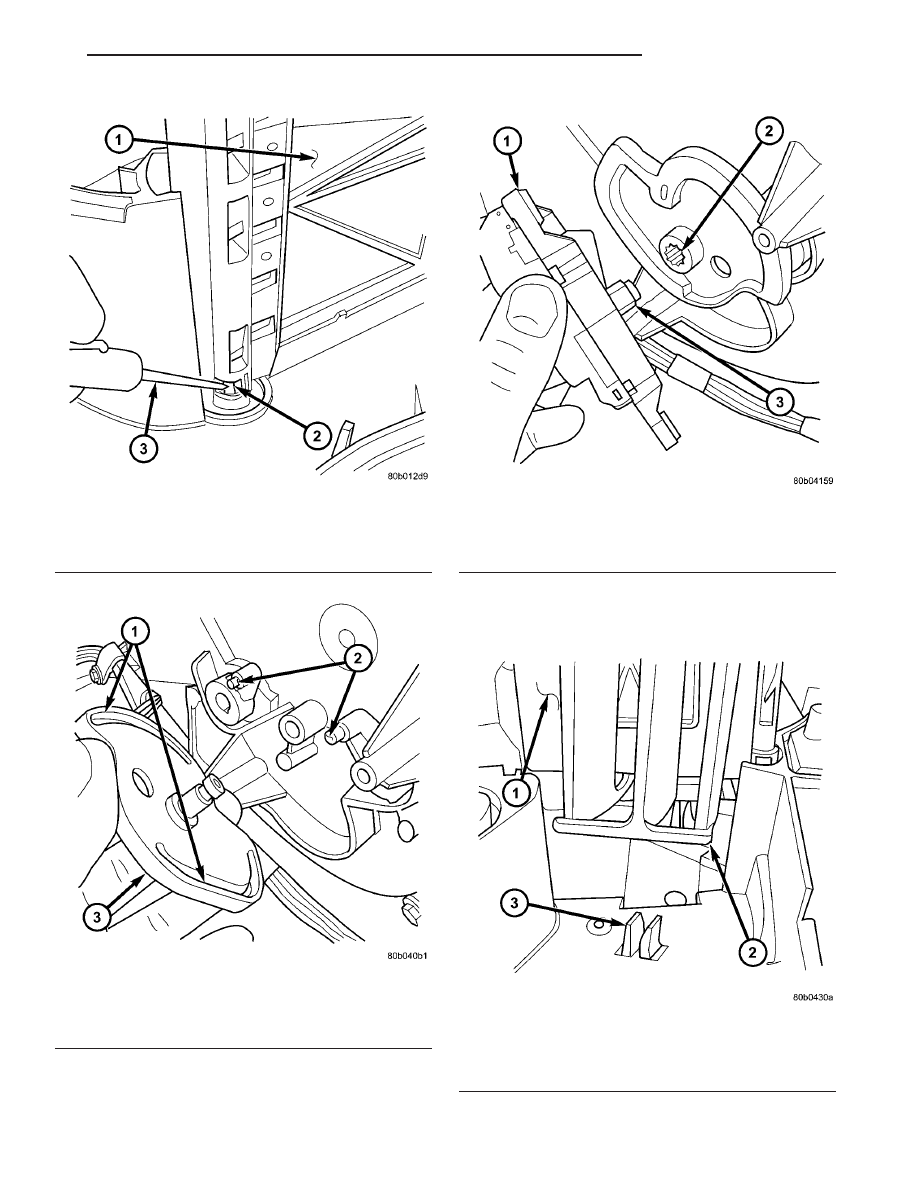

Fig. 26 Blend Door Lever Release

1 - BLEND-AIR DOOR
2 - DOOR LEVER RELEASE
3 - SCREWDRIVER

Fig. 27 Blend Door Cam

1 - CAM FOLLOWER GUIDE (2)
2 - CAM FOLLOWER (2)
3 - BLEND DOOR CAM

Fig. 28 Blend Door Actuator

1 - BLEND DOOR ACTUATOR
2 - DOOR CAM SPLINE
3 - ACTUATOR SPLINE

Fig. 29 Air Deflector Vanes

1 - PANEL DOOR
2 - AIR DELFECTOR VANES
3 - LOCATING TABS

JR

DISTRIBUTION

24 - 49

HVAC HOUSING (Continued)

(6) Install the panel door lever to the panel door

(Fig. 30).

(7) Install the floor/defrost door cam, link and door

onto the HVAC housing as an assembly.

(8) Install the screw that secures the floor/defrost

door cam to the HVAC housing. Tighten the screw to
2 N·m (17 in. lbs.).

NOTE: The mode door cam followers must be in the
correct position to properly install the cam.

(9) Align the mode door cam followers to the mode

door cam and install the cam onto the HVAC housing
(Fig. 31).

(10) Align the mode door actuator spline with the

spline in the mode door cam and install the mode
door actuator (Fig. 32).

(11) Install the three screws that secure the mode

door actuator to the HVAC housing. Tighten the
screws to 2 N·m (17 in. lbs.).

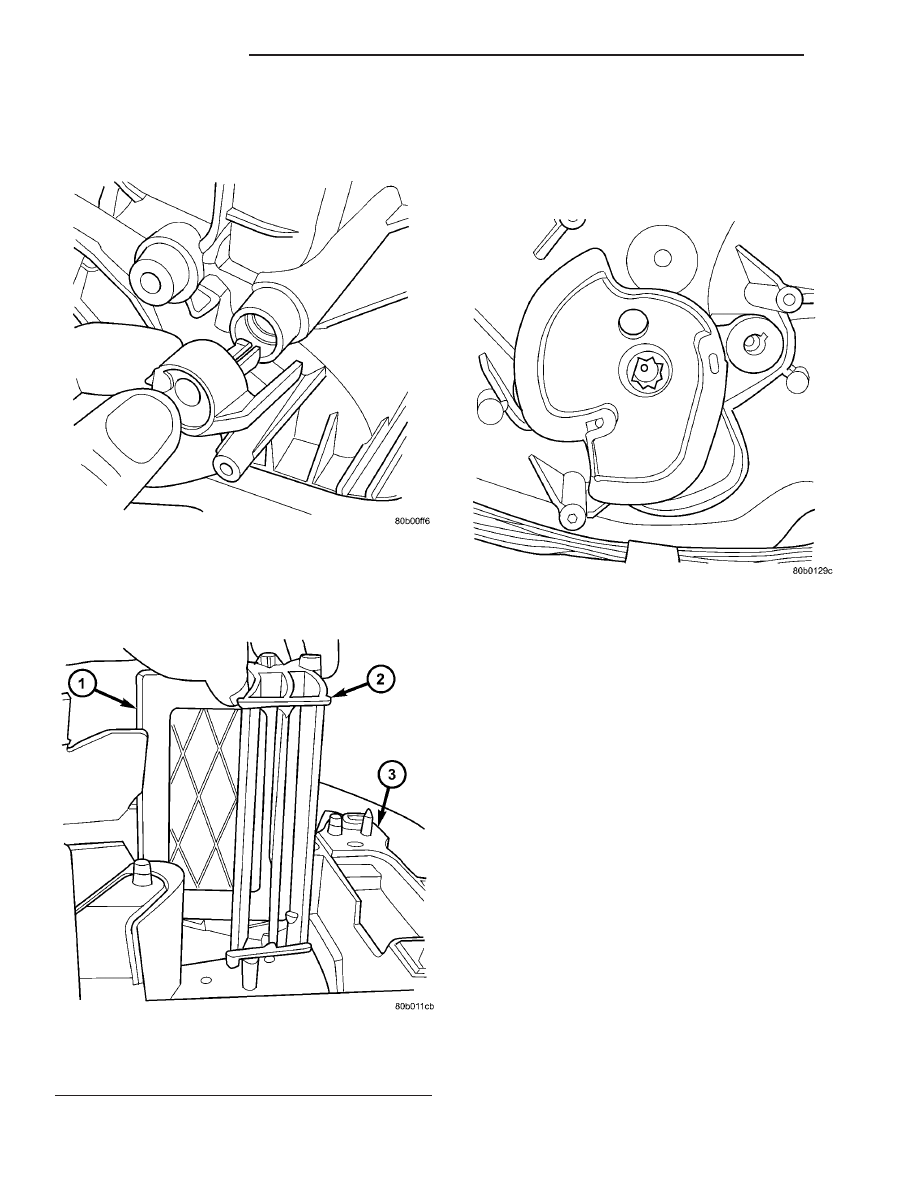

Fig. 30 Mode Door Levers

1 - FLOOR/DEFROST LEVER
2 - PANEL LEVER

Fig. 31 Mode Door Cam

1 - MODE DOOR CAM
2 - CAM FOLLOWER GUIDE (2)
3 - CAM FOLLOWER (2)

Fig. 32 Mode door actuator

1 - ACTUATOR SPLINE
2 - DOOR CAM SPLINE
3 - MODE DOOR ACTUATOR

24 - 50

DISTRIBUTION

JR

HVAC HOUSING (Continued)
