SPECIFICATIONS - BODY OPENING
DIMENSIONS - JR-41

INDEX

DESCRIPTION

FIGURE

WINDSHIELD OPENING

6

REAR WINDOW AND TRUNK OPENING

7

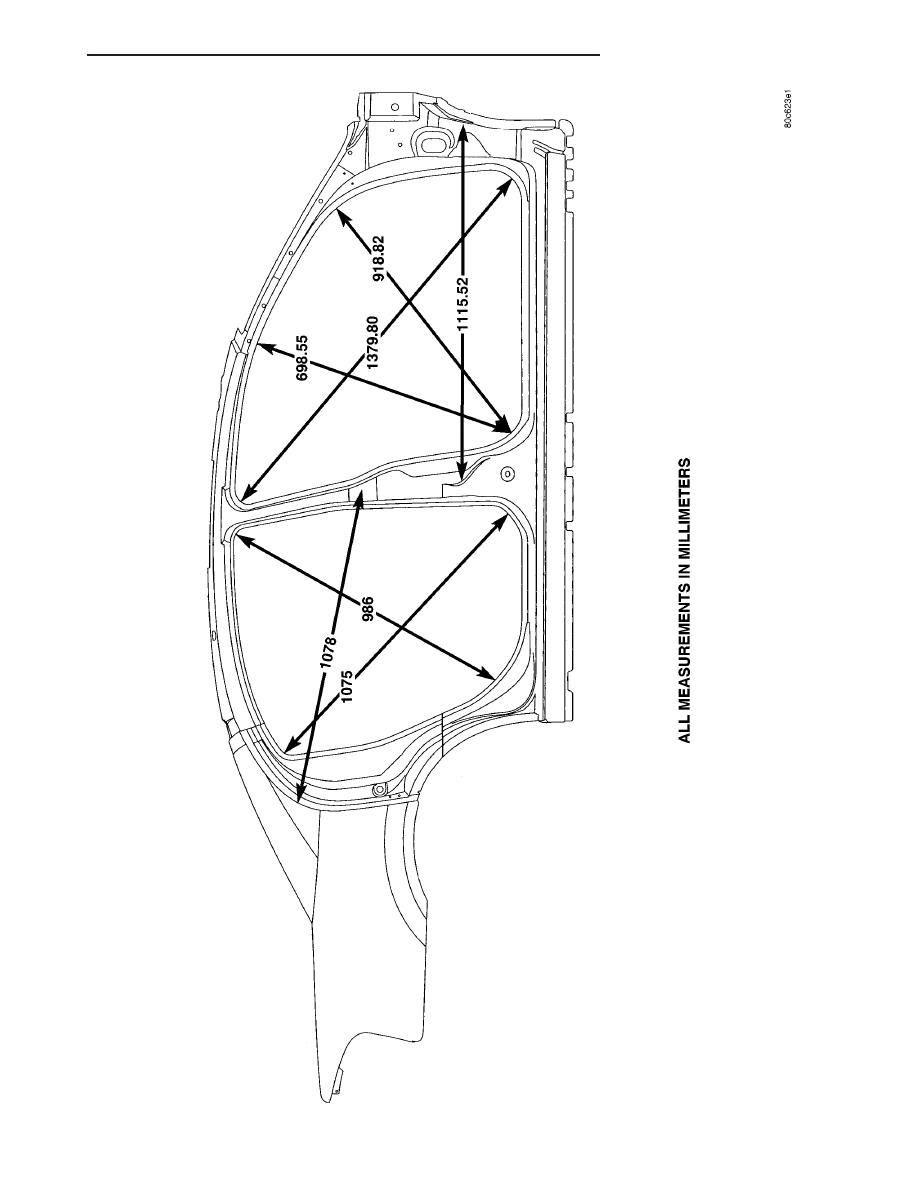

DOOR OPENINGS

8

Fig. 6 WINDSHIELD OPENING

JR

BODY STRUCTURE

23 - 157

OPENING DIMENSIONS (Continued)

Fig. 7 REAR WINDOW AND TRUNK OPENING

23 - 158

BODY STRUCTURE

JR

OPENING DIMENSIONS (Continued)

Fig.

8

DOOR

OPENINGS

JR

BODY STRUCTURE

23 - 159

OPENING DIMENSIONS (Continued)

SEALER LOCATIONS

SPECIFICATIONS

SPECIFICATIONS - SEALER LOCATIONS -
JR-27 AND JR-41

INDEX

DESCRIPTION

FIGURE

HOOD HEM FLANGE

9

DASH PANEL TO LOWER COWL PLENUM PANEL

10

DASH PANEL TO FRONT FLOOR PAN

11

FRONT SUSPENSION UPPER MOUNTING

12

9

A

9

PILLAR TO UPPER COWL

13

DASH PANEL & LOWER COWL PLENUM

14

COWL PLENUM CLOSURE, LOWER COWL PLENUM & UPPER COWL PLENUM

15

Fig. 9 HOOD HEM FLANGE
