(6) Attach three screws along left end of panel.
(7) Install glove box assembly (Refer to 23 - BODY/

INSTRUMENT PANEL/GLOVE BOX - INSTALLA-
TION).

(8) Install right a/c housing and attach with three

screws. Note the two upper screw attachments use
the pan head screws and the bottom attachment uses
the hex head screw.

(9) Attach right a/c barrel.
(10) Install radio and attach.
(11) Install CD bracket, CD player, and CD trim

bezel (if so equipped) (Refer to 23 - BODY/INSTRU-
MENT

PANEL/INSTRUMENT

PANEL

TRIM

-

INSTALLATION) .

(12) Install instrument panel cluster bezel (Refer

to 23 - BODY/INSTRUMENT PANEL/CLUSTER
BEZEL - INSTALLATION).

(13) Install outboard, inboard, and right trim

bezels (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL TRIM - INSTALLATION)
(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT

PANEL

TRIM

-

INSTALLATION)

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL TRIM - INSTALLATION)

(14) Install center bezel (Refer to 23 - BODY/IN-

STRUMENT PANEL/INSTRUMENT PANEL CEN-
TER BEZEL - INSTALLATION)

(15) Install left lower instrument panel trim (Refer

to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL TRIM - INSTALLATION)

(16) Install right and left instrument panel end

covers (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL END CAP - INSTALLA-
TION)

(17) Install instrument panel kick shield (Refer to

23 - BODY/INSTRUMENT PANEL/KNEE BLOCKER
- INSTALLATION).

(18) Install console assembly (Refer to 23 - BODY/

INTERIOR/FLOOR CONSOLE - INSTALLATION)

(19) Reconnect battery.

KICK SHIELD

REMOVAL

(1) Remove push pin near accelerator pedal.
(2) Unsnap kick shield from right lower instru-

ment panel trim.

INSTALLATION

(1) Snap kick shield onto right lower instrument

panel trim.

(2) Secure push nut through hole into HVAC unit.
(3) Pull on shield to insure engagement.

DASH PANEL

REMOVAL

NOTE: The instrument panel dash panel (vinyl skin
and substrate) can be removed without removing
the entire instrument panel and HVAC assemblies.

(1) Follow all of the right lower instrument panel

removal procedures (Refer to 23 - BODY/INSTRU-
MENT

PANEL/INSTRUMENT

PANEL

TRIM

-

REMOVAL) .

(2) Disconnect and remove passenger air bag

(Refer to 8 - ELECTRICAL/RESTRAINTS/PASSEN-
GER AIRBAG - REMOVAL).

(3) Remove instrument panel top cover (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL TOP PAD - REMOVAL).

(4) Remove

instrument

panel

speakers

(if

equipped).

(5) Remove instrument panel cluster.
(6) Remove two screw attachments to beam assem-

bly through passenger airbag opening.

(7) Remove two screw attachments to beam assem-

bly below passenger airbag opening.

(8) Remove three screw attachments to left, right-

center, and right a/c ducts.

(9) Remove two screw attachments through cluster

opening.

(10) Remove four screw attachments in center

stack area (two at HVAC control opening, and two at
radio opening).

(11) Remove four screw attachments around steer-

ing column. Position steering column as required to
access screw heads.

(12) Remove one screw on left outboard corner to

multi-function junction block bracket.

(13) Remove two screw attachments to defroster

duct. Remove defroster duct.

(14) Remove four screw attachments along rear-

ward edge of top cover.

(15) Remove two instrument panel steering col-

umn to cowl plenum screws.

(16) Remove five instrument panel to plenum

screws.

(17) Remove panel.
(18) Remove right demist grille.

INSTALLATION

(1) Install right demist grille.
(2) Load panel onto beam assembly.
(3) Attach one screw to right attachment to beam

assembly behind cluster (must be done first to cor-
rectly position panel on beam assembly).

(4) Attach two screws to left a/c duct and right

upper center a/c duct.

JR

INSTRUMENT PANEL

23 - 81

RIGHT LOWER INSTRUMENT PANEL TRIM (Continued)

(5) Attach two screws through passenger air bag

opening to beam assembly.

(6) From fight to left, attach the following 12

screws:

(a) Two screws below passenger airbag opening.
(b) Four screws in center stack area.
(c) Four screws around steering column and one

screw to left attachment to beam assembly behind
cluster.

(d) One screw to left lower corner to multi-func-

tion junction block bracket.
(7) Attach one screw attachment to right a/c duct.
(8) Attach four screw attachments along top cover

rearward edge.

(9) Assemble defroster duct and attach two screws.
(10) Attach

five

instrument

panel

to

plenum

screws.

(11) Attach two instrument panel steering column

to plenum screws.

(12) Assemble instrument panel cluster.
(13) If vehicle is equipped with front speakers,

install four push nuts (P/N 06034833), connect
speaker and attach to panel.

(14) If vehicle is equipped without front speakers,

install two mastic patches (P/N 04595844AA) over
speaker hole.

(15) Assemble passenger air bag.
(16) Assemble top cover.
(17) Install instrument panel lower right trim

panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL TRIM - INSTALLATION).

23 - 82

INSTRUMENT PANEL

JR

DASH PANEL (Continued)

INTERIOR

TABLE OF CONTENTS

page

page

A-PILLAR TRIM

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . 83

REMOVAL- JR-27 ONLY

. . . . . . . . . . . . . . . . 83

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . 84

INSTALLATION - JR-27 ONLY

. . . . . . . . . . . . 84

B-PILLAR LOWER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 85

CARPETS AND FLOOR MATS

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . 85

REMOVAL - JR-27 ONLY

. . . . . . . . . . . . . . . . 85

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . 86

INSTALLATION - JR-27 ONLY

. . . . . . . . . . . . 86

CENTER HEADER TRIM PANEL

REMOVAL

REMOVE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 87

COWL TRIM PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 87

DOOR SILL TRIM PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 87

FLOOR CONSOLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 89

FORWARD INSTRUMENT PANEL CONSOLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 89

HEADLINER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 91

HEADER TRIM PANEL - RIGHT OR LEFT

REMOVAL - JR-27 ONLY

. . . . . . . . . . . . . . . . . . 92

INSTALLATION - JR-27 ONLY

. . . . . . . . . . . . . . 92

LOWER QUARTER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

QUARTER TRIM PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 93

REAR SHELF TRIM PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 94

REAR VIEW MIRROR

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . 94

REMOVAL - JR-27 ONLY

. . . . . . . . . . . . . . . . 94

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . 94

INSTALLATION - JR-27 ONLY

. . . . . . . . . . . . 95

SHIFT BOOT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 96

SUN VISOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 96

SUN VISOR SUPPORT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 96

UPPER B-PILLAR TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 97

UPPER DECK MOLDING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 97

UPPER QUARTER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 97

WINDSHIELD HEADER DAMPER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 98

A-PILLAR TRIM

REMOVAL

REMOVAL

(1) Remove the front door opening weatherstrip

along the A-pillar. (Refer to 23 - BODY/WEATHER-

STRIP/SEALS/DOOR OPENING WEATHERSTRIP -
REMOVAL)

(2) Disengage clips attaching A-pillar trim to A-pil-

lar (Fig. 1).

(3) Remove A-pillar trim from vehicle.

REMOVAL- JR-27 ONLY

(1) Remove header molding panel (Refer to 23 -

BODY/INTERIOR/INTERIOR

TRIM

PANELS

-

REMOVAL).

JR

INTERIOR

23 - 83

(2) Disengage clips attaching A-pillar trim panel to

A-pillar.

(3) Remove trim panel from vehicle (Fig. 2).

INSTALLATION

INSTALLATION

(1) Place A-pillar trim into position.
(2) Engage clips attaching A-pillar trim to A-pillar.
(3) Install the door opening weatherstrip to the

A-pillar. (Refer to 23 - BODY/WEATHERSTRIP/
SEALS/DOOR

OPENING

WEATHERSTRIP

-

INSTALLATION)

INSTALLATION - JR-27 ONLY

(1) Position trim panel near A-pillar.
(2) Align locating pins on back side of trim panel

to holes in A-pillar.

(3) Press clips on A-pillar trim panel into slots in

A-pillar.

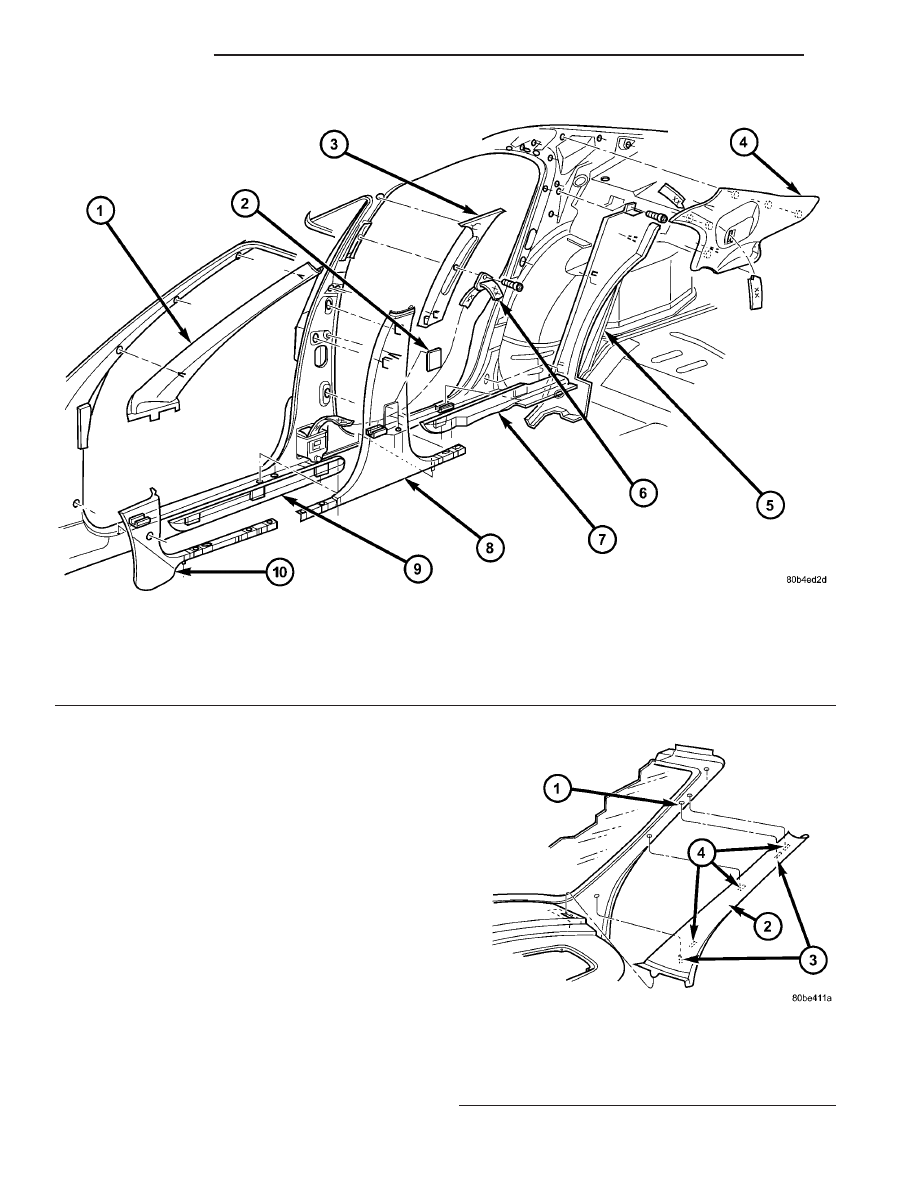

Fig. 1 INTERIOR TRIM PANELS

1 - A-PILLAR TRIM
2 - BEZEL - B-PILLAR LOWER
3 - UPPER B-PILLAR TRIM
4 - UPPER QUARTER TRIM
5 - LOWER QUARTER TRIM

6 - SEAT BELT
7 - SCUFF PLATE
8 - LOWER B-PILLAR TRIM
9 - SCUFF PLATE
10 - COWL TRIM

Fig. 2 A-Pillar Trim Panel

1 - A-PILLAR
2 - A-PILLAR TRIM PANEL
3 - LOCATOR(S)
4 - CLIP(S)

23 - 84

INTERIOR

JR

A-PILLAR TRIM (Continued)
