ing column, behind the steering wheel. The wiper
switch is a resistive multiplexed network that pro-
vides an input to the Body Control Module (BCM)
which then opens/closes the wiper relay.

The wiper system has LOW, HIGH, and INTER-

MITTENT switch positions. The intermittent wiper

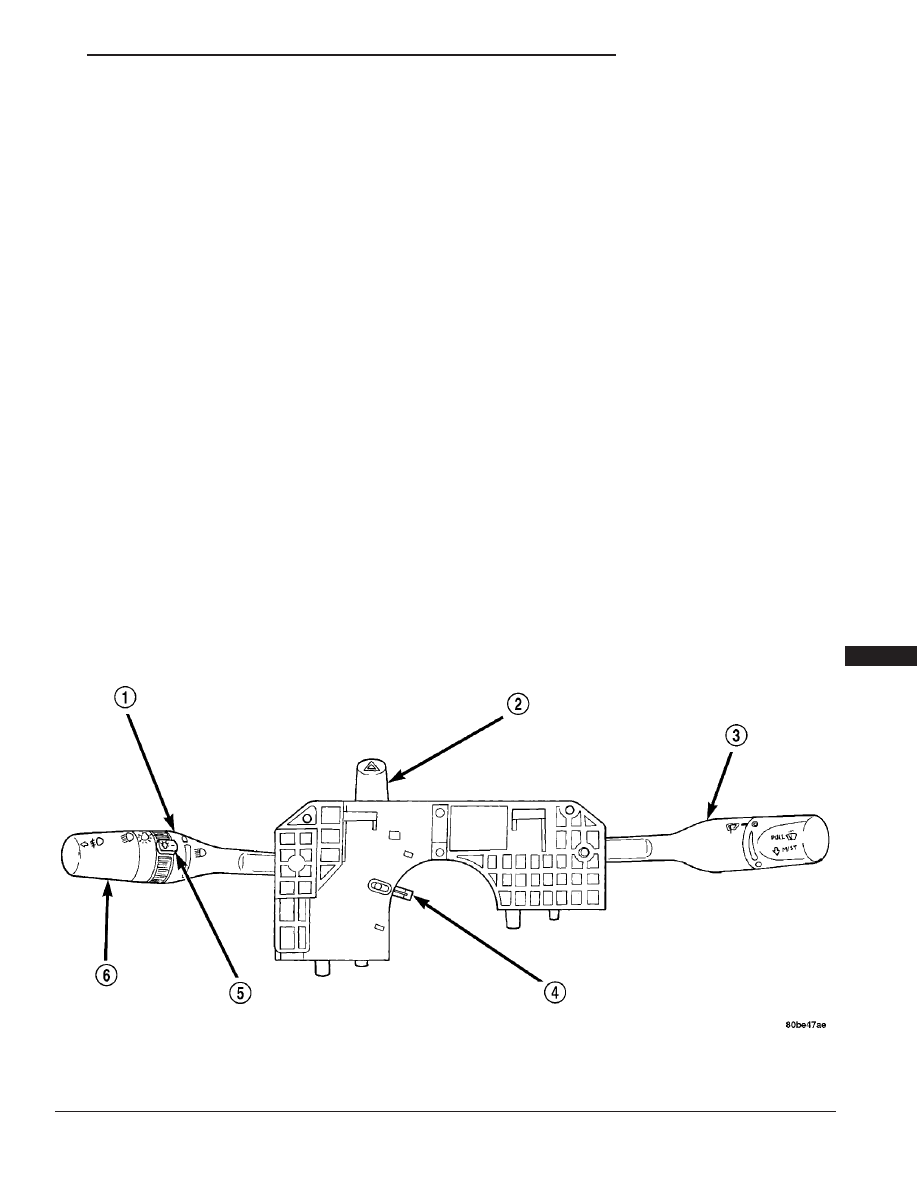

Fig. 1 MULTI-FUNCTION SWITCH WITH INTEGRAL WIPER/WASHER SWITCH

1 - TURN SIGNAL CONTROL STALK

4 - CANCELING ACTUATOR

2 - HAZARD WARNING BUTTON

5 - PANEL DIMMER SWITCH

3 - WINDSHIELD WIPER/WASHER CONTROL

6 - EXTERIOR LIGHTING CONTROL

WIPERS/WASHERS

8R - 1

system, in addition to low and high speeds, has a
delay mode and a pulse wipe mode.

The intermittent wiper function is integral to the

wiper switch. The wiper switch also includes the
MIST feature which provides a single wipe when
actuated.

The wiper motor is serviced separately from the

wiper assembly. The wiper linkage is crimped onto
the assembly and cannot be detached.

The wiper function can be checked using the DRB

III

t scan tool.

WASHER SYSTEM

This vehicle is equipped with an electrically oper-

ated windshield washer pump. The washers are oper-
ated by a switch in the multi-function switch control
lever (Fig. 1). The lever is located on the right side of
the steering column.

The electric pump assembly is mounted directly to

the reservoir. A permanently lubricated motor is cou-
pled to an impeller type pump. The pump and reser-
voir are serviced as separate assemblies.

OPERATION

WIPER SYSTEM

Move the control lever up to select the desired

wiper speed. Move the lever upward to the second
detent for Low speed wiper operation, or to the third
detent for High speed operation.

Use the intermittent wiper when weather condi-

tions make a single wiping cycle, with a variable
pause between cycles, desirable. Move the lever to
the DEL position, then select the delay interval by
turning the end of the lever. The delay can be regu-
lated from a maximum of approximately 18 ± 0.5 sec-
onds between cycles, to a cycle every second ± 0.5
second.

The windshield wipers will only operate with the

ignition switch in the ACCESSORY or IGNITION
RUN position. The wiper circuit is protected against

over loads by a fuse in the junction block. This pro-
tects the circuitry of the wiper system and the vehi-
cle. The wiper motor has permanent magnet fields.

The intermittent wiper delay mode has a range of

1 ± 0.5 to 18 ± 0.5 seconds. Pulse wipe is accom-
plished by holding stalk lever in the WASH position
momentarily. The wiper blades then sweep once or
twice after the WASH at low speed and then return
to the previous wiper switch mode.

The wiper system completes the wipe cycle when

the switch is turned OFF. The blades park in the
lowest portion of the wipe pattern.

Push down on the wiper lever to activate a single

wipe to clear off road mist or spray from a passing
vehicle. As long as the lever is held down, the wipers
will continue to operate.

WASHER SYSTEM

To use the washer, pull the stalk lever toward you

and hold while spray is desired. If the stalk lever is
pulled while in the delay range, the wiper will oper-
ate for two wipe cycles (± 1) after the stalk lever is
released, and then resume the intermittent interval
previously selected.

The wash function can be accessed in the OFF

position of the wiper control switch. Pulling the
washer stalk lever rearward when the switch is in
the OFF position will operate the wipers and washer
motor pump continuously until the stalk lever is
released. Releasing the stalk lever will stop the
washer pump but the wipers will complete the cur-
rent wipe cycle followed by an average of two more
wipe cycles (± 1) before the wipers park and the mod-
ule turns off.

If the stalk lever is pulled while in the OFF posi-

tion, the wipers will operate for two wipe cycles, then
turn OFF.

Fluid, gravity fed from the reservoir, is forced by

the pump through rubber hoses to the hood mounted
nozzles which direct the fluid streams to the wind-
shield.

8R - 2

WIPERS/WASHERS

WIPERS/WASHERS (Continued)

DIAGNOSIS AND TESTING - WINDSHIELD
WASHERS

Whenever a windshield washer malfunction occurs,

first verify that the windshield washer wire harness

is properly connected to all connectors before starting
normal diagnosis and repair procedures. Refer to the
WINDSHIELD WASHER DIAGNOSIS table.

WINDSHIELD WASHER DIAGNOSIS

CONDITION

POSSIBLE CAUSE

CORRECTION

PUMP RUNS NO FLUID
FLOWING.

1. NO FLUID IN THE
RESERVOIR.

1. FILL RESERVOIR.

2. NOZZLE PLUGGED
OR FROZEN.

2. THAW AND CHECK FLOW IF BLOCKED

3. BROKEN, LOOSE OR
PINCHED HOSE.

3. CHECK FLOW THROUGH HOSE CONNECTIONS.

4. FAULTY PUMP.

4. APPLY BATTERY VOLTAGE TO MOTOR
TERMINALS, REPLACE IF PUMP DOES NOT RUN.

SYSTEM OPERATES
INTERMITTENTLY.

1. LOOSE WIRE
CONNECTION.

1. CHECK WIRE CONNECTIONS.

2. FAULTY SWITCH.

2. DISCONNECT WIRE HARNESS USE VOLTMETER
TO CHECK SWITCH.

SYSTEM OUTPUT IS
LOW.

1. PINCHED HOSE.

1. CHECK FLOW THROUGH HOSE CONNECTION.

2. HOSE BLOCKED.

2. DISCONNECT HOSE AT NOZZLE AND Y
CONNECTOR. CHECK FOR FLOW. REPLACE AS
NECESSARY.

WASHER NOZZLE

REMOVAL

To replace nozzle, disconnect washer fluid hose.

Using needle nose pliers, squeeze together the lock-
ing tabs on the nozzle and remove.

INSTALLATION

For installing make sure that both locking tabs are

securely snapped into position. Connect washer fluid
hose. If no washer spray, check fluid hoses for kinks
or leaks.

WASHER RESERVOIR

REMOVAL

(1) Disconnect and isolate the battery negative

remote cable.

(2) Disconnect washer fluid hose at in-line connec-

tor on top of the right shock tower.

(3) Partially remove bumper fascia as needed to

gain access to the reservoir. Refer to Frame &
Bumpers, Bumpers, Front Fascia, Removal.

(4) Disconnect wire connector from washer pump

and harness mounting tab (Fig. 2).

(5) Remove washer reservoir mounting bolts.
(6) Slide rearward and drop down and away from

vehicle.

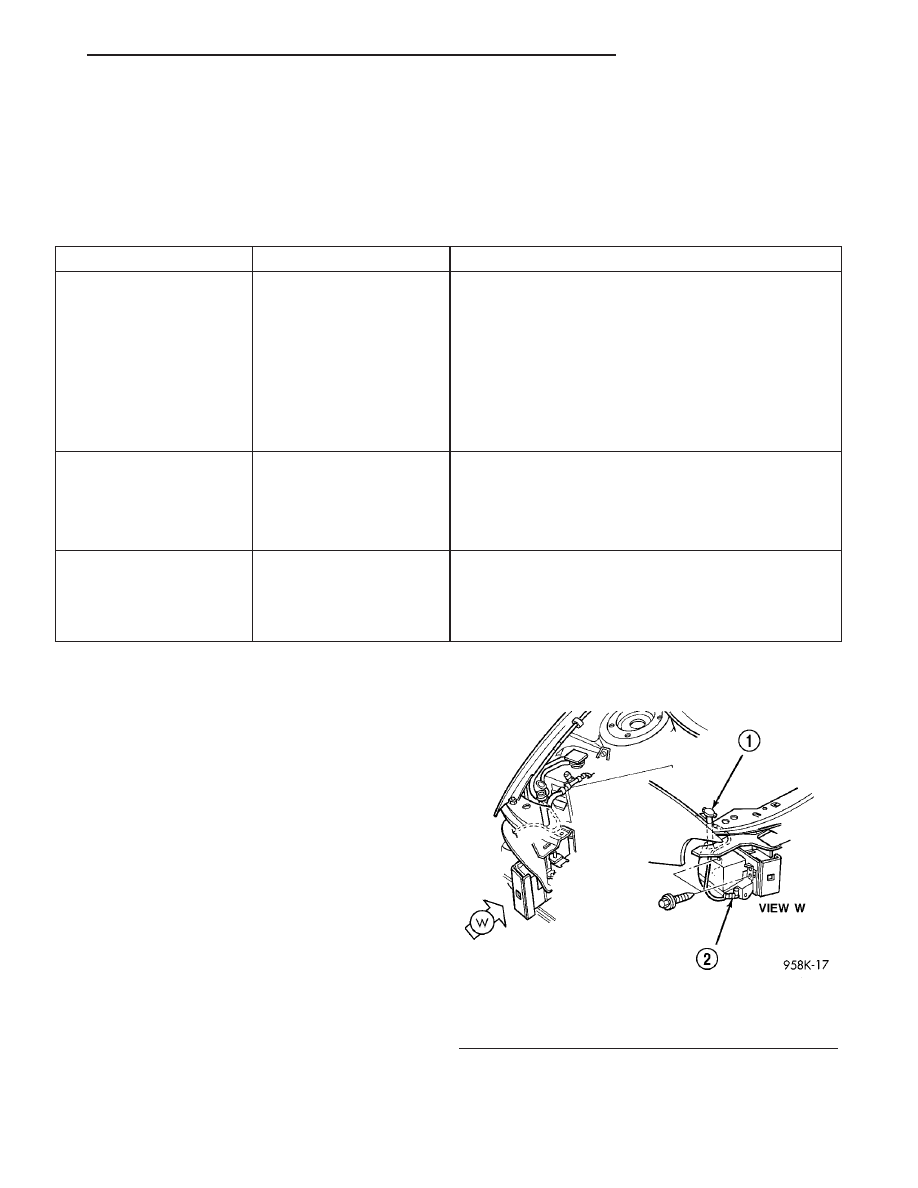

Fig. 2 RESERVOIR REMOVAL

1 - RESERVOIR
2 - WASHER PUMP

WIPERS/WASHERS

8R - 3

WIPERS/WASHERS (Continued)

(7) Drain washer fluid from reservoir into an

appropriate container.

(8) Disconnect the washer hose from the reservoir.

INSTALLATION

(1) Connect the washer hose to the reservoir.
(2) Install the washer fluid reservoir.
(3) Connect wire connector to washer pump and

harness mounting tab (Fig. 2).

(4) If

fascia

was

partially

removed,

reinstall

bumper fascia as needed. Refer to Frame & Bumpers,
Bumpers, Front Fascia, Installation.

(5) Connect washer fluid hose to washer pump on

reservior.

(6) Fill washer fluid.
(7) Connect the battery negative remote cable.

WASHER RESERVOIR PUMP

REMOVAL

(1) Disconnect and isolate the battery negative

remote cable.

(2) Partially remove the bumper fascia as needed

to gain access to the reservoir pump. Refer to Frame
& Bumpers, Bumpers, Front Fascia, Removal.

(3) Place a drain bucket below the reservoir to

catch any washer solvent that may leak out.

(4) Firmly grasping pump by hand twist and pull

away from reservoir and out of grommet. Care must
be taken not to puncture reservoir.

(5) Remover rubber grommet from reservoir and

throw away.

INSTALLATION

(1) A new grommet is required for installation.
(2) Firmly grasping pump by hand twist and push

into reservoir. Care must be taken not to tear grom-
met or puncture reservoir.

(3) If

fascia

was

partially

removed,

reinstall

bumper fascia as needed. Refer to Frame & Bumpers,
Bumpers, Front Fascia, Installation.

(4) Refill reservoir with the washer solvent.
(5) Connect the battery negative remote cable.

WIPER ARMS

REMOVAL

(1) Place the wiper arm/blades in the PARK posi-

tion and turn ignition OFF.

(2) Unsnap nut cover. By hand rock gently side to

side and slide away from arm pivot. To remove the
left side raise hood for clearance

(3) Loosen retention nut.

(4) Remove the arm from the pivot by using a uni-

versal claw puller or by hand rock gently side to side
and slide. Raise blade and arm off glass and rock
side to side while applying pressure with the puller
till loose.

(5) Remove arm retention nut and arm.

INSTALLATION

(1) Place arm on pivot shaft, align blade with

wiper location made on windshield

(2) Start retention nut.
(3) Raise arm and blade off windshield while tight-

ening retention nut. Torque nut to 30 ± 3 N·m (22 ±
2 ft. lbs.).

(4) Install arm nut cover.

ADJUSTMENTS - WIPER ARMS

High speed, wet windshield operation, the right

blade tip may override the cowl screen slightly. This
is normal and should not affect wiper system perfor-
mance.

(1) Lift arms and blade assemble to a over cen-

tered position.

(2) Turn ignition switch to ON or ACC position.
(3) Use LOW speed setting and cycle the wiper

motor to the PARK position.

(4) Turn ignition OFF.
(5) Carefully lower arm and blades to the wind-

shield.

(6) Measure the distance from the blade tip to the

cowl screen edge. The blade should be 18 to 42 mm
(.75 to 1.60 inches.).

(7) If not OK, check for worn parts.
(8) In the event the blade tip strikes the cowl

screen or molding remove arm. Position arm on
windshield and torque nut to 30 ± 3 N·m (22 ± 2 ft.
lbs.) (Fig. 3).

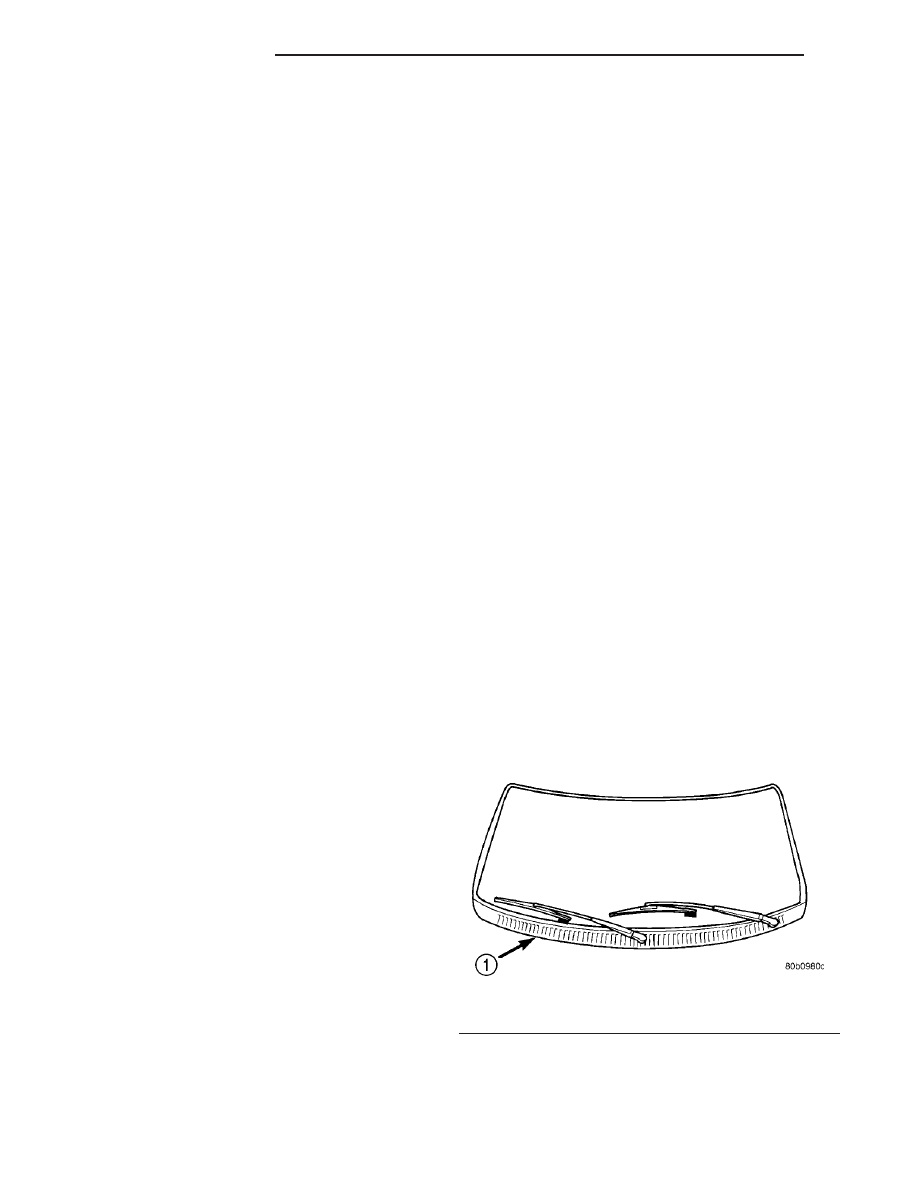

Fig. 3 ARM ADJUSTMENT

1 - COWL SCREEN

8R - 4

WIPERS/WASHERS

WASHER RESERVOIR (Continued)
