Chrysler Pacifica. Manual - part 804

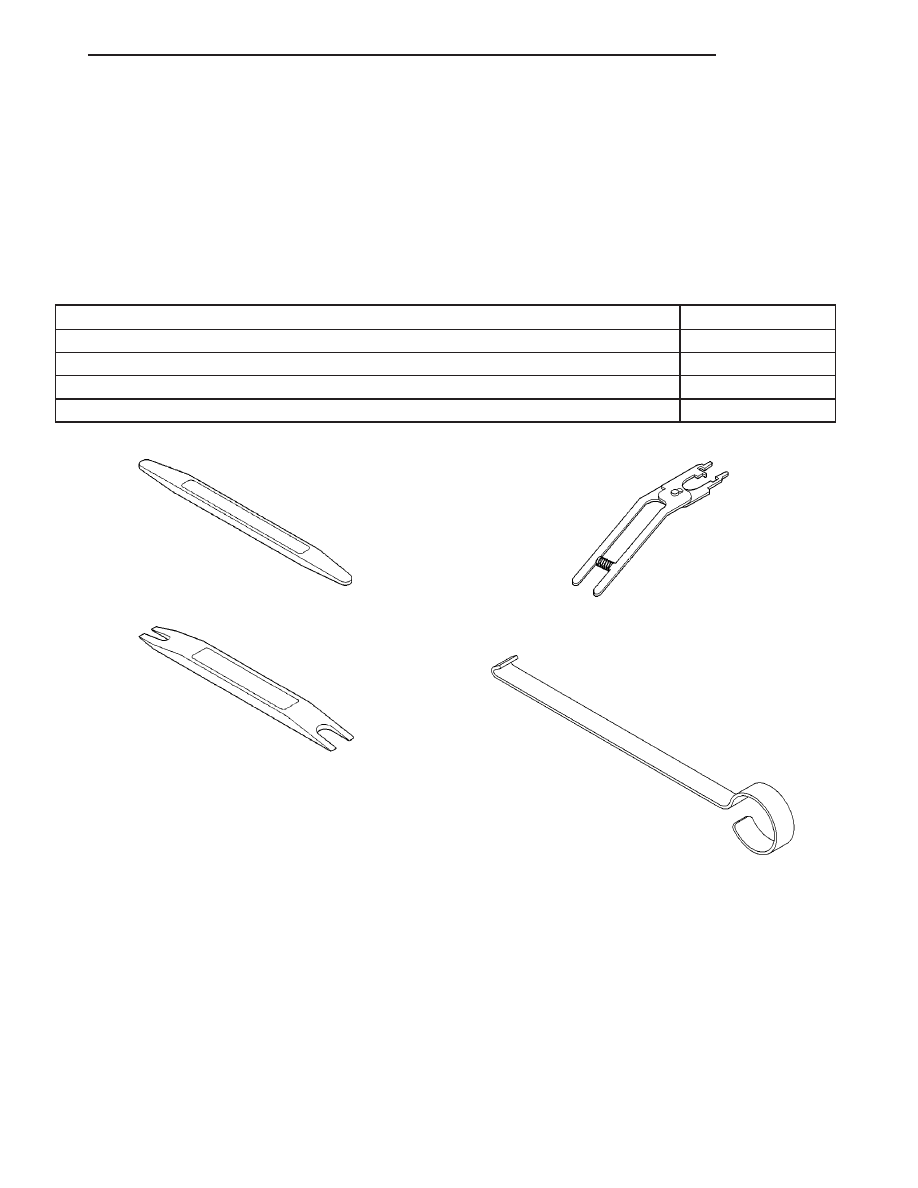

SPECIFICATIONS

TIGHTENING SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Front Seat to Floor Nuts

88 N·m

65 ft. lbs.

—

First Row Seat to Floor Nuts

54 N·m

40 ft. lbs.

—

Second Row to Floor Nuts

54 N·m

40 ft. lbs.

—

Seat Belt Web Guide to B-Pillar

10 N·m

—

90 in. lbs.

Seat Belt Retractor Bolt

41 N·m

30 ft. lbs.

—

Second Row Seat Belt Bracket

40 N·m

30 ft. lbs.

—

Seat Belt Web Guide Screw

11 N·m

—

100 in. lbs.

Upper & Lower Portion of Retractor Screws

40 N·m

30 ft. lbs.

—

Seat Belt Turning Loop Button Adjuster Screws

40 N·m

30 ft. lbs.

—

Front Door Outside Mirror Nuts

6 N·m

—

50 in. lbs.

Floor Console to Floor

12 N·m

—

105 in. lbs.

Video Bracket to Roof Bow

12 N·m

—

105 in. lbs.

Sunroof to Roof Module

12 N·m

—

105 in. lbs.

Outside Door Handle Bracket Sub-Assemble Screw

4 N·m

—

37 in. lbs.

Front Door Power Latch and Cable Screws

9 N·m

—

80 in. lbs.

Door Hold Open Check Strap Nuts

10 N·m

—

90 in. lbs.

Door Check Strap Screws

12 N·m

—

105 in. lbs.

Outside Handle Cover Fastener

4 N·m

—

37 in. lbs.

Front and Rear Door hinge To Body

34 N·m

—

25 ft. lbs.

Front and Rear Door hinge To Door

34 N·m

25 ft. lbs.

Front Door Latch Striker to B-Pillar Screws

28 N·m

—

250 in. lbs.

Front Door Outside B-Pillar Applique Molding

3 N·m

—

30 in. lbs.

Front Door Glass Run Lower Channel Screw

6 N·m

—

55 in. lbs.

Front Door Power Regulator Screw

9 N·m

—

80 in. lbs.

Rear Door B/C-Pillar Applique Molding Screw

3 N·m

—

30 in. lbs.

Rear Door Power Lock Latch Screw

8 N·m

—

75 in. lbs.

Rear Door Outside Handle Bracket Fastener

4 N·m

—

37 in. lbs.

Rear Door Outside Handle Fastener

4 N·m

—

37 in. lbs.

Rear Door Fixed Glass Run Screw

5 N·m

—

45 in. lbs.

Rear Door Power Regulator Screw

9 N·m

—

80 in. lbs.

Liftgate Prop Rod Bracket Screws

40 N·m

—

350 in. lbs.

Liftgate Prop Rod Stud

36 N·m

—

320 in. lbs.

Liftgate Outside Handle to Liftgate screw

9 N·m

—

80 in. lbs.

Liftgate Latch to Liftgate Screw

11 N·m

—

95 in. lbs.

Liftgate Light Bar to liftgate screws

2 N·m

—

20 in. lbs.

Liftgate Bumper to Drain Trough screw

6 N·m

—

55 in. lbs.

Liftgate Latch Striker

28 N·m

—

250 in. lbs.

BODY

23 - 11

BODY (Continued)

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Liftgate Spoiler to Liftgate Outer Nuts

7 N·m

—

60 in. lbs.

Hood Latch to Radiator Crossmember Screws

14 N·m

—

120 in. lbs.

Hood Striker to Hood

14 N·m

—

120 in. lbs.

Hood Hinge to hood

14 N·m

—

120 in. lbs.

Hood Hinge Pivot Bolt

28 N·m

—

250 in. lbs.

Hood Hinge to Fender

9 N·m

80 in. lbs.

Hood Emblem Bright Outer Molding Nuts

4 N·m

—

35 in. lbs.

Instrument Panel to Cowl Side

28 N·m

—

250 in. lbs.

Instrument Panel Column Support Bracket Nuts

23 N·m

17 ft. lbs.

—

Instrument Panel Floor Bracket Brace to Floor Nuts

17 N·m

—

150 in. lbs.

Instrument Panel Floor Bracket to Center Stack Brace

Nuts

17 N·m

—

150 in. lbs.

Instrument Panel Plenum Screws

7 N·m

—

60 in. lbs.

Instrument Panel Reinforcement Brace

9 N·m

—

80 in. lbs.

Front & Rear Console Side Walls to Structure Duct

2 N·m

—

20 in. lbs.

Cargo Load Floor Bin Screws

12 N·m

—

105 in. lbs.

Automatic Transaxle Shifter Knob

2 N·m

—

20 in. lbs.

Autostick Shifter Nut

12 N·m

—

105 in. lbs.

BODY LUBRICATION

LUBRICATION REQUIREMENTS

Body

mechanisms

and

linkages

should

inspected, cleaned, and lubricated, as required, to
maintain ease of operation and to provide protection
against rust and wear. When performing other under
hood services, the hood latch release mechanism and
safety catch should be inspected, cleaned, and lubri-
cated. During the winter season, external door lock
cylinders should be lubricated to assure proper oper-
ation when exposed to water and ice.

Prior to the application of any lubricant, the parts

concerned should be wiped clean to remove dust and
grit. If necessary, a suitable solvent can be used to
clean the item to be lubricated. After lubricating a
component, any excess oil or grease should be
removed.

LUBRICANT APPLICATION

DOOR LOCK CYLINDERS

(1) Apply a small amount of lubricant directly into

the lock cylinder.

(2) Apply a small amount of lubricant to the key.
(3) Insert key into lock cylinder and cycle the

mechanism from the locked to the unlocked position.

NOTE: Do not add more lubricant.

(4) Cycle the lock cylinder mechanism several

times to allow the lubricant to flow throughout the
cylinder.

(5) Wipe all lubricant from exterior of lock cylinder

and key.

ALL OTHER BODY MECHANISMS
