ing hood, align all marks and secure bolts. The hood
should be aligned to 4 mm (0.160 in.) gap to the front
fenders and flush across the top surfaces along fend-
ers.

(4) Remove the top hood to hinge attaching bolts

and loosen the bottom bolts until they can be re-
moved by hand.

(5) With assistance of a helper at the opposite side

of the vehicle to support the hood, remove the bottom
hood to hinge attaching bolts. Separate the hood
from the vehicle.

HOOD INSTALLATION

Reverse the preceding operation.

HOOD HINGE REMOVAL (FIG. 3)

(1) Support hood on the side that requires hinge

replacement.

(2) Mark all bolt and hinge attachment locations

with a grease pencil or other suitable device to pro-
vide reference marks for installation. When install-
ing hood hinge, align all marks and secure bolts. The
hood should be aligned to 4 mm (0.160 in.) gap to the
front fenders and flush across the top surfaces along
fenders. Shims can be added or removed under hood
hinge to achieve proper hood height.

(3) Remove hood to hinge attaching bolts.
(4) Remove hood hinge to front fender attaching

bolts and separate hinge from vehicle.

HOOD HINGE INSTALLATION

Reverse the preceding operation. If necessary, paint

new hinge before installation.

HOOD LATCH AND RELEASE CABLE

HOOD LATCH REMOVAL (FIG. 4)

(1) Raise hood top the full up position.
(2) Remove hood latch attaching bolts holding

latch to radiator closure panel and separate from ve-
hicle.

(3) Pry release cable casing attachment from slot

receiver on latch, disengage cable end from latch arm
hook.

HOOD LATCH INSTALLATION

Reverse the preceding operation.

HOOD LATCH RELEASE CABLE REMOVAL
(FIG. 5)

(1) Raise hood to the full up position.
(2) Remove push-in fasteners holding hood latch

cover to radiator closure panel and separate cover
from vehicle.

(3) Disconnect hood release cable casing and cable

end from hood latch assembly. Refer to Hood Latch
Removal procedure in this section.

(4) Remove hood latch release cable handle attach-

ing bolts from under left lower edge of instrument
panel.

(5) Disengage release cable rubber grommet from

engine compartment dash panel behind instrument
panel.

(6) Rout cable assembly through engine compart-

ment around battery, under fender lip, under relay
bank, and under wiring harnesses, toward dash
panel. Push cable through access hole in dash panel
under the brake master cylinder, into passenger com-
partment.

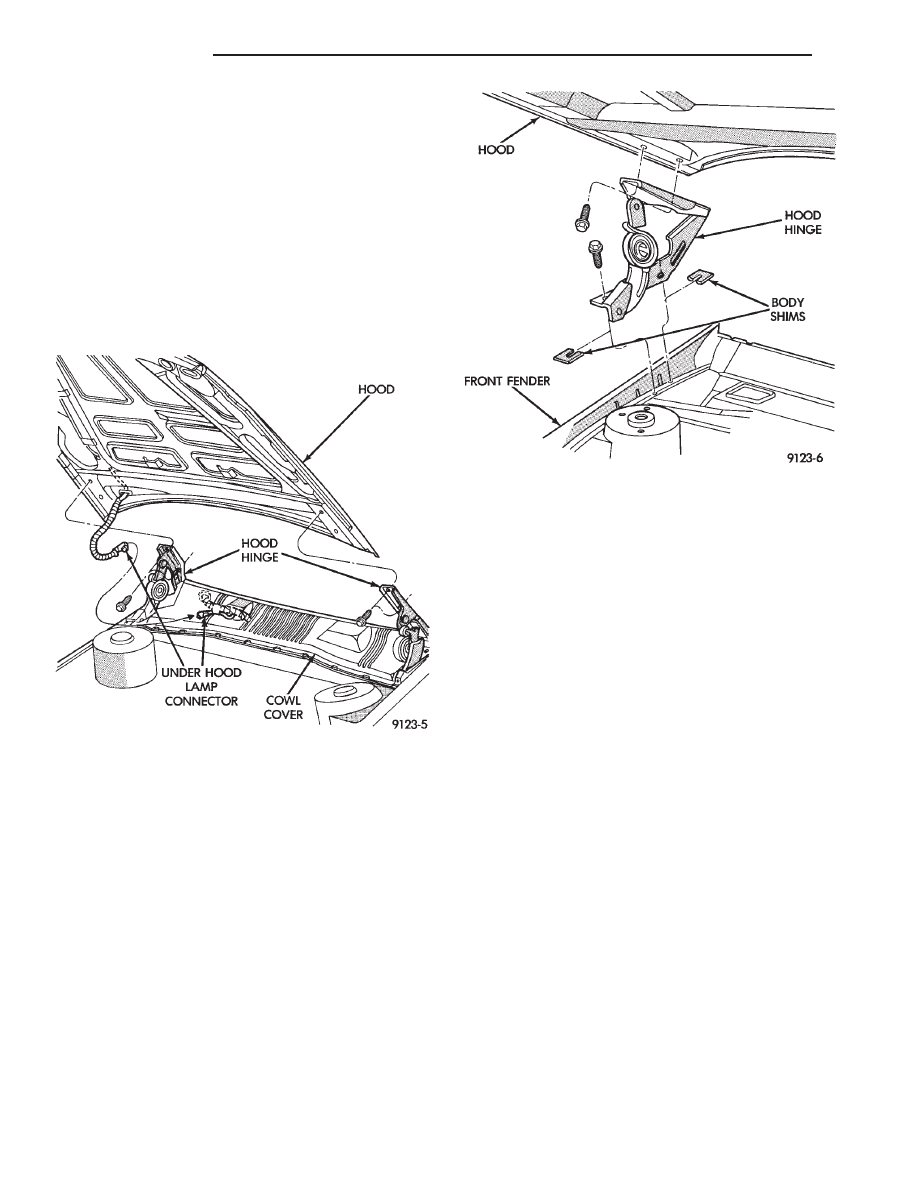

Fig. 2 Hood Assembly—Typical

Fig. 3 Hood Hinge Assembly

23 - 98

AP-BODY

HOOD LATCH RELEASE CABLE
INSTALLATION

Reverse the preceding operation.

FRONT END SPLASH SHIELDS

FRONT WHEELHOUSE SPLASH SHIELD
REMOVAL (FIG. 6)

(1) Hoist vehicle and support on suitable safety

stands.

(2) Remove front wheel assembly.
(3) Remove push-in fasteners holding front wheel-

house splash shield to fender opening lip and inner
wheelhouse area.

(4) Separate wheelhouse splash shield from vehi-

cle.

FRONT WHEELHOUSE SPLASH SHIELD
INSTALLATION

Reverse the preceding operation.

TRANSAXLE SPLASH SHIELD REMOVAL (FIG.
6)

(1) Remove one front wheelhouse splash shield

push-in fastener and separate wheelhouse splash
shield from transaxle splash shield.

(2) Remove transaxle splash shield attaching bolts

and separate transaxle splash shield from vehicle.

TRANSAXLE SPLASH SHIELD INSTALLATION

Reverse the preceding operation.

ENGINE DRIVE BELT SPLASH SHIELD
REMOVAL (FIG. 7)

(1) Hoist vehicle and support on suitable safety

stands.

(2) Remove bolts holding engine drive belt splash

shield to right frame rail.

(3) Separate drive belt splash shield from vehicle.

ENGINE DRIVE BELT SPLASH SHIELD
INSTALLATION

Reverse the preceding operation.

FRONT DOOR TRIM PANEL—AP-24/44 Body

DOOR TRIM PANEL REMOVAL (FIG. 8)

(1) Move glass to down position.
(2) Disconnect battery negative cable.
(3) Remove inside latch release handle bezel. Pull

outward at forward edge and push bezel rearward.

(4) Remove screw cover from window crank. Re-

move screw holding crank to regulator and separate
crank from door, if equipped.

(5) Remove remote control mirror bezel.
(6) Remove screw covers from arm rest.

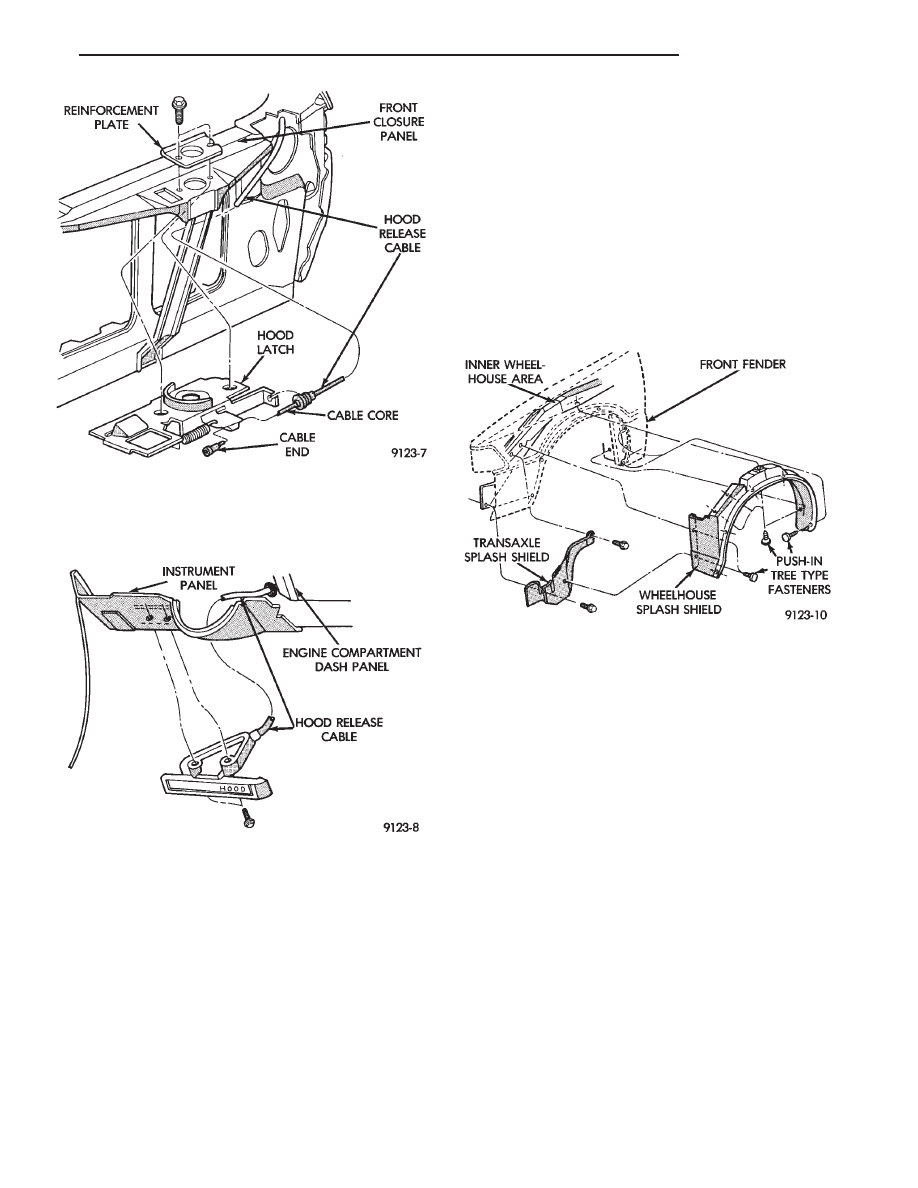

Fig. 4 Hood Latch—Typical

Fig. 5 Hood Latch Release Cable—Typical

Fig. 6 Front Wheelhouse and Transaxle Splash

Shields

AP-BODY

23 - 99

(7) Remove screws holding arm rest to door trim.

Disconnect power door lock switch wire connector.

(8) Disengage frog-leg clips from around bottom

and side edges of trim panel. Lift trim panel upward
and separate trim from door.

(9) Disconnect courtesy lamp wire connector.

DOOR TRIM PANEL INSTALLATION

Reverse the preceding operation.

FRONT DOOR WATER SHIELD

REMOVAL

(1) Remove front door trim panel.
(2) Remove push-in fasteners holding silencer pad

to door inner panel and separate silencer from door.

(3) Pull water shield from adhesive around perim-

eter of door inner panel.

INSTALLATION

Reverse the preceding operation.

FRONT DOOR AND HINGE

The front door hinge is welded to the door and

bolted to the hinge pillar. The door half of the hinge
pivots on a removable hinge pin. The hinge pin is
driven in from the bottom on the top hinge and from
the top on the bottom hinge. All adjustments to the
hinge are performed on the hinge pillar half of the
hinge. If the welded half of the hinge must be bent to
align door, consult an authorized body repair facility.

FRONT DOOR REMOVAL (FIG. 9)

(1) Remove door trim panel, silencer pad, and wa-

ter shield.

(2) Disconnect all wire connectors and wire har-

ness hold downs inside door and push wire harness
through access hole in front of door into hinge pillar
opening.

(3) Open door and support door on a suitable lift-

ing device.

(4) Drive bottom hinge pin upward and remove pin

from hinge.

(5) Drive top hinge pin downward and remove pin

from hinge.

FRONT DOOR INSTALLATION

Reverse the preceding operation. The door should

not require re-alignment. If door does need align-
ment, refer to Front Door Hinge Installation para-
graph in this section.

FRONT DOOR HINGE REMOVAL (FIG. 9)

(1) Remove front fender wheelhouse splash shield.

Refer to Front Wheelhouse Splash Shield Removal
paragraph in this section.

(2) Support door on a suitable lifting device.
(3) Drive out hinge pin on the effected hinge.
(4) Remove bolts holding hinge to hinge pillar and

separate hinge form vehicle.

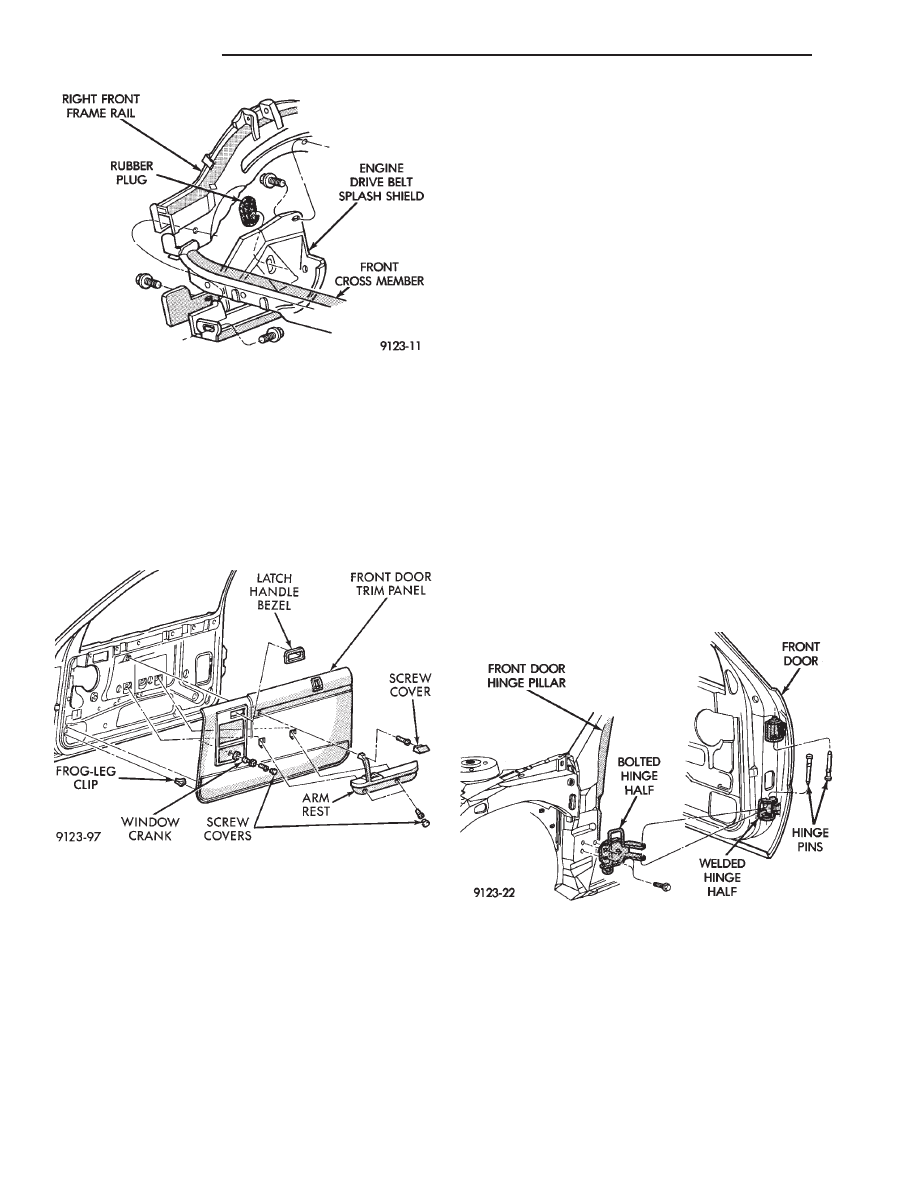

Fig. 7 Engine Drive Belt Splash Shield

Fig. 8 Front Door Trim Panel

Fig. 9 Front Door Hinges—Typical

23 - 100

AP-BODY
