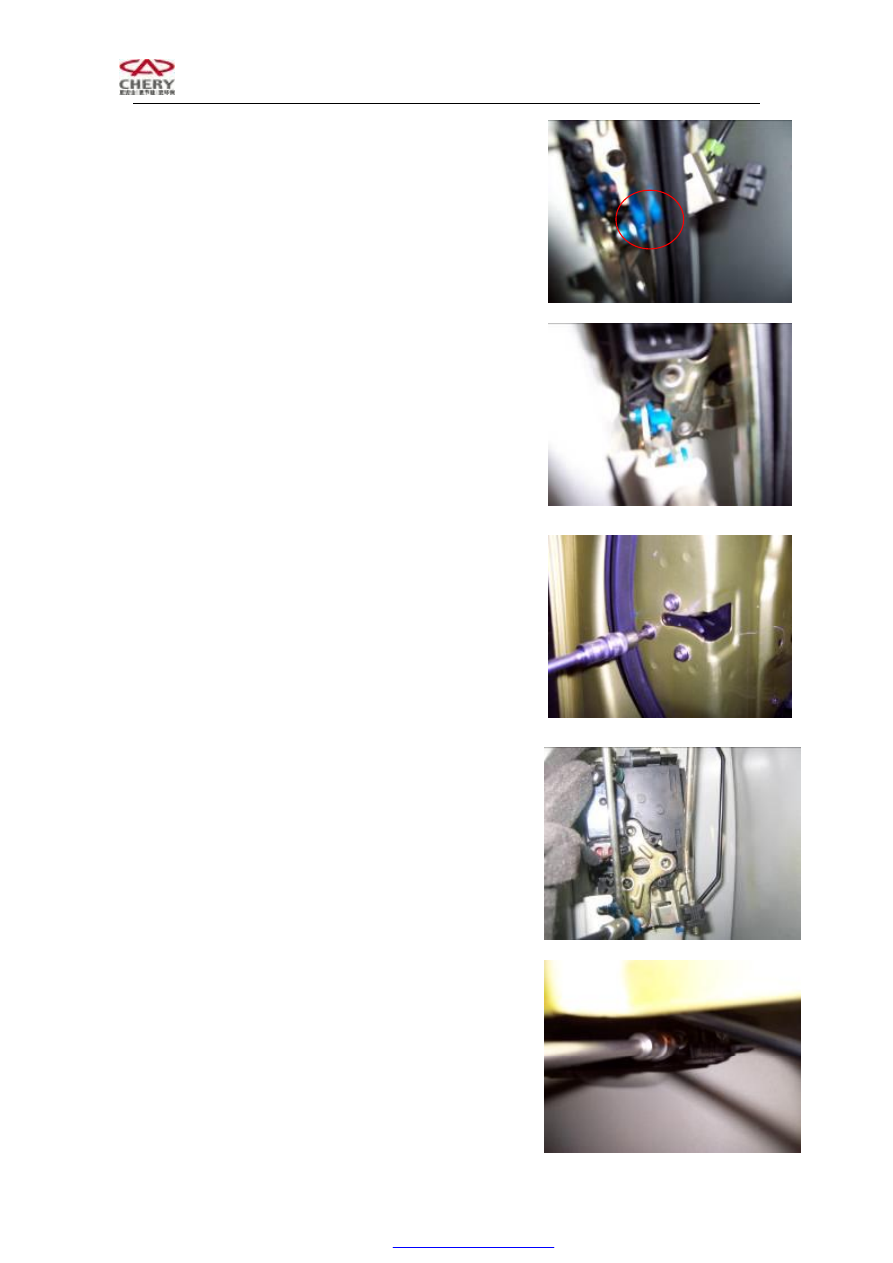

4.22    Loose safety lock pull rod fixing clip by hand.

















4.23    Loose inside control cable fixing clip by hand.

















4.24    Disassemble three front door lock fixing bolts by spline

wrench. Installation torque is 9±1N.m

(With thread locking rubber)













4.25    Rotate the lock cable direction to a certain degree and

take off the cable plug. Take out the lock assembly.















4.26    Disassemble  the  front  door  handle  fixing  screw  by

spline wrench. Installation torque is 8±1 Nm

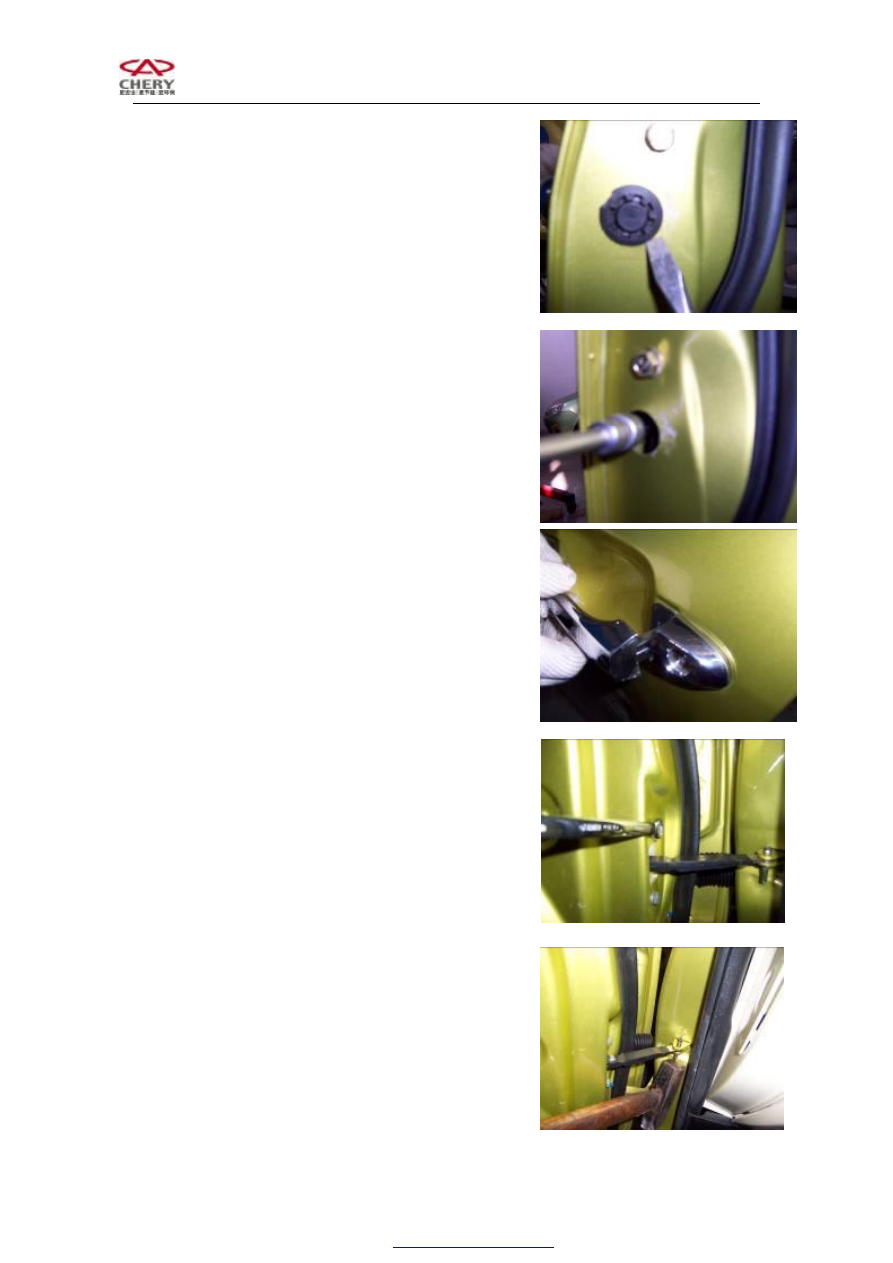

4.27    Prize the front door lock core fixing screw protecting

panel by flat head screwdriver.















4.28    Disassemble front door lock core fixing screws.

Note: The shim between lock core, door handle and  car door

can not be ignored. Make sure assemble it during installation.

Otherwise it will influence the clearance between them.

Installation torque is 9±1 Nm





4.29    Take out lock core and handle assembly.



















4.30    Loose two front door stopper fixing bolts by No.13

spanner. (See disassembly of front door hinge and stopper).

Torque is 36±4N.m.











4.31    Front  door  stopper  is  connected  to  body  by  a  flexible

eye  pin.  This  flexible  eye pin is an elasticity  pin  made  up  of

steel, beat it by a hamper heavily during disassembly and get

it out.

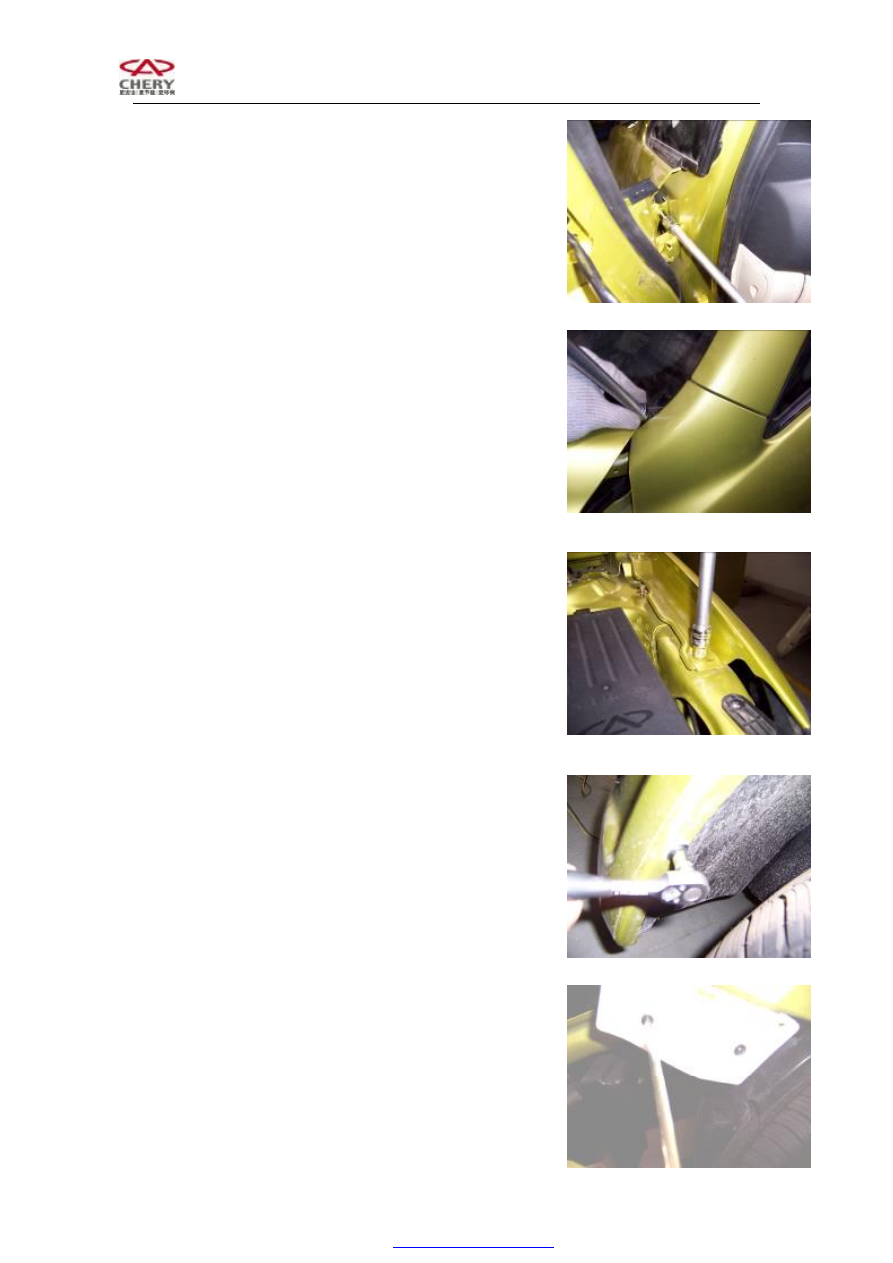

4.32    Disassemble the fixing bolts of front fender on door

by No. 10 socket. (See disassembly of fender) and

torque is 10±1 N.m













4.33    Disassemble the fixing bolts of fender on windscreen by

No. 10 socket.

Note: You must disassemble wiper and

front cover assembly before disassemble this bolt.

Torque is 10±1 N.m











4.34    Disassemble two fixing bolts of fender on engine hood

by No.10 socket. Torque is 10±1 N.m

















4.35    Disassemble fixing bolt between bumper and mudguard

by No. 7 sleeve.

Installation torque is 2±0.5 N.m

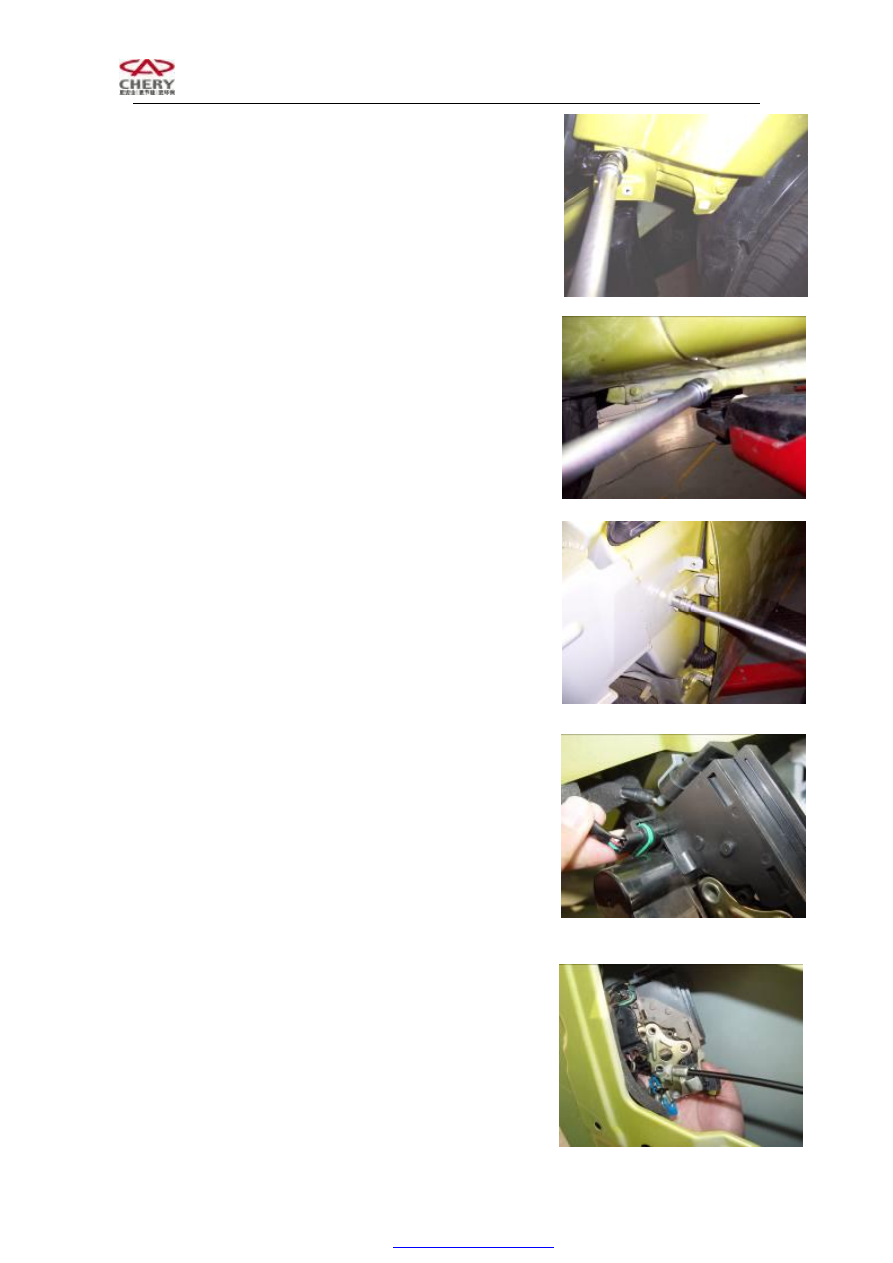

4.36    Prize the connection clip between front bumper and fender

by  flat  head  screwdriver.  Unscrew  the  plastic  clip  between

bumper

and fender by cross head screwdriver.





4.37    Unscrew two fixing bolts between fender and bumper

by No. 10 socket. Torque is 10±1 N.m















4.38    Unscrew  two  fixing  bolts  between  fender  and  body

underside by No.10socket. Torque is 10±1 N.m















4.39    Disassemble  two  fixing  bolts  between  door  hinge  and

body by No. 13socket and take away the front door assembly.

Torque is 36±4 N.m







5    Assembly and adjustment steps

5.1    Assemble door lock

5.1.1    Insert cable plug into lock.



















5.1.2    Block the clip of inside opening cable onto lock.
