Chery A18. Manual - part 109







46

Fault of steering system

Fault of suspension system

Position fixing parameter is incorrect

Inspect

Inspect

Inspect

Reposition of steering wheel is NG

Lack of tire pressure

Fault of steering system

Fault of suspension system

Caster  of  king  pin  of  front  wheel  is

incorrect

Adjust

Inspect

Inspect

Adjust



















































47

Chapter 4    Suspension driving and axles



Section 1    Front suspension



I.

Construction features



Front  suspension  adopts  Macphersan  absolute  suspension,  which  consists  of  stabilizer  bar,  spiral  spring  and

telescopic type absorber.

Shape  of  Macphersan  suspension  construction:  Macphersan  suspension  is  aggregation  of  spiral  spring  and

absorber, in which lower terminal of front strut connect with knuckle directly so that the strut rotates along with

knuckle  while  wheel  is  rotating.  The  upper  terminal  connects  with  vehicle  body  directly  via  rubber  vibration

Isolator, which could isolate some noise, and buffer vibration from grounding. As a result, upper terminal of strut

is  fixed  on  vehicle  body,  which  moves  slightly  along  with  movement  of  vehicle  body,  while  lower  terminal

jumps  upwards  and  downwards  along  with  rotation  of  wheel,  so  that  strut  is  impacted  by  lateral  force  during

operation of it. Middle part of strut connects in series with spiral spring and parts of buffer block and bearing that

are used for position limiting. Such kind of construction will save more cost, provide more space for collocation

of engine, as well as offer a simple and compact institution.



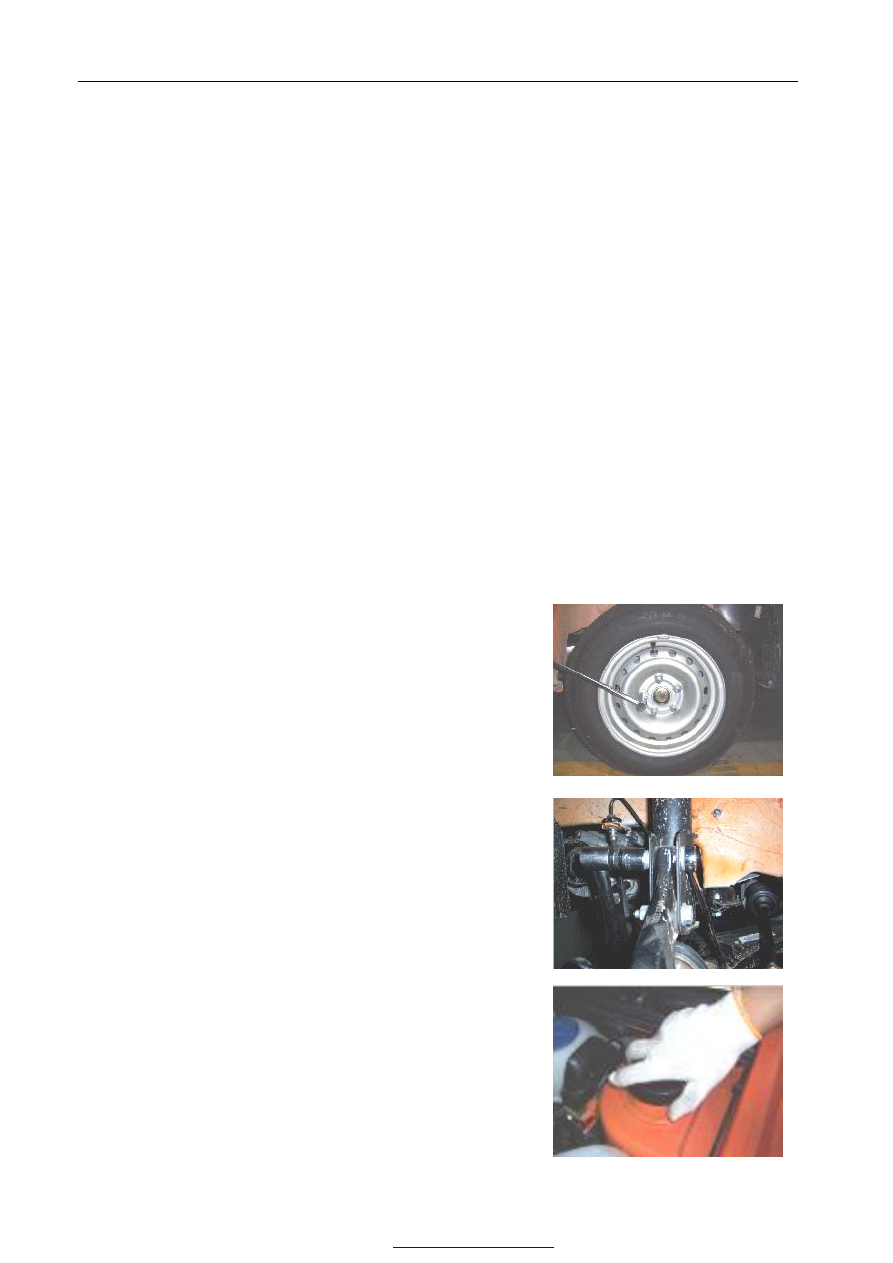

II.  Disassembly and assembly of front absorber



1.

Disassembling step

1.1

Disassemble  five  fixed  bolts  of  tire  with

torque

wrench and

19# sleeve, and take down tire.

Moment of force: 110±10N.m







1.2

Lift  vehicle,  disassemble  two  bolts  for  connecting

absorber  and  steering  knuckle  with  19  #socket

wrench and box wrench.

Moment of force: 70±3N.m













1.3

Take down cover on absorber.











48

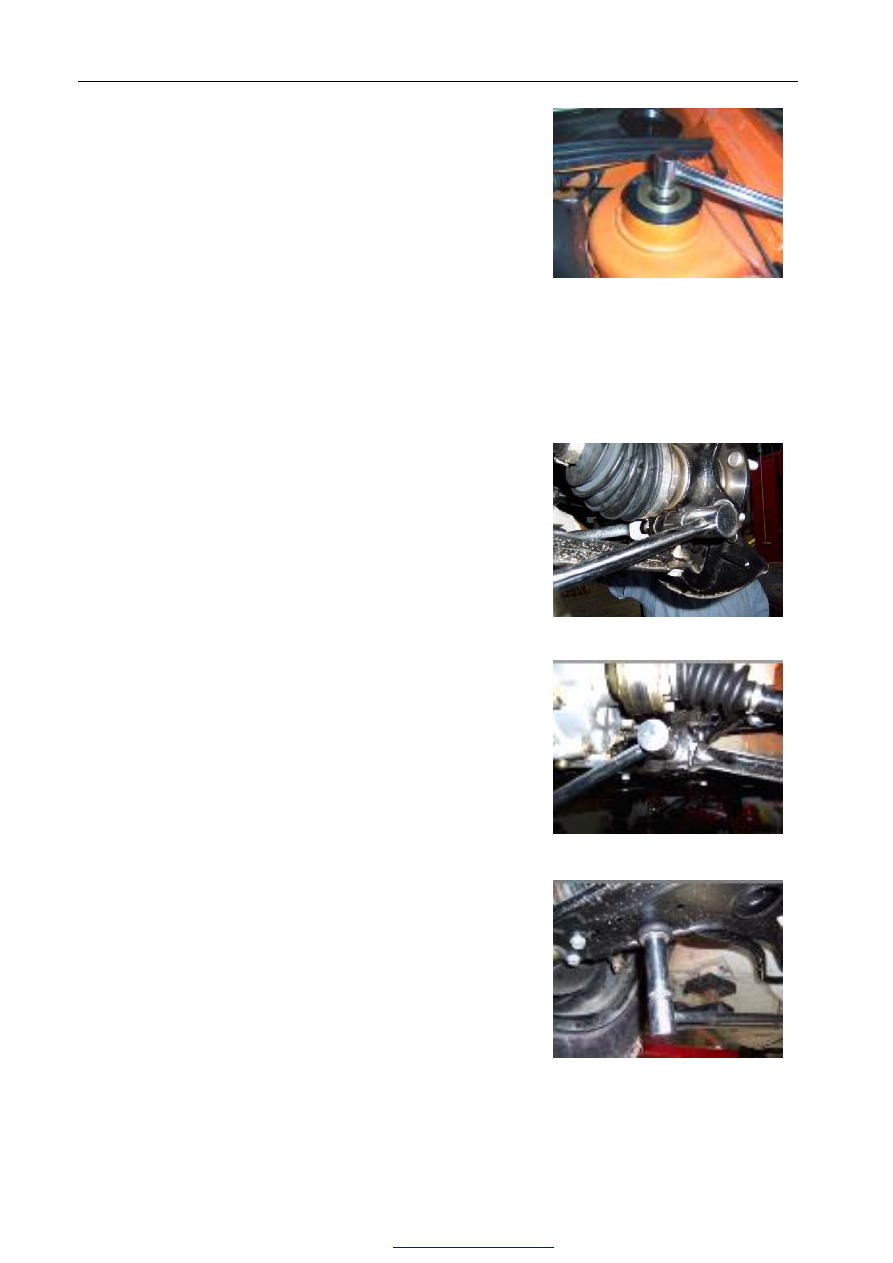

1.4

Lay  down  vehicle  and  open  front  cover,

disassemble  nuts  from  upper  terminal  of  absorber

with  22#  torque  wrench,  and  then  take  down

absorber.

Moment of force: 60±10Nm





2.

Assembling step



2.1

Conduct assembly according to disassembling step.

2.1

Precautions:

(1)    Please fasten bolt to regulated moment after installation.

(2)    Please check position fixing of these four wheels.



III.  Disassembly and assembly of control arm



1.

Disassembling step



1.1

Disassemble tire, left vehicle and disassemble bolts

and  nuts  for  connecting  control  arm  and  knuckle

with 19# torque wrench and box key.

Moment of force: 75±5Nm (The left is the same as the right)





1.2

Disassemble  nut  for  connecting  control  arm  and

underframe with 19# torque wrench.

Moment of force: 130±10N.m (The left is the same as the right)















1.3

Disassemble  fixed  nut  for  connecting  control  arm

and stabilizer bar with 19# torque wrench

Moment of force: 35N.m about (The left is the same as the right)















49

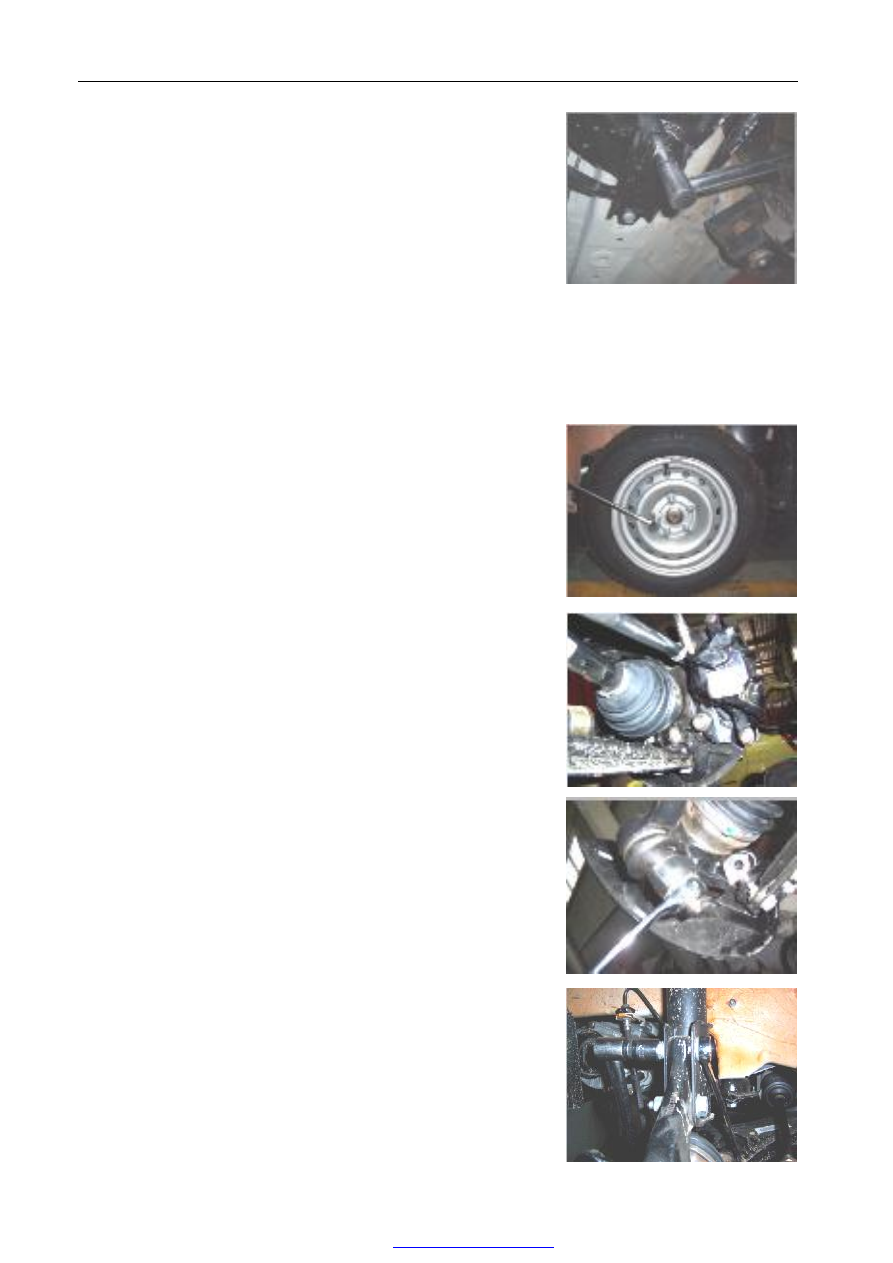

1.4

Disassemble  nut  for  connecting  control  arm  and

vehicle  body  with  19#  torque  wrench,  and  then

take down control arm.

Moment of force: 130±10N.m (The left is the same as the right)

Note: Prevent control arm from falling down while loosing bolt.







2.

Assembling step



2.1

Conduct assembly according to disassembling step.

2.2

Please fasten bolt to regulated moment after installation.



IV.  Disassembly and assembly of knuckle



1.

Disassembling step



1.1

Disassemble tire bolts, then take down tire.

Moment of force: 110±10N.m







1.2

Disassemble  these  two  bolts  for  connecting  brake

tongs and knuckle with 17# torque wrench

Moment of force: 95N.m

Note: It is possible to hang the disassembled brake

tongs with rope.





1.3

Disassemble  nut  for  connecting  knuckle  and

cross tie with 19# wrench.。

Moment of force: 35N·m











1.4

Disassemble  these  two  connecting  bolt  for

connecting  knuckle  and  absorber  with19#  socket

wrench and box wrench.

Moment of force: 70±5Nm
