Chery A18. Manual - part 108







42

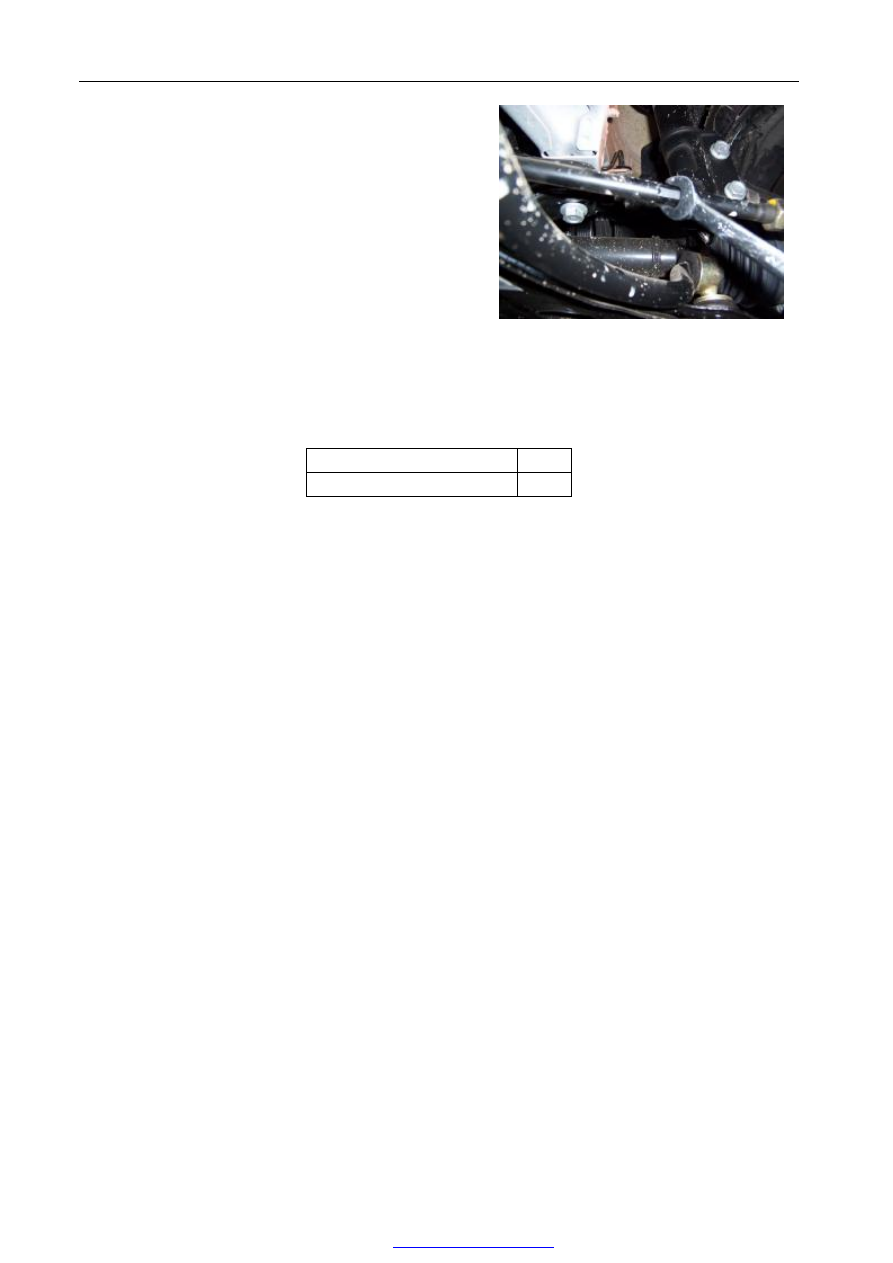

(3)  Fasten  locking  nut  and  assemble  spring  cover  snap

ring  again,  check  if  locking  nut  is  fastened,  and  if
cover is positioned correctly.


(4)  After adjusted toein of front wheel, check if steering

wheel is horizontal. Or loose locking nut  of steering

wheel to adjust steering wheel to horizontal position,

and  fasten  locking  nut  of  steering  wheel  to  required

moment (30±3Nm).



2.

Inspection on caster angle of front wheel



Please check caster angle after replaced cross tie connector or adjusted toein, check and adjust length of right and

left cross ties if caster angle of front wheel is not assort with standard.











III.  Caster angle of king pin


Caster angle of king pin is pledged in design structure, which requires no adjustment during operation.


Infection of caster angle

Major function of caster angle is to ensure vehicle to run in direction of dead ahead. In case that caster angle is

positive value, internal side of vehicle should step down, while chassis should rise during rotation of front wheel;

in case that caster angle of two wheel are uniform, vehicle should return to direction of dead ahead after steered.

Adding degree of caster angle should increase stability of steering wheel, and increase steering strength; reducing

degree of caster angle should decrease stability of steering wheel, and reduce steering strength. Degree of caster

angle  should  not  effect  abrasion  of  tire;  it  is  used  to  stabilize  running  direction  of  vehicle  and  return  to  right

direction automatically after steered. If the  vehicle is equipped  with traditional and  mechanical steering  device,

for  smoothing  the  way  of  steering,  the  caster  angle  should  be  very  small,  even  incline  to  a  negative  value.  If

vehicle  is  equipped  with  power  steering  device,  for  increasing  feeling  of  driver,  caster  angle  is  set  to  a  bigger

positive value generally, which should increase steering strength, and increase stability of straightline driving.

























Max corner of external wheel



33°

Max corner of internal wheel





43

IV.  Camber angle of front wheel


It is needless to adjust camber angle after assembled absolute suspension and steering knuckle. And it is possible
to  calibrate  it  by  using  connecting  bolt  of  absolute  suspension  and  steering  knuckle  if  camber  angle  exceeds
tolerance range because of other reasons:
(1)  Check  (visual  inspection)  if  parts  of  driving  system

is damaged before calibration and replaced damaged
parts.


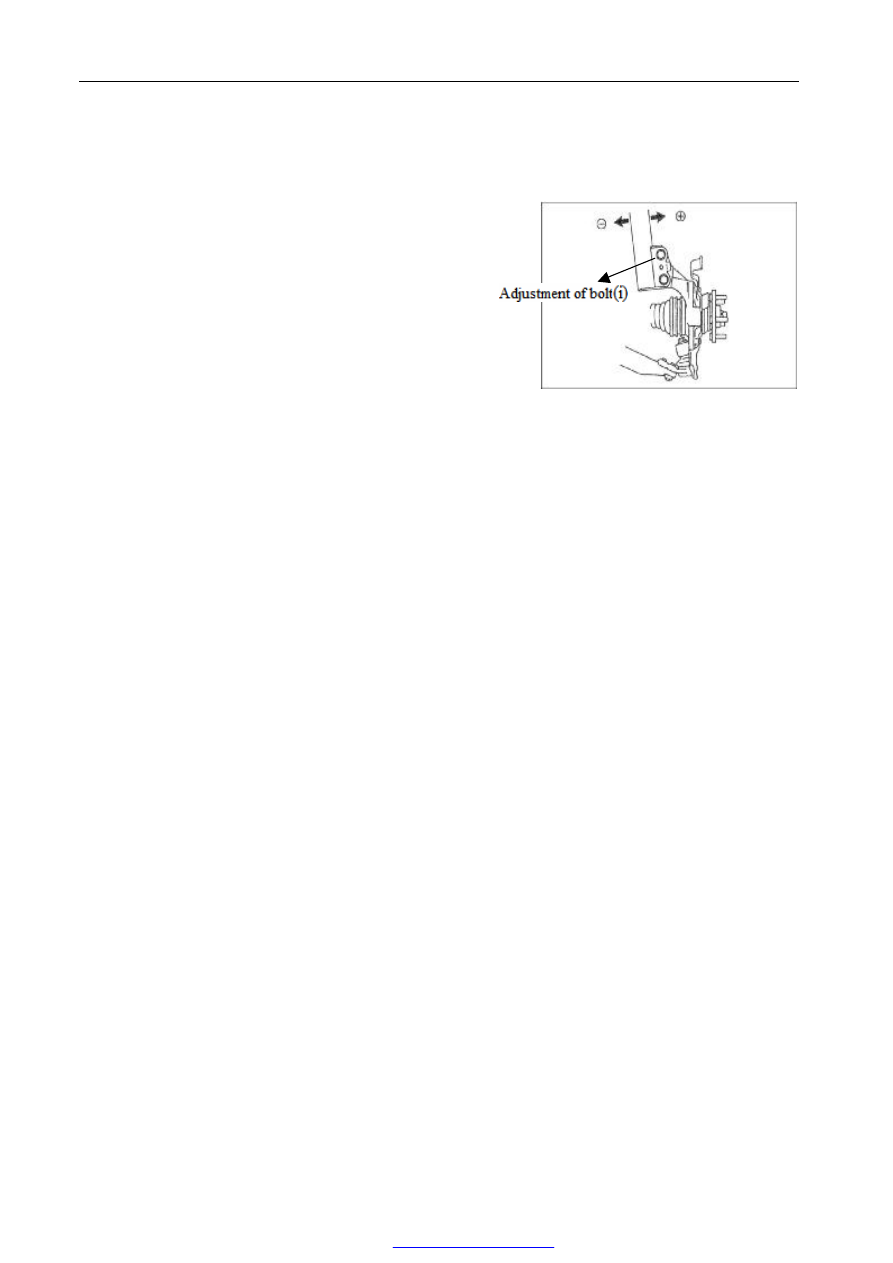

(2)  Loose connecting bolt (i) between front absorber and

steering  knuckle,  and  move  wheel  to  calibrate  it  if

camber angle of front wheel exceeds deviation.



























44

Section 3    Position fixing of rear wheel



I.

Standard positional parameter of rear wheel



Toein of rear wheel

0°±30′

Camber angle of rear wheel

1.4°±30′



Note: Toein and camber angle of rear wheel is  nonadjustable, which is ensured in  design and assembly. Please

check  if  any  abrasion  and  distortion  existing  if  abnormal  abrasion  of  tire  of  rear  wheel  occurs,  or  positional

parameter of rear wheel is incorrect.

























45

Section 4    Debugging



Problem

Possible reason

Debugging

Excessive  or  unbalanced  abrasion

of tire

Shown as below



Tire is abraded in advance

Tire pressure is incorrect

Position fixing parameter is incorrect

Adjust

Adjust

Noise of tire

Tire pressure is incorrect

Abrasion of tire

Adjust

Inspect, adjust and replace

Noise  of  ground  or  vibration  of

vehicle body

Lack of tire pressure

Tires are unbalanced

Distortion of rim or tire

Abrasion of tire is unbalanced

Adjust

Adjust

Repair or replace

Inspect, adjust and replace

Steering  wheel  vibrates  upwards

and downwards

Excessive deflection of tire and rim

Nut or axle head of wheel is loose

Tires are unbalanced

Damage  or  abrasion  of  suspension

rubber of engine

Damage  or  abrasion  of  plank  rubber  of

transmission

Replace

Fasten

Adjust

Replace



Replace

Steering wheel vibrated in circle

Excessive deflection of tire and rim

Nut or axle head of wheel is loose

Tires are unbalanced

Abrasion of tire is unbalanced

Lack of tire pressure

Damage  or  abrasion  of  bearing  of  front

wheel

Fault of steering system

Fault of suspension system

Replace

Fasten

Adjust

Inspect

Adjust

Replace



Inspect

Inspect

Steering wheel deflects to one side

Tire pressure is incorrect

Excessive  or  unbalanced  abrasion  of

tires

Fault of steering system

Fault of brake system

Fault of suspension system

Adjust

Inspect



Inspect

Inspect

Inspect

Running is unstable

Tire pressures of two sides are unequal

Distortion of rim or tire

Wheel nut is loose

Fault of steering system

Fault of suspension system

Adjust

Repair or replace

Fasten

Inspect

Inspect

Brake deflects to one side

Tire pressures of two sides are unequal

Fault of brake system

Adjust

Inspect

Steering wheel is too heavy

Lack of tire pressure
