MAINTENANCE AND SERVICE

* Option/accessory.

594

Function

Ampere

Type

Passenger-side headlight, LED

B

15

Micro

–

–

Micro

–

–

MCase

A

–

–

MCase

A

Headlight washers

*

25

MCase

A

Washer fluid pump

25

MCase

A

Transmission control module; Electric gear selector

15

Micro

Horn

20

Micro

Alarm siren

*

5

Micro

Brake system control module (valves, parking brake)

40

MCase

A

Brake control with 48 V battery

30

MCase

A

Wipers

30

MCase

A

Rear window washer

25

MCase

A

–

–

MCase

A

Parking heater

*

20

MCase

A

–

–

MCase

A

–

–

MCase

A

MAINTENANCE AND SERVICE

595

Function

Ampere

Type

–

–

MCase

A

Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical
module, brake system control module

5

Micro

–

–

Micro

Passenger-side headlight, LED

B

15

Micro

–

–

Micro

Transmission control module

10

Micro

Battery connection control module

5

Micro

Airbags; Passenger weight sensor

5

Micro

Driver-side headlight, LED

B

15

Micro

Accelerator pedal sensor

5

Micro

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

B

LED (Light Emitting Diode)

Related information

•

Fuses and fuseboxes (p. 589)

•

Replacing fuses (p. 589)

MAINTENANCE AND SERVICE

596

Fuses under the glove

compartment

Fuses under the glove compartment provide
protection for e.g. electrical outlets, displays
and door modules.

MAINTENANCE AND SERVICE

}}

597

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

Positions

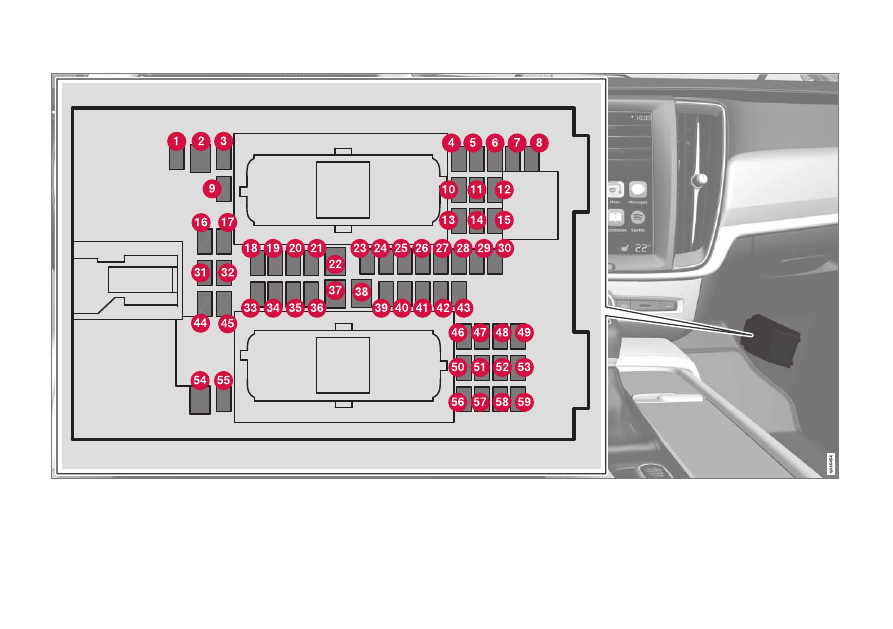

There is a decal with a diagram of the loca-
tions of the fuses on the inside of the cover.

||

MAINTENANCE AND SERVICE

* Option/accessory.

598

Function

Ampere

Type

Medium voltage module

A

10

Micro

–

–

MCase

B

–

–

Micro

Movement sensor

*

5

Micro

–

–

Micro

Instrument panel

5

Micro

Center console buttons

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and parking brake controls

5

Micro

Heated steering wheel

*

 module

15

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

599

Function

Ampere

Type

Climate system control module

10

Micro

–

–

Micro

Data link connector OBD-II

10

Micro

Center display

5

Micro

Climate system blower module (front)

40

MCase

B

USB HUB

5

Micro

Instrument lighting; Interior lighting; Rearview mirror auto-dim function

*

; Rain and light sensors

*

; Rear tunnel console

keypad, rear seat

*

; Power front seats

*

; Rear door control panels; Climate system blower module left/right

7.5

Micro

Control module for driver support functions

5

Micro

Panoramic roof with sun curtain

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

Wireless charging pad

5

Micro

Ceiling console display (seat belt reminder/front passenger side airbag indicator)

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

600

Function

Ampere

Type

Fuses in the trunk/cargo compartment

10

Micro

Control module for Internet-connected vehicle; Control module for Volvo On Call

5

Micro

Door module in left-side rear door

20

Micro

Infotainment control module (amplifier)

40

MCase

B

–

–

MCase

B

Multi-band antenna module

5

Micro

Front seat massage function

*

5

Micro

–

–

Micro

Rear window wiper

15

Micro

Fuel pump control module

15

Micro

Relay coil for transmission oil pump

Converter medium voltage; Integrated starter motor

5

Micro

Opening trunk/tailgate with foot movement

*

5

Micro

Driver's seat heating

15

Micro

Front passenger's seat heating

15

Micro

Coolant pump

7.5

Micro

–

–

Micro

MAINTENANCE AND SERVICE

* Option/accessory.

601

Function

Ampere

Type

Door module in left-side front door

20

Micro

Active chassis control module

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

B

–

–

Micro

Door module in right-side front door

20

Micro

–

–

Micro

TV

*

 (certain markets only)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

Vehicles with 48 V support battery only.

B

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 589)

•

Replacing fuses (p. 589)

MAINTENANCE AND SERVICE

* Option/accessory.

602

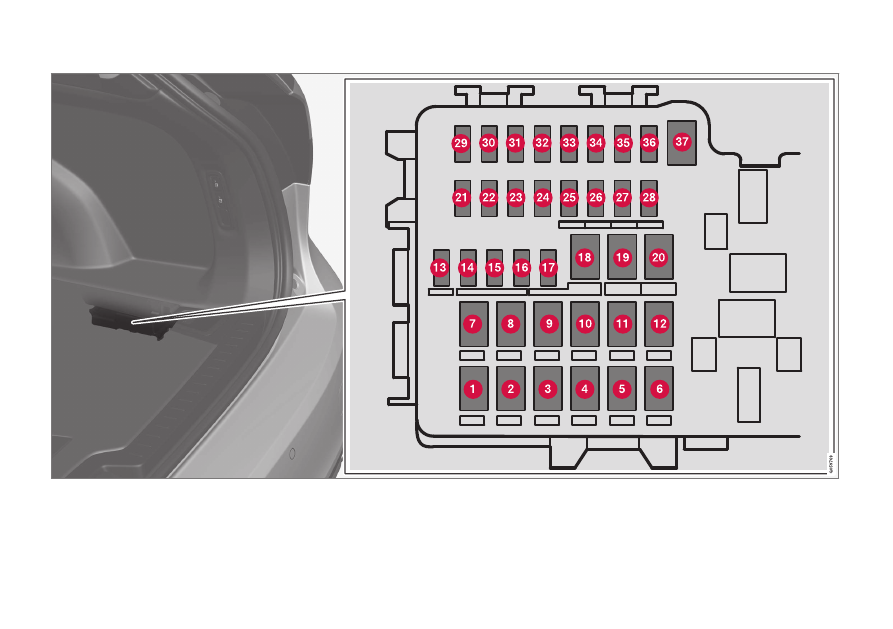

Fuses in the cargo compartment

The fuses in the cargo compartment help pro-
tect electrical components such as the power
seats

*

, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE

}}

603

The fuse box is located on the right-hand side.

Fuse pliers are provided on the inside of the
fuse box cover to assist in removing and
inserting fuses.

There are also spaces for several extra fuses in
the

distribution box in the engine compart-

ment

.

||

MAINTENANCE AND SERVICE

* Option/accessory.

604

Positions

Function

Ampere

Type

–

–

MCase

A

–

–

MCase

A

Pneumatic suspension

*

 compressor

40

MCase

A

–

–

MCase

A

–

–

MCase

A

–

–

MCase

A

Door module right side, rear

20

MCase

A

–

–

MCase

A

–

–

–

–

Power tailgate

*

25

MCase

A

Power front passenger seat

*

Door module right side, front

20

MCase

A

Towbar

*

 control module

40

MCase

A

Seat belt tensioner module (right side)

40

MCase

A

Internal relay windings

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

605

Function

Ampere

Type

–

–

Micro

–

–

Door module left side, rear

20

Micro

USB hub/accessory port

5

Micro

–

–

Micro

Towbar

*

 control module

25

MCase

A

Accessory module

40

Power driver seat

*

Door module left side, front

20

MCase

A

Seat belt tensioner module (left side)

40

MCase

A

Park Assist Camera

*

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Heated rear seat (left side)

*

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

606

Function

Ampere

Type

–

–

Micro

Blind Spot Information (BLIS)

*

Exterior reverse signal control module

5

Micro

–

–

Micro

Seat belt tensioner module, right

5

Micro

Emissions system actuator (gasoline, certain engine variants)

5

Micro

–

–

Micro

All Wheel Drive (AWD) control module

*

15

Micro

Heated rear seat (right side)

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.

Related information

•

Fuses and fuseboxes (p. 589)

•

Replacing fuses (p. 589)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

607

Replacing bulbs

This vehicle is equipped with only LED

15

lights, which means it does not have any
replaceable bulbs. Contact a workshop

14

 if

you experience any problems with the light-
ing.

If there is a problem with an LED

15

 light, the

entire lamp unit will normally need to be
replaced.

NOTE

NOTE

Exterior lighting such as headlights and
taillights may develop temporary conden-
sation on the inside of the lens. This is nor-
mal. All exterior lighting is designed to
resist this. Condensation is normally ven-
ted out of the lamp housing once the light
has been lit for some period of time.

NOTE

Bulbs for Active Bending Lights

*

 contain

traces of mercury and should therefore
always be deposited at an authorized Volvo
workshop.

Cleaning the interior

Use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately. It is important to
vacuum before using a cleaning agent.

CAUTION

•

Some colored clothing (for example,
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the inte-
rior as this can damage the upholstery
as well as other interior materials.

•

Never spray cleaning agent directly
onto components that have electrical
buttons and controls. Wipe instead
with a damp cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

•

Only use cleaning agent on the type of
material it is intended for.

15

LED (Light Emitting Diode)

14

An authorized Volvo workshop is recommended.

||

MAINTENANCE AND SERVICE

* Option/accessory.

608

Related information

•

Cleaning the center display (p. 608)

•

Cleaning fabric upholstery and ceiling liner
(p. 609)

•

Cleaning the seat belt (p. 610)

•

Cleaning textile floor and inlay mats
(p. 611)

•

Cleaning leather upholstery

*

 (p. 611)

•

Cleaning the leather steering wheel
(p. 612)

•

Cleaning interior plastic, metal and wood
surfaces (p. 613)

Cleaning the center display

Marks, stains, finger smudges etc. on the
center display may affect its performance and
readability. Clean the screen regularly with a
microfiber cloth.

1. Turn off the center display by pressing and

holding the Home button.

2. Wipe the screen clean with the microfiber

cloth provided or use another microfiber
cloth of similar quality. Wipe the screen
with a clean, dry microfiber cloth using
small, circular motions. If necessary, mois-
ten the cloth slightly.

3. Reactivate the display by pressing the

Home button briefly.

CAUTION

The microfiber cloth must be free of sand
and dirt when cleaning the center display.

CAUTION

When cleaning the center display, apply
only light pressure to the screen. Pressing
too hard could damage the screen.

CAUTION

Do not spray liquid or corrosive chemicals
directly onto the center display. Do not use
window cleaners, cleaning agents, aerosol
sprays, solvents, alcohol, ammonia or
detergents that contain abrasives.

Never use abrasive cloths, paper towels or
tissue paper, as these may scratch the cen-
ter display.

Related information

•

Cleaning the interior (p. 607)

•

Cleaning fabric upholstery and ceiling liner
(p. 609)

•

Cleaning the seat belt (p. 610)

•

Cleaning textile floor and inlay mats
(p. 611)

•

Cleaning leather upholstery

*

 (p. 611)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

609

•

Cleaning the leather steering wheel
(p. 612)

•

Cleaning interior plastic, metal and wood
surfaces (p. 613)

Cleaning the head-up display

*

 and

instrument panel

Carefully wipe the glass covering the head-up
display unit with a clean and dry microfiber
cloth. If necessary, the cloth may be slightly
moistened.

Never use strong stain removers. For difficult
cleaning conditions, a special cleaning agent
can be purchased at a Volvo retailer.

Related information

•

Activating and deactivating the head-up
display

*

 (p. 141)

•

Head-up display

*

 (p. 140)

Cleaning fabric upholstery and

ceiling liner

Use of textile cleaner is recommended when
cleaning textile materials. Clean as needed
and treat stains immediately.

CAUTION

Never scrape or rub a stain because this
may damage the upholstery.

CAUTION

Never use stain removers or strong sol-
vents because these may damage the
upholstery.

Cleaning textile upholstery

1. Start by vacuuming the upholstery.
2. Follow the instructions of the textile

cleaner.

3. When cleaning upholstery, a spray extrac-

tion cleaner is recommended for sucking
up cleaning fluids and rinse water.

CAUTION

Certain dyed clothing (such as denim and
suede garments) may stain the upholstery.
Difficult stains, like oil, can be difficult to
remove.
