DISPLAYS AND VOICE CONTROL

97

Resetting the trip meter

Reset the trip meter using the left-hand stalk
switch.

–

Reset all information in trip meter TM (i.e.
mileage, average consumption, average
speed and driving time) with a long press
on the

RESET

 button on the left-hand

stalk switch.

A short press on the

RESET

 button resets

only the mileage.

The trip meter TA can only be reset automati-
cally when the car has not been used for four
or more hours.

Related information

•

Trip computer (p. 94)

Show trip statistics in the centre

display

Trip statistics from the trip computer are dis-
played graphically in the centre display and
provide an overview that facilitates more fuel-
efficient driving.

Open the

Driver

performance

 app in app

view in order to show the trip
statistics.

Each bar in the diagram sym-
bolises a distance of 1, 10 or

100 km, alternatively miles. The bars are filled
in from the right as driving progresses. The bar
on the far right shows the value for the current
distance.

The average fuel consumption and total driv-
ing time are calculated since the last time the
trip statistics were reset.

Fuel and electricity consumption are shown in
separate graphs. Electricity consumption is
"net" consumption, i.e. energy consumed
minus regenerated energy created during
braking.

Trip statistics from the trip computer

2

.

NOTE

When driving with electric operation, fuel
consumption can be indicated in the trip
statistics if the additional heater

3

 is run-

ning.

Related information

•

Settings for trip statistics (p. 98)

•

Trip computer (p. 94)

2

The figure is schematic - parts may vary depending on car model.

3

Applicable to fuel-driven auxiliary heater.

DISPLAYS AND VOICE CONTROL

98

Settings for trip statistics

Reset or adjust settings for trip statistics.

1. Open the

Driver performance

 app in app

view in order to show the trip statistics.

2. Press

Preferences

 to

•

change graph scale. Select resolution 1,
10 or 100 km/miles for the bar.

•

reset data after every trip. Performed
when the car has been stationary for
more than 4 hours.

•

reset data for the current trip.

Trip statistics, calculated average con-
sumption and total driving time are always
reset simultaneously.

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Related information

•

Show trip statistics in the centre display
(p. 97)

•

Trip computer (p. 94)

•

Resetting the trip meter (p. 97)

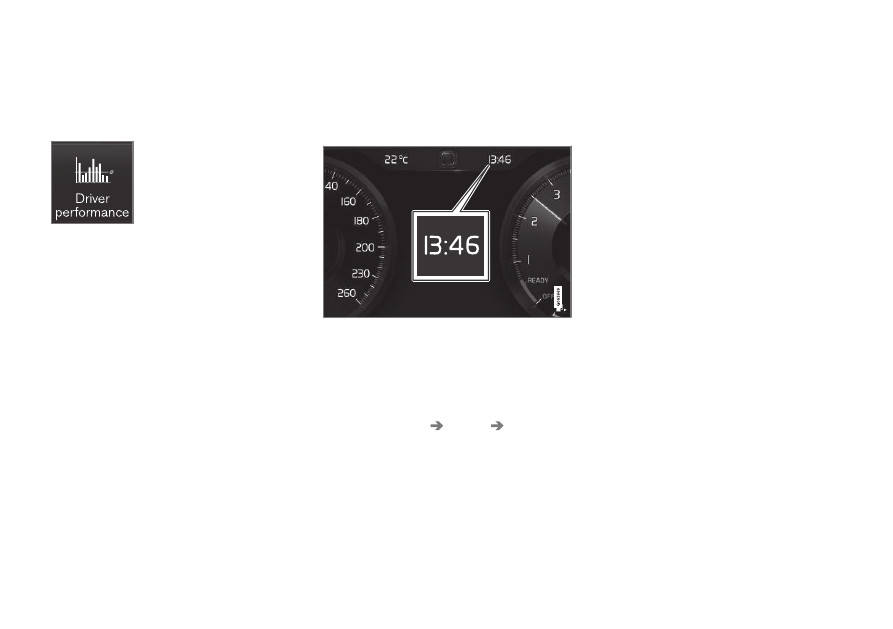

Date and time

The clock is shown in both the driver display
and the centre display.

Clock location

In certain situations, messages and informa-
tion may cover the clock in the driver display.

In the centre display, the clock is located at
the top right of the status bar.

Date and time settings

–

Select

Settings

System

Date and

Time

 in the centre display's top view to

change settings for time and date format.

Adjust the date and time by pressing the
up or down arrow on the touch screen.

Automatic time for cars with GPS

When the car is equipped with a navigation
system,

Auto Time

 can be selected. The time

zone is then adjusted automatically based on
the location of the car. For certain types of
navigation systems, the current location
(country) must also be set to obtain the right
time zone. If

Auto Time

 is not selected, time

and data are adjusted with arrow up or arrow
down on the touch screen.

Summer time

In certain countries, it is possible to select the

Auto Daylight Saving Time

 setting for auto-

matic setting of summer time. For other coun-
tries, the

Daylight Saving Time

 setting can

be selected manually.

Related information

•

Driver display (p. 89)

•

Other settings in the centre display's top
view (p. 138)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

99

Outside temperature gauge

The outside temperature is shown in the
driver display.

A sensor detects the temperature outside of
the car.

If the car has been stationary, the gauge may
display a temperature reading that is too high.

When the outside temperature is in
the range –5 °C to +2 °C (23

°

F to

36

°

F), a snowflake symbol lights up

that warns of potentially slippery

conditions.

The symbol is also illuminated briefly in the
head-up display

*

, if the car is equipped with

one.

Change the unit for the temperature gauge,
etc. via system settings in the centre display's
top view.

Related information

•

Driver display (p. 89)

•

Changing system units (p. 138)

Indicator symbols in the driver

display

The indicator symbols alert the driver that a
function is activated, that a system is operat-
ing, or that a fault or abnormal condition has
occurred.

Symbol Specification

Information, read display text

When one of the car's systems
does not behave as intended,
this information symbol illumi-
nates and a text appears on the
driver display. The information
symbol can also illuminate in
conjunction with other symbols.

Fault in brake system

The symbol lights up when there
is a fault in the parking brake.

ABS fault

If this symbol illuminates then
the system is not working. The
car's regular brake system con-
tinues to work, but without the
ABS function.

||

DISPLAYS AND VOICE CONTROL

100

Symbol Specification

Automatic brake on

The symbol illuminates when the
function is activated and the foot
brake or parking brake is acting.
The brake holds the car station-
ary when it has stopped.

Tyre pressure system

The symbol illuminates when tyre
pressure is too low. If there is a
fault in the tyre pressure system,
the symbol will flash for approx. 1
minute and then illuminate with a
constant glow. This may be
because the system cannot
detect or warn of low tyre pres-
sure as intended.

Emissions system

If the symbol illuminates after the
engine has been started then it
may be due to a fault in the car's
emissions system. Drive to a
workshop for checking. Volvo
recommends that an authorised
Volvo workshop is contacted.

Symbol Specification

Left and right-hand direction
indicator

The symbol flashes when the
direction indicators are used.

Position lamps

The symbol lights up when the
position lamps are switched on.

Fault in the headlamp system

The symbol illuminates if a fault
has occurred in the ABL function
(Active Bending Lights) or if
another fault has occurred in the
headlamp system.

Active main beam on

The symbol lights up blue when
active main beam is on.

Active main beam off

The symbol lights up white when
active main beam is off.

Symbol Specification

Main beam On

The symbol illuminates when
main beam is on and with main
beam flash.

Active main beam on

The symbol lights up blue when
active main beam is on. Position
lamps are switched on.

Active main beam off

The symbol lights up white when
active main beam is off. Position
lamps are switched on.

Main beam On

The symbol lights up when main
beam and the position lamps are
switched on.

Front fog lamps on

This symbol illuminates when the
front fog lamp is switched on.

Rear fog lamp on

This symbol illuminates when the
rear fog lamp is switched on.

DISPLAYS AND VOICE CONTROL

101

Symbol Specification

Rain sensor on

This symbol illuminates when the
rain sensor is on.

Preconditioning on

The symbol illuminates when the
engine block and passenger
compartment heater/air condi-
tioning are preconditioning the
car.

Stability system

A flashing symbol indicates that
the stability system is operating.
If the symbol illuminates with
constant glow then there is a
fault in the system.

Symbol Specification

Stability system, sport mode

The symbol illuminates when the
sport mode is activated. Sport
mode allows for a more active
driving experience. The system
then detects whether the accel-
erator pedal, steering wheel
movements and cornering are
more active than in normal driv-
ing and then allows controlled
skidding of the rear section up to
a certain level before it inter-
venes and stabilises the car.

Lane assistance

White symbol: Lane assistance is
on and road lines are detected.

Grey symbol: Lane assistance is
on but road lines are not
detected.

Amber symbol: Lane assistance
warns/intervenes.

Symbol Specification

Lane assistance and rain sen-
sor

White symbol: Lane assistance is
on and road lines are detected.
Rain sensor is on.

Grey symbol: Lane assistance is
on but road lines are not
detected. Rain sensor is on.

Reduced performance

In the event of a temporary pow-
ertrain fault, the car can go into a
Limp home mode with reduced
engine power to prevent damage
to the powertrain.

Related information

•

Driver display (p. 89)

•

Warning symbols in the driver display
(p. 102)

DISPLAYS AND VOICE CONTROL

102

Warning symbols in the driver

display

The warning symbols alert the driver that an
important function is activated or that a seri-
ous fault or condition exists.

Symbol Specification

Warning

The red warning symbol illumi-
nates when a fault has been indi-
cated which could affect the
safety or drivability of the car. An
explanatory text is shown on the
driver display at the same time.
The warning symbol can also illu-
minate in conjunction with other
symbols.

Seatbelt reminder

This symbol illuminates or
flashes if someone in a front seat
has not put on their seatbelt or if
someone in a rear seat has taken
off their seatbelt.

Symbol Specification

Airbags

If the symbol remains illuminated
or illuminates while driving, a
fault has been detected in one of
the car's safety systems. Read
the message in the driver display.
Volvo recommends that an
authorised Volvo workshop is
contacted.

Fault in brake system

If this symbol illuminates, the
brake fluid level may be too low.
Visit the nearest authorised
workshop to have the brake fluid
level checked and rectified.

Parking brake applied

This symbol illuminates with a
constant glow when the parking
brake is applied.

A flashing symbol means that a
fault has arisen. Read the mes-
sage in the driver display.

Symbol Specification

Low oil pressure

If this symbol illuminates while
driving when the engine's oil
pressure is too low. Stop the
engine immediately and check
the engine oil level, top up if nec-
essary. If the symbol illuminates
and the oil level is normal, con-
tact a workshop. Volvo recom-
mends that an authorised Volvo
workshop is contacted.

Alternator not charging

This symbol illuminates during
driving if a fault has occurred in
the electrical system. Visit a
workshop. Volvo recommends
that an authorised Volvo work-
shop is contacted.

Collision risk

City Safety warns of a risk of col-
lision with other vehicles, pedes-
trians, cyclists or large animals.

DISPLAYS AND VOICE CONTROL

}}

103

Symbol Specification

System malfunction

The symbol illuminates while
driving if there is something
wrong in the drive system. An
explanatory text is shown on the
driver display at the same time.

High engine temperature

The symbol switches on while
driving when the temperature of
the engine is too high. An explan-
atory text is shown on the driver
display at the same time.

Related information

•

Indicator symbols in the driver display
(p. 99)

•

Driver display (p. 89)

License agreement for the driver

display

A license is an agreement for the right to
operate a certain activity or the right to use
someone else's entitlement according to the
terms and conditions in the agreement. The
following text is Volvo's agreement with the
manufacturer or developer.

Boost Software License 1.0

Permission is hereby granted, free of charge,
to any person or organization obtaining a copy
of the software and accompanying
documentation covered by this license (the
"Software") to use, reproduce, display,
distribute, execute, and transmit the Software,
and to prepare derivative works of the
Software, and to permit third-parties to whom
the Software is furnished to do so, all subject
to the following: The copyright notices in the
Software and this entire statement, including
the above license grant, this restriction and
the following disclaimer, must be included in
all copies of the Software, in whole or in part,
and all derivative works of the Software,
unless such copies or derivative works are
solely in the form of machine-executable
object code generated by a source language
processor.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE AND NON-
INFRINGEMENT. IN NO EVENT SHALL THE
COPYRIGHT HOLDERS OR ANYONE
DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY,
WHETHER IN CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

||

DISPLAYS AND VOICE CONTROL

104

BSD 4-clause "Original" or "Old" License

Copyright (c) 1982, 1986, 1990, 1991, 1993
The Regents of the University of California. All
rights reserved.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

3. All advertising materials mentioning

features or use of this software must
display the following acknowledgement:
This product includes software developed
by the University of California, Berkeley
and its contributors.

4. Neither the name of the University nor the

names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS''
AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 3-clause "New" or "Revised" License

Copyright (c) 2011-2014, Yann Collet.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following

disclaimer in the documentation and/or
other materials provided with the
distribution.

3. Neither the name of the organisation nor

the names of its contributors may be used
to endorse or promote products derive
from this software without specific prior
written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
HOLDER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

DISPLAYS AND VOICE CONTROL

}}

105

BSD 2-clause “Simplified” license

Copyright (c)

<

YEAR

>

,

<

OWNER

>

 All rights

reserved.

Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS

OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT
OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

The views and conclusions contained in the
software and documentation are those of the
authors and should not be interpreted as
representing official policies, either expressed
or implied, of the FreeBSD Project.

FreeType Project License

1. 1 Copyright 1996-1999 by David Turner,

Robert Wilhelm, and Werner Lemberg
Introduction The FreeType Project is
distributed in several archive packages;
some of them may contain, in addition to
the FreeType font engine, various tools
and contributions which rely on, or relate
to, the FreeType Project. This license
applies to all files found in such packages,
and which do not fall under their own
explicit license. The license affects thus
the FreeType font engine, the test
programs, documentation and makefiles,
at the very least. This license was inspired
by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses,
which all encourage inclusion and use of

free software in commercial and freeware
products alike. As a consequence, its main
points are that: o We don't promise that
this software works. However, we are be
interested in any kind of bug reports. (`as
is' distribution) o You can use this
software for whatever you want, in parts
or full form, without having to pay us.
(`royalty-free' usage) o You may not
pretend that you wrote this software. If
you use it, or only parts of it, in a program,
you must acknowledge somewhere in
your documentation that you've used the
FreeType code. (`credits') We specifically
permit and encourage the inclusion of this
software, with or without modifications, in
commercial products, provided that all
warranty or liability claims are assumed by
the product vendor. Legal Terms 0.
Definitions Throughout this license, the
terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner
Lemberg) as the `FreeType project', be
they named as alpha, beta or final release.
`You' refers to the licensee, or person
using the project, where `using' is a
generic term including compiling the
project's source code as well as linking it
to form a `program' or `executable'. This
program is referred to as `a program using
the FreeType engine'. This license applies

||

DISPLAYS AND VOICE CONTROL

106

to all files distributed in the original
FreeType archive, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the
original archive. If you are unsure whether
or not a particular file is covered by this
license, you must contact us to verify this.
The FreeType project is copyright (C)
1996-1999 by David Turner, Robert
Wilhelm, and Werner Lemberg. All rights
reserved except as specified below. 1. No
Warranty THE FREETYPE ARCHIVE IS
PROVIDED `AS IS' WITHOUT
WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. IN NO EVENT
WILL ANY OF THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR
ANY DAMAGES CAUSED BY THE USE
OR THE INABILITY TO USE, OF THE
FREETYPE PROJECT. As you have not
signed this license, you are not required to
accept it. However, as the FreeType
project is copyrighted material, only this
license, or another one contracted with
the authors, grants you the right to use,
distribute, and modify it. Therefore, by
using, distributing, or modifying the
FreeType project, you indicate that you

understand and accept all the terms of
this license.

2. Redistribution Redistribution and use in

source and binary forms, with or without
modification, are permitted provided that
the following conditions are met: o
Redistribution of source code must retain
this license file (`licence.txt') unaltered;
any additions, deletions or changes to the
original files must be clearly indicated in
accompanying documentation. The
copyright notices of the unaltered, original
files must be preserved in all copies of
source files. o Redistribution in binary
form must provide a disclaimer that states
that the software is based in part of the
work of the FreeType Team, in the
distribution documentation. We also
encourage you to put an URL to the
FreeType web page in your
documentation, though this isn't
mandatory. These conditions apply to any
software derived from or based on the
FreeType code, not just the unmodified
files. If you use our work, you must
acknowledge us. However, no fee need be
paid to us.

3. Advertising The names of FreeType's

authors and contributors may not be used
to endorse or promote products derived
from this software without specific prior
written permission. We suggest, but do
not require, that you use one or more of

the following phrases to refer to this
software in your documentation or
advertising materials: `FreeType Project',
`FreeType Engine', `FreeType library', or
`FreeType Distribution'.

4. Contacts There are two mailing lists

related to FreeType: o
freetype@freetype.org Discusses general
use and applications of FreeType, as well
as future and wanted additions to the
library and distribution. If you are looking
for support, start in this list if you haven't
found anything to help you in the
documentation. o devel@freetype.org
Discusses bugs, as well as engine
internals, design issues, specific licenses,
porting, etc. o http://www.freetype.org
Holds the current FreeType web page,
which will allow you to download our
latest development version and read
online documentation. You can also
contact us individually at: David Turner

<

david.turner@freetype.org

>

 Robert

Wilhelm

<

robert.wilhelm@freetype.org

>

Werner Lemberg

<

werner.lemberg@freetype.org

>

DISPLAYS AND VOICE CONTROL

}}

107

Libpng License

This copy of the libpng notices is provided for
your convenience. In case of any discrepancy
between this copy and the notices in the file
png.h that is included in the libpng
distribution, the latter shall prevail.

COPYRIGHT NOTICE, DISCLAIMER, and
LICENSE:

If you modify libpng you may insert additional
notices immediately following this sentence.

libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c)
2000-2002 Glenn Randers-Pehrson and are
distributed according to the same disclaimer
and license as libpng-1.0.6 with the following
individuals added to the list of Contributing
Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the
disclaimer:

There is no warranty against interference with
your enjoyment of the library or against
infringement. There is no warranty that our
efforts or the library will fulfill any of your
particular purposes or needs. This library is
provided with all faults, and the entire risk of

satisfactory quality, performance, accuracy,
and effort is with the user.

libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c)
1998, 1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer
and license as libpng-0.96, with the following
individuals added to the list of Contributing
Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through
0.96, May 1997, are Copyright (c) 1996, 1997
Andreas Dilger Distributed according to the
same disclaimer and license as libpng-0.88,
with the following individuals added to the list
of Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996
Guy Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license,
"Contributing Authors" is defined as the
following set of individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied "AS
IS". The Contributing Authors and Group 42,
Inc. disclaim all warranties, expressed or
implied, including, without limitation, the
warranties of merchantability and of fitness for
any purpose. The Contributing Authors and
Group 42, Inc. assume no liability for direct,
indirect, incidental, special, exemplary, or
consequential damages, which may result
from the use of the PNG Reference Library,
even if advised of the possibility of such
damage.

Permission is hereby granted to use, copy,
modify, and distribute this source code, or
portions hereof, for any purpose, without fee,
subject to the following restrictions:

||

DISPLAYS AND VOICE CONTROL

108

1. The origin of this source code must not be

misrepresented.

2. Altered versions must be plainly marked

as such and must not be misrepresented
as being the original source.

3. This Copyright notice may not be removed

or altered from any source or altered
source distribution.

The Contributing Authors and Group 42, Inc.
specifically permit, without fee, and encourage
the use of this source code as a component to
supporting the PNG file format in commercial
products. If you use this source code in a
product, acknowledgment is not required but
would be appreciated.

A "png_get_copyright" function is available,
for convenient use in "about" boxes and the
like:

printf("%s",png_get_copyright(NULL));

Also, the PNG logo (in PNG format, of course)
is supplied in the files "pngbar.png" and
(98x31).

Libpng is OSI Certified Open Source
Software. OSI Certified Open Source is a
certification mark of the Open Source
Initiative.

Glenn Randers-Pehrson randeg@alum.rpi.edu
April 15, 2002

MIT License

Copyright (c)

<

year

>



<

copyright holders

>

Permission is hereby granted, free of charge,
to any person obtaining a copy of this
software and associated documentation files
(the "Software"), to deal in the Software
without restriction, including without
limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or
sell copies of the Software, and to permit
persons to whom the Software is furnished to
do so, subject to the following conditions:

The above copyright notice and this
permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR
OTHER LIABILITY, WHETHER IN AN ACTION
OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

zlib License

The zlib/libpng License Copyright (c)

<

year

>

<

copyright holders

>

This software is provided 'as-is', without any
express or implied warranty. In no event will
the authors be held liable for any damages
arising from the use of this software.

Permission is granted to anyone to use this
software for any purpose, including
commercial applications, and to alter it and
redistribute it freely, subject to the following
restrictions:

1. The origin of this software must not be

misrepresented; you must not claim that
you wrote the original software. If you use
this software in a product, an
acknowledgment in the product
documentation would be appreciated but
is not required.

2. Altered source versions must be plainly

marked as such, and must not be
misrepresented as being the original
software.

3. This notice may not be removed or altered

from any source distribution.

DISPLAYS AND VOICE CONTROL

}}

109

SGI Free Software B License Version 2.0.

SGI FREE SOFTWARE LICENSE B (Version
2.0, Sept. 18, 2008)

Copyright (C) [dates of first publication]
Silicon Graphics, Inc. All Rights Reserved.
Permission is hereby granted, free of charge,
to any person obtaining a copy of this
software and associated documentation files
(the "Software"), to deal in the Software
without restriction, including without
limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or
sell copies of the Software, and to permit
persons to whom the Software is furnished to
do so, subject to the following conditions: The
above copyright notice including the dates of
first publication and either this permission
notice or a reference to http://oss.sgi.com/
projects/FreeB/ shall be included in all copies
or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN

CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Except as contained in this notice, the name of
Silicon Graphics, Inc. shall not be used in
advertising or otherwise to promote the sale,
use or other dealings in this Software without
prior written authorization from Silicon
Graphics, Inc.

Related information

•

Driver display (p. 89)

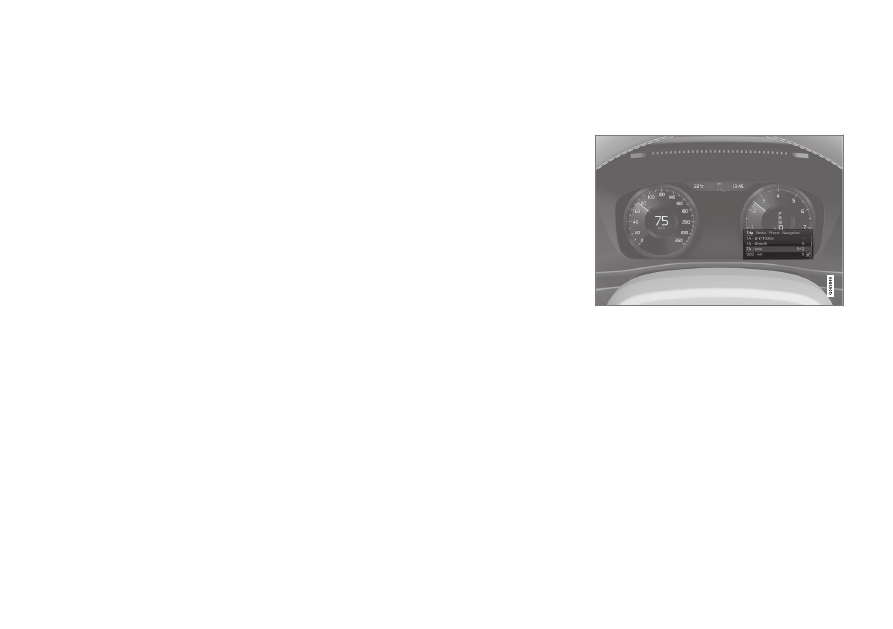

Application menu in driver display

Application menu (app menu) in the driver
display provides quick access to commonly
used functions for certain apps.

The figure is schematic.

The app menu in the driver display can be
used instead of the centre display and is con-
trolled using the right-hand keypad on the
steering wheel. The app menu makes it easier
to switch between different apps or functions
within the apps without having to let go of the
steering wheel.

App menu functions

Different apps give access to different types of
functions. The following apps and their associ-
ated functions can be controlled from the app
menu:

||

DISPLAYS AND VOICE CONTROL

110

App

Functions

Trip com-
puter

Selection of trip meter, selec-
tion of what to show in the
driver display, etc.

Media
player

Selection of active source for
the media player.

Phone

Calling a contact from the call
list.

Navigation

Guide to destination, etc.

Related information

•

Driver display (p. 89)

•

Overview of centre display (p. 115)

•

Handling the application menu in the
driver display (p. 110)

Handling the application menu in

the driver display

The application menu (the app menu) in the
driver display is operated with the steering
wheel's right-hand keypad.

The app menu and the steering wheel's right-hand

keypad. The figure is schematic.

Open/close

Left/right

Up/down

Confirm

Opening/closing the app menu

–

Press on open/close (1).
> The app menu opens/closes.

NOTE

It is not possible to open the app menu
while there is an unacknowledged mes-
sage in the driver display. The message has
to be confirmed first before the app menu
can be opened.

The app menu closes automatically after a
period of inactivity or after certain options
have been selected.

Navigating and selecting in the app
menu

1. Navigate between the apps by pressing

on the left or right (2).
> Functions for previous/next app are

shown in the app menu.

2. Browse through the functions for the

selected app by tapping on up or down
(3).

3. Confirm or highlight an option for the

function by pressing on confirm (4).
> The function is activated and for some

options the app menu then closes.

DISPLAYS AND VOICE CONTROL

}}

111

If the app menu is opened again, the functions
of the most recently selected app are shown
first.

Related information

•

Application menu in driver display (p. 109)

•

Messages in the driver display (p. 111)

Messages in the driver display

The driver display can show messages to
inform or assist the driver in the event of dif-
ferent events.

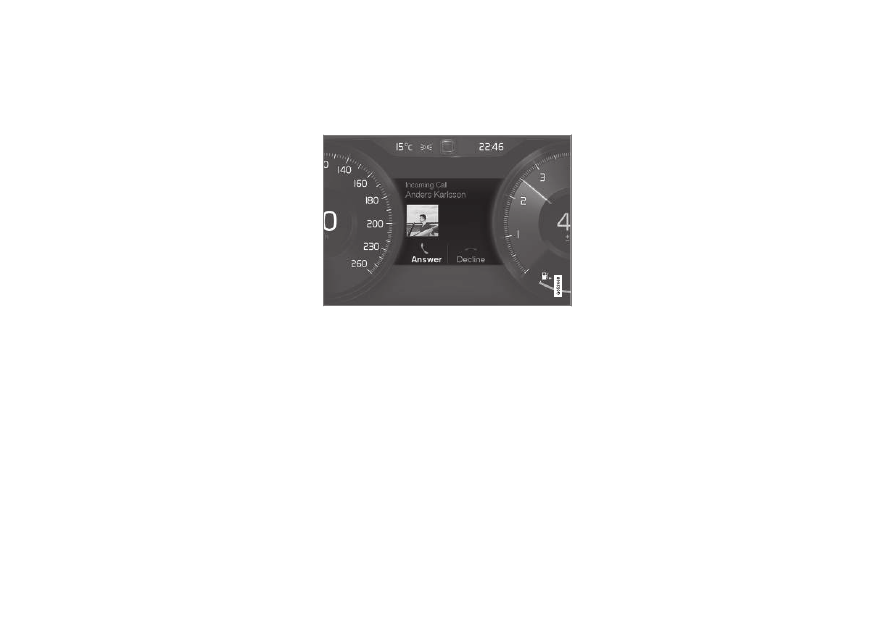

Examples of messages in the driver display. The fig-

ure is schematic - parts may vary depending on car

model.
Examples of messages in the driver display.

The driver display shows messages that are of
high priority for the driver.

Messages can be shown in different parts of
the driver display depending on what other
information is currently being displayed. After
a while, or when the message has been
acknowledged/action taken if required, the
message disappears from the driver display. If
a message needs to be saved, it is placed in
the

Car Status

 app, which is opened from the

app view in the centre display.

Message composition may vary and they can
be shown together with graphics, symbols or
buttons for acknowledging the message or
accepting a request, for example.

||

DISPLAYS AND VOICE CONTROL

112

Service messages

Shown below is a selection of important serv-
ice messages and their meanings.

Message

Specification

Stop safely

A

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

B

.

Turn off
engine

A

Stop and switch off the
engine. Serious risk of
damage - consult a work-
shop

B

.

Service urgent
Drive to work-
shop

A

Contact a workshop

B

 to

check the car immedi-
ately.

Service
required

A

Contact a workshop

B

 to

check the car as soon as
possible.

Regular main-
tenance

Book time for
maintenance

Time for regular service -
contact a workshop

B

.

Shown before the next
service date.

Regular main-
tenance

Time for main-
tenance

Time for regular service -
contact a workshop

B

.

Shown at the next serv-
ice date.

Message

Specification

Regular main-
tenance

Maintenance
overdue

Time for regular service -
contact a workshop

B

.

Shown when the service
date has passed.

Temporarily
off

A

A function has been tem-
porarily switched off and
is reset automatically
while driving or after
starting again.

A

Part of message, shown together with information on

where the problem has arisen.

B

An authorised Volvo workshop is recommended.

Related information

•

Managing messages in the driver display
(p. 112)

•

Handling a message saved from the driver
display (p. 113)

•

Message in centre display (p. 146)

Managing messages in the driver

display

Messages in the driver display are handled
using the steering wheel's right-hand keypad.

Examples of messages in the driver display and the

steering wheel's right-hand keypad. The figure is

schematic - parts may vary depending on car model.

Left/right

Confirm

Some messages in the driver display contain
one or more buttons for acknowledging the
message or accepting a request, for example.
