SAFETY

80

Table for XC90 Excellence Lounge

Weight

Size class

A

Type of child seat

Rear seat

B, C

Group 0

max 10 kg

E

Rear-facing infant seat

IL

D

Group 0+

max 13 kg

E

Rear-facing infant seat

IL

D

C

Rear-facing child seat

D

Rear-facing child seat

Group 1

9-18 kg

A

Front-facing child seat

IL

E

, IUF

E

B

Front-facing child seat

B1

Front-facing child seat

C

Rear-facing child seat

IL

D

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

A

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

B

When installing on the passenger side's outer seat, slide the car's Lounge Console forward to its front position.

C

The seat cushion extension must always be retracted for the installation of child seats.

D

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

E

Volvo recommends rear-facing child seat for children in this mass group.

SAFETY

81

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

NOTE

If an i-Size/ISOFIX child seat has no size
classification, the car model must be
included on the vehicle list for the child
seat.

NOTE

Volvo recommends contacting an author-
ised Volvo dealer for information about
which i-Size/ISOFIX child seats Volvo rec-
ommends.

Related information

•

Child seat positioning (p. 64)

•

Child seat mounting (p. 65)

•

Table for location of child seats using the
car's seatbelts (p. 67)

•

Table for location of i-Size child seats
(p. 74)

•

i-Size/ISOFIX mounting points for child
seats (p. 63)

SAFETY

* Option/accessory.

82

Integrated child seat

*

The integrated child seat on the centre seat in
the second seat row

9

 allows children to sit

comfortably and safely.

The child seat is specially designed to provide
children with good safety, together with the
car's seatbelt.

The child seat is approved for children who
weigh 15-36 kg (33-80 lbs) and are at least
97 cm (38 inches) tall.

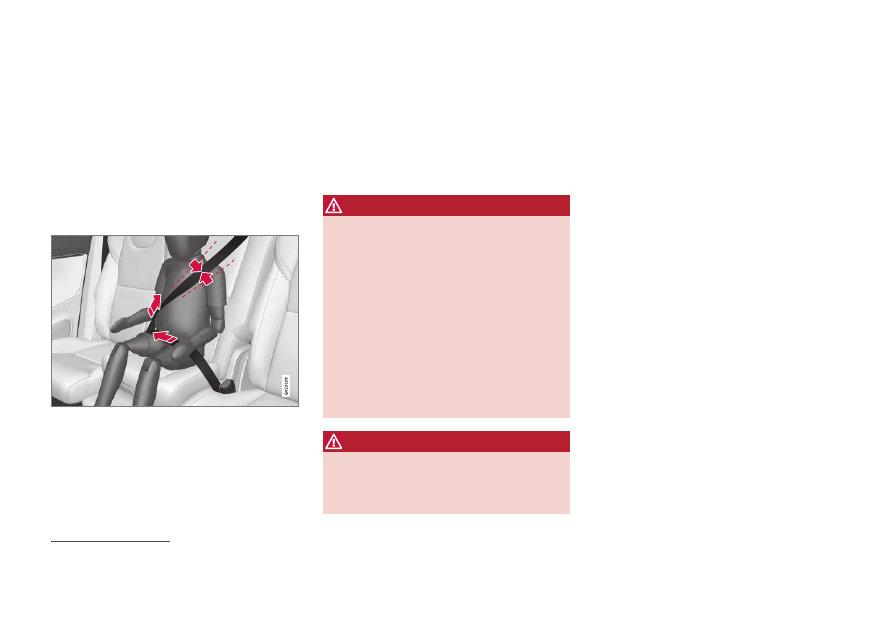

Correct position, the seatbelt should be positioned in

on the shoulder.

Check before driving that:

•

the seat cushion in locked in position

•

the head restraint is adjusted at the same
height as the child's head, if possible, so
that it covers the entire back of the head

•

the seatbelt is in contact with the child's
body and is not slack or twisted

•

the seatbelt does not lie across the child's
throat or below the shoulder

•

the lap section of the seatbelt is posi-
tioned low over the pelvis to provide opti-
mal protection.

WARNING

Volvo recommends that repair or replace-

ment of the integrated child seat is only

performed by an authorised Volvo work-

shop. Do not make any modifications or

additions to the child seat. If an integrated

child seat has been subjected to a heavy

load, e.g. in connection with a collision,

then the seat cushion, seatbelt and back-

rest, or possibly the whole seat, must be

replaced. Even if the child seat appears to

be undamaged, it may not afford the same

level of protection. This also applies if the

seat cushion was in lowered position dur-

ing a collision or similar. The seat cushion

must also be replaced if it is heavily worn.

WARNING

If the instructions for the integrated child

seat are not followed then the child could

sustain serious injury in the event of an

accident.

Related information

•

Child seats (p. 61)

•

Folding up the seat cushion in the inte-
grated child seat

*

 (p. 83)

•

Folding down the seat cushion in the inte-
grated child seat

*

 (p. 83)

9

Available for five and seven-seat variants.

SAFETY

}}

* Option/accessory.

83

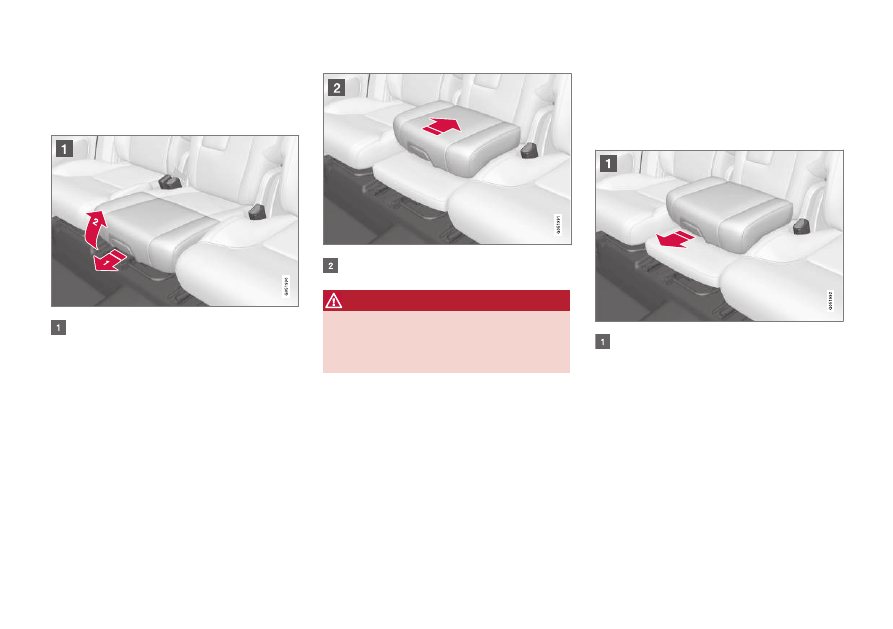

Folding up the seat cushion in the

integrated child seat

*

The seat cushion should always be folded up
when the integrated child seat is in use.

Pull the handle forwards and upwards to
release the seat cushion.

Press the seat cushion backwards to lock.

WARNING

If the instructions for the integrated child

seat are not followed then the child could

sustain serious injury in the event of an

accident.

Related information

•

Integrated child seat

*

 (p. 82)

•

Folding down the seat cushion in the inte-
grated child seat

*

 (p. 83)

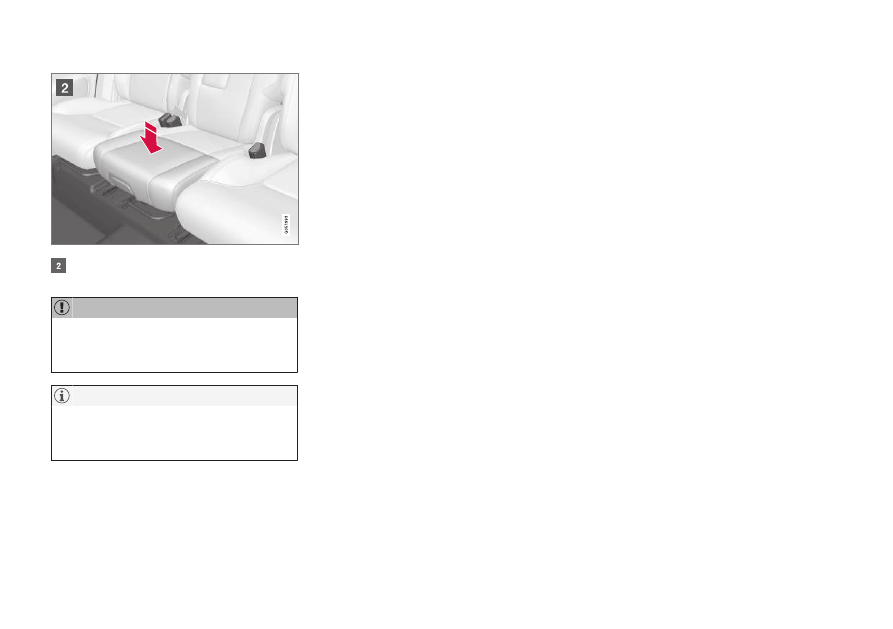

Folding down the seat cushion in

the integrated child seat

*

The seat cushion should be folded down into
the rear seat when the integrated child seat is
not being used.

Pull the handle forwards to release the
seat cushion.

||

SAFETY

* Option/accessory.

84

Press down with your hand in the centre
of the seat cushion in order to lock it.

IMPORTANT

Check that there are no loose objects (e.g.
toys) left behind in the space under the
child seat's seat cushion before lowering.

NOTE

Before the rear backrest is lowered, the
child seat's seat cushion must be lowered
first.

Related information

•

Integrated child seat

*

 (p. 82)

•

Folding up the seat cushion in the inte-
grated child seat

*

 (p. 83)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

86

Instruments and controls in left-

hand drive car

The overviews show where the displays and
controls near the driver are located.

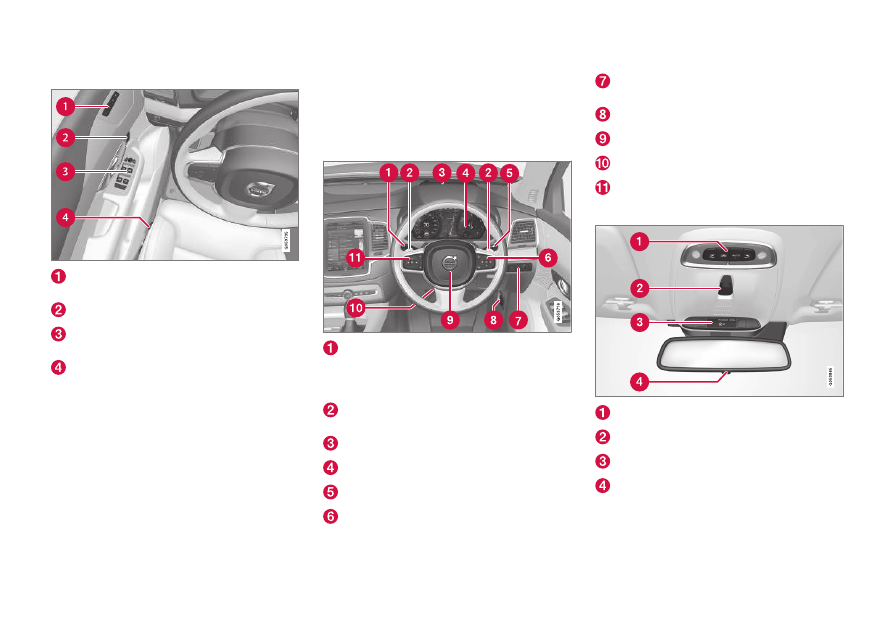

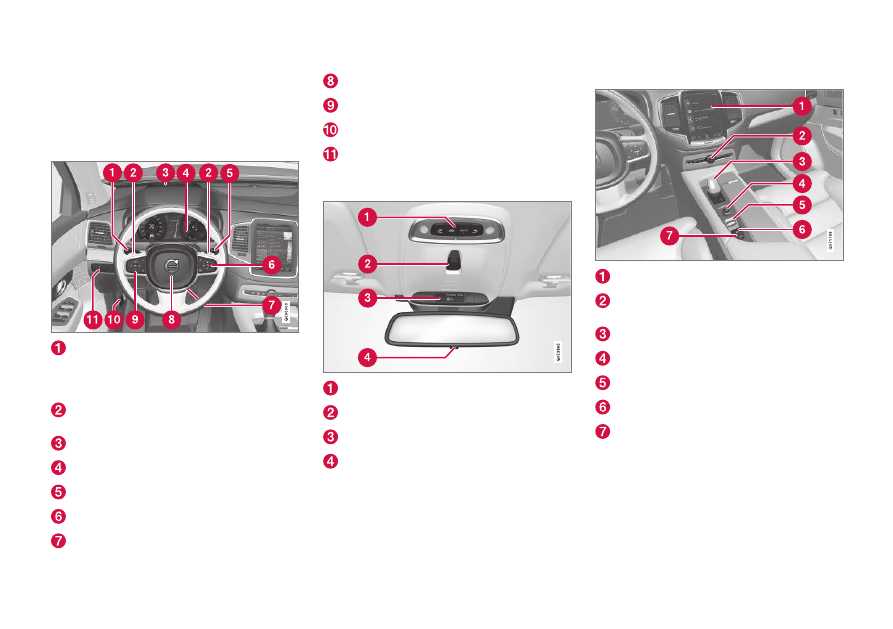

Steering wheel and instrument panel

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, rear fog lamp, resetting the trip
meter
Steering wheel paddles for manual gear
changing in an automatic gearbox

*

Head-up display

*

Driver display

Wipers and washing, rain sensor

*

Right-hand steering wheel keypad

Steering wheel adjustment

Horn

Left-hand steering wheel keypad

Bonnet opening

Display lighting, tailgate unlocking/open-
ing

*

/closing

*

, halogen headlamp levelling

Roof console

Front reading lamps and interior lighting

Panorama roof

*

Display in roof console,

ON CALL

 button

*

Manual dimming of interior rearview mir-
ror

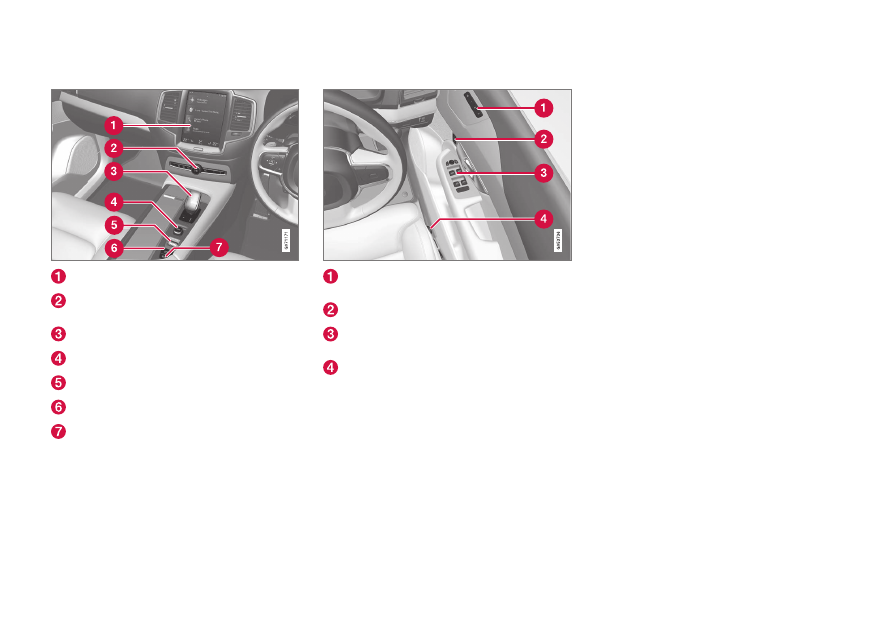

Centre and tunnel console

Centre display

Hazard warning flashers, defrosting,
media, glovebox opening
Gear selector

Start knob

Drive mode control

Parking brake

Automatic braking when stationary

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

87

Driver's door

Memories for power front seat

*

, door mir-

ror and head-up display

*

 settings

Central locking

Power windows, door mirrors, electric
child safety lock

*

Adjusting front seat

Related information

•

Manual front seat (p. 192)

•

Adjusting the power

*

 front seat (p. 193)

•

Adjusting the steering wheel (p. 210)

•

Lighting control (p. 158)

•

Starting the car (p. 456)

•

Driver display (p. 89)

•

Overview of centre display (p. 115)

•

Gearbox (p. 470)

Instruments and controls in right-

hand drive car

The overviews show where the displays and
controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, rear fog lamp, resetting the trip
meter
Steering wheel paddles for manual gear
changing in an automatic gearbox

*

Head-up display

*

Driver display

Wipers and washing, rain sensor

*

Right-hand steering wheel keypad

Display lighting, tailgate unlocking/open-
ing

*

/closing

*

, halogen headlamp levelling

Bonnet opening

Horn

Steering wheel adjustment

Left-hand steering wheel keypad

Roof console

Front reading lamps and interior lighting

Panorama roof

*

Display in roof console,

ON CALL

 button

*

Manual dimming of interior rearview mir-
ror

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

88

Centre and tunnel console

Centre display

Hazard warning flashers, defrosting,
media, glovebox opening
Gear selector

Start knob

Drive mode control

Parking brake

Automatic braking when stationary

Driver's door

Memories for power front seat

*

, door mir-

ror and head-up display

*

 settings

Central locking

Power windows, door mirrors, electric
child safety lock

*

Adjusting front seat

Related information

•

Manual front seat (p. 192)

•

Adjusting the power

*

 front seat (p. 193)

•

Adjusting the steering wheel (p. 210)

•

Lighting control (p. 158)

•

Starting the car (p. 456)

•

Driver display (p. 89)

•

Overview of centre display (p. 115)

•

Gearbox (p. 470)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

89

Driver display

The driver display shows information about
the car and driving.

The driver display contains gauges, indicators
and indicator and warning symbols. The con-
tent of the driver display depends on the car's
equipment, settings and which functions are
active at that time.

The driver display is activated as soon as a
door is opened, i.e. in ignition position

0

. The

driver display extinguishes after a while if it is
not used. To reactivate it, proceed with one of
the following:

•

Depress the brake pedal.

•

Activate ignition position

I

.

•

Open one of the doors.

WARNING

If the driver display should extinguish, not

illuminate on activation/start or be fully or

partially illegible, the car must not be used.

You should visit a workshop immediately.

Volvo recommends an authorised Volvo

workshop.

WARNING

In the event of a fault in the driver display

the information on e.g. brakes, airbags or

other safety systems may not be shown. In

which case, the driver cannot check the

status of the car's systems or receive cur-

rent warnings and information.

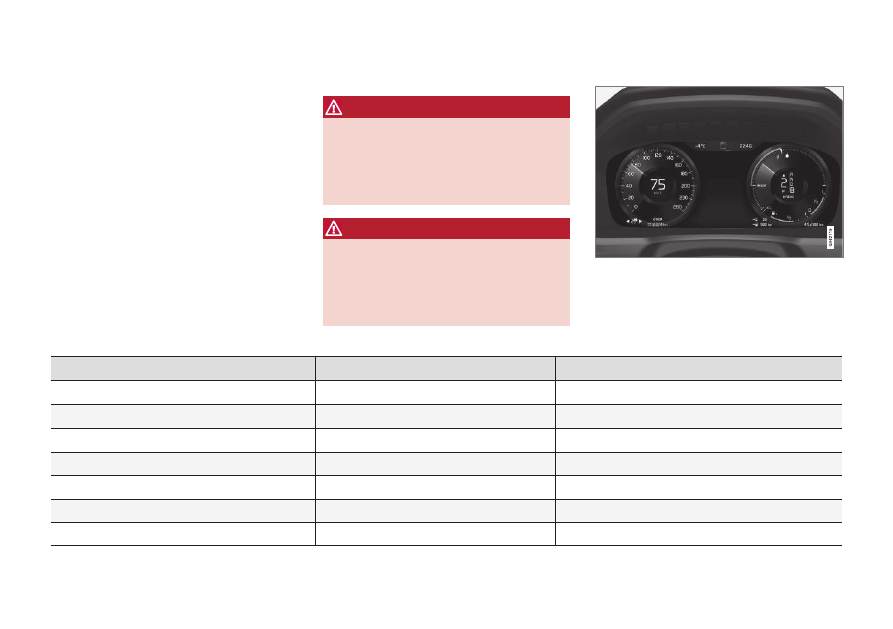

The figure is schematic - parts may vary depending

on car model.

Location in the driver display:

On the left

In the middle

On the right

Speedometer

Indicator and warning symbols

Tachometer/Hybrid gauge

A

Trip meter

Outside temperature gauge

Gear shift indicator

Odometer

B

Clock

Drive mode

Cruise control and speed limiter information

Messages, in some cases with graphics

Fuel gauge

Road Sign Information

*

Door and seatbelt information

Hybrid battery gauge

–

Charging status

Distance to empty tank

–

Media player

Distance to empty battery

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

90

On the left

In the middle

On the right

–

Navigation map

*

Instantaneous fuel consumption

–

Phone

App menu (activated via steering wheel keypad)

–

Voice recognition

–

–

Compass

A

–

A

Depends on drive mode selected.

B

Accumulated mileage.

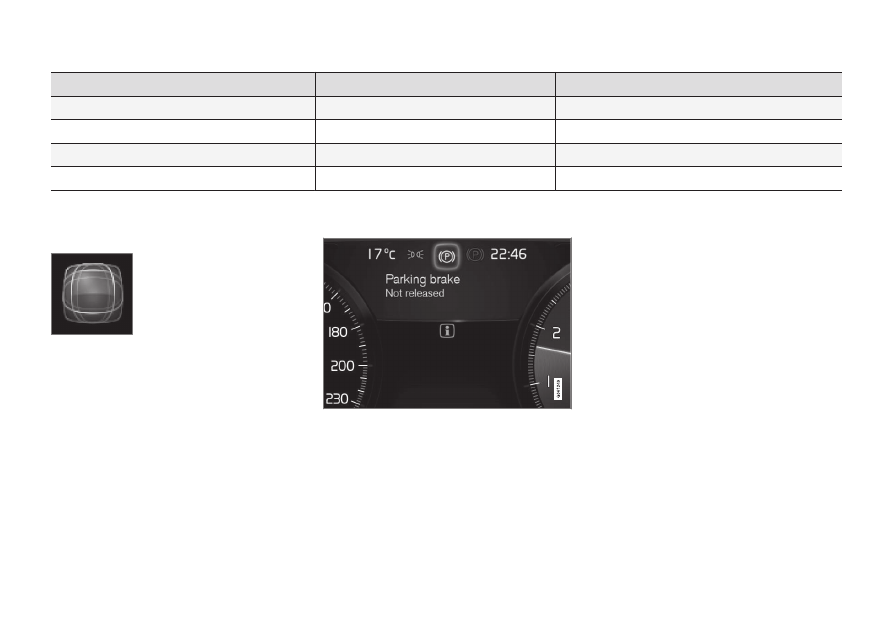

Dynamic symbol

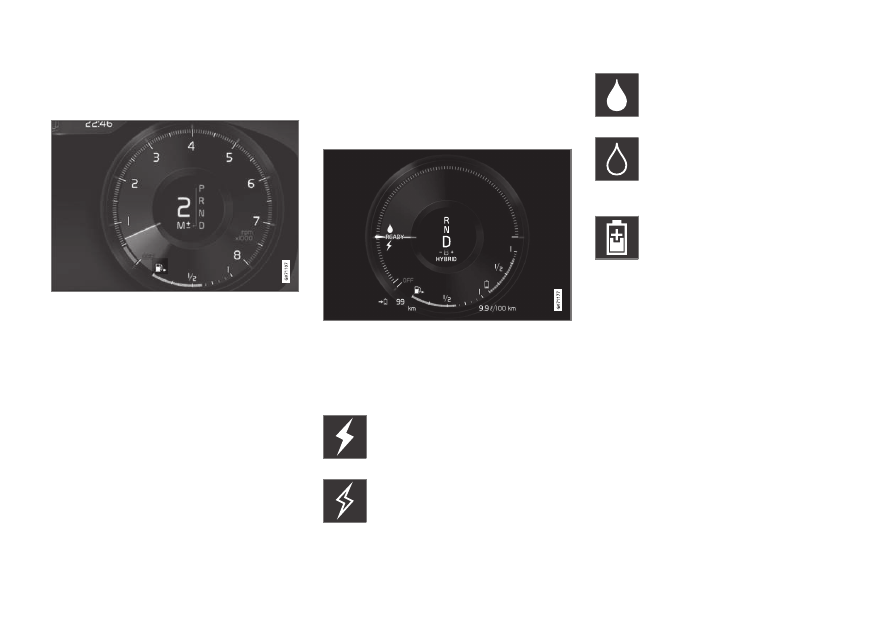

The dynamic symbol in its
basic form.

The centre of the driver display contains a
dynamic symbol that changes appearance for
different types of message. An amber or red
marker around the symbol indicates the
degree of severity of a control or warning mes-
sage.

Examples of indicator symbol.

With an animation, the basic shape can be
turned into a graphic showing where a prob-
lem is situated, or in order to clarify informa-
tion.

Related information

•

Driver display settings (p. 91)

•

Warning symbols in the driver display
(p. 102)

•

Indicator symbols in the driver display
(p. 99)

•

Trip computer (p. 94)

•

Messages in the driver display (p. 111)

•

Handling the application menu in the
driver display (p. 110)

•

Drive modes (p. 478)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

91

Driver display settings

Settings for the driver display's display
options can be made via the driver display's
application menu and via the centre display's
settings menu.

Settings via the driver display's app
menu

The figure is schematic - parts may vary depending

on car model.

The app menu is opened and controlled using
the right-hand keypad on the steering wheel.

In the app menu, you can choose which infor-
mation is shown on the driver display from:

•

trip computer

•

media player

•

phone

•

navigation system

*

.

Settings via the centre display

Selecting information type

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Displays

Driver

Display Information

.

3. Select what should be shown in the back-

ground:

•

Show no information in background

•

Show information for current
playing media

•

Show navigation even if no route is
set

Selecting theme

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

My Car

Displays

Display

Themes

.

3. Select a theme (appearance) for the driver

display:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Selecting language

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

System

System Languages

and Units

System Language

 to select

language.
> A change will affect the language in all

displays.

These settings are personal and are saved
automatically to the active driver profile.

Related information

•

Driver display (p. 89)

•

Handling the application menu in the
driver display (p. 110)

•

Other settings in the centre display's top
view (p. 138)

DISPLAYS AND VOICE CONTROL

92

Fuel gauge

The fuel gauge in the driver display shows the
fuel level in the tank.

The figure is schematic - parts may vary depending

on car model.

The beige zone in the fuel gauge indicates the
quantity of fuel in the tank.

When the fuel level is low and it is soon time
to refuel, the fuel pump symbol illuminates
and changes to amber. The trip computer also
indicates the distance to empty tank.

Related information

•

Driver display (p. 89)

•

Hybrid battery gauge (p. 93)

•

Filling fuel (p. 498)

•

Fuel tank - volume (p. 702)

Hybrid gauge

In drive modes Hybrid and Pure, the driver
display shows a hybrid gauge that can help
the driver to drive the car in a more energy-
efficient way.

The hybrid gauge shows in different ways the
relationship between how much power is
being taken from the electric motor and how
much power is available.

Symbols in the hybrid gauge

Indicates current level for available
electric motor power. If the symbol
is filled in, it means that the electric
motor is in use.

If the symbol is not filled in, it means
that the electric motor is not in use.

Indicates the power level when the
combustion engine starts. If the
symbol is filled in, it means that the
combustion engine is in use.

Indicates the power level when the
internal combustion engine is due to
start. If the symbol is not filled in, it
means that the combustion engine is

not in use.

Indicator that shows that the hybrid
battery is being charged, e.g. if the
brake pedal is gently depressed.

Driver-requested power

The pointer in the hybrid gauge indicates the
amount of engine power requested by the
driver by regulating the accelerator pedal. The
higher the reading on the scale, the more
power is requested by the driver in the current
gear. The marker between the lightning flash
and the drop shows the point at which the
internal combustion engine starts.

DISPLAYS AND VOICE CONTROL

}}

93

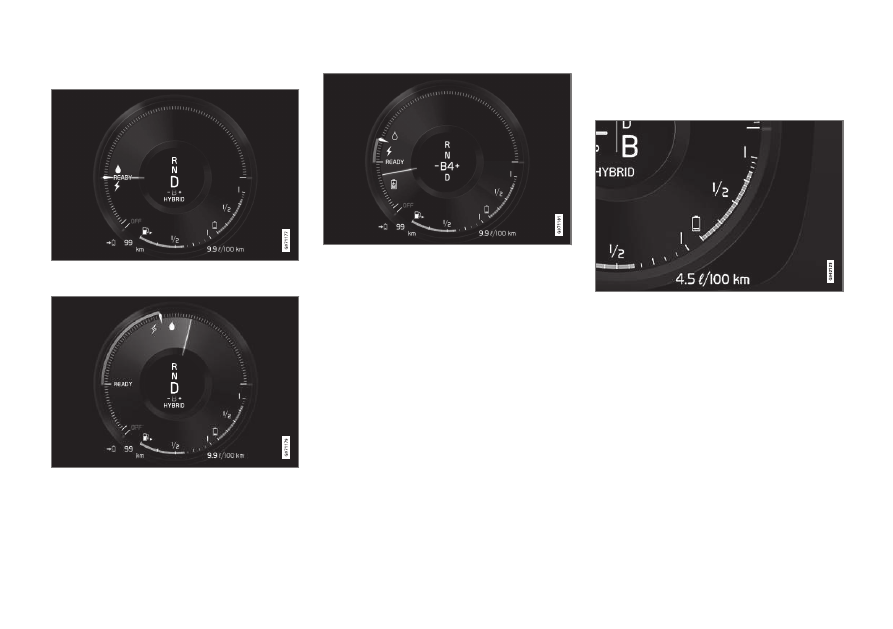

Example:

The car is started but stationary, no power is reques-

ted.

The electric motor cannot supply the amount of

engine power requested and the internal combustion

engine starts.

The car generates current to the battery, the battery

is charged, e.g. when the brake pedal is pressed

lightly or during engine braking down a hill.

Related information

•

Drive modes (p. 478)

•

Driver display (p. 89)

•

Foot brake (p. 462)

•

Starting and stopping the combustion
engine in Twin Engine (p. 477)

Hybrid battery gauge

The hybrid battery gauge shows how much
energy there is in the hybrid battery.

The energy in the hybrid battery is used for the
electric motor, but also to cool or heat the car.
The trip computer calculates an approximate
distance for the energy left in the hybrid bat-
tery.

||

DISPLAYS AND VOICE CONTROL

94

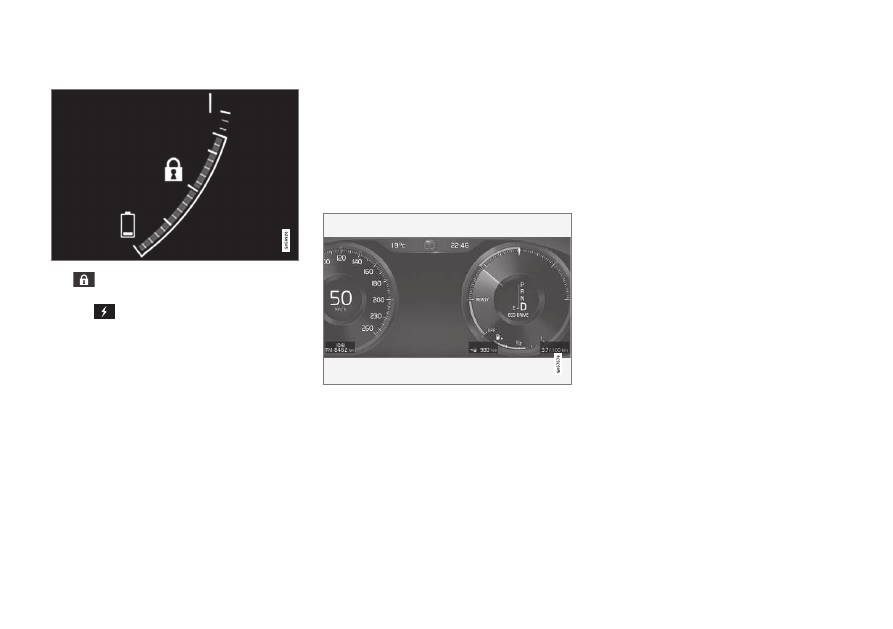

Symbols in the hybrid battery gauge

The

 symbol in the hybrid battery gauge

indicates that the

Hold

 function is activated,

and the

 symbol indicates that the

Charge

function is activated.

Related information

•

Driver display (p. 89)

•

Charging the hybrid battery (p. 435)

•

Hold and Charge function (p. 494)

Trip computer

The car's trip computer records vales such as
e.g. distance, fuel consumption and average
speed whilst driving.

In order to facilitate fuel-efficient driving, infor-
mation is recorded about both instantaneous
and average fuel consumption. The informa-
tion from the trip computer can be shown in
the driver display.

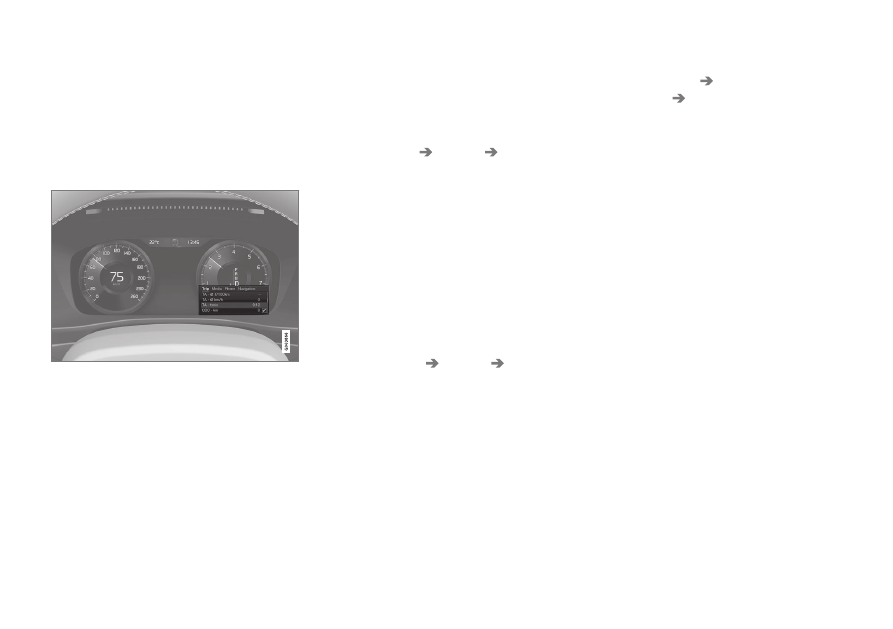

Examples of trip computer information in the driver

display. The figure is schematic - parts may vary

depending on car model.

The following meters are included in the trip
computer:

•

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Distance to empty battery

•

Tourist - alternative speedometer

Units for distance, speed, etc. can be changed
via system settings in the centre display.

Trip meter

There are two trip meters, TM and TA.

TM can be reset manually and TA is reset
automatically if the car is not used for at least
four hours.

The following information is registered while
driving:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The values apply from the trip meter's latest
reset.

Odometer

The odometer records the car's total mileage.
This value cannot be reset to zero.

Instantaneous fuel consumption

This gauge shows the fuel consumption that
the car has at the moment. The value is upda-
ted approximately every second.

DISPLAYS AND VOICE CONTROL

95

Distance to empty tank

The trip computer calculates the
remaining mileage with the fuel
available in the tank.

The calculation is based on the average fuel
consumption over the last 30 km (20 miles)
and the remaining drivable fuel quantity.

When the gauge shows "----", there is not
enough fuel left to be able to calculate the
remaining mileage. Refuel as soon as possible.

NOTE

There may be a slight deviation if the driv-
ing style has been changed.

An economic driving style generally results in a
longer driving distance.

Distance to empty battery

The approximate distance that can
be driven with the remaining amount
of energy in the hybrid battery is
indicated adjacent to this symbol.

The calculation is based on the average con-
sumption of normally loaded vehicle, during
normal driving and taking into account
whether the air conditioning (AC) is switched
on or off. When changing between the

Hybrid

and

Pure

 drive modes, the calculated distance

increases since the

Pure

 mode has reduced

climate settings (ECO climate).

No guaranteed range on electric power
remains when the gauge shows "----".

NOTE

There may be a slight deviation if the driv-
ing style has been changed.

An economic driving style generally results in a
longer driving distance.

Start value for fully charged hybrid battery

Since it is difficult to anticipate driving style
and other factors that affect the range for
electric operation, Volvo has decided to use a
start value when the car is fully charged. The
start value indicates an up-to figure instead of
a forecast for the range for electric operation.
The difference in start value between

Hybrid

and

Pure

 is due to the car being allowed to

use more energy from the hybrid battery in

Pure

 mode, as well as that the car changes

over to ECO climate.

Mileage for electric operation

In order to achieve the longest possible mile-
age for electric operation, the driver of an elec-
trically powered car also has to think about
energy conservation. The more consumers
there are (stereo, electric heating in windows/
mirrors/seats, very cold air from the climate

control system, etc.) that are active - the
shorter the potential mileage.

NOTE

In addition to high current take-off in the
passenger compartment, sudden accelera-
tion and braking, high speed, heavy loads,
low outside temperature and uphill gradi-
ents also reduce the possible driving dis-
tance.

Tourist - alternative speedometer

The alternative digital speedometer makes it
easier to drive in countries where speed limit
signs are in a different unit than that shown in
the car's instruments.

The digital speed is then shown in the oppo-
site unit to that shown in the analogue speed-
ometer. If the analogue speedometer is gradu-
ated in

mph

, the digital speedometer shows

the corresponding speed in

km/h

 and vice

versa.

Related information

•

Show trip data in the driver display
(p. 96)

•

Resetting the trip meter (p. 97)

•

Show trip statistics in the centre display
(p. 97)

•

Driver display (p. 89)

•

Changing system units (p. 138)

DISPLAYS AND VOICE CONTROL

96

Show trip data in the driver display

The trip computer's recorded and calculated
values can be shown in the driver display.

The values are saved in a trip computer app.
Via the app menu, you can choose which
information is shown on the driver display.

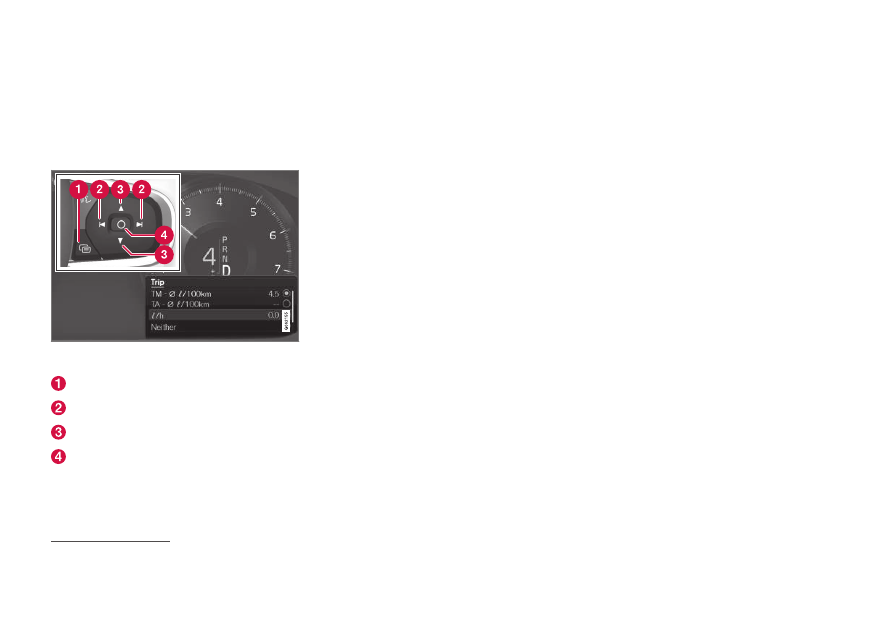

Open and navigate in the app menu

1

 using the right-

hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the driver display

by pressing (1).

(It is not possible to open the app menu
while there is an unacknowledged mes-
sage in the driver display. The message
first has to be confirmed by pressing the

O

button (4) before the app menu can be
opened.)

2. Navigate to the trip computer app to left

or right with (2).
> The top four menu rows show meas-

ured values for trip meter TM. The next
four menu rows show measured values
for trip meter TA. Scroll up or down in
the list with (3).

3. Scroll down to the option buttons to

select which information to show in the
driver display:

•

Odometer

•

Distance to empty tank

•

Distance to empty battery

•

Tourist (alternative speedometer)

•

Mileage for trip meter TM, TA, or no
display of mileage

•

Instantaneous fuel consumption, aver-
age consumption for TM or TA, alterna-
tively, no display of fuel consumption

Select or deselect an option with the

O

button (4). The change is made immedi-
ately.

Related information

•

Trip computer (p. 94)

•

Resetting the trip meter (p. 97)

1

The figure is schematic - parts may vary depending on car model.
