SAFETY

* Option/accessory.

64

Child seat positioning

It is important to position the child seat in the
right place in the car. The choice of location
depends, amongst other things, on the type
of child seat and whether the passenger air-
bag is activated.

Rear-facing child seat and airbag are not compatible.

Always fit rear-facing child seats in the second
or third

*

 seat row if the passenger airbag is

activated. If a child is sitting on the front pas-
senger seat then he/she could suffer serious
injury if the airbag deploys.

If the passenger airbag is deactivated then
rear-facing child seats can be fitted on the
front passenger seat.

NOTE

Regulations regarding the placement of
children in cars vary from country to coun-
try. Check what does apply.

WARNING

Never allow anybody to stand or sit in front

of the front passenger seat.
Never use a rear-facing child seat on the

front passenger seat if the airbag is acti-

vated.
Front-facing passengers (children and

adults) must never sit on the front passen-

ger seat if the passenger airbag is deacti-

vated.
Failure to follow the advice given above

can endanger life or lead to serious per-

sonal injury.

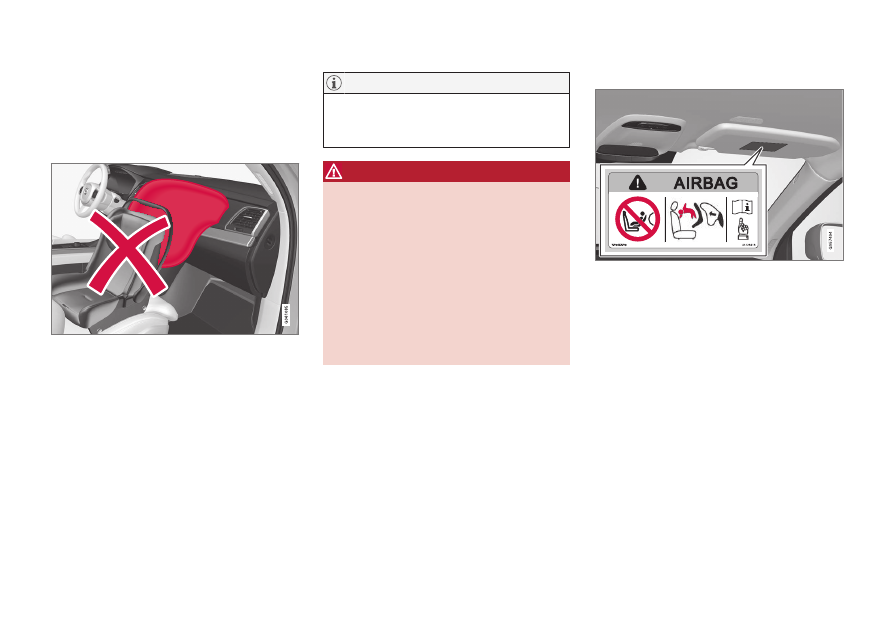

Label for passenger airbag

Label on the passenger side's sun visor.

The warning label for the passenger airbag is
positioned as shown above.

Related information

•

Child seats (p. 61)

•

Child seat mounting (p. 65)

•

Table for location of child seats using the
car's seatbelts (p. 67)

•

Table for location of i-Size child seats
(p. 74)

•

Table for location of ISOFIX child seats
(p. 76)

SAFETY

}}

65

Child seat mounting

It is important to remember a number of
things when a child seat is mounted and
used, which depend on where the child seat
is positioned.

WARNING

Booster cushions/child seats with steel

braces or some other design that could

rest on the seatbelt buckle's opening but-

ton must not be used, as they could cause

the seatbelt buckle to open accidentally.
Do not secure the straps for the child seat

into the seat's horizontal adjustment bar or

in springs, rails or beams under the seat.

Sharp edges may damage the straps.
Do not allow the upper section of the child

seat to rest against the windscreen.

NOTE

When using child safety equipment, it is
important to read the installation instruc-
tions included.

In the event of questions when fitting child
safety equipment, contact the manufac-
turer for clearer instructions.

NOTE

Never leave a child seat loose in the car.
Always secure it according to the instruc-
tions for the child seat, even when it is not
in use.

NOTE

Long-term installation and use of child
seats may cause wear and tear on the car's
fittings. Volvo recommends using the kick
guard accessory to protect the car's fit-
tings.

Installation in the front seat

•

When fitting rear-facing child seats, check
that the passenger airbag is deactivated.

•

When fitting front-facing child seats,
check that the passenger airbag is acti-
vated.

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

ISOFIX child seats can only be fitted when
the car is equipped with the ISOFIX con-
sole

5

 accessory.

•

If the child seat is equipped with lower
straps, Volvo recommends that the lower
mounting points are used with these

5

.

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

•

The ISOFIX guide can be used in order to
facilitate child seat installation.

Installation in the second seat row

•

Only use child seats that are recom-
mended by Volvo, are universally
approved

6

 or are semi-universal, and

where the car is included on the manufac-
turer's vehicle list.

•

A child seat with support legs must not be
fitted in the centre seat

7

.

•

The outer seats are equipped with the
ISOFIX fixture system and are approved
for i-Size

8

.

•

The outer seats are equipped with upper
mounting points. Volvo recommends that
child seat's upper straps should be pulled
through the hole in the head restraint
before being tensioned at the mounting
point. If this is not possible, follow the rec-

5

The accessory range varies depending on market.

6

Does not apply to centre seat (available in five and seven-seat variants).

7

Available for five and seven-seat variants.

8

Varies depending on market.

||

SAFETY

* Option/accessory.

66

ommendations from the child seat manu-
facturer.

•

In cars with a third seat row

*

, the second

seat row must be adjusted to its rearmost
position. If a child seat is also used in the
third row then an exception can be made.
In which case, always check that the child
seat is still fitted in accordance with the
manufacturer's instructions.

•

If the child seat is equipped with lower
straps, never adjust the position of the
seat in front after the straps have been fit-
ted in the lower mounting points. Always
remember to remove the lower straps
when the child seat is not installed.

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

•

The ISOFIX guide must not be used when
fitting child seats.

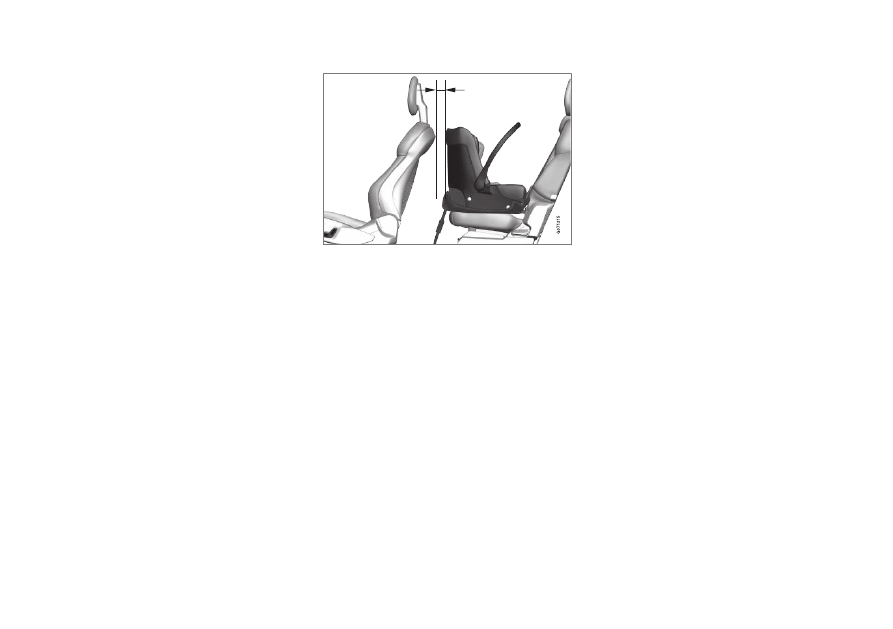

With the installation of an infant seat in the rear seat,

Volvo recommends a distance of at least 50 mm

(2 inches) from the front part of the infant seat to the

rearmost part of the seat in front.

Installation in the third seat row

*

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

Child seats with support legs must not be
fitted in the third row of seats.

•

If necessary, adjust the second seat row
forward in order to make enough space. If
a child seat is also fitted on the second
seat row, check that the child seat is still
fitted in accordance with the manufactur-
er's instructions.

Related information

•

Child seat positioning (p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 67)

•

Table for location of i-Size child seats
(p. 74)

•

Table for location of ISOFIX child seats
(p. 76)

SAFETY

}}

* Option/accessory.

67

Table for location of child seats

using the car's seatbelts

The table gives a recommendation for which
child seats suit which locations, and for what
size of child.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Table for XC90 Twin Engine with five or seven seats

Weight

Front seat (with deacti-
vated airbag, only rear-
facing child seats)

A

Front seat (with acti-
vated airbag, only front-
facing child seats)

A

Second row of seats,
outer seat

Second row of seats,
centre seat

Third seat row

*

Group 0

max 10 kg

U

B, C

X

U

C

L

C

U

Group 0+

max 13 kg

U

B, C

X

U

C

L

C

U

Group 1

9-18 kg

L

D

UF

B, E

U, L

D

L

U

Group 2

15-25 kg

L

D

UF

B, F

U

F

, L

D

B

*

, G

, L

F

U

F

||

SAFETY

* Option/accessory.

68

Weight

Front seat (with deacti-
vated airbag, only rear-
facing child seats)

A

Front seat (with acti-
vated airbag, only front-
facing child seats)

A

Second row of seats,
outer seat

Second row of seats,
centre seat

Third seat row

*

Group 3

22-36 kg

X

UF

B, H

U

H

B

*

, G

, L

H

U

H

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

B: Built-in restraint approved for this mass group.

X: The seat is not suitable for children in this mass group.

A

The seat cushion extension must always be retracted for the installation of child seats.

B

Adjust the backrest to a more upright position.

C

Volvo recommends: Volvo infant seat (type approval E1 04301146).

D

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).

E

Volvo recommends rear-facing child seat for children in this mass group.

F

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04192); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with back-

rest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).

G

Volvo recommends: Integrated child seat (type approval E5 04218).

H

Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1

04301312).

SAFETY

}}

69

Table for XC90 Twin Engine with six seats

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

A

Front seat (with activated airbag, only
front-facing child seats)

A

Second seat row Third seat row

Group 0

max 10 kg

U

B, C

X

U

C

U

Group 0+

max 13 kg

U

B, C

X

U

C

U

Group 1

9-18 kg

L

D

UF

B, E

U, L

D

U

Group 2

15-25 kg

L

D

UF

B, F

U

F

, L

D

U

F

||

SAFETY

70

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

A

Front seat (with activated airbag, only
front-facing child seats)

A

Second seat row Third seat row

Group 3

22-36 kg

X

UF

B, G

U

G

U

G

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

B: Built-in restraint approved for this mass group.

X: The seat is not suitable for children in this mass group.

A

The seat cushion extension must always be retracted for the installation of child seats.

B

Adjust the backrest to a more upright position.

C

Volvo recommends: Volvo infant seat (type approval E1 04301146).

D

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).

E

Volvo recommends rear-facing child seat for children in this mass group.

F

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04192); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with back-

rest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).

G

Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1

04301312).

Table for XC90 Excellence

Weight

Front seat (with deactivated airbag, only rear-facing
child seats)

A

Front seat (with activated airbag, only front-facing
child seats)

A

Rear seat

A

Group 0

max 10 kg

U

B, C

, L

X

U

B, C

, L

Group 0+

max 13 kg

U

B, C

, L

X

U

B, C

, L

SAFETY

}}

71

Weight

Front seat (with deactivated airbag, only rear-facing
child seats)

A

Front seat (with activated airbag, only front-facing
child seats)

A

Rear seat

A

Group 1

9-18 kg

L

D

UF

B, E

U

B

, L

D

Group 2

15-25 kg

L

D

UF

B, F

U

B, F

, L

D

Group 3

22-36 kg

X

UF

B, G

U

B, G

, L

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

X: The seat is not suitable for children in this mass group.

A

The seat cushion extension must always be retracted for the installation of child seats.

B

Adjust the backrest to a more upright position.

C

Volvo recommends: Volvo infant seat (type approval E1 04301146).

D

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192).

E

Volvo recommends rear-facing child seat for children in this mass group.

F

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with back-

rest (type approval E1 04301169).

G

Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).

||

SAFETY

72

Table for XC90 Excellence Lounge

Weight

Rear seat

A, B

Group 0

max 10 kg

U

C, D

, L

Group 0+

max 13 kg

U

C, D

, L

Group 1

9-18 kg

U

C

, L

E

Group 2

15-25 kg

U

C, F

, L

E

Group 3

22-36 kg

U

C, G

, L

U: Suitable for universal category restraints approved for use in this mass group.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

A

When installing on the passenger side's outer seat, slide the car's Lounge Console forward to its front position.

B

The seat cushion extension must always be retracted for the installation of child seats.

C

Adjust the backrest to a more upright position.

D

Volvo recommends: Volvo infant seat (type approval E1 04301146).

E

Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192).

F

Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with back-

rest (type approval E1 04301169).

G

Volvo recommends: booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

Related information

•

Child seat positioning (p. 64)

•

Child seat mounting (p. 65)

•

Table for location of i-Size child seats
(p. 74)

SAFETY

73

•

Table for location of ISOFIX child seats
(p. 76)

•

Seatbelts (p. 46)

SAFETY

* Option/accessory.

74

Table for location of i-Size child

seats

The table gives a recommendation for which
i-Size child seats suit which locations, and for
what size of child.

The child seat must be approved in accord-
ance with UN Reg R129.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Table for XC90 Twin Engine with five or seven seats

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

Front seat (with acti-

vated airbag, only

front-facing child

seats)

Second row of seats,

outer seat

Second row of seats,

centre seat

Third seat row

*

i-Size child seats

X

X

i-U

A

X

X

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.

X: Not suitable for universally approved child seats.

A

Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 3-4 years of age.

Table for XC90 Twin Engine with six seats

Type of child seat

Front seat (with deactivated airbag,

only rear-facing child seats)

Front seat (with activated airbag, only

front-facing child seats)

Second seat row Third seat row

i-Size child seats

X

X

i-U

A

X

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.

X: Not suitable for universally approved child seats.

A

Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 3-4 years of age.

SAFETY

75

Table for XC90 Excellence

Type of child seat

Front seat (with deactivated airbag, only rear-fac-

ing child seats)

Front seat (with activated airbag, only front-fac-

ing child seats)

Rear seat

i-Size child seats

X

X

X

X: Not suitable for universally approved child seats.

Table for XC90 Excellence Lounge

Type of child seat

Rear seat

i-Size child seats

X

X: Not suitable for universally approved child seats.

Related information

•

Child seat positioning (p. 64)

•

Child seat mounting (p. 65)

•

Table for location of child seats using the
car's seatbelts (p. 67)

•

Table for location of ISOFIX child seats
(p. 76)

•

i-Size/ISOFIX mounting points for child
seats (p. 63)

SAFETY

* Option/accessory.

76

Table for location of ISOFIX child

seats

The table gives a recommendation for which
ISOFIX child seats suit which locations, and
for what size of child.

The child seat must be approved in accord-
ance with UN Reg R44 and the car model
must be included in the manufacturer's vehicle
list.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Table for XC90 Twin Engine with five or seven seats

Weight

Size class

A

Type of child seat

Front seat (with

deactivated air-

bag, only rear-fac-

ing child seats)

B, C

Front seat (with

activated airbag,

only front-facing

child seats)

B, C

Second row of

seats, outer

seat

Second row of

seats, centre

seat

Third seat

row

*

Group 0

max 10 kg

E

Rear-facing infant
seat

IL

B, D

, X

E

X

IL

D

X

X

Group 0+

max 13 kg

E

Rear-facing infant
seat

IL

B, D

, X

E

X

IL

D

X

X

C

Rear-facing child
seat

D

Rear-facing child
seat

SAFETY

}}

* Option/accessory.

77

Weight

Size class

A

Type of child seat

Front seat (with

deactivated air-

bag, only rear-fac-

ing child seats)

B, C

Front seat (with

activated airbag,

only front-facing

child seats)

B, C

Second row of

seats, outer

seat

Second row of

seats, centre

seat

Third seat

row

*

Group 1

9-18 kg

A

Front-facing child
seat

X

IL

B, F

, X

E

IL

F

, IUF

F

X

X

B

Front-facing child
seat

B1

Front-facing child
seat

C

Rear-facing child
seat

IL

B

, X

E

X

IL

G

X

X

D

Rear-facing child
seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

A

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

B

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).

There are no upper mounting points for child seats here.

C

The seat cushion extension must always be retracted for the installation of child seats.

D

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

E

Applicable if the car is not fitted with an ISOFIX bracket.

F

Volvo recommends rear-facing child seat for children in this mass group.

G

Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).

||

SAFETY

78

Table for XC90 Twin Engine with six seats

Weight

Size class

A

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

B, C

Front seat (with acti-

vated airbag, only front-

facing child seats)

B, C

Second seat row Third seat row

Group 0

max 10 kg

E

Rear-facing infant seat

IL

B, D

, X

E

X

IL

D

X

Group 0+

max 13 kg

E

Rear-facing infant seat

IL

B, D

, X

E

X

IL

D

X

C

Rear-facing child seat

D

Rear-facing child seat

Group 1

9-18 kg

A

Front-facing child seat

X

IL

B, F

, X

E

IL

F

, IUF

F

X

B

Front-facing child seat

B1

Front-facing child seat

C

Rear-facing child seat

IL

B

, X

E

X

IL

G

X

D

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

A

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

B

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).

There are no upper mounting points for child seats here.

C

The seat cushion extension must always be retracted for the installation of child seats.

D

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

E

Applicable if the car is not fitted with an ISOFIX bracket.

F

Volvo recommends rear-facing child seat for children in this mass group.

G

Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).

SAFETY

}}

79

Table for XC90 Excellence

Weight

Size class

A

Type of child seat

Front seat (with deactivated airbag,

only rear-facing child seats)

Front seat (with activated airbag,

only front-facing child seats)

Rear seat

B

Group 0

max 10 kg

E

Rear-facing infant seat

X

X

IL

C

Group 0+

max 13 kg

E

Rear-facing infant seat

X

X

IL

C

C

Rear-facing child seat

D

Rear-facing child seat

Group 1

9-18 kg

A

Front-facing child seat

X

X

IL

D

, IUF

D

B

Front-facing child seat

B1

Front-facing child seat

C

Rear-facing child seat

X

X

IL

D

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

A

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

B

The seat cushion extension must always be retracted for the installation of child seats.

C

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

D

Volvo recommends rear-facing child seat for children in this mass group.
