MAINTENANCE AND SERVICE

646

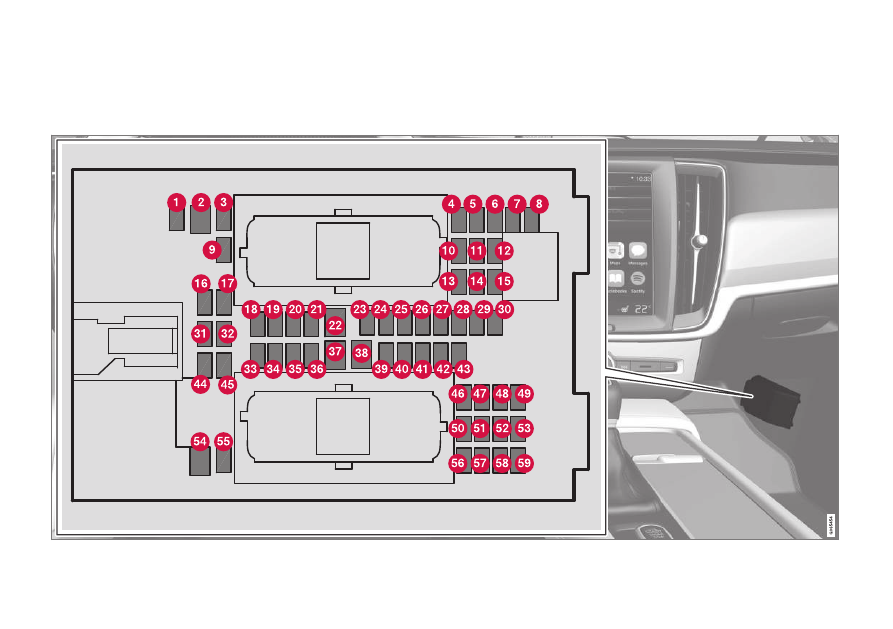

Fuses under glovebox

Fuses under the glovebox protect, amongst
other things, electrical sockets, displays and
door modules.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

647

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

The

fuse box in the engine compartment

also provides space for several spare fuses.

Positions

On the inside of the cover is a label that shows
the location of the fuses.

Function

Ampere

Type

Intermediate voltage module

10

Micro

–

–

MCase

A

–

–

Micro

Movement detector

*

5

Micro

Media player

5

Micro

Driver display

5

Micro

Keypad in centre console

5

Micro

Sun sensor

5

Micro

–

–

Micro

–

–

Micro

Steering wheel module

5

Micro

Module for start knob and for parking brake control

5

Micro

Steering wheel module for heated steering wheel

*

15

Micro

–

–

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

648

Function

Ampere

Type

–

–

Micro

–

–

Micro

–

–

Micro

Control module for climate control system

10

Micro

Steering lock

7,5

Micro

Diagnostic socket OBDII

10

Micro

Centre display

5

Micro

Fan module for climate control system, front

40

MCase

A

USB HUB

5

Micro

Controls lighting; Interior lighting; Dimming of interior rearview mirror

*

; Rain and light sensor

*

; Keypad in tunnel con-

sole, by legroom for rear seat

*

; Power front seats

*

; Control panels in rear doors; Fan module for climate control left/right

7,5

Micro

Control module for driver support functions

5

Micro

Panorama roof with sun blind

*

20

Micro

Head-up display

*

5

Micro

Passenger compartment lighting

5

Micro

–

–

Micro

Display in roof console (Seatbelt reminder/Indicator for airbag on the front passenger seat)

5

Micro

MAINTENANCE AND SERVICE

}}

* Option/accessory.

649

Function

Ampere

Type

–

–

Micro

Micro

–

–

Micro

Fuses in cargo area

10

Micro

Control module for online car; Control module for Volvo On Call

5

Micro

–

20

–

Micro

Audio control device (amplifier)

40

MCase

A

–

–

MCase

A

Module for multi-band antenna

5

Micro

Modules for seat comfort (massage) front

*

5

Micro

Alcohol lock

*

5

Micro

Rear window wiper

15

Micro

Control module for fuel pump

15

Micro

Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Inte-
grated dynamo.

5

Micro

Opening the boot lid/tailgate with foot motion

*

5

Micro

Seat heating, driver's side front

15

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

650

Function

Ampere

Type

Seat heating, passenger side front

15

Micro

Coolant pump

7,5

Micro

–

–

Micro

Power driver's seat

*

20

Micro

Control module for suspension (active chassis)

*

20

Micro

–

–

Micro

Sensus control module

10

Micro

–

–

MCase

A

–

–

Micro

Electrically operated front passenger seat

*

20

Micro

–

–

Micro

TV

*

 (certain markets)

5

Micro

Primary fuse for fuses 52, 53, 57 and 58

15

Micro

A

This type of fuse should be replaced by a workshop. An authorised Volvo workshop is recommended.

Related information

•

Fuses and central electrical units (p. 637)

•

Replacing a fuse (p. 637)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

651

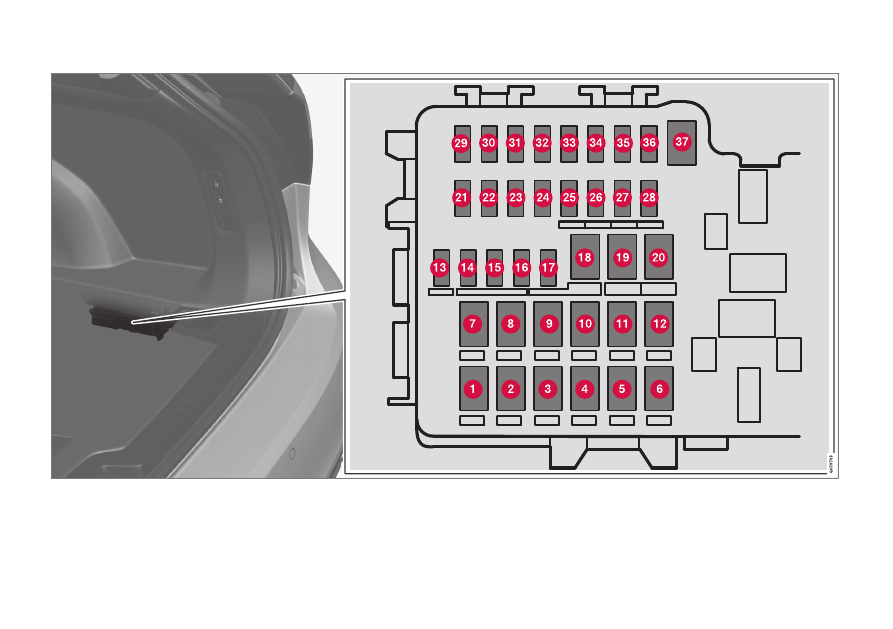

Fuses in cargo area

Fuses in the cargo area protect, amongst
other things, power seats

*

, airbags and seat-

belt tensioners.

||

MAINTENANCE AND SERVICE

652

The central electrical unit is located on the right-hand side.

On the inside of the cover there are tweezers
that facilitate the procedure for the removal
and fitting of fuses.

The

fuse box in the engine compartment

also provides space for several spare fuses.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

653

Positions

Function

Ampere

Type

Rear window defroster

30

MCase

A

Central electronic module

40

MCase

A

Compressor for air suspension

*

40

MCase

A

Lock motor for backrest on rear right-hand side

15

MCase

A

–

–

MCase

A

Lock motor for backrest on rear left-hand side

15

MCase

A

Electrically operated front passenger seat

*

Door module right-hand side rear

20

MCase

A

Control module for reduction of nitrous oxides (diesel)

30

MCase

A

Power operated tailgate

*

25

MCase

A

Electrically operated front passenger seat

*

Door module right-hand side front

20

MCase

A

Towbar control module

*

40

MCase

A

Seatbelt pretensioner module, right-hand side

40

MCase

A

Internal relay coils

5

Micro

Control module for reduction of nitrous oxides (diesel)

15

Micro

Door module left-hand side rear

20

Micro

||

MAINTENANCE AND SERVICE

* Option/accessory.

654

Function

Ampere

Type

Alcohol lock

*

, USB hub/accessory port

5

Micro

Enhanced accessory module

5

Micro

Towbar control module

*

25

MCase

A

Accessory module

40

MCase

A

Power driver seat

*

Door module left-hand side front

20

MCase

A

Seatbelt pretensioner module, left-hand side

40

MCase

A

Parking camera

*

5

Micro

–

–

Micro

–

–

Micro

–

–

Micro

Supply when the ignition is switched on

10

Micro

–

–

Micro

–

–

Micro

Seat heating left-hand side rear

*

15

Micro

–

–

Micro

Blind Spot Information (BLIS)

*

Control module, exterior reversing sound

5

Micro

MAINTENANCE AND SERVICE

* Option/accessory.

655

Function

Ampere

Type

–

–

Micro

Seatbelt pretensioner modules

5

Micro

Actuator for exhaust gases (petrol, certain engine variants)

5

Micro

–

–

Micro

–

–

Micro

Seat heating right-hand side rear

*

15

Micro

–

–

MCase

A

A

This type of fuse should be replaced by a workshop. An authorised Volvo workshop is recommended.

Related information

•

Fuses and central electrical units (p. 637)

•

Replacing a fuse (p. 637)

MAINTENANCE AND SERVICE

* Option/accessory.

656

Cleaning the interior

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

IMPORTANT

•

Certain items of coloured clothing (e.g.
dark jeans and suede garments) may
stain the upholstery. If this occurs, it is
important to clean and treat these
parts of the upholstery as soon as pos-
sible.

•

Never use strong solvents such as
washer fluid, pure petrol or white spirit
or concentrated alcohol to clean the
interior, since this may damage the
upholstery as well as other interior
materials.

•

Never spray the cleaning agent directly
onto components that have electrical
buttons and controls. Wipe them
instead using a moistened cloth con-
taining the cleaning agent.

•

Sharp objects and Velcro may damage
the fabric upholstery.

•

Only use cleaning agents on the type
of material for which they were
intended.

Related information

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

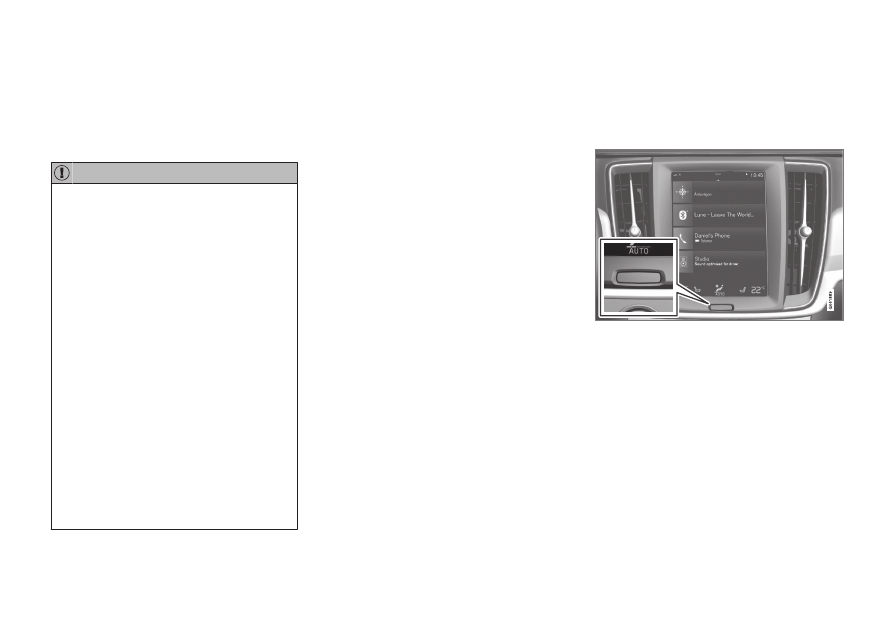

Cleaning the centre display

Dirt, stains and grease from fingers can affect
the centre display's performance and reada-
bility. Clean the screen frequently with a
microfibre cloth.

1. Turn off the centre display with a long

press on the home button.

2. Wipe the screen with the microfibre cloth

supplied or use another microfibre cloth of
equivalent quality. Wipe the screen with a
clean and dry microfibre cloth using small
circular movements. If necessary, lightly
moisten the microfibre cloth with clean
water.

3. Activate the display with a short press on

the home button.

MAINTENANCE AND SERVICE

* Option/accessory.

657

IMPORTANT

The microfibre cloth used to clean the cen-
tre display must be free from sand and dirt.

IMPORTANT

When cleaning the centre display, only use
gentle pressure on the screen. Heavy pres-
sure can damage the screen.

IMPORTANT

Do not spray any liquid or caustic chemi-
cals directly on the centre display. Do not
use window cleaning agent, other cleaning
agents, aerosol spray, solvents, alcohol,
ammonia or cleaning agent containing
abrasive.

Never use abrasive cloths, paper towels or
tissue paper, since they may scratch the
centre display.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

Cleaning the head up display

*

Gently wipe the display's cover glass with a
clean and dry microfibre cloth. If necessary,
lightly moisten the microfibre cloth.

Never use strong stain removers. A special
cleaning agent available from Volvo dealers
can be used for more difficult cleaning.

Related information

•

Activating and deactivating the head-up
display

*

 (p. 140)

•

Head-up display

*

 (p. 138)

MAINTENANCE AND SERVICE

* Option/accessory.

658

Cleaning fabric upholstery and

headlining

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

When you need to clean the textile upholstery
or headliner, never scrape or rub a stain as this
may destroy the fabric. Nor should you ever
use stain removing agents, as this risks discol-
oration of the fabric.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

Cleaning the seatbelts

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

Use water and a synthetic detergent. A special
textile cleaning agent is available from Volvo
retailers. Ensure that the seatbelt is dry before
allowing it to retract.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

Cleaning floor mats and inlay mats

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

Remove inlaid carpets for separate cleaning of
the floor carpet and the inlaid carpets. Each
inlay mat is secured with pins.

1. Remove the inlay mat by taking hold of

the inlay mat at each pin and lifting the
mat straight up.

2. Use a vacuum cleaner to remove dust and

dirt.

NOTE

The inlay mats must not be swung around
without care or hit against objects to
remove dirt since this can crack the inlay
mats.

3. A special textile cleaner is recommended

for stains on the floor mat after vacuum-
ing. Floor mats should be cleaned with
agents recommended by Volvo retailers.

4. After cleaning, fit the inlay mat in place by

pressing it in at each pin.

MAINTENANCE AND SERVICE

* Option/accessory.

659

WARNING

Only use one inlaid mat at each seat, and

check before setting off that the mat by the

driver's seat is firmly affixed and secured in

the pins so that it does not get caught

adjacent to and under the pedals.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

Cleaning leather upholstery

*

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

Volvo's leather upholstery

*

 is treated to pre-

serve its original appearance.

Leather upholstery

*

 is a natural product that

changes and acquires a beautiful patina over
time. Regular cleaning and treatment are
required in order that the properties and col-
ours of the leather shall be preserved. Volvo
offers a comprehensive product, Volvo Leather
Care KitWipes, for cleaning and treatment of
leather upholstery. The protective outer layer
of the leather is preserved when this is used
according to the instructions.

To achieve results that are as good as possi-
ble, Volvo recommends cleaning and applica-
tion of the protective cream one to four times
per year (or more frequently if required). Volvo
Leather Care Kit/Wipes is available from Volvo
dealers.

Cleaning the leather upholstery

1. Apply the leather cleaner to a damp

sponge and squeeze until a foam is cre-
ated.

2. Use the sponge on the stain in a circular

motion.

3. Thoroughly dampen the stain using the

sponge, allow the sponge to absorb the
stain without scrubbing.

4. Wipe the stain with a soft cloth and allow

the leather to dry thoroughly.

Protecting the leather upholstery

1. Apply a small amount of leather protective

agent to a cloth and then apply it to the
leather in light circular motions.

2. Allow to dry for about 20 minutes.

> Protecting the leather upholstery

makes it more resistant to the stresses
from the sun's UV radiation.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning the leather steering wheel
(p. 660)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

MAINTENANCE AND SERVICE

* Option/accessory.

660

Cleaning the leather steering

wheel

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away. Vacuum-
ing is important prior to using cleaning
agents.

Leather needs to breathe. Never cover the
leather steering wheel with protective plastic.
We recommend Volvo Leather Care Kit/Wipes
for cleaning the leather steering wheel. First
remove dirt, dust, etc. with a damp sponge or
cloth.

IMPORTANT

Sharp objects, e.g. rings, can damage the
leather on the steering wheel.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning interior plastic, metal and wood
parts (p. 660)

Cleaning interior plastic, metal and

wood parts

Only use cleaning agents and car care prod-
ucts recommended by Volvo. Clean regularly,
and deal with stains straight away.

A fibrillated fibre or microfibre cloth, lightly
moistened with water, available from Volvo
dealers, is recommended for cleaning interior
parts and surfaces.

Do not scrape or rub stains. Never use strong
stain removers, either.

IMPORTANT

Do not use solvent that contains alcohol
when cleaning the glass for the driver dis-
play.

IMPORTANT

Keep in mind that high gloss surfaces are
easily scratched. Clean these surfaces with
a clean, dry microfibre cloth using small,
circular motions. If needed, dampen the
microfibre cloth with a little clean water.

Related information

•

Cleaning the interior (p. 656)

•

Cleaning the centre display (p. 656)

•

Cleaning fabric upholstery and headlining
(p. 658)

•

Cleaning the seatbelts (p. 658)

•

Cleaning floor mats and inlay mats
(p. 658)

•

Cleaning leather upholstery

*

 (p. 659)

•

Cleaning the leather steering wheel
(p. 660)

MAINTENANCE AND SERVICE

}}

661

Cleaning the exterior

The car should be washed as soon as it
becomes dirty. This means that the car is eas-
ier to clean since the dirt does not attach as
firmly. It also reduces the risk of scratches
and keeps the car fresh. Carry out cleaning in
a cleaning area with an oil separator, and use
car shampoo.

Related information

•

Cleaning the exterior (p. 661)

•

Polishing and waxing (p. 661)

•

Handwashing (p. 662)

•

Automatic car wash (p. 663)

•

High-pressure washing (p. 665)

•

Cleaning the wiper blades (p. 665)

•

Cleaning exterior plastic, rubber and trim
components (p. 665)

•

Cleaning wheel rims (p. 666)

•

Rustproofing (p. 667)

Polishing and waxing

Polish and wax the car if the paintwork is dull
or to give the paintwork extra protection. The
car does not need to be polished until it is at
least one year old. However, the car can be
waxed during this time. Do not polish or wax
the car in direct sunlight, the surface being
polished should be a maximum of 45 °C
(113 °F).

•

Wash and dry the car thoroughly before
you begin polishing or waxing. Clean off
asphalt and tar stains using tar remover or
white spirit. More stubborn stains can be
removed using fine rubbing paste
designed for car paintwork.

•

Polish first with a polish and then wax
with liquid or solid wax. Follow the
instructions on the packaging carefully.
Many preparations contain both polish
and wax.

IMPORTANT

Avoid waxing and polishing on plastic and
rubber.

When using degreasant on plastic and rub-
ber, only rub with light pressure if it is nec-
essary. Use a soft washing sponge.

Polishing glossy trim mouldings could
wear away or damage the glossy surface
layer.

Polishing agent that contains abrasive
must not be used.

IMPORTANT

Only paint treatment recommended by
Volvo should be used. Other treatment
such as preserving, sealing, protection, lus-
tre sealing or similar could damage the
paintwork. Paintwork damage caused by
such treatments is not covered by Volvo
warranty.

Related information

•

Cleaning the exterior (p. 661)

•

Handwashing (p. 662)

•

Automatic car wash (p. 663)

•

High-pressure washing (p. 665)

•

Cleaning the wiper blades (p. 665)
