INSTRUMENTS AND CONTROLS

}}

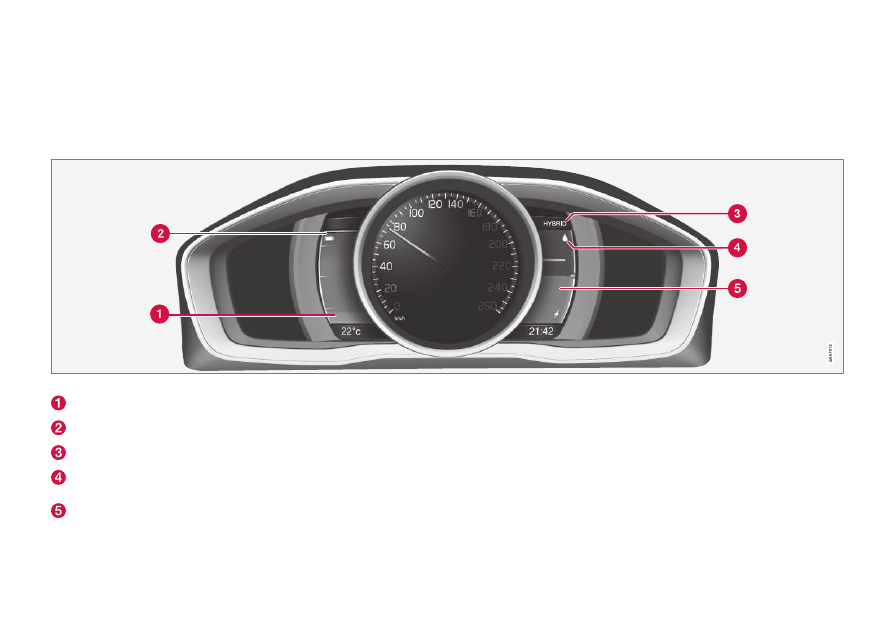

Digital combined instrument panel -

overview

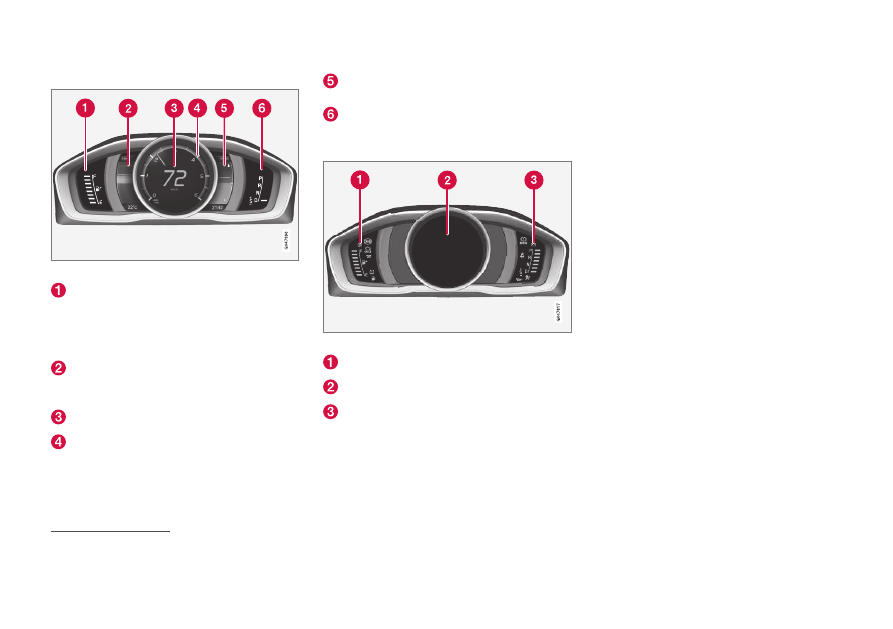

The combined instrument panel's information
display shows information on some of the car's
functions, as well as messages.

The instrument shows information according to the selections made, see Menu navigation - combined instrument panel (p. 112).

Hybrid battery gauge

Current energy level

Active drive mode

The symbol illuminates when the internal
combustion engine is operating.
Hybrid guide (Driver Support Power Meter).
Shows the current driver-requested propul-
sion power and available electric motor

power, i.e. the limit when the internal com-
bustion engine starts/stops. For more infor-
mation, Eco guide & Hybrid guide (p. 73).

INSTRUMENTS AND CONTROLS

* Option/accessory.

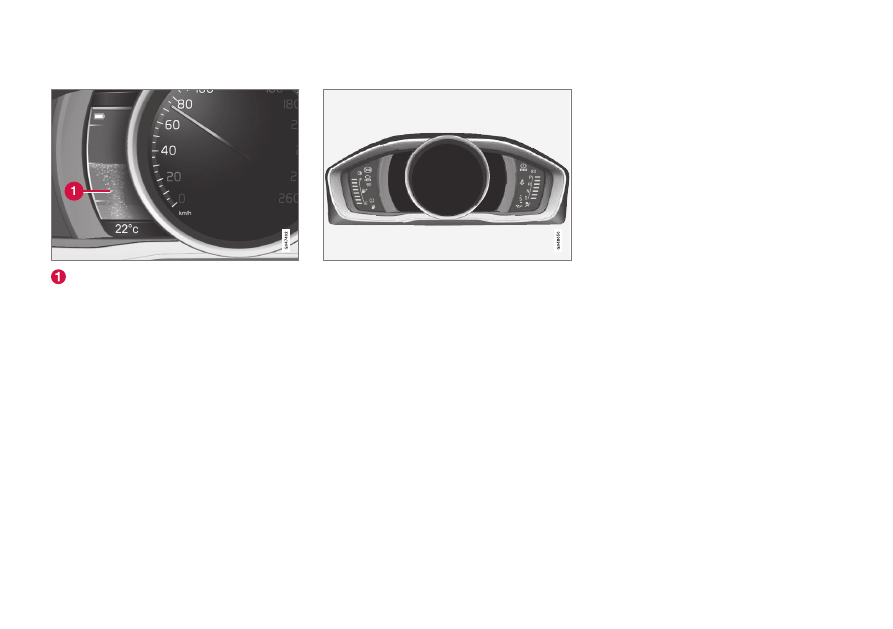

Energy recovery

When the electric motor generates power for
the hybrid battery, bubbles are shown in the
hybrid battery gauge - see Foot brake
(p. 281).

Information display

Information display.

The combined instrument panel's information dis-
play shows information on some of the car's
functions, e.g. cruise control and trip computer, as
well as messages. The information is shown with
symbols and text. There are further descriptions
under the functions that use the display.

Gauges and indicators

Alternative themes can be selected for the com-
bined instrument panel. Possible themes are
"Hybrid", "Elegance", "Eco" and "Performance".

A theme can only be selected when the engine is
running.

To select the theme, press the left-hand stalk
switch's OK button and select the

Themes

menu option by turning the thumbwheel on the

lever. Press the OK button. Turn the thumbwheel
to select the theme and confirm the selection by
pressing the OK button.

On certain model variants, the appearance of the
centre console's screen follows the theme
selected for the combined instrument panel.

The contrast mode and colour mode for the
instrument can also be set using the left-hand
stalk switch.

For more information on menu navigation, see
Menu navigation - combined instrument panel
(p. 112).

The choice of theme and setting of contrast
mode and colour mode can be stored for each
remote control key in the car key memory

*, see

Remote control key - personalisation

* (p. 163).

INSTRUMENTS AND CONTROLS

}}

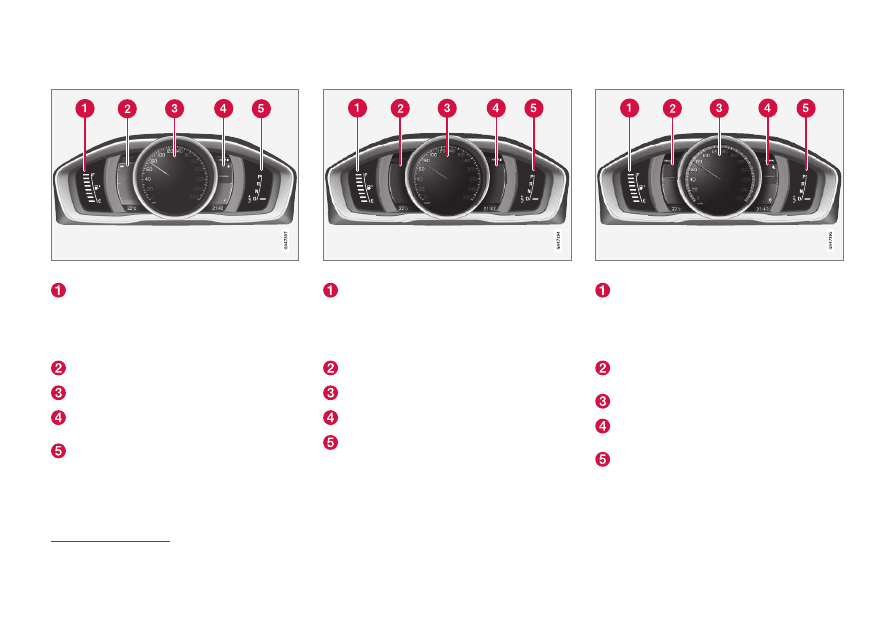

Theme "Hybrid"

Gauges and indicators, theme "Hybrid".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indicator

symbol for low level in the fuel tank is illumi-
nated. See also Trip computer (p. 116) and
Filling up with fuel (p. 295).
Hybrid battery gauge

Speedometer

Hybrid guide. See also Eco guide & Hybrid
guide (p. 73).
Gear position indicator. See also Automatic
gearbox - Geartronic (p. 277).

Theme "Elegance"

Gauges and indicators, theme "Elegance".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indicator

symbol for low level in the fuel tank is illumi-
nated. See also Trip computer (p. 116) and
Filling up with fuel (p. 295).
No function

Speedometer

No function

Gear position indicator. See also Automatic
gearbox - Geartronic (p. 277).

Theme "Eco"

Gauges and indicators, theme "Eco".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indicator

symbol for low level in the fuel tank is illumi-
nated. See also Trip computer (p. 116) and
Filling up with fuel (p. 295).
Eco guide. See also Eco guide & Hybrid
guide (p. 73).
Speedometer

Hybrid guide. See also Eco guide & Hybrid
guide (p. 73).
Gear position indicator. See also Automatic
gearbox - Geartronic (p. 277).

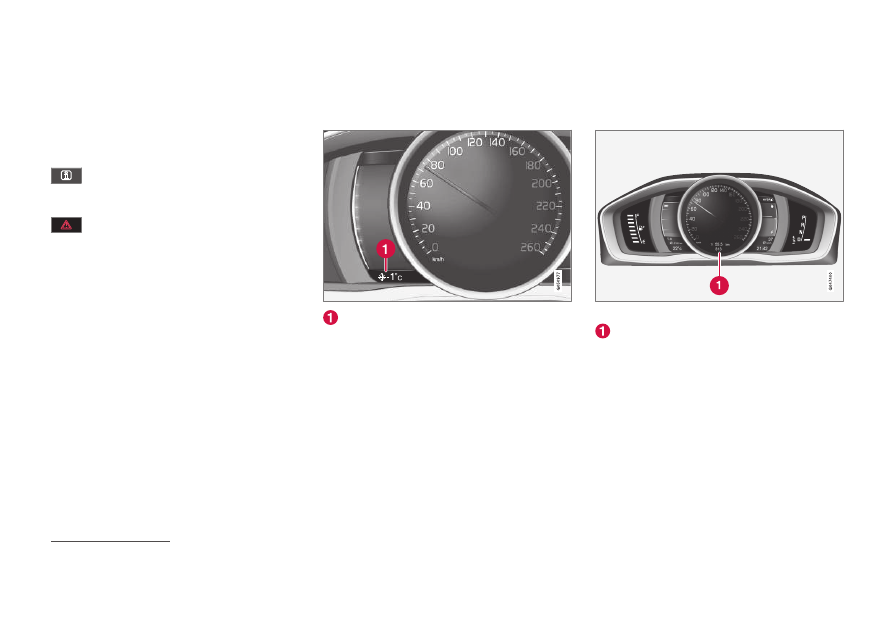

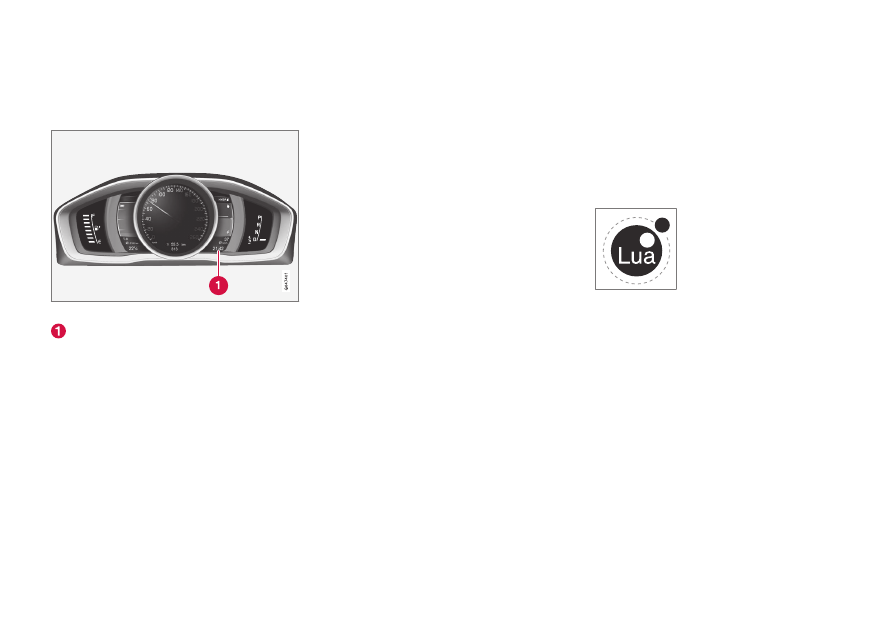

When the display's message "

Distance to empty fuel tank:

" starts to show "

----

", the marking becomes red.

INSTRUMENTS AND CONTROLS

Theme "Performance"

Gauges and indicators, theme "Performance".

Fuel gauge. When the indicator lowers to
only one white marking

, the yellow indicator

symbol for low level in the fuel tank is illumi-
nated. See also Trip computer (p. 116) and
Filling up with fuel (p. 295).
E-boost gauge. Illustrates electric motor use,
its support to the internal combustion engine
and engine braking

with the electric motor.

Speedometer

Tachometer. The meter indicates engine
speed in thousands of revolutions per minute
(rpm).

Hybrid guide. See also Eco guide & Hybrid
guide (p. 73).
Gear position indicator. See also Automatic
gearbox - Geartronic (p. 277).

Indicator and warning symbols

Indicator and warning symbols.

Indicator symbols

Indicator and warning symbols

Warning symbols

Functionality check

All indicator and warning symbols, apart from
symbols in the centre of the information display,
illuminate in key position II or when the engine is
started. When the engine has started, all the
symbols should go out except the parking brake

symbol, which only goes out when the brake is
disengaged.

If the engine does not start or if the functionality
check is carried out in key position II then all
symbols go out within a few seconds except the
symbol for faults in the car's emissions system.

Related information

•

Combined instrument panel (p. 68)

•

Combined instrument panel - meaning of
indicator symbols (p. 74)

•

Combined instrument cluster - meaning of
warning symbols (p. 75)

When the display's message "

Distance to empty fuel tank:

" starts to show "

----

", the marking becomes red.

Engine braking with the electric motor charges the hybrid battery, see Foot brake (p. 281).

INSTRUMENTS AND CONTROLS

* Option/accessory.

Eco guide & Hybrid guide

Eco guide and Hybrid guide are two combined
instrument panel (p. 68) instruments which help
the driver to drive the car with optimum driving
economy.

The car also stores statistics of journeys made,
which can be viewed in the form of a block dia-
gram; see Trip computer - trip statistics

(p. 121).

Eco guide

This instrument provides an indication of how
economically the car is being driven.

To view this function, select the theme "Eco"; see
Digital combined instrument panel - overview
(p. 69).

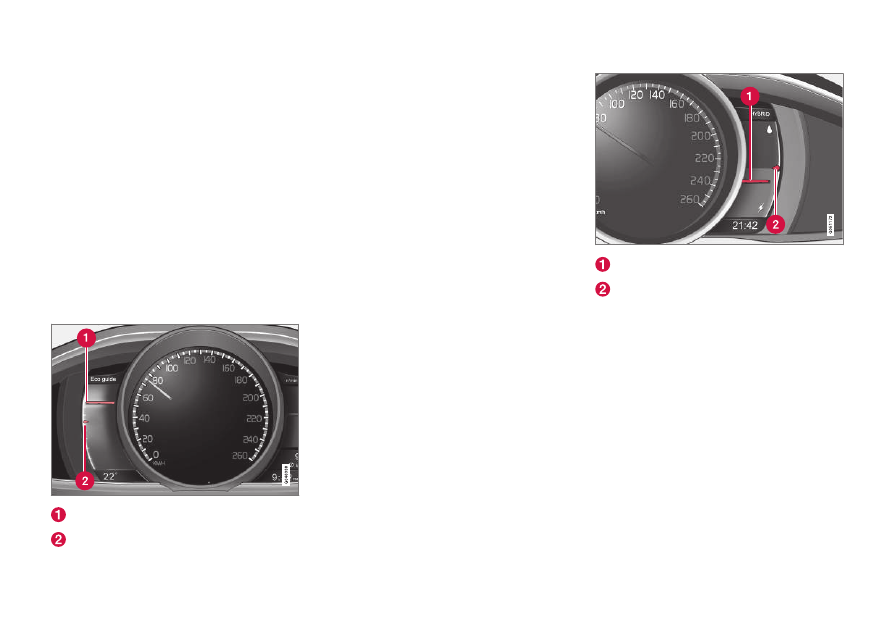

Instantaneous value

Average value

Instantaneous value

The instantaneous value is shown here - the
higher the reading on the scale, the better.

The instantaneous value is calculated based on
speed, engine speed, engine power utilised plus
use of the foot brake.

Optimum speed (50-80 km/h (30-50 mph)) and
low engine speeds are encouraged. The pointers
fall during acceleration and braking.

Very low instantaneous values illuminate the red
zone on the meter (with a short delay), which
means poor driving economy and hence should
be avoided.

Average value

The average value slowly follows the instantane-
ous value and describes how the car has been
driven most recently. The higher the pointers on
the scale, the better the economy achieved by
the driver.

Hybrid guide

This instrument shows the relationship between
how much power is being taken from the electric
motor and how much power is available.

To view this function, select the theme "Hybrid"
or "Performance", see Digital combined instru-
ment panel - overview (p. 69).

Driver-requested power

Available electric motor power

Where the two pointers meet is the threshold for
when the internal combustion engine starts/
stops.

Driver-requested power

The large pointer indicates the amount of engine
power requested by the driver by regulating the
accelerator pedal. The higher the reading on the
scale, the more power is requested by the driver
in the current gear.

Available electric motor power

The small pointer indicates the amount of power
currently available for the electric motor.

A large gap between the two pointers indicates a
large power reserve.

INSTRUMENTS AND CONTROLS

* Option/accessory.

Combined instrument panel -

meaning of indicator symbols

The indicator symbols alert the driver that a func-
tion is activated, that the system is operating, or
that an error or failure has occurred.

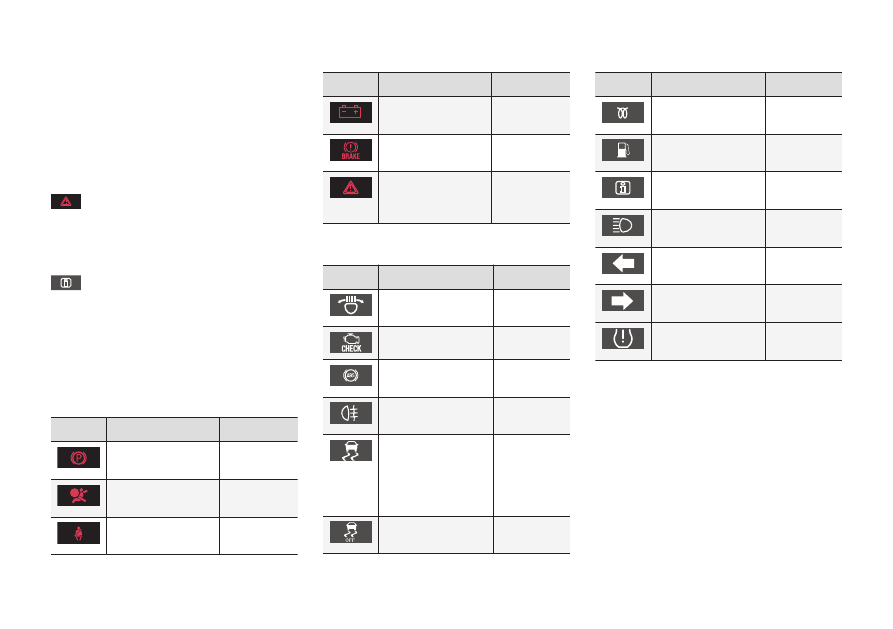

Indicator symbols

Symbol

Specification

ABL fault

Emissions system

ABS fault

Rear fog lamp on

Stability system, see Electronic sta-
bility control (ESC) - general
(p. 190)

Stability system, sport mode, see
Electronic stability control (ESC) -
operation (p. 191)

Engine preheater

Low level in fuel tank

Information, read display text

Symbol

Specification

Main beam On

Left-hand direction indicator

Right-hand direction indicator

Tyre pressure system , see Tyre
pressure monitoring

* (p. 335)

ABL fault

The symbol illuminates if a fault has arisen in the
ABL function (Active Bending Lights).

Emissions system

If the symbol illuminates after the engine has
been started then it may be due to a fault in the
car's emissions system. Drive to a workshop for
checking. Volvo recommends that you seek
assistance from an authorised Volvo workshop.

ABS fault

If this symbol illuminates then the system is not
working. The car's regular brake system contin-
ues to work, but without the ABS function.

1. Stop the car in a safe place and turn off the

engine.

2. Restart the engine.

3. If the symbol remains illuminated, drive to a

workshop to have the ABS system checked.
Volvo recommends that you seek assistance
from an authorised Volvo workshop.

Rear fog lamp on

This symbol illuminates when the rear fog lamp is
switched on.

Stability system

A flashing symbol indicates that the stability sys-
tem is operating. If the symbol illuminates with
constant glow then there is a fault in the system.

Stability system, sport mode

The symbol illuminates when the sport mode is
activated. Sport mode allows for a more active
driving experience. The system then detects
whether the accelerator pedal, steering wheel
movements and cornering are more active than in
normal driving and then allows controlled skid-
ding of the rear section up to a certain level
before it intervenes and stabilises the car.

Engine preheater

This symbol illuminates during engine preheating.
Preheating takes place mostly due to low tem-
perature.

Low level in fuel tank

When the symbol illuminates the level in the fuel
tank is low, refuel as soon as possible.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

Information, read display text

When one of the car's systems does not behave
as intended, this information symbol illuminates
and a text appears on the information display.
The message text is cleared with the OK button,
see Menu navigation - combined instrument
panel (p. 112), or it disappears automatically
after a time (time depending on which function is
indicated). The information symbol can also illu-
minate in conjunction with other symbols.

NOTE

When a service message is shown, the sym-
bol and message are cleared using the OK
button, or disappear automatically after a
time.

Main beam On

The symbol illuminates when main beam is on
and with main beam flash.

Left/right-hand direction indicator

Both direction indicator symbols flash when the
hazard warning flashers are used.

Tyre pressure system

The symbol illuminates in the event of low tyre
pressure, or if a fault arises in the tyre pressure
system.

Reminder – doors not closed

If one of the doors is not closed properly then the
information or warning symbol illuminates
together with an explanatory image in the infor-
mation display. Stop the car in a safe place as
soon as possible and close the door that is open.

If the car is driven at a speed lower than
approx. 7 km/h (approx. 4 mph) then the

information symbol illuminates.

If the car is driven at a speed higher than
approx. 7 km/h (approx. 4 mph) then the

warning symbol illuminates.

If the bonnet

is not closed properly then the

warning symbol illuminates together with an
explanatory image in the information display. Stop
the car in a safe place as soon as possible and
close the bonnet.

If the tailgate is not closed properly then the
information symbol illuminates together with an
explanatory image in the information display. Stop
the car in a safe place as soon as possible and
close the tailgate.

Related information

•

Combined instrument panel (p. 68)

•

Combined instrument cluster - meaning of
warning symbols (p. 75)

•

Digital combined instrument panel - overview
(p. 69)

Combined instrument cluster -

meaning of warning symbols

The warning symbols alert the driver that an
important function is activated, or that a serious
error or a serious failure has occurred.

Warning symbols

Symbol

Specification

Parking brake applied

Airbags – SRS

Seatbelt reminder

Starter battery not charging

Fault in brake system

Warning

Only cars with alarm

INSTRUMENTS AND CONTROLS

Parking brake applied

This symbol illuminates with a constant glow
when the parking brake is applied. The symbol
flashes during application, and then changes over
to a constant glow.

A flashing symbol in any other situation means
that a fault has arisen. Read the message on the
information display.

For more information, see Parking brake
(p. 285).

Airbags – SRS

If the symbol remains illuminated or illuminates
while driving, a fault has been detected in one of
the car's safety systems. Drive to a workshop for
checking as soon as possible. Volvo recommends
that you seek assistance from an authorised
Volvo workshop.

Seatbelt reminder

This symbol flashes if someone in a front seat
has not put on their seatbelt or if someone in a
rear seat has taken off their seatbelt.

Starter battery not charging

This symbol illuminates during driving if a fault
has occurred in the electrical system. Visit a
workshop. Volvo recommends that you seek
assistance from an authorised Volvo workshop.

Fault in brake system

If this symbol illuminates, the brake fluid level
may be too low. Stop the car in a safe place and

check the level in the brake fluid reservoir; see
Brake and clutch fluid - level (p. 366).

If the brake and ABS symbols illuminate at the
same time, there may be a fault in the brake
force distribution system.

1. Stop the car in a safe place and turn off the

engine.

2. Restart the engine.

•

If both symbols extinguish, continue driv-
ing.

•

If the symbols remain illuminated, check
the level in the brake fluid reservoir; see
Brake and clutch fluid - level (p. 366). If
the brake fluid level is normal but the
symbols are still illuminated, the car can
be driven, with great care, to a workshop
to have the brake system checked. Volvo
recommends that you seek assistance
from an authorised Volvo workshop.

WARNING

If the brake fluid is under the MIN level in the

brake fluid reservoir, do not drive further

before topping up the brake fluid.
The loss of brake fluid must be investigated

by a workshop. Volvo recommends that you

contact an authorised Volvo workshop.

WARNING

If the BRAKE and ABS symbols are lit at the

same time, there is a risk that the rear end will

skid during heavy braking.

Warning

The red warning symbol illuminates when a fault
has been indicated which could affect the safety
and/or driveability of the car. An explanatory text
is shown on the information display at the same
time. The symbol remains visible until the fault
has been rectified but the text message can be
cleared with the OK button; see Menu navigation
- combined instrument panel (p. 112). The warn-
ing symbol can also illuminate in conjunction with
other symbols.

Action:

1. Stop in a safe place. Do not drive the car fur-

ther.

2. Read the information on the information dis-

play. Implement the action in accordance
with the message in the display. Clear the
message using the OK button.

INSTRUMENTS AND CONTROLS

* Option/accessory.

Reminder – doors not closed

If the car is driven at a speed lower than
approx. 7 km/h (approx. 4 mph) then the

information symbol illuminates.

If the car is driven at a speed higher than
approx. 7 km/h (approx. 4 mph) then the

warning symbol illuminates.

If the bonnet

is not closed properly then the

warning symbol illuminates together with an
explanatory image in the information display. Stop
the car in a safe place as soon as possible and
close the bonnet.

Related information

•

Combined instrument panel (p. 68)

•

Combined instrument panel - meaning of
indicator symbols (p. 74)

•

Digital combined instrument panel - overview
(p. 69)

Outside temperature gauge

The display for the outside temperature gauge
appears in the combined instrument panel.

Display for outside temperature gauge

When the temperature lies between +2 °C to -5
°C a snowflake symbol illuminates in the display.
This warns of icy roads. If the car has been sta-
tionary, the gauge may display a reading that is
too high.

Related information

•

Combined instrument panel (p. 68)

Trip meter

The trip meter display appears in the combined
instrument panel.

Trip meter.

Display for trip meter

Both trip meters

and

are used to measure

short distances. The distance is shown in the dis-
play.

Turn the left-hand stalk switch's thumbwheel to
show the required meter.

A long press (until the change occurs) on the
left-hand stalk switch RESET button resets the
trip meter shown. For more information, see Trip
computer (p. 116).

Related information

•

Combined instrument panel (p. 68)

Only cars with alarm

INSTRUMENTS AND CONTROLS

Clock

The clock display appears in the combined
instrument panel.

Clock.

Display for showing the time

Setting the clock

The clock can be adjusted in the menu system
MY CAR, see MY CAR (p. 115).

Related information

•

Combined instrument panel (p. 68)

Combined instrument panel -

license agreement

A license is an agreement for the right to oper-
ate a certain activity or the right to use someone
else's entitlement according to the terms and
conditions in the agreement. The following text is
Volvo's agreement with the manufacturer/devel-
oper.

Combined Instrument Panel Software

Open Source Software Notice

This product uses certain free / open source and
other software originating from third parties, that
is subject to the GNU Lesser General Public
License version 2 (LGPLv2), The FreeType
Project License ("FreeType License") and other
different and/or additional copy right licenses,
disclaimers and notices. The links to access the
exact terms of LGPLv2, and the other open
source software licenses, disclaimers,
acknowledgements and notices are provided to
you below. Please refer to the exact terms of the
relevant License, regarding your rights under said
licenses. Volvo Car Corporation (VCC) offers to
provide the source code of said free/open source
software to you for a charge covering the cost of
performing such distribution, such as the cost of
media, shipping and handling, upon written
request. Please contact your nearest Volvo
Dealer.

The offer is valid for a period of at least three (3)
years from the date of the distribution of this

product by VCC / or for as long as VCC offers
spare parts or customer support.

Portions of this product uses software
copyrighted

Portions of this product uses software with
Copyright

(http://www.lua.org/)

This product includes software under
following licenses:

LGPL v2.1: http://www.gnu.org/licenses/old-
licenses/lgpl-2.1.html

•

GNU FriBidi

•

DevIL

The FreeType Project License: http://
git.savannah.gnu.org/cgit/freetype/freetype2.git/
tree/docs/FTL.TXT

•

FreeType 2

MIT License: http://opensource.org/licenses/
mit-license.html

•

Lua

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

Symbols in the display

There are a variety of different symbols in the
display in the car. The symbols are divided into
warning, indicator and information symbols.

Shown below are the most common symbols with
their meanings and a reference to where in the
manual further information can be found.

- Red warning symbol, illuminates when a

fault has been indicated which could affect the
safety and/or driveability of the car. An explana-
tory text is shown in the information display in the
combined instrument panel at the same time.

- Information symbol, illuminates in combi-

nation with text in the information display in the
combined instrument panel, when a deviation in
any of the car's systems has occurred. The infor-
mation symbol can also illuminate in conjunction
with other symbols.

Warning symbols in the combined
instrument panel

Symbol

Specification

See

Parking brake
applied

(p. 75),
(p. 285)

Airbags – SRS

(p. 34),
(p. 75)

Seatbelt reminder

(p. 30),
(p. 75)

Symbol

Specification

See

Starter battery not
charging

(p. 75)

Fault in brake sys-
tem

(p. 75),
(p. 281)

Warning, safety
mode

(p. 34),
(p. 43),
(p. 75)

Control symbols in the combined
instrument panel

Symbol

Specification

See

ABL fault

Emissions system

ABS fault

Rear fog lamp on

Stability system,
ESC (Electronic
Stability Control),
Trailer stability
assist

(p. 74),
(p. 193),
(p. 318)

Stability system,
sport mode

(p. 74),
(p. 193)

Symbol

Specification

See

Engine preheater
(diesel)

(p. 74)

Low level in fuel
tank

(p. 74),
(p. 144)

Information, read
display text

(p. 74)

Main beam On

(p. 74),
(p. 94)

Left-hand direction
indicators

(p. 74)

Right-hand direc-
tion indicators

(p. 74)

Tyre pressure sys-
tem

(p. 74),
(p. 335)

INSTRUMENTS AND CONTROLS

* Option/accessory.

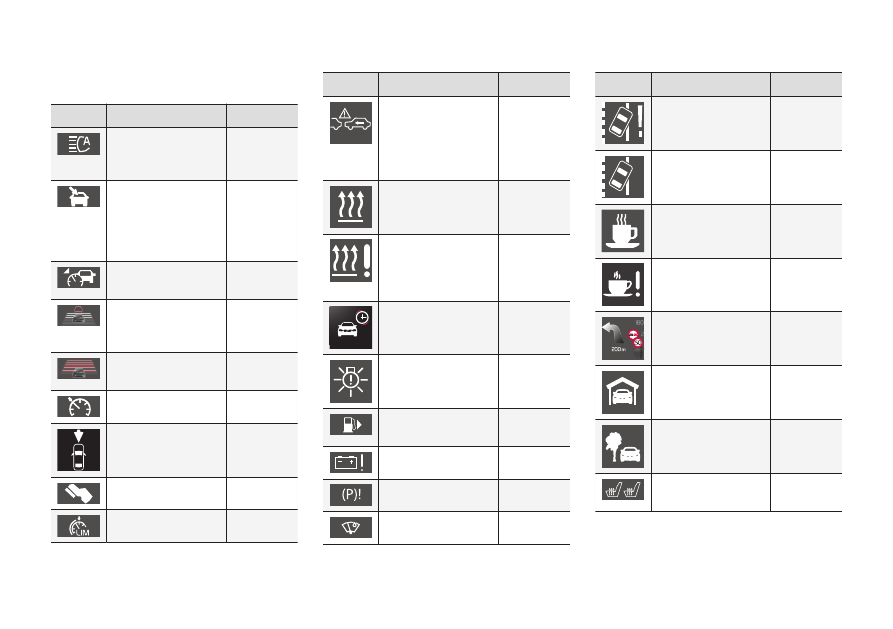

Information symbols in the combined
instrument panel

Symbol

Specification

See

Active high beam,
AHB (Active High
Beam)

(p. 95)

Camera sensor

Laser sensor

(p. 95),
(p. 228),
(p. 238),
(p. 251),
(p. 255)

Adaptive cruise con-
trol

(p. 215)

Adaptive cruise con-
trol

*, Distance Warn-

ing

* (Distance Alert)

(p. 209),
(p. 201)

Adaptive cruise con-
trol

*, time interval

(p. 204),
(p. 206)

Cruise control

(p. 198)

Radar sensor

(p. 215),
(p. 203),
(p. 238)

Foot brake

(p. 281)

Speed limiter

(p. 195)

Symbol

Specification

See

Auto Brake

*, Dis-

tance Warning

* (Dis-

tance Alert), City
Safety

, Collision

warning system

(p. 203),
(p. 228),
(p. 238)

Engine block and
passenger compart-
ment heater

(p. 144)

Engine block heater
and passenger com-
partment heater

Service required

(p. 144)

Activated timer

(p. 144)

ABL system

(p. 97)

Fuel filler flap, right-
hand side

Low battery

Parking brake

Rain sensor

Symbol

Specification

See

Driver Alert System

Lane Departure
Warning

(p. 251),
(p. 255)

Driver Alert System

Lane Departure
Warning

(p. 255)

Driver Alert System

Time for a break

(p. 250)

Driver Alert System

Time for a break

(p. 251)

Recorded speed
information

Parking inside

Parking outside

Heating the seat

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

Symbol

Specification

See

Drive systems

(p. 274)

Gear shift indicator

(p. 276)

Gear positions

(p. 277)

Measuring the oil
level

(p. 364)

Information symbols in the roof console
display

Symbol

Specification

See

Seatbelt reminder

(p. 33)

Airbag, passenger seat,
activated

(p. 38)

Airbag, passenger seat,
deactivated

(p. 38)

Related information

•

Combined instrument panel - meaning of
indicator symbols (p. 74)

•

Combined instrument cluster - meaning of
warning symbols (p. 75)

•

Messages - handling (p. 114)

Volvo Sensus

Volvo Sensus is the heart of the personal Volvo
experience and connects you with the car and
outside world. Sensus provides information,
entertainment and assistance when it is needed.
Sensus consists of intuitive functions that both
enhance the car journey and simplifies owner-
ship of the car.

An intuitive navigation structure makes it possible
to receive relevant support, information and
entertainment when it is necessary, without dis-
tracting the driver.

Sensus covers all the car's solutions that enable
connection

* to the outside world and provides

you with intuitive control over all the car's capabil-
ities.

Volvo Sensus combines and presents many func-
tions in several of the car's systems on the centre
console's screen. With Volvo Sensus the car can
be personalised by means of an intuitive user

INSTRUMENTS AND CONTROLS

* Option/accessory.

interface. Settings can be made in Car settings,
Audio and media, Climate control, etc.

With the centre console buttons and controls or
the steering wheel's right-hand keypad

* functions

can be activated or deactivated and many differ-
ent settings can be made.

With a press on MY CAR all settings related to
the driving and control of the car are presented,
such as City Safety, locks and alarm, automatic
fan speed, setting the clock, etc.

With a press on the respective function RADIO,
MEDIA, TEL

*, NAV* and CAM

other

sources, systems and functions can be activated,
e.g. AM, FM, CD, DVD

*, TV*, Bluetooth

*, naviga-

tion

* and park assist camera*.

For more information about all functions/
systems, see the relevant section in the owner's
manual or its supplement.

Overview

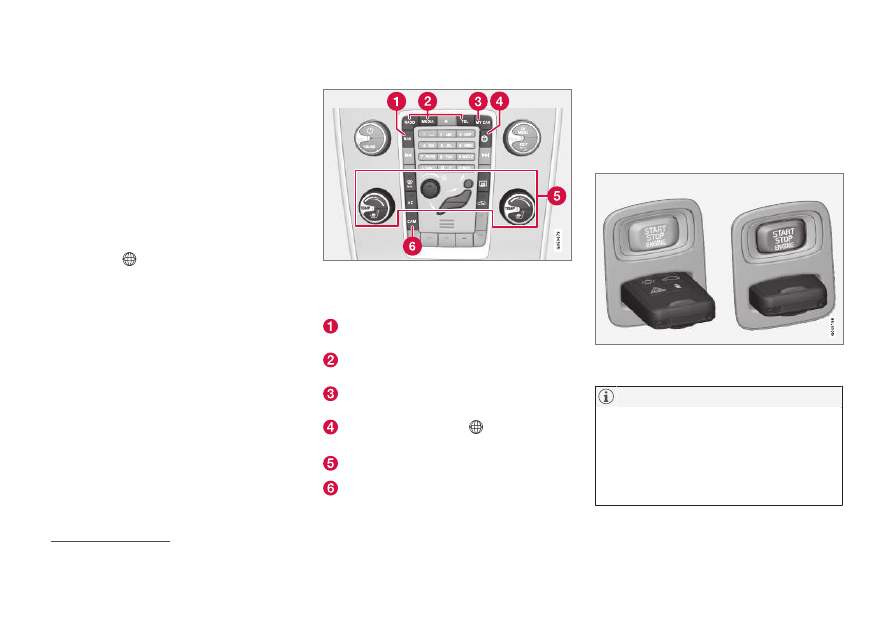

Control panel in centre console. The figure is schematic

- the number of functions and layout of the buttons both

vary, depending on the equipment selected and the mar-

ket.

Navigation

* - NAV, see separate supplement

(Sensus Navigation).
Audio and media - RADIO, MEDIA, TEL

*, see

separate supplement (Sensus Infotainment).
Function settings - MY CAR, see MY CAR
(p. 115).

Internet-connected car -

*, see separate

supplement (Sensus Infotainment).
Climate control system (p. 124).

Park assist camera

* (p. 260) – CAM*.

Key positions

The remote control key can be used to set the
vehicle's electrical system in different modes/
levels so that different functions are available;
see Key positions - functions at different levels
(p. 83).

Ignition switch with remote control key extracted/

inserted.

NOTE

For cars with the keyless start and lock sys-
tem

* the remote control key does not need to

be inserted into the ignition switch but can be
stored in e.g. a pocket. For more information
on the keyless start and lock system, see
Keyless drive

* (p. 173).

Applies to certain car models.

INSTRUMENTS AND CONTROLS

}}

Insert the remote control key

1. Hold the end of the remote control key with

the detachable key blade and insert the
remote control key in the ignition switch.

2. Then press the remote control key in the

ignition switch up to its end position.

IMPORTANT

Foreign objects in the ignition switch can
impair the function or destroy the lock.

Do not press in the remote control key incor-
rectly turned - hold the end with the detacha-
ble key blade, see Detachable key blade -
detaching/attaching (p. 169).

Remove the remote control key

Grip the remote control key and pull it out from
the ignition switch.

Key positions - functions at different

levels

To enable the use of a limited number of func-
tions with the engine switched off, the car's elec-
trical system can be set in 3 different levels -

0, I

and

II - with the remote control key. This owner's

manual describes these levels throughout using
the denomination "key positions".

The following table shows the functions available
in each key position/level.

Level

Functions

•

Odometer, clock and temperature
gauge are illuminated.

•

Electrically operated seats can be
adjusted.

•

The audio system can be used for
a limited time - see the Sensus
Infotainment supplement.

•

Sunroof, power windows, 12 V
socket in the passenger compart-
ment, navigation, phone, ventilation
fan and windscreen wipers can be
used.

Current consumption loads the
starter battery in this key position.

•

The headlamps come on.

•

Warning/indicator lamps illuminate
for 5 seconds.

•

Several other systems are acti-
vated. However, electric heating in
seat cushions and the rear window
can only be activated after starting
the engine.

This key position consumes a lot of
current from the starter battery and
should therefore be avoided!

Volvo V60 Twin Engine (2018 year). Instruction - part 4
