Volvo V60 Twin Engine (2018 year). Instruction

SAFETY

Weight

Front seat (with deactivated
airbag, only rear-facing child
seats)

Front seat (with activated
airbag, only front-facing
child seats)

Outer rear seat

Centre rear seat

Group 2

15-25 kg

Volvo turnable child seat (Volvo
Convertible Child Seat) – rear-
facing child seat, secured with
the car's seatbelt and straps.

Type approval: E5 04192

(L)

Volvo turnable child seat (Volvo Convertible
Child Seat) – rear-facing child seat, secured
with the car's seatbelt and straps.

Type approval: E5 04192

(L)

Group 2

15-25 kg

Volvo rear-facing child seat

Type approval: E5 04212

(L)

Volvo rear-facing child seat

Type approval: E5 04212

(L)

Group 2

15-25 kg

Volvo turnable child seat
(Volvo Convertible Child
Seat) - front-facing child
seat, secured with the car's
seatbelt.

Type approval: E5 04191

(U)

Volvo turnable child seat (Volvo Convertible
Child Seat) - front-facing child seat, secured
with the car's seatbelt.

Type approval: E5 04191

(U)

Volvo turnable child seat
(Volvo Convertible Child Seat)
- front-facing child seat,
secured with the car's seat-
belt.

Type approval: E5 04191

(U)

Group 2/3

15-36 kg

Volvo booster seat with
backrest (Volvo Booster
Seat with backrest).

Type approval: E1
04301169

(UF)

Volvo booster seat with backrest (Volvo
Booster Seat with backrest).

Type approval: E1 04301169

(UF)

Volvo booster seat with back-
rest (Volvo Booster Seat with
backrest).

Type approval: E1 04301169

(UF)

SAFETY

}}

Weight

Front seat (with deactivated
airbag, only rear-facing child
seats)

Front seat (with activated
airbag, only front-facing
child seats)

Outer rear seat

Centre rear seat

Group 2/3

15-36 kg

Booster cushion with and
without backrest (Booster
Cushion with and without
backrest).

Type approval: E5 04216

(UF)

Booster cushion with and without backrest
(Booster Cushion with and without
backrest).

Type approval: E5 04216

(UF)

Booster cushion with and
without backrest (Booster
Cushion with and without
backrest).

Type approval: E5 04216

(UF)

Group 2/3

15-36 kg

Volvo booster seat

Type approval: E1
04301312

(UF)

Volvo booster seat

Type approval: E1 04301312

(UF, L)

Volvo booster seat

Type approval: E1 04301312

(UF)

Group 2/3

15-36 kg

Integrated child seat (Integrated Child Seat)
- available as a factory fitted option.

Type approval: E5 04189

(B)

L: Suitable for specific child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories.

U: Suitable for universally approved child seats in this weight class.

UF: Suitable for front-facing universally approved child seats in this weight class.

B: Built-in child seats approved for this weight class.

Volvo recommends rear-facing child seat for children in this mass group.

SAFETY

}}

Child seats - location

The position of a child in the car and the choice
of equipment are dictated by the child's weight
and size.

G020739

Rear-facing child seat and airbag are not compatible.

Always fit rear-facing child seats (p. 46) in the
rear seat if the passenger airbag is activated
(p. 38). If a child is sitting on the front passenger
seat then he/she could suffer serious injury if the
airbag deploys.

If the passenger airbag is deactivated then rear-
facing child seats can be fitted on the front pas-
senger seat.

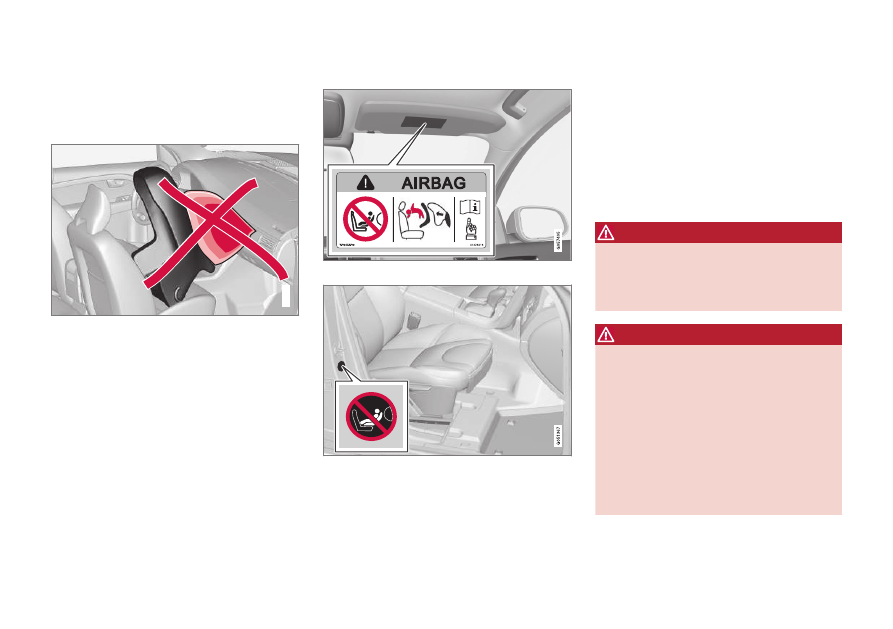

Label for passenger airbag

Label on the passenger side's sun visor.

Label on the passenger side's door pillar. The label

becomes visible when the passenger door is opened.

The warning label for the passenger airbag is
positioned as shown above.

You may place:

•

a rear-facing child seat on the front passen-
ger seat when the passenger airbag is deac-
tivated.

•

a front-facing child seat/booster cushion on
the front passenger seat when the passen-
ger airbag is activated.

•

one or more child seats/booster cushions in
the rear seat.

WARNING

Never use a rear-facing child seat on a seat

protected by an activated airbag. Failure to

follow this advice can lead to death or serious

injury to the child.

WARNING

Never allow anybody to stand or sit in front of

the front passenger seat.
Never use a rear-facing child seat on the front

passenger seat if the passenger airbag is

activated.
Front-facing passengers (children and adults)

must never sit on the front passenger seat if

the passenger airbag is deactivated.
Failure to follow the advice given above can

endanger life or lead to serious personal

injury.

SAFETY

* Option/accessory.

WARNING

Booster cushions/child seats with steel

braces or some other design that could rest

on the seatbelt buckle's opening button must

not be used, as they could cause the seatbelt

buckle to open accidentally.
Do not allow the upper section of the child

seat to rest against the windscreen.

NOTE

Regulations regarding the placement of chil-
dren in cars vary from country to country.
Check what does apply.

Related information

•

Child seats (p. 46)

•

General information on child safety (p. 45)

•

Child seats - upper mounting points (p. 59)

•

Child seat - ISOFIX (p. 55)

Child seat - integrated child seat*

The integrated child seats in the rear seat allow
children to sit comfortably and safely.

The child seat is specially designed to provide
children with good safety, together with the car's
seatbelt. The seat cushion can be raised in two
positions depending on the weight of the child.

The child seat is approved for children weighing
between 15 and 36 kg and at least 95 cm tall.

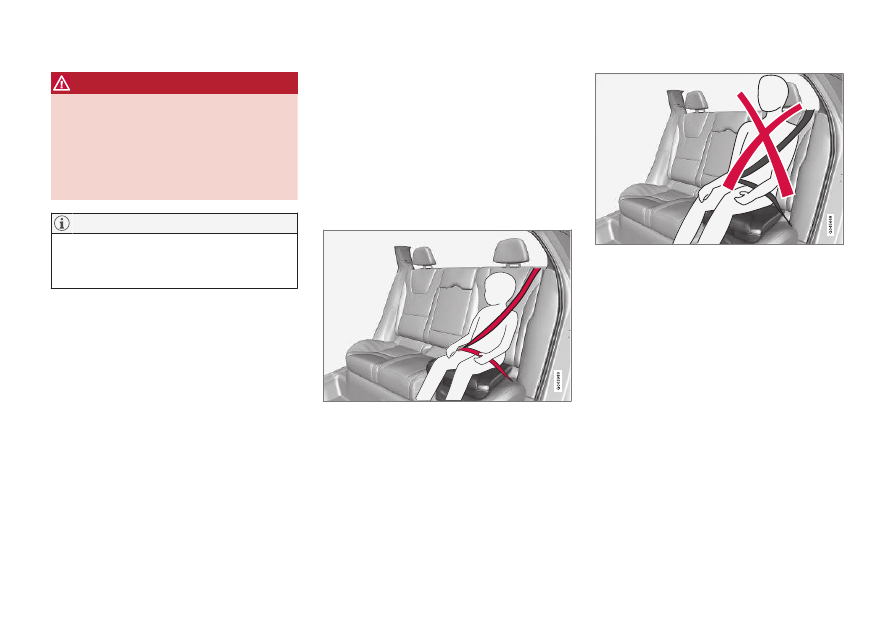

Correct position, the seatbelt should be positioned in on

the shoulder.

Incorrect positioning, the seatbelt must not be placed

beneath the shoulder.

Check before driving that:

•

the seat cushion is raised to the correct posi-
tion for the weight of the child

•

the seat cushion in locked in position

•

the seatbelt is in contact with the child's
body and is not slack or twisted

•

the seatbelt does not lie across the child's
throat or below the shoulder (see preceding
illustrations)

•

the lap section of the seatbelt is positioned
low over the pelvis to provide optimal protec-
tion.

Adjusting the seat cushion's two levels is per-
formed by raising (p. 53) and lowering (p. 54).

SAFETY

}}

* Option/accessory.

WARNING

Volvo recommends that repair or replacement

of the integrated child seat is only performed

by an authorised Volvo workshop. Do not

make any modifications or additions to the

child seat. If an integrated child seat has been

subjected to a heavy load, e.g. in connection

with a collision, then the seat cushion, seat-

belt and backrest, or possibly the whole seat,

must be replaced. Even if the child seat

appears to be undamaged, it may not afford

the same level of protection. This also applies

if the seat cushion was in lowered position

during a collision or similar. The seat cushion

must also be replaced if it is heavily worn.

WARNING

If the instructions for the integrated child seat

are not followed then the child could sustain

serious injury in the event of an accident.

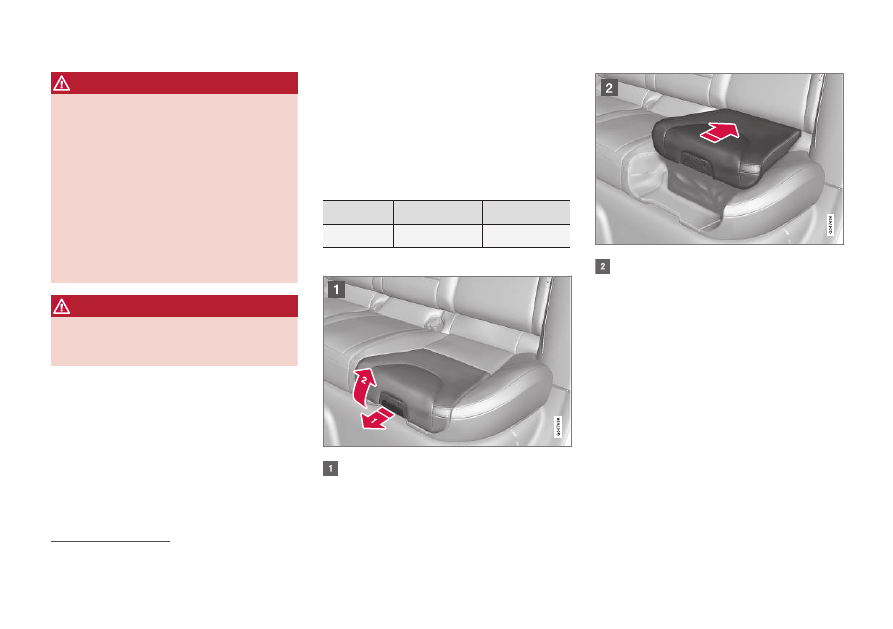

Integrated child seat* - raising the

seat cushion

When the integrated child seat (p. 52) is in use,
the seat cushion must be folded up.

The seat cushion can be folded up in two posi-
tions. The position that should be used depends
on the weight of the child.

Stage 1

Stage 2

Weight

22-36 kg

15-25 kg

Stage 1

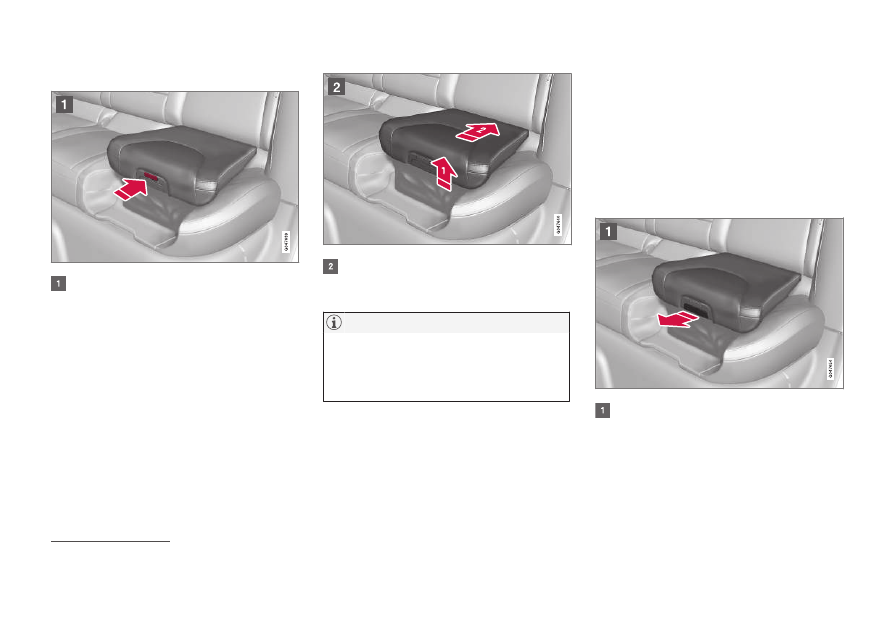

Pull the handle forwards and upwards to
release the seat cushion.

Press the seat cushion backwards to lock.

Lower stage.

SAFETY

* Option/accessory.

Stage 2

Start from the lower stage. Press the button.

Lift the seat cushion up at the front edge
and press it back against the backrest to
lock.

NOTE

It is not possible to adjust the seat cushion
from stage 2 to stage 1. It must first be reset
by being fully folded down (p. 54) into the
rear seat.

Related information

•

Integrated child seat

* - lowering the seat

cushion (p. 54)

Integrated child seat* - lowering the

seat cushion

When the integrated child seat (p. 52) is not in
use, the seat cushion must be lowered into the
rear seat. The seat cushion can be lowered from
the upper or lower stage to fully lowered position
in the rear seat. However, it is not possible to
adjust the seat cushion from the upper stage to
the lower stage.

Pull the handle forwards to release the seat
cushion.

Upper stage.

SAFETY

* Option/accessory.

Press down with your hand in the centre of
the seat cushion in order to lock it.

IMPORTANT

Check that there are no loose objects (e.g.
toys) left behind in the space under the child
seat's seat cushion before lowering.

NOTE

Before the rear backrest is lowered, the child
seat's seat cushion must be lowered first.

Related information

•

Integrated child seat

* - raising the seat cush-

ion (p. 53)

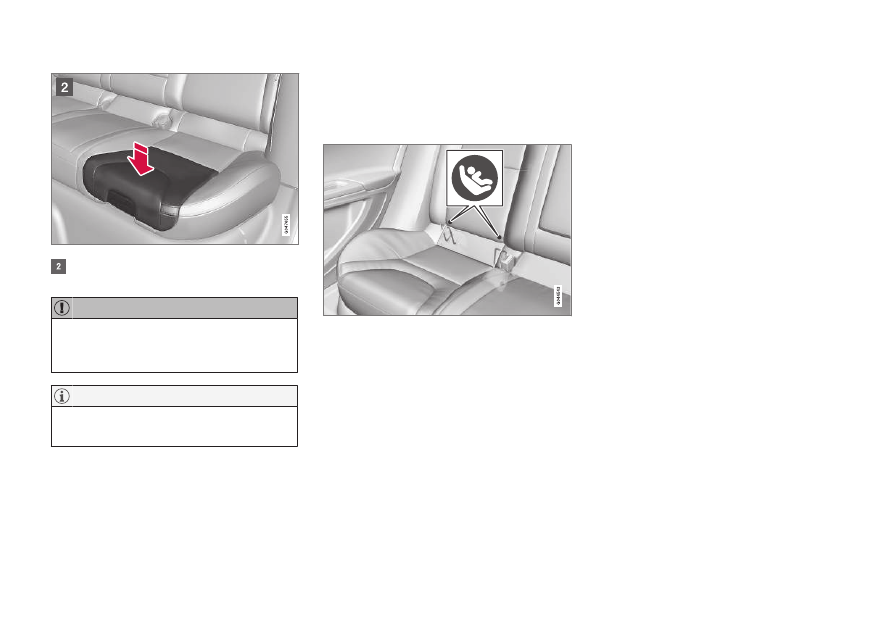

Child seat - ISOFIX

ISOFIX is a fixture system for car child seats
(p. 46) that is based on an international stand-
ard.

Mounting points for the ISOFIX fixture system are
concealed behind the lower section of the rear
seat backrest, in the outer seats.

The location of the mounting points is indicated
by symbols in the backrest upholstery (see pre-
ceding illustration).

Press the seat cushion down to access the
mounting points.

Always follow the manufacturer's installation
instructions when connecting a child seat to the
ISOFIX mounting points.

Related information

•

ISOFIX - size classes (p. 56)

•

ISOFIX - types of child seat (p. 57)

•

General information on child safety (p. 45)

SAFETY

ISOFIX - size classes

There is a size classification for child seats using
the ISOFIX (p. 55) fixture system in order to
assist users in choosing the correct type of child
seat (p. 57).

Size

class

Description

Full size, front-facing child seat

Reduced size (alt. 1), front-facing
child seat

Reduced size (alt. 2), front-facing
child seat

Full size, rear-facing child seat

Reduced size, rear-facing child
seat

Rear-facing infant seat

Transverse infant seat, left-hand

Transverse infant seat, right-hand

WARNING

Never use a rear-facing child seat on the front

passenger seat if the passenger airbag is

activated.

NOTE

If an ISOFIX child seat has no size classifica-
tion, the car model must be included on the
vehicle list for the child seat.

NOTE

Volvo recommends that you contact an
authorised Volvo dealer for recommendations
about which ISOFIX child seats Volvo recom-
mends.

SAFETY

}}

ISOFIX - types of child seat

Child seats are in different sizes – cars are in dif-
ferent sizes. This means that not all child seats
are suitable for all seats in all car models.

Type of child seat

Weight

Size class

Passenger seats for ISOFIX installation of child seats

Front seat

Outer rear seat

Infant seat transverse

max 10 kg

Infant seat, rear-facing

max 10 kg

(IL)

Infant seat, rear-facing

max 13 kg

(IL)

Child seat, rear-facing

9-18 kg

(IL)

SAFETY

Type of child seat

Weight

Size class

Passenger seats for ISOFIX installation of child seats

Front seat

Outer rear seat

Front-facing child seat

9-18 kg

(IUF)

X: The ISOFIX position is not suitable for ISOFIX child seats in this weight class and/or size class.

IL: Suitable for specific ISOFIX child seats. These child seats may be intended for a particular car model, limited or semi-universal categories.

IUF: Suitable for front-facing ISOFIX child seats that are universally approved in this weight class.

Volvo recommends rear-facing child seats for this group.

Make sure you select the right size class (p. 56)
of child seat with ISOFIX (p. 55) fixture system.

SAFETY

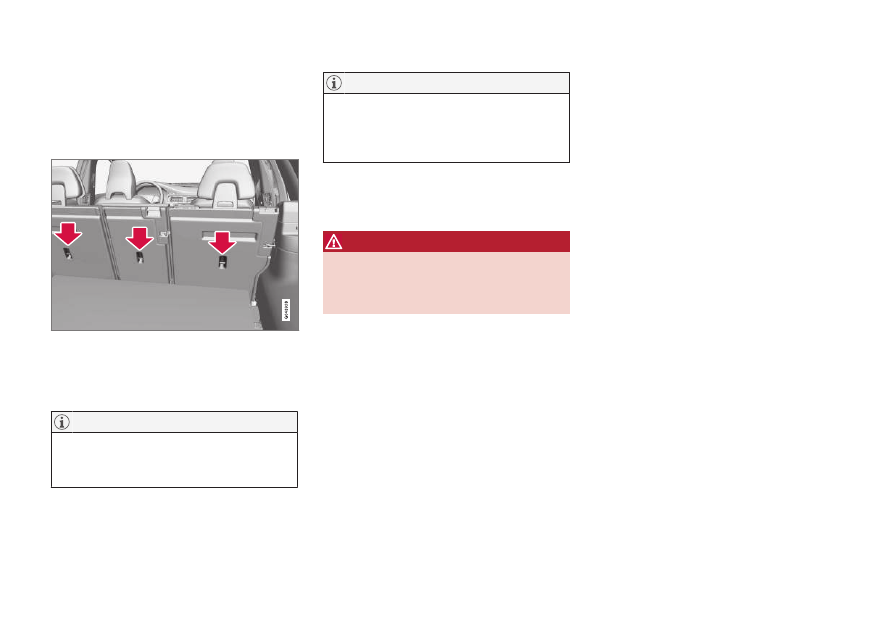

Child seats - upper mounting points

The car is equipped with upper mounting points
for certain front-facing child seats (p. 46). These
mounting points are located on the rear of the
seat.

The upper mounting points are primarily intended
for use with front-facing child seats. Volvo recom-
mends that small children should sit in rear-fac-
ing child seats to as late an age as possible.

NOTE

Fold the head restraints in order to facilitate
fitting this type of child seat in cars with fold-
ing head restraints on the outer seats.

NOTE

In cars with a cargo cover over the luggage
compartment, this must be removed before
child seats can be attached to the securing
points.

For detailed information on how the child seat
should be tensioned in the upper mounting
points, see the seat manufacturer's instructions.

WARNING

The child seat's straps must always be drawn

through the hole in the head restraint leg

before they are tensioned at the attachment

point.

Related information

•
