Lane Departure Warning (LDW), see

When one or both of the functions has been

switched on, it is in standby mode and is acti-

vated when the vehicle exceeds a speed of

40 mph (65 km/h).
The function deactivates if the vehicle's

speed goes under 37 mph (60 km/h).
Both functions use a camera that is depend-

ent on the road/lane being clearly marked by

painted lines on each side.

WARNING

The Driver Alert System does not function

in all situations and is designed to be a

supplementary aid. It is not, however,

intended to replace the driver’s attention

and judgement.

Driver Alert Control (DAC) –

introduction

DAC is intended to alert the driver if his/her

driving becomes erratic, such as if the driver

is distracted or fatigued.

DAC is designed to help detect a slowly

changing driving pattern. It is primarily

intended to be used on main roads and is not

meant for use in city traffic.

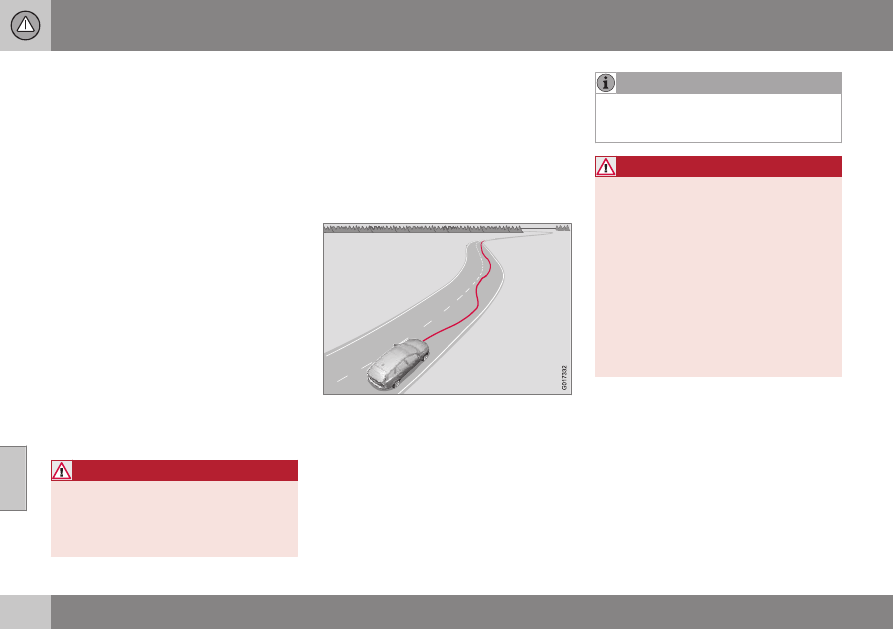

A camera monitors the painted lines marking

the lane in which the vehicle is traveling and

compares the direction of the road with the

driver’s movements of the steering wheel.

The driver is alerted if the vehicle does not

follow the lane smoothly.

Adaptive Cruise Control – limitations

The camera has certain limitations, see

(p. 159).

WARNING

•

DAC is not intended to extend the

duration of driving. Always plan breaks

at regular intervals to help remain alert.

•

A warning from DAC should not be

ignored. A driver may not be aware of

how fatigued he/she has become.

•

In certain cases, fatigue may not affect

the driver’s behavior. In situations of

this type, no warning will be provided.

Therefore, it is important to take

breaks at regular intervals, regardless

of whether or not DAC has given a

warning.

Related information

•

•

•

•

07 Driver support

}}

189

•

•

the display in the center console. See My Car

Driver Alert Control (DAC) – operation

Operating DAC
Settings are made using menu system and

– introduction (p. 66) for more information on

the menu system.

On/Off

To put Driver Alert in standby mode:

•

In the MY CAR menu, scroll to

Car

settings

Driver support systems

Driver Alert

and check the box. If the box

is not checked, the function is off.

Related information

•

•

•

•

•

•

Driver Alert Control (DAC) – function

Function
Driver Alert is activated when the vehicle

exceeds a speed of 40 mph (65 km/h) and will

remain active as long as the speed is over

approx. 37 mph (60 km/h).

If the vehicle is being driven errati-

cally, the driver will be alerted by an

audible signal and the message

Driver Alert Time for a break

displayed. The warning will be repeated after

a short time if the driving pattern remains the

same.
Press the OK button to erase a message.

WARNING

•

An alert should be taken seriously

since it is sometimes difficult for a

driver to realize that he/she is fatigued.

•

In the event of a warning or if the

driver feels fatigued, stop as soon as

possible in a safe place and rest.

Related information

•

•

•

07 Driver support

190

•

•

•

see Lane Departure Warning (LDW) –

Driver Alert Control (DAC) –

limitations

Limitations
In certain situations, DAC may provide warn-

ings even if the driver’s driving pattern has

not become erratic:

•

in strong crosswinds

•

on grooved road surfaces.

•

if the driver is testing the LDW function,

introduction (p. 193)

Related information

•

•

•

•

•

•

the windshield in front of the camera. See The camera’s limitations (p. 183) for information on the cam-

07 Driver support

}}

191

Driver Alert Control (DAC) – symbols

and messages

Depending on the situation, DAC may display

certain symbols and text messages in the

instrument panel or center console screen.

Symbols and messages

Instrument panel

Symbol Message

Description

Driver Alert Time for a

break

The vehicle has been driven erratically. The driver receives an audible signal and a text message.

Windscreen Sensors

blocked

The camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the area of

era’s limitations.

Driver Alert Sys Service

required

The system is not functioning. Contact a trained and qualified Volvo service technician if the message

remains in the display.

07 Driver support

192

Center console display

Symbol Message

Description

Driver Alert OFF

The function is not switched on.

Driver Alert

Available

The function is active.

Driver Alert Standby <65

km/h

The function has gone into standby mode because the vehicle's speed is below 40 mph (65 km/h).

Driver Alert Unavailable

The camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the area

of the windshield in front of the camera. See The camera’s limitations (p. 183) for information on the

camera’s limitations.

Related information

•

•

•

•

•

•

07 Driver support

}}

193

Lane Departure Warning (LDW) –

introduction

The LDW function is designed to help reduce

the risk of accidents in situations where the

vehicle unintentionally leaves its lane and

there is a risk of driving off the road or into the

opposite lane.

Lane Departure Warning (LDW)

The illustration is generic

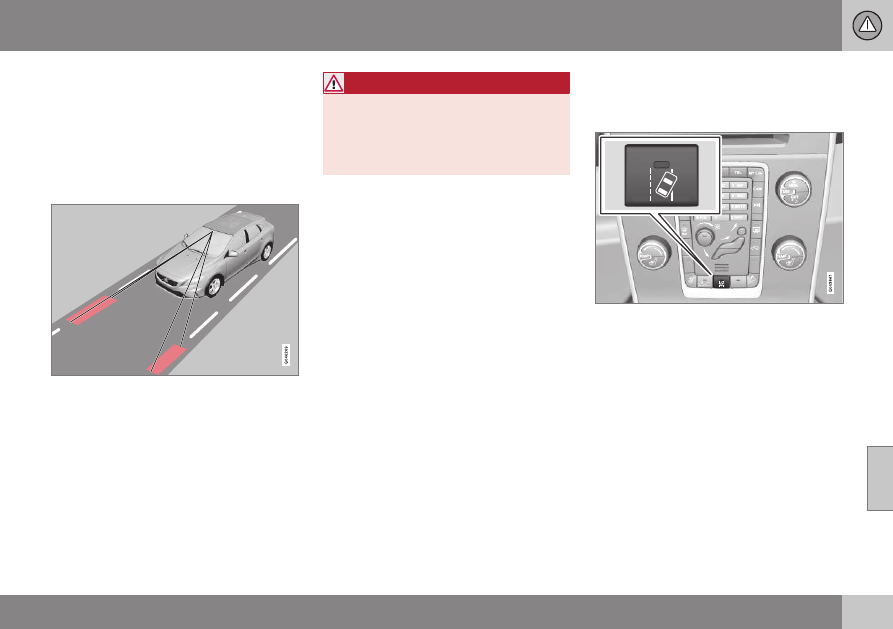

LDW uses the camera located at the center,

upper edge of the windshield to monitor the

road's/lane’s side marker lines. If the vehicle

crosses a side marker line or the road’s cen-

ter dividing line, the driver will be alerted by

an audible signal.

WARNING

This feature is only intended to assist the

driver and does not function in all driving,

weather, traffic or road conditions.
As the driver, you have full responsibility

for operating the vehicle in a safe manner.

Related information

•

Lane Departure Warning (LDW) – symbols

•

and messages (p. 196)

•

Lane Departure Warning (LDW) – opera-

tion (p. 193)

•

Lane Departure Warning (LDW) - limita-

tions (p. 195)

Lane Departure Warning (LDW) –

operation

Operation and function

LDW can be switched on or off by pressing

the button on the center console. A light in

the button illuminates when the function is

on. This is supplemented by graphic displays

in the instrument panel, for example:

07 Driver support

194

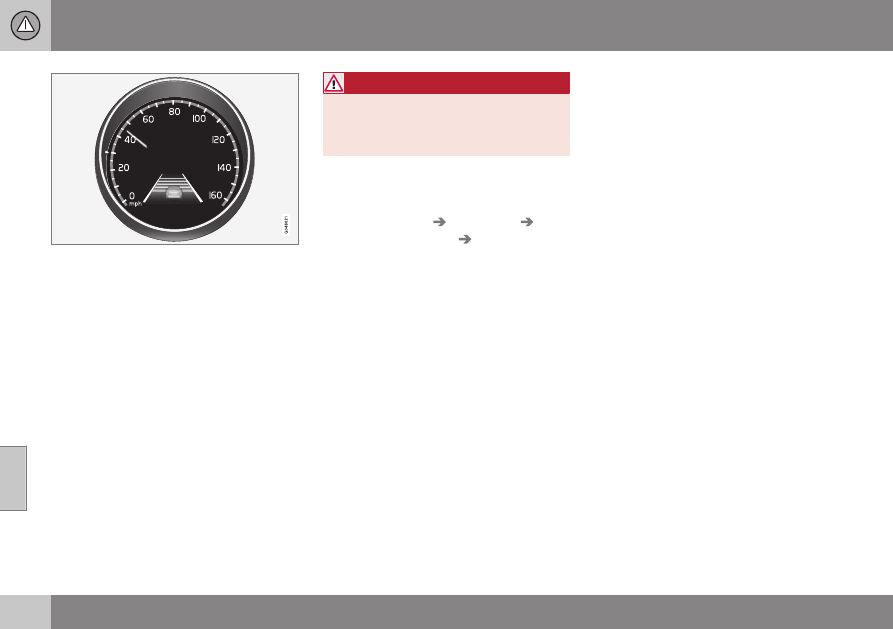

LDW displayed in the instrument panel

•

The LDW symbol has white side marker

lines: – the function is active and "sees"

one or both of the road's side marker

lines.

•

The LDW symbol has gray side marker

lines: – the function is active but cannot

"see" one or both of the road's side

marker lines.

•

The LDW symbol has gray side marker

lines: – the function is in standby mode

because the vehicle's speed is below

40 mph (65 km/h).

•

The LDW symbol has no side marker

lines: – the function is deactivated.

WARNING

The driver will only be warned once for

each time the wheels cross a marker line.

No alarm will be given if a marker line is

between the wheels.

Settings
Settings for Lane Departure Warning can be

made in the menu system by pressing My
Car. Go to

Settings

Car settings

Driver support systems

Lane Departure

Warning

There are two alternatives:

•

On at start-up

: This selection switches

LDW on each time the engine is started.

Otherwise, the system will be in the mode

that it was in when the engine was

switched off.

•

Increased sensitivity

: This selection

increases the function’s sensitivity. Warn-

ings will be given at an earlier stage and

fewer limitations apply. When this setting

is being used, the system only needs to

monitor lane marker lines on one side of

the vehicle to change status to

Lane

Depart Warn Available

Related information

•

Lane Departure Warning (LDW) – symbols

•

and messages (p. 196)

•

Lane Departure Warning (LDW) - limita-

•

tions (p. 195)

07 Driver support

195

Lane Departure Warning (LDW) -

limitations

Limitations
The camera used by LDW has the same limi-

tations as the human eye. See The camera’s

limitations (p. 183) for more information about

the camera's limitations.

No warning signal will be given in the cer-

tain situations, such as:

•

If the turn signal is being used

•

The driver’s foot is on the brake pedal

•

The accelerator pedal is pressed
quickly

•

If the steering wheel is moved quickly

•

In sharp turns that cause the vehicle’s

body to sway

Related information

•

Lane Departure Warning (LDW) – symbols

•

and messages (p. 196)

•

Lane Departure Warning (LDW) – opera-

tion (p. 193)

•

The road lacks clear marker lines or the camera is not functioning properly. See The camera’s

When Increased sensitivity has been selected, a warning will be issued if a side marker line is crossed in this situation.

07 Driver support

196

Lane Departure Warning (LDW) –

symbols and messages

Symbols and messages
A text message can be erased by pressing

briefly on the OK button on the turn signal

lever.

Symbol Message

Description

Lane departure warning ON

Lane departure warning OFF

The function is switched on or off. The text disappears after 5 seconds.

Lane Depart Warn Available

The function is monitoring the road’s marker lines.

Lane Depart. Warning

Unavailable at this speed

The function has gone into standby mode because the vehicle's speed is below 40 mph

(65 km/h).

Lane Depart Warn Unavaila-

ble

limitations (p. 183) for information on the camera’s limitations.

Windscreen Sensors blocked

The camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the

area of the windshield in front of the camera. See The camera’s limitations (p. 183) for information

on the camera’s limitations.

Driver Alert Sys Service

required

The system is not functioning. Contact a trained and qualified Volvo service technician if the mes-

sage remains in the display.

07 Driver support

197

Related information

•

Lane Departure Warning (LDW) – opera-

tion (p. 193)

•

•

Lane Departure Warning (LDW) - limita-

•

tions (p. 195)

07 Driver support

198

Park assist – introduction

The park assist system is designed to assist

you when driving into parking spaces,

garages, etc. An audible signal and symbols

in the audio system’s display indicate the dis-

tance to the object.

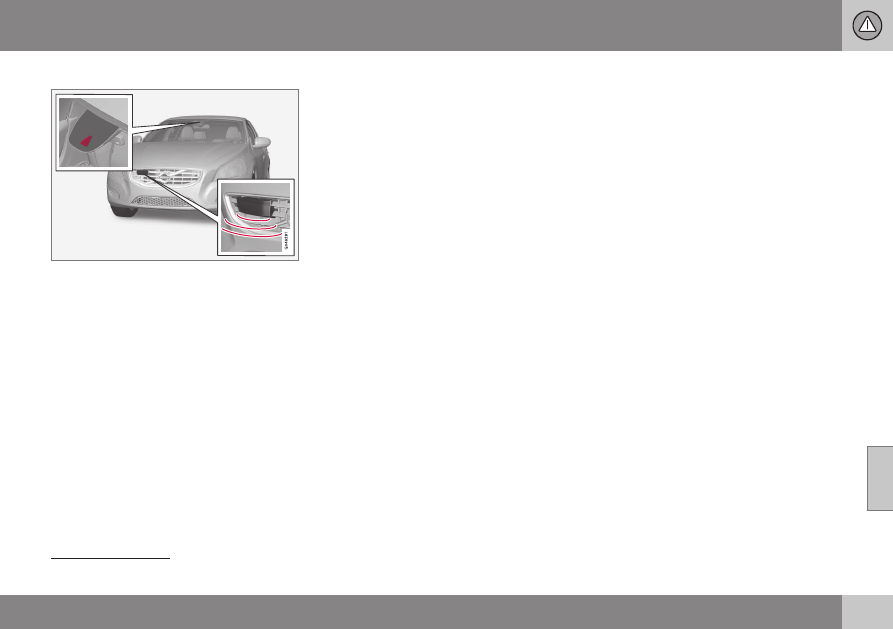

The park assist system utilizes ultrasound

sensors in the front bumper and rear

bumper(s) to measure the distance to a vehi-

cle or an object that may be close to the front

or rear of your vehicle.

Park assist – limitations (p. 200)

A trailer hitch whose wiring is integrated

with the vehicle's electrical system will be

included in the measurement of the availa-

ble space behind the vehicle.

WARNING

Park Assist is an information system, NOT

a safety system. This system is designed

to be a supplementary aid when parking

the vehicle. It is not, however, intended to

replace the driver's attention and judge-

ment.

Related information

•

•

Park assist – function (p. 198)

•

Park assist – operation (p. 200)

•

Park assist – troubleshooting (p. 201)

•

Rear Park Assist Camera (PAC) – function

(p. 202)

Park assist – function

Signals from the park assist system

View in the display (warning for objects front left/

right rear)

Visual indicator

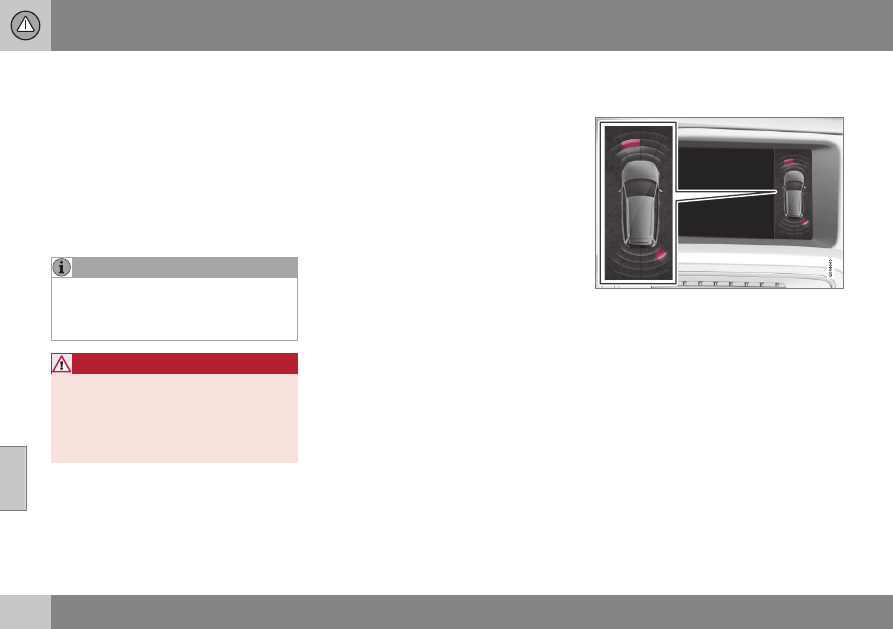

The audio system’s display gives an overview

of the vehicle’s position in relation to a

detected object.
The marked sectors in the display indicate

that one or more of the sensors has detected

an object. The closer the car symbol comes

to a sector, the closer the vehicle is to the

object.
If the infotainment system is switched off, the

park assist system will not be able to provide

a visual indicator. An audible signal will still

be provided.

07 Driver support

199

Audible signal

The Park Assist system uses an intermittent

tone that pulses faster as you come close to

an object, and becomes constant when you

are within approximately 1 ft (30 cm) of an

object in front of or behind the vehicle. If

there are objects within this distance both

behind and in front of the vehicle, the tone

alternates between front and rear speakers.

CAR menu system. See My Car – introduc-

The level of the audible signal can be low-

ered/raised with the infotainment volume

control. The level can also be set in the MY

tion (p. 66) for a description of the menu

system.

If the volume of another source from the

audio system is high, this will be automati-

cally lowered.

Rear park assist

The distance monitored behind the vehicle is

approximately 5 ft (1.5 m). The audible signal

comes from the rear speakers.
The system must be deactivated when towing

a trailer, carrying bicycles in a rear-mounted

carrier, etc, which could trigger the rear park

assist system's sensors.

manually, see Park assist – operation

•

Rear park assist is deactivated auto-

matically when towing a trailer if Volvo

genuine trailer wiring is used. If a non-

Volvo trailer hitch is being used, it may

be necessary to switch off the system

(p. 200).

•

The system will not detect high

objects, such as a loading dock, etc.

•

Objects such as chains, thin shiny

poles or low objects may temporarily

not be detected by the system. This

may result in the pulsing tone unex-

pectedly stopping instead of changing

to a constant tone as the vehicle

approaches the object. In such cases,

use caution when backing up or stop

the vehicle to help avoid damage.

Front park assist

The distance monitored in front of the vehicle

is approximately 2.5 ft (0.8 m). The audible

signal comes from the audio system's front

speakers.
It may not be possible to combine auxiliary

headlights and front park assist since these

lights could trigger the system's sensors.
