Park assist is disengaged automatically

when the parking brake is applied.

Related information

•

Park assist – limitations (p. 200)

•

•

Park assist – troubleshooting (p. 201)

•

•

Rear Park Assist Camera (PAC) – function

(p. 202)

Park assist – limitations

Cleaning the sensors
The sensors must be cleaned regularly to

ensure that they work properly. Clean them

with water and a suitable car washing deter-

gent.
Ice and snow covering the sensors may

cause incorrect warning signals.

If the sensors are obstructed by e.g., dirt,

snow, or ice, this could result in false

warning signals from the park assist sys-

tem.

Related information

•

•

Park assist – operation (p. 200)

•

•

Park assist – troubleshooting (p. 201)

•

Rear Park Assist Camera (PAC) – function

(p. 202)

07 Driver support

201

Park assist – troubleshooting

Faults in the system
If the information symbol illuminates and

Park assist syst Service required

is shown

on the information display, this indicates that

the system is not functioning properly and

has been disengaged. Consult a trained and

qualified Volvo service technician.

In certain circumstances, the park assist

system may give unexpected warning sig-

nals that can be caused by external sound

sources that use the same ultrasound fre-

quencies as the system. This may include

such things as the horns of other vehicles,

wet tires on asphalt, pneumatic brakes,

motorcycle exhaust pipes, etc. This does

not indicate a fault in the system.

Related information

•

Park assist – limitations (p. 200)

•

•

Park assist – operation (p. 200)

•

•

Rear Park Assist Camera (PAC) – function

(p. 202)

Rear Park Assist Camera (PAC) –

introduction

The Park Assist Camera is designed to pro-

vide the driver with a view of the area behind

the vehicle when backing up.

Introduction
PAC uses the display in the center console to

show the area behind the car while you are

backing up.
PAC also shows guiding lines in the on-

screen image to indicate the direction that the

vehicle will take as it moves rearward, which

helps simplify parallel parking, backing into a

tight space or when attaching a trailer to the

vehicle.
The images of vehicles in this section are

generic and may not depict your specific

model.

A trailer hitch whose wiring is integrated

with the vehicle's electrical system will be

included in the measurement of the availa-

ble space behind the vehicle.

WARNING

•

PAC is designed to be a supplemen-

tary aid when parking the vehicle. It is

not, however, intended to replace the

driver’s attention and judgment.

•

The camera has blind spots where it

cannot detect objects or people

behind the vehicle.

•

Pay particular attention to people or

animals that are close to the vehicle.

•

Objects seen on the screen may be

closer than they appear to be.

Related information

•

Rear Park Assist Camera (PAC) – limita-

•

tions (p. 204)

07 Driver support

202

Rear Park Assist Camera (PAC) –

function

Function
The driver sees what is behind the vehicle

and if a person or animal should suddenly

appear from the side.
The camera has built-in electronics that help

reduce the “fish-eye” effect so that the image

shown on the screen is as natural as possi-

ble. This may cause some objects on the

screen to “lean,” which is normal.

Ambient lighting conditions

The camera automatically monitors the ambi-

ent lighting conditions behind the vehicle and

constantly adjusts sensitivity to light. This

may cause the brightness and quality of the

image on the screen to vary slightly. Sensitiv-

ity to light is increased in dark conditions or in

bad weather, which may affect image quality.
If the image on the screen seems too dark,

brightness can be increased with the thumb

wheel on the lighting panel.

Rear Park Assist Camera (PAC) – intro-

In order to function properly, the camera

lens should always be kept clean. This is

particularly important in bad weather.

Keep the lens free of dirt, ice or snow.

Related information

•

duction (p. 201)

•

Rear Park Assist Camera (PAC) – limita-

•

tions (p. 204)

Rear Park Assist Camera (PAC) –

operation

Activation

PAC is activated when the gear selector is

moved to R if the system is selected in the

MY CAR menu system or by pressing the

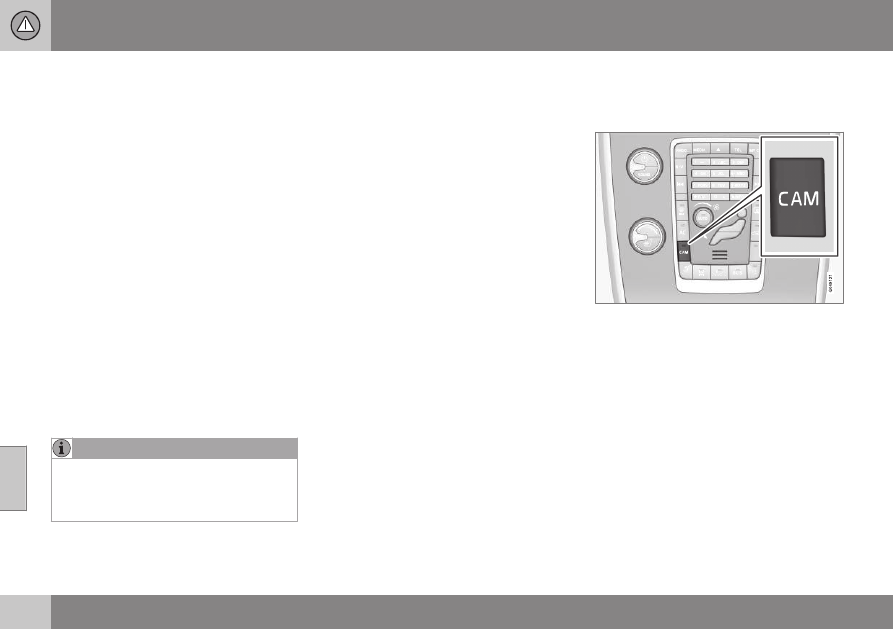

CAM button in the center console. See My

Car – introduction (p. 66) for a description of

the menu system.
If PAC is not activated when the gear selector

is moved to R, press the CAM button on the

center console.
PAC will automatically override the view cur-

rently on the screen and will display the cam-

era's view behind the vehicle.

Deactivation
Move the gear selector from R to another

gear. The camera remains active for approx.

07 Driver support

203

5 seconds after the gear selector has been

moved from R or until the vehicle's forward

speed exceeds 6 mph/10 km/h

(21 mph/35 km/h in reverse). The screen will

then revert to the view that was displayed

before R was selected.

If any button on the center console control

panel is pressed, the camera image will

disappear from the display. Pressing CAM

will return the camera image to the display.

Settings
By default, PAC is set to activate when the

gear selector is moved to R
To change PAC settings when a camera view

is displayed:
1. Press OK/MENU when a camera view is

on the screen. A menu will be displayed.

2. Turn TUNE to scroll to the desired set-

ting.

3. Press OK/MENU to make the setting and

exit the menu by pressing EXIT.

Summary

•

Pressing CAM will activate the camera

even if the gear selector is not in Reverse.

Related information

•

•

Park assist – troubleshooting (p. 201)

•

•

Park assist – limitations (p. 200)

•

Rear Park Assist Camera (PAC) – intro-

duction (p. 201)

Rear Park Assist Camera (PAC) –

guiding and marker lines

Guiding lines
The lines on the screen are projected as if

they were a path on the ground behind the

vehicle and are directly affected by the way in

which the steering wheel is turned. This ena-

bles the driver to see path the vehicle will

take, even if he/she turns the steering wheel

while backing up.

When backing up with a trailer, the guiding

lines show the path that the vehicle will

take, not the trailer.

WARNING

Keep in mind that the image on the screen

only shows the area behind the vehicle.

The driver must always watch for people,

animals, other vehicles, etc., near the sides

of the vehicle when turning while backing

up.

Related information

•

Rear Park Assist Camera (PAC) – limita-

•

tions (p. 204)

07 Driver support

204

Option/accessory, for more information, see Introduction.

Rear Park Assist Camera (PAC) –

limitations

Limitations
Even if a fairly small section of the screen

image appears to be obstructed, this may

mean that a relatively large area behind the

vehicle is hidden and objects there may not

be detected until they are very near the vehi-

cle.

Rear Park Assist Camera (PAC) – intro-

Keep in mind

•

Keep the camera's lens free of dirt, ice

and snow. Remove ice and snow care-

fully to avoid scratching the lens.

•

Clean the lens regularly with warm water

and a suitable car washing detergent.

Related information

•

duction (p. 201)

•

•

BLIS* – introduction

The Blind Spot Information System (BLIS) is

an information system that indicates the pres-

ence of another vehicle moving in the same

direction as your vehicle on roads with several

lanes.

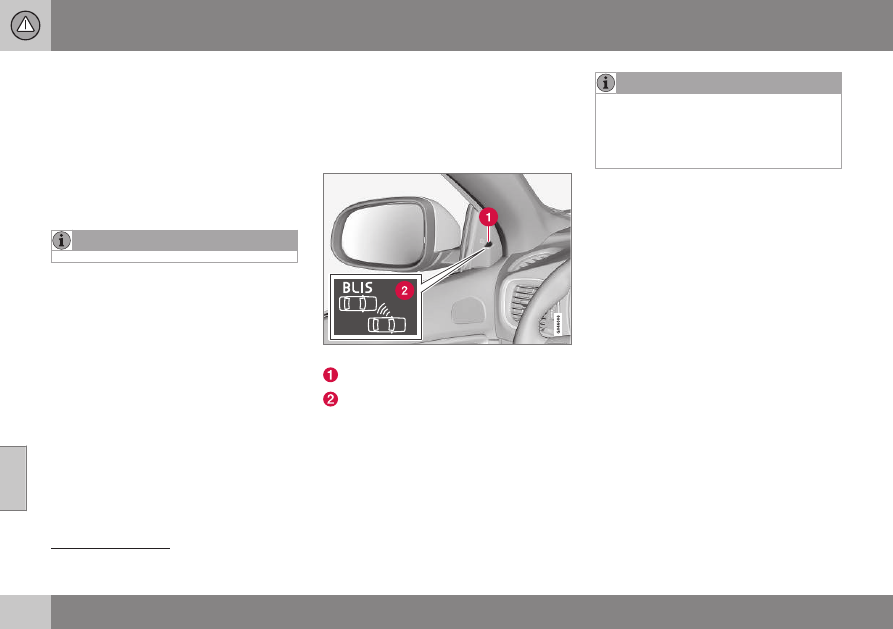

Location of the BLIS indicator light

Indicator light

BLIS symbol

BLIS and CTA

are activated when the engine

is started; this is confirmed when the indica-

tor lights on the front door panels flash once.

The door panel indicator light illuminates

on the side of the vehicle where the sys-

tem has detected another vehicle. If your

vehicle is passed on both sides at the

same time, both lights will illuminate.

The system helps provide information about:

•

Other vehicles in your door mirrors' "blind

area"

•

Vehicles that are about to pass your vehi-

cle in the left and/or right lanes

•

Cross Traffic Alert (CTA) is a supple-

mentary BLIS function intended to

detect vehicles crossing behind your

vehicle while you are backing up.

The illustration is generic; certain details may vary from model to model

Cross Traffic Alert

07 Driver support

Option/accessory, for more information, see Introduction.

205

WARNING

•

BLIS and CTA are information sys-

tems, NOT warning or safety systems

and do not function in all situations.

•

BLIS and CTA do not eliminate the

need for you to visually confirm the

conditions around you, and the need

for you to turn your head and should-

ers to make sure that you can safely

change lanes or back up.

•

As the driver, you have full responsibil-

ity for changing lanes/backing up in a

safe manner.

Related information

•

•

•

•

•

BLIS* – function

When does BLIS function
The system functions when your vehicle is

moving at speeds above 6 mph (10 km/h).

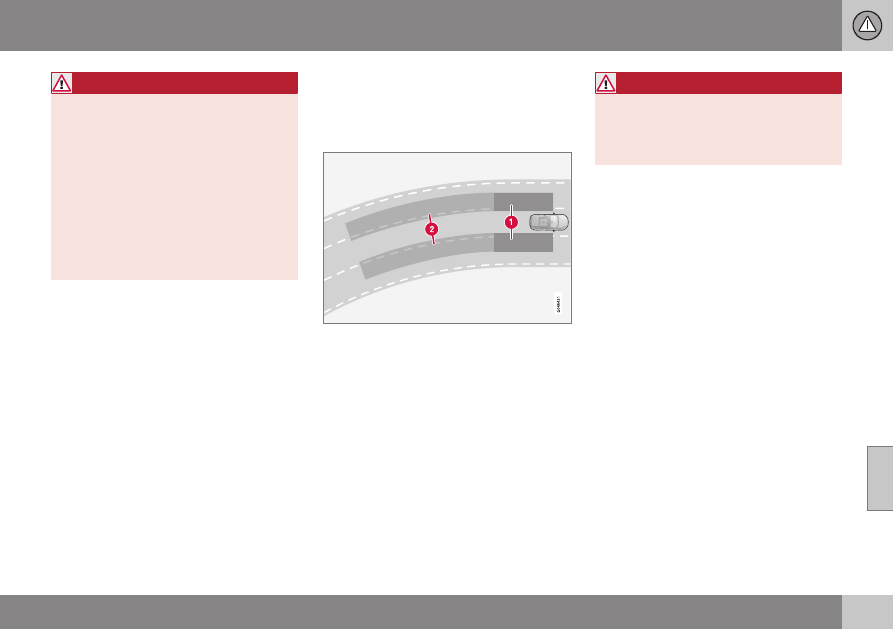

Zone 1. Blind area, Zone 2. Area for passing

vehicles

BLIS is designed to react to:

•

Other vehicles in your door mirrors' "blind

area"

•

Vehicles that are passing your vehicle

When BLIS detects a vehicle in zone 1 or a

passing vehicle in zone 2, the indicator light in

the door panel will glow steadily. If the driver

then uses the turn signal on the side on which

the warning is given, the indicator light will

flash and become brighter.

WARNING

•

BLIS does not function in sharp

curves.

•

BLIS does not function when your

vehicle is backing up.

Related information

•

•

•

•

•

My Car – introduction (p. 66)

07 Driver support

206

Option/accessory, for more information, see Introduction.

BLIS* – operation

Activating/deactivating BLIS

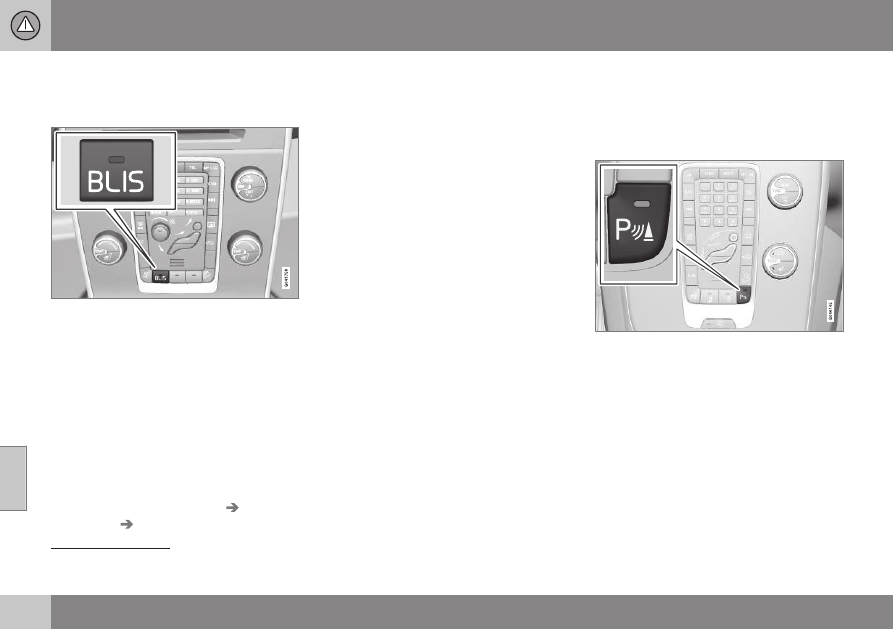

Button for activating/deactivating BLIS

BLIS and CTA

are activated when the engine

is started; this is confirmed when the indica-

tor lights on the front door panels flash once.
BLIS can be deactivated/reactivated by

pressing the button on the center console.
The number or combinations of options on

the vehicle may not leave a space available

on the center console for the BLIS button. If

this is the case, BLIS can be deactivated/

reactivated in the MY CAR menu system, see

•

Select Off or On in

Settings

Car

settings

BLIS

When BLIS is deactivated/reactivated, the

indicator lights will go out/illuminate (the indi-

cators will also flash once when the function

is reactivated) and a message will appear in

the instrument panel.
To erase the message:

•

Press the OK button on the left steering

wheel lever

•

Wait for approx. 5 seconds for the mes-

sage to disappear

Related information

•

•

•

•

•

On vehicles equipped with the optional Park

BLIS* – Cross Traffic Alert (CTA)

Cross Traffic Alert (CTA) is a supplementary
BLIS

function intended to detect vehicles

crossing behind your vehicle while you are

backing up.

Park assist/CTA button

assist system (p. 198), Cross Traffic Alert

(CTA) can be deactivated/reactivated by

pressing the Park assist button on the center

console. The BLIS indicator lights on the front

doors will flash when CTA is reactivated by

pressing the button.

Cross Traffic Alert

Blind Spot Information System

07 Driver support

}}

207

WARNING

•

BLIS and CTA are information sys-

tems, NOT warning or safety systems

and do not function in all situations.

•

BLIS and CTA do not eliminate the

need for you to visually confirm the

conditions around you, and the need

for you to turn your head and should-

ers to make sure that you can safely

change lanes or back up.

•

As the driver, you have full responsibil-

ity for changing lanes/backing up in a

safe manner.

When does CTA function

How CTA works

CTA supplements BLIS by warning the driver

of crossing traffic behind your vehicle, for

example, when backing out of a parking

space.

It is primarily designed to detect another vehi-

cle but in certain cases may also detect

pedestrians or smaller objects such as bicy-

cles.
CTA is only activated when the vehicle is

backing up and is activated automatically

when the gear selector is put in reverse.

•

An audible signal indicates that CTA has

detected something that is approaching

from the side. The signal will come from

either the left or right audio system

speakers, depending on which the side of

your vehicle the approaching vehicle/

object has been detected.

•

CTA also provides a warning by illuminat-

ing the BLIS indicator lights.

•

An icon will also illuminate in the Park

assist graphic on the center console dis-

play.

Limitations
CTA has limitations in certain situations, for

example, the CTA sensors cannot "see"

through other parked vehicles or obstruc-

tions.
The following are several examples where

CTA's "field of vision" may initially be limited

and approaching vehicles cannot be detected

until they are too close:

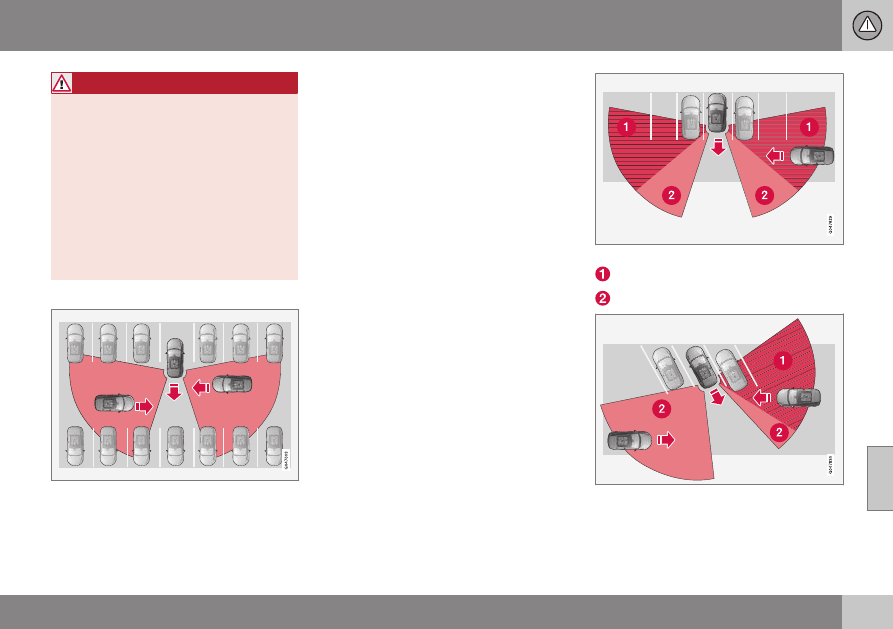

The vehicle is pulled far into a parking space

CTA's blind area

CTA's "field of vision"

In angled parking spaces, CTA may be "blind" on

one side

However, as you back your vehicle out of a

parking space, CTA's "field of vision"

expands.

07 Driver support

208

Option/accessory, for more information, see Introduction.

Examples of other limitations include:

•

Dirt, ice or snow obstructing the sensors

may reduce the system's function or

make it impossible to detect other vehi-

cles or objects.

•

Do not attach tape, decals, etc., on the

surface of the sensors (see the illustration

in the following "Maintenance" section).

•

BLIS and CTA are deactivated if a trailer's

wiring is connected to the vehicle's elec-

trical system.

Related information

•

•

•

•

•

BLIS* – limitations

Maintenance

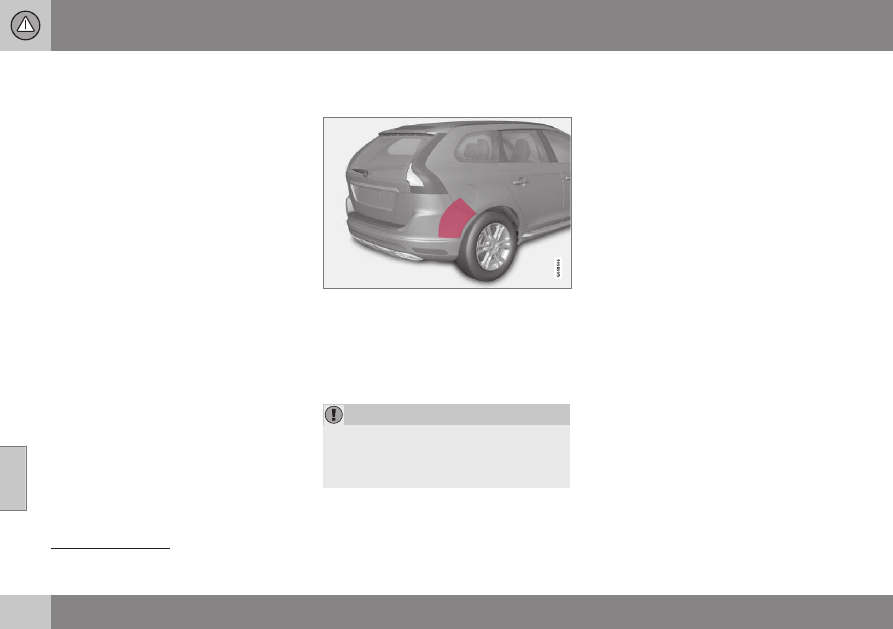

Location of the BLIS/CTA sensors

The BLIS/CTA

sensors are located on the

inside of the rear fenders/bumper.
The surfaces in front of the sensors must be

kept clean for the system to function opti-

mally.

Repairs to the BLIS/CTA systems and/or

repainting the rear bumper should only be

done by a trained and qualified Volvo serv-

ice technician.

Related information

•

•

•

•

•

Generic illustration

Cross Traffic Alert

07 Driver support

Option/accessory, for more information, see Introduction.

209

BLIS* – messages

If BLIS/CTA

are not functioning normally, a

symbol will illuminate in the instrument panel

and a text message will be displayed. Follow

any instructions that may be provided.
These messages include:

Message

System status

CTA OFF

CTA has been switched off

manually. BLIS remains

active.

BLIS and

CTA OFF

Trailer

attached

BLIS and CTA are tempo-

rarily deactivated because

a trailer's wiring has been

connected to the vehicle's

electrical system.

BLIS and

CTA Serv-

ice required

BLIS and CTA are not

functioning normally.

•

If this message recurs,

the systems should be

inspected by a trained

and qualified Volvo

service technician.

Messages can be erased by pressing the OK

button on the left steering wheel lever.

Related information

•

•

•

•

•

Ignition slot with remote key inserted (see Igni-

Cross Traffic Alert

08 Starting and driving

}}

Option/accessory, for more information, see Introduction.

211

Starting the engine

The engine can be started/switched off using

the remote key and the START/STOP

ENGINE button.

tion modes (p. 69) for more information on igni-

tion modes)

WARNING

Before starting the engine:

•

Fasten the seat belt.

•

Check that the seat, steering wheel

and mirrors are adjusted properly.

•

Make sure the brake pedal can be

depressed completely. Adjust the seat

if necessary.

WARNING

•

Never use more than one floor mat at

a time on the driver's floor. Before

driving, remove the original mat from

the driver's seat floor before using any

other type of floor mat. Any mat used

in this position should be securely and

properly anchored in the attaching

pins. An extra mat on the driver's floor

can cause the accelerator and/or

brake pedal to catch. Check that the

movement of these pedals is not impe-

ded.

•

Volvo's floor mats are specially manu-

factured for your car. They must be

firmly secured in the clips on the floor

so that they cannot slide and become

trapped under the pedals on the driv-

er's side.

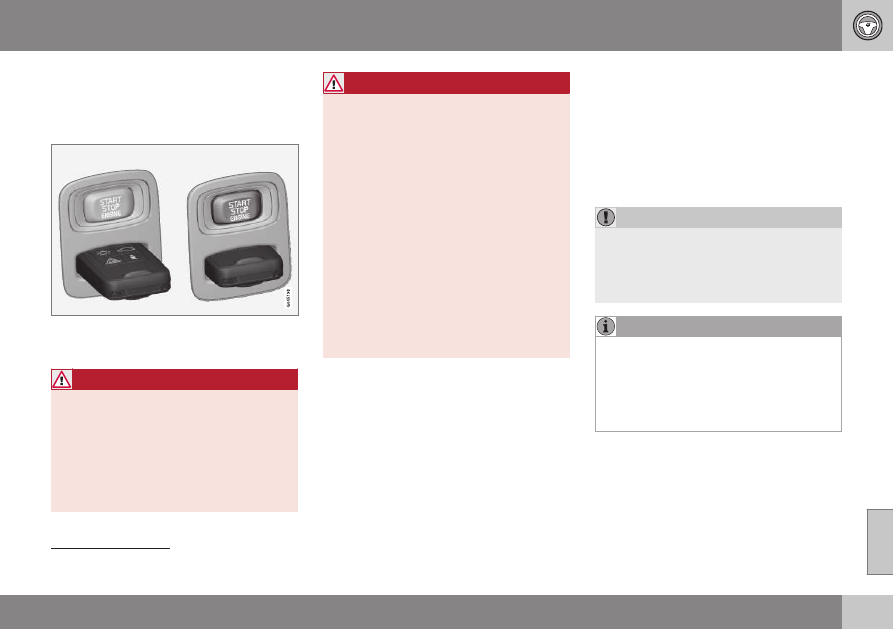

1. Press the remote key into the ignition slot

as far as possible, with the metallic key

blade pointing outward (not inserted into
the slot)

2. Depress the brake pedal

3. Press and release the START/STOP

ENGINE button. The autostart function

will operate the starter motor until the

engine starts or until its overheating func-

tion stops it.
The starter motor operates for a maxi-

mum of 10 seconds. If the engine has not

started, repeat the procedure.

If the engine does not start after the third

try, wait for approximately 3 minutes

before trying to start it again to give the

battery time to recover its starting

capacity.

Keyless drive*
To start a vehicle equipped with the key-

less drive feature, one of the remote keys

must be in the passenger compartment.

Follow the instructions in steps 2 and 3 to

start the vehicle.

On vehicles with the optional keyless drive, it is only necessary to have a remote key in the passenger’s compartment.

If the vehicle is moving, it is only necessary to press the START/STOP ENGINE button to start the vehicle.

08 Starting and driving

212

WARNING

•

Always remove the remote key from

the ignition slot when leaving the vehi-

cle and ensure that the ignition in

mode 0 (see Ignition modes (p. 69) for

information about the ignition modes).

•

On vehicles with the optional keyless

drive, never remove the remote key

from the vehicle while it is being driven

or towed.

•

Always place the gear selector in Park

and apply the parking brake before

leaving the vehicle. Never leave the

vehicle unattended with the engine

running.

•

Always open garage doors fully before

starting the engine inside a garage to

ensure adequate ventilation. The

exhaust gases contain carbon monox-

ide, which is invisible and odorless but

very poisonous.

•

After a cold start, idle speed may be

noticeably higher than normal for a

short period. This is done to help bring

components in the emission control

system to their normal operating tem-

perature as quickly as possible, which

enables them to control emissions and

help reduce the vehicle's impact on
the environment

Switching off the engine (p. 213)

•

When starting in cold weather, the

automatic transmission may shift up at

slightly higher engine speeds than nor-

mal until the automatic transmission

fluid reaches normal operating tem-

perature.

•

Do not race a cold engine immediately

after starting. Oil flow may not reach

some lubrication points fast enough to

prevent engine damage.

•

The engine should be idling when you

move the gear selector. Never acceler-

ate until after you feel the transmission

engage. Accelerating immediately after

selecting a gear will cause harsh

engagement and premature transmis-

sion wear.

•

Selecting P or N when idling at a

standstill for prolonged periods of time

will help prevent overheating of the

automatic transmission fluid.

Related information

•

If the gear selector is in the D or R positions and the car is not moving, engine speed (rpm) will be lower and it will take longer for the engine to reach normal operating temperature.

08 Starting and driving

Option/accessory, for more information, see Introduction.

213

Switching off the engine

Switch off the engine by pressing the START/

STOP ENGINE button.

If the gear selector is not in the P position or

if the vehicle is moving, press the START/

STOP ENGINE button twice or press and

hold it in until the engine switches off.

Related information

•

Ignition modes (p. 69)

Engine Remote Start (ERS)* –

introduction

ERS is a feature that makes it possible to

remotely start the engine using the remote

key to cool or heat the passenger compart-

ment before driving.

The climate/ and infotainment systems will

start using the same settings as when the

engine was switched off.
When the engine is started using ERS, it will

run for a maximum of 15 minutes before

automatically switching off again. After 2 ERS

starts, the engine must be started in the nor-

mal way before ERS can be used again.

Remote key – replacing the battery

•

Always adhere to applicable State,

Province and/or Local laws regarding

engine idling when using ERS.

•

The service life of the remote key's

battery is affected by ERS use. If this

feature is used frequently, the battery

should be replaced once a year, see

(p. 129).

WARNING

Keep the following in mind before using

ERS:

•

The vehicle should be in view.

•

The vehicle should be unoccupied.

•

The vehicle must not be parked

indoors or in an enclosed area.

Exhaust fumes are harmful to the

health.

Related information

•

Engine Remote Start (ERS)* – starting the

engine (p. 214)

•

Engine Remote Start (ERS)* – switching

off the engine (p. 214)

08 Starting and driving

214

Option/accessory, for more information, see Introduction.

Engine Remote Start (ERS)* – starting

the engine

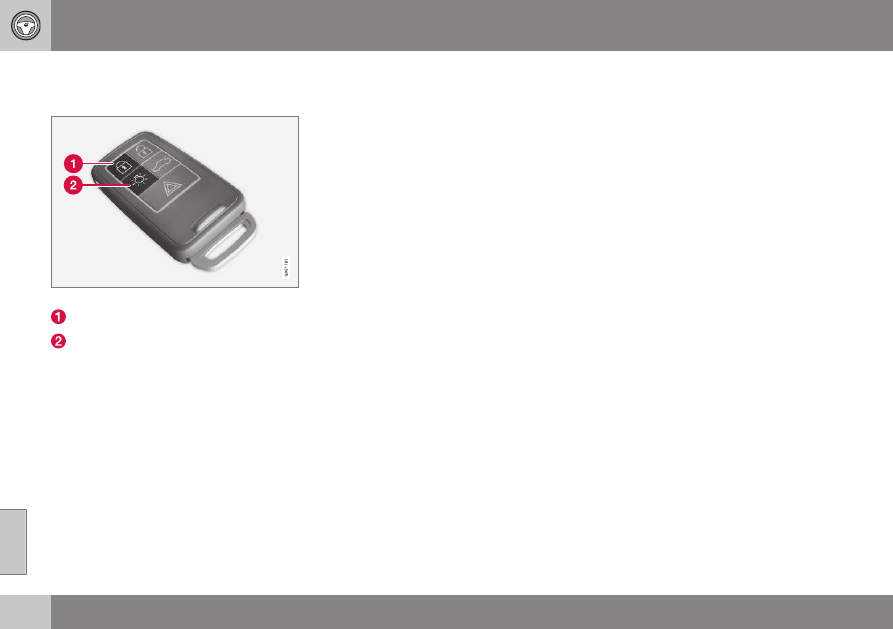

Remote key buttons used for remote engine start

Lock

Approach lighting

Starting the engine
The maximum range for ERS is approximately

100 ft (30 meters) if the view of the vehicle is

unobstructed. The vehicle must also be

locked.
To start the engine:
1. Press the lock button (1 ) briefly.
2. Immediately press the approach lighting

button (2) for approximately 2 seconds.

If the requirements for ERS have been met,

the following will occur:

1. The turn signals will flash several times.
2. The engine will start.
3. The turn signals will illuminate for

3 seconds to indicate that the engine has

started.

After the engine has started, the vehicle

remains locked but the alarm is disarmed.

Active functions

When the engine is started with ERS, the fol-

lowing functions are activated:

•

The climate control system

•

The infotainment system.

Deactivated functions

When the engine is started with ERS, the fol-

lowing functions are deactivated:

•

Headlights

•

Parking lights

•

License plate lights

•

Windshield wipers

Related information

•

Engine Remote Start (ERS)* – switching

off the engine (p. 214)

•

Engine Remote Start (ERS)* – introduction

(p. 213)

Engine Remote Start (ERS)* –

switching off the engine

Any of the following will switch off the engine

if it has been started with ERS:

•

Pressing the lock button (1) or the unlock

button (2) on the remote key

•

Unlocking the vehicle

•

Opening a door

•

Depressing the accelerator or brake pedal

•

Moving the gear selector from the P posi-

tion

•

If there are less than approx. 2.5 gallons

(10 liters) of fuel in the tank

•

More than 15 minutes have elapsed.

If the engine has been started with ERS and

switches off, the turn signals will illuminate for

3 seconds.

Message in the instrument panel
display

If ERS is interrupted, a text message will be

displayed in the instrument panel.

Related information

•

Engine Remote Start (ERS)* – introduction

(p. 213)

•

Engine Remote Start (ERS)* – starting the

engine (p. 214)

08 Starting and driving

215

Jump starting

Follow these instructions to jump start your

vehicle's dead battery or to jump start another

vehicle's dead battery using your vehicle.

G021347

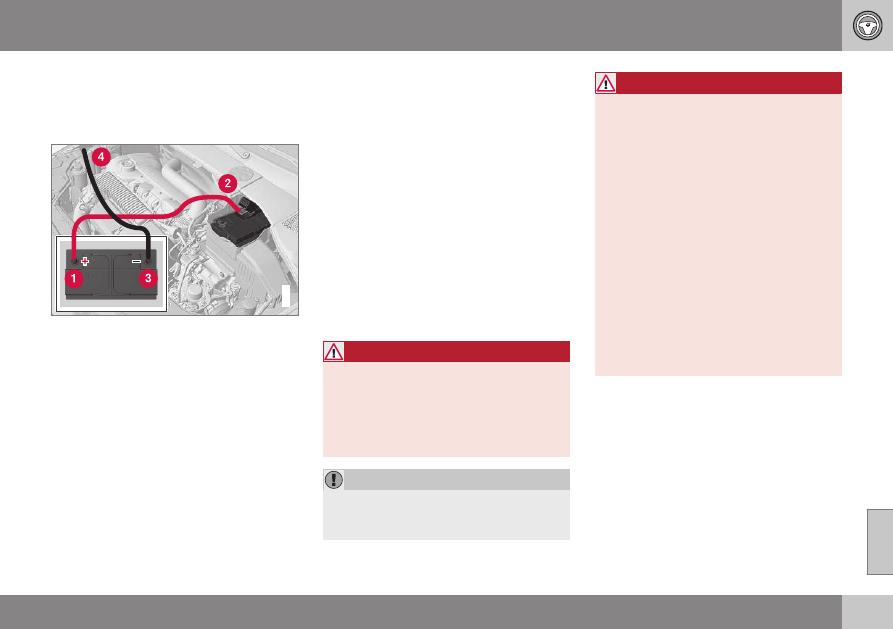

Connecting the jumper cables

If the 12-volt auxiliary battery to be used is in

another vehicle, check that the vehicles are

not touching to prevent premature comple-

tion of a circuit. Be sure to follow jump star-

ting instructions provided for the other vehi-

cle.
To jump start your vehicle:
1. Switch off the ignition (set the ignition to

mode 0, see Ignition modes (p. 69)).

2. First connect the red jumper cable to the

auxiliary battery's positive (+) terminal (1).

3. Fold back the cover over the positive (+)

terminal on your vehicle's battery (2),

marked with a "+" sign, located under a

folding cover.

4. Connect the black jumper cable to the

auxiliary battery's negative (–) terminal (3)

and to the ground point in your vehicle's

engine compartment (right engine mount

at the top, on the outer screw) (4).

5. Start the engine in the assisting vehicle,

then start the engine in the vehicle with

dead battery.

6. After the engine has started, first remove

the negative (–) terminal jumper cable

(black). Then remove the positive (+) ter-

minal jumper cable (red).

WARNING

PROPOSITION 65 WARNING!
Battery posts, terminals, and related

accessories contain lead and lead com-

pounds, chemicals known to the state of

California to cause cancer and reproduc-

tive harm. Wash hands after handling.

Starting the engine (p. 211)

Connect the jumper cables carefully to

avoid short circuits with other components

in the engine compartment.

WARNING

•

Do not connect the jumper cable to

any part of the fuel system or to any

moving parts. Avoid touching hot

manifolds.

•

Batteries generate hydrogen gas,

which is flammable and explosive.

•

Battery fluid contains sulfuric acid. Do

not allow battery fluid to contact eyes,

skin, fabrics or painted surfaces. If

contact occurs, flush the affected area

immediately with water. Obtain medi-

cal help immediately if eyes are affec-

ted.

•

Never expose the battery to open

flame or electric spark.

•

Do not smoke near the battery.

•

Failure to follow the instructions for

jump starting can lead to injury.

Related information

•

08 Starting and driving

216

Transmission – general information

The transmission automatically shifts between

the various forward gears, based on the level

of acceleration and speed.

G021351

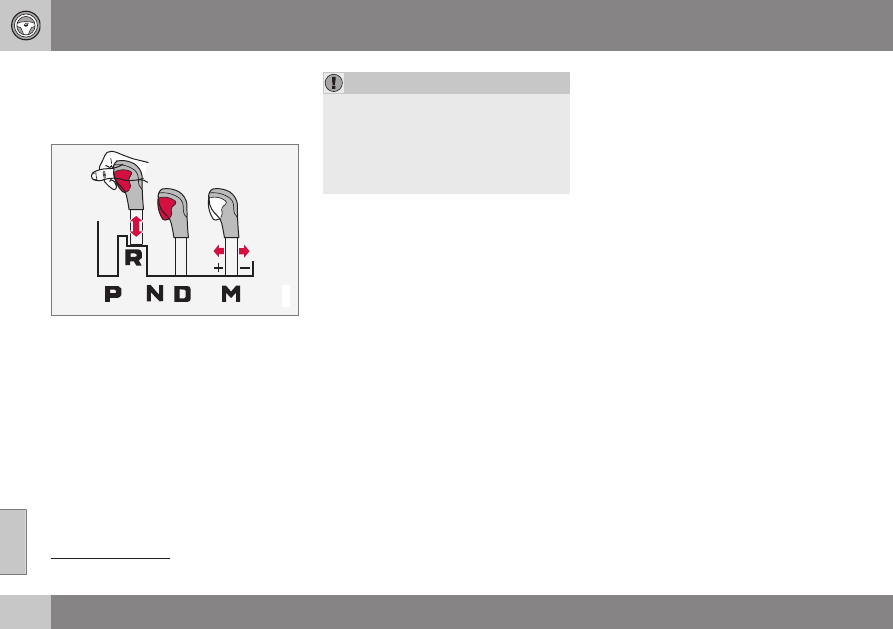

Shiftgate positions

Depress the button on the front of the gear

selector knob to move the gear selector

between the R, N, D, and P positions.
The gear selector can be moved freely

between the Geartronic (manual shifting) and

Drive (D) positions while driving.
