MAINTENANCE AND SERVICE

586

If the stone chip has not gone down to the
bare metal and an undamaged coat of paint
remains, apply base coat and clear coat
immediately after cleaning the surface.

Related information

•

Paintwork (p. 584)

•

Color codes (p. 586)

Color codes

Color code

The color code label is located on the left door
pillar and is visible when the left front door is
opened.

Sample color code (1): US models.

Sample color code (1): Canadian models.

It is important to use the right color.

Related information

•

Paintwork (p. 584)

•

Touching up minor paint damage (p. 585)

MAINTENANCE AND SERVICE

* Option/accessory.

587

Changing rear window wipers

The wiper blades help remove water from the
windshield and rear window. Along with the
washer fluid, they clean the glass and help
improve visibility while driving. The windshield
and rear window wiper blades can be replaced.

Changing rear window wipers

Lift the wiper arm from the window and pull the lower
section of the blade to the right.

Grasp the center of the wiper blade and

lift it from the window to the stop position.

NOTE

When the wiper arm is halfway folded out, it
will stop in a locking position that helps pre-
vent the arm from falling back onto the rear
window. The wiper arm must be pulled past
the locking position stop in order to change
the wiper blade.

Grip the lower part of the blade and pull

to the right until the blade loosens from the
arm.

3. Press the new wiper blade until it clicks into

place. Check to make sure the blade is
securely in place.

4. Fold the wiper arm back toward the window.

CAUTION

Check the blades regularly. Neglected main-
tenance shortens the life of the blades.

Related information

•

Using the rain sensor (p. 165)

•

Using the windshield and headlight washers
(p. 167)

•

Using automatic rear window wiping when
backing up (p. 168)

•

Heated windshield washer nozzles

* (p. 165)

•

Using the rain sensor's memory function
(p. 166)

•

Using the rear window wiper/washer
(p. 168)

•

Filling washer fluid (p. 590)

•

Windshield wipers in the service position
(p. 589)

•

Replacing windshield wiper blades (p. 588)

•

Using the windshield wipers (p. 164)

MAINTENANCE AND SERVICE

* Option/accessory.

588

Replacing windshield wiper blades

Replacing wiper blades

Raise the wiper arms to the service position.
Service position is activated/deactivated via
the function view in the center display when
the car is stationary and the windshield wip-
ers are not on. Press the button on the wiper
blade attachment and pull the wiper blade
straight out, parallel with the wiper arm.

Slide in a new wiper blade until it clicks into
place.

3. Check to make sure the blade is securely in

place.

4. Press the wiper blade back against the wind-

shield.

Wiper blades come in varying lengths.

NOTE

The wiper blades are different lengths. The
blade on the driver's side is longer than the
one on the passenger side.

Related information

•

Using the rain sensor (p. 165)

•

Using the windshield and headlight washers
(p. 167)

•

Using automatic rear window wiping when
backing up (p. 168)

•

Heated windshield washer nozzles

* (p. 165)

•

Using the rain sensor's memory function
(p. 166)

•

Using the rear window wiper/washer
(p. 168)

•

Filling washer fluid (p. 590)

•

Windshield wipers in the service position
(p. 589)

•

Changing rear window wipers (p. 587)

•

Using the windshield wipers (p. 164)

MAINTENANCE AND SERVICE

* Option/accessory.

589

Windshield wipers in the service

position

The windshield wiper blades must be in the serv-
ice (vertical) position when performing certain
operations, e.g. replacing the blades.

Windshield wipers in the service position.

The windshield wipers must be in the service
position when replacing, washing or lifting the
blades (e.g. to scrape ice or snow from the wind-
shield).

CAUTION

Before placing the wipers in service position,
ensure that they have not frozen to the wind-
shield.

Activating/deactivating service position

The service position can be activated/deactivated
when the vehicle is stationary and the windshield
wipers are switched off. Service position is acti-
vated/deactivated via Function view in the center
display:

Tap the

Wiper Service

Position

button. The indicator

light in the button will illuminate
when service position is acti-
vated. The windshield wipers
will move to the vertical posi-
tion when service position is

activated. To deactivate the service position, tap

Wiper Service Position

once. The indicator light

in the button will go out when service position is
deactivated.

The wiper blades will also move out of service
position if:

•

The windshield wipers are turned on.

•

The windshield washers are turned on.

•

The rain sensor is activated.

•

The vehicle begins moving.

CAUTION

If the wiper arms in service position are raised
from the windshield, they must be folded back
against the windscreen before activating wip-
ing, washing or rain sensor as well as before
departure. This is to prevent scratching the
paint on the hood.

Related information

•

Using the rain sensor (p. 165)

•

Using the windshield and headlight washers
(p. 167)

•

Using automatic rear window wiping when
backing up (p. 168)

•

Heated windshield washer nozzles

* (p. 165)

•

Using the rain sensor's memory function
(p. 166)

•

Using the rear window wiper/washer
(p. 168)

•

Filling washer fluid (p. 590)

•

Replacing windshield wiper blades (p. 588)

•

Changing rear window wipers (p. 587)

•

Using the windshield wipers (p. 164)

MAINTENANCE AND SERVICE

* Option/accessory.

590

Filling washer fluid

Washer fluid is used to keep the headlights,
windshield and rear window clean. Washer fluid
containing anti-freeze should be used in very
cold weather (below-freezing temperatures).

Fill washer fluid into the reservoir with the blue
cover. The reservoir is used for the windshield
washer, tailgate window washer and headlight
washer

NOTE

When there is approximately 1 liter (1 qt) of
washer fluid remaining, the message

Washer

fluid

Level low, refill

and the

symbol

will be displayed in the instrument panel.

Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during
cold weather and temperatures below the freez-
ing point.

CAUTION

Use Volvo's original washer fluid or an equiva-
lent fluid with the recommended pH value
between 6 and 8, diluted as recommended,
e.g. in a 1:1 solution with pH-neutral water.

CAUTION

Use washer fluid with anti-freeze when tem-
peratures are below the freezing point to help
keep the pump, reservoir and hoses from
freezing.

Volume:

•

Vehicles with headlight washing: 5.5 liters
(5.8 qts).

•

Vehicles without headlight washing: 3.5 lit-
ers (3.7 qts).

Related information

•

Using the rain sensor (p. 165)

•

Using the windshield and headlight washers
(p. 167)

•

Using automatic rear window wiping when
backing up (p. 168)

•

Heated windshield washer nozzles

* (p. 165)

•

Using the rain sensor's memory function
(p. 166)

•

Using the rear window wiper/washer
(p. 168)

•

Windshield wipers in the service position
(p. 589)

•

Replacing windshield wiper blades (p. 588)

•

Changing rear window wipers (p. 587)

•

Using the windshield wipers (p. 164)

SPECIFICATIONS

SPECIFICATIONS

592

Type designations

The decals in the vehicle contain information
such as chassis number, type designation, color
code, etc.

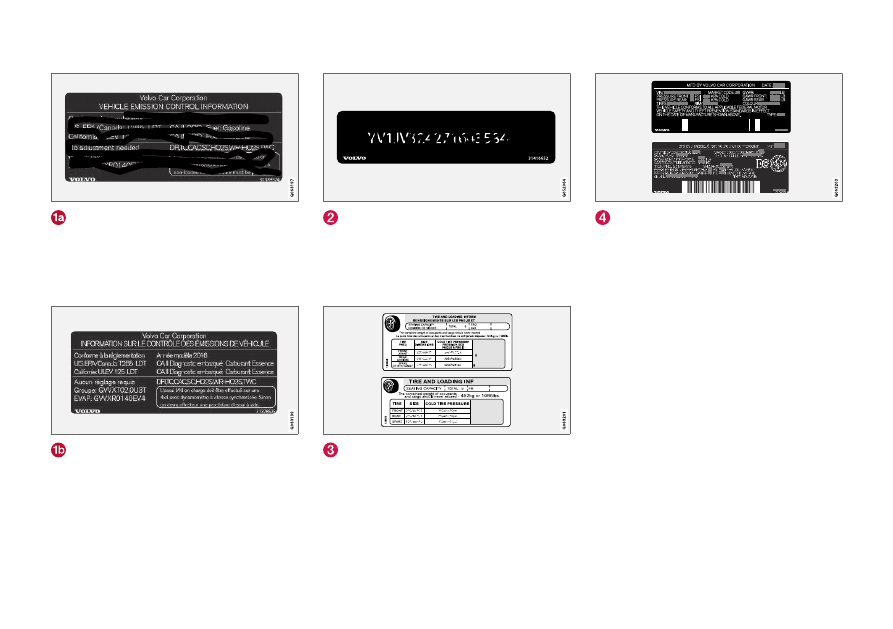

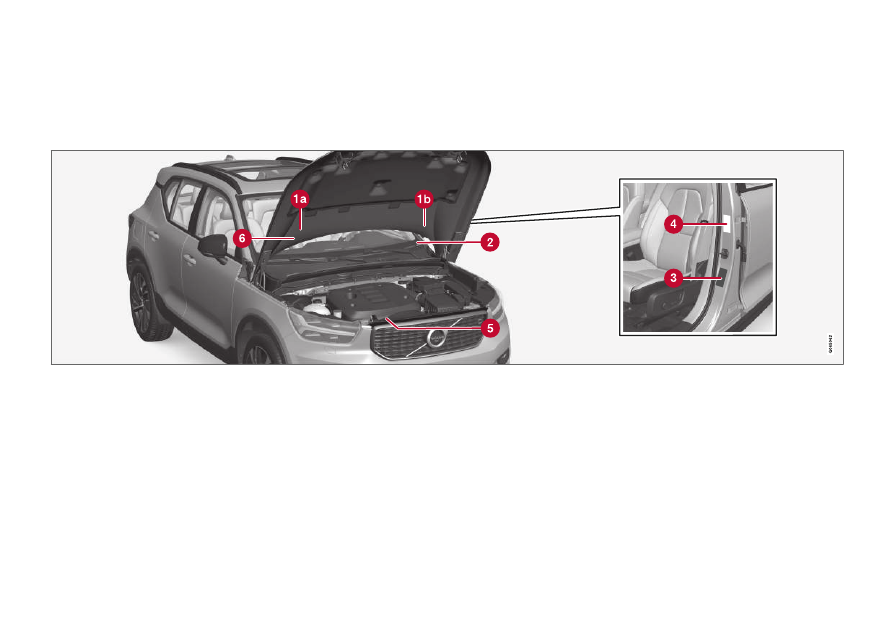

Location of decals

The illustration is general and details may vary depending on market and model.

SPECIFICATIONS

}}

593

Vehicle Emission Control Information. US

models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the
certification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

Vehicle Emission Control Information.

Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi-
denced by the certification label on the underside
of the hood. For further information regarding
these regulations, please consult your Volvo
retailer.

Vehicle Identification Number (VIN). The

VIN plate is located on the top left surface of the
dashboard. The Vehicle Identification Number
(VIN) should always be quoted in all correspond-
ence concerning your vehicle with the retailer and
when ordering parts.

Tire inflation pressures. This label indicates

the correct inflation pressures for the tires that
were on the vehicle when it left the factory.

Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry of
Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safety
standards, as evidenced by the certification label
on the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of the
driver's door opening). This label also includes
codes for paint color, etc. For further information
regarding these regulations, please consult your
Volvo retailer. U.S. models have the upper decal;
Canadian models have the lower one.

SPECIFICATIONS

594

Engine oil. This label contains the recom-

mended engine oil specifications.

Decal A/C. Refrigerant R134a.

NOTE

The decals shown in the Owner's Manual do
not claim to be exact reproductions of those
found in the vehicle. The purpose is to show
approximately how they look and about where
they are located on the vehicle. The informa-
tion that applies for your vehicle in particular
is found on the decal on the vehicle.

Related information

•

Air conditioning specifications (p. 602)

SPECIFICATIONS

}}

595

Dimensions

The vehicle's length, height, etc. are shown in
the table.

Dimensions

inches

Ground clear-
ance

205

8.1

Wheelbase

2702

106.4

Length

4425

174.2

Load length,
floor, folded
backrest

1670

65.7

Dimensions

inches

Load length,
floor

887

34.9

Height

1658

65.3

Load height

733

28.9

H Wheel track,

front

1601

63.0

Wheel track,
rear

1626

64.0

Dimensions

inches

Load width,
floor

1059

41.7

Width

1873
(1863

)

73.7
(73.3

)

SPECIFICATIONS

596

Dimensions

inches

Width incl. rear-
view mirrors

2034

80,1

M Width incl.

folded rearview
mirrors

1910

75.2

For curb weight + 1 person. Varies slightly depending on tire

dimension, chassis alternative, etc.).

Chassis width.

Related information

•

Weights (p. 597)

SPECIFICATIONS

597

Weights

The following table lists important weight data
for your vehicle.

Category

USA

(lbs)

Canada

(kg)

Max. trailer weights

Without brakes:

1650

750

With brakes:

3500

1600

Max. tongue weight

350

160

CAUTION

•

The maximum trailer weights listed are
only applicable for altitudes up to 3280 ft
(1,000 m) above sea level. With increas-
ing altitude the engine power and there-
fore the car's climbing ability are impaired
because of the reduced air density, so
the maximum trailer weight has to be
reduced accordingly. The weight of the
car and trailer must be reduced by 10%
for every further 3280 ft (1,000 m) (or
part thereof).

Related information

•

Type designations (p. 592)

•

Weights (p. 597)

•

Driving with a trailer (p. 414)

•

Trailer Stability Assist

* (p. 416)

SPECIFICATIONS

599

Engine specifications

Engine specifications (output, etc.) for each
engine variant are shown in the table below. The

specifications for Special Edition vehicles may
vary.

NOTE

Not all engines are available on all markets.

Engine

Engine code

Output

(kW/rps)

Output

(hp/rpm)

Torque

(Nm/rps)

Torque

(ft. lbs./rpm)

Number of cylinders

T5 AWD

B4204T18

185/92

248/5500

350/30-80

258/1800-4800

The engine code, component and manufacturer serial numbers can be found on the engine.

Related information

•

Type designations (p. 592)

•

Engine oil specifications (p. 600)

•

Coolant specifications (p. 601)

SPECIFICATIONS

600

Engine oil specifications

Fully synthetic engine oil of at least
ACEA A5/B5 must be used. Lower oil grades
may not offer the same fuel economy, engine
performance or engine protection.

Volvo recommends:

General

See the Service and warranty booklet for infor-
mation about oil change intervals.

NOTE

This vehicle is delivered from the factory with
synthetic oil.

Do not use oil additives.

Oil viscosity

The wrong oil viscosity can shorten engine serv-
ice life during normal use. SAE 5W-30 provides
good fuel economy and engine protection. See
the viscosity chart.

Viscosity chart

Extreme driving conditions

Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-
mended for extreme conditions.

Oil volume

The oil volume for the engine is:

Liter (approx.)

5.6

US qts (approx.)

5.9

Related information

•

Type designations (p. 592)

•

Checking and filling engine oil (p. 550)

•

Engine oil (p. 549)

SPECIFICATIONS

601

Coolant specifications

Recommended grade: Volvo-recommended
coolant diluted with 50% water. See package.
Consult a Volvo retailer if you have any ques-
tions.

Do not mix different types of antifreeze as this
could pose a health risk.

Related information

•

Refilling coolant (p. 552)

Transmission fluid specifications

Under normal driving conditions, the transmis-
sion fluid will not need to be changed during its
service life. However, it may need to be changed
if the vehicle is driven frequently in adverse driv-
ing conditions.

Automatic transmission

Prescribed transmission fluid:

AW1

Brake fluid specifications

The medium in the hydraulic brake system is
called brake fluid and is used to transfer braking
force from e.g. pressure on the brake pedal via a
master brake cylinder to one or more slave cylin-
ders, which in turn act on a mechanical brake.

Recommended grade: Volvo Original Dot 4
class 6 or equivalent.

NOTE

Changing or filling brake fluid should be
entrusted to an authorized Volvo workshop.

Related information

•

Engine compartment overview (p. 549)

Content .. 32 33 34 35 ..
