Volvo XC40 (2019 year). Instruction - part 32

Replacing rear turn signal bulbs (p. 555)

•

•

Replacing the brake light bulb (p. 556)

•

Replacing the rear fog light bulb (p. 557)

•

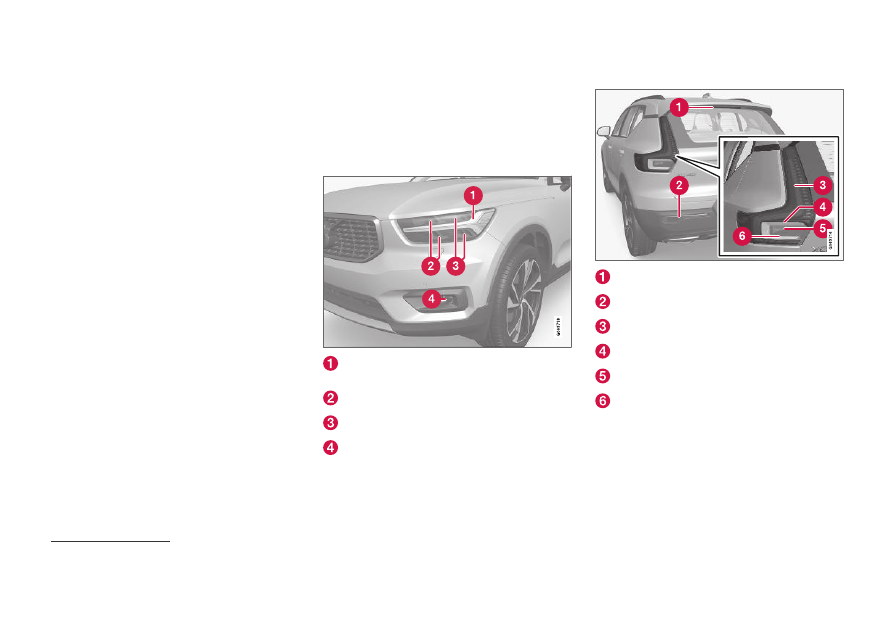

Location of exterior lights

The vehicle's exterior lighting consists of several
different bulbs. LED

bulbs must be replaced

by a workshop. An authorized Volvo workshop is
recommended.

Front lights

Daytime running lights/position lamps/direc-
tion indicators (LED)

High beam (LED)

Low beam (LED)

Front fog light/cornering illumination

* (LED)

Rear bulbs

Brake light

‒ central, high-mounted (LED

)

Fog light

Parking light (LED)

Turn signals

Brake lights

Backup light (LED)

Related information

•

Replacing bulbs (p. 553)

•

Lighting panel and controls (p. 140)

•

LED (Light Emmitting Diod)

MAINTENANCE AND SERVICE

}}

555

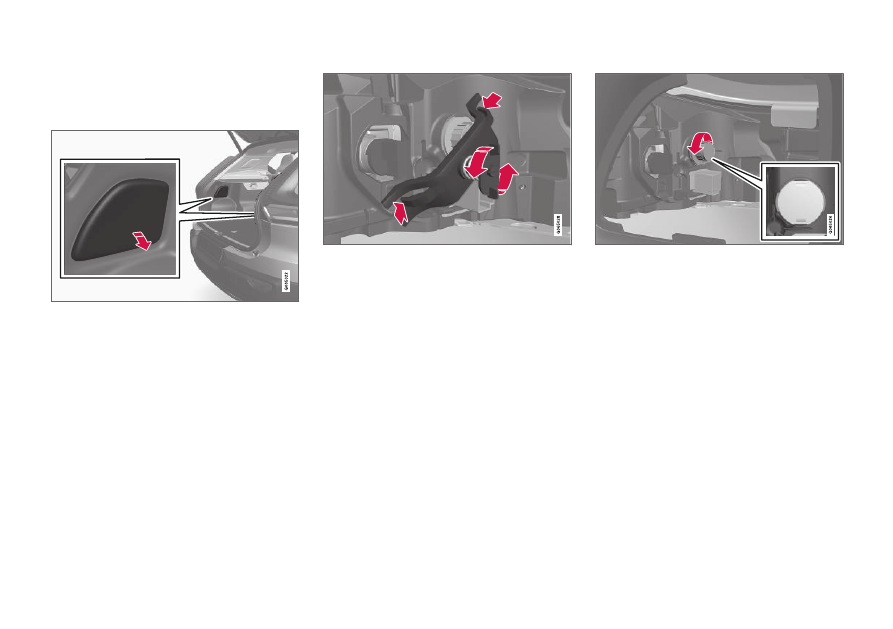

Replacing rear turn signal bulbs

The rear turn signal bulbs are located behind the
panel in the side of the cargo compartment.

1. Press in the top edge of the panel cover to

remove it.

2. Move aside the insulation to access the sup-

port bridge.

3. Unscrew the spring bolt counter-clockwise

and remove the supporting bridge. It is sim-
plest to leave one screw in place in the sup-
port bridge.

4. Remove the gray bulb holder by turning it

counterclockwise and pulling it out.

5. Remove the bulb by pressing it in and turn-

ing it counterclockwise.

6. Insert the new bulb by pressing it in and

turning it clockwise.

7. Put the panel back in place and turn it clock-

wise.

8. Install the support bridge using the supplied

spring screw and make sure that the clip is
positioned correctly. Tighten the spring screw
until it stops (max. 2 Nm).

9. Reposition the insulation, hook the panel and

then press it back into place.

MAINTENANCE AND SERVICE

556

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

Related information

•

•

•

Replacing bulbs (p. 553)

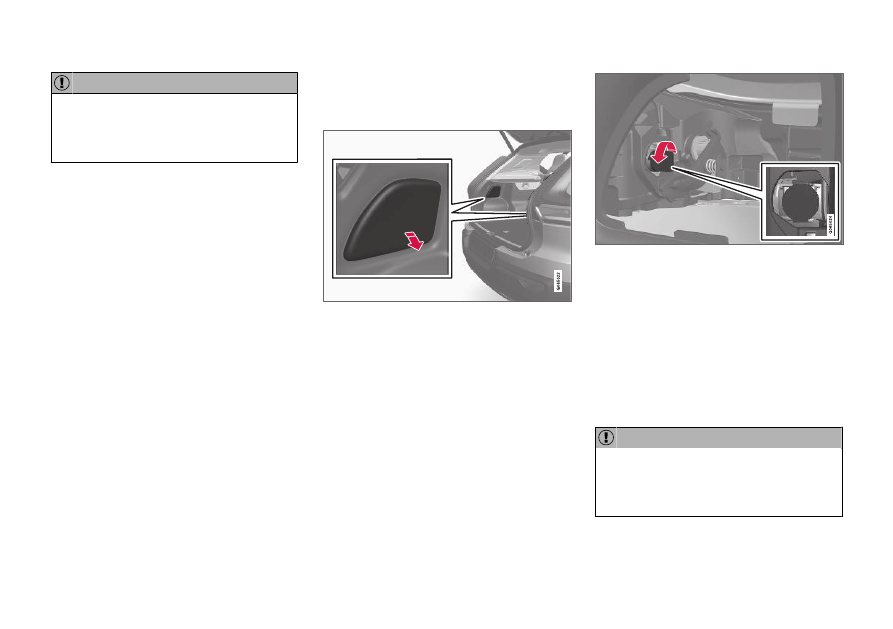

Replacing the brake light bulb

The brake light bulbs are located behind the
panel in the side of the cargo compartment.

1. Press in the top edge of the panel cover to

remove it.

2. Move aside the insulation to access the

brake light bulb.

3. Remove the black bulb holder by turning it

counterclockwise and pulling it out.

4. Remove the bulb by pressing it in and turn-

ing it counterclockwise

5. Insert the new bulb by pressing it in and

turning it clockwise.

6. Put the panel back in place and turn it clock-

wise.

7. Reposition the insulation, hook the panel and

then press it back into place.

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

MAINTENANCE AND SERVICE

557

Related information

•

•

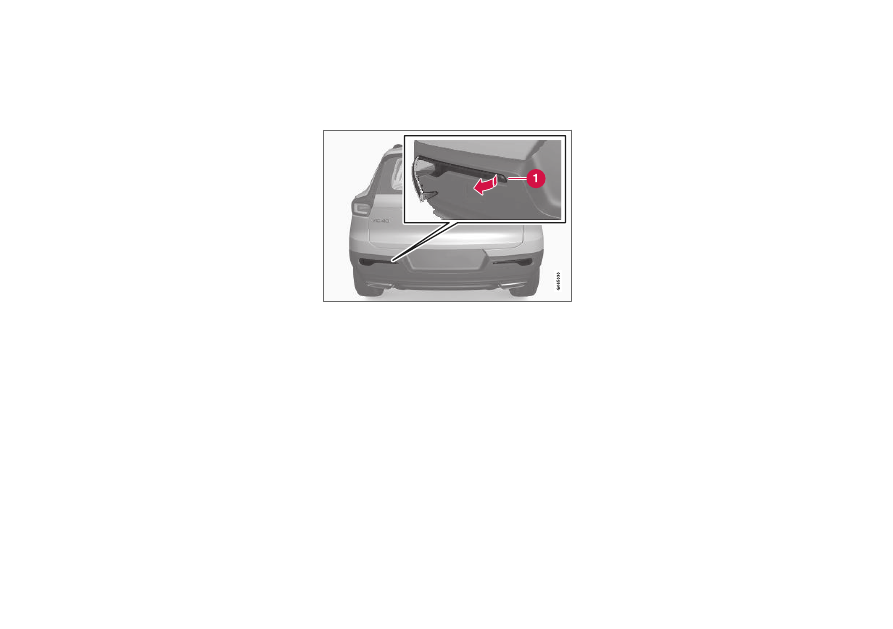

Replacing the rear fog light bulb

The rear fog light is located in the rear bumper
on the driver's side.

The rear fog light is only located on the driver's side.

1. Remove the fog light unit on the driver's side

by inserting a flat object (e.g. a kitchen knife
or screwdriver) behind the light kit's narrower
short side and prying out the fog light unit.

2. Unplug the connector.
3. Remove the bulb holder by turning it coun-

terclockwise and pulling it out.

4. Remove the bulb by pressing it in and turn-

ing it counterclockwise.

5. Insert the new bulb by pressing it in and

turning it clockwise.

6. Put the panel back in place and turn it clock-

wise.

7. Plug in the connector.
8. Insert the hook on the wide part of the fog

light unit in the rear bumper and rotate the
unit until the clips fasten into place.

Related information

•

•

MAINTENANCE AND SERVICE

558

Bulb specifications

The following specifications apply to the bulbs in
the rear turn signals, brake lights and rear fog
light.

If you are experiencing problems with any other
lights, contact a workshop

Function

Type

Rear turn signals

PY24W

Brake lights

H21W LL

Rear fog light

H21W LL

Watt

Related information

•

•

Replacing bulbs (p. 553)

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

}}

559

Start battery

The vehicle has a single-pole electrical system
that uses the chassis and engine mount as con-
ductors.

The start battery is used to start the electrical
system and power the starter motor and other
electrical equipment in the vehicle.

The start battery should only be replaced by a
workshop

The vehicle has a voltage-regulated alternating
current generator.

The starter battery is a 12 V battery, designed for
the carbon dioxide reducing functions Start/Stop
and regenerative charging, and to support the
functionality of the car's different systems.

The service life and performance of the start bat-
tery are affected by factors such as driving style,
driving conditions, climate, battery discharges,
number of starts, etc.

•

Never disconnect the start battery while the
engine is running.

•

Make sure the cables to the start battery are
correctly connected and the clamps are
securely tightened.

WARNING

•

Batteries generate hydrogen gas, which
is flammable and explosive.

•

Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.

•

Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces.

•

If contact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.

•

Never expose the battery to open flame
or electric spark. Do not smoke near the
battery. Failure to follow the instructions
for jump starting can lead to injury.

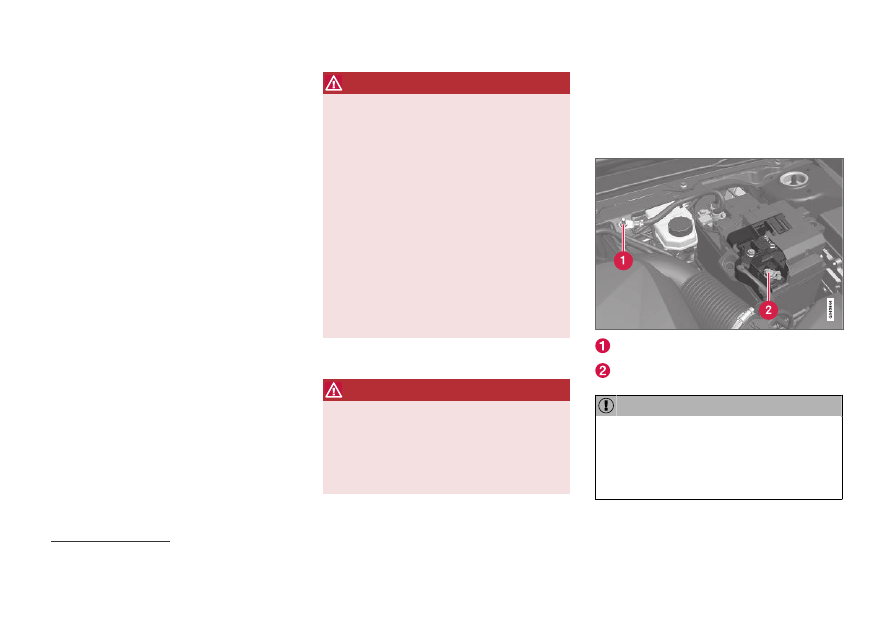

Connection points

WARNING

PROPOSITION 65 WARNING

Battery posts, terminals, and related accesso-

ries contain lead and lead compounds, chemi-

cals known to the state of California to cause

cancer and reproductive harm. Wash hands

after handling.

Use the vehicle's connection points in the engine
compartment to connect an external start battery
or battery charger.

If the start battery is being charged, the support
battery will also be charged.

Negative connection point

Positive connection point

Only a modern battery charger with controlled
charge voltage should be used to charge the
starter battery and support battery. The rapid
charging function should not be used as this
could damage the battery.

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

560

Failure to observe the following could cause
the infotainment energy save mode to tempo-
rarily stop working and/or a message in the
driver's display regarding the state of charge
of the starter battery may be temporarily
incorrect after an external starter battery or
battery charger has been connected:

•

The negative battery terminal of the vehi-
cle's starter battery must never be used
to connect an external starter battery or
battery charger – only the vehicle's neg-
ative charging point should be used as
a grounding point.

If the starter battery becomes discharged too
many times, it will shorten its service life.

The service life of the starter battery is affec-
ted by several factors, such as driving condi-
tions and climate. The starting capacity of the
battery reduces gradually over time. The bat-
tery must therefore be recharged if the vehi-
cle is not used or a long period of time or if it
is only driven short distances. Severe cold fur-
ther limits the starting capacity.

To keep the starter battery in a good condi-
tion, the vehicle should be driven at least
15 minutes per week or the battery should be
connected to a battery charger with automatic
trickle charging.

A starter battery that is always kept fully
charged has the maximum service life.

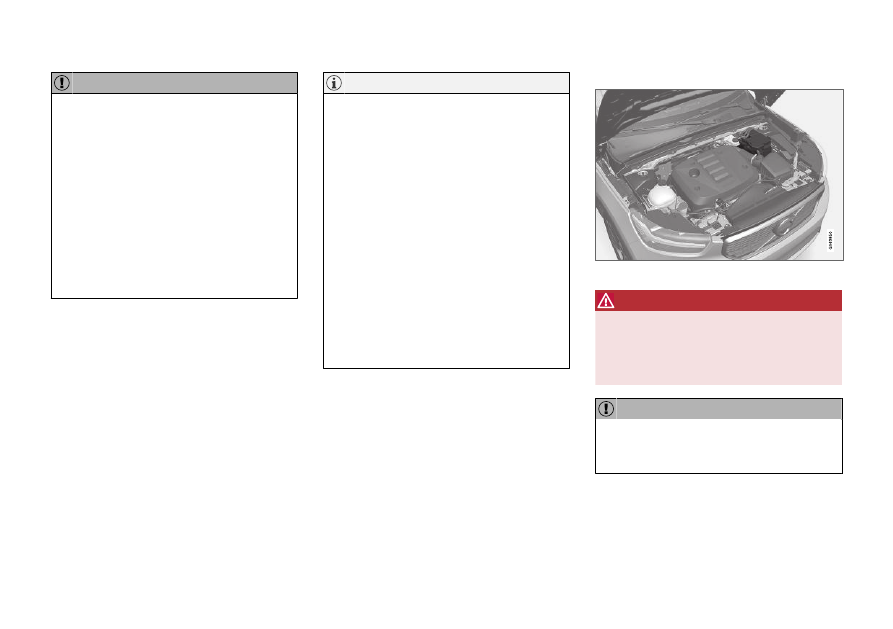

Location

The start battery is located in the engine compartment.

WARNING

If the starter battery is disconnected, the func-

tion for automatic opening and closing must

be reset to function correctly. A reset is

required in order for the pinch protection to

work.

On certain models, the battery is secured with
a tensioning strap. Make sure that the ten-
sioning strap is always securely tightened.

MAINTENANCE AND SERVICE

561

Specifications

Battery

H6 AGM

H6 EFB

H7 AGM

Voltage (V)

Cold start capacity

- CCA

(A) 760

720

800

Dimensions, L×W×H

278×175×190 mm (10.9×6.9×7.5
inches)

315×175×190 mm (12.4×6.9×7.5
inches)

Capacity (Ah)

According to EN standard.

Cold Cranking Amperes.

Volvo recommends that batteries are replaced by
an authorized Volvo workshop.

When replacing the starter battery or support
battery, a battery of the same type as the pre-
vious battery must be installed.

If replacing the starter battery, make sure you
replace it with a battery with the same cold
start capacity and type as the original battery
(see the decal on the battery).

Jump starting using another battery (p. 412)

The size of the starter battery should conform
to the dimensions of the original battery.

Related information

•

Battery symbols (p. 563)

•

Support battery (p. 562)

•

MAINTENANCE AND SERVICE

562

Support battery

In addition to the start battery, vehicles equipped
with the Start/Stop function also have a support
battery.

Vehicles with the Start/Stop function are equip-
ped with two 12-volt batteries

‒ a heavy-duty

start battery and a support battery that provides
extra current during the Start/Stop function's
start sequence.

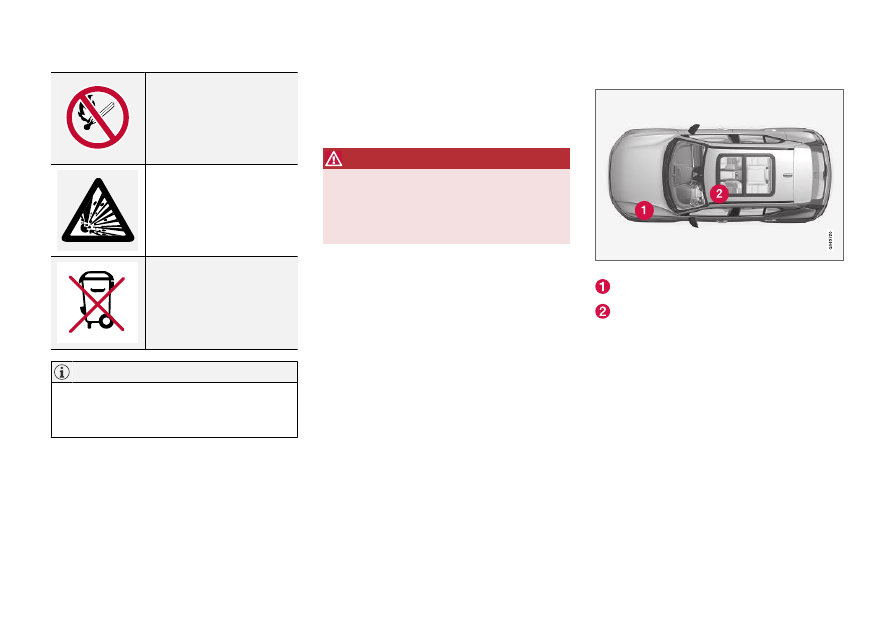

The support battery is located in the engine compart-
ment. The start battery is also shown here (top).

•

The higher the current consumption in
the vehicle, the more the alternator has to
work and the batteries have to be
charged = increased fuel consumption.

•

When the starter battery capacity has
dropped below the lowest permissible
level, the Start/Stop function is disen-
gaged.

When the Start/Stop function is temporarily
reduced due to high current consumption:

•

The engine will auto-start, even if the driver
does not lift their foot from the brake pedal.

The support battery does not normally require
more service than the start battery. If you have
any questions or concerns, consult a workshop

‒

an authorized Volvo workshop is recommended.

If the following is not observed, the Start/
Stop function may temporarily stop working
after connection of an external starter battery
or battery charger:

•

MAINTENANCE AND SERVICE

}}

563

If the starter battery is discharged to the
extent that the vehicle does not have normal
electrical functions and the engine must then
be jump-started with an external battery or a
battery charger, the Start/Stop function may
remain activated. If the Start/Stop function
shortly thereafter auto-stops the engine, there
is a huge risk that auto-start of the engine will
fail due to insufficient battery capacity since
the battery had not had time to recharge.

If the vehicle has been jump-started or if
there has not been enough time for the bat-
tery to be charged with a battery charger, it is
advisable to temporarily deactivate the
Start/Stop function until the battery has been
recharged by the vehicle. At an ambient tem-
perature of about +15°C (about 60°F), the
battery must be charged by the vehicle for at
least one hour. At lower ambient tempera-
tures, the charging time can increase to
3-4 hours. It is advisable to charge the battery
with an external battery charger.

Specifications

Voltage (V)

Cold start capacity

CCA

(A)

170

Dimensions, L×W×H

150×90×130 mm

(5.9×3.5×5.1

inches)

Capacity (Ah)

According to EN standard.

Cold Cranking Amperes.

Start/Stop function (p. 395)

When replacing the starter battery or support
battery, a battery of the same type as the pre-
vious battery must be installed.

Related information

•

Start battery (p. 559)

•

•

Battery symbols (p. 563)

Battery symbols

There are warning symbols and information on
the batteries.

Wear protective goggles.

See the Owner's Manual for

additional information.

Keep batteries away from

children.

Batteries contain corrosive

acid.

MAINTENANCE AND SERVICE

564

Avoid smoking, open

flames, and/or sparks.

Risk of explosion.

Recycle properly.
