Volvo XC40 (2019 year). Instruction

MAINTENANCE AND SERVICE

}}

* Option/accessory.

571

There are spaces for several extra fuses in the
distribution box in the engine compartment.
Fuse pliers are provided on the inside of the fuse
box cover to assist in removing and inserting
fuses.

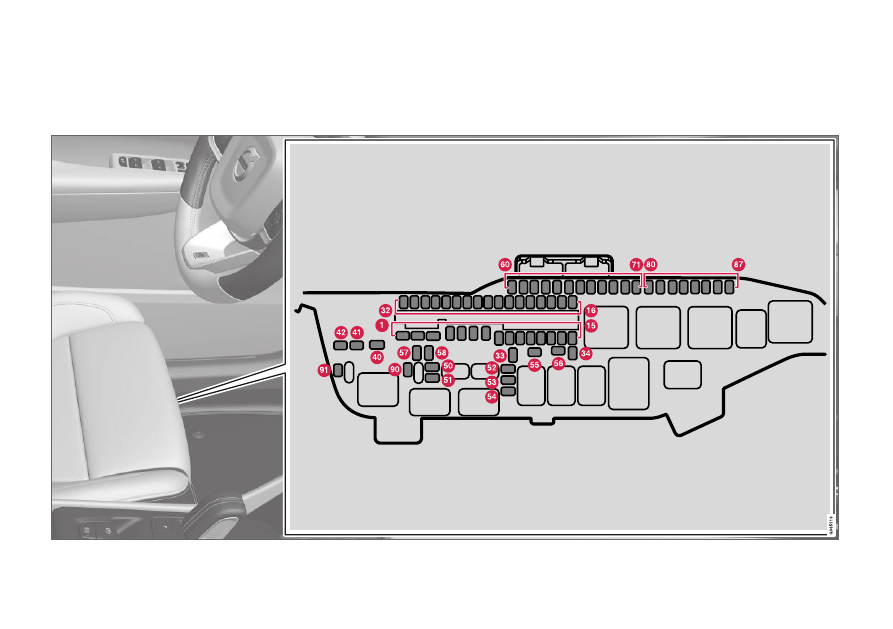

Positions

•

Fuses 1–8, 40–42 and 55–58 are "MCase"
fuses and should only be replaced by a work-
shop

•

Fuses 9–34, 50–54 and 60–91 are "Micro"
fuses.

Function

Audio control module (amplifier)
(certain models only)

Central Electric Module A: Sensors,
radar sensors, power seats

Central Electric Module B: Sensors,
radar sensors, power seats

Climate system blower module
(front)

Power tailgate

Power seat

*, right

Parking heater

Function

Control module for reduction of
nitrous oxides (diesel)

Sun sensor

Door module in right-side rear door

Door module in left-side rear door

Door module in left-side front door

–

Door module in right-side front
door

Seat heating, rear

–

Control module for reduction of
nitrous oxides (diesel)

–

Climate system control module

7.5

Movement sensor

Instrument panel

Function

Center console buttons

Steering wheel module

Module for start knob and parking
brake controls

Center display

Control module for Internet-con-
nected vehicle; Control module for
Volvo On Call

Multi-band antenna module

Relay coils

Foot movement detection module
for opening the power tailgate

Sensus control module

* (certain markets only)

Data link connector OBD-II

–

Lock motor for rear seat backrest,
left side

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

* Option/accessory.

572

Function

Lock motor for rear seat backrest,
right side

Heated rear window

Seat belt tensioner module (left
side)

Seat belt tensioner module (right
side)

Humidity sensor

Fuel pump control module

Coolant pump

Heated steering wheel

* module

–

Headlight washers

Rear window washer

–

Function

–

Module for seat belt tensioners

Blind Spot Information (BLIS)

Exterior reverse signal control mod-
ule

–

Sun sensor

All Wheel Drive (AWD) control
module

Coolant pump

Park Assist Camera

–

Control module for airbags and
seat belt tensioners

Rear window wiper

Panoramic roof with sun curtain

–

Function

Interior lighting; rearview mirror
autodimming

*; rain and light sen-

sor

*; control panels in rear doors

and load compartment

7.5

–

Control module for driver support
functions

–

Wireless phone charger

*; USB port

–

Ampere

Related information

•

Fuses and fuseboxes (p. 564)

•

Replacing fuses (p. 565)

MAINTENANCE AND SERVICE

}}

573

Cleaning the interior

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

CAUTION

•

Some colored clothing (for example, dark
jeans and suede garments) may stain the
upholstery. If this occurs, it is important to
clean and treat these parts of the uphols-
tery as soon as possible.

•

Never use strong solvents such as
washer fluid, gasoline, mineral spirit or
concentrated alcohol to clean the interior
as this can damage the upholstery as
well as other interior materials.

•

Never spray cleaning agent directly onto
components that have electrical buttons
and controls. Wipe instead with a damp
cloth with cleaning agent.

•

Sharp objects and Velcro can damage
the car's textile upholstery.

Related information

•

Cleaning the center display (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

Cleaning the center display

Marks, stains, finger smudges etc. on the center
display may affect its performance and readabil-
ity. Clean the screen regularly with a microfiber
cloth.

To clean the center display:

1. Turn off the center display by pressing and

holding the Home button.

2. Wipe the screen clean with the microfiber

cloth provided or use another microfiber
cloth of similar quality. Wipe the screen with
a clean, dry microfiber cloth using small, cir-
cular motions. If necessary, moisten the cloth
slightly.

3. Reactivate the display by pressing the Home

button briefly.

MAINTENANCE AND SERVICE

574

CAUTION

The microfiber cloth must be free of sand and
dirt when cleaning the center display.

CAUTION

When cleaning the center display, apply only
light pressure to the screen. Pressing too
hard could damage the screen.

CAUTION

Do not spray liquid or corrosive chemicals
directly onto the center display. Do not use
window cleaners, cleaning agents, aerosol
sprays, solvents, alcohol, ammonia or deter-
gents that contain abrasives.

Never use abrasive cloths, paper towels or tis-
sue paper, as these may scratch the center
display.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

Cleaning fabric upholstery and

ceiling liner

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

Fabric upholstery and ceiling liner

Never scrape or rub a stain, as this could damage
the upholstery. Never use strong stain removers,
as this could change the color of the upholstery.

Use soapy water or a similar detergent. For more
difficult stains caused by oil, ice cream, shoe pol-
ish, etc., use a stain remover. Consult with your
Volvo retailer.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

MAINTENANCE AND SERVICE

}}

575

Cleaning the seat belt

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

Seat belts

Use water and a synthetic soap solution. Spe-
cially designed textile cleaning agents are availa-
ble for purchase at Volvo retailers. Make sure the
belt is dry before it is retracted.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

Cleaning floor mats and inlay mats

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

Inlay mats and floor mats

Remove the inlay mats to clean the floor mats
and inlay mats separately. Use a vacuum to
remove dust and dirt. Each inlay mat is secured
into place with pins.

Remove the inlay mat by grasping the inlay mat
at each pin and lifting the mat straight up.

Put the inlay mat back into place by pressing it in
at each pin.

WARNING

•

Never use more than one inlay mat at a
time on the driver's floor. If any other type
of floor mat is used, remove the original
mat from the driver's seat floor before
driving. All types of mats must be securely
anchored in the attachment points in the
floor. Make sure the floor mat does not
impede the movement of the brake pedal
or accelerator pedal in any way, as this
could be a serious safety hazard.

•

Volvo's floor mats are specially manufac-
tured for your vehicle. They must be prop-
erly secured in the attachment points in
the floor to help ensure they cannot slide
and become trapped under the pedals.

After vacuuming, a specially designed textile
cleaning agent should be used to remove stains
on floor mats. Floor mats should be cleaned with
products recommended by Volvo retailers.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning leather upholstery (p. 576)

MAINTENANCE AND SERVICE

* Option/accessory.

576

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

Cleaning leather upholstery

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

Leather upholstery

Volvo's leather upholstery is treated to protect its
original appearance. Over time, sunlight, grease,
dirt, etc. could break down the protective layer.
This could result in scratches and cracking.

Leather upholstery is a natural product that
changes and acquires a beautiful patina over
time. Regular cleaning and treatments are
required to preserve the qualities and color of the
leather. Volvo offers a comprehensive product,
Volvo Leather Care Kit/Wipes, for cleaning and
treating leather upholstery that, when used as
directed, preserves the leather's protective coa-
ting.

For best results, Volvo recommends cleaning and
applying protective cream one to four times a
year (or more as needed). Volvo Leather Care Kit
951 0251 and Volvo Leather Softener 943
7429 are available for purchase at Volvo retailers.

Cleaning the leather upholstery

1. Apply the leather cleaner to a damp sponge

and squeeze it until the cleaner foams.

2. Move the sponge in circular motions to apply

the foam to the stain.

3. Dampen the stain thoroughly with the

sponge. Let the sponge absorb the stain and
do not rub.

4. Dry the stain using a soft towel and let the

leather dry completely.

Protecting the leather upholstery

1. Apply a small amount of leather protector to

a cloth and then apply the protector to the
leather using light circular movements.

2. Let it dry for approximately 20 minutes.

Protecting the leather upholstery makes it better
able to withstand sunlight's harmful UV rays.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning the leather steering wheel
(p. 577)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

MAINTENANCE AND SERVICE

}}

577

Cleaning the leather steering wheel

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results. It is
important to vacuum before using a cleaning
agent.

Leather steering wheel

Leather needs to breathe. Never cover the
leather steering wheel with a plastic protector.
Volvo Leather Care Kit 951 0251 and Leather
Softener 943 7429 are recommended for clean-
ing the leather steering wheel. First, remove dirt,
dust, etc. with a damp sponge or cloth.

CAUTION

Sharp objects such as rings could damage
the leather on the steering wheel.

If there are stains on the steering wheel:

Type 1(ink, wine, coffee, milk, sweat or blood)

–

Use a soft cloth or sponge. Wipe the steering
wheel using a solution of 5% ammonia. For
blood stains, mix approximately 2 dl(1 cup) of
water with 25 g (one ounce) of salt and wipe
the stain.

Type 2(grease, oil, sauces or chocolate)

1. Same procedure as for Type 1 stains.

2. Finish by wiping the wheel with an absorbent

paper or towel.

Type 3(dry dirt or dust)

1. Remove the dirt/dust using a soft brush.

2. Same procedure as for Type 1 stains.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning interior plastic, metal and wood sur-
faces (p. 577)

Cleaning interior plastic, metal and

wood surfaces

Only use cleaning agents and car care products
recommended by Volvo. Clean regularly and
treat stains immediately for best results.

Interior plastic, metal and wood
surfaces

A lightly dampened microfiber cloth is recom-
mended for cleaning interior details and surfaces.
These cloths are available for purchase at Volvo
retailers.

Never scrape or rub a stain. Never use strong
stain removers.

CAUTION

Do not use solvent containing alcohol to
clean the instrument panel glass.

CAUTION

Keep in mind that glossy surfaces can be
easily scratched. Wipe these surfaces with a
clean and dry microfiber cloth using small, cir-
cular motions. If necessary, moisten the cloth
lightly with clean water.

Related information

•

Cleaning the interior (p. 573)

•

Cleaning the center display (p. 573)

MAINTENANCE AND SERVICE

578

•

Cleaning fabric upholstery and ceiling liner
(p. 574)

•

Cleaning the seat belt (p. 575)

•

Cleaning floor mats and inlay mats (p. 575)

•

Cleaning leather upholstery (p. 576)

•

Cleaning the leather steering wheel (p. 577)

Cleaning the exterior

The vehicle should be washed as soon as it
becomes dirty. This makes the vehicle easier to
clean because dirt does not attach as strongly. It
also reduces the risk of scratches and keeps the
vehicle looking new. Wash the vehicle in a car
wash or garage with an oil separator. Use a car
washing detergent.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

Polishing and waxing

Polish and wax the vehicle when the paint is
matte or to provide extra protection. The vehicle
does not need to be polished until it is at least a
year old. However, it can be waxed during the
first year. Do not polish or wax the vehicle in
direct sunlight. The surface of the vehicle should
not be warmer than approximately 45 °C
(113 °F).

•

Wash and dry the vehicle very carefully
before polishing or waxing. Remove asphalt
and tar stains with asphalt remover or paint
thinner. More stubborn stains can be
removed with a grinding paste designed for
vehicle paint.

•

Use polish first and then liquid or paste wax.
Follow the instructions on the package care-
fully. Many products contain both polish and
wax.

•

A wide range of polymer-based waxes can
be purchased today. These waxes are easy to
use and produce a long-lasting, high-gloss
finish that protects the bodywork against oxi-
dation, road dirt and fading.

MAINTENANCE AND SERVICE

}}

579

CAUTION

Avoid waxing and polishing plastic and rubber.

If using degreaser on plastic and rubber, only
rub (if necessary) with slight pressure. Use a
soft sponge.

Polishing glossy trim moldings can wear away
or damage the glossy surface layer.

Polish containing abrasives must not be used.

CAUTION

Only use paintwork treatments recommended
by Volvo. Other treatments, such as preserva-
tion, sealing, protection, luster sealing or simi-
lar, could damage the paintwork. Paintwork
damage caused by such treatments are not
covered by Volvo's warranty.

Related information

•

Cleaning the exterior (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

Hand washing

Keep the following points in mind when washing
the vehicle:

•

Avoid washing the vehicle in direct sunlight.
This could cause the detergent or wax to dry
out and become abrasive.

•

Remove bird droppings from paintwork as
soon as possible. They contain chemicals
that affect and discolor paint very quickly.
Use e.g. soft paper or a sponge soaked in
lots of water. Consult an authorized Volvo
workshop for assistance removing discolora-
tion.

•

Hose down the underbody, including the
wheel housings and bumper.

•

Hose down the entire vehicle and remove
any loose dirt, droppings etc. to reduce the
risk of scratches from washing. Do not spray
directly onto locks.

•

If necessary, use cold degreaser on heavily
soiled surfaces. Note that in such cases the
surfaces must not be hot from the sun.

•

Wash using a sponge, car washing detergent
and plenty of lukewarm water.

•

Clean the wiper blades with lukewarm soap
solution or car washing detergent.

•

Dry the vehicle using a clean, soft chamois or
a squeegee. Try not to let drops of water dry
in strong sunlight. This could cause water
drying stains that may need to be polished
out.

•

In areas with heavy industrial emissions,
more frequent washing of the vehicle's exte-
rior is recommended.

•

Tar spots from asphalt may remain even after
washing. Use a tar remover to remove these
spots after washing the vehicle.

WARNING

Always entrust engine washing to a workshop.

If the engine is hot, there is a risk of fire.

CAUTION

Dirty headlights do not work as well. Clean
them regularly, e.g. when refueling.

Do not use corrosive cleaners. Use water and
a non-abrasive sponge.

MAINTENANCE AND SERVICE

580

NOTE

Exterior lighting such as headlights and tail-
lights may develop temporary condensation
on the inside of the lens. This is normal. All
exterior lighting is designed to resist this.
Condensation is normally vented out of the
lamp housing once the light has been lit for
some period of time.

CAUTION

•

Make sure that the panoramic roof and
sun shade are closed before washing the
vehicle.

•

Never use abrasive polishing agents on
the panoramic roof.

•

Never use wax on the rubber seals
around the panoramic roof.

CAUTION

Remember to remove dirt from the drain
holes in the doors and sills after washing the
vehicle.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

Automatic car washes

An automatic car wash is a fast and easy way to
keep your vehicle clean, but it does not reach all
areas of the vehicle. For best results, Volvo rec-
ommends hand washing your vehicle or supple-
menting automatic car washes with a hand wash.

NOTE

Volvo recommends not washing the vehicle in
an automatic car wash during the first few
months; the paintwork on new vehicles takes
some time to fully harden.

CAUTION

Before driving the vehicle into a car wash,
deactivate the Automatic Braking when Sta-
tionary and Automatic Parking Brake Applica-
tion functions. If the functions are not deacti-
vated, the brake system will seize when the
vehicle is stationary and the vehicle will not be
able to roll.

MAINTENANCE AND SERVICE

581

CAUTION

For automatic car washes in which the vehicle
is pulled forward on rolling wheels:

1. Before washing the vehicle, make sure

that the automatic rain sensor is deacti-
vated. If it is not deactivated and inadver-
tently starts, the wiper arms could be
damaged.

2. To help prevent damage from the auto-

matic car wash machinery, make sure
that the door mirrors are folded in, anten-
nas retracted or removed, and any auxili-
ary lights secured.

3. Drive into the automatic car wash.
4. Turn off the "Automatic Braking when

Stationary" function using the switch in
the tunnel console.

5. Turn off the "Automatic Parking Brake

Application" function in the center dis-
play's Top view.

6. Turn off the engine by pressing the start

button next to the steering wheel. Press
and hold the button for at least
2 seconds.

The vehicle is now ready for the automatic car
wash.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

High-pressure washing

If washing the vehicle with a high-pressure wash,
use sweeping movements and keep the nozzle at
least 30 cm (13 in.) from the vehicle. Do not
spray directly onto locks.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

MAINTENANCE AND SERVICE

* Option/accessory.

582

Cleaning the wiper blades

Wiper blades

Asphalt, dust and salt residue on wiper blades, as
well as insects, ice etc. on the windshield, shorten
the service life of wiper blades.

When cleaning, put the wiper blades in the serv-
ice position.

NOTE

Wash the wiper blades and windshield regu-
larly with a lukewarm soap solution or vehicle
shampoo. Do not use strong solvents.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

Cleaning exterior plastic, rubber and

trim components

Exterior plastic, rubber and trim
components

A special cleaning agent available from Volvo
retailers is recommended for the cleaning and
care of colored plastic parts, rubber and trim
components, e.g. glossy trim. Follow the usage
instructions for the cleaning agent carefully.

Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5. Doing
so could result in the discoloring of anodized alu-
minum surfaces

* (as shown in the illustrations

below). Abrasive polishing agents are not recom-
mended for these areas (as shown in the illustra-
tions below).

MAINTENANCE AND SERVICE

583

Components that should be washed with a cleaning
product with a pH value between 3.5 and 11.5.

CAUTION

Avoid waxing and polishing plastic and rubber.

If using degreaser on plastic and rubber, only
rub (if necessary) with slight pressure. Use a
soft sponge.

Polishing glossy trim moldings can wear away
or damage the glossy surface layer.

Polish containing abrasives must not be used.

CAUTION

Avoid washing the vehicle with cleaner with a
pH value below 3.5 or above 11.5. This could
cause discoloration of anodized aluminum
components like the roof rail and around the
side windows.

Never use metal polishing agent on anodized
aluminum components. This could cause dis-
coloration and destroy the surface treatment.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

Cleaning rims

Rims

Only use rim cleaning products recommended by
Volvo.

Strong rim cleaning agents could damage the
surface and stain the chromed aluminum rims.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

•

Corrosion protection (p. 584)

MAINTENANCE AND SERVICE

584

Corrosion protection

Your vehicle is constructed with effective protec-
tion against corrosion.

Corrosion protection for the body consists of
modern metallic protective coatings on the sheet
metal, a high-quality painting process, corrosion-
protected and minimized metal overlap, and
shielding plastic components, abrasion protection
and supplemental rust inhibitor in exposed areas.
In the chassis, exposed components of the wheel
suspension are made of corrosion-resistant cast
aluminum.

Inspection and maintenance

The corrosion protection does not normally
require maintenance, but keeping the vehicle
clean is always a good way to further reduce the
risk of corrosion. The use of strong alkaline or
acidic cleaning fluids should always be avoided
on shiny body components. Any stone chips in
the paint should be touched up as soon as they
are discovered.

Related information

•

Cleaning the exterior (p. 578)

•

Polishing and waxing (p. 578)

•

Hand washing (p. 579)

•

Automatic car washes (p. 580)

•

High-pressure washing (p. 581)

•

Cleaning the wiper blades (p. 582)

•

Cleaning exterior plastic, rubber and trim
components (p. 582)

•

Cleaning rims (p. 583)

Paintwork

The paintwork consists of multiple layers. It is an
important part of the vehicle's corrosion protec-
tion and therefore needs to be checked regu-
larly.

The most common types of paint damage are
minor stone chips, scratches and damage to e.g.
the edges of fenders, doors and bumpers. To
help prevent corrosion, paint damage should be
rectified immediately.

Related information

•

Touching up minor paint damage (p. 585)

•

Color codes (p. 586)

MAINTENANCE AND SERVICE

}}

585

Touching up minor paint damage

The paintwork is an important part of the vehi-
cle's corrosion protection and therefore needs
to be checked regularly. The most common
types of paint damage are minor stone chips,
scratches and damage to e.g. the edges of
fenders, doors and bumpers.

When repairing paint damage, the vehicle must
be clean, dry and have a temperature above
15 °C (60 °F).

Touching up minor paint damage

To help prevent corrosion, paint damage should
be rectified immediately.

NOTE

When repairing paintwork, it must be clean,
dry and at a temperature of at least 15°C.

Materials that might be needed

•

Primer

‒ special adhesive primer is availa-

ble in a spray can for e.g. plastic-covered
bumpers.

•

Base coat and clear coat

‒ available in spray

cans or as a touch-up pen/stick

•

Masking tape.

•

Fine-grain sandpaper

If the damage has not reached all the way down
to the metal, then touch-up paint can be applied
immediately after the surface has been cleaned.

NOTE

Make sure the surface is clean and dry before
performing any touch-ups to the paint. The
surface temperature should be at least 15 °C
(60 °F).

1. Place a strip of masking tape over the dam-

aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.

If the damage goes down to the bare metal,
you may need to use primer first. If the paint
damage is on a plastic surface, an adhesive
primer should be used for better results.
Spray the primer into the lid of the spray can
and brush on thinly.

2. Light sanding with a very fine-grained sand-

paper or similar may be required before
painting (e.g. if there are uneven edges).
Clean the area carefully and let it dry.

3. Thoroughly mix the primer and apply it with a

small brush, toothpick or similar. When the
primer is dry, apply one or more coats of
paint and then a clear coat, letting the paint
dry between each application.

If there is a longer scratch, follow the same pro-
cedure as above, but first mask off the surround-
ing area to protect the undamaged paint.

Touch-up pens and spray paints are available at
Volvo retailers.

If required.

Follow the instructions on the packaging for the touch-up pen/stick carefully.

Volvo XC40 (2019 year). Instruction - part 33
