Volvo C70 (2013 year). Instruction - part 6

04 Interior

Power retractable hard top

107

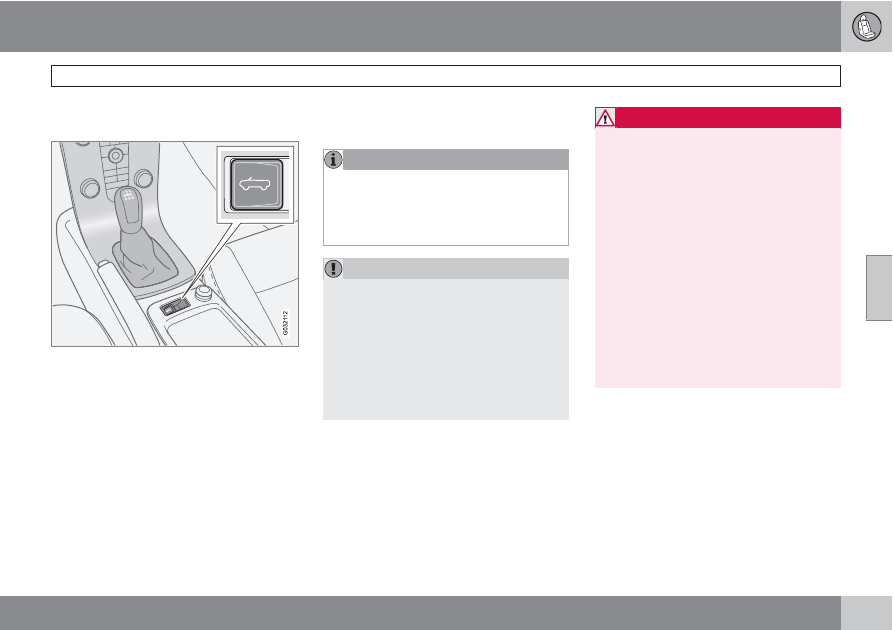

Operating the power retractable hard
top

Power retractable hard top button

Turn the ignition key to position II or start
the engine if the vehicle is parked out-
doors.

Press the brake pedal.

Opening the hard top: Press and hold
down the button. Release the button when
an audible signal sounds and the message

TOP FULLY DOWN

is displayed.

Closing the hard top: Pull up and hold the
button to raise the hard top. Release the
button when an audible signal sounds and

the message

TOP FULLY UP

is dis-

played.

NOTE

Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 103) before operating the power
retractable hard top.

CAUTION

•

Please heed any messages that may
appear in the information display while
the top is in operation.

•

Any windows that are closed will be
opened approximately 4 inches (10 cm)
while the power retractable hard top is
in operation. The windows will be auto-
matically re-closed when the top is
completely raised or lowered.

WARNING

•

See the section “Before operating the
power retractable hard top” on page
105 before operating the power retract-
able hard top.

Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:

•

A high risk of being injured by the power
retractable hard top mechanism.

•

Unexpected movement of the hard top,
or the hard top or the trunk could inad-
vertently open.

•

The retractable hard top can be dam-
aged.

Power retractable hard top-related text
messages

•

PRESS BRAKE TO OPERATE TOP

Press the brake pedal to operate the
retractable hard top.

•

CLOSE TRUNK TO OPERATE TOP

The

trunk is open and must be closed before
operating the power retractable hard top.

•

TRUNK DIVIDER IS NOT CLOSED

The

trunk divider (see page 106 for more infor-

04 Interior

Power retractable hard top

108

mation) must be closed before operating
the power retractable hard top.

•

TOP INOPERATIVE LOW BATTERY

The

battery's charge is too low to operate the
power retractable hard top. In this case,
the top can only be raised. Start the engine,
or if necessary, have the battery charged
before operating the top.

•

TOP IS UNLOCKED

The power retracta-

ble hard top is not fully up or down. Press/
pull and hold the button again to complete
the operation.

•

TOO HOT OR COLD TO OPERATE
TOP

The power retractable hard top

mechanism has overheated, or the ambi-
ent temperature is below 14° F (-10° C). If
the mechanism has overheated, wait for
approximately 5 minutes (the message in
the information display will disappear) and
try to lower or raise the top again.

If a fault in the power retractable hard top
mechanism occurs, the following messages
will be displayed:

•

TOP MALFUNCTION SERVICE
REQUIRED

The power retractable hard

top cannot be operated. Contact an
authorized Volvo retailer or service techni-
cian. see page 105 for more information.

•

TOP MALFUNCTION SEE MANUAL

The

power retractable hard top must be oper-

ated according to the following instruc-
tions.

Emergency operation

If the message

TOP MALFUNCTION SEE

MANUAL

is displayed, the power retractable

hard top cannot be operated in the normal way.

NOTE

If a fault has occurred and the power retract-
able hard top has been raised, it cannot be
lowered again until the fault has been cor-
rected.

CAUTION

Carefully read the information under “Before
operating the power retractable hard top”
(see page 105) before operating the power
retractable hard top. Damage may be
unavoidable if the power retractable hard
top must be operated under such condi-
tions.

Press or pull the hard top control button
(see page 107) until

TOP MALFUNCTION

SERVICE REQUIRED

is displayed.

Release the button.

Pull the button again and hold it. After
approximately 5 seconds, the power

retractable hard top will begin to move.
Hold the button up until the top is fully
raised.

NOTE

Movement of the top may stop briefly. How-
ever, the button should be pulled up
throughout the entire operation. An audible
signal will sound during the entire operation.

WARNING

•

High risk of being injured by the power
retractable hard top’s opening/closing
mechanism.

•

Unexpected movement of the hard top/
the hard top or the trunk could inadver-
tently open.

•

The retractable hard top can be dam-
aged.

04 Interior

Power retractable hard top

109

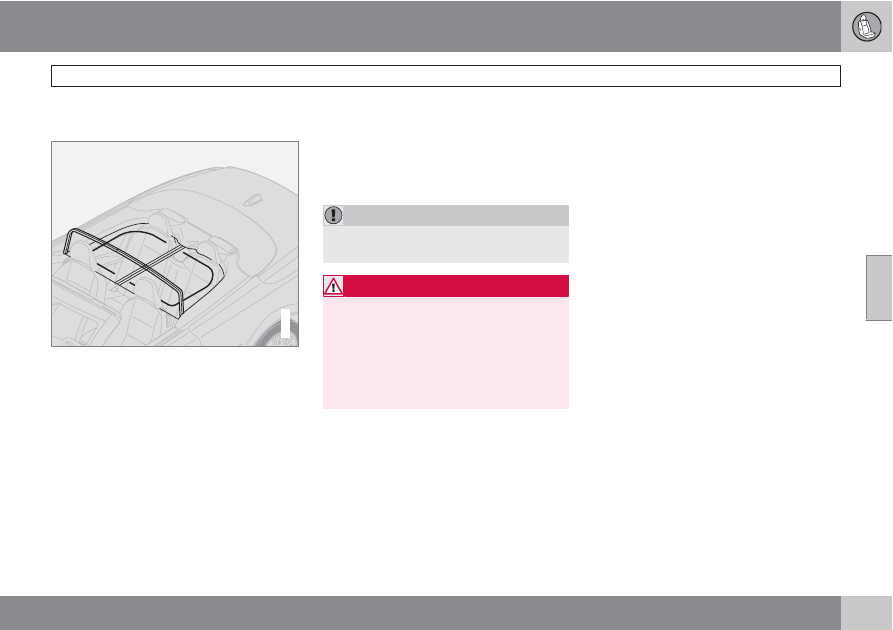

Wind blocker (retailer installed
accessory)

G020804

Wind blocker

The wind blocker is intended for use while driv-
ing with the power retractable hard top down
to help reduce swirling breezes in the passen-
ger compartment.

Installing the wind blocker

Unfold the wind blocker to its full width.

Unfold the supports on both rear sides.

Slide the wind blocker’s rear supports
under the rear head restraints so that they
rest on the upper edge of the backrest.

Press the side lock tabs into the holes in
the side panels until they click into place.

Raise the wind blocker.

The zipper in the wind blocker can be opened
to place or access objects in the rear seat.

CAUTION

Slide in the supports carefully to avoid dam-
aging the upholstery.

WARNING

•

Make sure the wind blocker is securely
attached. An improperly secured wind
blocker may cause injury to occupants
of the vehicle or to other motorists.

•

No one should be allowed to sit in the
rear seat when the wind blocker is in
place.

When not in use, the wind blocker should be
stored in its bag, in the trunk, against the rear
seat backrest.

04 Interior

Interior lighting

110

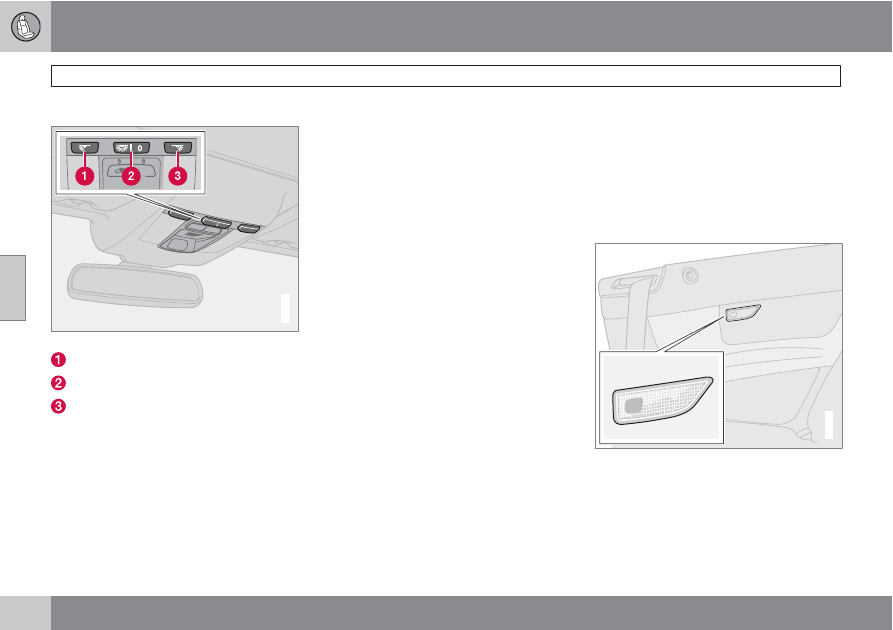

Interior lighting

G020805

Front courtesy lights and reading lights

Front driver's side reading light, on/off

Courtesy lighting

Front passenger's side reading light, on/off

The front seat reading lights can be switched
on and off by pressing buttons (1) or (3) when
the ignition key is in position I or II, or when the
engine is running.

The courtesy lighting (2) can be set to three
positions:

–

Press the left side of the button: the interior
courtesy lighting turns on.

–

Neutral position: the interior courtesy light-
ing comes on when a door is opened, and
is switched off 10 seconds after the door is
closed.

–

Press the right side of the button: the inte-
rior courtesy lighting stays off.

Courtesy lighting – automatic function

The interior lighting has a built-in automatic
function that switches on the courtesy lighting
for 30 seconds when:

•

the car is unlocked from the outside using
the key blade or remote key

•

the engine is switched off and the ignition
key is turned to the 0 position.

The courtesy lighting lights up or remains on
for 5 minutes when:

•

one of the doors is opened and left open.

•

the courtesy lighting has not been
switched off (the right side of button 2
depressed).

The automatic lighting goes out when:

•

the engine is started

•

the car is locked from the outside using the
key blade or remote key.

If the courtesy lighting is not switched off man-
ually, it will be turned off automatically

5 minutes after the engine has been switched
off.

Footwell lighting

The footwell (and courtesy lighting) comes on
or goes off when one of the side doors is
opened or closed.

Rear reading lights

G020806

Rear reading lights

The rear reading lights can be switched on or
off by pressing the respective buttons, and
function if the ignition key is in positions I, II, or
if the engine is running.

The courtesy lighting can be switched on or off
within 30 minutes after the engine has been

04 Interior

Interior lighting

111

switched off, or after a door has been opened
or closed.

These lights switch off automatically 5 minutes
after the engine has been switched off.

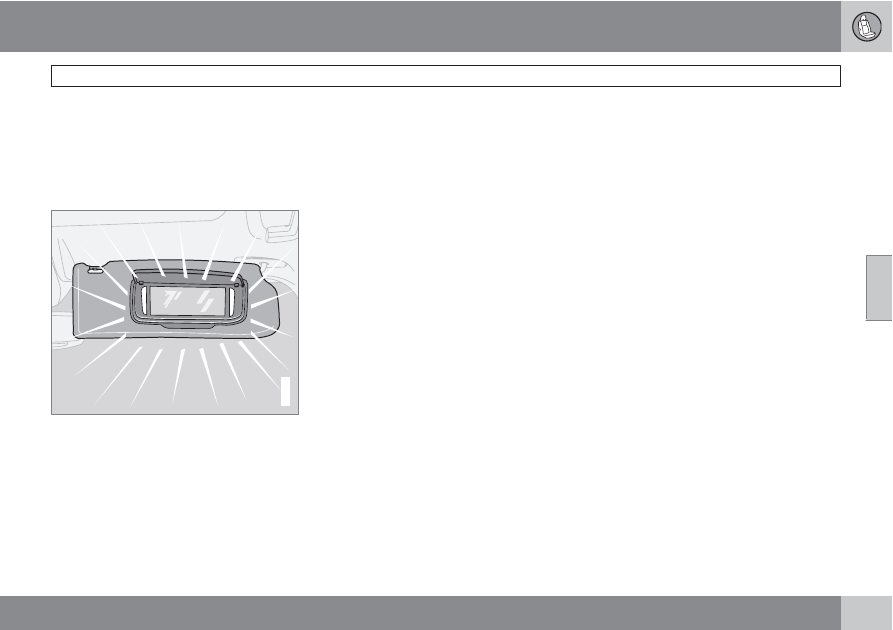

Vanity mirror

G020210

Raise the cover to switch on the light.

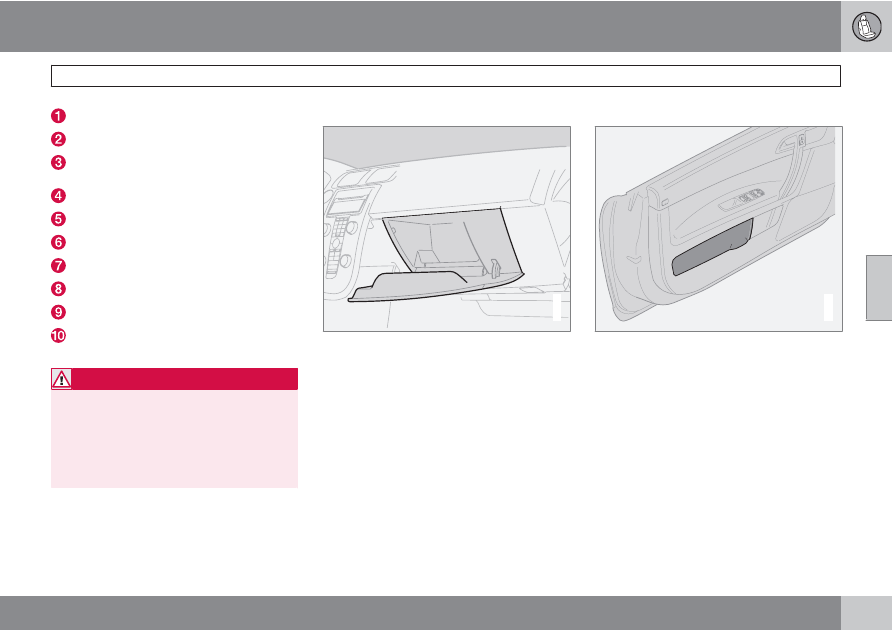

04 Interior

Storage compartments

112

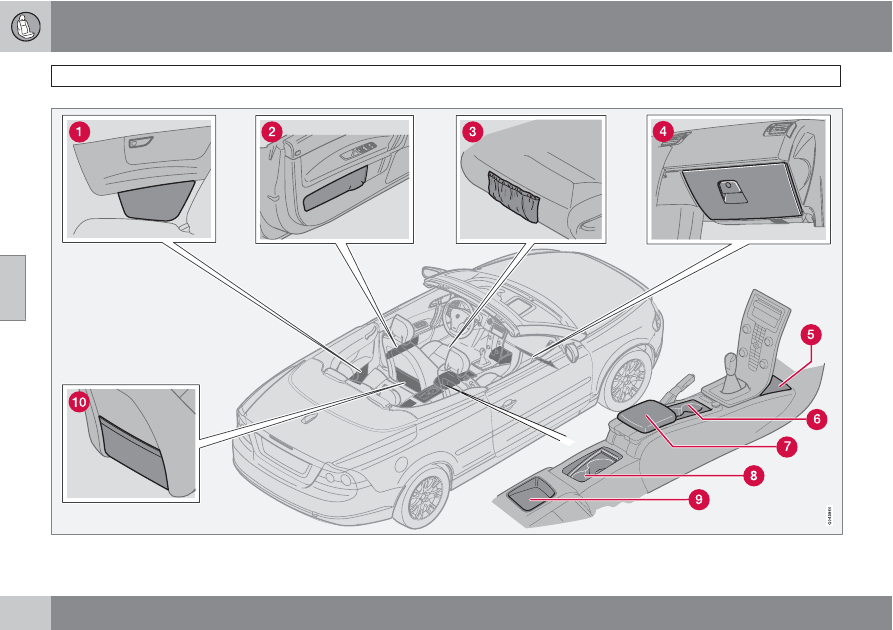

04 Interior

Storage compartments

113

Storage compartment in rear side panels

Storage compartments in the doors

Storage pocket on front side of front seat
cushion

Glove compartment

Storage space behind center console

Cup holders

Storage compartment for e.g., CDs

Cup holders for rear seat passengers

Storage compartment in rear seat cushion

Storage compartment on rear side of front
seat backrests

WARNING

•

Anchor any heavy objects to prevent
them from moving during sudden stops.

•

Packages on the rear parcel shelf can
obscure vision and may become dan-
gerous projectiles in the event of a sud-
den stop or an accident.

Glove compartment

G024208

The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
key. See page 124 for information on removing
the key blade from the remote key, and page
134 for information about locking the glove
compartment.

Compartment in door panel

G030407

Open the compartment by lifting the front lower
section of the lid.

04 Interior

Storage compartments

114

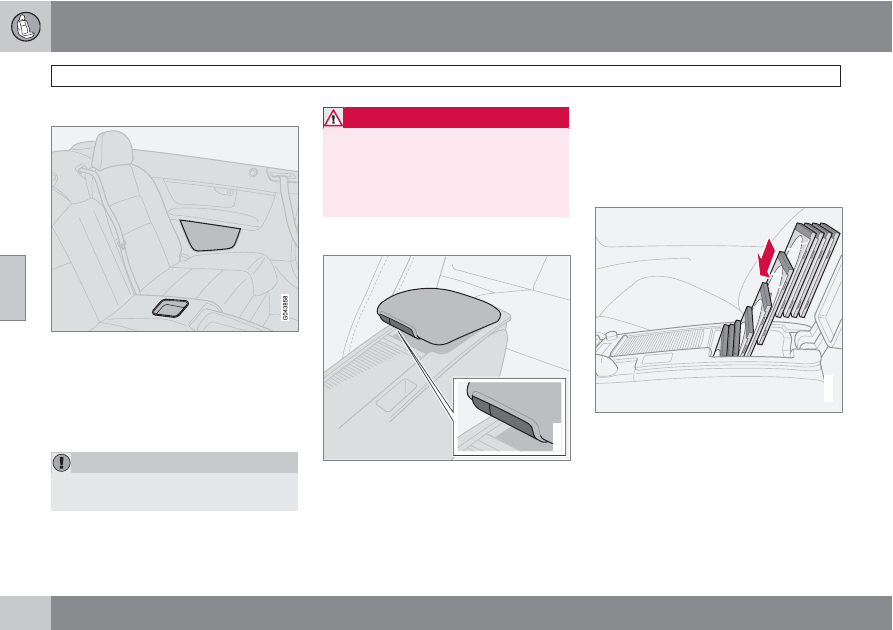

Rear seat storage compartments

Rear seat center and side storage compartment

To open a side storage compartment (on both
sides of the rear seat), press on the top cen-
ter of the panel. Both the forward and rearward
catches should release and the panel should
spring open. If one side does not open, press
again directly over that catch.

CAUTION

Never pull the panel; the catches may be
damaged.

•

Press to close and latch the panel.

WARNING

The center of the rear seat is not a seating
position. This area is not equipped with a
seat belt or ISOFIX/LATCH anchors. No one
should attempt to sit in this position and
child seats should never be placed in the
center of the rear seat.

Storage under the front, center armrest

G018371

There are two storage compartments under the
front, center armrest.

•

Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.

•

Press the larger button and lift the entire
armrest to access a deeper compartment.

CD storage

G026704

The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment

04 Interior

Storage compartments

115

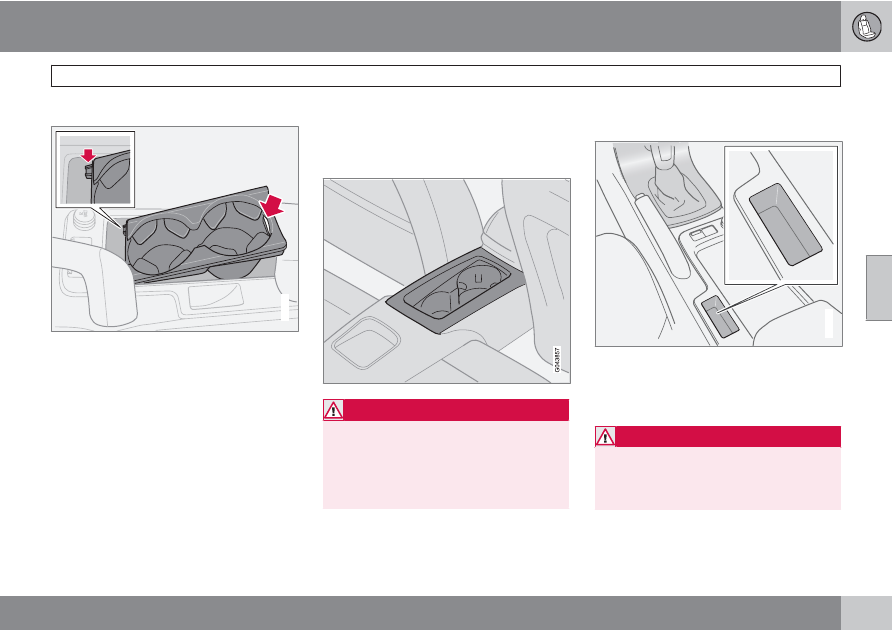

Cup holders in the center console

G018372

Two cup holders are located under the sliding
cover in the center console.

The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.

To put the cup holder back in place:

Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.

Press down the rear edge of the cup
holder.

To close the sliding cover, grasp the underside
of the front edge and pull.

Rear cup holders/rear-center storage
compartment

WARNING

Storage compartment behind the
parking brake

G019624

If the buttons for optional equipment are not
installed, the recess behind the parking brake
can be used as a storage compartment for
coins, etc.

WARNING

Objects placed in this compartment should
not interfere with the hand brake lever when
it is in the lifted (hand brake applied) posi-
tion.

04 Interior

Trunk

116

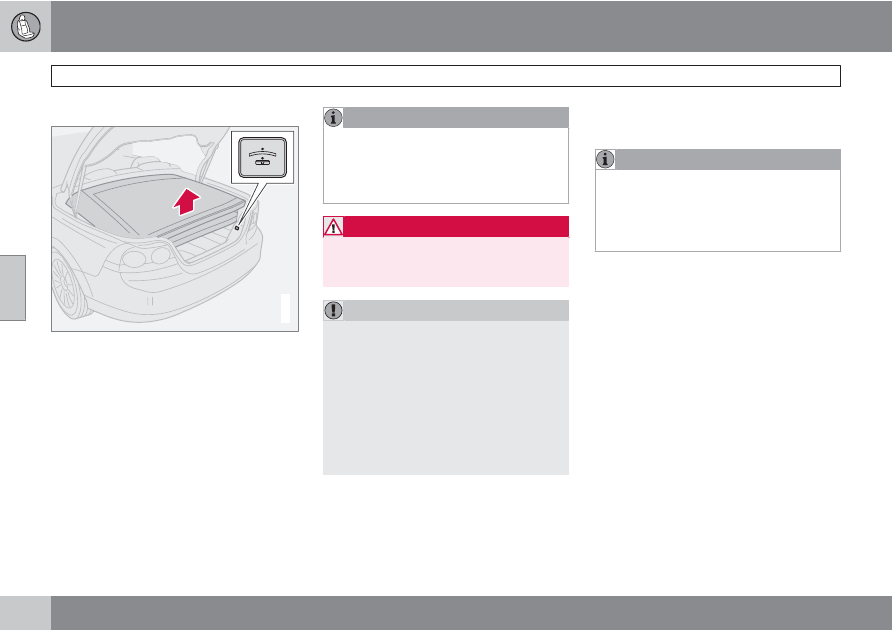

Loading the trunk

G020848

Button for changing level of folded power retract-
able hard top

Loading the trunk with the power
retractable hard top down

When the power retractable hard top is down,
it is folded in the trunk. Using the button shown
in the illustration above, the folded power
retractable hard top can be moved up or down
slightly to facilitate loading or unloading small
objects.

NOTE

This movement is part of the normal power
retractable hard top operation, which
means that messages pertaining to the
power retractable hard top’s operation (see
page 107) also apply to the this function.

WARNING

Anyone near the vehicle should be well clear
of the power retractable hard top's moving
parts before it is operated.

CAUTION

•

Any objects that impede the movement
of the power retractable hard top may
damage the top or its mechanism.

•

When the power retractable hard top
has been raised for loading the trunk, or
if its movement has been interrupted by
pressing the button twice, the trunk
should not be closed. Doing so can
damage the system or cause paint
damage.

To raise the level of the folded power
retractable hard top:

Open the trunk.

Press the button on the right side of the
trunk opening.

NOTE

There may be a delay of several seconds
before the folded power retractable hard
top begins to move.

Movement of the top can be stopped by
pressing the button again.

The folded power retractable hard top will
raise slightly. If an audible signal sounds
during this operation, check the informa-
tion display in the center instrument panel
for messages.

Lift the trunk divider (see page 106) to pro-
vide an opening into the trunk.

When the objects to be loaded have been
placed in the trunk, press down the trunk
divider.

Press the button to move the power
retractable hard top downward. Movement
of the top can be stopped by pressing the
button again.

Close the trunk.

04 Interior

Trunk

Option/accessory, for more information, see Introduction.

117

NOTE

The trunk cannot be closed while the folded
power retractable hard top is in the upper
position.

Raising and lowering the folded top in
the event of a fault

If the message

TOP MALFUNCTION

SERVICE REQUIRED

is displayed, the folded

power retractable hard top can only be lowered
in the trunk.

CAUTION

Damage may be unavoidable if the power
retractable hard top must be operated when
this message is displayed.

Press the button again and hold it down. After
approximately 2 seconds, the power retracta-
ble hard top will begin to move. Keep the but-
ton depressed until the folded top is lowered.

An audible signal will sound during this entire
operation.

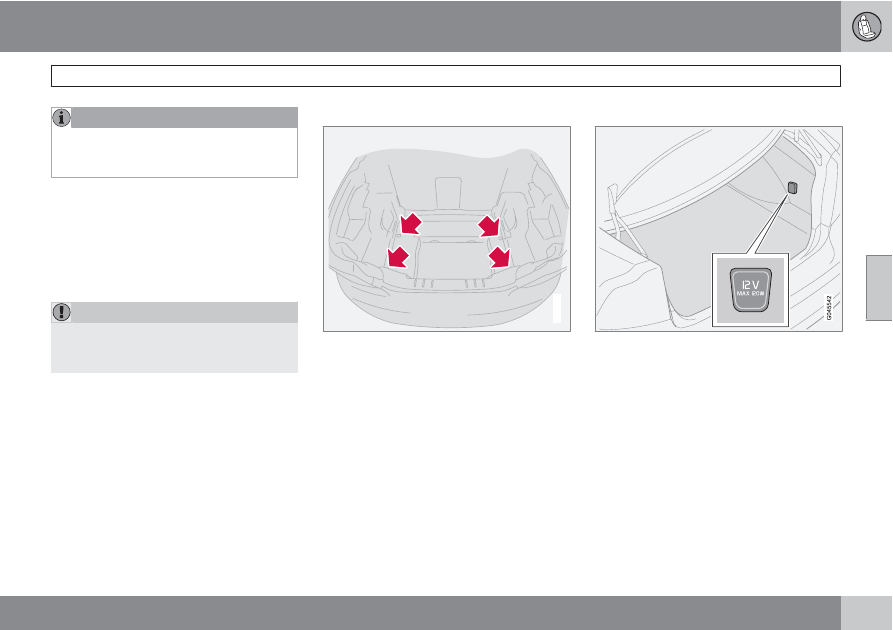

Load anchoring eyelets

G020850

The eyelets in the trunk can be used to fasten
accessory load and lashing straps, load nets,
and other load anchors.

12-volt socket in trunk*

Fold down the lid to use the socket.

•

Using the 12-volt socket while the engine
is not running drains the vehicle's battery.

•

If the ignition is switched off and a device
drawing more that 0.1A is connected to a
socket, a battery alert will be shown in the
driver information display.

•

The cover should be kept on when the aux-
iliary socket is not in use.

04 Interior

Trunk

118

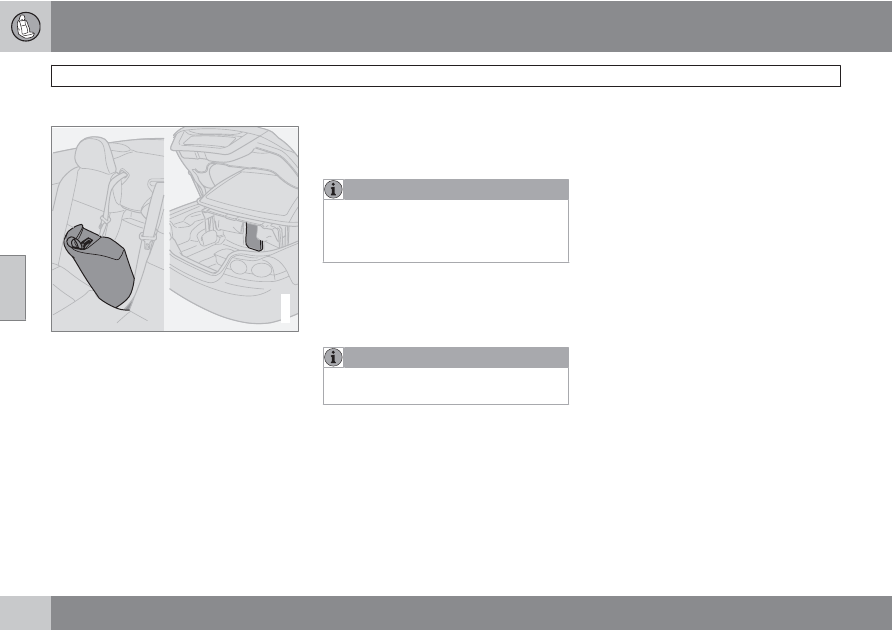

Carrying long loads (ski hatch)

G021037

Ski hatch

The center section of the rear seat backrest
can be opened to create space for carrying
long, light objects (max. length 6.5 ft/2 meters,
max. weight 55 lbs/25 kg). To do so, the center
section (cushion) of the rear seat backrest must
be removed, the tire repair kit (if the vehicle is
so equipped) must be removed and stowed in
the trunk, and the plastic hatch in the trunk
must be opened.

Removing the center backrest cushion

Pull the strap at the upper edge of the cushion,
pull it forward, and lift it out.

Opening the plastic hatch

From the trunk, press the catches in the two
holes in the hatch toward each other to release
the hatch, and fold it down.

NOTE

If the vehicle is equipped with the optional
ski bag, the bag’s zipper must be opened
from the passenger’s compartment in order
to insert objects through the ski hatch.

Replacing the backrest cushion

Begin by guiding the lower section of the cush-
ion into place. Then press the upper section of
the cushion into place.

NOTE

This cushion is locked in place when the
vehicle is locked with the remote control.

Securing long objects

Long objects should be secured with one of the
rear seat belts.

Wrap the belt once around the object and lock
the belt in the retractor as usual. If the vehicle
is equipped with the optional ski bag, pass the
seat belt through the bag’s handle before fas-
tening the seat belt.

05 Locks and alarm

Remote key and key blade

122

Remote keys

Two remote keys that also function as ignition
keys are provided with your car. The remote
keys contain detachable metal key blades for
manually locking or unlocking the driver's door
and the glove compartment.

USA – FCC ID: LTQVO315TX

This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.

Canada – IC: 3659AVO315TX

Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.

Loss of a remote key

If either of the remote keys is lost, the other
should be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote key must be erased from the system.

NOTE

Additional or duplicate remote control keys
can be obtained from any Authorized Volvo
Retailer.

You can also obtain additional or duplicate
remote control keys from certain independ-
ent repair facilities and locksmiths that are
qualified to make remote control keys. Each
key must be programmed to work with your
vehicle.

California Only:

A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:

•

on the Volvo website at
http://www.volvocars.com/us/keys

•

by calling Volvo Customer Care at
1-800-458-1552

Each key blade has a unique code, which is
used if new key blades are required. A maxi-
mum of six remote keys/key blades can be
programmed and used for one car.

Immobilizer (start inhibitor)

Each of the keys supplied with your car con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key. If you misplace
a key, take the other keys to an authorized
Volvo retailer for reprogramming as an antitheft
measure.

CAUTION

Never use force on the narrow section of the
remote key – this is where the transponder
is located. The car cannot be started if the
transponder is damaged.

USA – FCC ID: LTQWFS 125VO

This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.

Canada – IC: 3659A-WFS125VO

05 Locks and alarm

Remote key and key blade

123

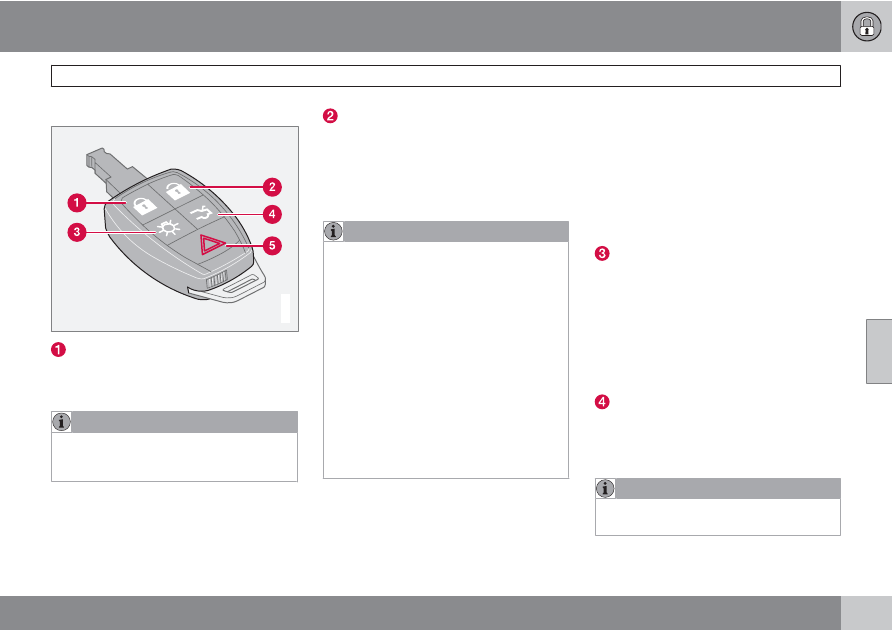

Remote key functions

G019402

Lock – Press the Lock button on the
remote once to lock all doors and the trunk.
The turn signals will flash once to confirm
locking.

NOTE

The car can also be locked if a door is open
(does not apply to vehicles with the optional
keyless drive).

Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock but-
ton a second time within 10 seconds to
unlock the other doors and the trunk. A
long press (at least several seconds) opens
all side windows.

NOTE

•

The turn signals flash to confirm that the
vehicle has been correctly locked/
unlocked with the remote key or the
optional keyless drive. When locking the
vehicle, the turn signals will flash a con-
firmation only if all the doors are
securely closed and locked. Flashing
confirmation for locking and unlocking
may be customized in the vehicle's Per-
sonal settings menu, see page 81 for
more information.

•

The two-step unlocking function can be
changed so that one press of the
Unlock button unlocks both doors and
the trunk. See Personal settings page
81 for more information.

•

Automatic relocking: If the doors are
unlocked, the locks will automatically reen-
gage (re-lock) and the alarm will rearm after

2 minutes unless a door or the trunk has
been opened.

•

Automatic locking: When the car starts to
move, the doors and trunk can be locked
automatically. This feature can be turned
on or off, see Personal settings on page
81 for more information.

•

Airbag deployment will automatically
attempt to unlock the doors.

Approach lighting – As you approach the
car: Press the button on the remote key to
illuminate the area around the car in dark
conditions. Pressing the button once lights
up the interior lighting, parking lights, and
license plate lighting. These lights will
switch off automatically after 30, 60 or
90 seconds. See the Personal settings
page 81 for information about adjusting the
time setting.

Unlock trunk – Press the button once to
disarm the alarm system and unlock only
the trunk. After closing, the trunk will not
automatically relock. Press Lock to relock
it and rearm the alarm.

NOTE

This function will unlock, but not pop open,
the trunk.

05 Locks and alarm

Remote key and key blade

124

Panic alarm – This button can be used to
attract attention during emergency situa-
tions. To activate the panic alarm, press
and hold the red button for at least 3 sec-
onds or press it twice within 3 seconds.
The turn signals and horn will be activated.
The panic alarm will stop automatically
after 30 seconds. To deactivate, wait
approximately 5 seconds and press the red
button again.

NOTE

This button will NOT unlock the car.

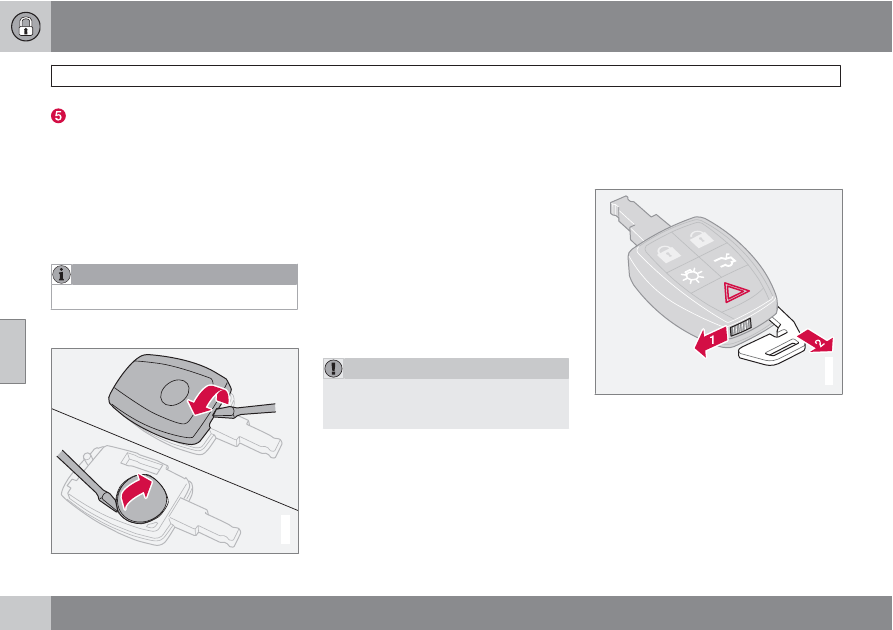

Weak battery in the remote key

G019406

When the battery begins to lose its charge, the
Information symbol in the instrument panel
(see page 56) lights up and

KEY BATTERY

LOW VOLTAGE

is shown in the information

display.

Replacing the battery in the remote key

If the range of the transmitter is noticeably
reduced, this indicates that the battery (type
CR 2450, 3V) is weak and should be replaced.
To replace the battery:

Place the remote key with the keypad
downward. Pry open the cover with a small
slotted screwdriver.

Remove the cover.

CAUTION

When replacing the battery, avoid touching
the electrical circuitry in the other half of the
remote key.

Note how the + and – sides of the battery
are positioned on the inside of the cover
(see the underside of the cover).

Pry out and replace the battery. Avoid
touching the battery and its contact surfa-
ces with your fingers.

Press the cover back into place.

The old battery should be disposed of properly
at a recycling center or by a trained and quali-
fied Volvo service technician.

Key blade

G019403

Removing the key blade

The key blade can be removed from the remote
key. When removed, it can be used as follows:

•

To lock/unlock the driver’s door

•

To lock/unlock the glove compartment,
see page 134.

•

To open the trunk mechanically, see
page 133.

•

For valet locking (see page 126)

05 Locks and alarm

Remote key and key blade

125

Removing the key blade

Slide the spring loaded catch to the side.

While holding the catch, pull the key blade
out of the remote key.

Reinserting the key blade in the remote
key

Hold the remote key with the pointed end
down.

Carefully slide the key blade into its groove.

Gently press the key blade in the groove
until it clicks into place.

Unlocking the doors with the detached
key blade

Insert the key blade as far as possible in the
driver's door lock.

Turn the key blade clockwise approxi-
mately one-quarter turn to unlock the driv-
er's door only.

NOTE

After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.

To disable the alarm

Press the Unlock button on the remote key, or
insert the key in the ignition switch.

Locking the doors with the detached key
blade

Lock the other door(s) by pressing the lock
button on each door. Please note that this
does not arm the alarm or lock the trunk.

Turn the key blade one-quarter turn coun-
ter-clockwise to lock the driver's door.

Content .. 4 5 6 7 ..
