03 Climate

General information

For information about how to make these set-
tings, see the Personal settings section on
page 81.

Electronic Climate Control (ECC)
sensors

•

The sunlight sensor is on the upper side of
the dashboard.

•

The passenger compartment temperature
sensor is located behind the climate sys-
tem control panel.

•

The ambient temperature sensor is in the
driver's side door mirror.

•

The humidity sensor is in the rearview mir-
ror.

NOTE

The sunlight sensor monitors the side of the
vehicle from which the sun shines into the
passenger compartment. This means that
the temperature may differ slightly between
the left and right air vents, even if the climate
system temperature is set to be the same
for both sides of the passenger compart-
ment.

These sensors should never be obstructed.

Side windows and power retractable
hardtop

The electronic climate control system will func-
tion best if the windows and power retractable
hardtop are closed. If you drive with the win-
dows or hardtop open, it may be preferable to
manually adjust the temperature and blower
control (the LED in the AUTO switch should be
off).

Acceleration

The air conditioning system is temporarily
switched off during full throttle acceleration.

03 Climate

Air vents

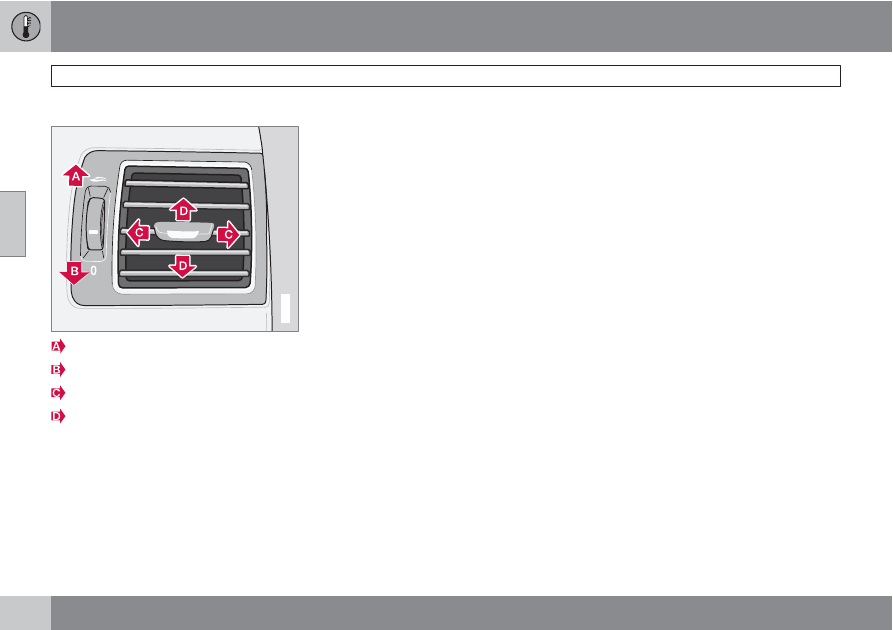

Air vents in the dashboard

G019942

Open

Closed

Horizontal air flow

Vertical air flow

Direct the outer air vents toward the side win-
dows to defrost.

03 Climate

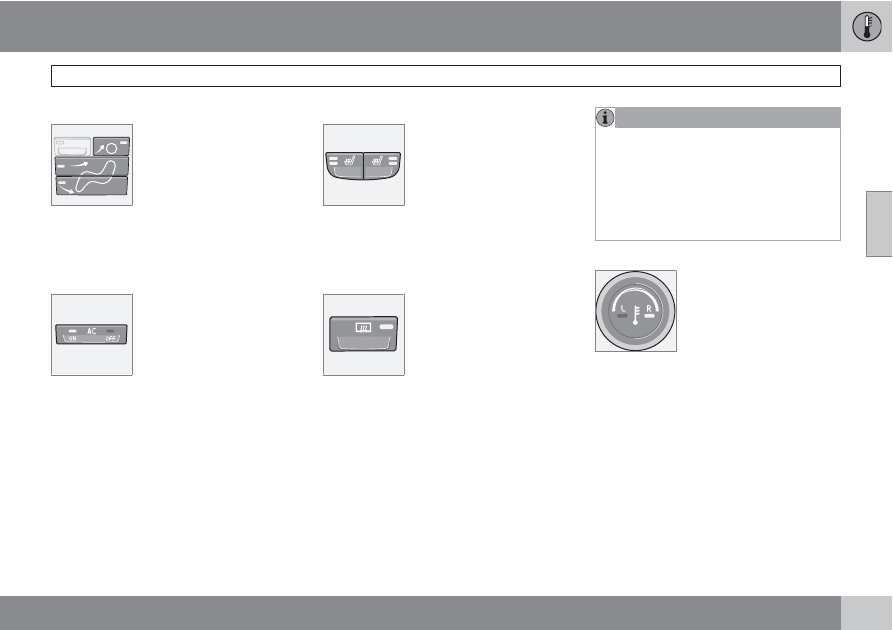

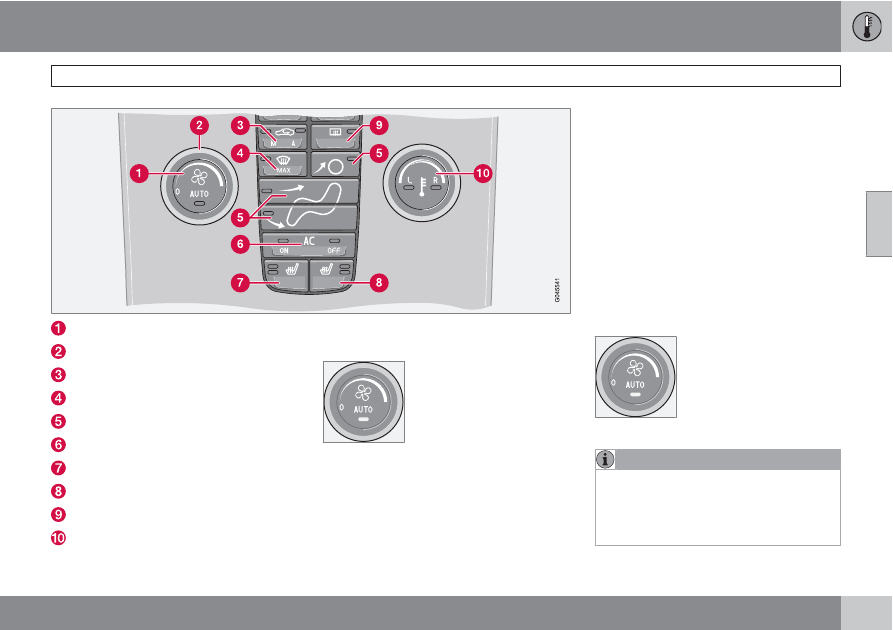

Electronic Climate Control (ECC)

Auto – On/Off

Blower speed

Recirculation

Defroster

Airflow controls

A/C – ON/OFF

Heated driver's seat

Heated front passenger's seat

Rear window and door mirror defrosters

Temperature selector

ECC functions

1. Auto – On/Off

The AUTO function automat-
ically regulates climate con-
trol to maintain the desired
temperature. The automatic
function controls heating, air
conditioning, blower speed,
recirculation, and air distribu-

tion.

If you select one or more manual functions, the
remaining functions continue to be controlled
automatically. All manual settings are switched
off when AUTO is switched on.

AUTO

CLIMATE

is shown in the display.

2. Blower speed

The blower speed can be
increased or decreased by
turning the knob. The blower
speed is regulated automati-
cally if AUTO is selected. The
previously set blower speed is
disconnected.

NOTE

If the knob is turned counterclockwise and
the blower indication in the display goes
out, the blower and the air conditioning are
switched off. The display shows the blower
symbol and

OFF

03 Climate

Electronic Climate Control (ECC)

Option/accessory, for more information, see Introduction.

3. Recirculation

This function can be used to
shut out exhaust fumes,
smoke, etc from the passen-
ger compartment. The air in
the passenger compartment
is then recirculated, i.e., no air
from outside the car is taken

into the car when this function is activated.

If the air in the car recirculates for too long,
there is a risk of condensation forming on the
insides of the windows, especially in winter.

Timer

The timer function minimizes the risk of fogging
or stale air when the recirculation function is
selected, see page 81 for information on set-
ting the recirculation timer.

NOTE

If the defroster function is switched on (by
pressing button 4), recirculation is always
disengaged.

Interior Air Quality System (IAQS)*

This system consists of a mul-
tifilter that helps reduce gases
and particles in the incoming
air and an air quality sensor
that detects increased levels
of contaminants in the outside
air. When the air quality sen-

sor detects contaminated outside air, the air
intake closes and the air inside the passenger
compartment is recirculated. The filter also
cleans recirculated passenger compartment
air.

When IAQS is engaged, the green indicator
light above A is illuminated.

To activate IAQS:

–

Press AUTO (1).

Or:

Toggle between the system's three modes by
pressing the button repeatedly.

•

IAQS is engaged (the indicator light above
A illuminates).

•

Recirculation is engaged (the indicator
light above M illuminates).

•

Recirculation is switched off (both indica-
tor lights will be off), unless ECC activates
it to help cool the passenger compartment
faster in hot weather.

Keep the following in mind:

•

As a rule, IAQS should always be engaged.

•

In cold weather, the recirculation function
is limited to help avoid condensation on the
windows.

•

If condensation forms, using the defroster
functions for the windshield/front side win-
dows and the rear window will help clear
the condensation.

4. Defroster

Directs airflow to the wind-
shield and side windows and
increases blower speed.
When the defroster is acti-
vated:

•

Air flows to the windows at high blower
speed.

•

The LED in the defroster button lights up
when this function is activated. The air con-
ditioning system is controlled to provide
maximum air dehumidification.

•

The air conditioning is automatically
switched on (can be switched off by press-
ing button 6).

The air is not recirculated.

03 Climate

Electronic Climate Control (ECC)

Option/accessory, for more information, see Introduction.

5. Airflow controls

Press one of the three buttons
in the illustration to activate
the selected airflow. A symbol
in the display above the cli-
mate control panel and a lit
LED in the selected button
indicate that the manual func-

tion has been selected. With manually selected
airflow both warm and cool air can be selected.
See also the table on page 95.

6. Air conditioning On/Off

ON: The air conditioning sys-
tem is engaged when the ON
light is lit and is controlled
automatically by the system
to maintain the selected tem-
perature.

OFF: The system is disengaged when the
OFF lights up

When OFF is selected and the OFF LED is lit,
the air conditioning system is deactivated.
Other functions are still controlled automati-
cally.

When Defroster (4) is selected, the air condi-
tioning system is activated for maximum dehu-
midifying.

7 and 8. Heated front seats*

Maximum heating: Press the
button once – both LEDs light
up.

Reduced heating: Press the
button a second time – one
LED lights up.

Seat heating off: Press the button a third time
– no LEDs are lit.

9. Rear window and door mirror
defrosters

Press to defrost the rear win-
dow and door mirrors.

The rear window and door
mirrors are defrosted simulta-
neously if the switch is
pressed once. The defrost

function is active if the LED in the switch is illu-
minated.

•

The function can be switched off manually
by pressing the button.

•

The defrost function switches off automat-
ically after 12–20 minutes, depending on
the outside temperature.

NOTE

•

On certain markets, the defrost function
may remain on longer than 20 minutes
in cold weather to help keep the rear
window free from ice or condensation.

•

This function is automatically switched
off when the power retractable hard top
is down.

10. Temperature selector

The temperatures on the driv-
er's and passenger's sides
can be set separately using
the knob (with the thermome-
ter in it). The temperature can
be set for both sides of the car
when the ignition is switched

on (both LEDs will be on), which means that a
temperature setting will apply to both sides of
the car.

To set the temperature on one side of the car:

Press the knob once. The LED for one side
of the car will light up. Turn the knob to
adjust the temperature.

Press the knob a second time to set the
temperature on the opposite side of the
car.

03 Climate

Electronic Climate Control (ECC)

Press the knob a third time to set the tem-
perature on both sides of the car at the
same time.

NOTE

Selecting a temperature that is higher or
lower than necessary will not heat or cool
the passenger compartment faster.

Sensors

•

The sunlight sensor is on the upper side of
the dashboard

•

The passenger compartment temperature
sensor is located behind the climate sys-
tem control panel.

•

The ambient temperature sensor is in the
driver's side door mirror.

•

The humidity sensor is in the rearview mir-
ror.

These sensors should never be obstructed.

NOTE

Acceleration

The air conditioning system is temporarily
switched off during full throttle acceleration.

03 Climate

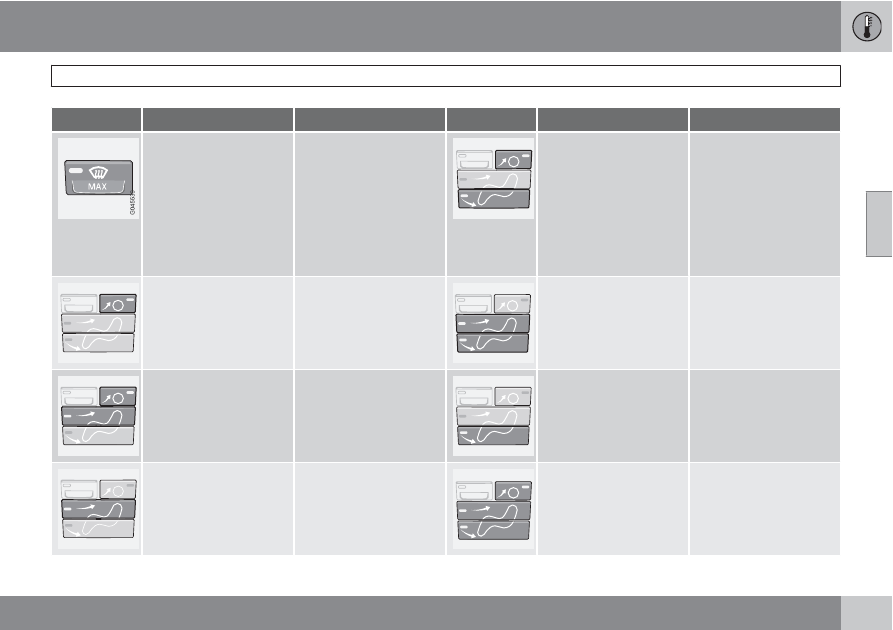

Air distribution

Use:

Air distribution

Use:

Defroster.

Air is not recirculated in
this mode.

Air conditioning is always
engaged.

There is also a certain
amount of airflow to the
panel air vents.

Defrost/de-fog the wind-
shield and front side win-
dows.

Air to the floor and win-
dows.

There is also a certain
amount of airflow to the
dashboard air vents.

For comfortable condi-
tions and good defrosting
in cold weather.

Medium to high blower
speed.

Air to windshield and front
side windows.

There is also a certain
amount of airflow to the
dashboard air vents.

Prevents fogging in cold
or humid weather (blower
speed should be moder-
ate to high).

Air to the floor and from
the dashboard air vents.

For sunny weather with
cool ambient tempera-
tures.

Air to the windows and
from the dashboard air
vents.

For good comfort in
warm, dry weather.

Air to the floor.

There is a certain amount
of airflow to the dash-
board and window air
vents.

To warm the feet.

Airflow directed to the
head and chest from the
dashboard air vents.

To ensure efficient cooling
in a warm weather.

Airflow to the windows,
dashboard air vents, and
floor.

For cooler air toward the
feet, or for warmer air
toward the head and
chest.

04 Interior

Front seats

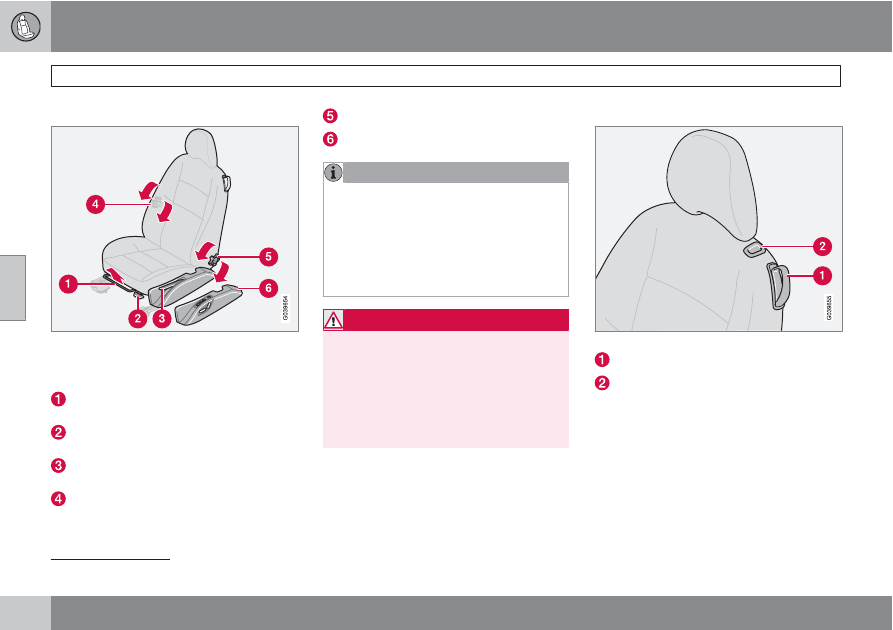

Manual seat adjustment

The driver's and passenger's seats can be
adjusted in a number of ways to provide a
comfortable driving and sitting position.

Forward-rearward: Pull the lever up and
slide the seat to the position of your choice.

Use this control to raise or lower (pump up
or down) the front edge of the seat cushion.

Use this control to raise or lower (pump up
or down) the rear edge of the seat cushion.

Turn this knob (optional on some passeng-
er's seats) to adjust the firmness of the
lumbar support

Turn this knob to adjust the backrest tilt.

Control panel for the optional power seats.

NOTE

Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 103).

WARNING

•

Do not adjust the seat while driving.

•

Adjust the driver’s seat and seat belt
(see page 20) before driving. The seat
should be adjusted so that the brake
pedal can be depressed fully.

•

Position the seat as far rearward as
comfort and control allow.

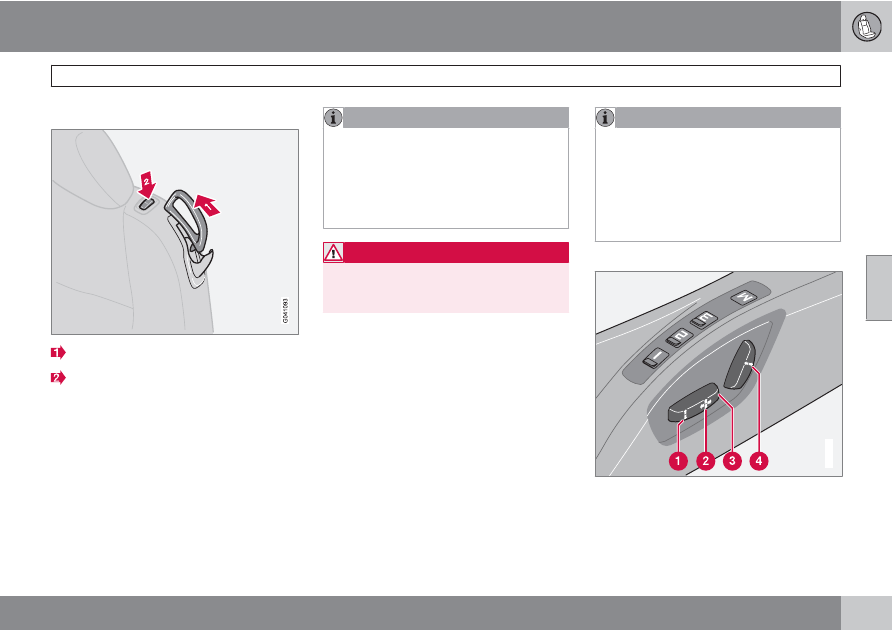

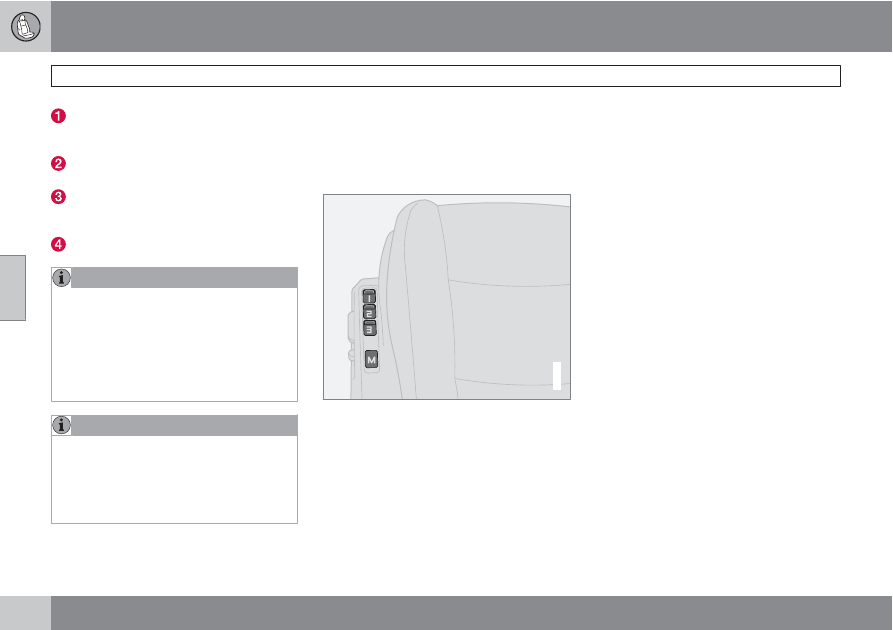

Accessing the rear seat

Seat access buttons (power seat shown)

Seat adjustment handle

Seat adjustment button

Also applies to the optional power seat.

04 Interior

Front seats

Manual seat

Moving the seat forward:

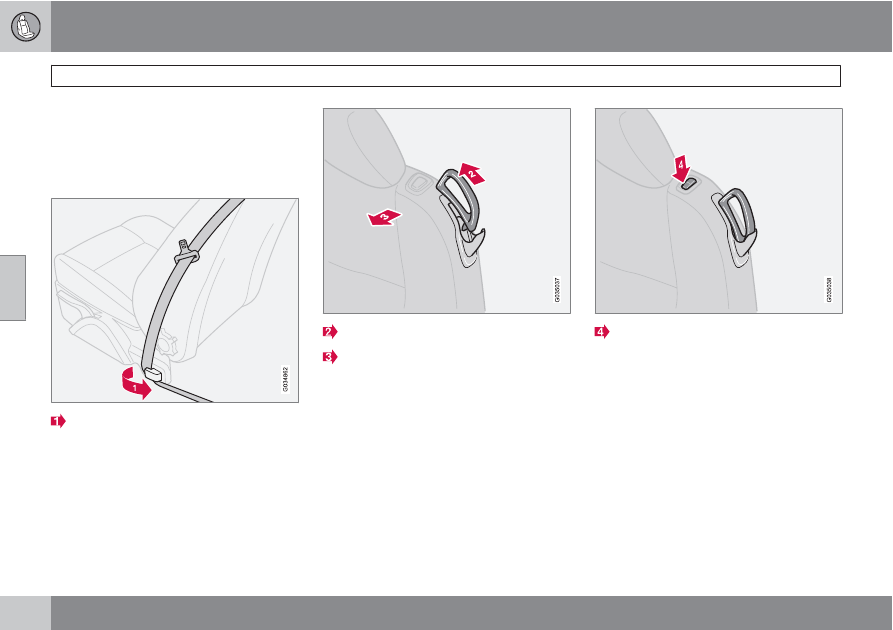

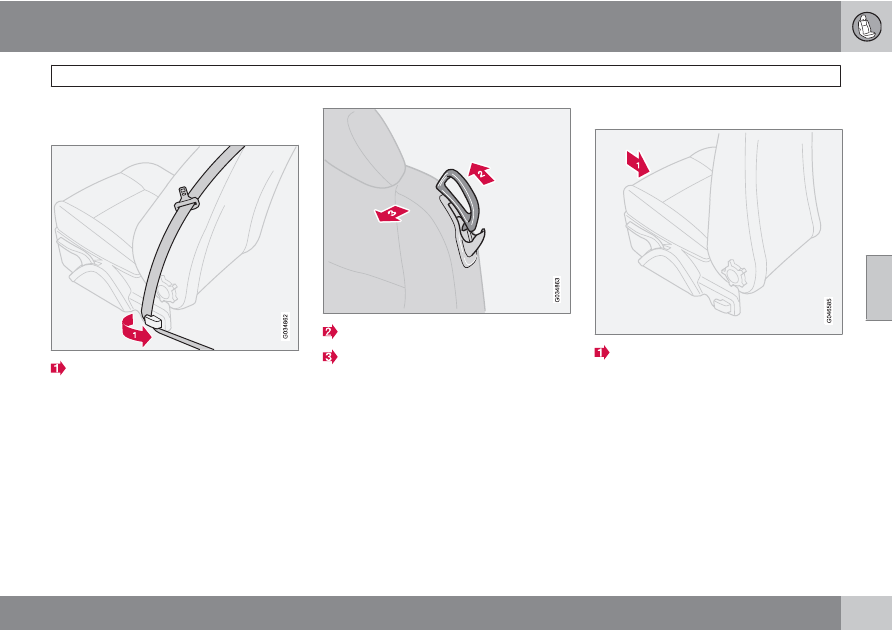

Remove the seat belt from its guide (see
page 21).

Pull up the handle.

Fold down the backrest and move the seat
forward.

Moving the seat rearward:

Push the seat rearward to the desired posi-
tion.

Fold up the backrest.

Put the seat belt back in its guide.

When the seat has been pushed rearward, if it
doesn't return to the position it was in before it
was moved forward, do as follows:

Sit in the seat.

Lift handle 1 (see the illustration on page
98) and move the seat as far back as pos-
sible.

04 Interior

Front seats

100

While holding the handle up, move the seat
forward to the desired position and release
the handle.

Power seat

Moving the seat forward:

Remove the seat belt from its guide (see
page 21).

Pull up the handle.

Fold down the backrest until it locks in
position.

Hold down the front section of the button.

If the seat is in a high position, it will be
lowered automatically so that the head
restraint does not come in contact with the
sun visor.

04 Interior

Front seats

Option/accessory, for more information, see Introduction.

101

Moving the seat rearward:

Lift the handle and fold up the backrest.

Hold down the rear section of the button.

Return the seat belt to its guide.

The front passenger's seat belt should be in its
guide while the vehicle is being driven, even if
the seat is not occupied.

NOTE

The seat can only be moved as far forward
as possible (approx. 2.5 in./6 cm) to allow
access to the rear seat with the backrest
folded down. If the backrest is folded up
when the seat is in the forward position, the
seat will automatically move rearward
(approx. 2.5 in./6 cm) after several seconds.

WARNING

After the seat has been returned to its orig-
inal position, be sure that the backrest is
securely locked in the upright position.

Power seats*

The power driver's seat can be adjusted:

•

If the ignition key is in position I or II.

•

During a 10 minute period after the doors
have been unlocked if the door remains
open.

•

If the door is closed and the ignition key is
not yet in the ignition, or if the key is in
position 0, the seat can be adjusted or dur-
ing a period of 40 seconds. The power
passenger's seat can only be adjusted if
the ignition key is in position I or II, or if the
engine is running.

NOTE

Adjusting the seat

G020199

Seat adjustment controls

Seat adjustment controls 1, 2, 3, and 4 on the
side of the seat can be used to move the seat
to the position of your choice.

04 Interior

Front seats

102

Option/accessory, for more information, see Introduction.

Move this section of the control up or down
to raise/lower the front section of the seat
cushion.

Move the control forward/rearward to
move the seat forward or rearward.

Move this section of the control up or down
to raise/lower the rear section of the seat
cushion.

Backrest tilt.

NOTE

The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for approxi-
mately 20 seconds before operating the
seat again.

Emergency stop

If the seat inadvertently begins to move, press
any of the buttons to stop the seat.

Programming the seat memory, driver's
seat only*

G020200

Power seat memory buttons

Three different seating positions (and the posi-
tion of the door mirrors) can be stored in the
seat's memory. The memory buttons are
located on the outboard side of the driver’s
seat (see the illustration).

To program (store) a seat/mirror position in
memory button 1:

Adjust the seat (and door mirrors) to the
desired position.

Press and hold down the "M" (Memory)
button.

With the "M" button depressed, press
memory button 1 to store the seat and mir-
rors' current position.

To move the seat and mirrors to the position
that they were in when memory button 1 was
programmed, press and hold down button 1
until the seat/mirrors stop moving.

As a safety precaution, the seat will stop auto-
matically if the button is released before the
seat has reached the preset position.

Central locking system remote key and
driver's seat memory

The remote key transmitter can also be equip-
ped with an optional function that controls the
electrically operated driver's seat in the follow-
ing way:

Adjust the seat/door mirrors to the desired
position.

When you leave the car, lock it using the
remote key.

The next time the driver's door is unlocked
with the same remote key and that door is
opened within 2 minutes, the driver's seat

04 Interior

Front seats

103

and door mirrors will automatically move to
the position that they were in when the
doors were most recently locked with the
same remote key.

NOTE

The memory function in the remote key
operates independently the memory func-
tion in the seat.

WARNING

•

Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
car.

•

Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.

•

Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.

•

The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.

Adjusting the front seat head restraints

The front seat head restraints are designed so
that they can be adjusted to two different
height positions.

NOTE

•

When the vehicle leaves the factory, the
front seat head restraints will be in the
lower position.

•

Due to the low roofline of the Volvo C70,
it is necessary to have the front seat
head restraints in the lowest position if
you wish to fold the seat's backrest for-
ward or operate the power retractable
hard top.

The head restraints should be put in the upper
or lower position according to the height of the
occupant of the seat.

The upper edge of the head restraint should be
at least on a level with the upper-most point of
the seat occupant's ear (see illustration).

To raise or lower a head restraint:

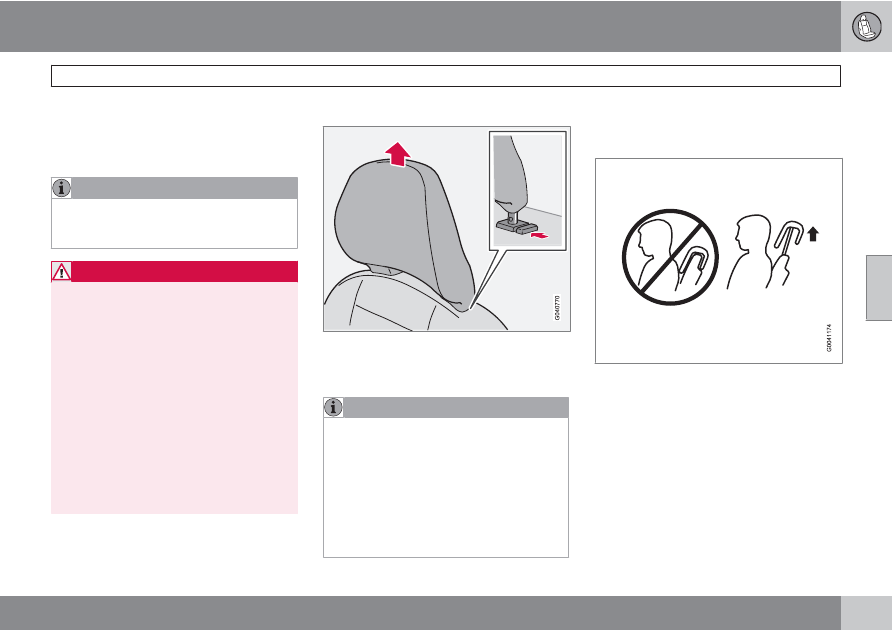

Raising or lowering a head restraint

Release the head restraint by pressing the
button underneath its left side, at the base
of the support (see the illustration).

Move the head restraint until it clicks
(locks) into the upper or lower position.

04 Interior

Front seats

104

WARNING

After adjusting the head restraint, be sure
that it is securely locked in the new position
by pressing and/or pulling it.

Removing a head restraint

The front seat head restraints can be removed,
for example, when cleaning the upholstery or if
the front passenger's seat backrest is folded
down to accommodate a long load. To do so:

Release the head restraint by pressing the
release button underneath its left side, at
the base of the support.

While holding in the release button, press
the locking button at the base of the head
restraint's right support with a screw
driver, etc., and lift the head restraint until
it can be removed completely.

WARNING

•

If a front seat head restraint has been
removed, it must be put properly back
in place and it must lock (click) into one
of the available adjustment positions
before the seat is occupied.

•

The front seat head restraints must be
in position and properly adjusted to the
height of the person sitting in the seat
when the vehicle is driven and when the
front passenger's seat is occupied.

04 Interior

Power retractable hard top

105

Before operating the power retractable
hard top

G020800

Please observe the following information
before operating the power retractable hard
top:

•

There should be no objects on the power
retractable hard top's cover.

•

Remove all snow, ice or loose objects from
the power retractable hard top and trunk
lid.

•

The top should be dry before it is lowered.

CAUTION

If the power retractable hard top is lowered
while it is wet, water may drip into the pas-
senger compartment or trunk

•

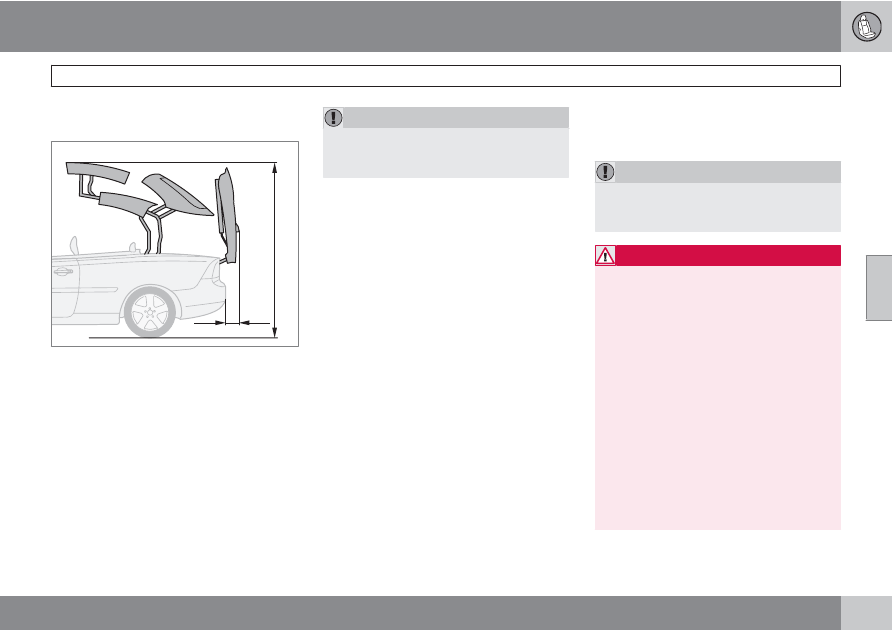

There should be at least 6.5 feet (2 meters)
of free space from the ground (distance A
in the illustration).

•

There should be at least 8 inches (20 cm)
of free space behind the vehicle (distance
B in the illustration in the center column).

•

Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 103) before operating the power
retractable hard top.

•

The ambient temperature should be above
14°F (-10°C).

•

The trunk divider (see page 106) must be
closed.

•

The trunk must be closed.

•

The vehicle must be at a standstill and the
brake pedal must be pressed.

Volvo also recommends the following:

•

The vehicle should be parked outdoors, on
level ground.

•

Raising or lowering the power retractable
hard top should preferably be done in one,
continuous operation.

•

If the vehicle is parked outdoors, the
engine should be idling to help avoid bat-
tery drain.

CAUTION

If the instructions on these pages are not
followed, damage to the power retractable
hard top's mechanism may occur.

WARNING

•

The power retractable hard top must
not be obstructed in any way when it is
being operated. Always have an unob-
structed view of the power retractable
hard top when it is in motion. See also
the decal on the trunk divider.

•

Anyone near the vehicle should be well
clear of the power retractable hard top's
moving parts before it is operated.

•

Children must never be allowed to play
with the power retractable hard top
control button.

•

Do not leave the power retractable hard
top motionless longer than necessary
while it is being operated.

•

Do not leave the key in the ignition if
there are children in the vehicle.

04 Interior

Power retractable hard top

106

Trunk divider

G020845

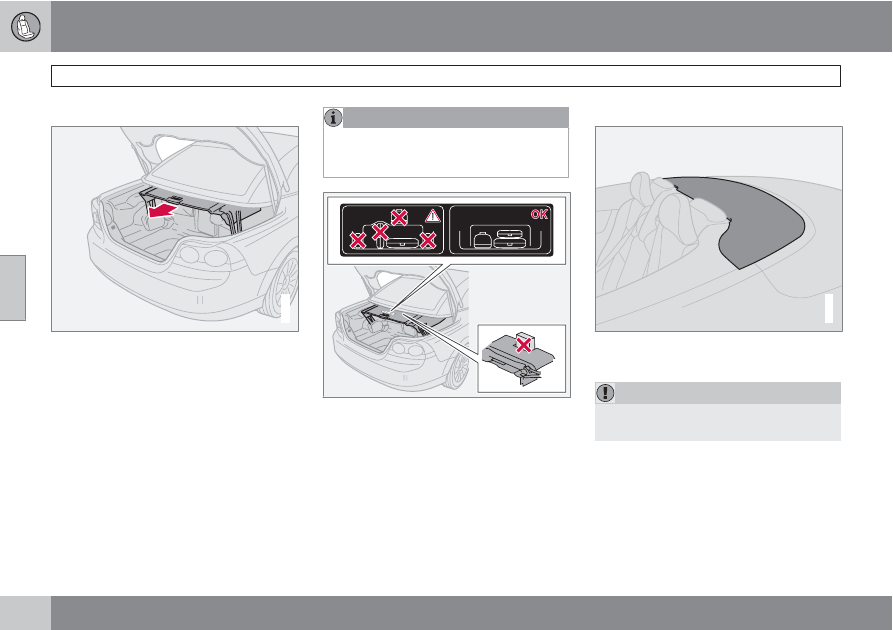

The purpose of the trunk divider is to indicate
the amount of cargo that can be stowed in the
trunk without affecting movement of the power
retractable hard top.

Grasp the handle and lift.

Pull the trunk divider rearward.

Be sure to close the trunk divider com-
pletely so that it locks in place on both the
right and left sides.

NOTE

If the trunk divider is not completely closed,
it will not be possible to operate the power
retractable hard top.

G020847

Trunk divider decal

Power retractable hard top cover

G020801

When lowered, the power retractable hard top
is concealed by a cover, see the illustration.

CAUTION

Do not sit or place heavy objects on the
power retractable hard top cover.

Content .. 3 4 5 6 ..
