Volvo C70 (2013 year). Instruction - part 4

02 Instruments and controls

Trip computer

stored and remains in system memory until the
RESET (button 3) is pressed again.

MPH ACTUAL SPEED (Canadian models
only)

This function provides the driver with an instan-
taneous conversion of the car's current speed
from km/h to mph.

NOTE

Trip computer readings may vary slightly
depending on the circumference of the tires
on the car, tire inflation, or driving style.

02 Instruments and controls

Cruise control*

Option/accessory, for more information, see Introduction.

Engaging the cruise control function

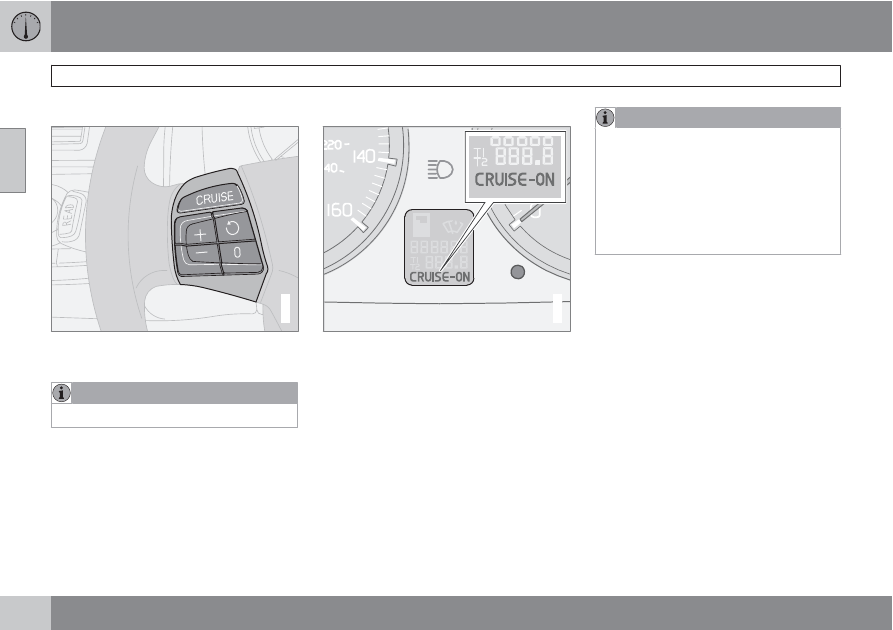

G020141

The cruise control buttons are located on the
left side of the steering wheel hub.

NOTE

This does not set the vehicle's speed.

Press the CRUISE button.

CRUISE

will

appear in the function display in the center
of the instrument panel.

Press + or – to set the current speed.
CRUISE-ONwill be displayed.

Increasing or decreasing speed

G031667

Use + or – in the following ways to increase or
decrease the vehicle's speed:

Press and hold down + or – until the vehicle
reaches the desired speed. This will
become the set speed when the button is
released.

Press + or – for approximately a half sec-
ond and release the button to increase or
decrease vehicle speed by approximately
1 mph (1.6 km/h).

NOTE

•

Cruise control will not function at
speeds below 20 mph (30 km/h).

•

Momentary acceleration, for less than
1 minute (e.g. when passing another
car), does not affect cruise control oper-
ation. The car will automatically return
to the previously set speed when the
accelerator pedal is released.

Temporarily disengaging the cruise
control

•

Press 0 to temporarily disengage cruise
control.

CRUISEwill appear in the function display. The
currently set speed is stored in the system's
memory.

Cruise control is also automatically
disengaged:

•

If the speed drops below approximately
20 mph (30 km/h) when driving uphill.

•

When the brake or clutch pedal is
depressed.

•

If the gear selector is moved to position N.

02 Instruments and controls

Cruise control*

Option/accessory, for more information, see Introduction.

•

During wheel spin or wheel lock-up.

•

If the vehicle's speed is increased by using
the accelerator pedal for more than
1 minute.

Returning to the set speed

Press the button to resume the
previously set speed. CRUISE-
ON will be displayed.

Disengaging cruise control

Cruise control can also be disengaged by:

•

Pressing the CRUISE button (CRUISE-
ON will no longer be shown in the function
display).

•

Putting the gear selector in Neutral (N).

WARNING

Cruise control should not be used in heavy
traffic or when driving on wet or slippery
roads. Cruise control may not maintain the
set speed on steep downgrades.

02 Instruments and controls

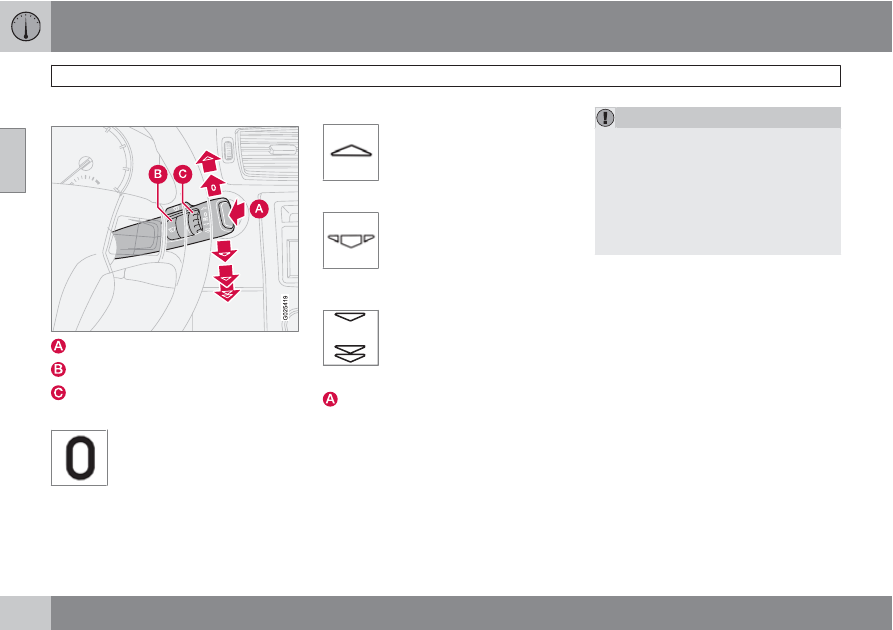

Right-side steering wheel lever

Windshield wipers

Windshield/headlight washers

Rain sensor – on/off, see page 74

Thumb wheel

Windshield wipers off

The windshield wipers are off when
the lever is in position 0.

Manual wiper function

From position 0, move the lever
upward. The windshield wipers will
sweep one stroke at a time for as
long as the lever is held up.

Intermittent wiper function

With the lever in this position, you
can set the wiper interval by mov-
ing the thumb wheel (C) upward to
increase wiper speed or down-
ward to decrease the speed.

Continuous wiper function

The wipers operate at "normal"
speed.

High speed wiper function.

– Windshield washers

Pull the lever toward the steering wheel and
release it. The wipers will make 2–3 sweeps
across the windshield after the lever has been
released.

CAUTION

•

Use ample washer fluid when washing
the windshield. The windshield should
be thoroughly wet when the wipers are
in operation.

•

Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.

Headlight washers (certain models)

When the lever has been pulled, high pressure
jets mounted in the bumper will spray the head-
lights.

The following applies to conserve washer fluid,
see page 64 for information on the light switch
positions:

Low/high beam headlights on

The headlights will be washed the first time the
windshield is washed. Thereafter, the head-
lights will only be washed once for every five
times the windshield is washed within a
10 minute period.

Parking lights on

The optional Active Bending Lights will be
washed once for every five times the wind-
shield is washed.

02 Instruments and controls

Right-side steering wheel lever

Option/accessory, for more information, see Introduction.

Normal halogen headlights will not be washed.

When approx. 1 US quart (1 liter) of washer fluid
remains in the reservoir, the headlights will no
longer be washed. A text message will also be
displayed to remind the driver to fill the washer
fluid reservoir.

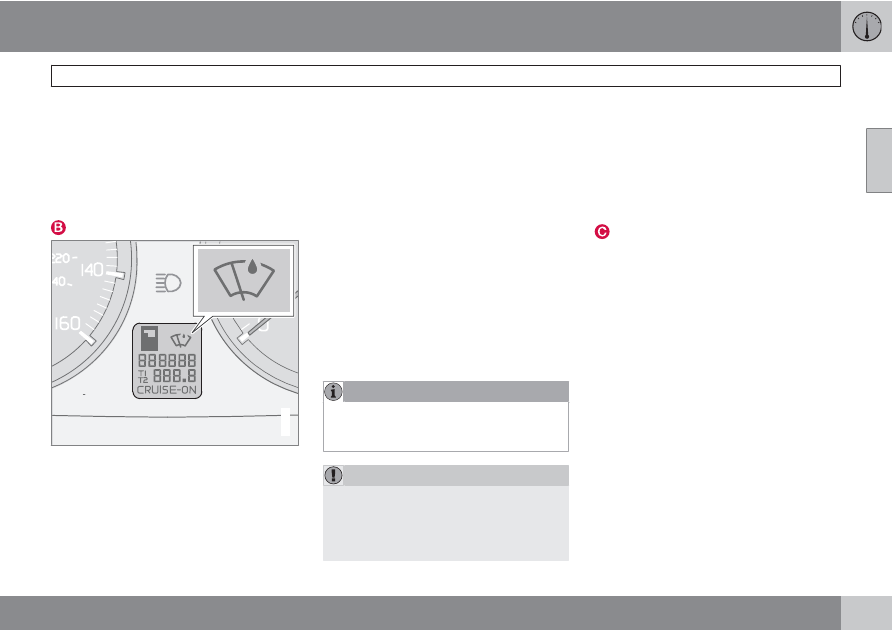

– Rain sensor*

G031469

The rain sensor regulates windshield wiper
speed according to the amount of water on the
windshield. The sensitivity of the rain sensor is
adjusted by moving the thumb wheel (C in the
illustration on the previous page) up (the wipers
will sweep the windshield more frequently) or

down (the wipers will sweep the windshield
less frequently).

On/Off

Activating the rain sensor

Switch on the ignition.

Put the windshield wiper lever in posi-
tion 0.

Press button B (see page 74). The rain sen-
sor symbol will appear in the lower display.

Manual deactivation

The rain sensor can be deactivated by:

Pressing button (B).

Moving the windshield wiper lever down.

NOTE

The rain sensor function will remain acti-
vated if the lever is briefly moved up to acti-
vate the "manual sweep" function.

CAUTION

The rain sensor should be deactivated when
washing the car in an automatic car wash,
etc. If the rain sensor function is left on, the
wipers will start inadvertently in the car
wash and could be damaged.

Automatic deactivation

The rain sensor is deactivated automatically in
the following situations:

•

When the key is removed from the ignition.

•

Five minutes after the ignition is switched
off if the key is left in the ignition.

– Thumb wheel

The thumb wheel is used to set the wiper inter-
val when intermittent wiping is selected, or the
sensitivity to the amount of rain on the wind-
shield when the rain sensor is selected. Move
the wheel upward or downward to increase/
decrease wiper speed when the intermittent
function is selected, or to increase/decrease
the optional rain sensor's sensitivity when the
this function is activated.

02 Instruments and controls

Steering wheel adjustment, Hazard warning flashers

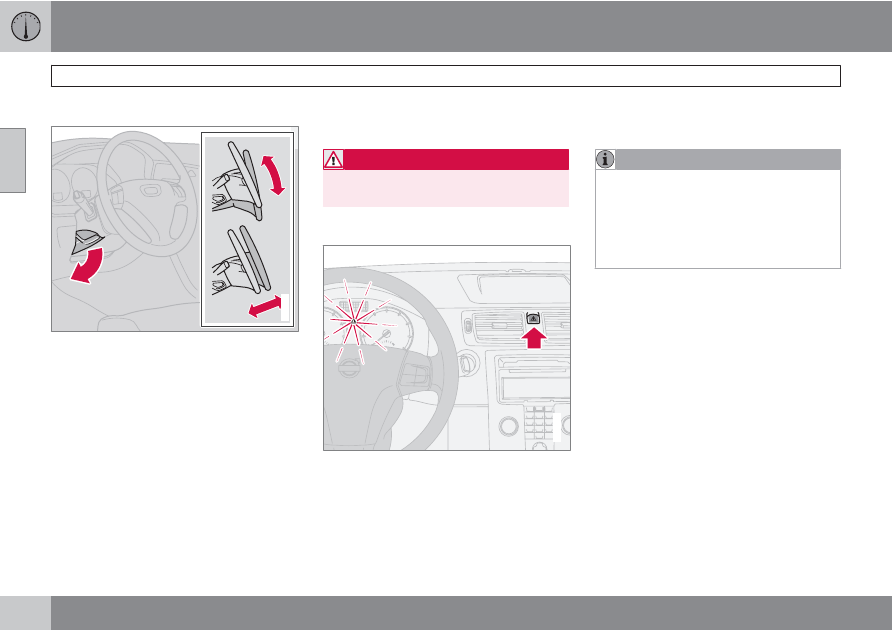

Steering wheel adjustment

G027308

Both the height and the reach of the steering
wheel can be adjusted to a comfortable posi-
tion for the driver.

Pull down the lever on the steering column
to release the steering wheel.

Adjust the steering wheel to a suitable
position.

Press the lever back into place to lock the
steering wheel in the new position. If nec-
essary, press the steering wheel slightly
while pressing the lever into the locked
position.

Check that the steering wheel is locked in the
new position.

WARNING

Never adjust the steering wheel while driv-
ing.

Hazard warning flashers

G020144

The four-way flasher should be used to indi-
cate that the vehicle has become a traffic haz-
ard.

Press the triangular button in the center
dash.

Press the button again to turn off the flash-
ers.

NOTE

•

Regulations regarding the use of the
hazard warning flasher may vary,
depending on where you live.

•

The hazard warning flashers will be acti-
vated automatically if an airbag
deploys.

02 Instruments and controls

Power windows

Operation

Control panel in driver's door

Open/close front windows

Open/close rear windows

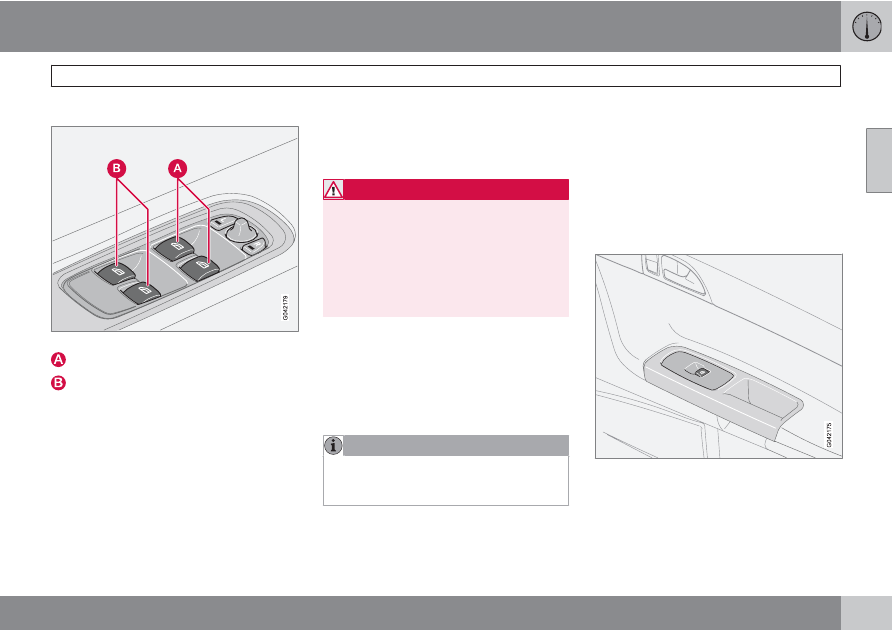

The power windows are controlled by buttons
in the arm rests.

•

The ignition must be ON (ignition key in
position I, II or the engine running) for the
power windows to function.

•

The power windows will also function after
the ignition has been switched off as long
as neither of the front doors has been
opened.

Opening a window

Lightly press down the front edge of any of the
buttons (A or B) to the first detent ("stop") to
open a window to the position of your choice.

WARNING

•

Always remove the ignition key when
the vehicle is unattended.

•

Never leave children unattended in the
vehicle.

•

Make sure that the windows are com-
pletely unobstructed before they are
operated.

Press down the front part of one or both
buttons A as far as possible and release to
automatically open the front window(s)
completely.

To stop the window at any time, pull the
button up.

NOTE

To reduce buffeting wind noise if the rear
windows are opened, also open the front
windows slightly.

Closing a window

Lightly pull up the front edge of any of the
buttons (A or B) to the first detent ("stop")

to close a window to the position of your
choice.

Pull up the front part of one or both buttons
(A) as far as possible and release to auto-
matically close the front window(s) com-
pletely.

Power window control – front
passenger's side

The control for the power window in the front
passenger's door operates that window only.

02 Instruments and controls

Mirrors

Option/accessory, for more information, see Introduction.

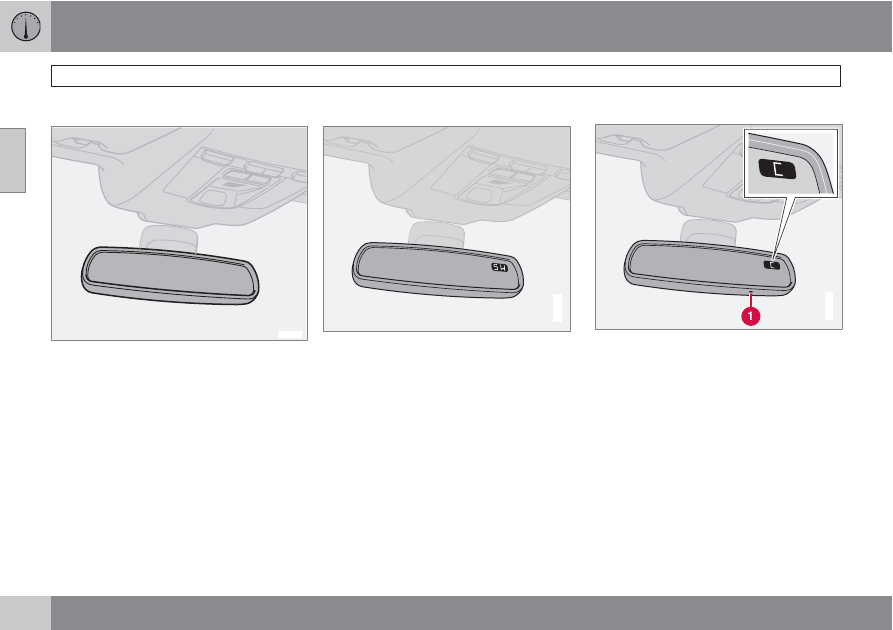

Rearview mirror

G008130

Auto-dim function

An integrated sensor reacts to headlights from
following traffic and automatically reduces
glare.

Rearview mirror with compass*

G020991

The upper right-hand corner of the rearview
mirror has an integrated display that shows the
compass direction toward which the car is
pointing. Eight different directions can be dis-
played:

and

. The

display shows your car's orientation with
respect to true north.

Calibrating the compass

G020992

The earth is divided into 15 magnetic zones.
The compass is initially set for the zone to
which the car was delivered, and should
always be adjusted if the car is driven to a new
magnetic zone. A "

" will be displayed if cali-

bration becomes necessary.

To calibrate the compass:

Stop the car in a large, open area, away
from traffic.

Using a pen or similar object, hold the but-
ton (1) depressed for at least 6 seconds.
"

" will be displayed.

02 Instruments and controls

Mirrors

Option/accessory, for more information, see Introduction.

G026409

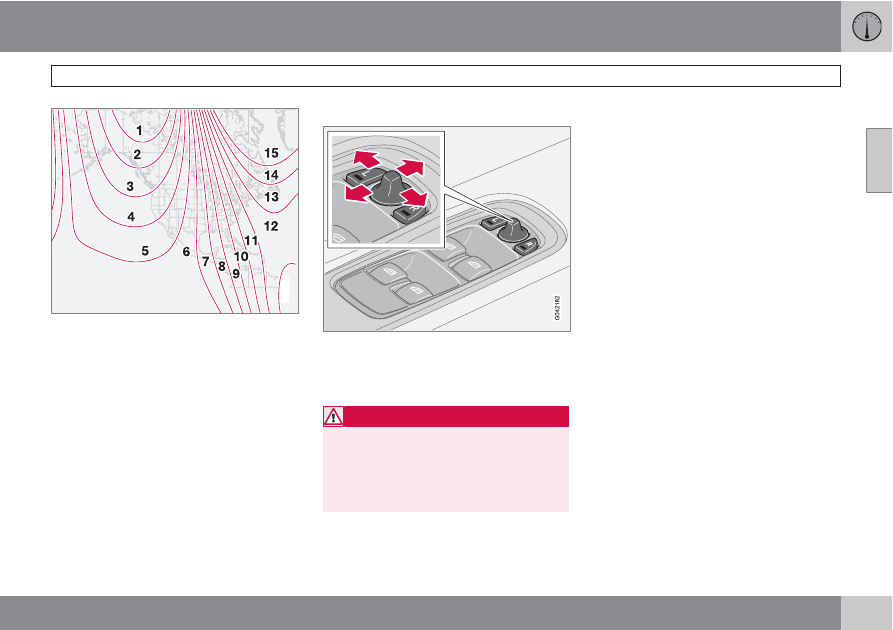

Magnetic zones

Press button (1) for at least 3 seconds to
display the number of the current magnetic
zone.

Press button (1) repeatedly until the num-
ber for the required geographical area (

–

) is displayed. "

" will be displayed

again.

Drive slowly in a circle at a maximum speed
of 6 mph (10 km/h) until a compass direc-
tion is displayed.

Calibration is complete.

Power door mirrors

The mirror control switches are located on the
driver's door armrest.

Adjusting the mirrors

WARNING

•

The mirrors should always be adjusted
prior to driving.

•

Objects seen in the passenger's side
wide-angle door mirror are closer than
they appear to be.

Driver's door mirror:

–

Press the L button (a light in the switch will
go on) to activate the adjustment control.

Use this control to adjust the driver's door
mirror.

Passenger's door mirror:

Press the R switch (a light in the switch will
go on) to activate the adjustment control.
Use this control to adjust the passenger's
door mirror.

After you have adjusted the mirror(s), press
the L or R switch again (the LED will go out)
to deactivate the adjustment control.

Storing the mirrors' position

The position of the door mirrors is stored when
the vehicle is locked. The next time the driver's
door is unlocked with the same remote key and
that door is opened within 2 minutes, the
optional power driver's seat and side door mir-
rors will automatically move to the position that
they were in when the doors were most
recently locked with the same remote key.

Folding power door mirrors*

The mirrors can be folded in for parking/driving
in narrow spaces.

Folding the mirrors in

Press down the L and R mirror control but-
tons on the driver's door at the same time.

Release them after approximately one sec-
ond. The mirrors automatically fold in to the
fully retracted position.

02 Instruments and controls

Mirrors

Option/accessory, for more information, see Introduction.

Folding the mirrors out

Fold out the mirrors by pressing down the L
and R buttons at the same time. The mirrors
automatically fold out to the fully extended
position.

Automatic folding

When the vehicle is locked/unlocked with the
remote key or with the optional keyless drive
system (see page 128), the power door mirrors
with automatically fold in or out.

NOTE

The door mirrors will not fold out automati-
cally when the vehicle is unlocked if they
were folded in using the buttons on the driv-
er's door control panel.

This function can be activated/deactivated in
Personal settings (see page 81). In the menu
system, go to

Car settings…

Mirror fold

on locking

Return to "neutral" position

If a mirror has been inadvertently moved (bum-
ped in a parking lot, etc.) from its original (neu-
tral) position, it must be moved back to this
position before automatic folding will function
again.

To do so:

Fold in the mirrors by pressing the L and
R mirror control buttons on the driver's
door at the same time.

Fold them out again by pressing the L and
R mirror control buttons.

This returns the mirrors to their original (neutral)
positions.

Blind Spot Information System (BLIS)*

The Blind Spot Information System (BLIS) is an
information system that indicates the presence
of another vehicle in the side-view mirror's
"blind area." See page 168 for detailed infor-
mation.

02 Instruments and controls

Personal settings

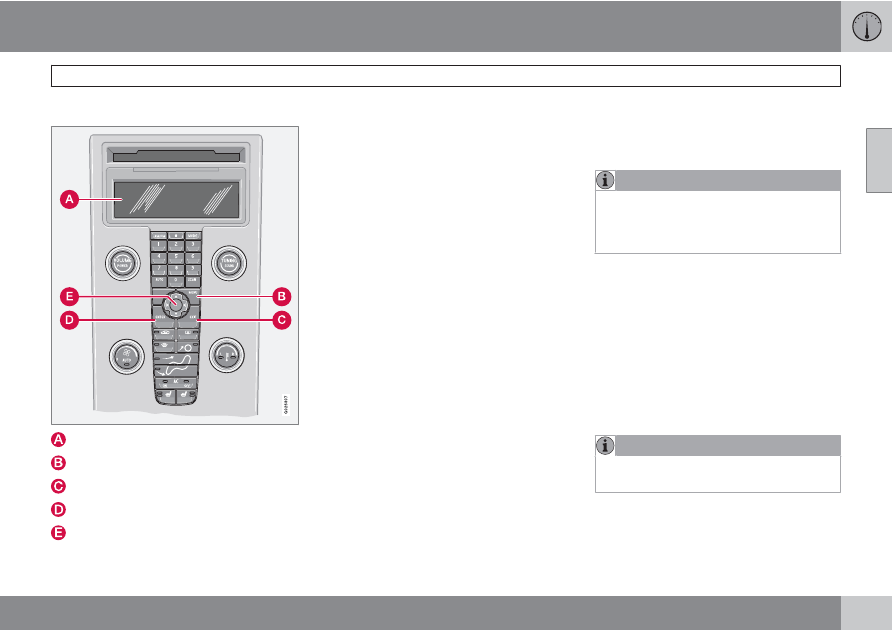

Control panel

Display

Menu button

Exit button

Enter button

Menu navigation controls

Personal settings can be made for some of the
car's functions, such as the central locking
system, climate control, and the audio system.
Please refer to page 246 for more information
on the audio functions that can be adjusted.
The settings are presented in the display (A).

To access the menu and adjust settings

Press MENU (B).

Scroll to

Car settings…

using the menu

navigation control (E).

Press ENTER (D).

Select an alternative using the menu navi-
gation control (E).

Confirm your selection by pressing
ENTER.

To exit the menu

–

Press EXIT (C).

Available settings

Clock adjust

To set the time:

Use the number keys or the up/down arrow
keys on the navigation control (E) to
change the hour or minute.

Select hour(s) or minute(s) to be changed
with the left/right arrow keys.

Press ENTER to start the clock.

NOTE

If you are currently using the 12-hour time
setting, use the up/down arrow keys to
select AM/PM after the minute-setting has
been adjusted.

Lock confirmation light

When the car is locked/unlocked with the
remote key, the direction indicators can be
selected to flash to confirm the action. The
alternatives On/Off are available for both lock-
ing and unlocking.

Autolock

When the car starts to move, the doors and
trunk can be locked automatically. The alter-
natives On/Off are available.

NOTE

Pulling the handle twice on a door unlocks
and opens that door.

Unlock

There are two alternatives for unlocking:

02 Instruments and controls

Personal settings

Option/accessory, for more information, see Introduction.

•

Global (All doors) – unlocks all doors and
the trunk with one press on the remote key.

•

Two Step (Two-stage unlocking) – This
alternative unlocks the driver's door with
one press on the remote key. A second
press unlocks the passenger's door and
the trunk

Automatically folding the door mirrors

The setting makes it possible to automatically
fold the door mirrors in or out when the vehicle
is locked or unlocked. See page 79.

Operating side windows

The following alternative can be selected for
opening all side windows at the same time by
pressing and holding the Unlock button on the
central locking system’s remote key, (see
page 132 for additional information).

•

Auto open all windows On/Off

Temporarily turning off the double
locking function and alarm sensor(s)

The double locking function and the alarm sen-
sors can be temporarily turned off (if, for exam-
ple, a person or a pet remains in the vehicle
when the doors are locked from outside with
the remote key, and the power retractable hard
top is down. There are two alternatives:

Activate once

and

Ask on exit

, see

page 136 for additional information.

Approach lighting

This alternative determines the length of time
for which the car's lights will remain on when
the Approach light button on the central lock-
ing system's remote key is pressed. Intervals
of 30/60/90 seconds may be selected, see the
section "Remote key functions" for more infor-
mation.

Home safe lighting

This alternative determines the length of time
for which the car's lights will remain on when
the high beam lever on the steering column is
pulled toward the wheel with the ignition
switched off. Intervals of 30/60/90 seconds
may be selected, see page 68 for information
on using this function.

Information

•

VIN number – The VIN (Vehicle Identifica-
tion Number) is the car's unique identity
number.

•

Number of Keys – the number of keys reg-
istered for the car is displayed here.

Climate functions

•

Blower speed in AUTO mode – the blower
speed can be set to AUTO mode in models

equipped with ECC. Choose between
"Low", "Normal" and "High".

•

Timer for recirculation – when the timer is
active, the air recirculates in the car for
3–12 minutes depending on the ambient
temperature. Select On/Off depending on
whether the recirculation timer is to be
active or not.

Keyless locking and unlocking*

The following alternatives can be selected for
locking and unlocking the doors and trunk:

•

All doors – all doors are locked or unlocked
at the same time.

•

Doors on the same side – front and rear
doors on the same side are unlocked
together.

•

Both front doors – both front doors are
unlocked together.

•

One front door – either of the front doors
can be unlocked separately

Reset to factory settings

Use this alternative to return to the default cli-
mate system settings.

Factory default.

02 Instruments and controls

HomeLink

Wireless Control System*

Option/accessory, for more information, see Introduction.

Introduction

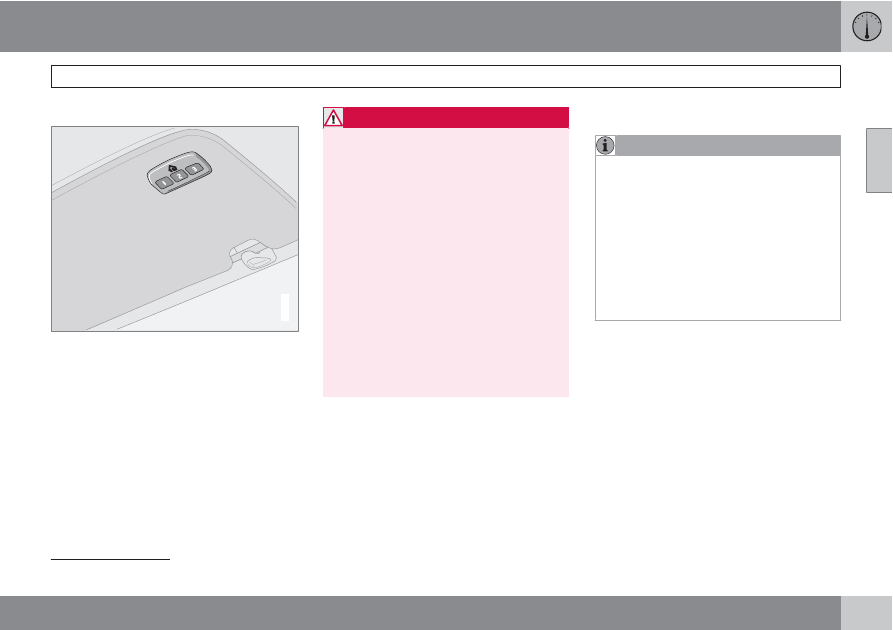

G030070

The HomeLink

Wireless Control System pro-

vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters
used to activate devices such as gate opera-
tors, garage door openers, entry door locks,
security systems, even home lighting. Addi-
tional HomeLink information can be found on
the Internet at www.homelink.com or by phon-
ing the hotline at 1–800–355–3515.

WARNING

•

If you use HomeLink to open a garage
door or gate, be sure no one is near the
gate or door while it is in motion.

•

When programming a garage door
opener, it is advised to park outside of
the garage.

•

Do not use HomeLink with any garage
door opener that lacks safety stop and
reverse features as required by U.S.
federal safety standards (this includes
any garage door opener model manu-
factured before April 1, 1982). A garage
door that cannot detect an object - sig-
naling the door to stop and reverse -
does not meet current U.S. federal
safety standards. For more information,
contact HomeLink at:
www.homelink.com.

Retain the original transmitter of the RF device
you are programming for use in other vehicles
as well as for future HomeLink programming. It
is also suggested that upon the sale of the
vehicle, the programmed HomeLink buttons be
erased for security purposes. Refer to “Reset-
ting HomeLink Buttons” on page 85.

Programming HomeLink

NOTE

Some vehicles may require the ignition to be
switched on or be in the “accessories” posi-
tion for programming and/or operation of
HomeLink. It is also recommended that a
new battery be placed in the hand-held
transmitter of the device being programmed
to HomeLink for quicker training and accu-
rate transmission of the radio-frequency
signal. The HomeLink buttons must be reset
first. When this has been completed, Home-
link is in learning mode so that you can per-
form programming.

Position the end of your hand-held trans-
mitter 1–3 inches (5–14 cm) away from the
HomeLink button you wish to program
while keeping the indicator light in view.

Simultaneously press and hold both the
chosen HomeLink and hand-held transmit-
ter buttons until the HomeLink indicator
light changes from a slow to a rapidly blink-
ing light. Now you may release both the
HomeLink and hand-held transmitter but-
tons.

HomeLink and the HomeLink house are registered trademarks of Johnson Controls, Inc.

02 Instruments and controls

HomeLink

Wireless Control System*

Option/accessory, for more information, see Introduction.

NOTE

Some devices may require you to replace
this Programming Step 2 with procedures
noted in the “Gate Operator / Canadian Pro-
gramming” section. If the HomeLink indica-
tor light does not change to a rapidly blink-
ing light after performing these steps, con-
tact HomeLink at www.homelink.com or by
phoning the hotline at 1–800–355–3515.

Firmly press, hold for five seconds and
release the programmed HomeLink but-
ton up to two separate times to activate the
door. If the door does not activate, press
and hold the just-trained HomeLink button
and observe the indicator light.

•

If the indicator light stays on con-
stantly, programming is complete
and your device should activate when
the HomeLink button is pressed and
released.

•

If the indicator light blinks rapidly for
two seconds and then turns to a con-
stant light continue with “Program-
ming” steps 4-6 to complete the pro-
gramming of a rolling code equipped
device (most commonly a garage door
opener).

At the garage door opener receiver (motor-
head unit) in the garage, locate the “learn”

or “smart” button. This can usually be
found where the hanging antenna wire is
attached to the motor-head unit.

Firmly press and release the “learn” or
“smart” button. (The name and color of the
button may vary by manufacturer.) There
are 30 seconds to initiate step 6.

Return to the vehicle and firmly press, hold
for two seconds and release the pro-
grammed HomeLink button. Repeat the
“press/hold/release” sequence a second
time, and, depending on the brand of the
garage door opener (or other rolling code
equipped device), repeat this sequence a
third time to complete the programming
process.

HomeLink should now activate your rolling
code equipped device.

Gate Operator/Canadian Programming

Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after sev-
eral seconds of transmission – which may not
be long enough for HomeLink to pick up the
signal during programming. Similar to this
Canadian law, some U.S. gate operators are
designed to “time-out” in the same manner.

If you live in Canada or you are having difficul-
ties programming a gate operator or garage
door opener by using the “Programming” pro-

cedures, replace “Programming HomeLink”
step 2 with the following:

•

Continue to press and hold the HomeLink
button while you press and release -
every two seconds (“cycle”) your hand-
held transmitter until the HomeLink indica-
tor light changes from a slow to a rapidly
blinking light. Now you may release both
the HomeLink and hand-held transmitter
buttons.

Proceed with “Programming” step 3 to com-
plete.

Using HomeLink

To operate, simply press and hold the pro-
grammed HomeLink button until the trained
device begins to operate (this may take several
seconds). Activation will now occur for the
trained device (i.e., garage door opener, gate
operator, security system, entry door lock,
home/office lighting, etc.). For convenience,
the hand-held transmitter of the device may
also be used at any time. In the event that there
are still programming difficulties or questions,
contact HomeLink at: www.homelink.com or
by phoning the hotline at 1–800–355–3515.

02 Instruments and controls

HomeLink

Wireless Control System*

Option/accessory, for more information, see Introduction.

NOTE

If the ignition is switched off, HomeLink will
function for 30 minutes after the driver's
door has been opened.

Resetting HomeLink Buttons

Use the following procedure to reset (erase
programming) from the three HomeLink but-
tons (individual buttons cannot be reset but
can be “reprogrammed” as outlined in the fol-
lowing section):

Press and hold the two outer HomeLink
buttons until the indicator light begins to
flash.

Release both buttons.

> HomeLink is now in the training (or

learning) mode and can be programmed
at any time beginning with “Program-
ming” - step 1.

Reprogramming a Single HomeLink
Button

To program a device to HomeLink using a
HomeLink button previously trained, follow
these steps:

Press and hold the desired HomeLink but-
ton. DO NOT release the button.

The indicator light will begin to flash after
20 seconds. Without releasing the Home-
Link button, proceed with “Programming”
- step 1.

For questions or comments, contact HomeLink
at: www.homelink.com or phone 1–800–355–
3515.

This device complies with FCC rules part 15
and Industry Canada (IC) RSS-210. Operation
is subject to the following two conditions: (1)
This device may not cause harmful interfer-
ence, and (2) This device must accept any
interference that may be received including
interference that may cause undesired opera-
tion.

NOTE

The transmitter has been tested and com-
plies with FCC and IC rules. Changes or
modifications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate the
device.

The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.

03 Climate

General information

Air conditioning – A/C

Your car is equipped with a climate control
system that includes either manually adjusta-
ble air conditioning or optional Electronic Cli-
mate Control (ECC).

The air conditioning system can be switched
off, but for optimal air quality in the passenger
compartment and to prevent the windows from
fogging, the air conditioning should be left on
– even in cool weather.

NOTE

In warm weather, a small amount of water
may accumulate under the car when it has
been parked. This water is condensation
from the A/C system and is normal.

Ice and snow

Always keep the air intake grille at the base of
the windshield free of snow.

Fog on the inside of the windows

The defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-
mercially available window washing spray will
also help prevent fogging or misting.

Climate control maintenance

Special tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.

Refrigerant

Volvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The system
contains 1.2 lbs (530 g) R134a (HFC 134a), and
uses PAG oil.

Passenger compartment filter

Replace the cabin air filter with a new one at
the recommended intervals. Please refer to
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.

NOTE

There are different types of cabin air filters.
Ensure that the correct type is installed.

Display

The display above the climate control panel
shows the climate settings that have been
made.

Personal settings

There are two functions in the climate system
that can be set to your preferences:

•

Blower speed to Auto mode (models with
ECC only).

•

Timer controlled recirculation of the air in
the passenger compartment.

Content .. 2 3 4 5 ..
