MAINTENANCE AND SERVICE

}}

567

The wiper blades also exit service position if:

•

Windscreen wiping is activated.

•

Windscreen washing is activated.

•

Rain sensor activated.

•

The car is driven away.

IMPORTANT

If the wiper arms in service position have
been folded up from the windscreen, they
must be folded back down onto the wind-
screen before the activation of wiping, wash-
ing or the rain sensor, as well as before driv-
ing. This is to avoid scraping the paint on the
bonnet.

Related information

•

Replacing a wiper blade (p. 567)

•

Filling washer fluid (p. 569)

•

Overview of the centre display (p. 33)

•

Windscreen and headlamp washers (p. 155)

Replacing a wiper blade

The wiper blades sweep water away from the
windscreen and rear window. Together with the
washer fluid they clean the windows and ensure
visibility for driving. Windscreen and rear window
wiper blades can be replaced.

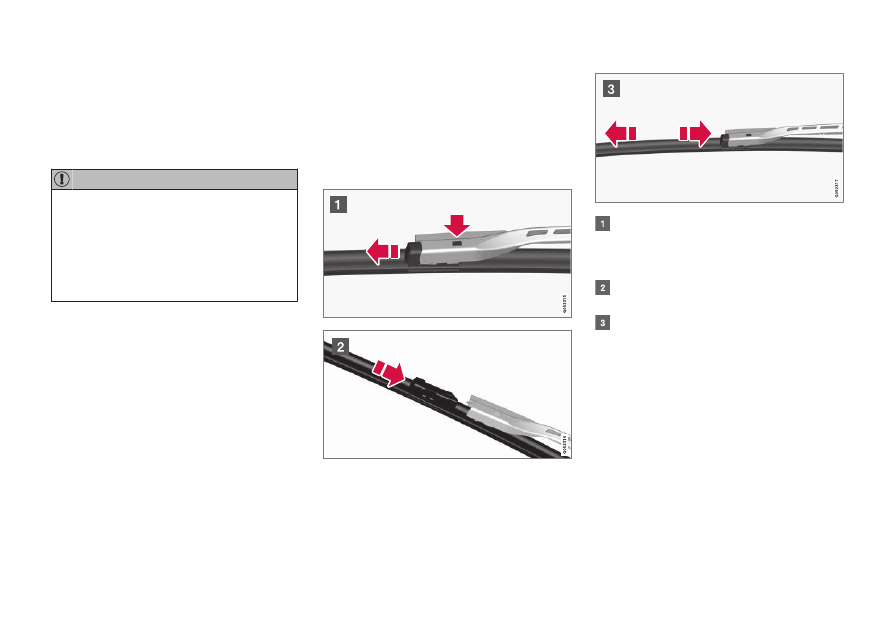

Replacing a windscreen wiper blade

Fold up the wiper arm when it is in service
position. Press the button located on the
wiper blade mounting and pull straight out
parallel with the wiper arm.

Slide in the new wiper blade until a "click" is
heard.

Check that the blade is firmly installed.

4. Fold the wiper arm back towards the wind-

screen.

||

MAINTENANCE AND SERVICE

568

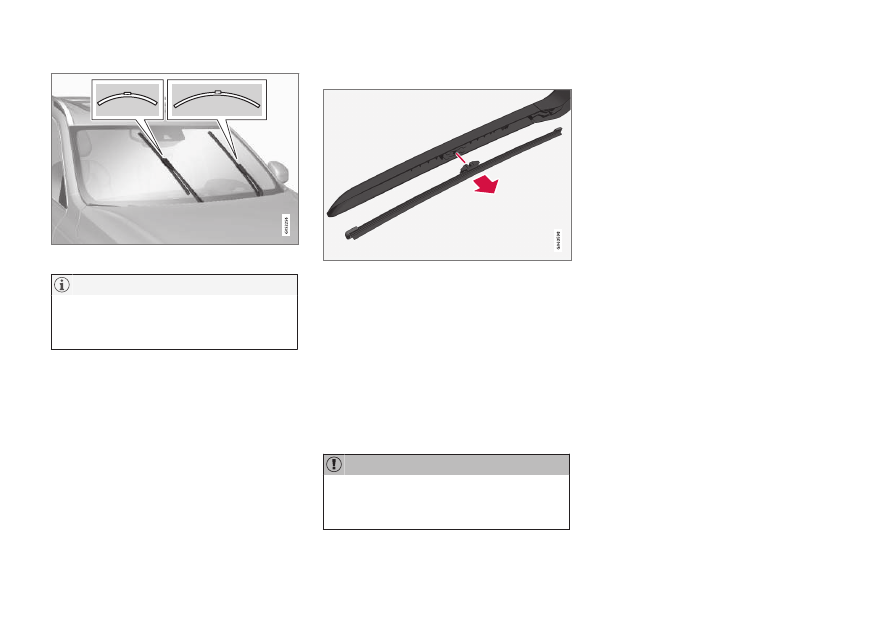

The wiper blades are different lengths.

NOTE

The wiper blades are different lengths. The
blade on the driver's side is longer than on
the passenger side.

Replacing the wiper blade, rear window

1. Fold out the wiper arm.

2. Grip the inner section of the blade (by the

arrow).

3. Turn anticlockwise to use the blade's end

position against the wiper arm as a lever to
detach the blade more easily.

4. Press the new wiper blade into place. You

should hear a click. Check that it is firmly
installed.

5. Lower the wiper arm.

IMPORTANT

Check the blades regularly. Neglected main-
tenance shortens the service life of the wiper
blades.

Related information

•

Wiper blades in service position (p. 566)

•

Cleaning the exterior (p. 587)

MAINTENANCE AND SERVICE

}}

* Option/accessory.

569

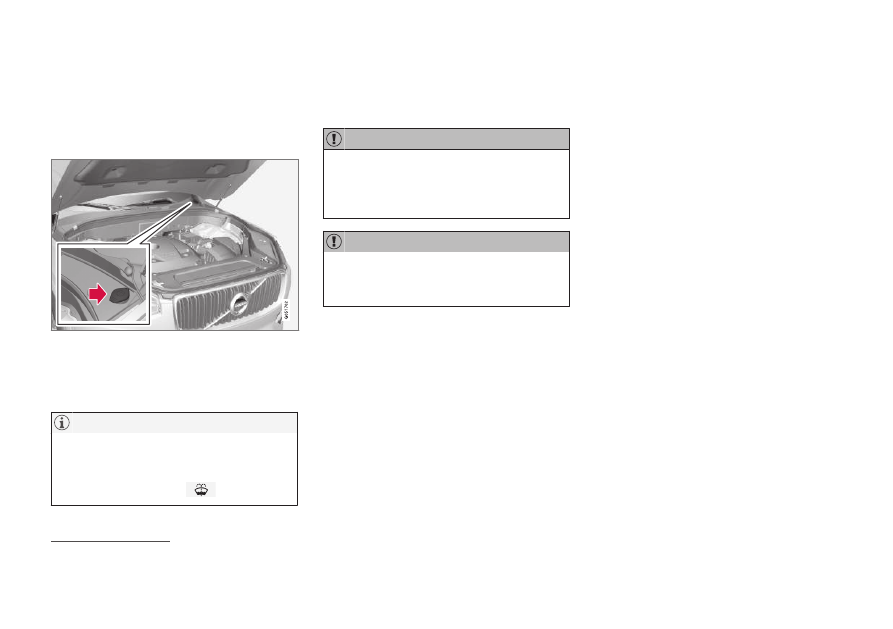

Filling washer fluid

Washer fluid is used for cleaning the headlamps
as well as the windscreen and rear window.
Washer fluid with antifreeze must be used when
the temperature is under the freezing point.

Filling of washer fluid takes place in the reservoir
with a blue cap. The reservoir is used for wind-
screen washer, rear window washer and head-
lamp washers

*

NOTE

When approx. 1 litre of washer fluid remains
in the reservoir the message

Washer fluid

Level low, refill

 is shown in the driver display

together with the symbol

.

Prescribed grade: Washer fluid recommended
by Volvo - with frost protection during cold
weather and below freezing point.

IMPORTANT

Use Volvo genuine washer fluid or equivalent
with a recommended pH of between 6 and 8,
in working dilution (e.g. 1:1 with neutral
water).

IMPORTANT

Use washer fluid with antifreeze when the
temperature is below freezing to avoid freez-
ing in the pump, reservoir and hoses.

Volume:

•

Cars with headlamp washing: 5.5 litres.

•

Cars without headlamp washing: 3.5 litres.

Related information

•

Windscreen and headlamp washers (p. 155)

•

Opening and closing the bonnet (p. 559)

Starter battery

The electrical system is single-pole and uses the
chassis and engine casing as a conductor.

The starter battery is used to start up the electri-
cal system and drive electrical equipment in the
car. The hybrid battery is used when the internal
combustion engine is started.

The starter battery should be replaced by a
workshop

11

.

The starter battery is a 12 V AGM battery
(Absorbed Glass Mat), designed for the carbon
dioxide reducing functions Start/Stop and regen-
erative charging, and to support the functionality
of the car's different systems.

The service life and function of the starter battery
is influenced by factors such as the number of
starts, discharging, driving style, driving condi-
tions, climatic conditions etc.

•

Never disconnect the starter battery when
the engine is running.

•

Check that the cables to the starter battery
are correctly connected and properly tight-
ened.

11

An authorised Volvo workshop is recommended.

||

MAINTENANCE AND SERVICE

570

WARNING

•

The battery can generate oxyhydrogen
gas, which is highly explosive. A spark can
be formed if a jump lead is connected
incorrectly, and this can be enough for
the battery to explode.

•

Do not connect the jump leads to any
fuel system component or any moving
part. Be careful of hot engine parts.

•

The battery contains sulphuric acid, which
can cause serious burns.

•

If sulphuric acid comes into contact with
eyes, skin or clothing, flush with large
quantities of water. If acid splashes into
the eyes - seek medical attention imme-
diately.

•

Never smoke near the battery.

When connecting an external starter battery or
battery charger, use the car's charging points in
the engine compartment. The battery terminals
on the car's starter battery in the cargo area must
not be used.

IMPORTANT

It is not possible to charge another car’s bat-
tery by means of current through the charging
points. Using the charging points to charge
another car's battery may cause a fuse to
blow, which means that the charging points
will stop working.

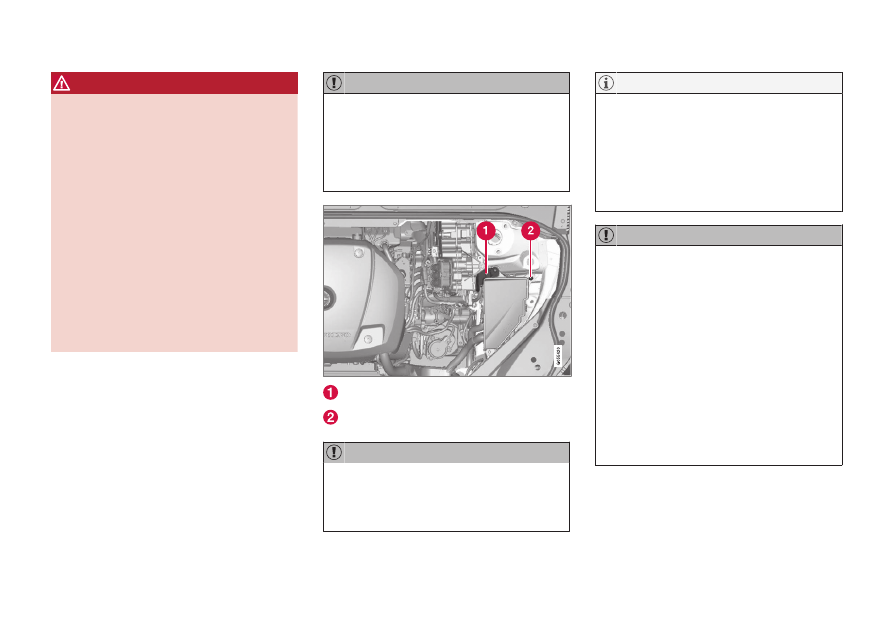

Positive charging point

Negative charging point

IMPORTANT

When charging the starter battery, only use a
modern battery charger with controlled charg-
ing voltage. Fast charging function must not
be used since it may damage the battery.

NOTE

If both the starter battery and the hybrid bat-
tery are discharged then both batteries must
be charged. In such a case, charging only the
hybrid battery first is not possible.

In order for the hybrid battery to be charged
the starter battery must have a certain state
of charge.

IMPORTANT

If the following instruction is not observed
then the energy saving function for infotain-
ment may be temporarily disengaged, and/or
the message in the driver display about the
starter battery's state of charge may be tem-
porarily inapplicable, following the connection
of an external starter battery or battery
charger:

•

The negative battery terminal on the car's
starter battery must never be used for
connecting an external starter battery or
battery charger - only the car's negative
charging point may be used as the
grounding point.

MAINTENANCE AND SERVICE

}}

571

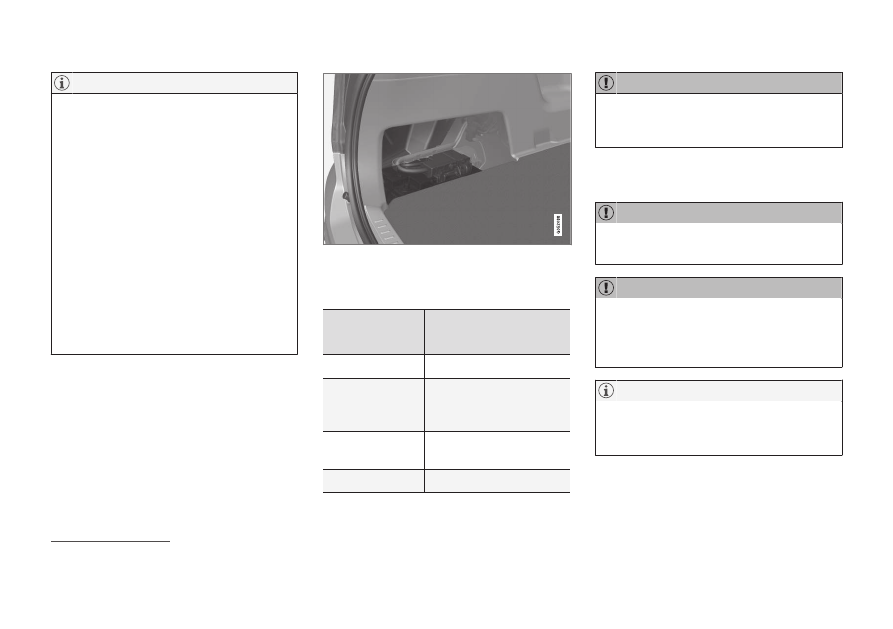

NOTE

The life of the battery is shortened if it
becomes discharged repeatedly.

The life of the battery is affected by several
factors, including driving conditions and cli-
mate. Battery starting capacity decreases
gradually with time and therefore needs to be
recharged if the car is not used for a longer
time or when it is only driven short distances.
Extreme cold further limits starting capacity.

To maintain the battery in good condition, at
least 15 minutes of driving/week is recom-
mended or that the battery is connected to a
battery charger with automatic trickle charg-
ing.

A battery that is kept fully charged has a
maximum service life.

The starter battery is located in the cargo area.

The following table shows specifications for the
starter battery.

Battery

H8 AGM

Voltage (V)

12

Cold start
capacity

A

 - CCA

B

(A)

850

Size , L×W×H
(mm)

353×175×190

(13.9×6.9×7.5 inches)

Capacity (Ah)

95

A

According to EN standard.

B

Cold Cranking Amperes.

IMPORTANT

On certain models, the battery is attached
with a retaining strap. Make sure the retaining
strap is properly tightened.

Volvo recommends entrusting battery replace-
ment to an authorised Volvo workshop.

IMPORTANT

When replacing the starter battery, a battery
of AGM

12

 type must be fitted.

IMPORTANT

If the starter battery is replaced, make sure
you replace it with a battery with the same
cold starting capacity and type as the original
battery (see the label on the battery).

NOTE

The starter battery's container size must be
consistent with the dimensions for the origi-
nal battery.

12

Absorbed Glass Mat.

||

MAINTENANCE AND SERVICE

572

Related information

•

Symbols on the batteries (p. 572)

•

Using jump starting with another battery
(p. 417)

•

Hybrid battery (p. 573)

•

Charging the hybrid battery (p. 462)

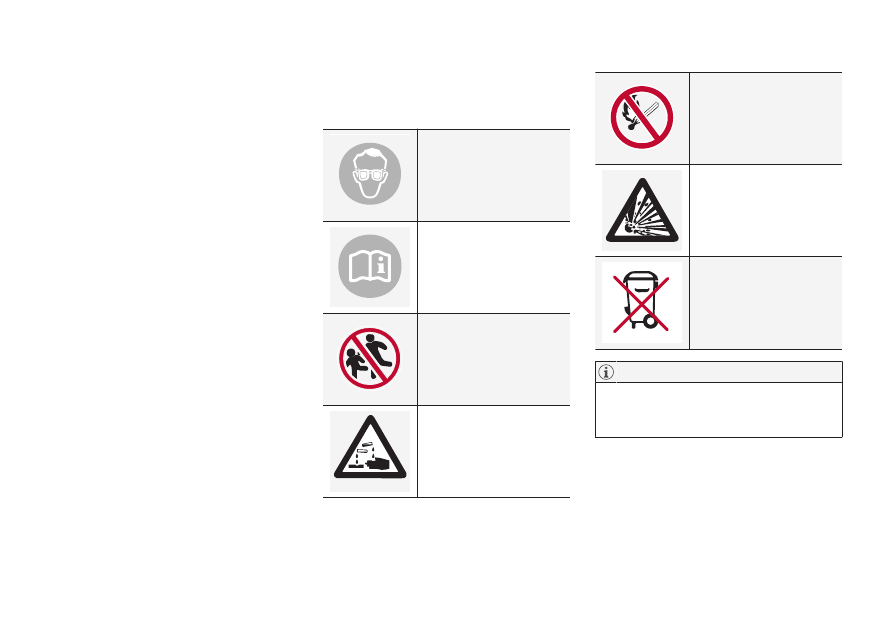

Symbols on the batteries

There are information and warning symbols on
the batteries.

Use protective goggles.

Further information in the

owner's manual for the car.

Store the battery out of the

reach of children.

The battery contains corro-

sive acid.

Avoid sparks and naked

flames.

Risk of explosion.

Must be taken for recycling.

NOTE

An expended battery must be recycled in an
environmentally safe manner as it contains
lead.

Related information

•

Starter battery (p. 569)

MAINTENANCE AND SERVICE

}}

573

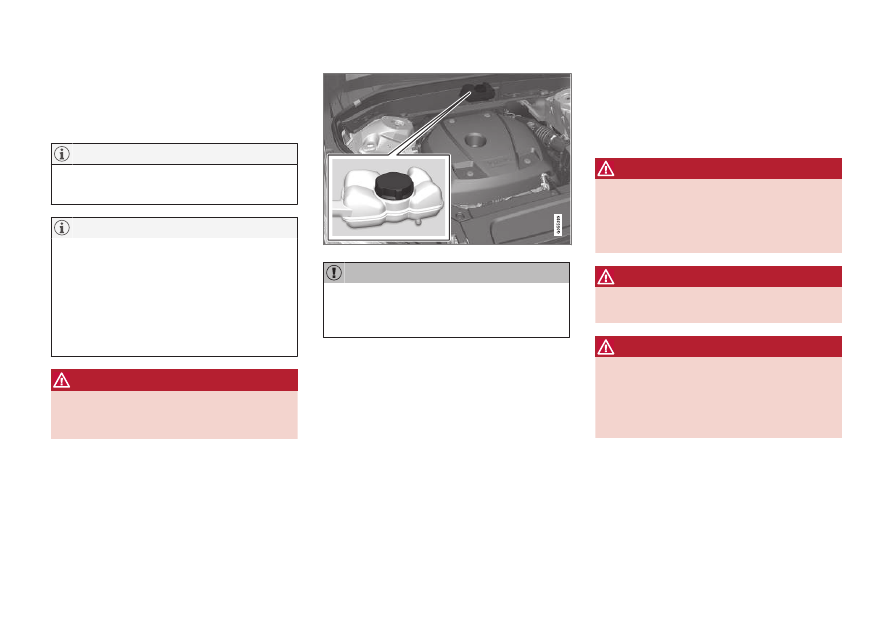

Hybrid battery

The car is equipped with a hybrid battery for
electric motor operation - a maintenance-free
rechargeable Lithium-ion type battery.

NOTE

The car cannot be started if the hybrid battery
is discharged.

NOTE

If both the starter battery and the hybrid bat-
tery are discharged then both batteries must
be charged. In such a case, charging only the
hybrid battery first is not possible.

In order for the hybrid battery to be charged
the starter battery must have a certain state
of charge.

WARNING

The hybrid battery must only be replaced by a

workshop - an authorised Volvo workshop is

recommended.

Coolant

The hybrid battery's cooling system has a sepa-
rate expansion tank.

IMPORTANT

The hybrid battery's coolant must only be top-
ped up by a workshop - an authorised Volvo
workshop is recommended.

Related information

•

Charging the hybrid battery (p. 462)

•

Starter battery (p. 569)

•

Hybrid battery — specifications (p. 615)

Fuses

All electrical functions and components are pro-
tected by a number of fuses in order to protect
the car's electrical system from damage by short
circuiting or overloading.

WARNING

Never use a foreign object or a fuse with an

amperage higher than that specified when

replacing a fuse. This could cause significant

damage to the electrical system and possibly

lead to fire.

WARNING

Orange-coloured cables must only be handled

by qualified personnel.

WARNING

Several components in the car work with

high-voltage current that could be dangerous

in the event of incorrect intervention.
Do not touch anything that is not clearly

described in this owner's manual.

If an electrical component or function does not
work, it may be because the component's fuse
was temporarily overloaded and failed. If the
same fuse fails repeatedly then there is a fault in
the circuit. Volvo recommends contacting an
authorised Volvo workshop for checking.

||

MAINTENANCE AND SERVICE

574

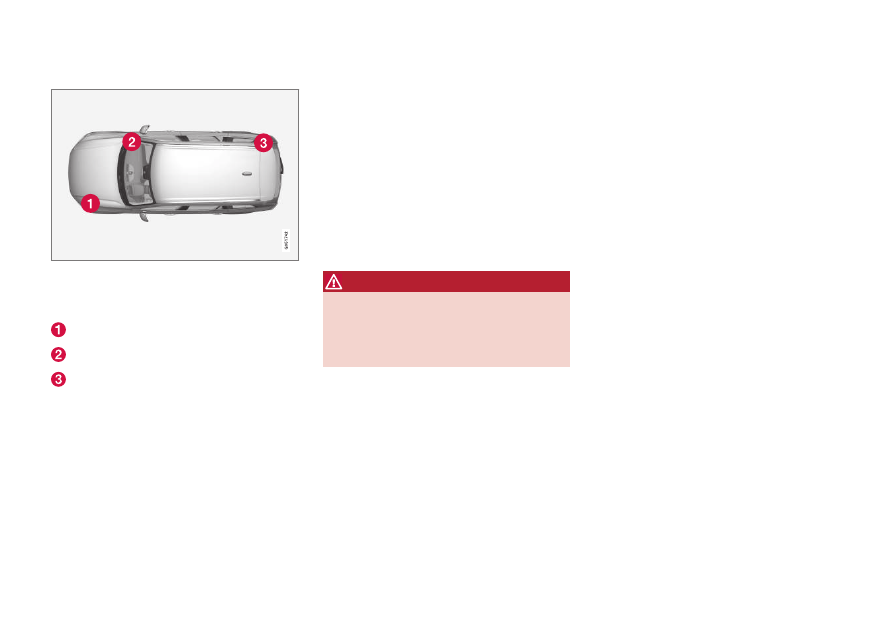

Location of central electrical units

Central electrical unit locations in a left-hand
drive car. In a right-hand drive car the central
electrical units under the glovebox change sides.

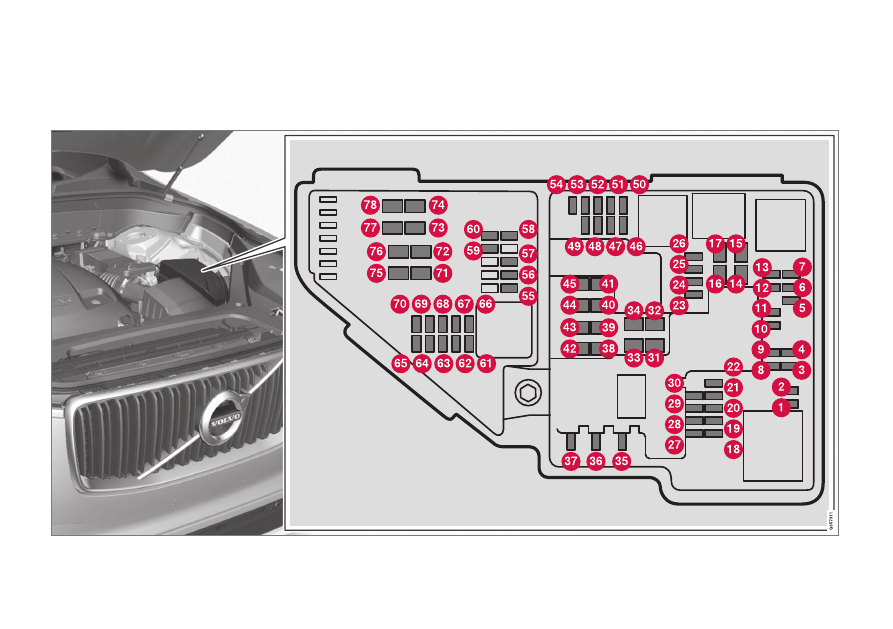

Engine compartment

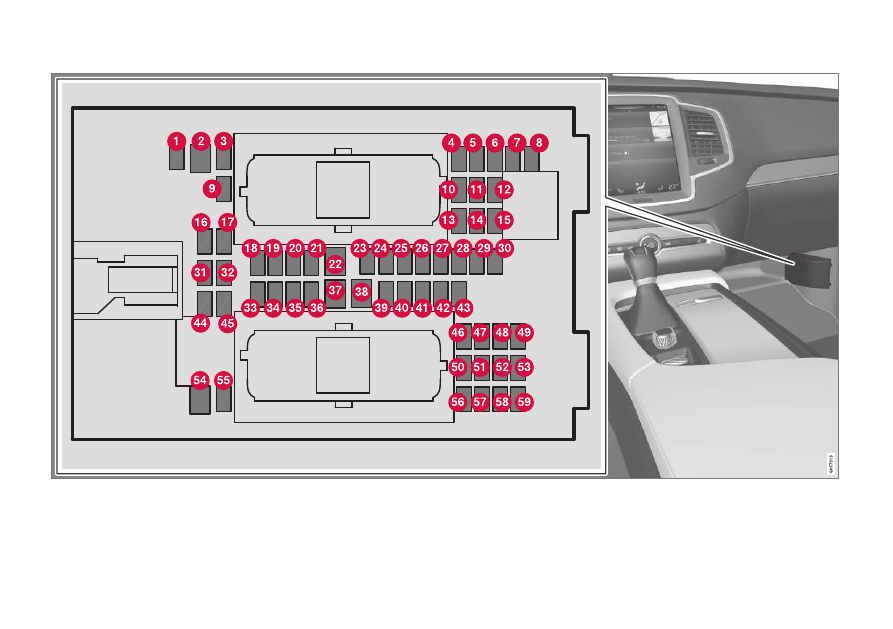

Under the glovebox

Cargo area

Related information

•

Replacing a fuse (p. 574)

Replacing a fuse

All electrical functions and components are pro-
tected by a number of fuses in order to protect
the car's electrical system from damage by short
circuiting or overloading.

Changing

1. Look in the fuse diagram to locate the fuse.

2. Pull out the fuse and check from the side to

see whether the curved wire has blown.

3. If this is the case, replace it with a new fuse

of the same colour and amperage.

WARNING

Never use a foreign object or a fuse with an

amperage higher than that specified when

replacing a fuse. This could cause significant

damage to the electrical system and possibly

lead to fire.

Related information

•

Fuses (p. 573)

•

Fuses in engine compartment (p. 575)

•

Fuses under glovebox (p. 579)

•

Fuses in cargo area (p. 583)

MAINTENANCE AND SERVICE

}}

575

Fuses in engine compartment

Fuses in the engine compartment protect engine
and brake functions, amongst other things.

||

MAINTENANCE AND SERVICE

576

On the inside of the cover there are tweezers that
facilitate the procedure for the removal and fitting
of fuses.

The fuse box also provides space for several
spare fuses.

Positions

On the inside of the cover is a label that shows
the location of the fuses.

•

Fuses 1-13, 18-30, 35-37 and 46-54 are of
the "Micro" type.

•

Fuses 14-17, 31-34 and 38-45 are of the
"MCase" type and should be replaced by a
workshop

13

.

Function

A

A

-

-

-

-

-

-

Control module for actuator for
engagement/change of auto-
matic gearbox gear positions

5

Control module for the high-volt-
age heater of the internal com-
bustion engine's coolant

5

Function

A

A

Control module for air condition-
ing; Charging unit; Shut-off valve
for heat exchanger; Shut-off
valve for coolant that passes
through the climate control sys-
tem

5

Control module for hybrid bat-
tery; High voltage converter for
combined high-voltage genera-
tor/starter motor with voltage
converter 500 V-12 V

5

-

-

Converter for control of the sup-
ply to the rear axle's electric
motor

10

Control module for hybrid bat-
tery; High voltage converter for
combined high-voltage genera-
tor/starter motor with voltage
converter 500 V-12 V

10

Charging unit

5

Shut-off valve for the hybrid bat-
tery's coolant; Coolant pump 1
for hybrid battery

10

Function

A

A

Coolant pump for electric drive
system

10

Cooling fan for hybrid compo-
nents

25

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

12 V socket in tunnel console,
front

15

13

An authorised Volvo workshop is recommended.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

577

Function

A

A

12 V socket in tunnel console,
by legroom for second seat row

B

12 V socket in tunnel console,
between the rear seats

C

; USB

ports in tunnel console, between
the rear seats

C

15

12 V socket in cargo area

*

USB ports for iPad holder

C

15

-

-

-

-

-

-

-

-

Heated windscreen

* left-hand

side

Shunt

Heated windscreen

* left-hand

side

40

Headlamp washers

*

25

Windscreen washers

25

-

-

Horn

20

Function

A

A

Siren

*

5

Control module for brake system
(valves, parking brake)

40

Windscreen wipers

30

Rear window washer

25

Heated windscreen

* right-hand

side

40

Parking heater

*

20

Control unit for brake system
(ABS pump)

40

-

-

Heated windscreen

* right-hand

side

Shunt

Supplied when the ignition is
switched on: Engine control
module; Transmission compo-
nents; Electric steering servo;
Central electronic module

5

Exterior car noise (certain mar-
kets)

5

Function

A

A

Right-hand headlamp

7.5

Right-hand headlamp, certain
variants of LED

D

15

-

-

-

-

-

-

Airbags

5

Left-hand headlamp

7.5

Left-hand headlamp, certain
variants of LED

D

15

Accelerator pedal sensor

5

Transmission control module;
Control module for gear selector

15

Engine Control Module (ECM)

5

-

-

-

-

-

-

-

-

||

MAINTENANCE AND SERVICE

578

Function

A

A

Engine control module; Actuator;
Throttle unit; Valve for turbo-
charger

20

Solenoids; Valve; Thermostat for
engine cooling system

10

Vacuum regulators; Valve

7.5

Control module, spoiler roller
cover; Control module, radiator
roller cover

5

-

-

Lambda-sond, front; Lambda-
sond, rear

15

Solenoid for engine oil pump;
Solenoid clutch A/C; Lambda
sond, centre

15

-

-

Engine Control Module (ECM)

20

Ignition coils; Spark plugs

15

-

-

-

-

Control module for transmission
fluid pump

30

Function

A

A

Control module for vacuum
pump

40

Actuator for transmission

25

-

-

-

-

-

-

A

Ampere

B

Not Excellence

C

Excellence

D

LED (Light Emitting Diode)

Related information

•

Replacing a fuse (p. 574)

•

Fuses under glovebox (p. 579)

•

Fuses in cargo area (p. 583)

MAINTENANCE AND SERVICE

}}

579

Fuses under glovebox

Fuses under the glovebox protect, amongst
other things, the 230 V socket, displays and
door modules.

||

MAINTENANCE AND SERVICE

580

On the inside of the cover there are tweezers that
facilitate the procedure for the removal and fitting
of fuses.

The fuse box in the engine compartment also
provides space for several spare fuses.

MAINTENANCE AND SERVICE

}}

* Option/accessory.

581

Positions

•

Fuses 1, 3-21, 23-36, 39-53 and 55-59 are
of the "Micro" type.

•

Fuses 2, 22, 37-38 and 54 are of the
"MCase" type and should be replaced by a
workshop

14

.

Function

A

A

-

-

-

-

-

-

Movement detector

*

5

Media player

5

Driver display

5

Keypad in centre console

5

Sun sensor

5

-

-

-

-

Steering wheel module

5

Module for start knob and for park-
ing brake control

5

Function

A

A

Steering wheel module for heated
steering wheel

*

15

-

-

-

-

-

-

-

-

Control module for climate control
system

10

Steering lock

7.5

Diagnostic socket OBDII

10

Centre display

5

Fan module for climate control sys-
tem, front

40

USB HUB

5

Function

A

A

Controls lighting; Interior lighting;
Dimming of interior rearview mir-
ror

*; Rain and light sensor*; Keypad

in tunnel console, by legroom for
second seat row

*

B

; Power front

seats

*; Control panels in rear doors

Power rear seats

C

; Display for rear

seat comfort functions

C

; Modules

for seat comfort (massage) rear

C

7.5

Control module for driver support
functions

5

Panorama roof with sun blind

*

20

Head-up display

*

5

Passenger compartment lighting

5

-

-

Display in roof console (Seatbelt
reminder/Indicator for airbag on
the front passenger seat)

5

-

-

Humidity sensor

5

14

An authorised Volvo workshop is recommended.

||

MAINTENANCE AND SERVICE

* Option/accessory.

582

Function

A

A

Door module in right-hand rear
door

20

Fuses in cargo area

10

Control module for online con-
nected car: Control module for
Volvo On Call

5

Door module in left-hand rear door

20

Audio control module (amplifier)
(certain variants)

40

Fan module for climate control sys-
tem, rear

*

40

Module for multi-band antenna

5

Modules for seat comfort (mas-
sage) front

*

5

-

-

Rear window wiper

15

Control module for fuel pump

15

Relay coils in central electrical unit
in engine compartment; relay coil
for transmission fluid pump

5

-

-

Function

A

A

Seat heating, driver's side front

15

Seat heating, passenger side front

15

Coolant pump

10

-

-

Door module in left-hand front door

20

Control module for suspension
(active chassis)

*

20

-

-

Sensus control module

10

-

-

-

-

Door module in right-hand front
door

20

Display for rear seat comfort func-
tions

C

; Data link connector OBD-II

in tunnel console between the rear
seats

C

; Extra movement detectors

C

5

C

Function

A

A

TV

* (certain markets)

5

Primary fuse for fuses 53 and 58

15

A

Ampere

B

Not Excellence

C

Excellence

Related information

•

Replacing a fuse (p. 574)

•

Fuses in engine compartment (p. 575)

•

Fuses in cargo area (p. 583)
