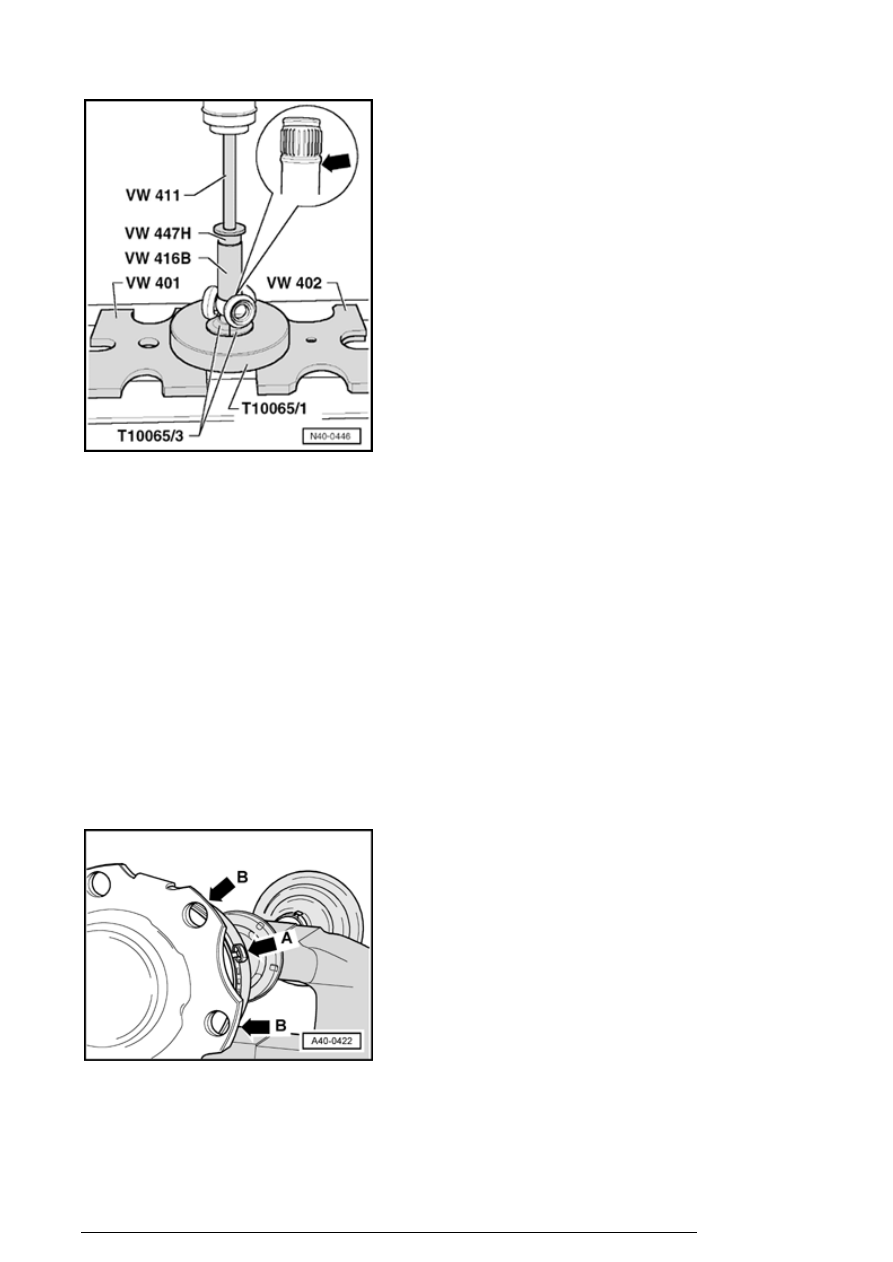

- Install triple roller star onto shaft and press onto stop.

- Make sure that the pressure does not exceed 3.0 t!

- If necessary coat axle shaft splines and triple-roller star
with lubricating paste G 052142A2 .

- Insert circlip, make sure seated correctly.

- Press 70 grams of joint grease from repair kit, into triple
roller joint.

- Slide joint over rollers and hold.

- Press 60 grams of joint grease, from repair kit, into
reverse side of triple roller joint.

- Install joint protective boot.

- Install clamp.

Note:

n

For a better alignment of the multi -point socket head

Front drive axle, servicing





bolts when mounting the axle shaft, it is necessary
that the clamping ear of the clamp  - arrow A - is
placed between the fixing flanges from the joint  -
arrowB - .

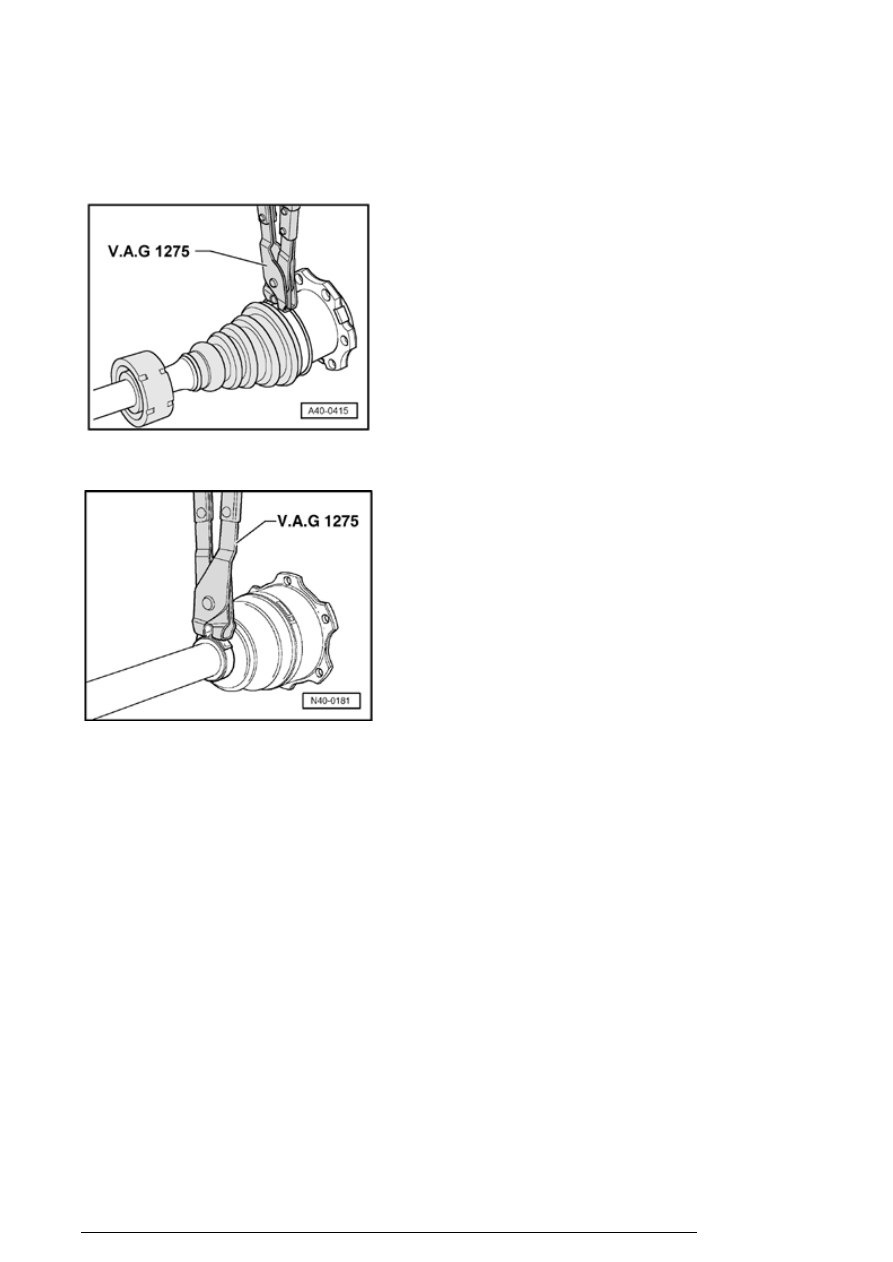

- Tighten clamp with hose clamp pliers V.A.G1275 .

- Tighten clamp with hose clamp pliers V.A.G1275 .

Front drive axle, servicing

42 - 1

Evaluation of accident vehicles



A check list for evaluating the suspension of accident
vehicles can be found here



00-2, Check list for

evaluating the suspension of accident vehicles

 .

Evaluation of accident vehicles

42 - 2



Rear axle, servicing



Rear axle, removing and installing

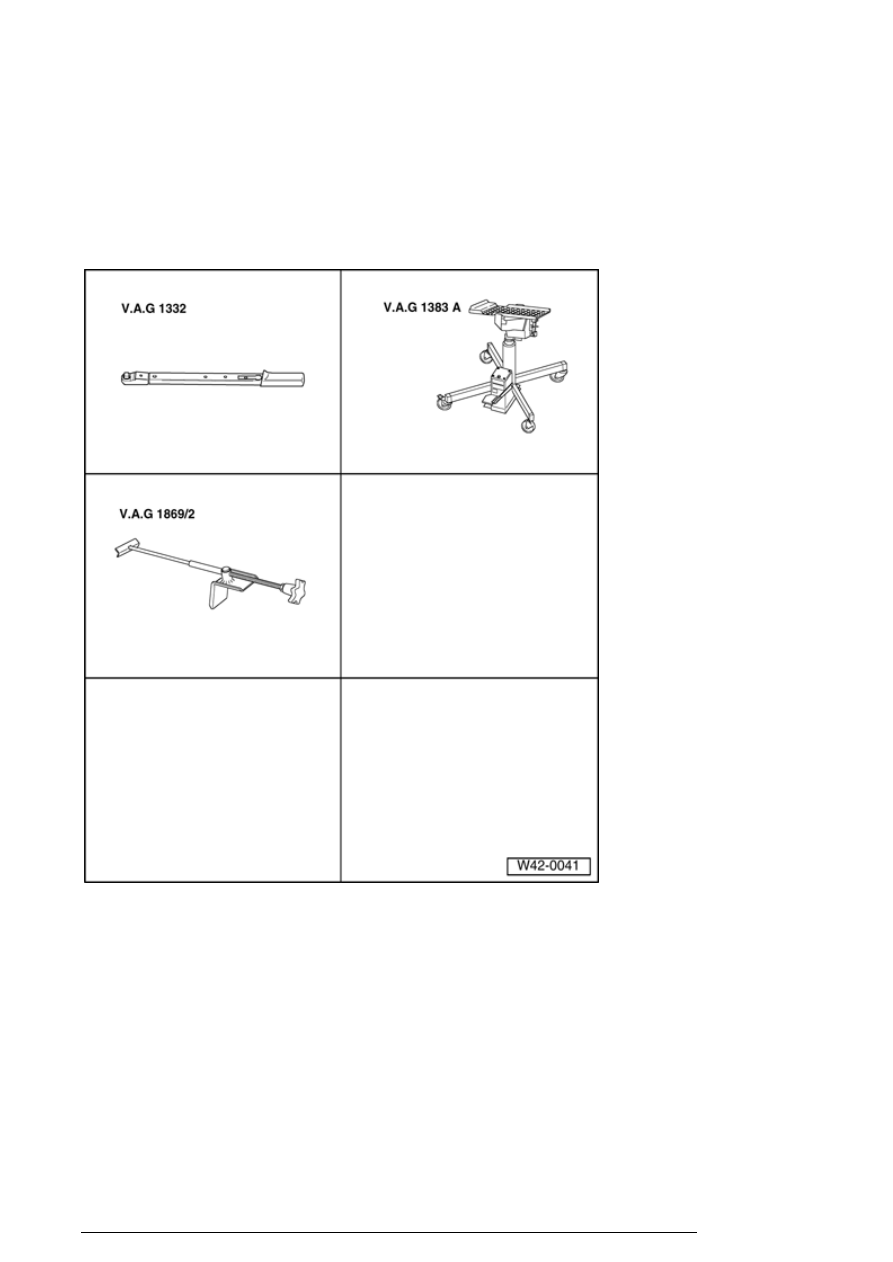

Special tools, testers and auxiliary items
required

n

Torque wrench V.A.G1332



n

Engine/transmission jack V.A.G
1383 A with universal transmission
mount V.A.G1359/2



n

Brake pedal depressor V.A.G1869/2



Special tools, testers and auxiliary items required

Rear axle, servicing
