Volkswagen 01M Transmission. Manual - part 86





Installing



Installation is in reverse order of removal. Note the
following:

-  Moisten O-rings with ATF.

-  Remove plugs and insert ATF lines into transmission up
to limit stop.

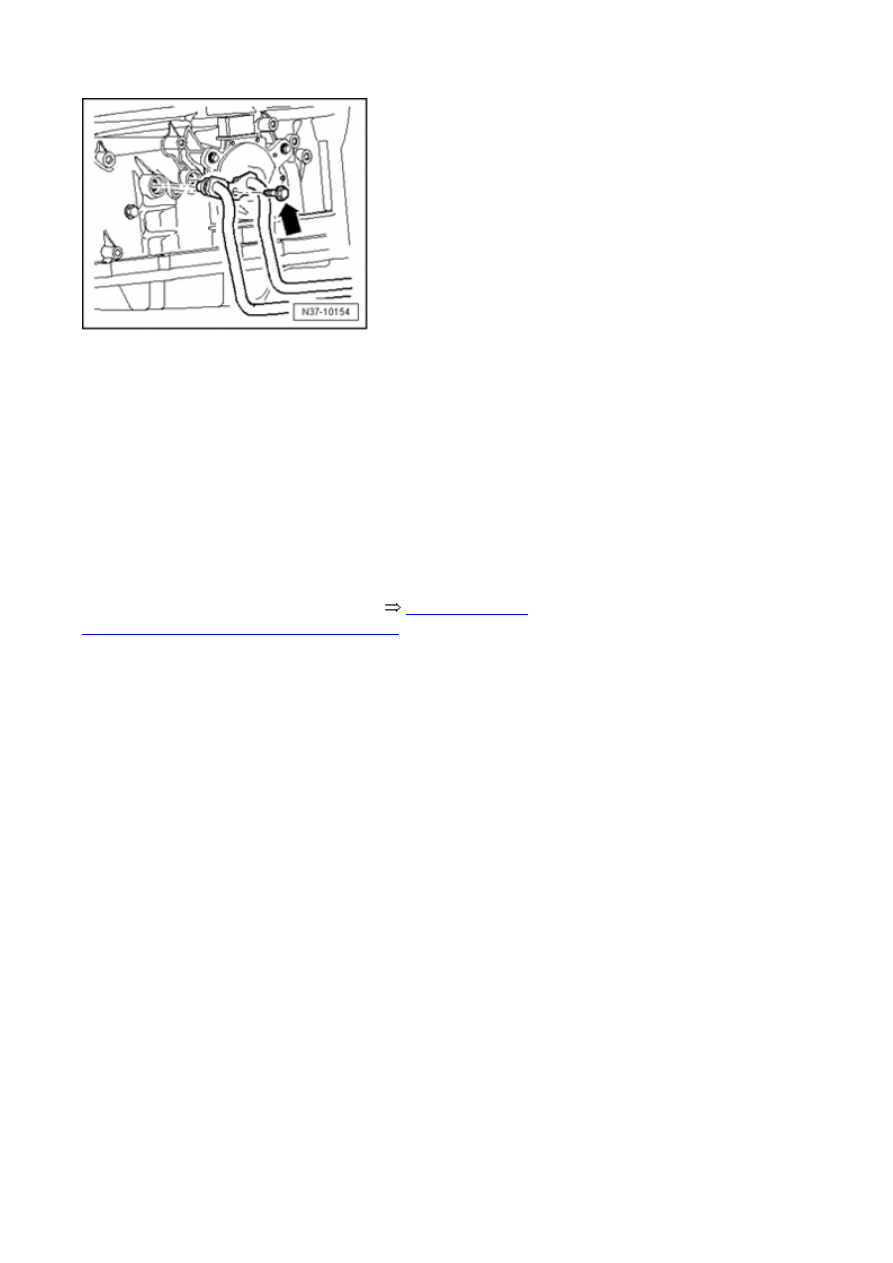

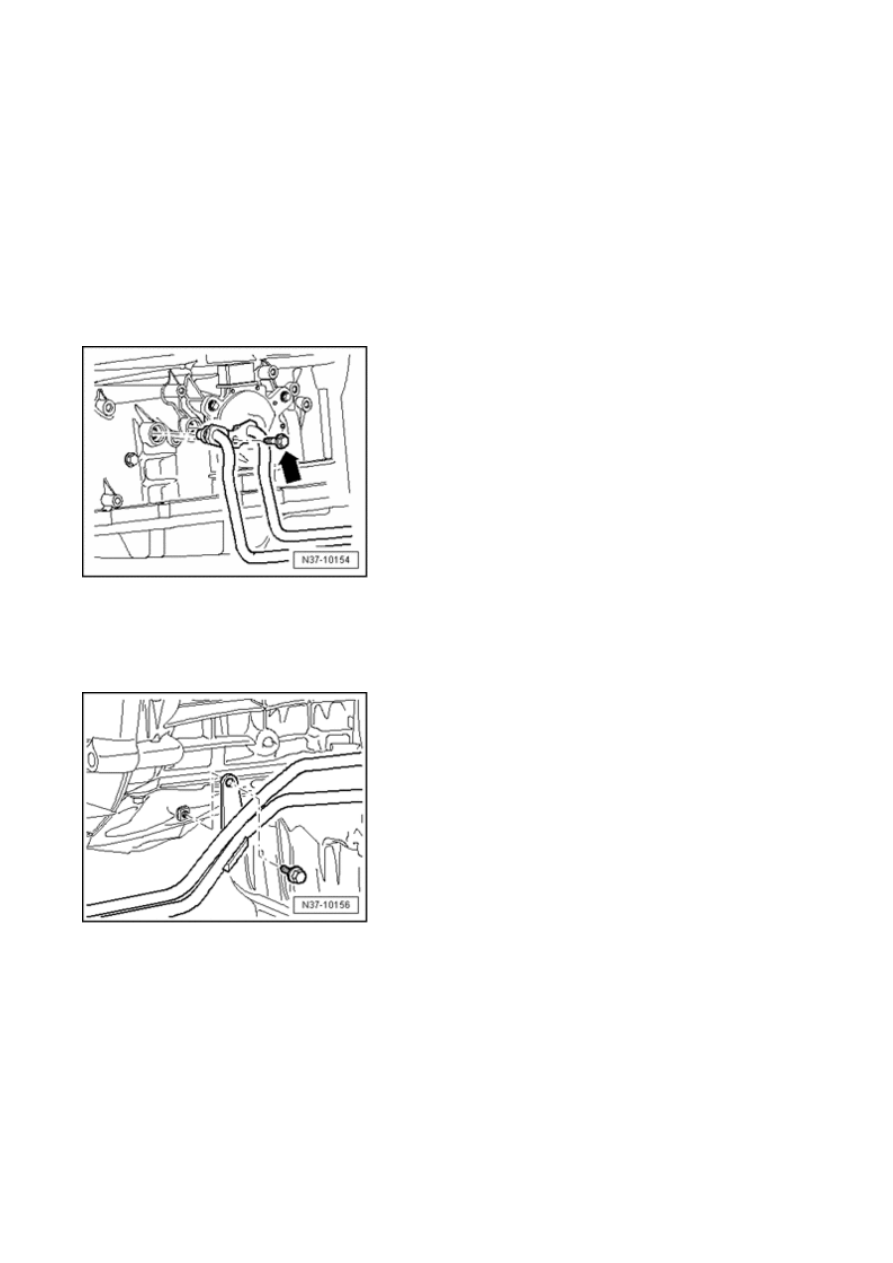

- Fasten bolt

-  Fasten bolt for ATF line retainer on transmission.

-  Fasten bolt for ATF line retainer on right of engine.

-  Remove plugs and fasten ATF lines at ATF cooler and
thermostat.

Page 6 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY

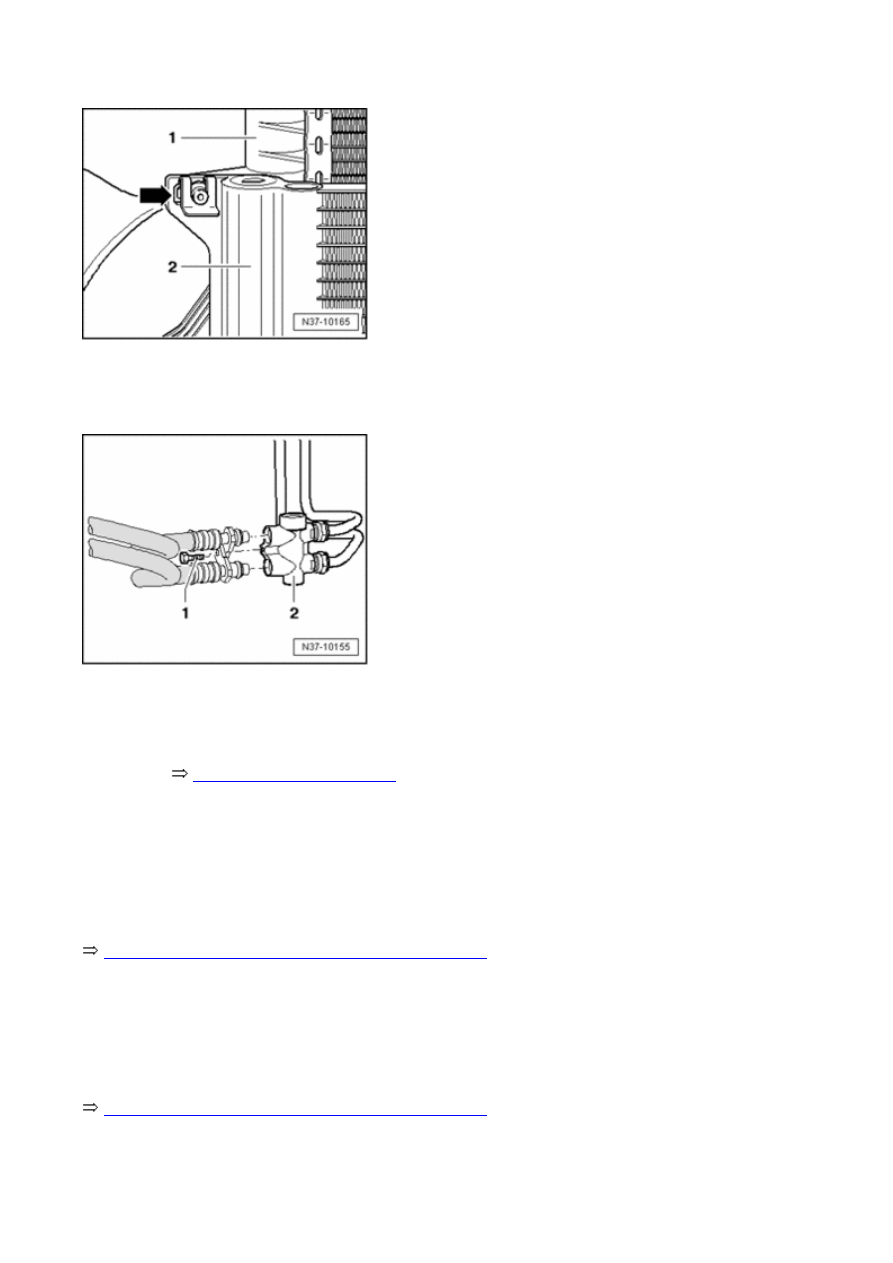

- Install condenser - 1  - and ATF cooler - 2 - .

- Install clamps - arrow - .

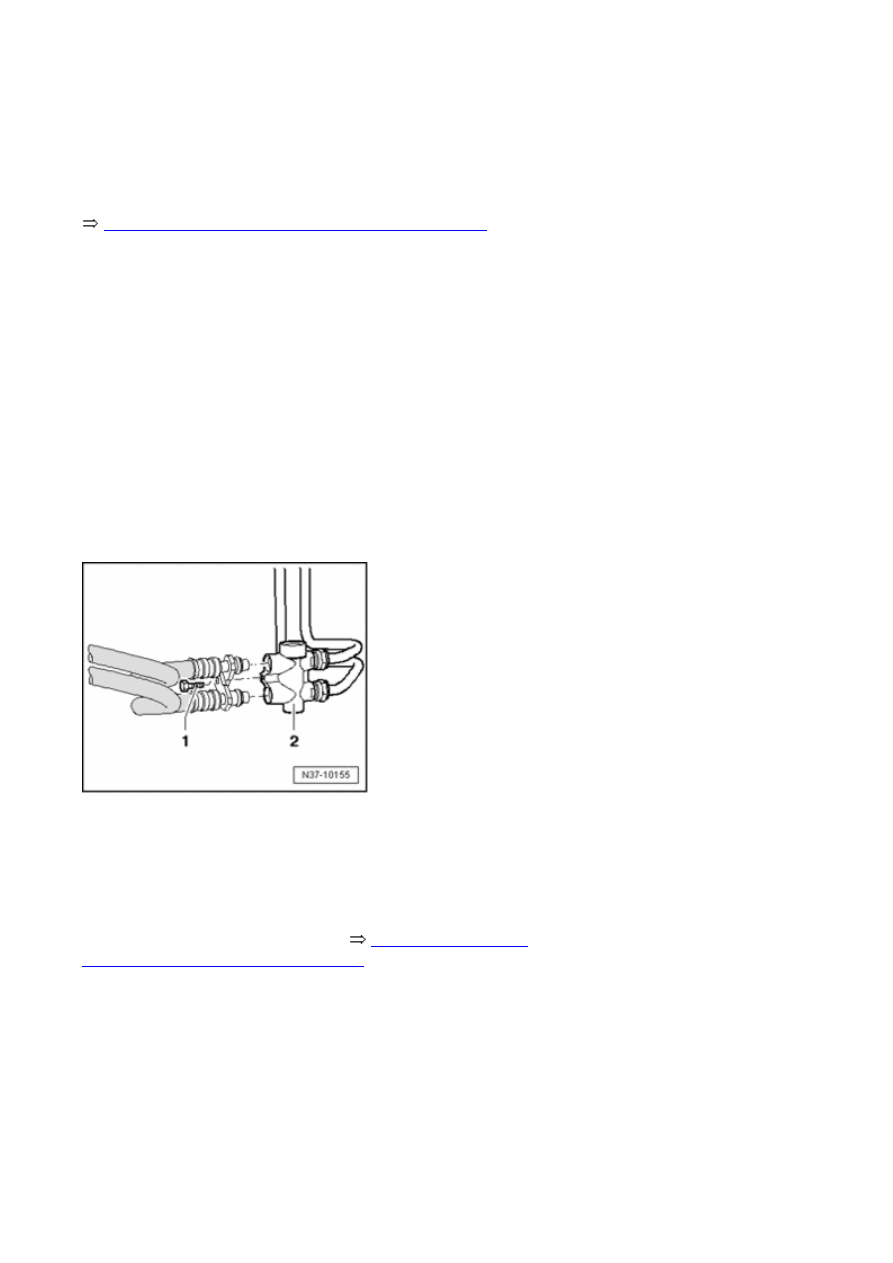

-  Remove plugs, insert ATF lines completely into
thermostat - 2  - and fasten bolt - 1  - .

-  Automatic transmission fluid (ATF) level, checking and
topping off



37-4, ATF level, checking

 .

-  Check connections of ATF lines for leaks while checking
ATF level.

- Install lock carrier




.



Repair Manual, Body Exterior, Repair Group 50,

-  Install front bumper




.



Repair Manual, Body Exterior, Repair Group 63,

Page 7 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY



-  Install noise insulation under engine




.



Repair Manual, Body Exterior, Repair Group 50,

ATF lines and ATF cooler, cleaning

If the ATF is dirty or a replacement transmission is being
installed, blow through the ATF cooler and ATF lines with
compressed air (max. 10 bar).

Warning!

Wear eye protection.

-  Thoroughly clean area surrounding connections at ATF
line/transmission, ATF line/thermostat and ATF line/ATF
cooler.

- Remove bolt - 1  - and remove ATF lines from thermostat
- 2  - .

-  Remove front ATF lines to ATF cooler at thermostat - 2  -
. For this, counterhold at thermostat.

-  Remove and empty ATF cooler



37-5, ATF lines and

ATF cooler, removing and installing

 .

Page 8 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY



- Remove ATF lines from transmission.

-  Place a hose on an ATF line for transmission/thermostat
and secure it with a hose clamp. Place the other end of the
hose into an appropriate container.

-  Blow through ATF line with compressed air.

-  Change hose over to other ATF line and repeat
sequence.

-  Moisten O-rings with ATF.

-  ATF lines and ATF cooler, installing



37-5, ATF lines

and ATF cooler, removing and installing

 .

Page 9 / 9
