Volkswagen 01M Transmission. Manual - part 84





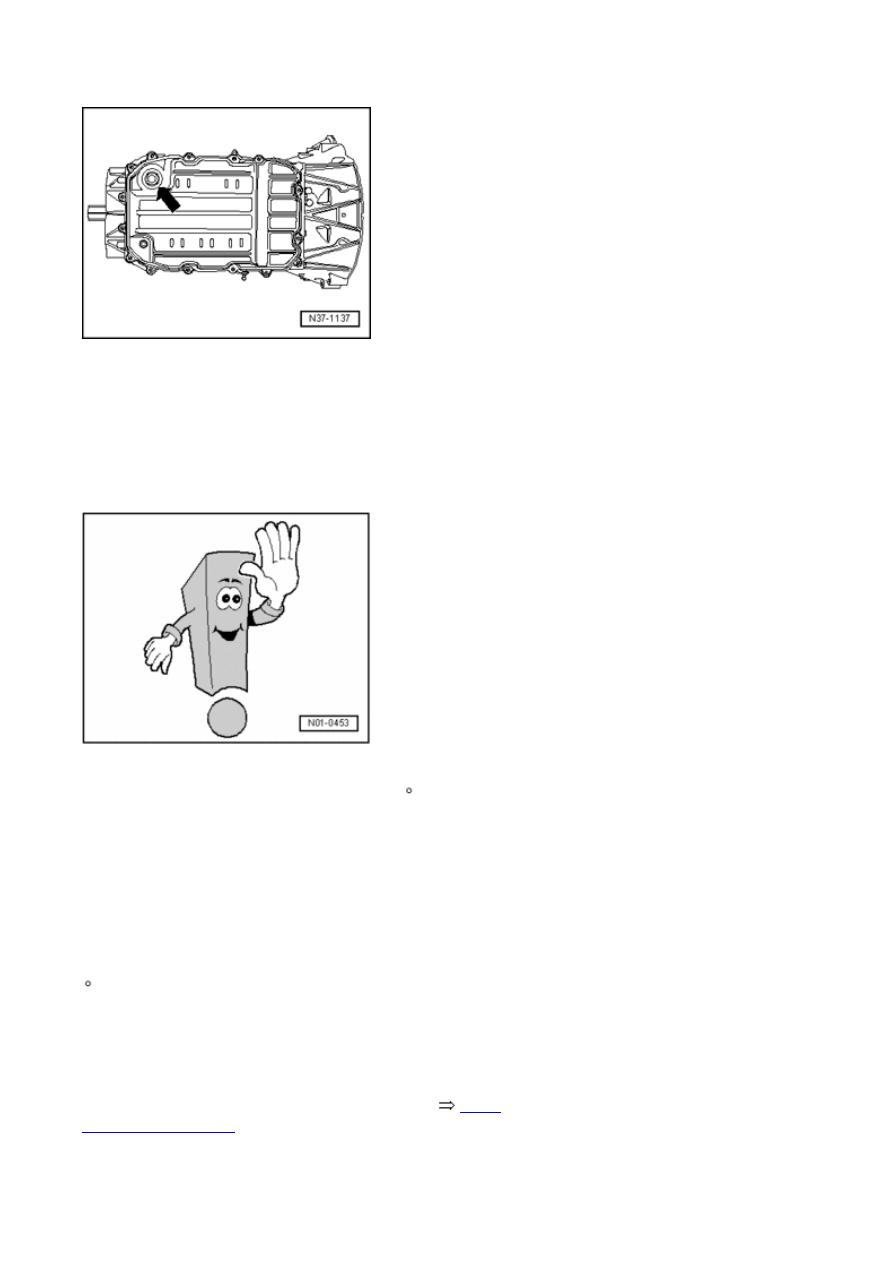

ATF check plug - arrow  -

-  ATF fill level is affected by ATF temperature.

ATF level, checking



Test requirements:

„

Transmission not in emergency running mode, ATF
temperature not above approx. 30   C.



„

Vehicle is level



„

Selector level at "P"



At start of test, ATF temperature must not be more than 30

 C.

-  Secure container of ATF filler tool V.A.G 1924   to
vehicle.

-  Connect VAS 5051   and advance program until
"Function/component selection" is displayed



37-1,

Tester , connecting

 .

-  Then press "Powertrain (Repair Group 01; 10 to 26; 28 to

Page 3 / 5

ATF level, checking and topping off

WWW.ALL-TRANS.BY





39)" .

-  Then "Automatic transmission 09D" .

-  Press "Functions" .

-  Press "Check ATF level" .

-  Press

    .

- Start engine.

- Depress brake.

-  Shift selector level into each position for at least 2
seconds. Then, place selector lever in position "P" .

- Raise vehicle.

- Place appropriate receptacle underneath transmission.

-  Press

    .

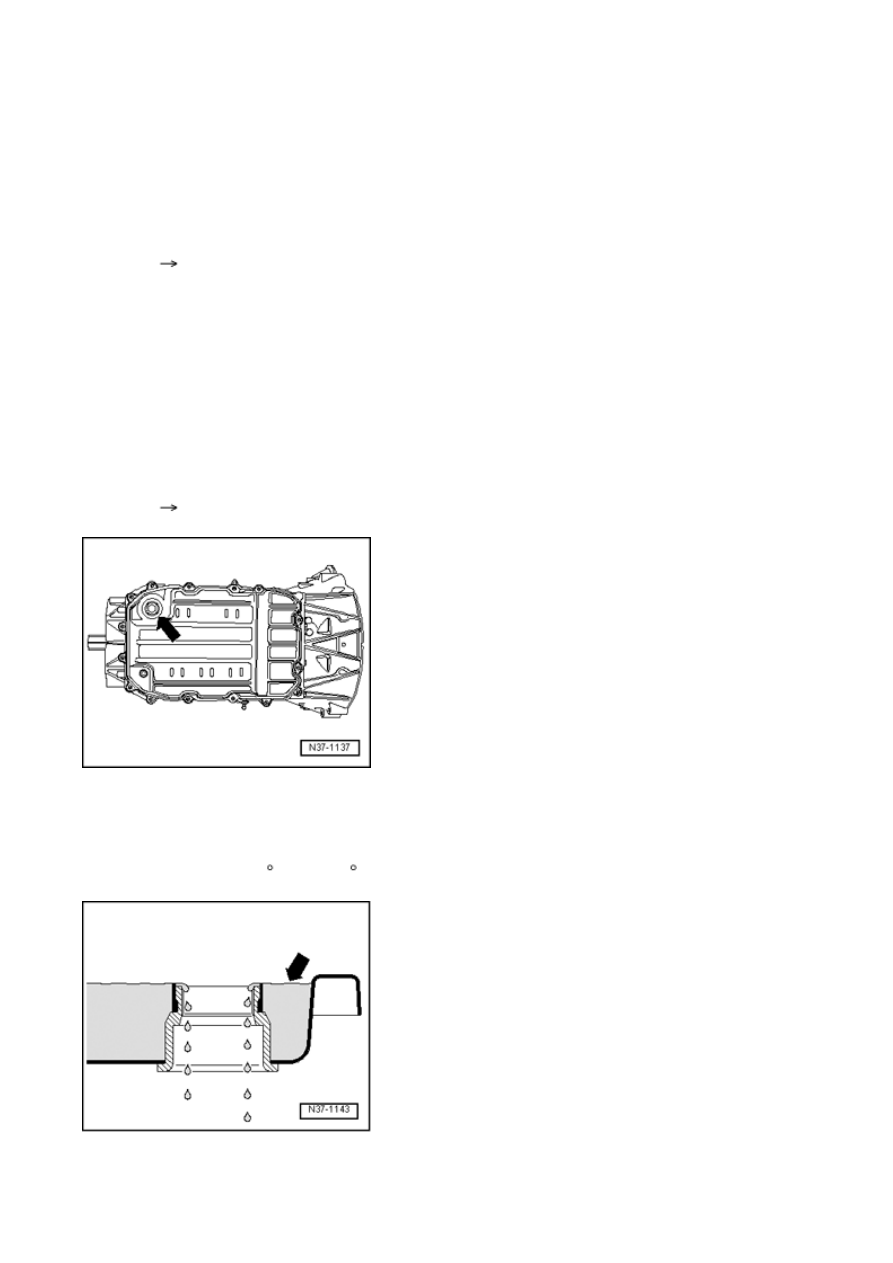

-  Remove sealing plug in oil pan - arrow - to check ATF.

At

Test temperature: 35   C to 45   C

The ATF level - arrow - is OK, if ATF drips steadily.

Page 4 / 5

ATF level, checking and topping off

WWW.ALL-TRANS.BY

Only a small amount of ATF should come out of the
inspection hole when engine is running.

-  Tighten ATF inspection plug to 70 Nm. The ATF test
ends.

-  Switch off engine.

If during a repair, the ATF circulation to the cooler was
opened, this inspection must be performed twice.
Important: After the first inspection the ATF must be heated
to at least 100   C - Test drive with measuring device!
After the ATF cools off again, inspect the ATF level again
as described here.

Page 5 / 5

ATF level, checking and topping off

WWW.ALL-TRANS.BY

37 - 5





ATF lines and ATF cooler

„

Assembly overview, vehicles with V6 gasoline
engine a



37-5, ATF lines (vehicles with V6

gasoline engine), assembly overview





„

Assembly overview, vehicles with V8 gasoline and
V10 diesel engine



37-5, ATF lines (vehicles with

V8 and V10 diesel engine), assembly overview

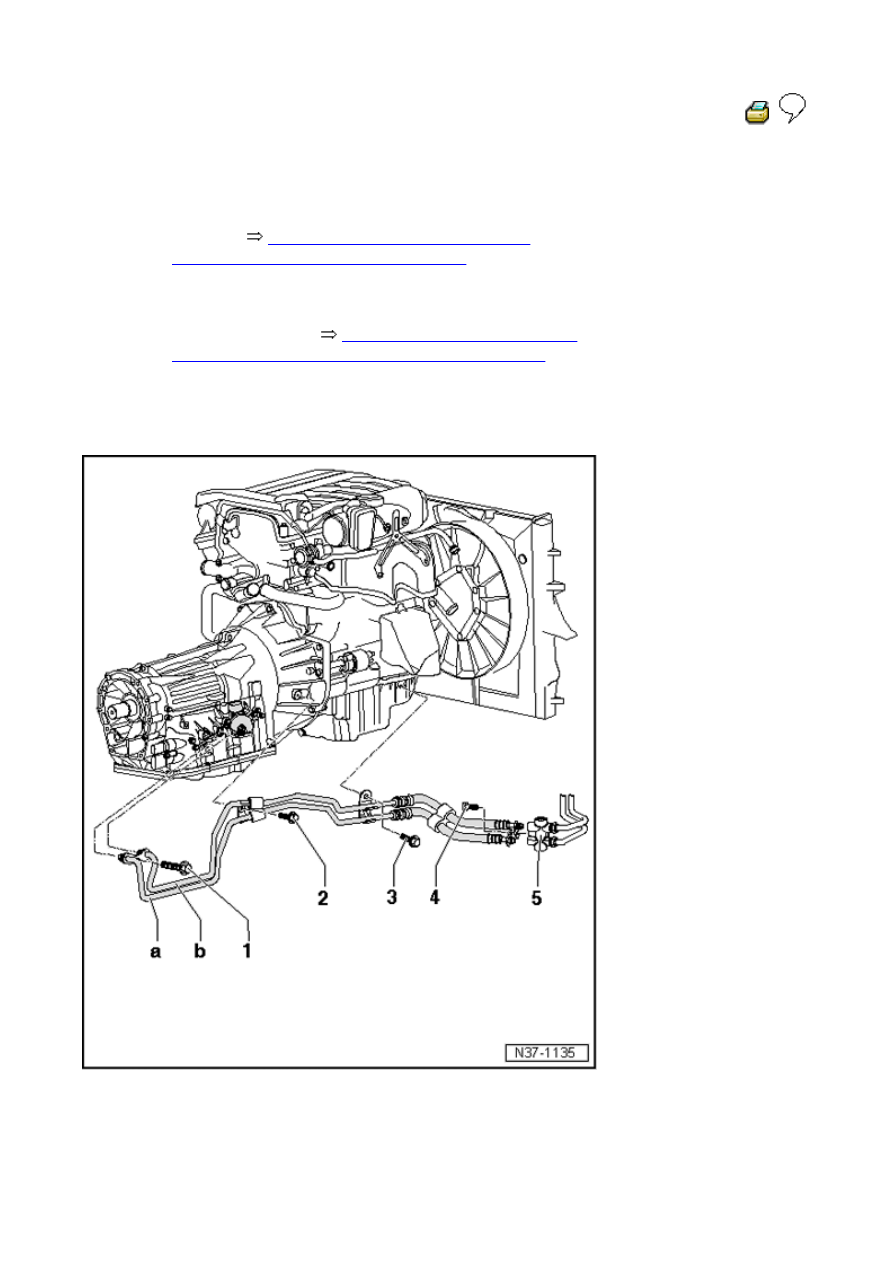

ATF lines (vehicles with V6 gasoline engine), assembly
overview



1 -  Bolt, 25 Nm

„

Before tightening bolt, push in line
onto stop by hand
