Volkswagen 01M Transmission. Manual - part 85

2 - Bolt, 10 Nm

3 - Bolt, 10 Nm

4 - Bolt, 10 Nm

Before tightening bolt, push in line
onto stop by hand

5 - Thermostat

a - ATF line

Moisten O-rings with ATF

b - ATF line

Moisten O-rings with ATF

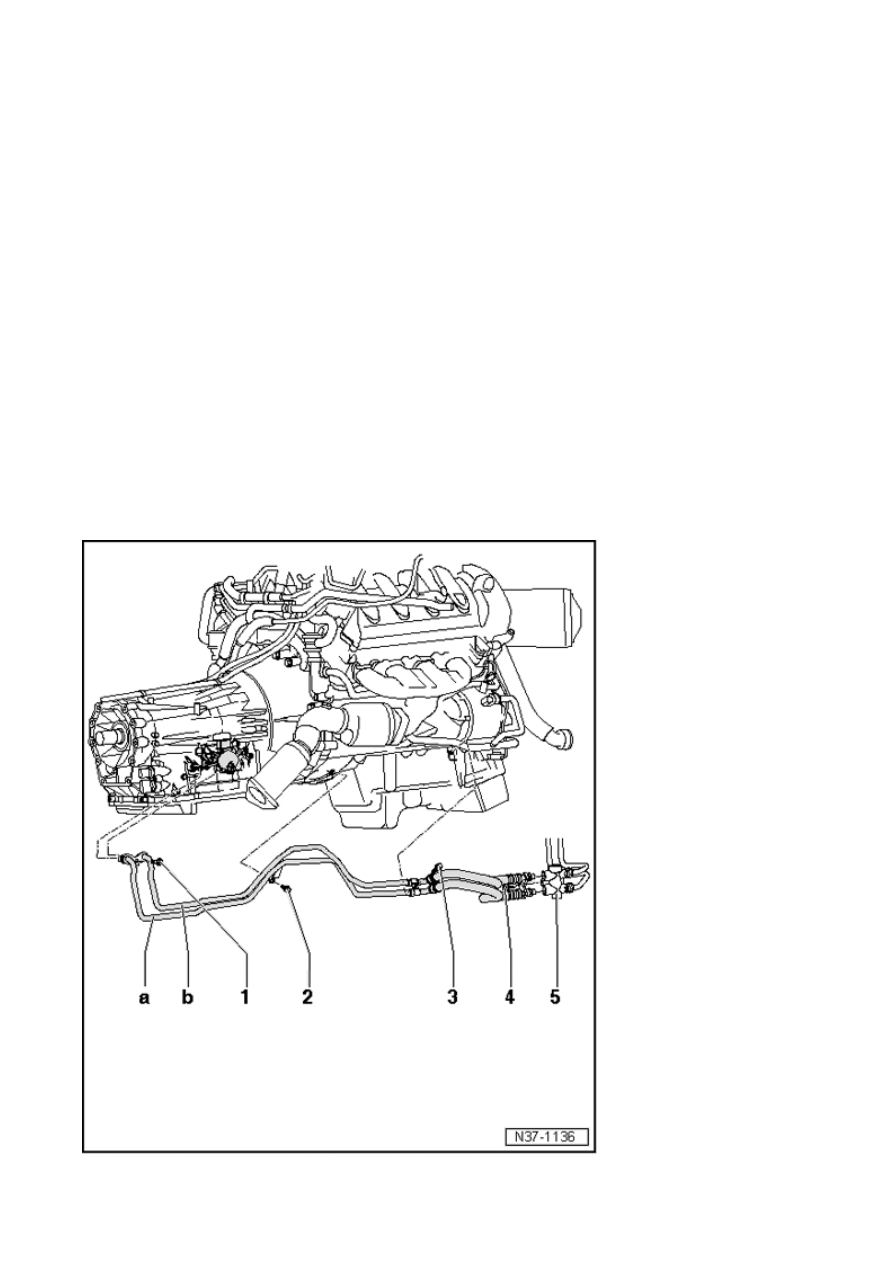

ATF lines (vehicles with V8 and V10 diesel engine),
assembly overview

Page 2 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY

1 - Bolt, 25 Nm

Before tightening bolt, push in line
onto stop by hand

2 - Bolt, 8 Nm

3 - Bolt, 8 Nm

4 - Bolt, 10 Nm

Before tightening bolt, push in line
onto stop by hand

5 - Thermostat

a - ATF line

Moisten O-rings with ATF

b - ATF line

Moisten O-rings with ATF

ATF lines and ATF cooler, removing and installing

Removing

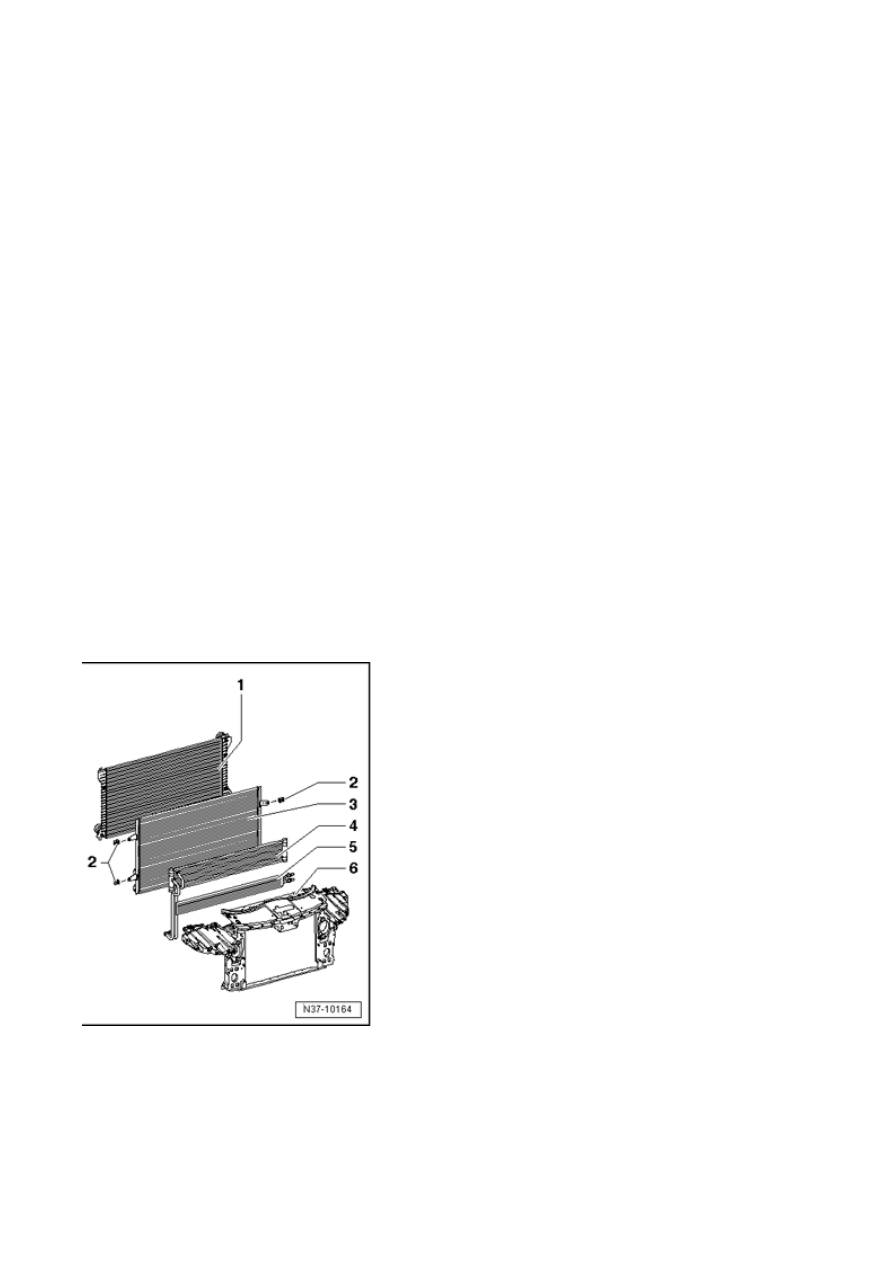

Overview of cooler

1 - Cooler for coolant

2 - Retaining clamps

3 - Condenser

Page 3 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY

4 - ATF cooler

5 - Cooler for power steering

6 - Lock carrier

- Remove noise insulation under engine

Repair Manual, Body Exterior, Repair Group 50,

- Remove front bumper

Repair Manual, Body Exterior, Repair Group 63,

- Bring lock carrier into service position

Repair Manual, Body Exterior, Repair Group 50,

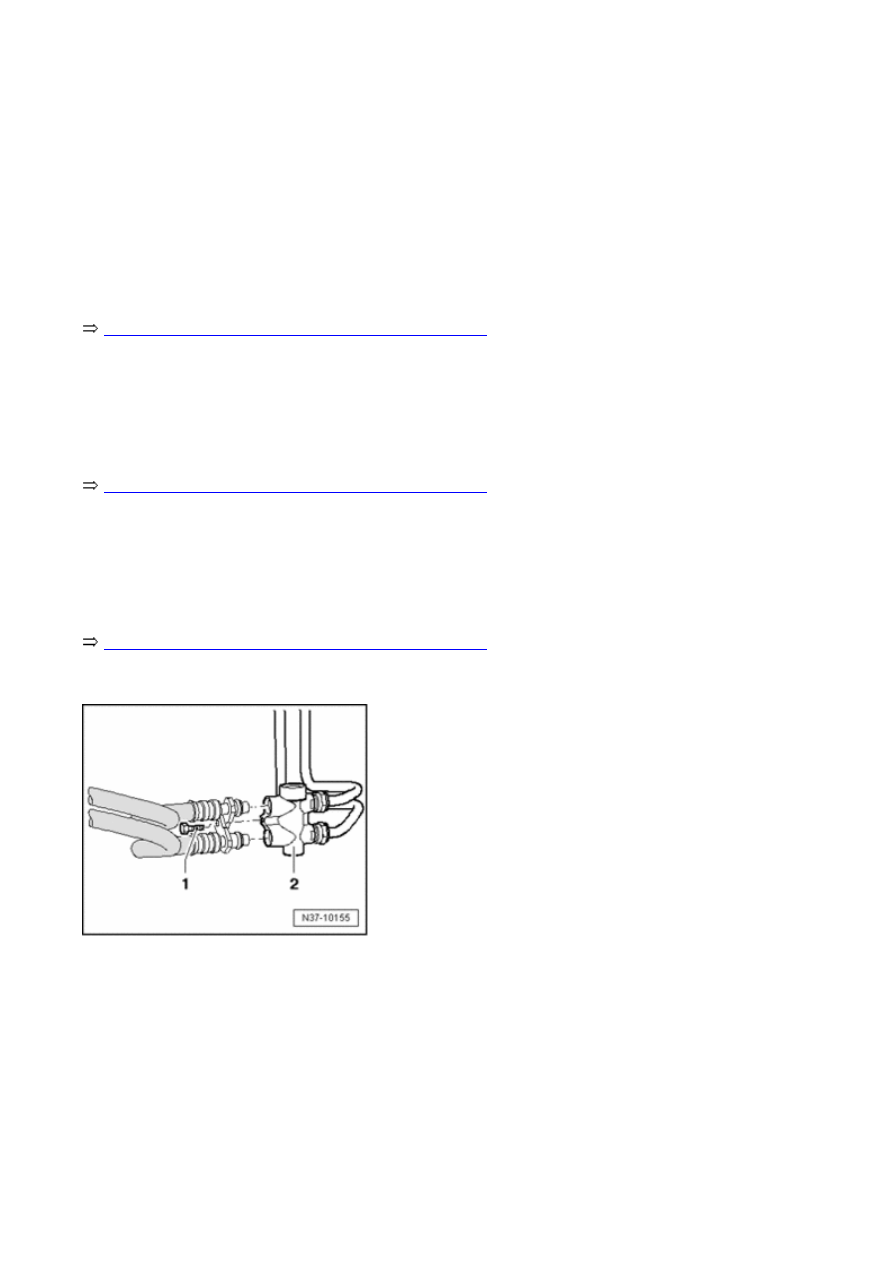

- Remove bolt - 1 - and pull ATF lines out from thermostat
- 2 - .

- Plug ATF lines and thermostat with clean plugs.

- Remove front ATF lines to ATF cooler at thermostat - 2 -
. For this, counterhold at thermostat.

- Plug ATF lines and thermostat with clean plugs.

Page 4 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY

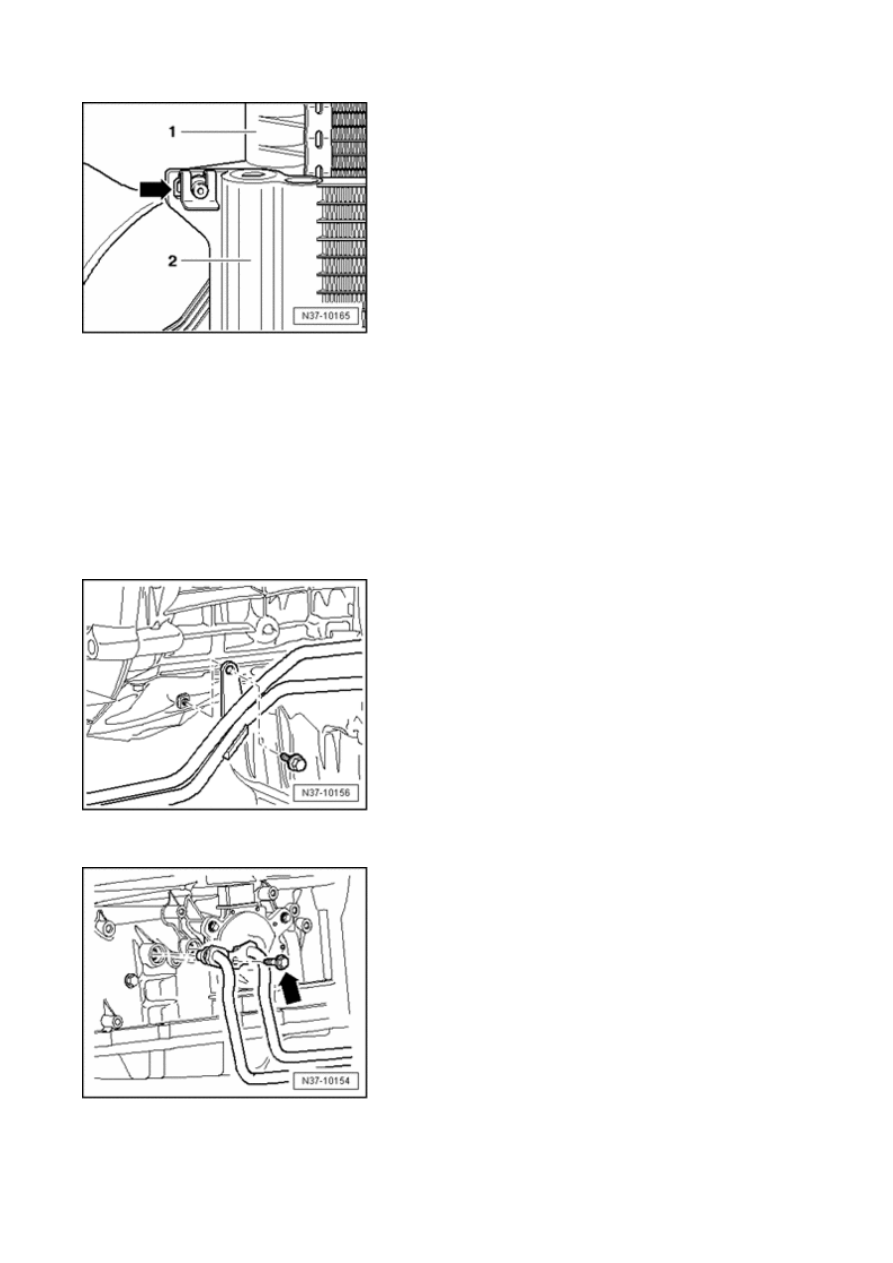

- Loosen clamps - arrow - for condenser - 1 - and ATF
cooler - 2 - .

- Remove ATF cooler with lines.

- Remove ATF lines at ATF cooler. For this, counterhold at
ATF cooler.

- Plug ATF lines and ATF cooler with clean plugs.

- Remove bolt for ATF line retainer on right of engine.

- Remove bolt for ATF line retainer on transmission.

- Remove ATF lines from transmission.

- Plug ATF lines and transmission with clean plugs.

Page 5 / 9

ATF lines and ATF cooler

WWW.ALL-TRANS.BY
