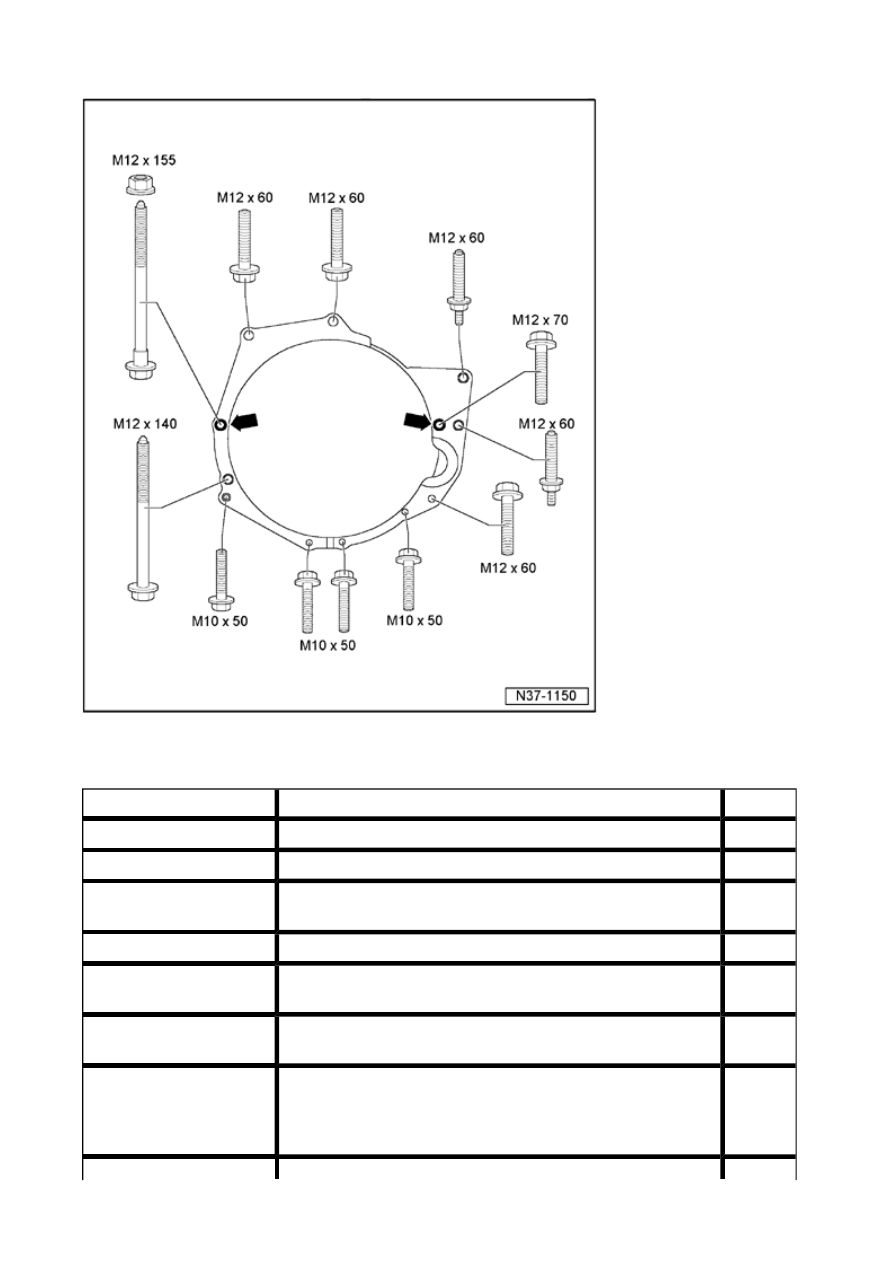

Volkswagen 01M Transmission. Manual - part 82



Alignment sleeves - arrows  -

Bolt

Component location by "clock"

Nm

M 12 x 60

11.00 o'clock

80

M 12 x 60

12.00 o'clock

80

M 12 x 60

with bracket

2.00 o'clock

80

M 12 x 70

3.00 o'clock

80

M 12 x 60

in starter

3.00 o'clock

65

M 12 x 60

at starter

3.30 o'clock

65

M 10 x 50

4:00 o'clock
5:30 o'clock
6:30 o'clock

8:00 o'clock

45

Page 7 / 12

Transmission, removing and installing

WWW.ALL-TRANS.BY



M 12 x 140

8.00 o'clock

80

M 12 x 155

with nut

9.00 o'clock

80

Drive plate to converter

85

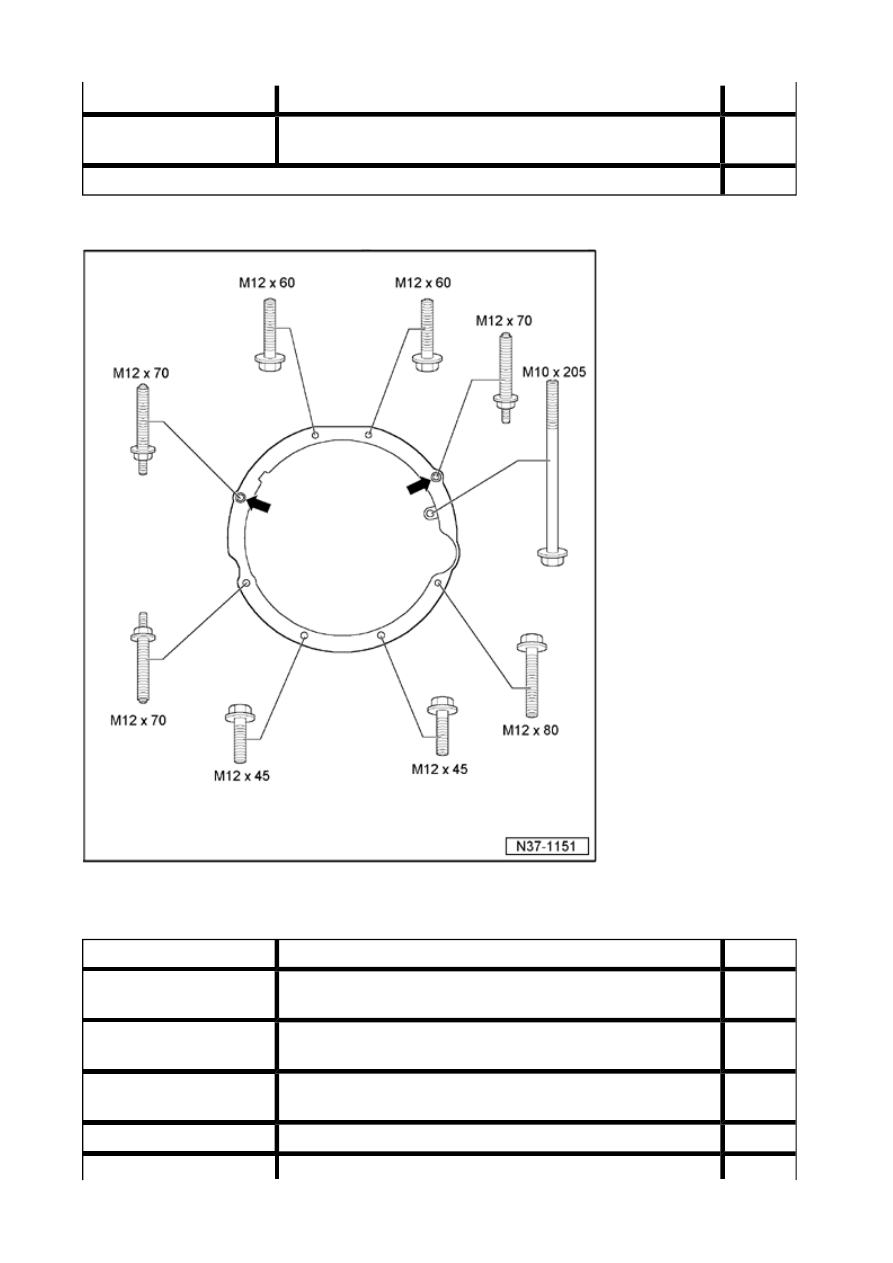

Vehicles with V8 FSI engine (FSI)

Alignment sleeves - arrows  -

Bolt

Component location by "clock"

Nm

M 12 x 60

(Qty. 2)

12.00 o'clock

80

M 12 x 70

with bracket

2.00 o'clock

80

M 10 x 205

at starter

2.30 o'clock

45

M 12 x 80

4.00 o'clock

65

Page 8 / 12

Transmission, removing and installing

WWW.ALL-TRANS.BY



M 12 x 45

5.00 o'clock

80

M 12 x 45

7.00 o'clock

80

M 12 x 70

with bracket

8.00 o'clock

80

M 12 x 70

with bracket

10.00 o'clock

80

Drive plate to converter

85

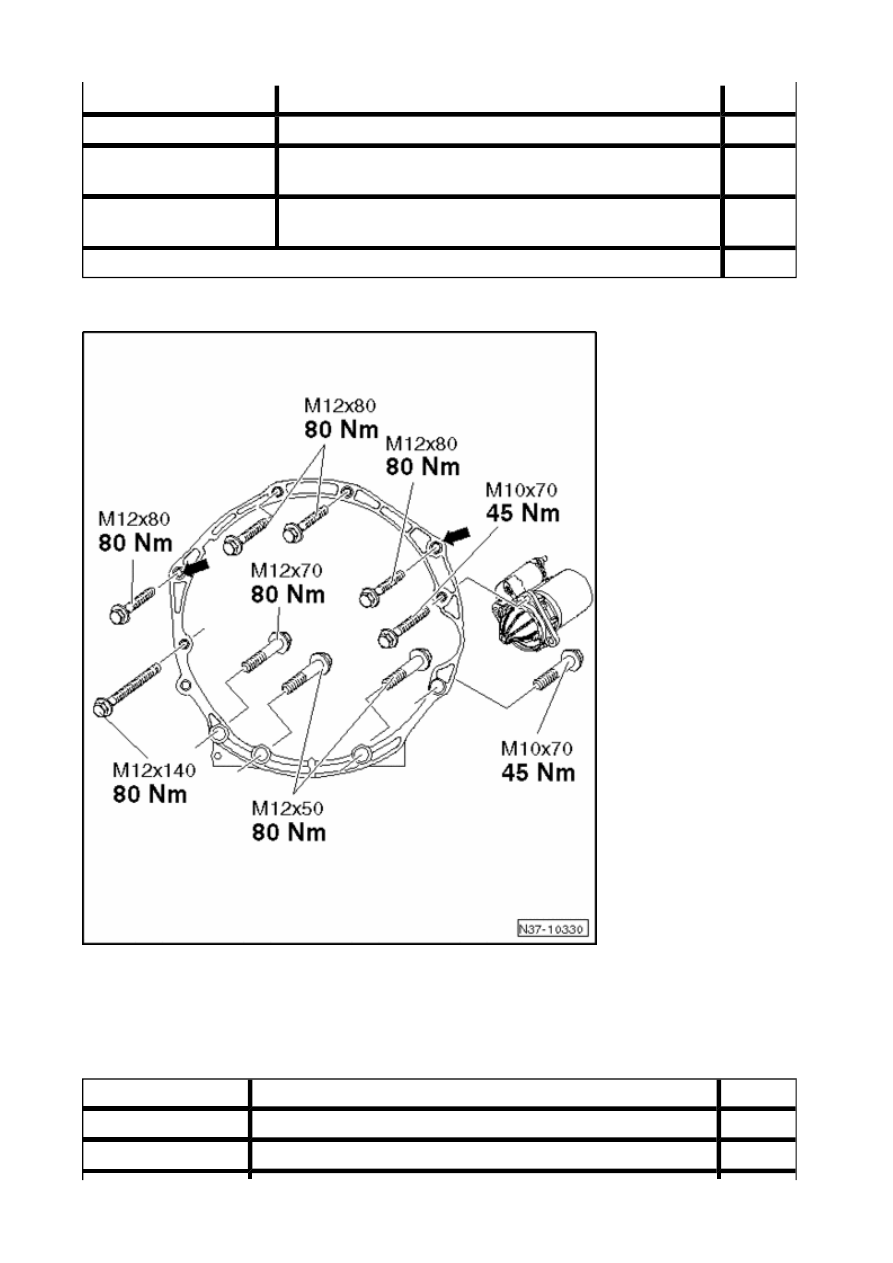

Vehicles with V8 Turbo gasoline engine (TSI)

Alignment sleeves - arrows  -

Drive plate to torque converter "qty. 6" 85
Nm.

Bolt

Component location by "clock"

Nm

M 12 x 85

12.00 o'clock

80

M 12 x 85

1.00 o'clock

80

Page 9 / 12

Transmission, removing and installing

WWW.ALL-TRANS.BY



M 12 x 85

2.00 o'clock

80

M 10 x 70

(Qty. 2)

03:00:00 AM o'clock
04:00:00 AM o'clock

(starter)

65

65

M 10 x 70

5:00 o'clock
6:00 o'clock

7:00 o'clock

45
45

45

M 12 x 85

8.30 o'clock

80

M 12 x 70

9.30 o'clock

80

Drive plate to torque converter "Qty. 6"

85

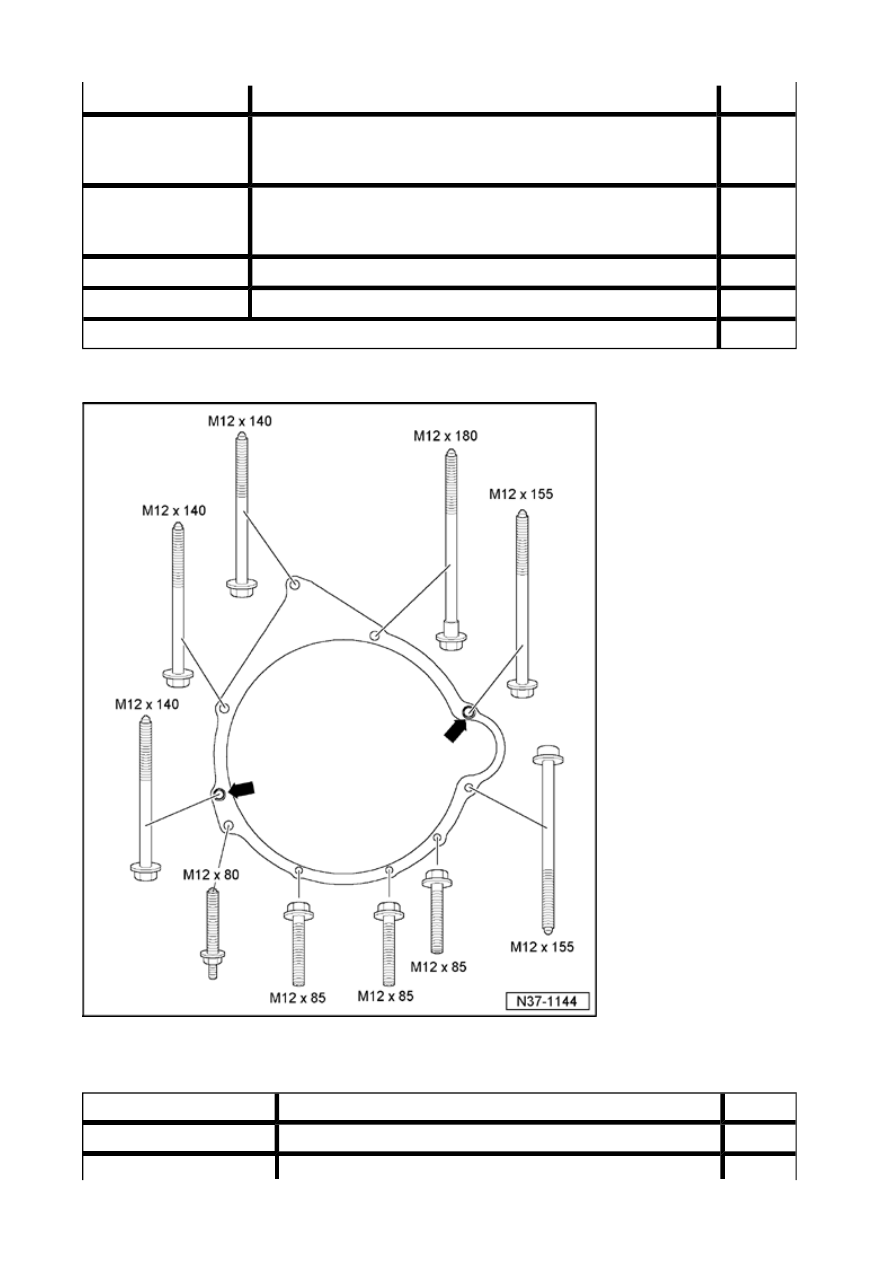

Vehicles with V10 TDI

Alignment sleeves - arrows  -

Bolt

Component location by "clock"

Nm

M 12 x 140

12.00 o'clock

80

Page 10 / 12

Transmission, removing and installing
