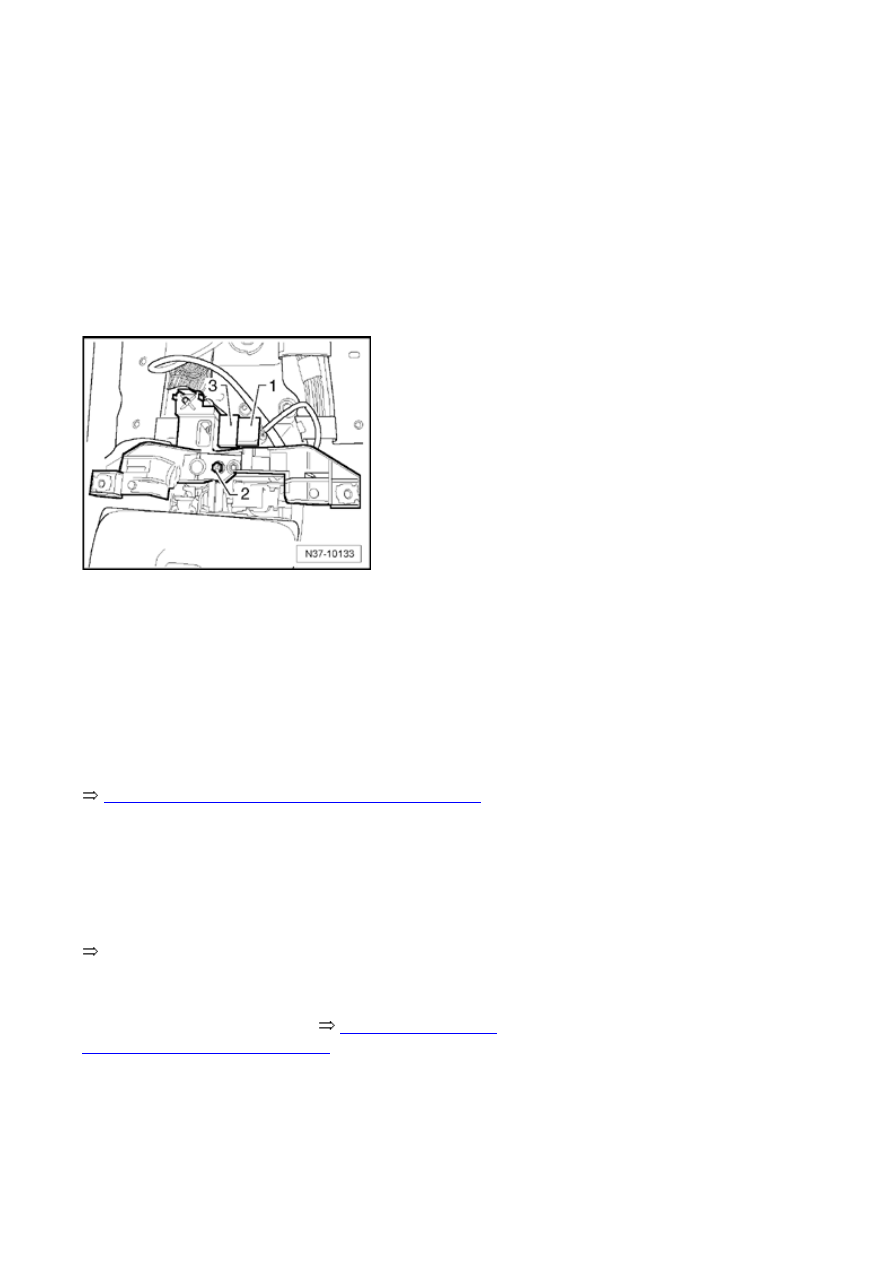

-  Route wiring harnesses - 1  - to - 3  - as shown in
illustration.

1 - Wiring harness to shift lock solenoid N110

2 - Wiring harness to selector lever park position solenoid
N380

3 - Wiring harness to Selector Lever Park Position Lock
Switch F319

- Press connector - 3  - into retainer.

- Fasten bolt - 2  - .

- Connect connector - 1  - .

-  Install cover to center console




.



Repair Manual, Body Interior, Repair Group 68,

- Connect battery




.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Install selector lever handle



37-2, Selector lever

handle, removing and installing

 .

Selector mechanism, removing and installing

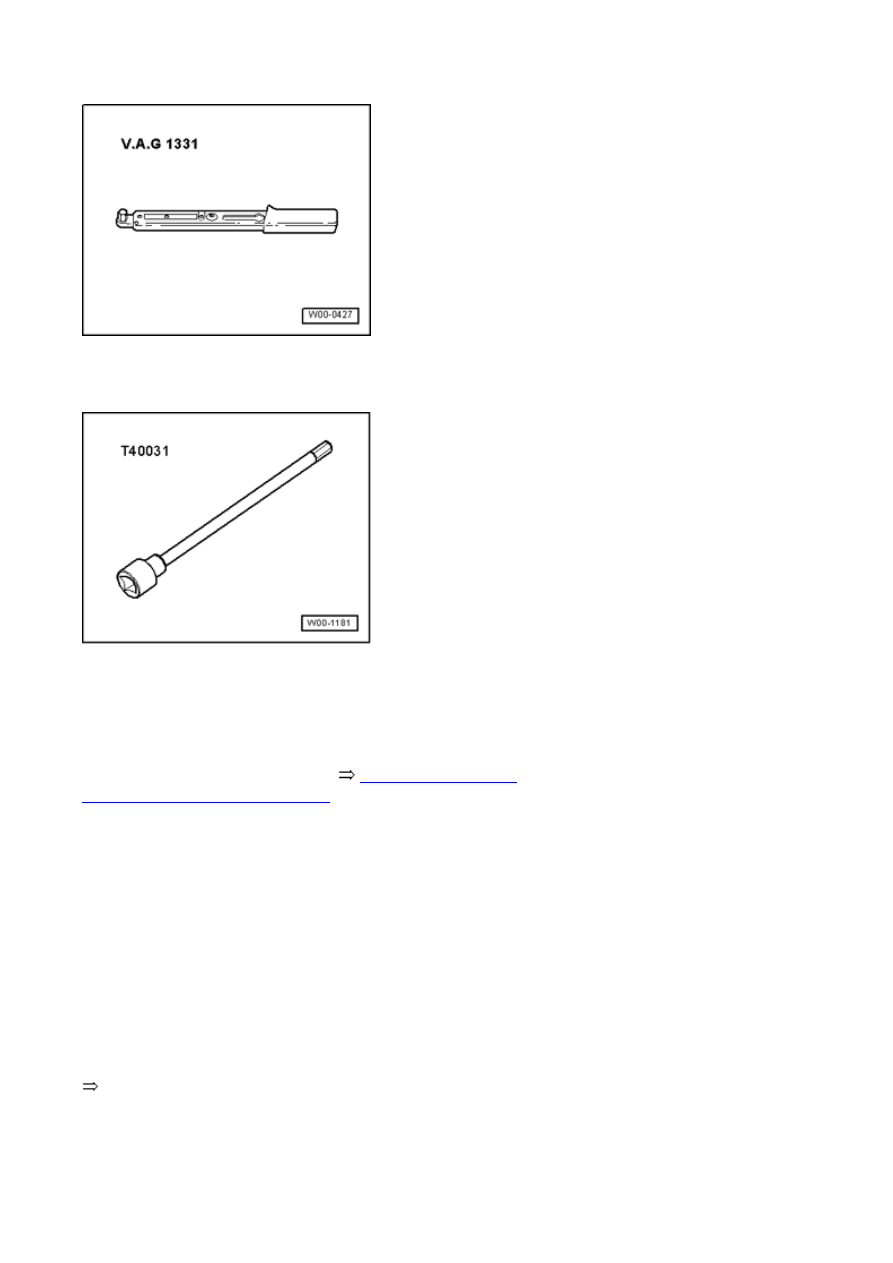

Special tools, testers and auxiliary items required

Page 21 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY





„

Torque wrench V.A.G 1331



„

Socket and key T40031



Removing



-  Remove selector lever handle



37-2, Selector lever

handle, removing and installing

 .

-  Pull pull-rod up and shift selector lever to position "S" .

Note:

„

The procedure for disconnecting the battery must
absolutely be obeyed.



- Disconnect battery Ground (GND) strap with ignition
switched off




.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Remove center console

Page 22 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY








.



Repair Manual, Body Interior, Repair Group 68,

-  Remove sound insulation from center console.

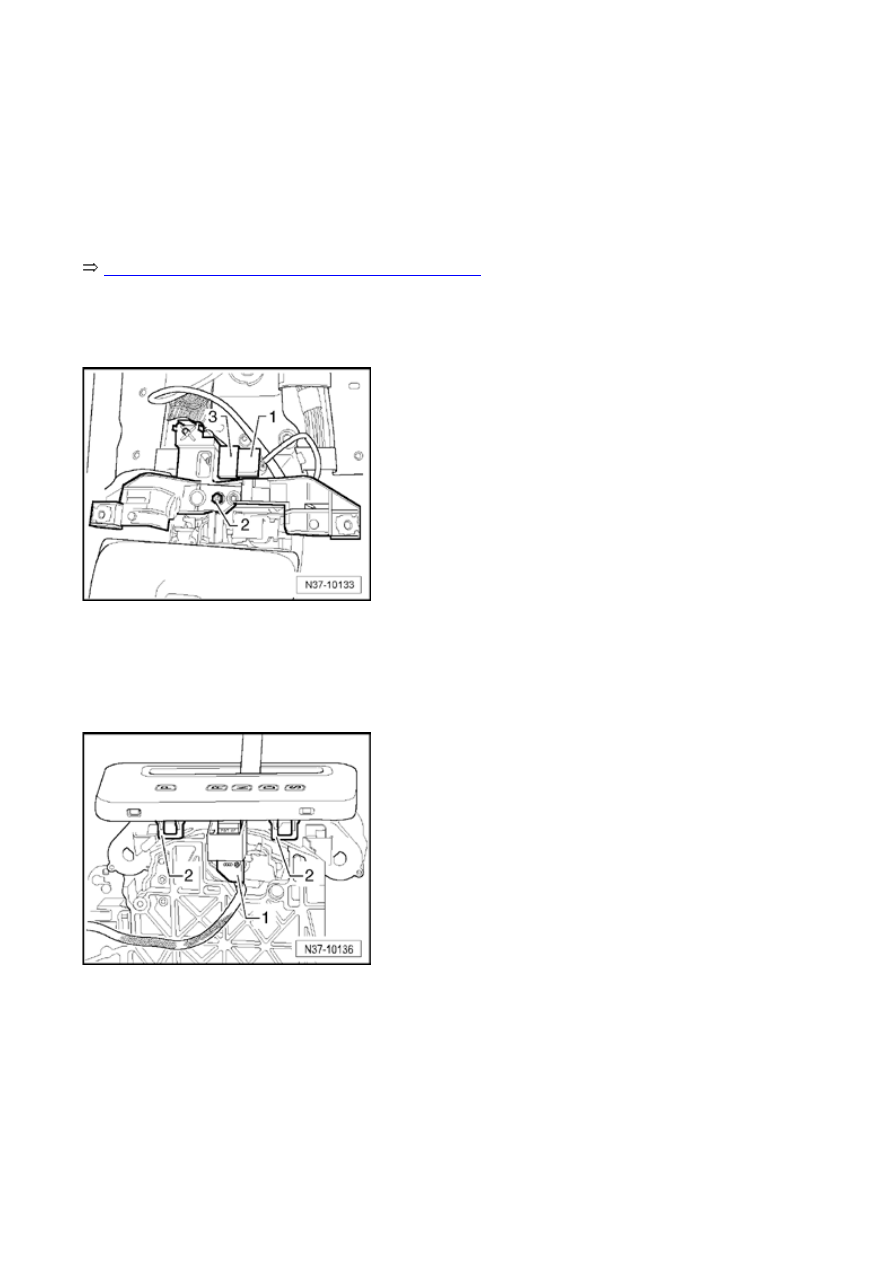

- Release connector - 1 - and pull off.

- Remove bolt - 2  - and remove retainer.

- Pull connector - 3  - out from retainer.

- Disconnect connector - 1  - .

-  Carefully pull off retaining clips - 2  - on left and right from
frame.

Page 23 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY







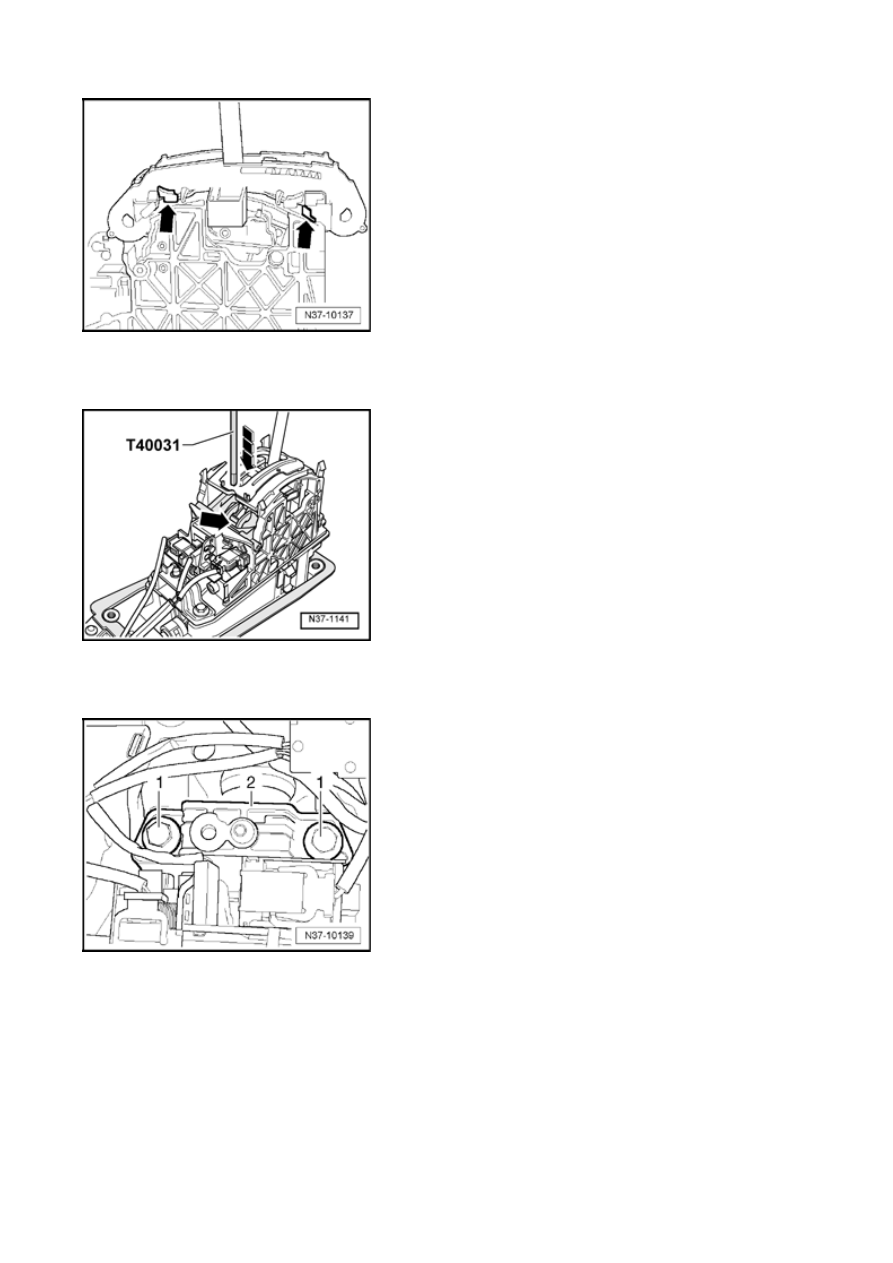

-  Pull retaining clips - arrows  - outward on left and right
and remove frame upward.

-  Remove clamping bolt at selector lever cable using
socket and key T40031   .

- Remove bolts - 1  - and remove front retainer - 2  - for
shift mechanism.

-  Remove rear retainer for shift mechanism.

-  Remove shift mechanism with selector lever cable
slightly rearward.
