-  Push solenoid into shift mechanism until limit stop, and it
is locked into its mounting - arrow  - .

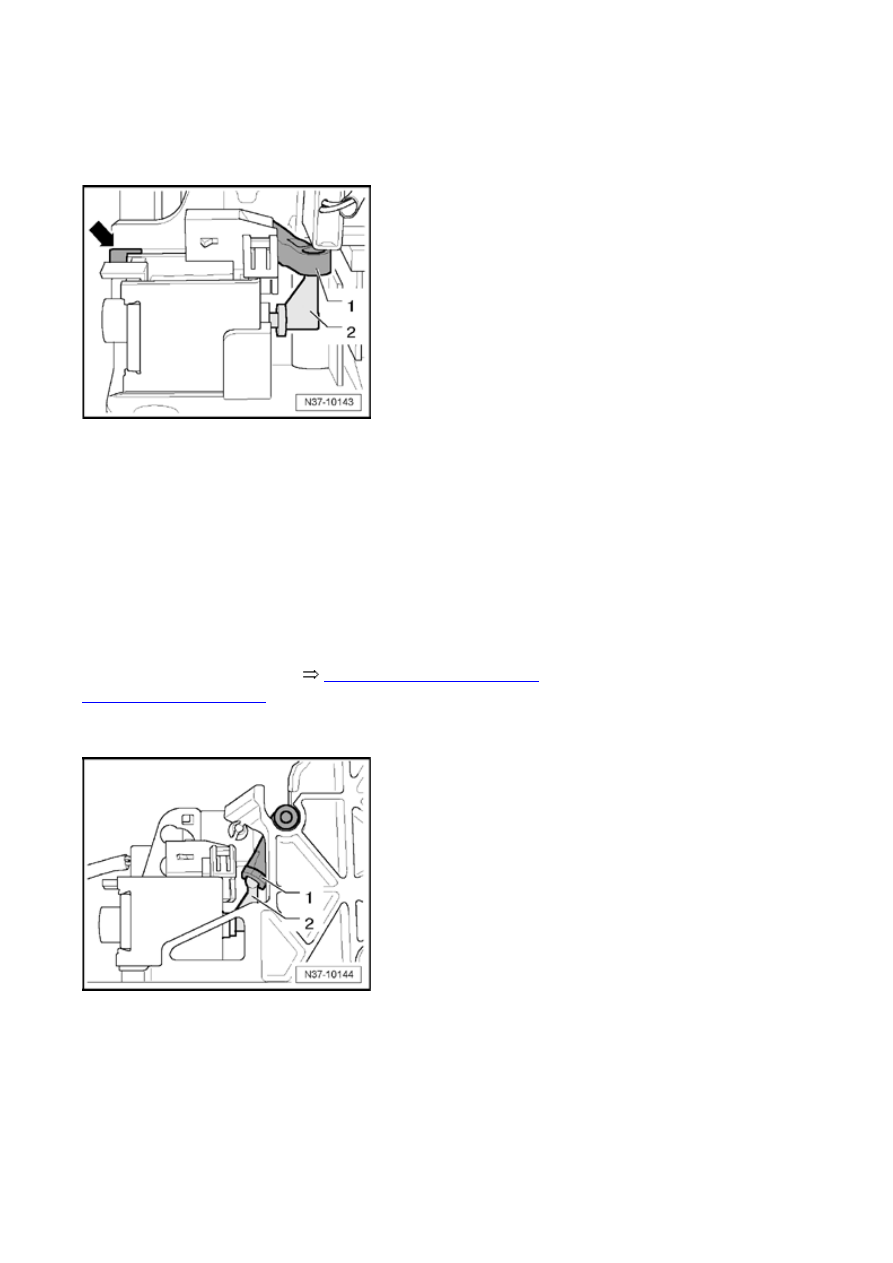

- Make sure that the solenoid is locked in its mount -
arrow  -  up to the limit stop and lever - 2  - engages
locking lever - 1  - .

Shift lock solenoid N110  , removing and installing

Removing



- Remove shift mechanism

37-2, Selector mechanism,

removing and installing

 .

-  Release connector and remove

-  Release solenoid from its mounting and pull straight out
from locking lever - 1  - and shift mechanism.

Installing



Page 17 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY

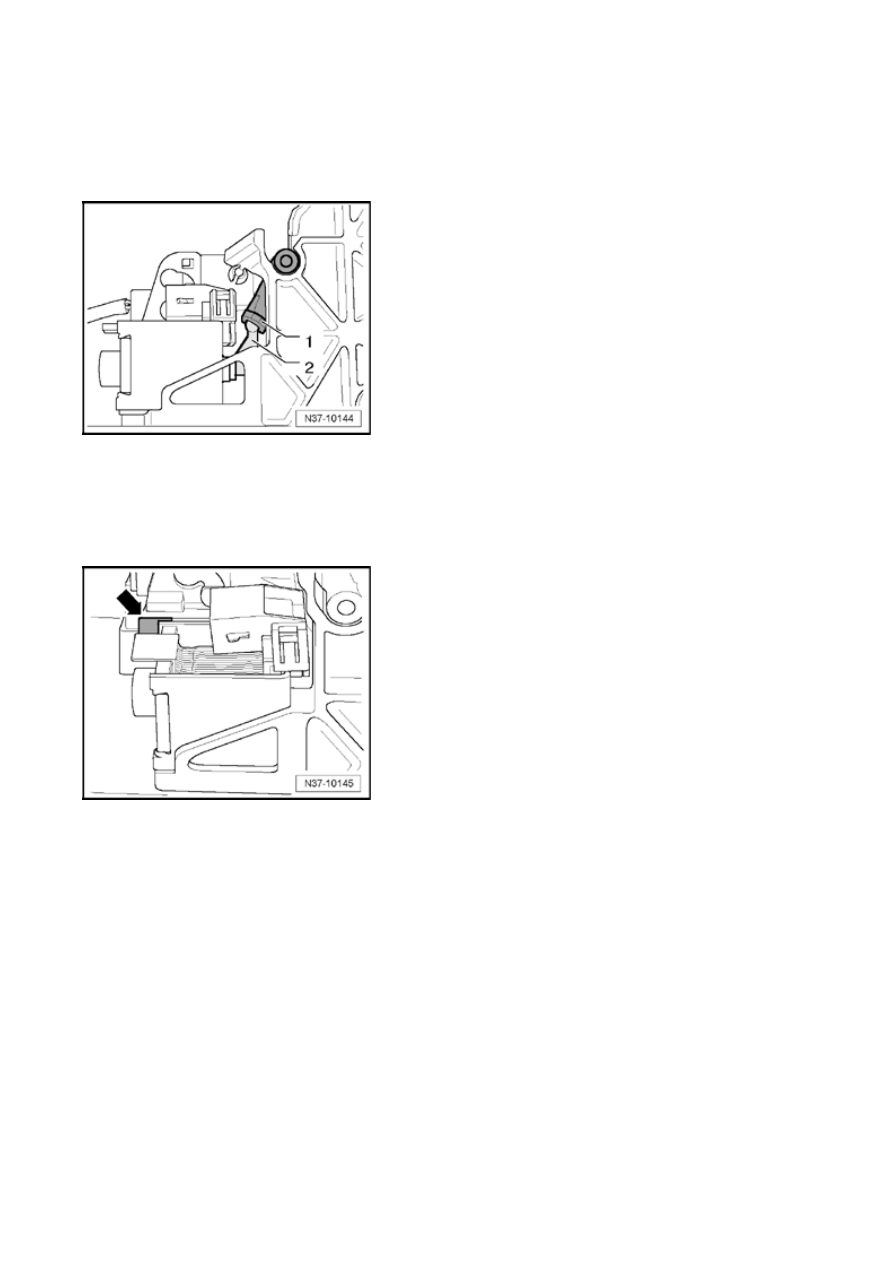

-  Set solenoid lever - 2 - upward vertically.

- Push solenoid into mount of shift mechanism from front.

- Attach lever - 2  - to locking lever - 1 - .

-  Push solenoid into shift mechanism until limit stop, and it
is locked into its mounting - arrow  - .

- Make sure that the solenoid is locked in its mount -
arrow  -  up to limit stop and lever engages locking lever.

Selector Lever Park Position Lock Switch F319  ,
removing and installing

The Tiptronic switch F189  is integrated into the wiring
harness for both solenoids.

Special tools, testers and auxiliary items required

Page 18 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY





„

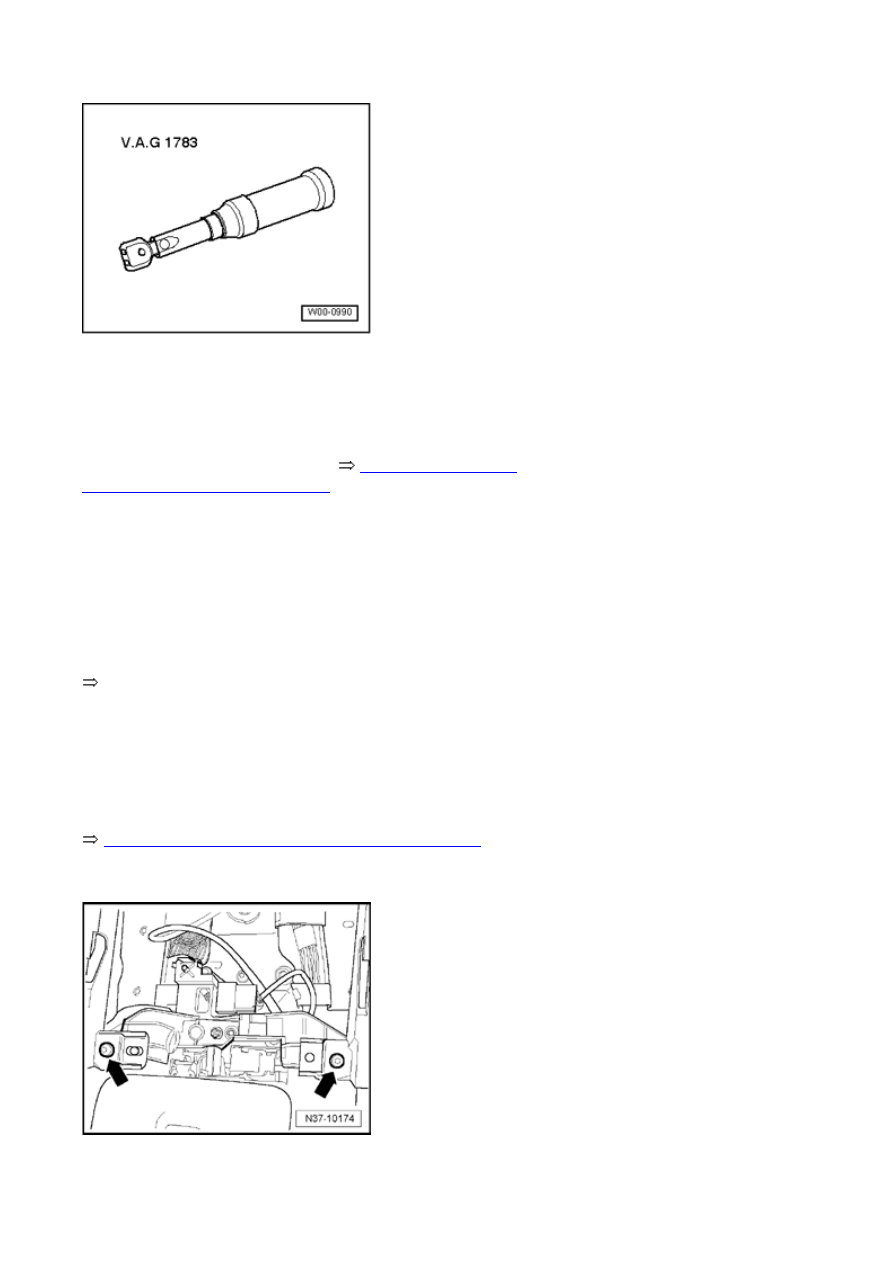

Torque wrench V.A.G 1783



Removing



-  Remove selector lever handle



37-2, Selector lever

handle, removing and installing

 .

-  The procedure for disconnecting the battery must
absolutely be obeyed.

- Disconnect battery Ground (GND) strap with ignition
switched off




.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Remove cover from center console




.



Repair Manual, Body Interior, Repair Group 68,

- Remove bolts - arrows  - from center console.

Page 19 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY

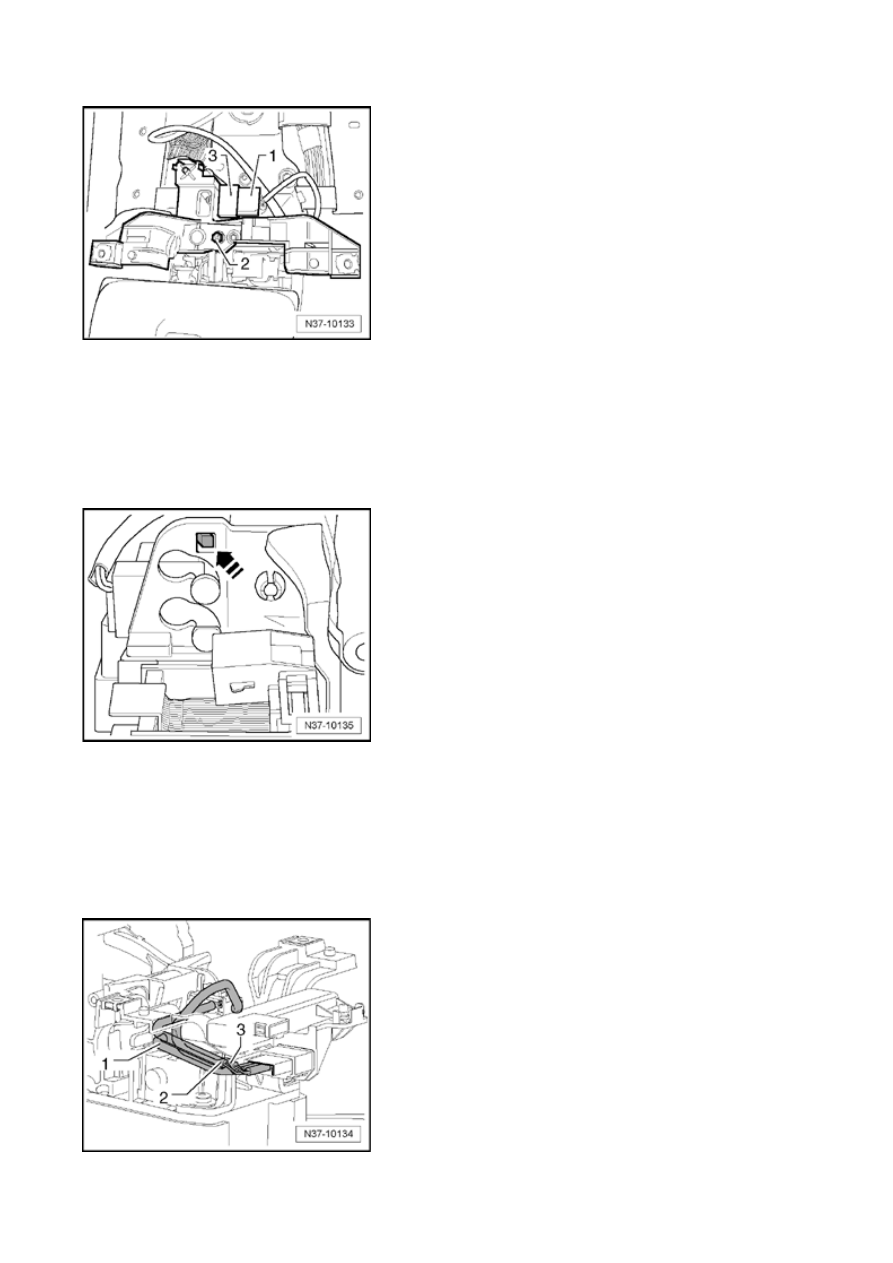

- Release connector - 1 - and remove.

- Remove bolt - 2  - and remove retainer.

- Pull connector - 3  - out from retainer.

- Disconnect connectors from solenoids.

-  Press securing lever toward right and pull button upward
out of shift mechanism.

Installing



Installation is in reverse order of removal. Note the
following:

Page 20 / 26

Selector mechanism, servicing
