Volkswagen 01M Transmission. Manual - part 76



- Shift selector lever from "P" to "S" .

„

Selector mechanism and selector lever cable must
have freedom of movement during this, replace
selector lever cable or shift mechanism if necessary.



-  Place selector lever in position "P" .

-  Shift lever/switch rod at transmission in "P" position.
Catch must engage in parking lock gear, both front wheels
are locked (cannot be turned together in one direction).

„

It must be possible to push selector lever cable onto
lever/shift rod, if necessary adjust selector lever
cable.



-  Carefully press selector lever cable onto selector shaft
lever. Do not bend lever/selector shaft when doing this,
otherwise shifting can no longer be adjusted precisely.

-  Adjust selector lever cable



37-2, Adjusting

 .

Adjusting



Special tools, testers and auxiliary items required

„

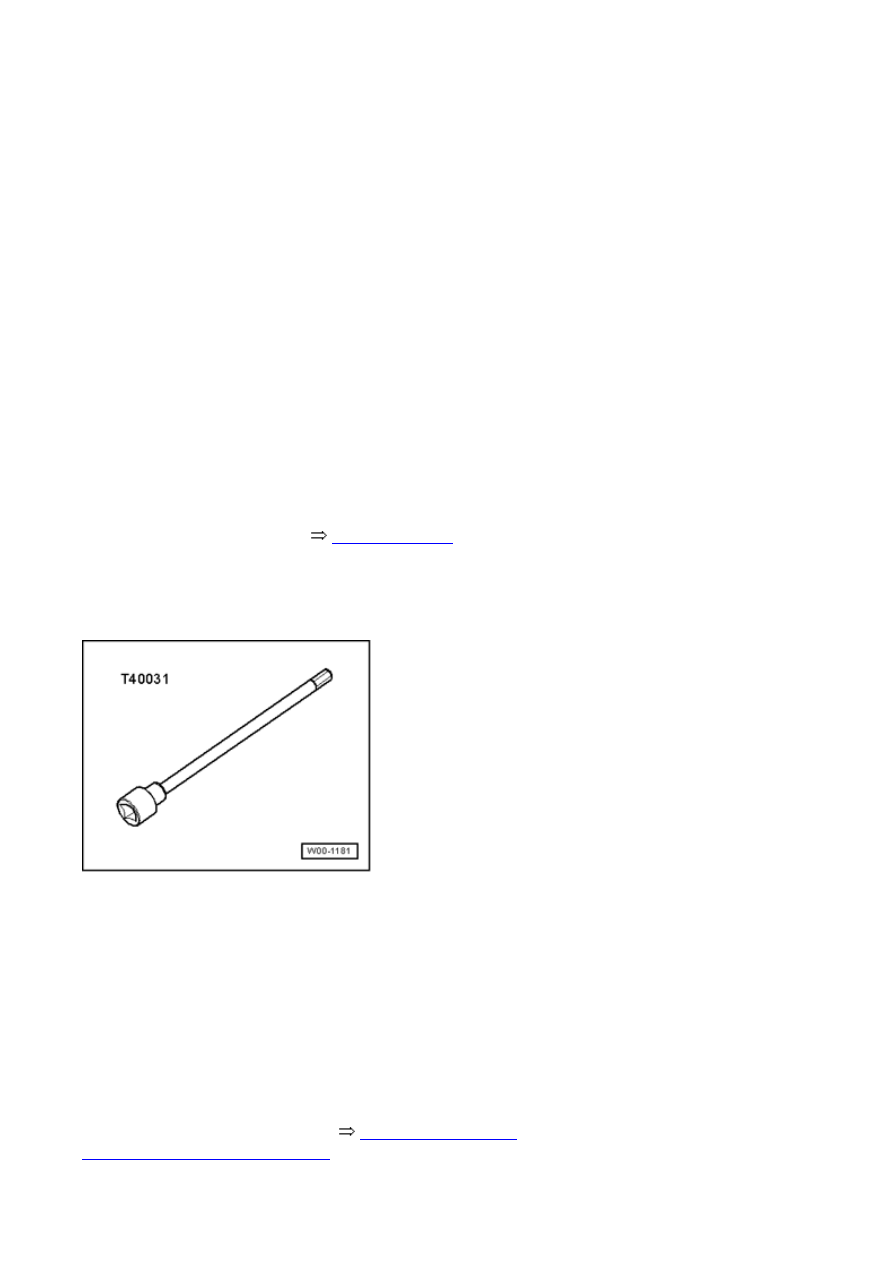

Socket and key T40031



„

Selector lever cable is disconnected from selector
shaft lever.



-  Place selector lever in position "S" .

- Move selector shaft lever to position "D" on
transmission.

-  Remove selector lever handle



37-2, Selector lever

handle, removing and installing

 .

Page 9 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY



-  The procedure for disconnecting batteries must
absolutely be obeyed.

- Disconnect battery Ground (GND) strap with ignition
switched off




.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Remove ashtray and remove shift mechanism cover from
center console




.



Repair Manual, Body Interior, Repair Group 68,

-  Remove cover from shift mechanism



37-2, Cover,

removing and installing

 .

-  Remove frame from shift mechanism



37-2, Frame,

removing and installing

 .

- Loosen clamping bolt approx. one turn on selector lever
cable.

-  Carefully push selector lever cable onto the lever/selector
shaft. When doing this, take care not to bend the
lever/selector shaft, otherwise the selector mechanism will
no longer be able to be adjusted correctly.

-  Center selector lever by slightly moving selector lever
forward and backward in position "D" without leaving
position "D" .

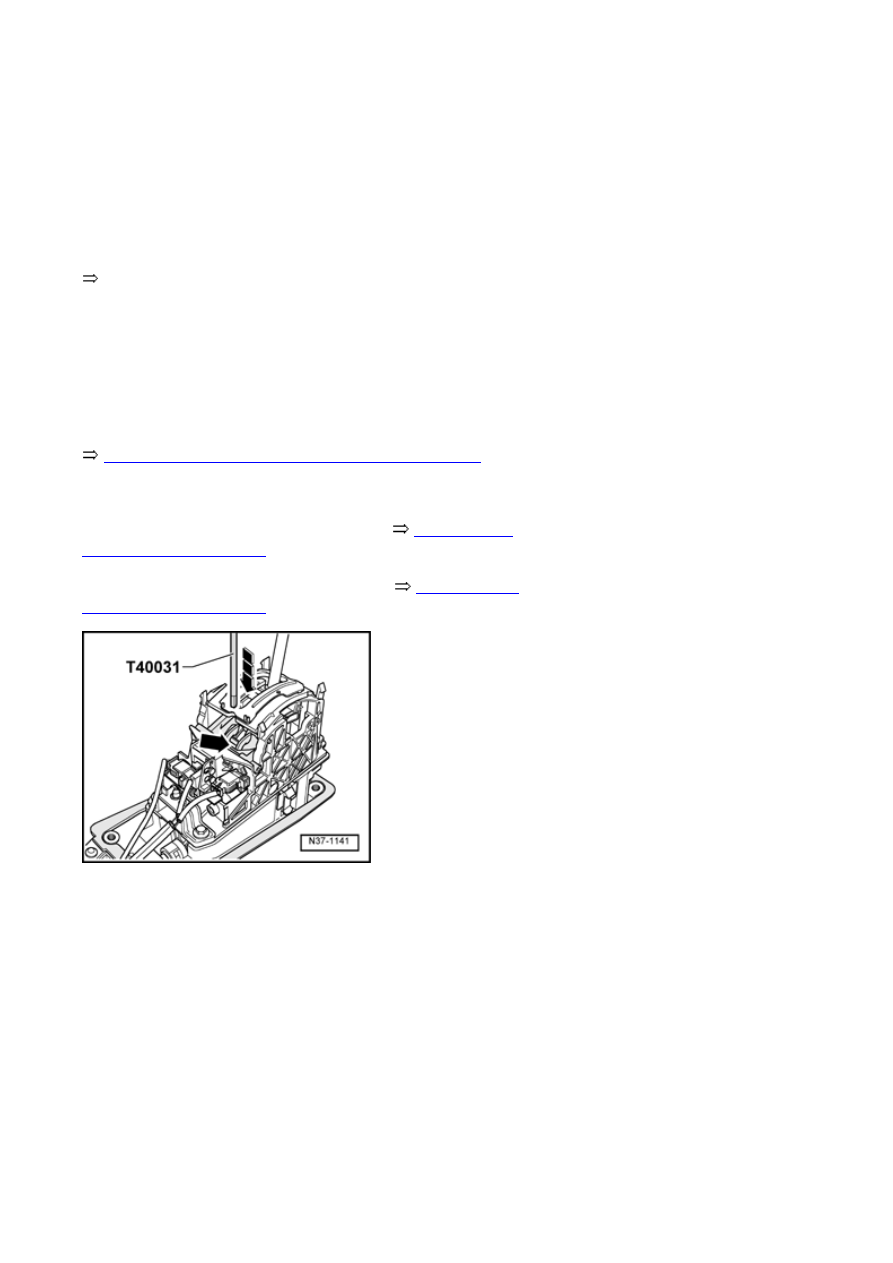

-  Tighten clamping screw to 10 Nm in this position. Socket
insert T40031   can be used for this.

Page 10 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY



Further installation is in reverse order of removal.

- Install ashtray and selector mechanism cover in center
console




.



Repair Manual, Body Interior, Repair Group 68,

- Connect battery.

-  Observe work sequence after connecting the battery




.

 Repair Manual, Electrical Equipment, Repair Group 27,

Selector lever cable, removing and installing

Note:

„

Tying a line to the cable before removing it, will
make it possible to thread the cable back in when
installing

Topic 00-1

 .



Removing



- Remove shift mechanism

37-2, Selector mechanism,

removing and installing

 .

- Push boot - arrow  - forward and out from shift unit.

To remove selector lever cable, the transfer case only
needs to be lowered.

-  Lower transfer case

Page 11 / 26

Selector mechanism, servicing

WWW.ALL-TRANS.BY








.



Repair Manual, Rear Final Drive, Repair Group 34,

Transfer case, removing and installing



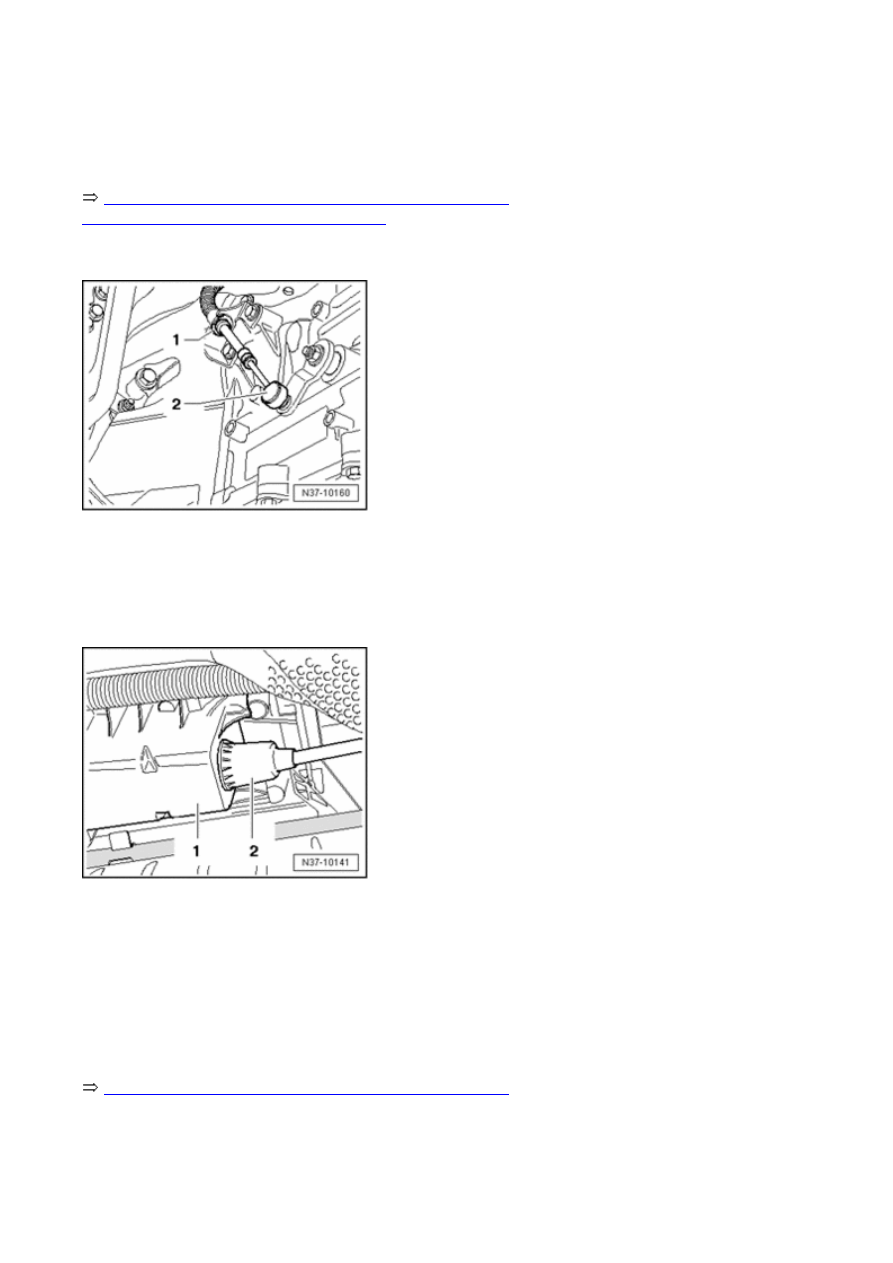

- Remove locking washer - 1  - .

-  Pull selector lever cable - 2  - from lever/selector shaft.

Installing



- Insert selector lever cable into shift unit - 1 - .

- Seat sleeve - 2  - so that it makes full contact against
shift unit.

-  Install the transfer case




.



Repair Manual, Rear Final Drive, Repair Group 34,

Page 12 / 26

Selector mechanism, servicing
