Volkswagen 01M Transmission. Manual - part 65

* 20SGL

J00037

401

402

403

404

400

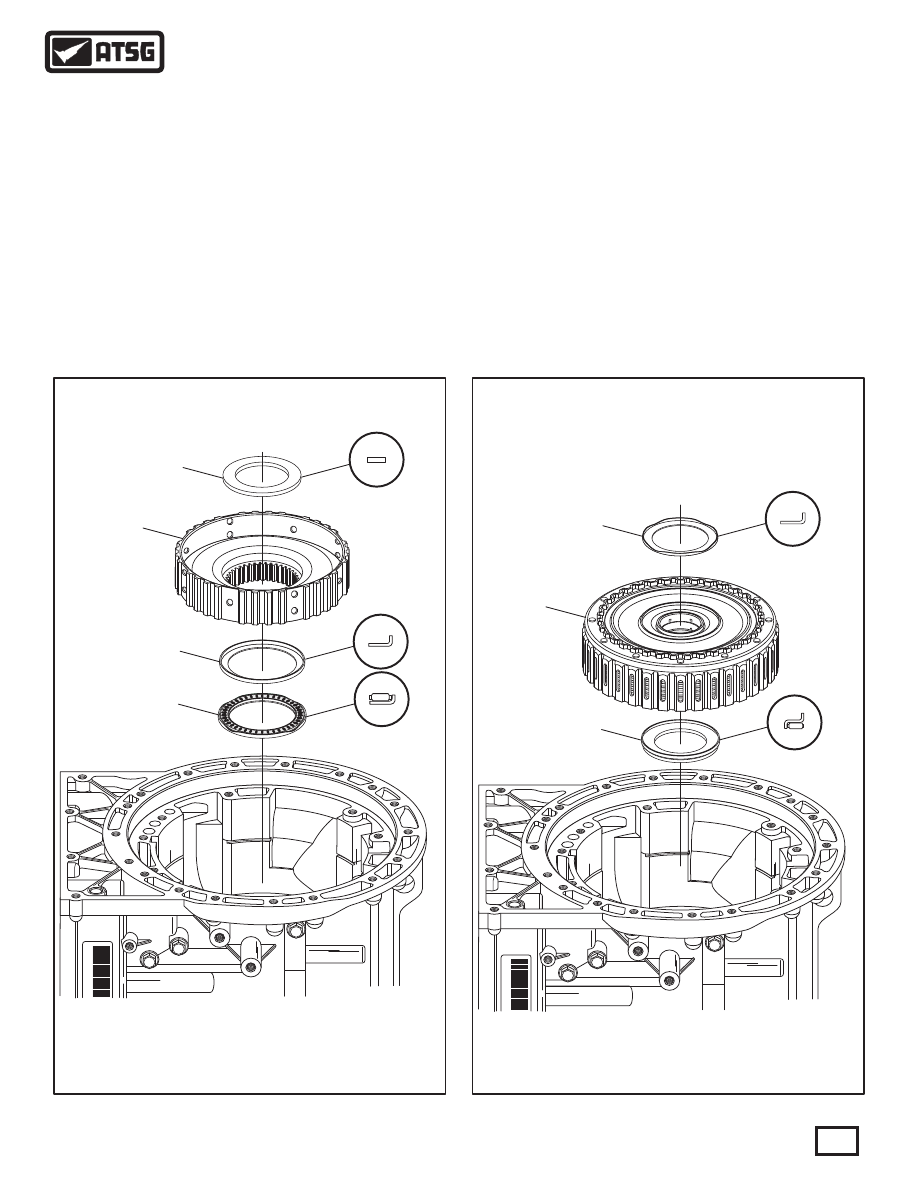

401 NUMBER 7 THRUST BEARING RACE.
402 K1 CLUTCH HUB.
403 NUMBER 8 THRUST BEARING RACE.
404 NUMBER 8 THRUST BEARING.

TRANSMISSION ASSEMBLY (CONT'D)

25. Install the number 8 thrust bearing, as shown in
             Figure 212, on top of large sun gear and shell.
26. Ensure the number 8 thrust bearing race is still
             stuck to the back of K1 clutch hub, as shown in
             Figure 212, and install K1 clutch hub assembly.
27. Install number 7 thrust bearing race, as shown in
             Figure 212, in center of installed K1 clutch hub.
28. Ensure the number 7 thrust bearing is still stuck
             to the back side of K1 clutch housing, as shown
in Figure 213.

29. Install completed K1 clutch housing, as shown
in Figure213, by rotating back and forth so the
friction plates engage the clutch hub.
Note: Ensure K1 clutch housing is fully seated.
30. Install the number 6 thrust bearing race into the
pocket on top of K1 clutch housing, as shown in
Figure 213.

Continued on Page 120

Figure 212

Figure 213

* 20SGL

J00037

229

229 NUMBER 6 THRUST BEARING RACE.
230 K1 CLUTCH HOUSING ASSEMBLY.
400 NUMBER 7 THRUST BEARING.

230

119

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

WWW.ALL-TRANS.BY

228

THESE SPLINES

MUST BE ENGAGED

THESE SPLINES

MUST BE ENGAGED

* 20SGL

J00037

Completed

Turbine Shaft And

Front Planet Assembly

* 20SGL

J00037

200

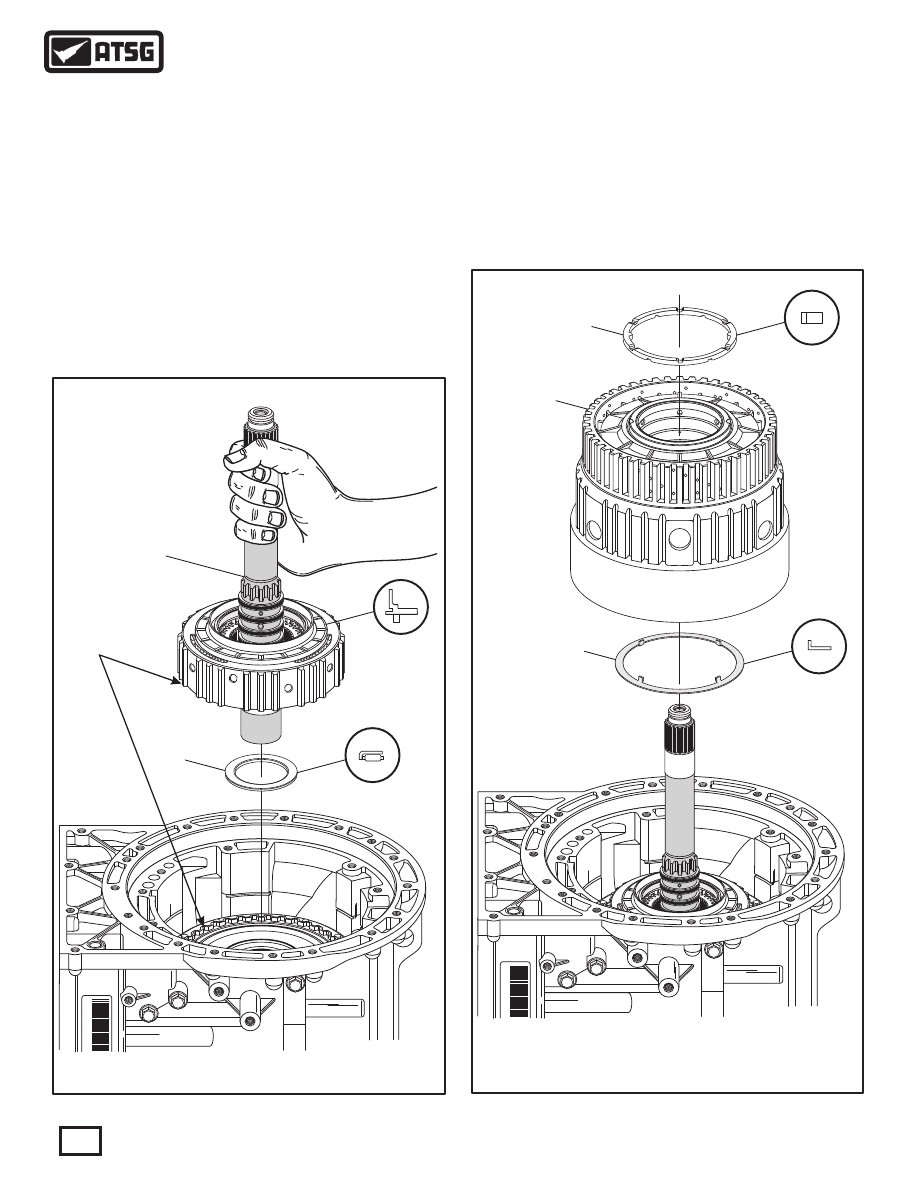

72 NUMBER 1 THRUST WASHER (PL ASTIC).
200 K3 CLUTCH HOUSING ASSEMBLY.
207 NUMBER 2 THRUST WASHER HARDENED RACE.

228 NUMBER 6 THRUST BEARING.

207

Figure 215

Figure 214

TRANSMISSION ASSEMBLY (CONT'D)

31. Ensure the number 6 thrust bearing is still stuck
             to back of the completed turbine shaft and front
             planetary assembly, as shown in Figure 214.
32. Install the completed turbine shaft and front
planetary, as shown in Figure 214.
Note: Splines of the front carrier must engage
             into K1 clutch housing (See Figure 214).
33. Ensure number 2 thrust washer hardened race is
             still stuck to the K3 balance piston, as shown in
Figure 215.
34. Install completed K3 clutch housing, as shown
             in Figure 215, by rotating back and forth until
fully seated.

Note: K3 frictions must engage on the front
             planetary carrier and internal splines of the K3
             clutch housing must engage external splines of
sun gear shell.
34. Install the number 1 thrust washer, as shown in
             Figure 215, engaging tabs into the slots of the
K3 clutch housing.

Continued on Page 121

120

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

WWW.ALL-TRANS.BY

* 20SGL

J00037

121

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 216

Figure 217

TRANSMISSION ASSEMBLY (CONT'D)

Continued on Page 122

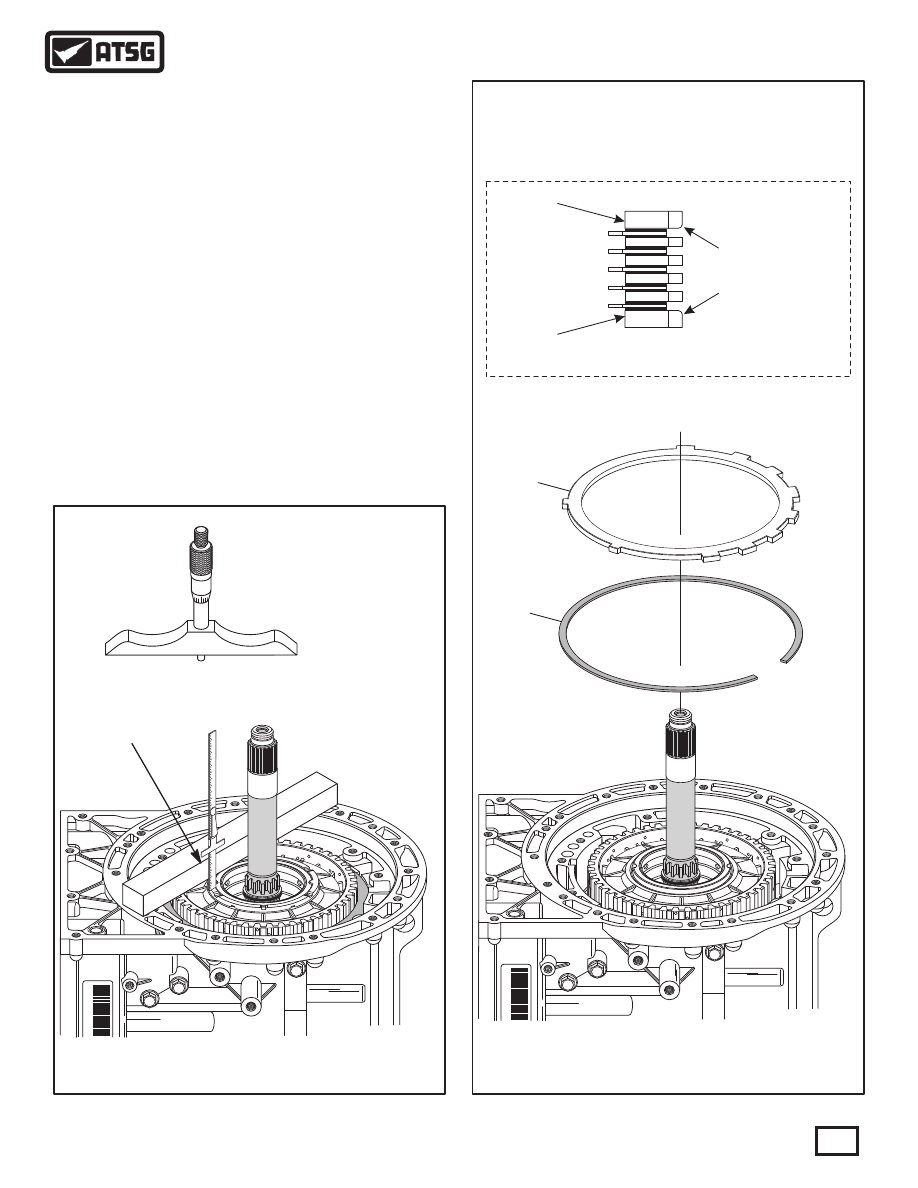

35. Now is the time to compare the measurement
             you recorded during disassembly, as shown in
             Figure 216, to measurement that you now have.
Note: These measurements should be the same.
             If not, there is a clutch, a bearing or bearing
race not fully seated.
36. Install the B1 clutch backing plate snap ring into
             the case, as shown in Figure 217, and ensure that
             it is fully seated in case groove.
37. Install the B1 clutch backing plate, as shown in
             Figure 217, with the rounded edge facing up
toward the friction plate.

20SGL

J00037

MEASUREMENT TO

VERIFY RE-ASSEMBLY

MEASUREMENT TO

VERIFY RE-ASSEMBLY

88 B1 CLUTCH BACKING PLATE, 4.6 MM (.181") THICK.
89 B1 CLUTCH BACKING PLATE SNAP RING, 2.5 MM (.099").

ROUNDED EDGE

TOWARDS FRICTION

ROUNDED EDGE

TOWARDS FRICTION

BACKING

PLATE

APPLY

PLATE

B1 CLUTCH STACK-UP

t arre

WWW.ALL-TRANS.BY

* 20SGL

J00037

B1 BACKING

PLATE

B1 BACKING

PLATE

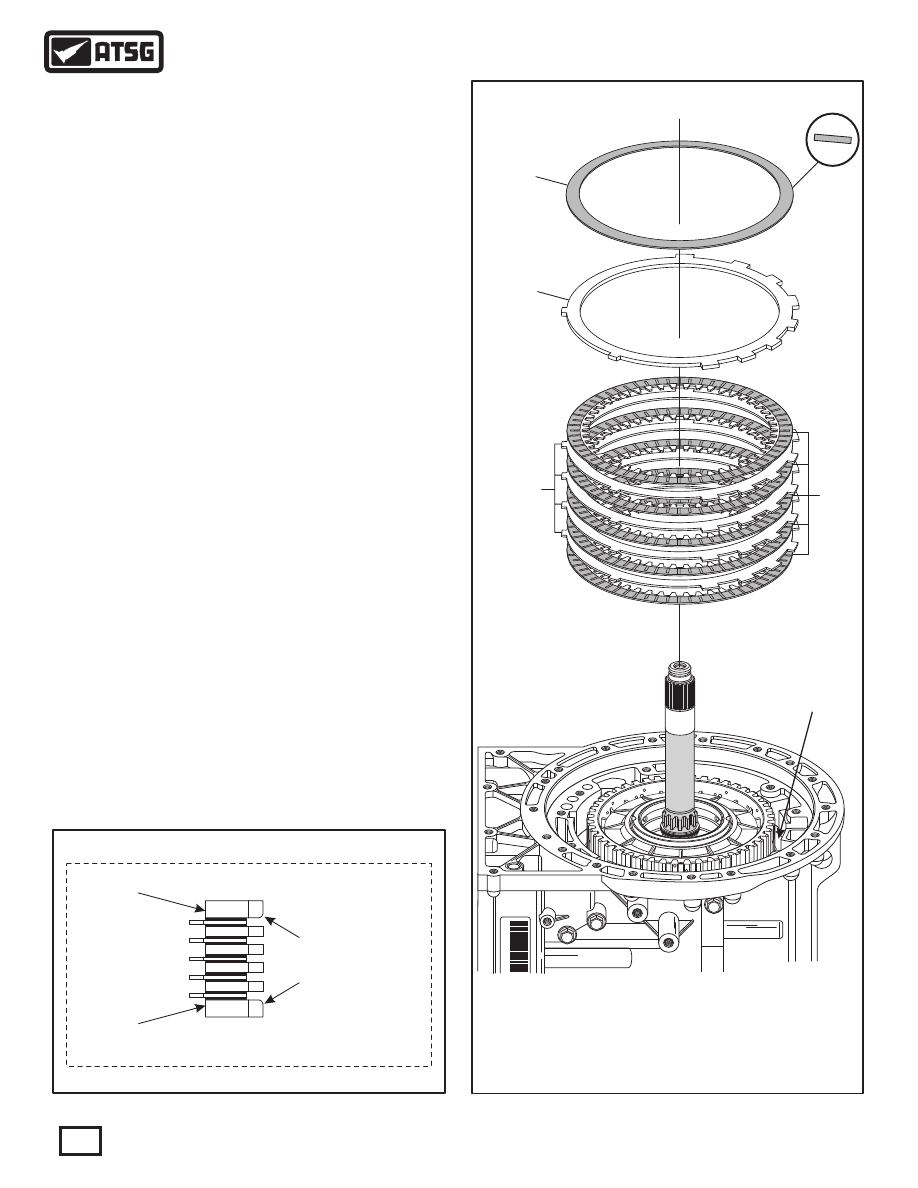

84 B1 CLUTCH "BELLVILLE" CUSHION PLATE.
85 B1 CLUTCH APPLY PLATE, 4.0 MM (.158") THICK.
86 B1 CLUTCH FRICTION PLATES (QTY VARIES).
87 B1 CLUTCH STEEL PLATES, 2.0 MM (.079") THICK (QTY VARIES).

Figure 218

ROUNDED EDGE

TOWARDS FRICTION

ROUNDED EDGE

TOWARDS FRICTION

BACKING

PLATE

APPLY

PLATE

B1 CLUTCH STACK-UP

Figure 219

TRANSMISSION ASSEMBLY (CONT'D)

Continued on Page 123

38. Install B1 clutch plates beginning with a friction
             plate and alternating with steel plates, as shown
             in Figure 219, until you have the proper amount
installed as quantity may vary.
Note: All friction plates should be soaked in
             proper fluid for 30 minutes before installing.
39. Install B1 apply plate, as shown in Figure 219,
             with the "rounded" edge facing down toward the
             last friction, as shown in Figure 218.
40. Install the B1 "bellville" style cushion plate in
the direction shown in Figure 219.

122

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

WWW.ALL-TRANS.BY
