Preparing new part

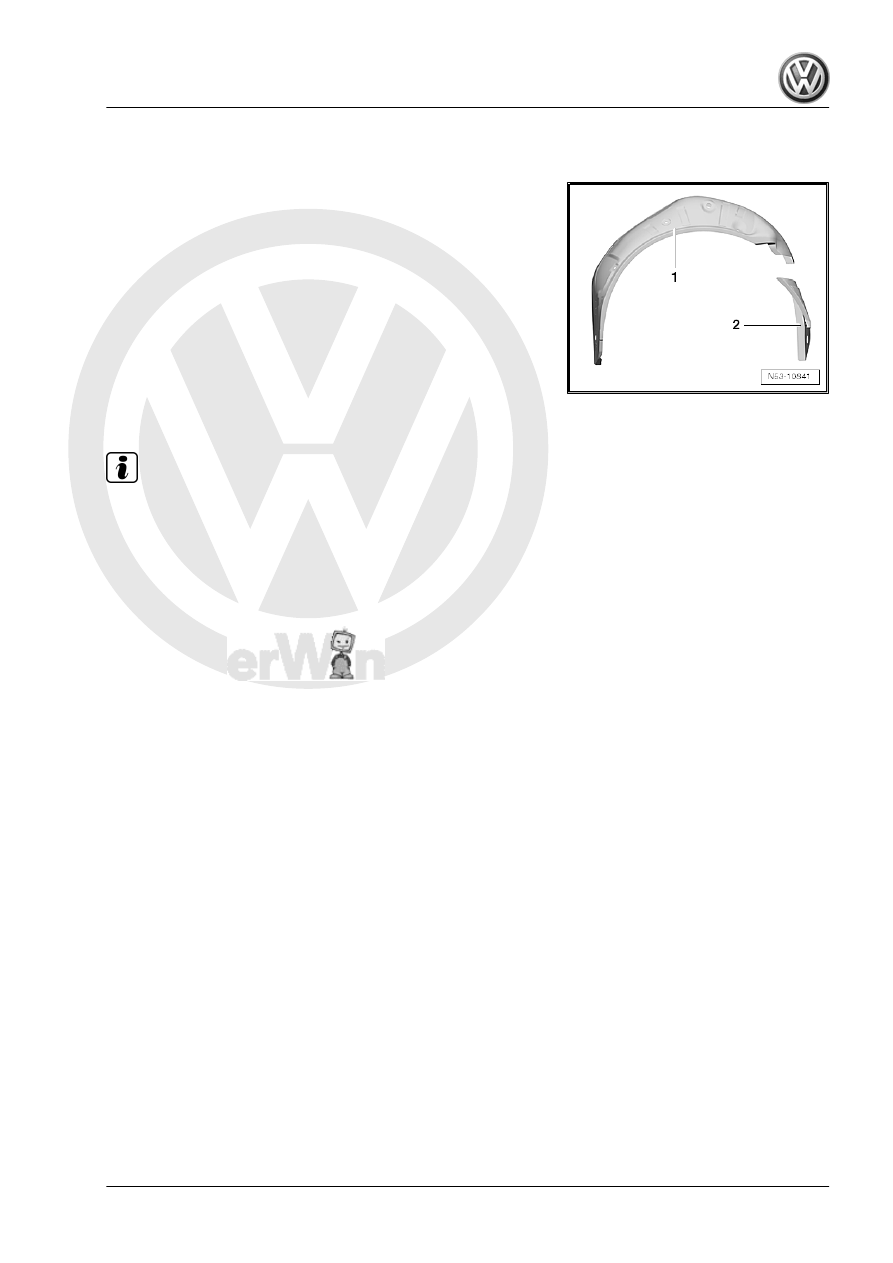

New part
♦ Outer wheel housing liner -1-
♦ Reinforcing plate -2-
♦ Lock reinforcement
♦ 2K body adhesive -D 180 KD3 A2-
– Grind bonding surfaces back to bare metal.

14.3.2

Welding in

Note

New part must be welded in within 90 minutes or adhesion of ad‐

hesive will be impaired.

Passat 2011 ➤ , Passat Variant 2011 ➤

14. Renewing outer wheel housing liner (Variant)

365

the factory.

– Adapt new part with vehicle standing on its wheels or align‐

ment bracket set and fix in position.

– Check fit with side panel.

Passat 2011 ➤ , Passat Variant 2011 ➤

366

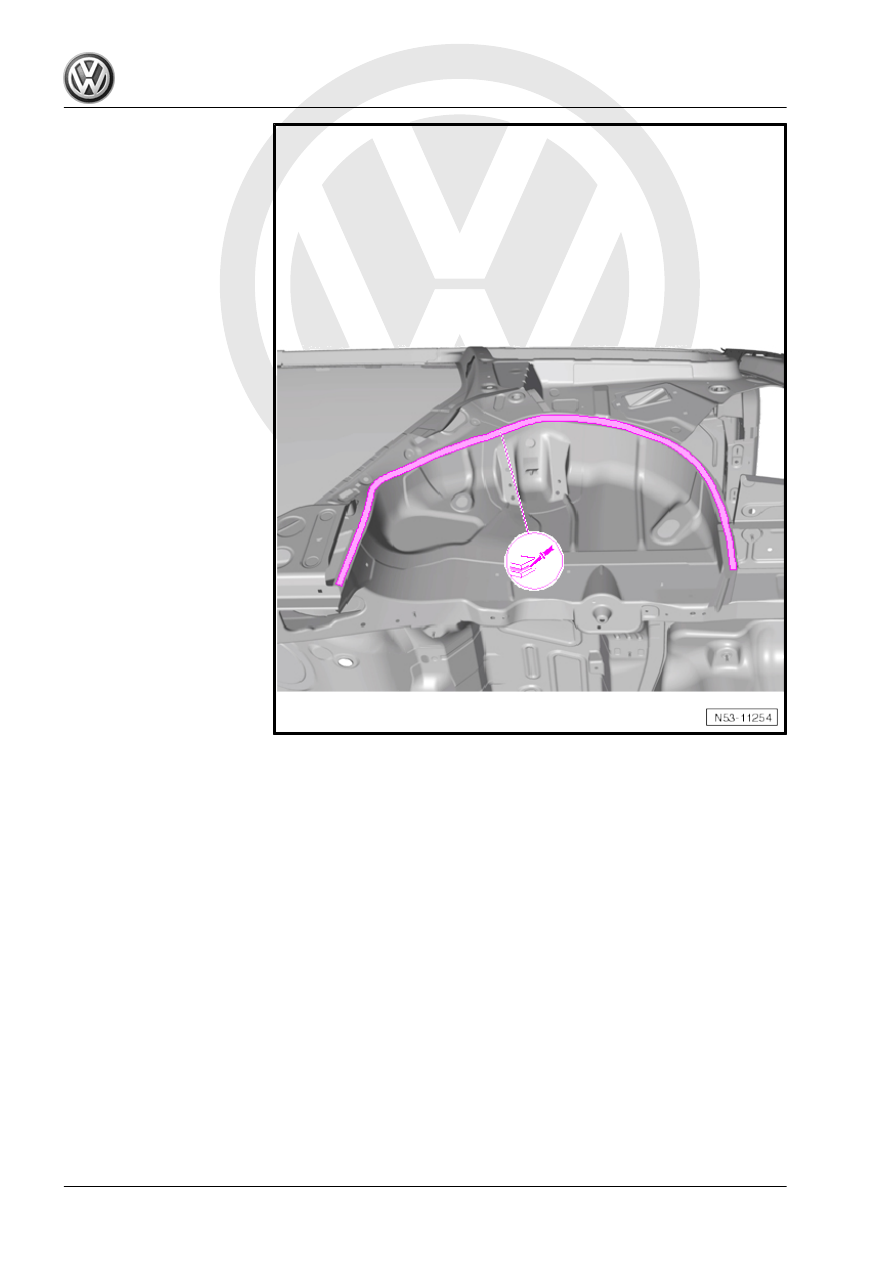

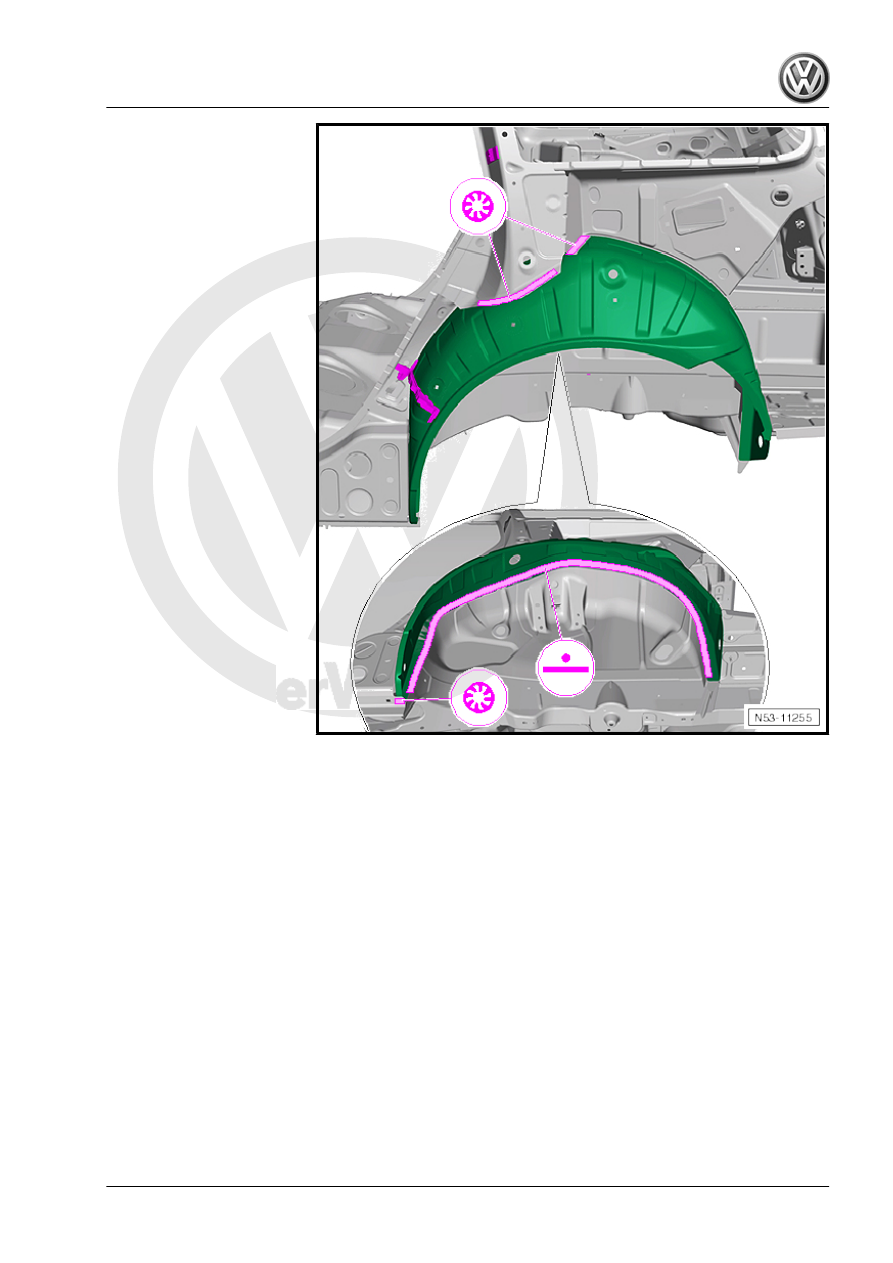

inner wheel housing, RP spot weld seam and SG plug weld

seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

14. Renewing outer wheel housing liner (Variant)

367

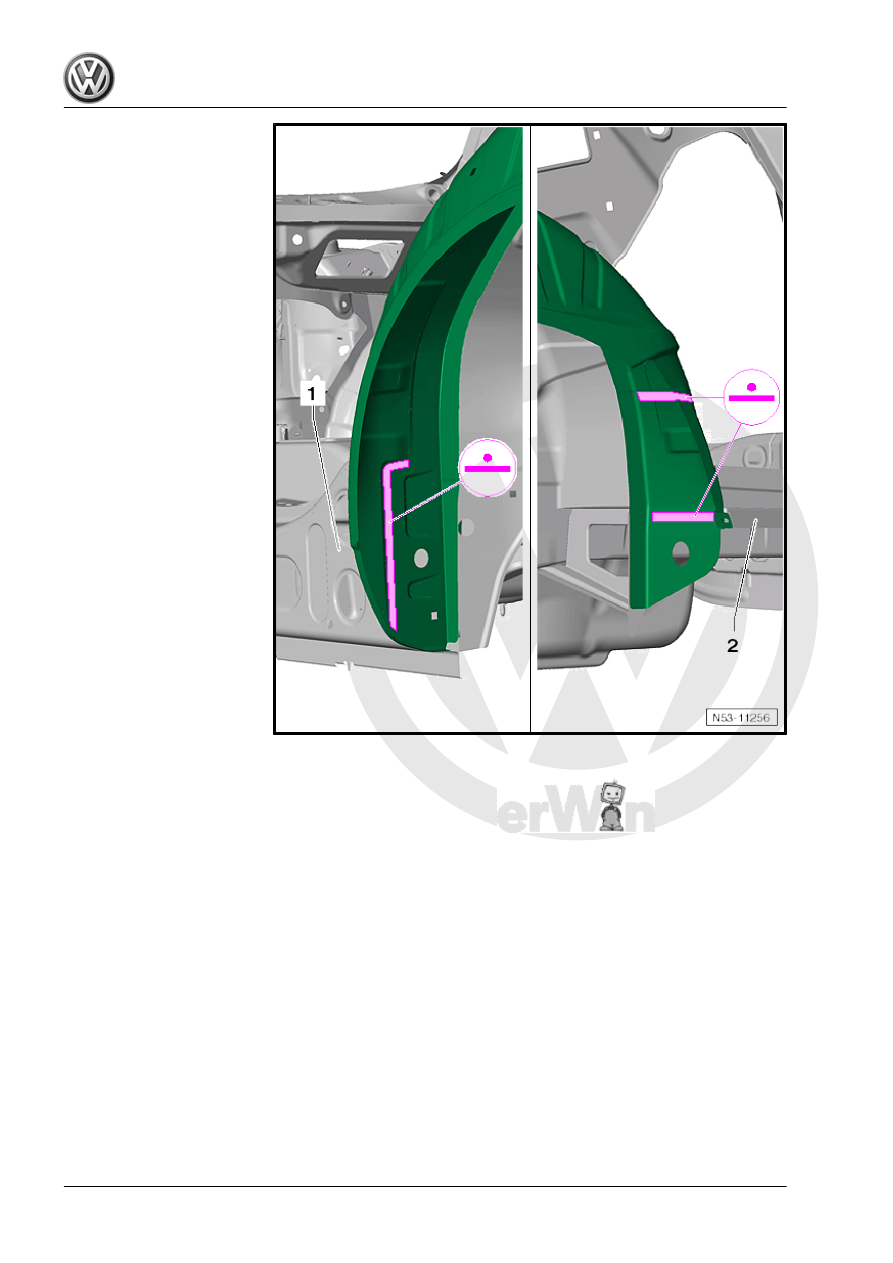

and to rear connecting plate -2-, RP spot weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤
