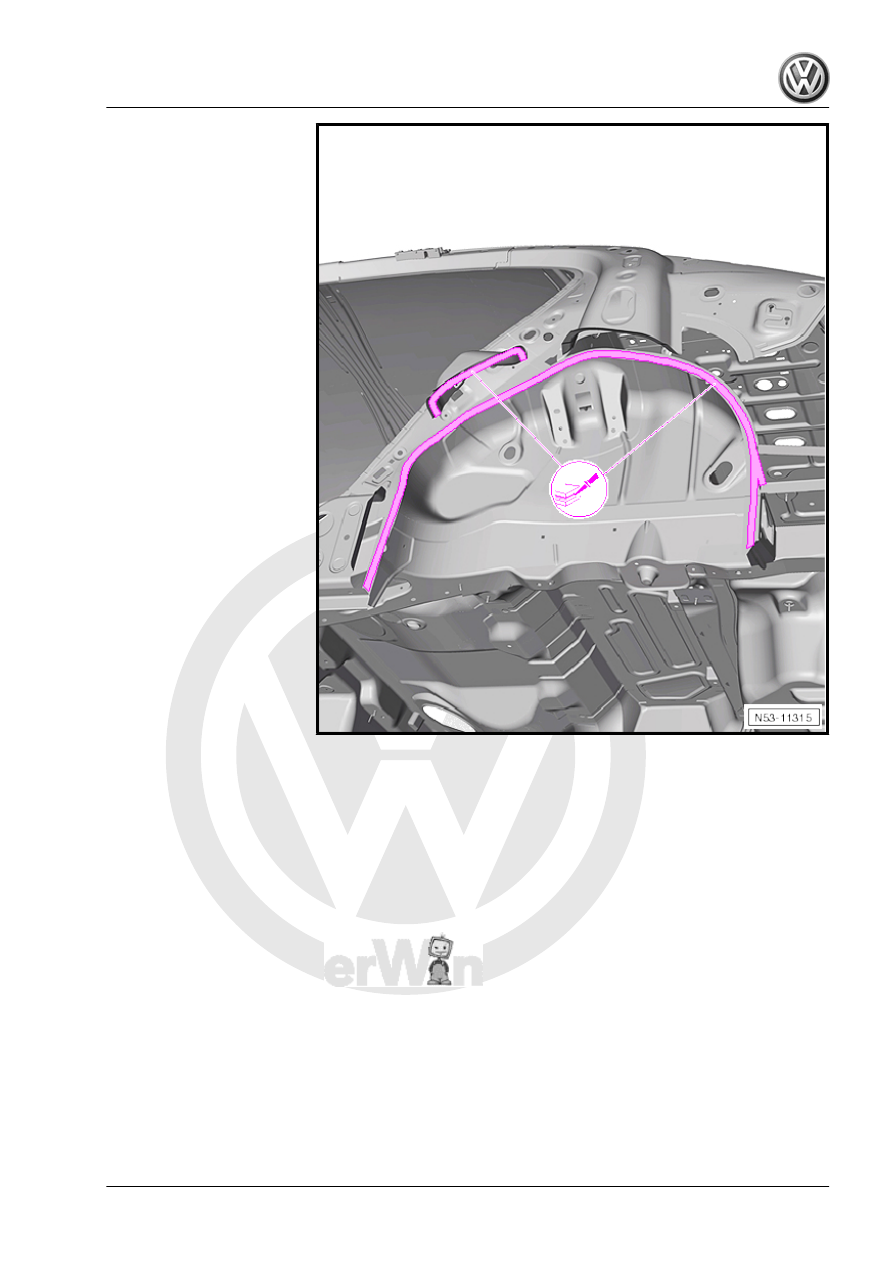

the factory.

– Adapt new part with vehicle standing on its wheels or align‐

ment bracket set and fix in position.

– Check fit with side panel.

Passat 2011 ➤ , Passat Variant 2011 ➤

13. Renewing outer wheel housing liner

357

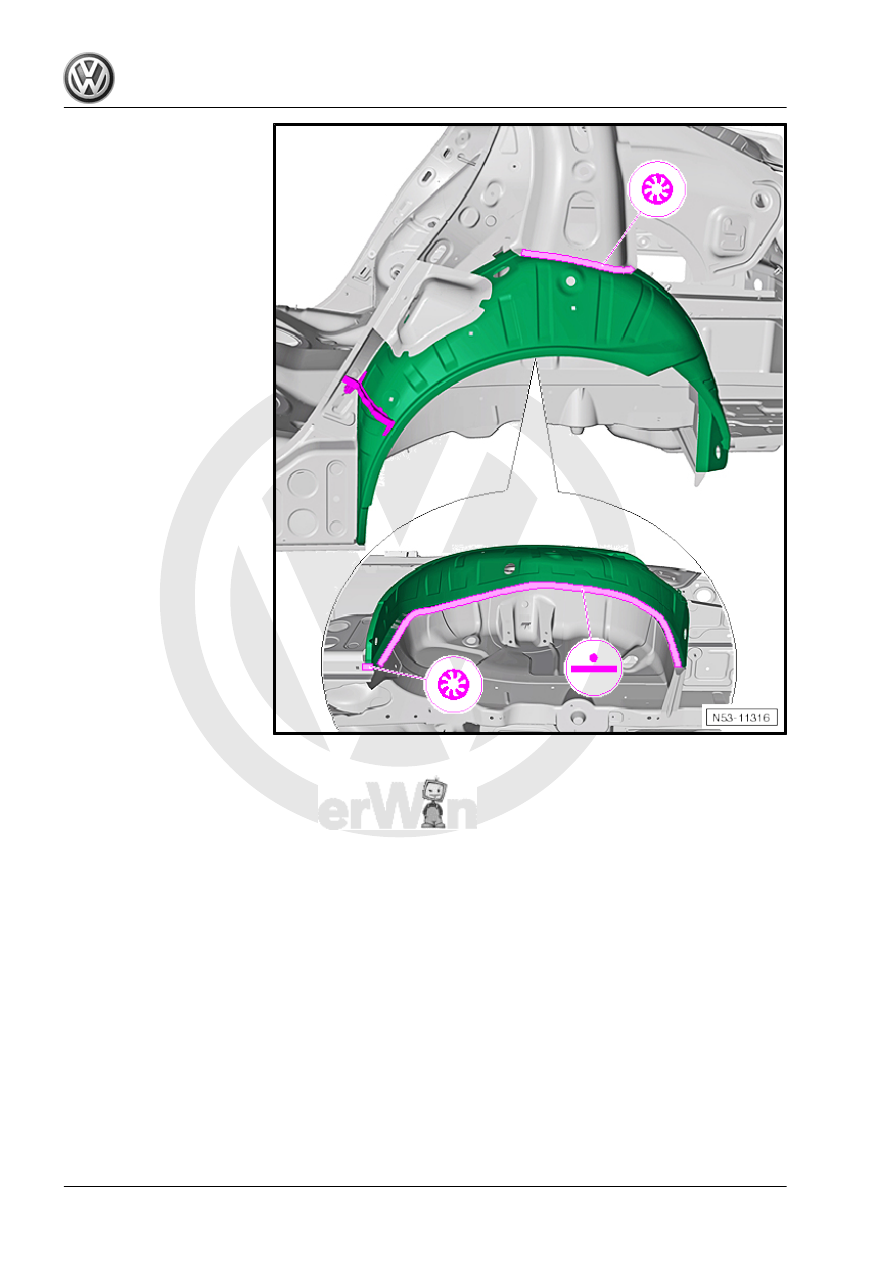

inner wheel housing, RP spot weld seam and SG plug weld

seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

358

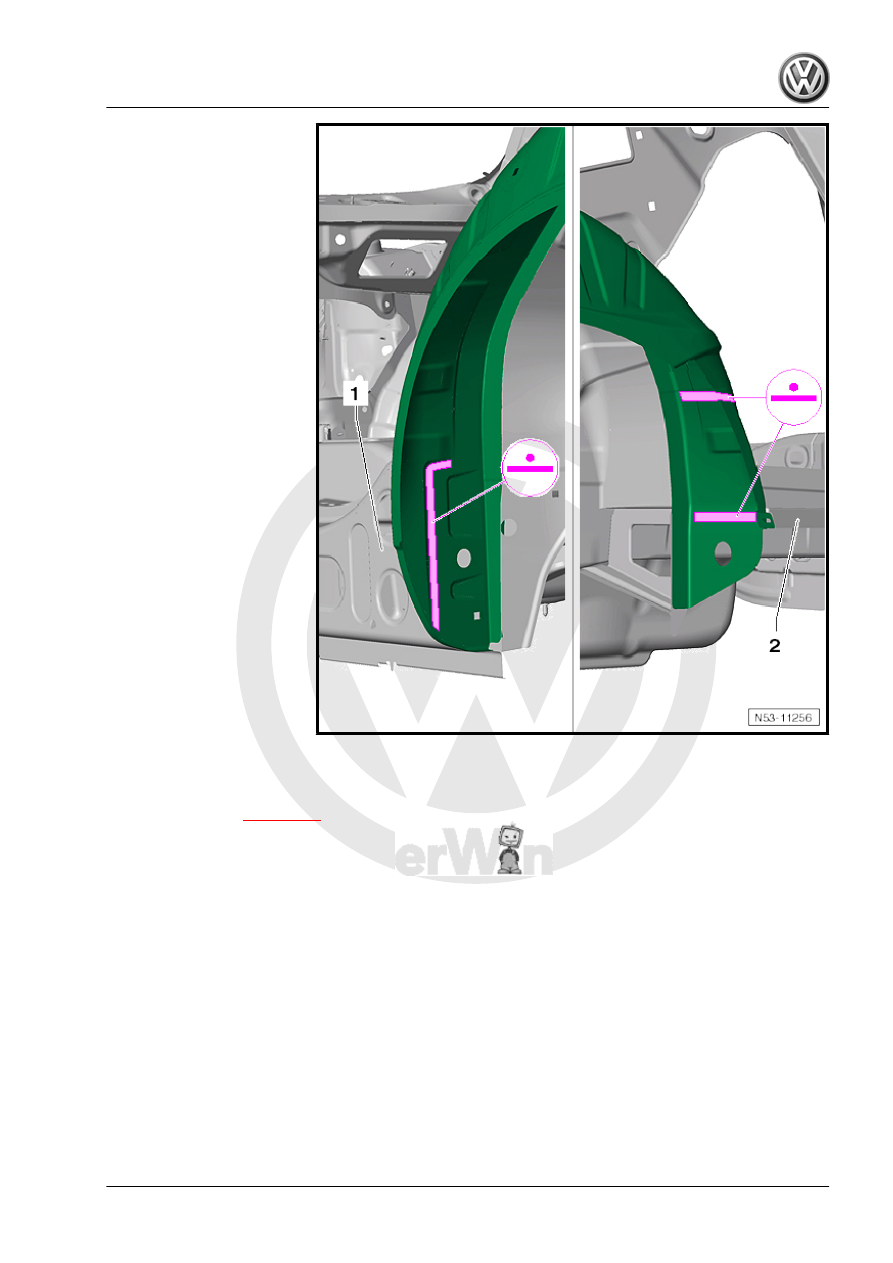

and to rear connecting plate -2-, RP spot weld seam.

– Install side panel

⇒ page 335

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

13. Renewing outer wheel housing liner

359

14

Renewing outer wheel housing liner

(Variant)

Includes: lock reinforcement

WARNING

Observe safety notes!
Welding, parting using spark generating machines/tools or tin‐

ning in foam treated areas creates gases which are hazardous

to health and environment. Therefore, refrain from using these

processes.

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Side panel already removed

⇒ page 342

 .

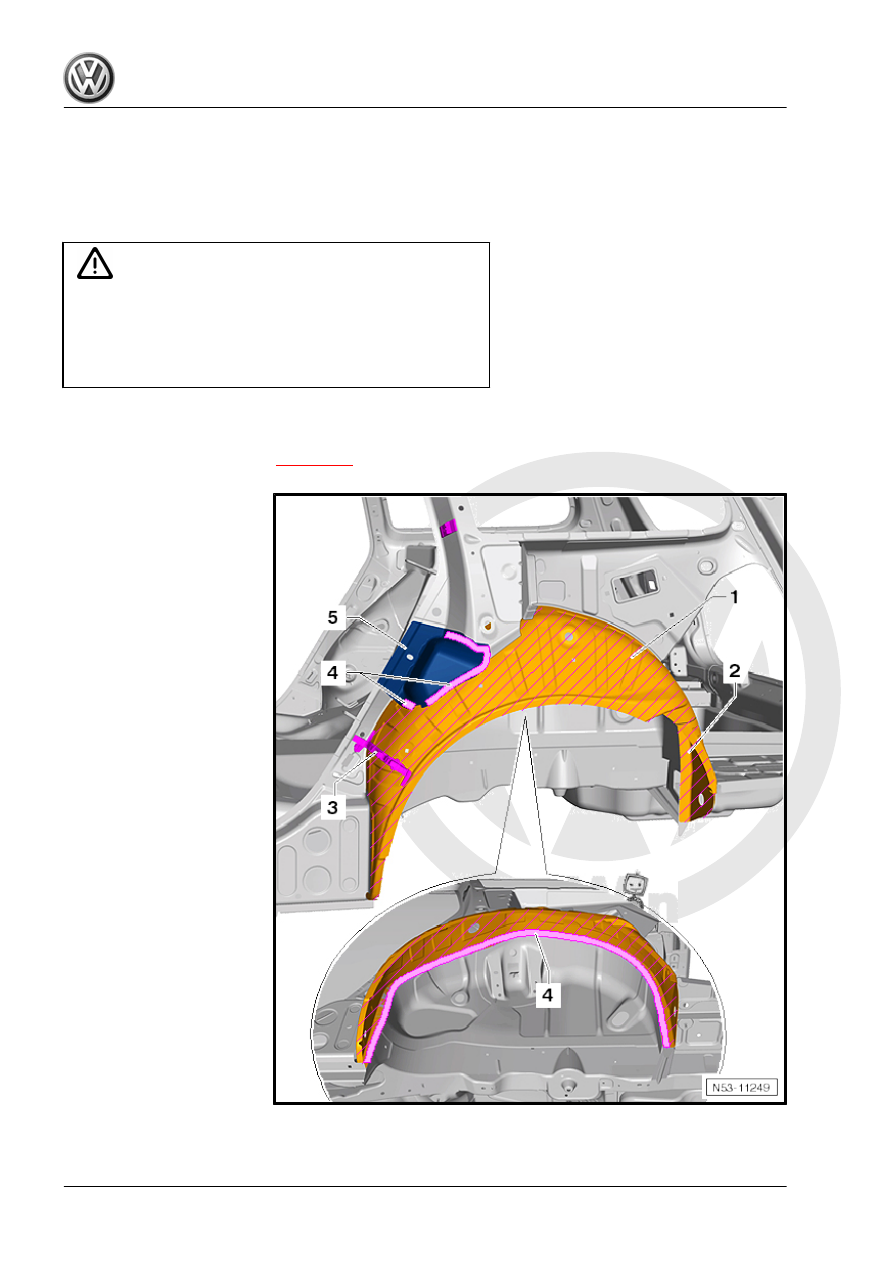

1 - Wheel housing liner
2 - Reinforcing plate
3 - Moulded foam element
4 - Bonded areas
5 - Lock reinforcement

Passat 2011 ➤ , Passat Variant 2011 ➤

360
