Volkswagen Passat / Passat Variant (2011 year). Manual - part 11

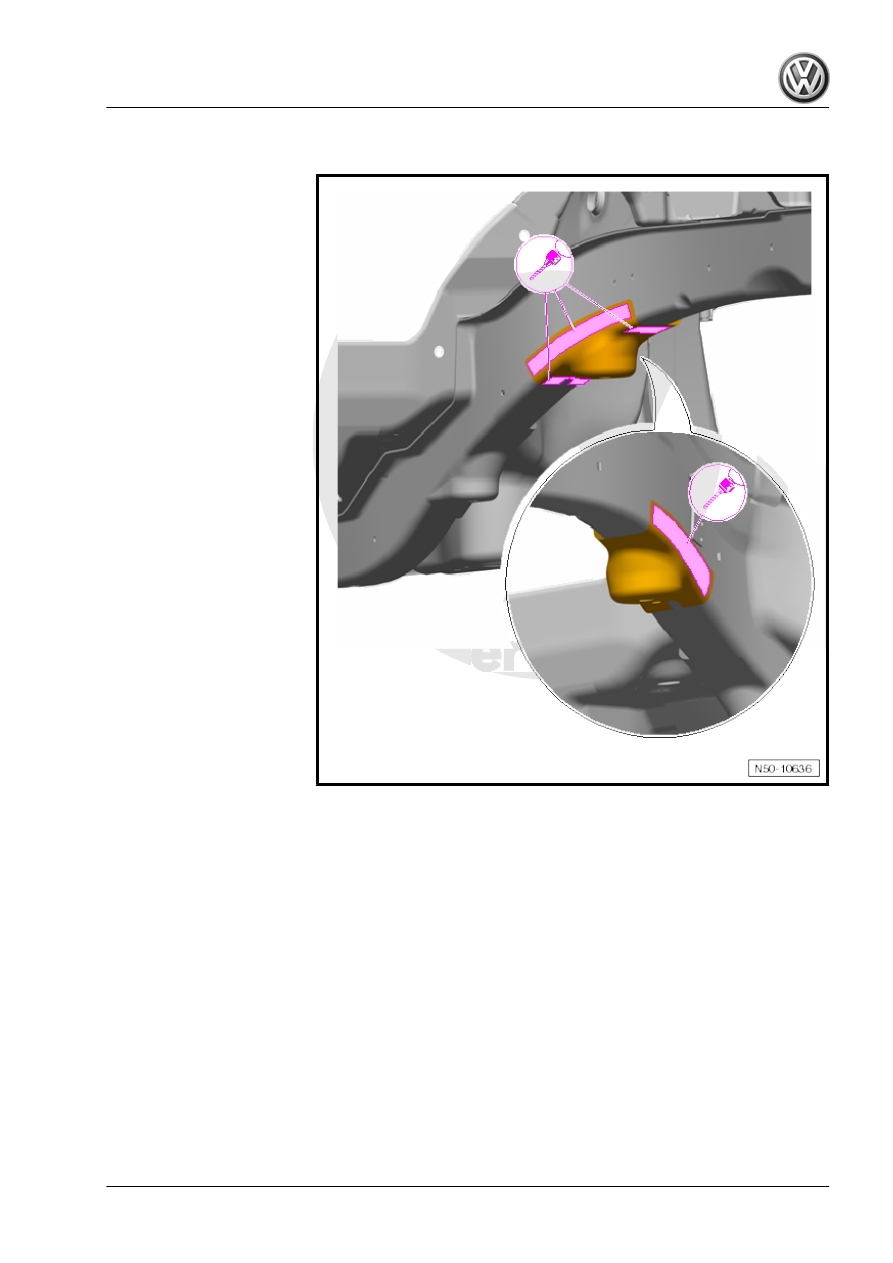

Removing

– Separate original joint.

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing retaining bracket for subframe

41

3.3

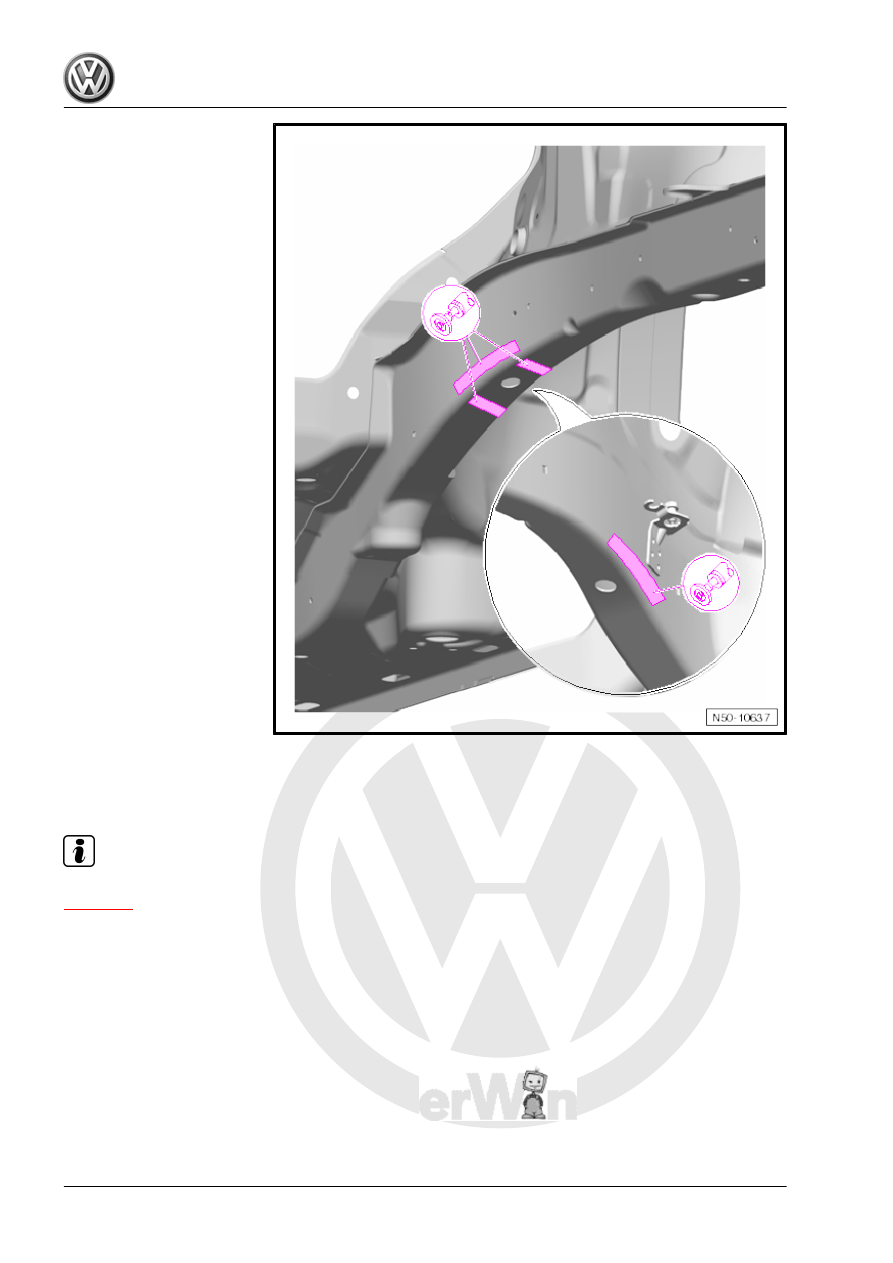

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 40

 .

3.3.1

Preparing new part

New part
♦ Retaining bracket for subframe (parts designation: subframe

retaining bracket)

Passat 2011 ➤ , Passat Variant 2011 ➤

42

3.3.2

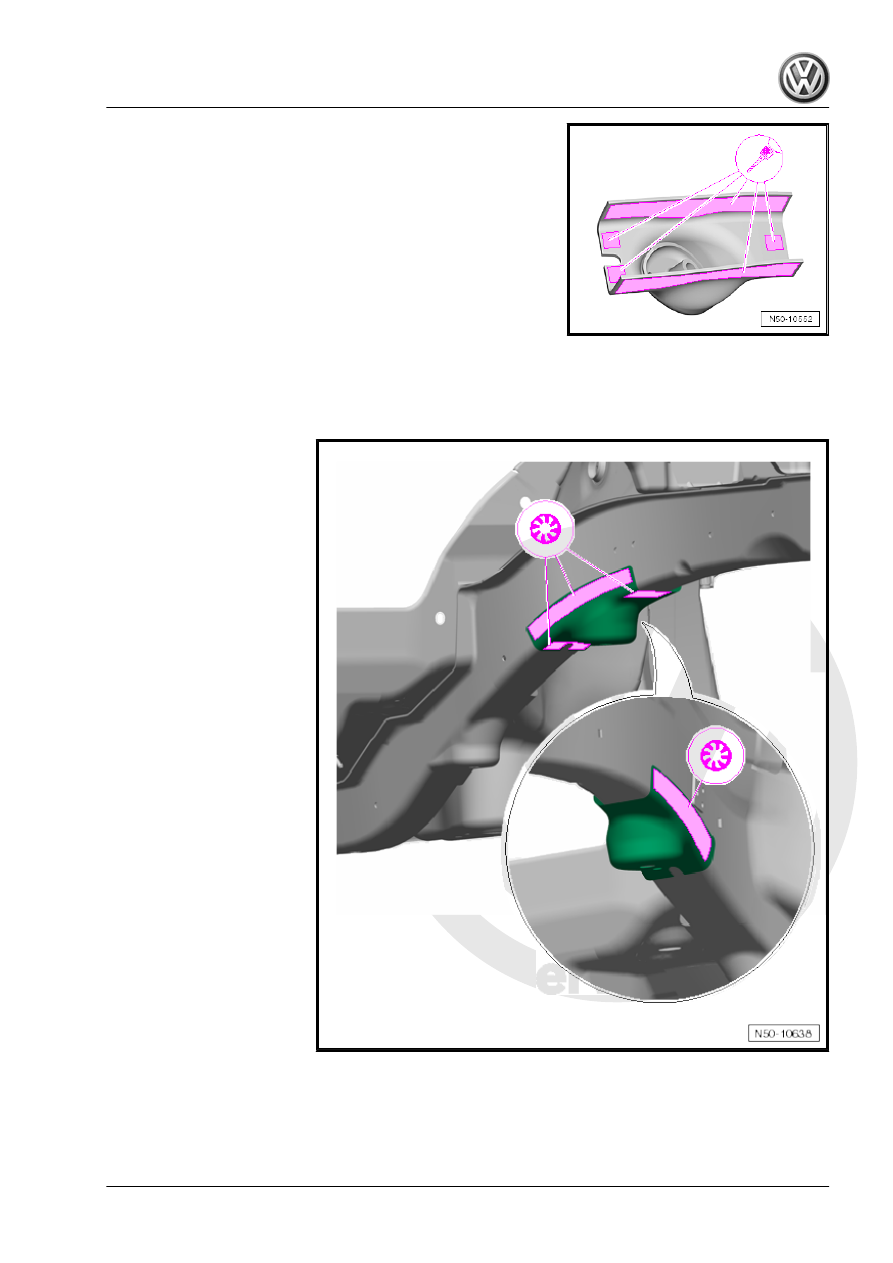

Welding in

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

– Weld in new part, SG plug weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

3. Renewing retaining bracket for subframe

43

4

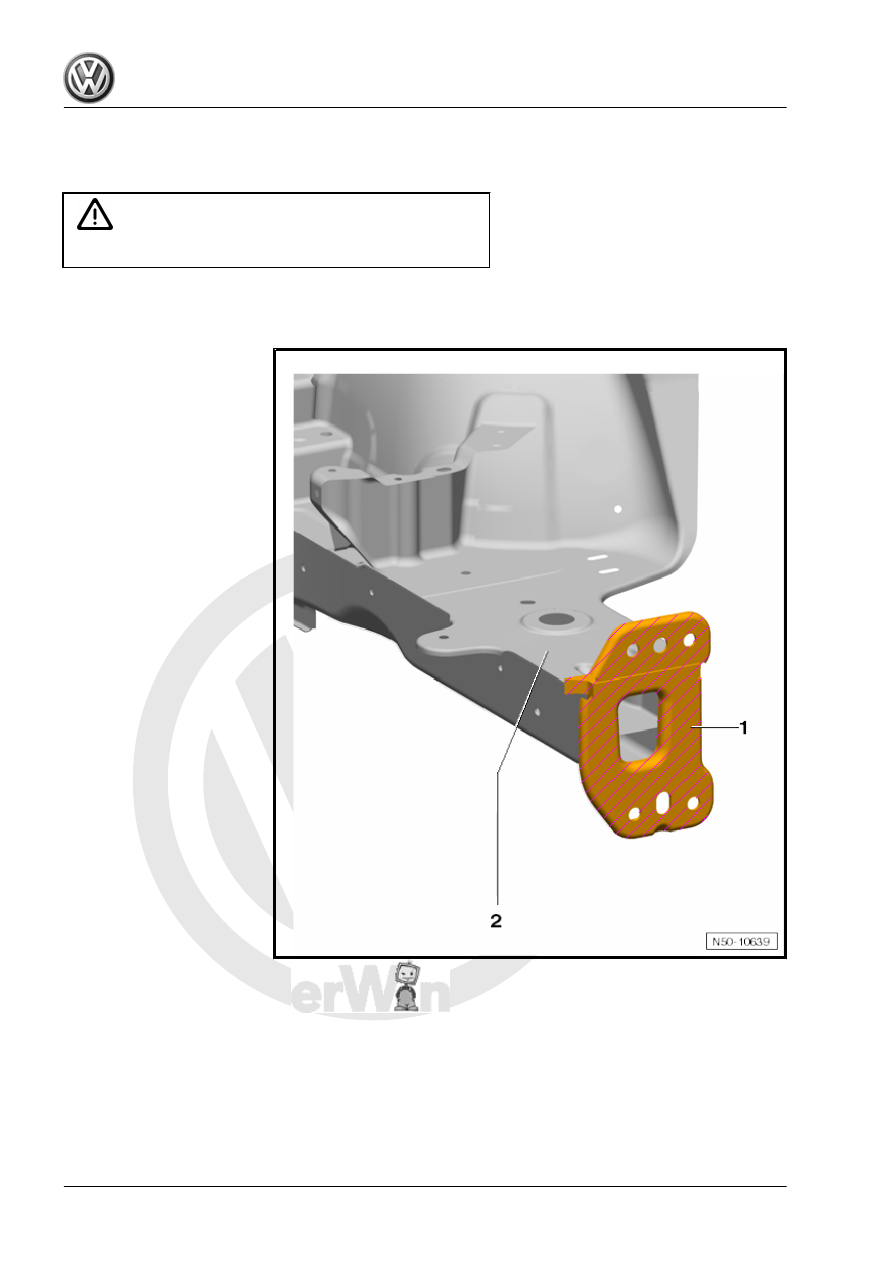

Renewing bumper bracket

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

1 - Bumper bracket
2 - Longitudinal member with

cover plate

Passat 2011 ➤ , Passat Variant 2011 ➤

44
