1. Renewing left console

33

1.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 31

 .

1.3.1

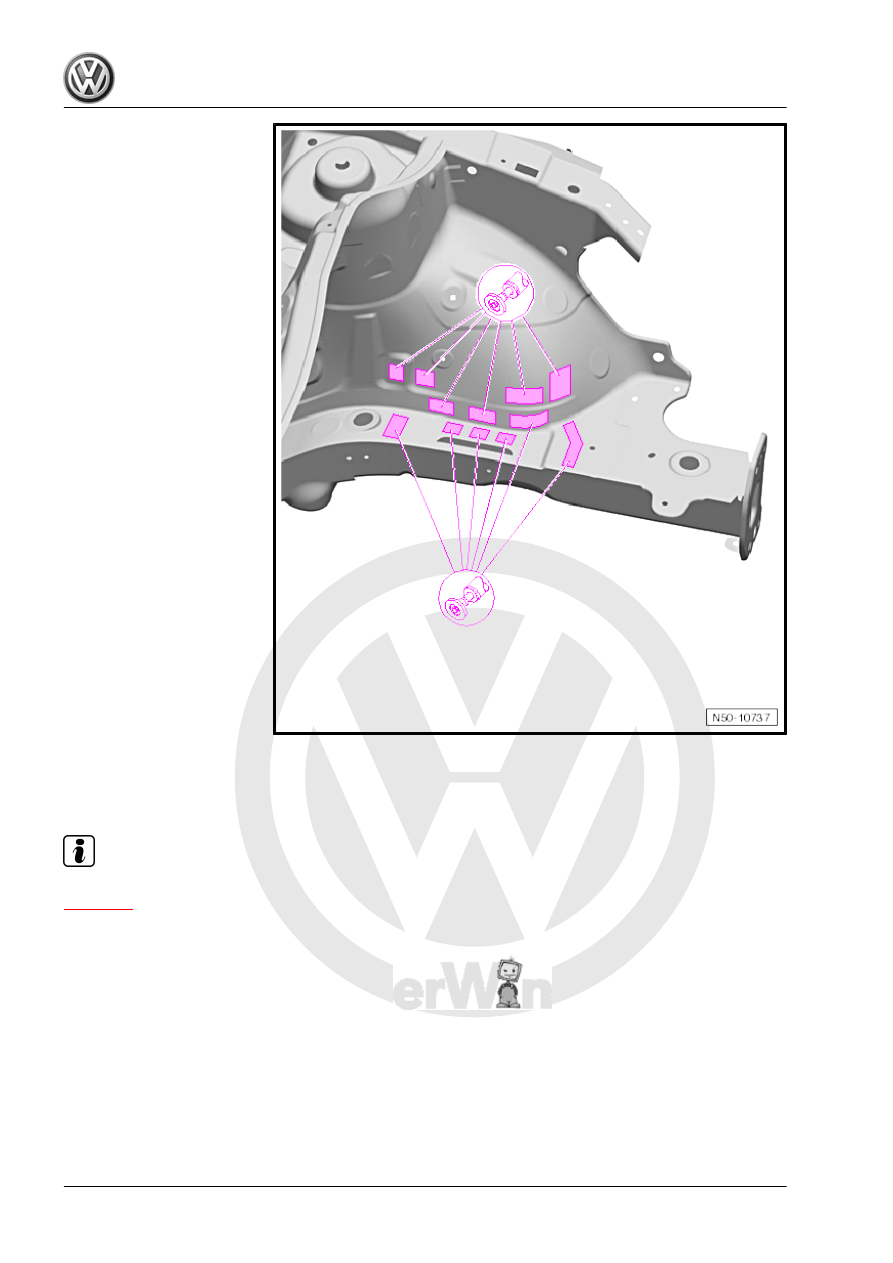

Preparing new part

New part
♦ Left engine console

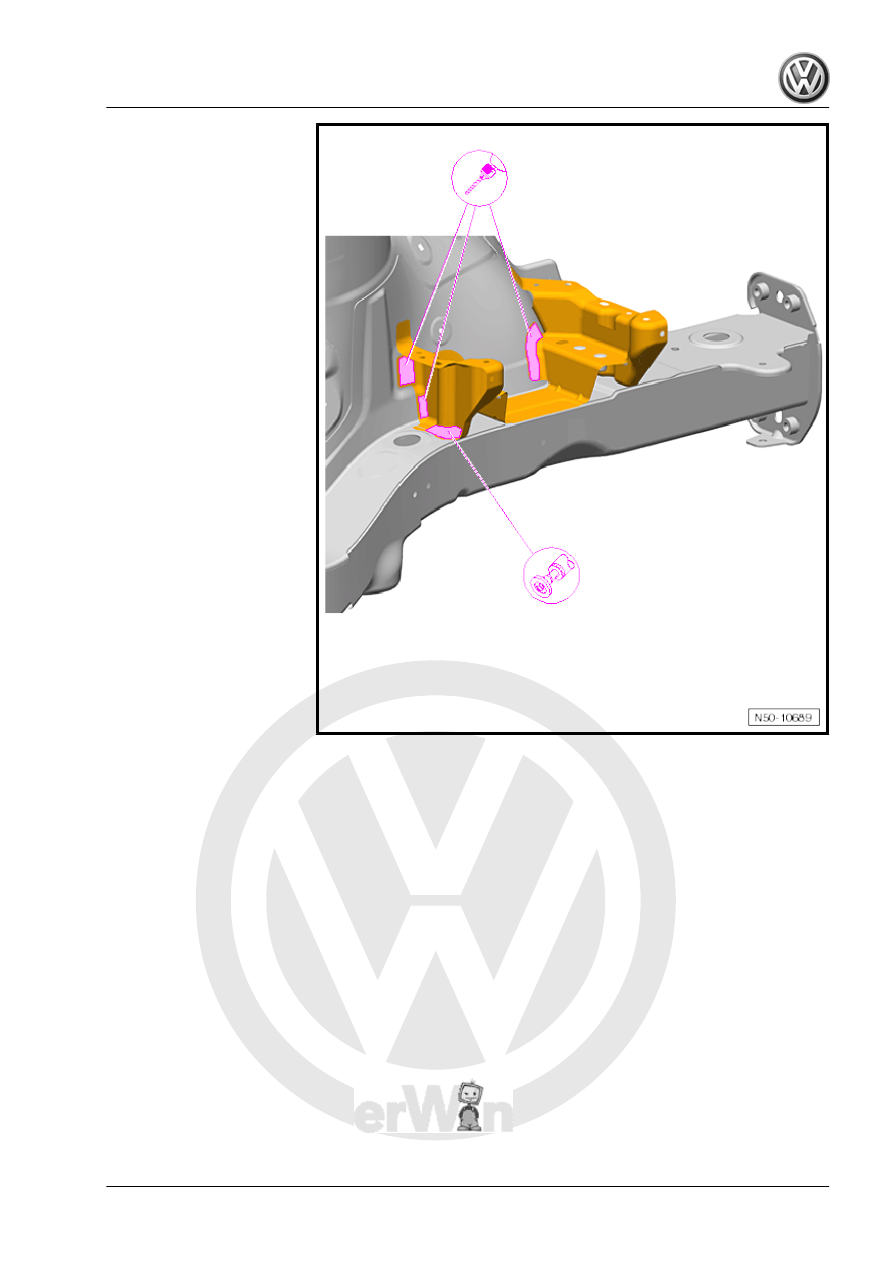

– Drill holes for SG plug weld seam (8 mm ∅).

Passat 2011 ➤ , Passat Variant 2011 ➤

34

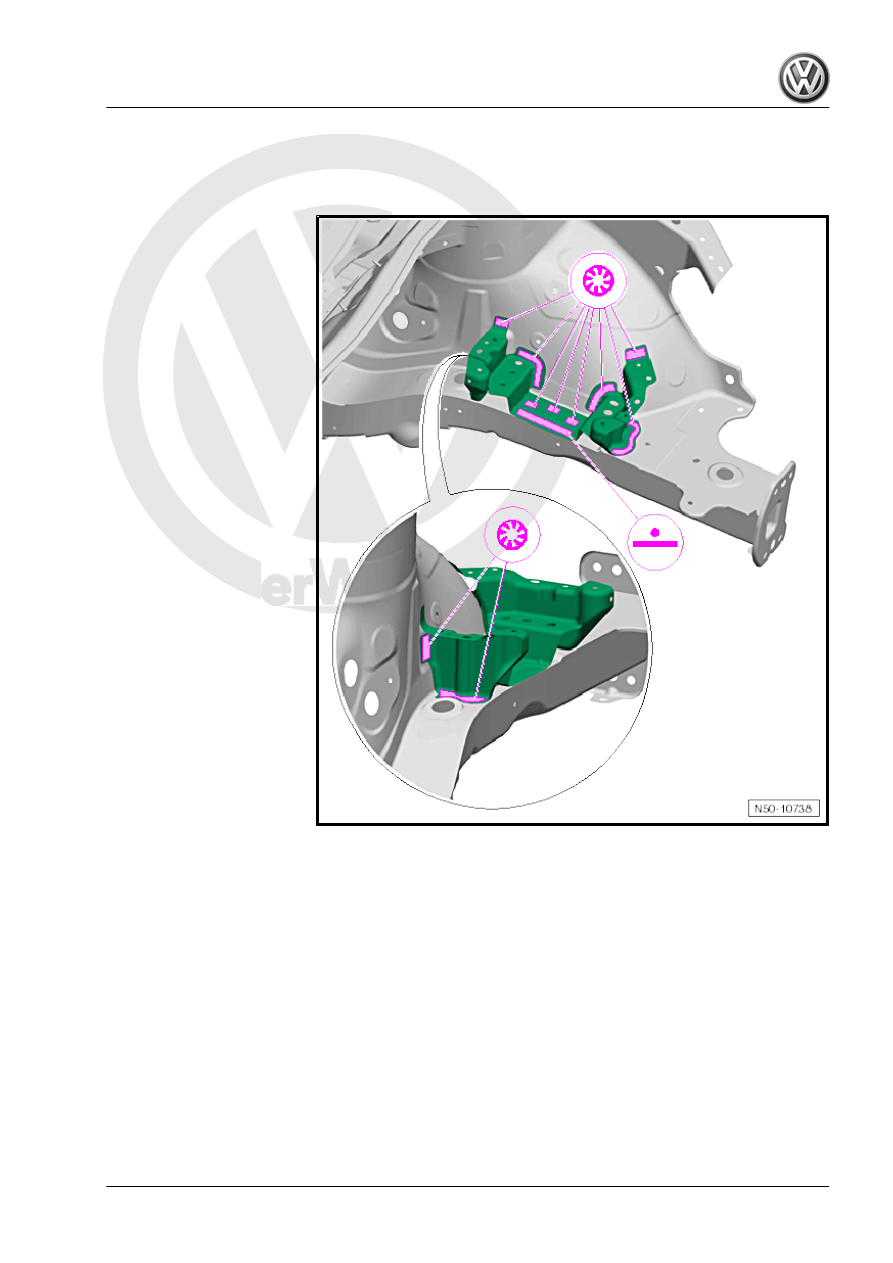

Welding in

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

– Weld in console, SG plug weld seam and RP spot weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

1. Renewing left console

35

2

Renewing right console

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

2.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .
